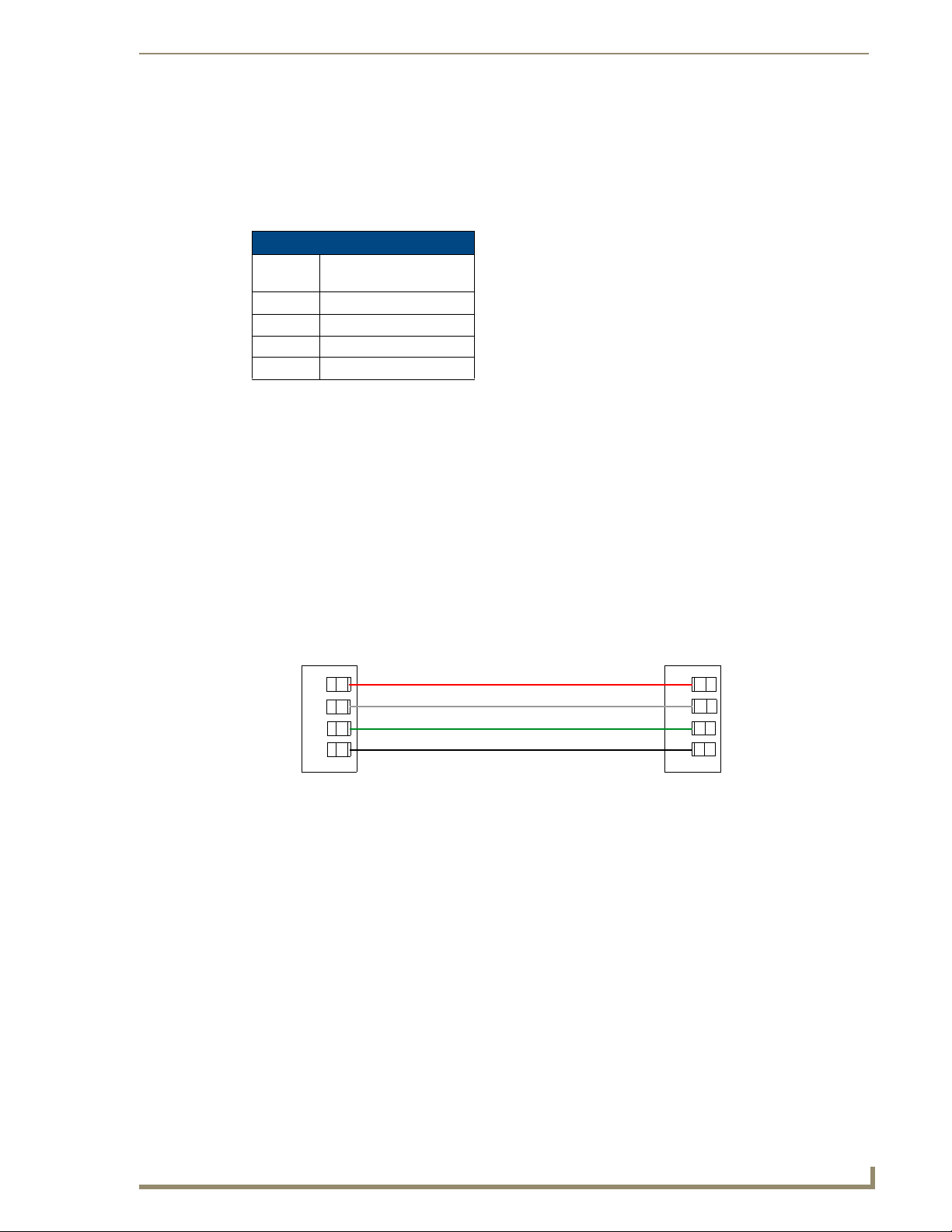

AxLink Data and Power Connections .............................................................................. 9

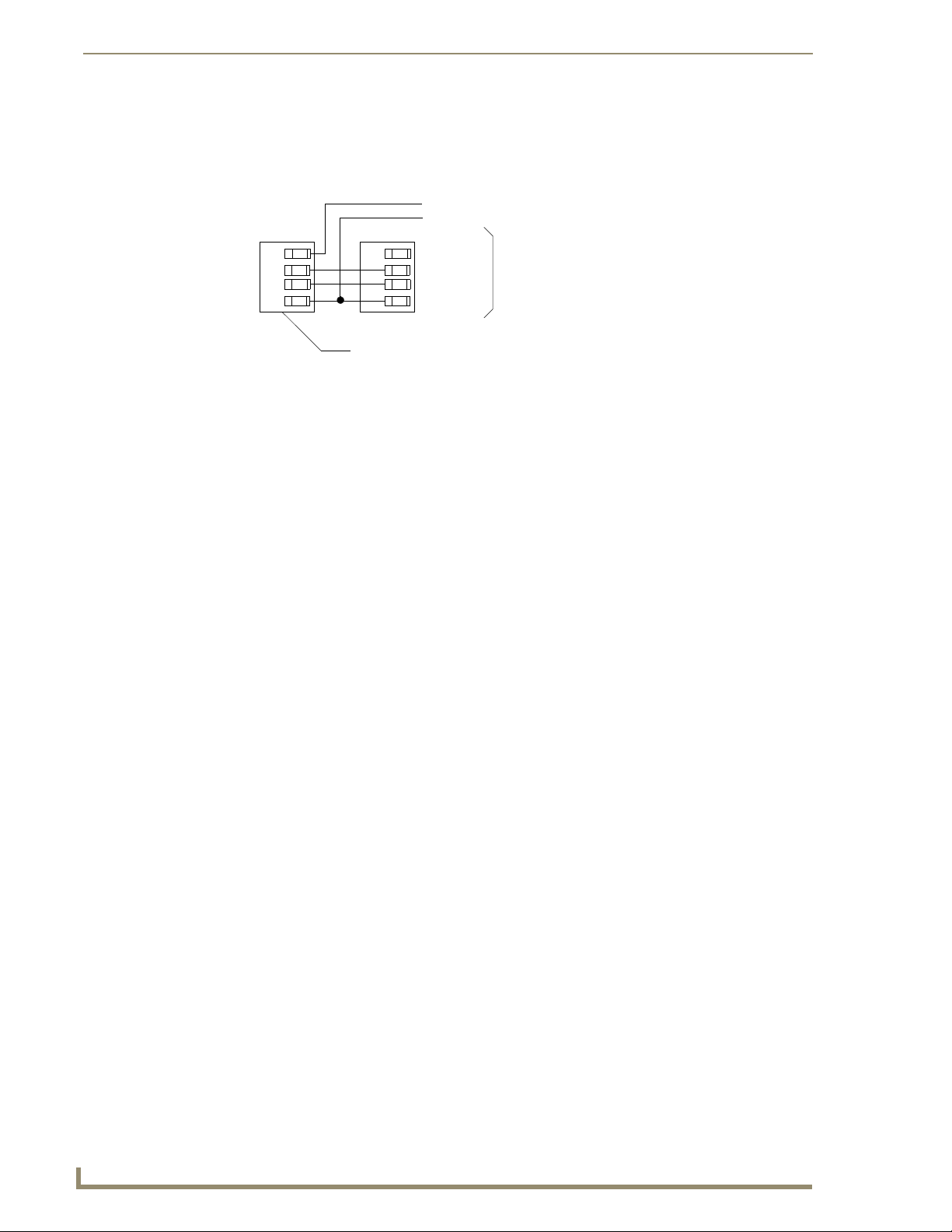

Using AxLink for data with an auxiliary power supply................................................... 10
Mounting Procedures ............................................................................................. 11
Wallbox Mounting......................................................................................................... 12

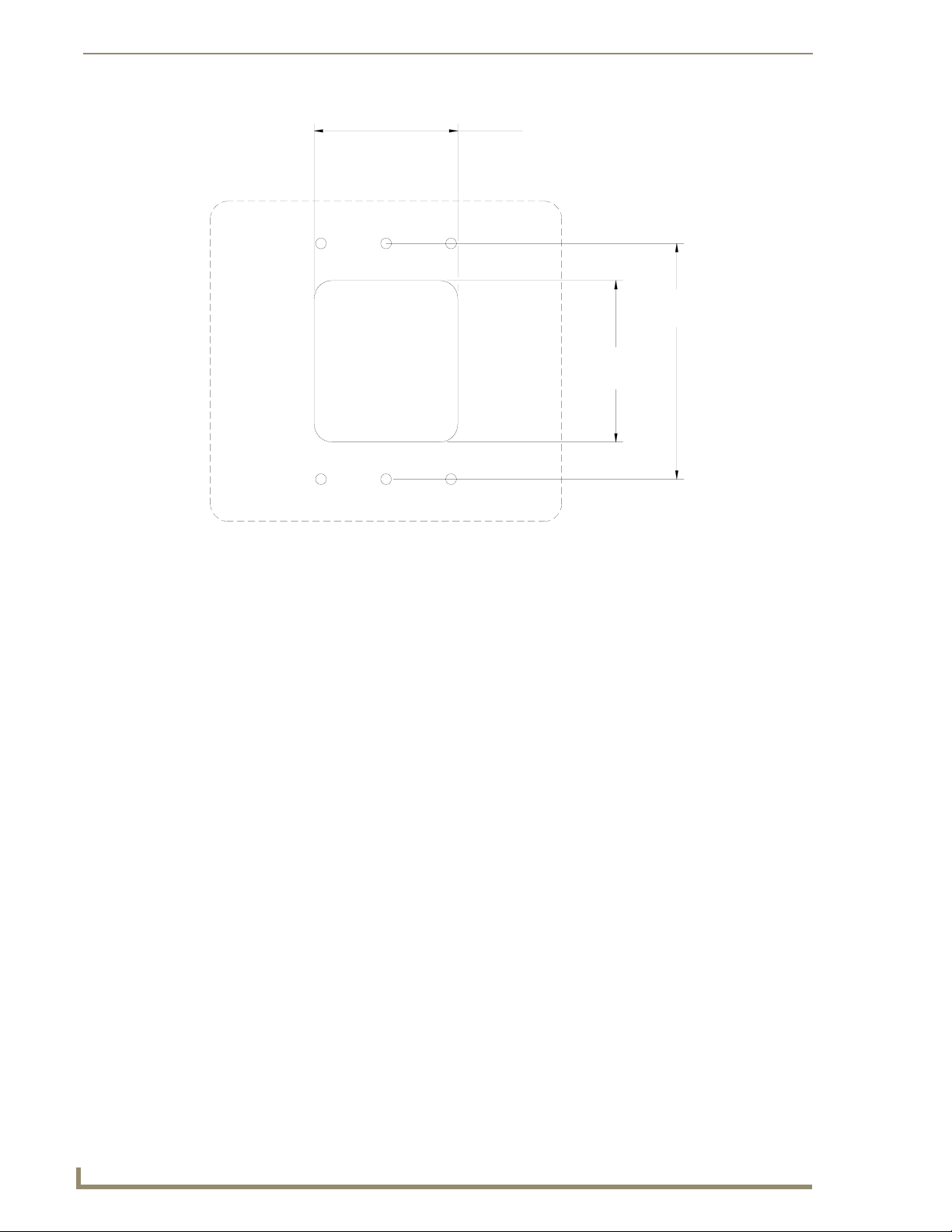

Podium Mounting.......................................................................................................... 13
Accent Frame.......................................................................................................... 14
Mio Modero IR .................................................................................................15
Wiring and Installation ............................................................................................ 16
Setting the AxLink Device Number ............................................................................... 16
Wiring Guidelines.......................................................................................................... 17
AxLink Data and Power Connections ............................................................................ 17
Checking AxLink Status ................................................................................................. 17
Mounting Procedure............................................................................................... 18
Programming The Mio Modero ........................................................................21
KeypadBuilder ........................................................................................................ 21
Recognized SEND_COMMANDs............................................................................. 21
Sending Firmware to The Mio Modero Keypads .................................................... 26
Mio Modero Device Family
i
Table of Contents
ii
Mio Modero Device Family
Overview
The Mio Modero device family provides a wide range of control capabilities in the form of keypads that
are as adept as they are elegant. Each device is available as single style (8 button max) or double style
(16 button max) with an optional LCD capped button. The devices are available as follows:
Mio Modero Device Family
Classic Engraved plastic buttons with a red (active) feedback LED in the upper left corner.
Prestige Clear plastic capped buttons with laser printed inserts; a red (active) feedback LED in the
Elite Painted and engraved plastic buttons, backlit with a blue (inactive) and red (active) feedback;
Mio Modero IR IR receiver capable of accepting both 38kHz and 455kHz frequency bands.
Overview
upper left corner.
available with an LCD button.
White, Single Style Classic; Black, Single Style Prestige; Gray, Double Style Elite with LCD
FIG. 1
Mio Modero Device Family
1
Overview
Specifications
The Mio Modero device family keypad specifications are as follows:
Specifications
Power: 12 vDC, 70 - 230 mA (range depending on device type and number of buttons)
Front Panel Components: • LCD (where applicable) - SPI controlled 96 x 96 pixel resolution, monochrome

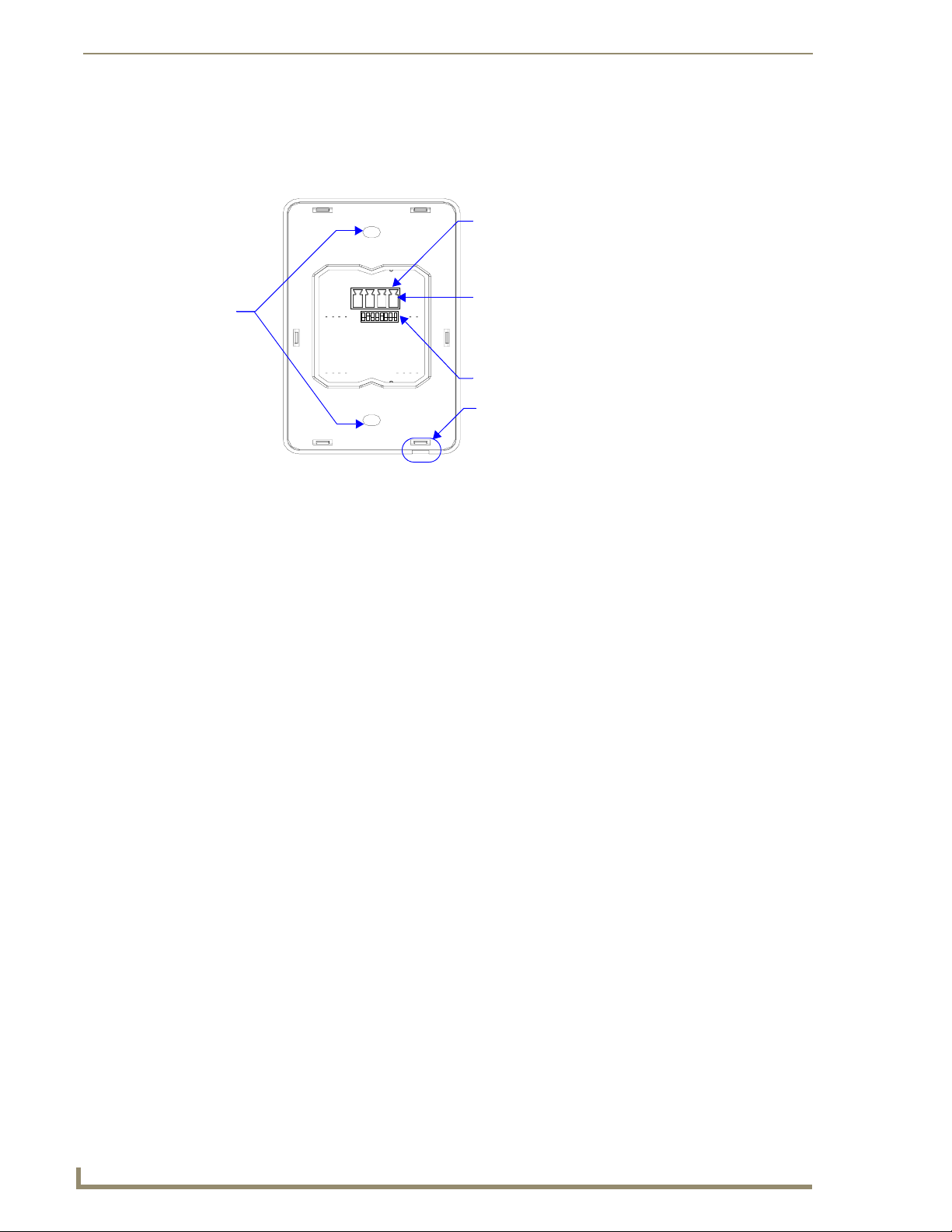

Rear Panel Components: • DIP switch - 8 position mini DIP switch used to set the device address for the
Dimensions (HWD): • Single style - 4.46" x 2.71" x .57" (113.28 mm x 68.83 mm x 14.48 mm)
Supported Languages: • English
Weight (range):
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F)
Mounting: Mounts into US and a majority of International single gang back boxes.
Included Accessories: • Single style mounting kit (KA-5795-01)
Optional Accessories: • Accent Frame (for some larger wallboxes):
FSTN display with a white Electroluminescent backlight; an active button.
• Pushbuttons - a maximum of 8 buttons on the single style and 16 buttons on the
double style. The Classic and Prestige provide a direct LED light.
• LEDs - red and blue backlit buttons indicate activity. Only present in the Elite
devices.
keypad on the AxLink Bus.
• Wiring connection - 4 pin 3.5mm Phoenix AxLink connector.
• Double style - 4.46" x 4.39" x .57" (113.28 mm x 111.51 mm x 14.48 mm)
• Russian
• Spanish
• French
•Italian
•German
• Portuguese
• Arabic
• Mandarin Chinese
.25 lbs (.11 kg) - .50 lbs (.23 kg)
• Storage Temperature: -10° to 70° C (14° to 158° F)
• Double style mounting kit (KA-5795-02)
• Mylar kit (Prestige only) - Sheets of common menu items and icons for creating
inserts for single and double buttons. Available in either black, white, or beige.
(66-5798-01WH, White; 66-5798-01BG, Beige; 66-5798-01BL, Black)
• Phoenix Connector (41-5045)
• Installation Buttons (Elite and Classic only)
Classic and Prestige Colors (xx indicates color selection) - FG5795-08xx
(single button); FG5795-09xx (double button)
Elite Colors (xx indicates color selection) - FG5796-08xx (single button);
FG5796-09xx (double button)
• Custom buttons:
Classic Colors (xx indicats color selection) - FG5795-21xx (4 single buttons);
FG5795-22xx (2 double buttons)
Prestige Colors (xx indicats color selection) - FG5798-05xx (4 single buttons);
FG5798-06xx (2 double buttons)
Elite Colors (xx indicats color selection) - FG5796-21xx (4 single buttons);
FG5796-22xx (2 double buttons)
• Blank buttons:
Classic Colors (xx indicats color selection) - FG5795-07xx
Elite Colors (xx indicats color selection) - FG5796-07xx
• Japanese
• Thai
• Hindi
• Korean
• Hebrew
•Greek
2
Mio Modero Device Family
Overview
Available Color Schemes
The Mio Modero device family is available in a range of colors, and the Elite supports a variety of
Lutron color schemes.
Mio Modero Color Schemes
Mio Modero Classic Black (BL), White (WH), Beige (BG)
Mio Modero Prestige Black (BL), White (WH), Beige (BG)
Mio Modero Elite Black (BL), White (WH), Beige (BG), Almond (AL), Brown (BR), Gray (GR), Ivory
(IV), Light Almond (LA), Taupe (TP), Gold (GL), Silver (SL)
IR Receiver Black (BL), White (WH), Beige (BG)
International Wall Plates Black (BL), White (WH), Beige (BG), Almond (AL), Brown (BR), Gray (GR), Ivory
(IV), Light Almond (LA), Taupe (TP), Gold (GL), Silver (SL)
Mio Modero LCD Feature
The Mio Modero Elite is available with an optional LCD screen. The LCD is a scalable black-and-white
image (SPI) controlled 96 x 96 resolution monochrome FSTN display with a white Electroluminescent
back light. The viewable area of the screen is 25 mm x 25 mm. The LCD displays an 18 pt. font and
supports 4 lines of text. The viewing angle of the LCD is 12 o’clock, allowing for a top down viewing
once mounted to a wall.
The LCD is capable of displaying levels via a bar graph and text over the bar graphs.
Additionally, the LCD has a button cap enabling it to act as a button.
Fixed Menu System
Using the KeypadBuilder application available for download from www.amx.com, the LCD can be
programmed with a Fixed Menu System (FMS) that is navigated via the Mio Modero and its LCD
button. See the KeypadBuilder Instruction Manual for more information on programming Fixed Menu
Systems.
Proximity Detection "People Sensor"
The Mio Modero Elite has an electromagnetic field proximity detector or "People Sensor." A disruption
of the field within 4 to 6 inches will activate the keypad’s backlight.
Mio Modero Device Family
3
Overview
4
Mio Modero Device Family
Installation
Before touching the device, discharge the static electricity from your body by touching
a grounded metal object.
The basic front and rear components of the Mio Modero are as follows:
Installation Button
Slot to pry
button free
AxLink
3.5 mini Phoenix
connector
Installation
Screw
holes
(Front Single)
Screw
holes
PWR+
(Rear Double)
FIG. 2 Mio Modero Front and Rear Components
(Rear Single)
PWR+
8 position mini
DIP switch
Notch to pry
faceplate free
8 position mini
DIP switch
AxLink
3.5 mini Phoenix
connector
Notch to pry
faceplate free
Mio Modero Device Family
5
Loading...
