AMX Mio Modero Device Family User Manual
Operation/Reference Guide
Mio Modero
Device Family
®
Control System Accessories
Last Revised: 12/16/2009
AMX Limited Warranty and Disclaimer
AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from
the date of purchase from AMX, with the following exceptions:
• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch
overlay components that are warranted for a period of one (1) year.
• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one
(1) year.
• AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting
products, as long as the AMX Lighting products are under warranty. AMX does guarantee the control of dimmable
loads that are properly connected to our lighting products. The dimming performance or quality cannot be
guaranteed due to the random combinations of dimmers, lamps and ballasts or transformers.
• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.
• AMX Software is warranted for a period of ninety (90) days.
• Batteries and incandescent lamps are not covered under the warranty.
This warranty extends only to products purchased directly from AMX or an Authorized AMX Dealer.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained
from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is
valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent
with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a
valid RMA number.
AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any
lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a
third party or by an AMX Dealer for a third party.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim
(including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot
be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized
representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will
not apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or
exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of
the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also
have other rights that vary from state to state. The owner is advised to consult applicable state laws for full
determination of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED
WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF
THIS LIMITED WARRANTY.
Table of Contents
Table of Contents
Overview ............................................................................................................1
Specifications............................................................................................................ 1
Available Color Schemes ................................................................................................. 2
Mio Modero LCD Feature ......................................................................................... 3
Fixed Menu System ......................................................................................................... 3
Proximity Detection "People Sensor"....................................................................... 3
Installation ..........................................................................................................5
Changing Buttons ..................................................................................................... 6
Switching Out "Installation" Buttons .............................................................................. 6
Changing Custom Buttons............................................................................................... 6
Mio Modero Prestige ...................................................................................................... 7
Setting The AxLink Device Number .......................................................................... 7
Wiring ....................................................................................................................... 8
Preparing captive wires................................................................................................... 8
Wiring Guidelines............................................................................................................ 8
Connecting the Wiring .................................................................................................... 8
AxLink Data and Power Connections .............................................................................. 9
Using AxLink For Data With an Auxiliary Power Supply .................................................. 9
Mounting Procedures ............................................................................................. 10
Wallbox Mounting......................................................................................................... 10
Podium Mounting.......................................................................................................... 11
Accent Frame.......................................................................................................... 12
Mio Modero IR .................................................................................................13
Wiring and Installation ............................................................................................ 14
Setting the AxLink Device Number ............................................................................... 14
Wiring Guidelines.......................................................................................................... 14
AxLink Data and Power Connections ............................................................................ 15
Checking AxLink Status ................................................................................................. 15
Mounting Procedure............................................................................................... 15
Programming The Mio Modero ........................................................................17
KeypadBuilder ........................................................................................................ 17
SEND_COMMANDs ................................................................................................ 17
@BRT .........................................................................................................................................17
^CFG .........................................................................................................................................18
@CST .........................................................................................................................................18
^FML S ......................................................................................................................................18
^FML D ..................................................................................................................................... 18
^FML D L ...................................................................................................................................19
^FML D L # ...............................................................................................................................19
Mio Modero Device Family
i
Table of Contents
^GLY ......................................................................................................................................... 19
^JST- ......................................................................................................................................... 19
^PRX- ........................................................................................................................................ 20
^SHO ........................................................................................................................................ 20
SLEEP ........................................................................................................................................ 20
@SSL ......................................................................................................................................... 20
@SST ......................................................................................................................................... 20
@SWK ....................................................................................................................................... 21
^TXT- ........................................................................................................................................ 21
^UNI- ........................................................................................................................................ 21
WAKE ....................................................................................................................................... 21
Combining Buttons ................................................................................................. 22
Sending Firmware to The Mio Modero Keypads .................................................... 22
ii
Mio Modero Device Family
Overview
The Mio Modero device family provides a wide range of control capabilities in the form of keypads that are as
adept as they are elegant. Each device is available as single style (8 button max) or double style (16 button
max) with an optional LCD capped button (FIG. 1).
Overview
FIG. 1 White, Single Style Classic; Black, Single Style Prestige; Gray, Double Style Elite with LCD
The devices are available as follows:
Mio Modero Device Family
Classic Engraved plastic buttons with a red (active) feedback LED in the upper left corner.
Prestige Clear plastic capped buttons with laser printed inserts; a red (active) feedback LED in the
upper left corner.
Elite Painted and engraved plastic buttons, backlit with a blue (inactive) and red (active) feedback;
available with an LCD button.
Mio Modero IR IR receiver capable of accepting both 38kHz and 455kHz frequency bands.
Specifications
The Mio Modero device family keypad specifications are as follows:
Specifications
Power: 12 vDC, 70 - 230 mA (range depending on device type and number of buttons)
Front Panel Components: • LCD (where applicable) - SPI controlled 96 x 96 pixel resolution, monochrome
Rear Panel Components: • DIP switch - 8 position mini DIP switch used to set the device address for the
Dimensions (HWD): • Single style - 4.46" x 2.71" x .57" (113.28 mm x 68.83 mm x 14.48 mm)
Supported Languages: • English
FSTN display with a white Electroluminescent backlight; an active button.
• Pushbuttons - a maximum of 8 buttons on the single style and 16 buttons on the
double style. The Classic and Prestige provide a direct LED light.
• LEDs - red and blue backlit buttons indicate activity. Only present in the Elite
devices.
keypad on the AxLink Bus.
• Wiring connection - 4 pin 3.5mm Phoenix AxLink connector.
• Double style - 4.46" x 4.39" x .57" (113.28 mm x 111.51 mm x 14.48 mm)
• Spanish
• French
•Italian
•German
• Portuguese
• Arabic
• Mandarin Chinese
•Russian
• Japanese
• Thai
• Hindi
• Korean
• Hebrew
• Greek
Mio Modero Device Family
1
Overview
Specifications (Cont.)
Weight (range): .25 lbs (.11 kg) - .50 lbs (.23 kg)
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F)
• Storage Temperature: -10° to 70° C (14° to 158° F)
Mounting: Mounts into US and a majority of International single gang back boxes.
Included Accessories: • Single style mounting kit (KA-5795-01)
• Double style mounting kit (KA-5795-02)
• Mylar kit (Prestige only) - Sheets of common menu items and icons for creating
inserts for single and double buttons. Available in either black, white, or beige.
(66-5798-01WH, White; 66-5798-01BG, Beige; 66-5798-01BL, Black)
• Phoenix Connector (41-5045)
• Installation Buttons (Elite and Classic only)
Optional Accessories: • Accent Frame (for some larger wallboxes):
Classic and Prestige Colors (xx indicates color selection) - FG5795-08xx (single
button); FG5795-09xx (double button)
Elite Colors (xx indicates color selection) - FG5796-08xx (single button);
FG5796-09xx (double button)
• Custom buttons:
Classic Colors (xx indicats color selection) - FG5795-21xx (4 single buttons);
FG5795-22xx (2 double buttons)
Prestige Colors (xx indicats color selection) - FG5798-05xx (4 single buttons);
FG5798-06xx (2 double buttons)
Elite Colors (xx indicats color selection) - FG5796-21xx (4 single buttons);
FG5796-22xx (2 double buttons)
• Blank buttons:
Classic Colors (xx indicats color selection) - FG5795-07xx
Elite Colors (xx indicats color selection) - FG5796-07xx
Available Color Schemes
The Mio Modero device family is available in a range of colors, and the Elite supports a variety of Lutron color
schemes.
Mio Modero Color Schemes
Mio Modero Classic Black (BL), White (WH), Beige (BG)
Mio Modero Prestige Black (BL), White (WH), Beige (BG)
Mio Modero Elite Black (BL), White (WH), Beige (BG), Almond (AL), Brown (BR), Gray (GR),
Ivory (IV), Light Almond (LA), Taupe (TP), Gold (GL), Silver (SL)
IR Receiver Black (BL), White (WH), Beige (BG)
International Wall Plates Black (BL), White (WH), Beige (BG), Almond (AL), Brown (BR), Gray (GR),
Ivory (IV), Light Almond (LA), Taupe (TP), Gold (GL), Silver (SL)
2
Mio Modero Device Family
Overview
Mio Modero LCD Feature
The Mio Modero Elite is available with an optional LCD screen. The LCD is a scalable black-and-white image
(SPI) controlled 96 x 96 resolution monochrome FSTN display with a white Electroluminescent back light.
The viewable area of the screen is 25 mm x 25 mm.
The LCD displays an 18 pt. font and supports 4 lines of text.
The viewing angle of the LCD is 12 o’clock, allowing for a top down viewing once mounted to a wall.
The LCD is capable of displaying levels via a bar graph and text over the bar graphs.
Additionally, the LCD has a button cap enabling it to act as a button.
Fixed Menu System
Using the KeypadBuilder application available for download from www.amx.com, the LCD can be
programmed with a Fixed Menu System (FMS) that is navigated via the Mio Modero and its LCD button. See
the KeypadBuilder Instruction Manual for more information on programming Fixed Menu Systems.
Proximity Detection "People Sensor"
The Mio Modero Elite has an electromagnetic field proximity detector or "People Sensor."
A disruption of the field within 4 to 6 inches will activate the keypad’s backlight.
Mio Modero Device Family
3
Overview
4
Mio Modero Device Family
Installation
Before touching the device, discharge the static electricity from your body by touching
a grounded metal object.
The basic front and rear components of the Mio Modero are as follows:
Installation Button
Slot to pry
button free
Installation
AxLink
3.5 mini Phoenix
connector
(Front Single)
Screw
holes
PWR+
Screw
holes
(Rear Single)
PWR+
8 position mini
DIP switch
Notch to pry
faceplate free
8 position mini
DIP switch
AxLink
3.5 mini Phoenix
connector
Notch to pry
faceplate free

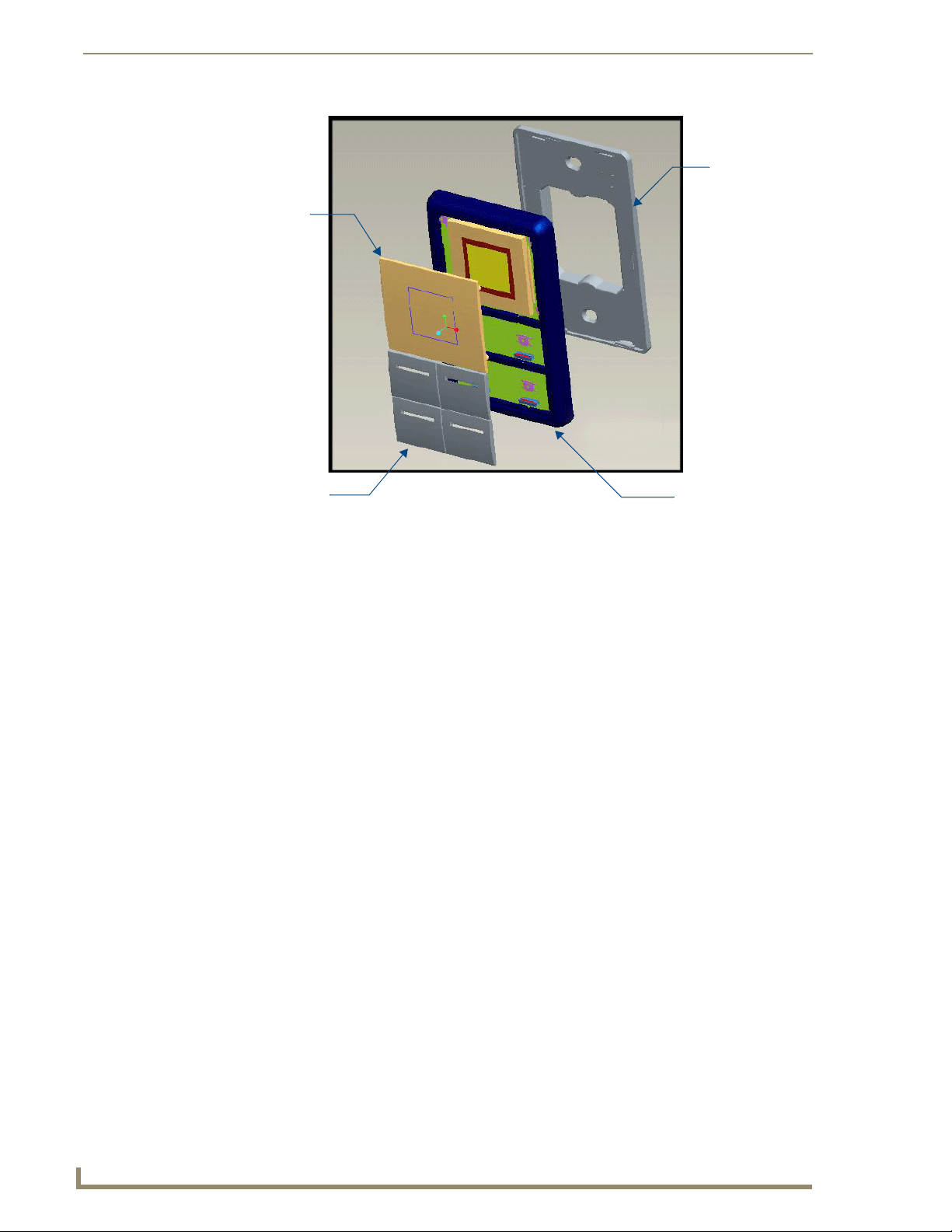

FIG. 2 Mio Modero Front and Rear Components
Mio Modero Device Family
(Rear Double)
5
Loading...
