Amx FG1906-17-EK, FG1906-15-EK Datasheet

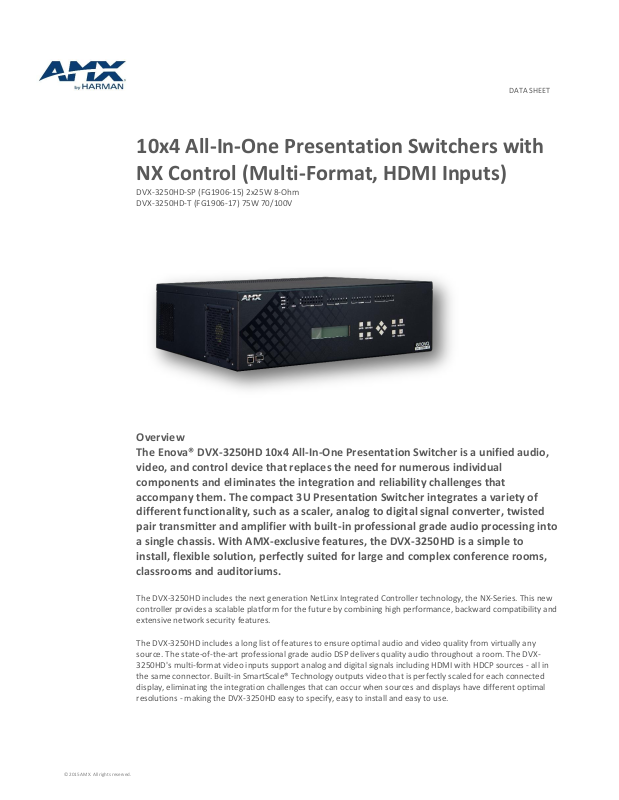

DATA SHEET

10x4 All-In-One Presentation Switchers with

NX Control (Multi-Format, HDMI Inputs)

DVX-3250HD-SP (FG1906-15) 2x25W 8-Ohm
DVX-3250HD-T (FG1906-17) 75W 70/100V

Overview
The Enova® DVX-3250HD 10x4 All-In-One Presentation Switcher is a unified audio,
video, and control device that replaces the need for numerous individual
components and eliminates the integration and reliability challenges that
accompany them. The compact 3U Presentation Switcher integrates a variety of
different functionality, such as a scaler, analog to digital signal converter, twisted
pair transmitter and amplifier with built-in professional grade audio processing into
a single chassis. With AMX-exclusive features, the DVX-3250HD is a simple to
install, flexible solution, perfectly suited for large and complex conference rooms,
classrooms and auditoriums.

The DVX-3250HD includes the next generation NetLinx Integrated Controller technology, the NX-Series. This new
controller provides a scalable platform for the future by combining high performance, backward compatibility and
extensive network security features.

The DVX-3250HD includes a long list of features to ensure optimal audio and video quality from virtually any
source. The state-of-the-art professional grade audio DSP delivers quality audio throughout a room. The DVX­3250HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in
the same connector. Built-in SmartScale® Technology outputs video that is perfectly scaled for each connected
display, eliminating the integration challenges that can occur when sources and displays have different optimal
resolutions - making the DVX-3250HD easy to specify, easy to install and easy to use.

© 2015 AMX. All rights reserved.

2

The Enova DVX's all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to
ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

Common Applications

 The DVX-3250HD is ideal for dramatically simplifying AV control and distribution in medium-sized and large

conference rooms, boardrooms, classrooms, lecture halls and auditoriums.

 The flexible DVX-3250HD is perfect for any complex collaboration space with a mix of analog and digital

sources, multiple displays, or rooms that require support for video conferencing.

 The DVX-3250HD is perfect for any room or facility with space constraints, especially those that lack space in

equipment racks.

Features

 Game Changing Device – Standardizing on this box reduces Total Cost of Ownership
 All-In-One Device – Controller, matrix switcher, scaler, analog to digital converter, amplifier, plus twisted pair

distribution and professional-grade audio DSP – all in a space-saving 3U chassis

 Simplicity & Reliability – Replaces the need for numerous individual components and equipment, ensuring

high reliability and saving on configuring and programming costs

 Low Total Cost of Ownership – With a consistent platform across a variety of sizes, it is easy to standardize

on the DVX and reduce costs for hardware, training, support, troubleshooting and sparing

 Unrivaled Network Security: Dual NIC – The LAN port is used to connect the master to an external network,

and the ICSLAN ports connect to AMX or third-party AV equipment isolated from the primary network,
providing rock-solid security

 IPv6 and wired 802.1x – Supports modern networking standards for internet protocol IPv6 and port-based

Network Access Control utilizing X.509 certificates for access to protected networks

 Optimal Video Image Quality Every Time – Exclusive SmartScale Technology automatically scales the image

to the best resolution and video parameters for each display—even for displays of different information—
without manual setup, eliminating the need for costly external scalers

 Crystal Clear Audio – Includes an integrated digital signal processor with advanced capabilities like

independent 10-band parametric EQ, independent input gain adjustments and variable compression, allow
precision tuning to match unique source and room attributes

 Audio Breakaway – Stereo audio from any analog input or de-embedded from any HDMI input can be

broken away from its associated video, processed through the DSP, and switched independently to any
analog, HDMI or S/PDIF audio output

 Audio Matrix Switching – Four independently switched and processed audio paths provide four unique

volume, EQ, ducking and mixing configurations for perfectly tuned room audio as well as integration with
audio/video conferencing, induction loop systems, voice re-enforcement speakers and audio recording
devices

 Enhanced Microphone Processing – Independent 3-band parametric EQ, compression, gating, auto-ducking,

and limiting on each microphone input ensures crystal clear communication

 Matrix Switching – Freely route any input to any or all outputs without blocking - 10x4 video switcher and

14x4 audio switcher with audio breakaway

 AV and Control Over Twisted Pair – Send audio, video, bi-directional control and Ethernet up to 100m over

one standard twisted pair cable

 HDMI/HDCP Switching with Simplicity of Analog – End-to-end distribution of HDMI/HDCP without

interruption or key constraints using exclusive InstaGate Pro® Technology

 Multi-Format Ports – Built for analog signals - RGBHV, Component, S-Video, and Composite, and digital

HDMI/HDCP and DVI signals - all on the same connector

 Enhanced Diagnostics On Serial & IR Ports – Provides real time error feedback when Serial and IR ports are

disconnected or improperly wired

 3D Support – Pass through latest video formats including 3D and Deep Color
 DXLink™ Twisted Pair Outputs – Send audio, video, bi-directional control, and Ethernet DXLink HDMI

Receivers up to 100m away over one twisted pair cable - for more details and helpful cabling information,
reference the white paper titled Cabling for Success with DXLink, or contact your AMX representative

 Saves Energy – Includes features that dramatically reduce energy utilization. Use the interactive DVX Energy

Savings Calculator to estimate savings for your particular configuration

3

Specifications

GENERAL

Enclosure

Metal with black matte finish

Dimensions (HWD)

5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)

Weight

18.2 lb. (8.26 Kg)

Certifications

FCC Part 15 Class A
CE EN 55022
CE EN 55024
CE EN 60065
IEC 60065
IC CISPR 22 Class A
C-Tick CISPR 22 Class A
LVD EN 60950-1
UL 60065
RoHS
WEEE

Included Accessories

•(1) Power Cord, Universal

•(1) Commoning Strip, Cypher, 8 Pos., 3.5 mm, Pheonix

Connector

•(2) Front Rack Mounting Brackets

•(8) #8-32 x .375 Screws

•(4) Rubber feet

•(2) CC-NIRC IR Emitter with 3.5 mm Phoenix

Connector (FG10-000-11)

•(1) CC-DVIM-VGAF, DVI to HD-15 Female Adapter
(FG10-2170-13)

Optional Accessories

•CC-DVI-5BNCM, DVI to 5 BNC Male Cable (FG10­2170-08)

•CC-DVI-RCA3M, DVI to 3 RCA Male Cable (FG10­2170-09)

•CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10­2170-13)

•CC-DVI-SVID, DVI to S-Video Cable (FG10-2170-10)

•CC-3.5ST5-RCA2F, 5-pin 3.5mm Phoenix to 2 RCA

Female Cable (FG10-003-20)

•DX-RX, DXLink HDMI Receiver Module (FG1010-500)

•EXB-IRS4, ICSLan IR/S Interface, 4 IR/S and 4 Inputs

(FG2100-23)

•EXB-COM2, ICSLan Serial Interface, 2 Ports (FG2100-

22)

•EXB-REL8, ICSLan Relay Interface, 8 Channels
(FG2100-20)

•EXB-I/O8, ICSLan Input/Output Interface, 8 Channels
(FG2100-21)

•EXB-MP1, ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1
IR RX (FG2100-26)

•CBL-HDMI-FL HDMI, High Speed Flat Cable with
RedMere® Technology (FG10-2180-16)

•CBL-DP-FL, DisplayPort High Speed Flat Cable with
RedMere Technology (FG10-2181-16)

•CBL-ETH-FL, Ethernet Cat5e Flat Cable (FG10-2182-

16)

•CBL-RGB+A-FL RGB with Audio Flat Cable (FG10­2183-16)

ACTIVE POWER REQUIREMENTS

Power Consumption

90 Watts typical without amplifier

4

95 to 100 Watts typical average with amplifier
30 Watts typical in low-power mode

Power Connector

IEC Power Cord Connector
100-240 VAC
47-63 Hz

Power Factor Correction (PFC)

Supported, complies with N60555-2 and EN61000­3-2

ENVIRONMENTAL

Temperature (Operating)

0° C to 40° C (32° F to 104° F)

Temperature (Storage)

-10° C to 70° C (14° F to 158° F)

Humidity (Operating)

5% to 85% RH

Heat Dissipation (Typical)

300 BTU/hr

Heat Dissipation (Standby)

100 BTU/hr

ETHERNET

Connection

(1) RJ-45

Description

10/100 Port RJ-45 connector provides TCP/IP
communication. Auto MDI/MDI-X enabled. Supports
IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet,
FTP

Link/Act Indicator

Link/Activity LED (green) blinks when receiving
Ethernet data packets, one on Ethernet RJ-45
connector and one on the front panel

Speed Indicator

Speed LED (yellow) lights On when the connection
speed is 100 Mbps Ethernet connection and turns OFF
when the speed is 10 Mbps

INTEGRATED AMPLIFIER

Integrated Amplifier

DVX-3250HD-SP: 2 x 25 W RMS into 8 Ohms Class D
stereo amplifier (4-ohm stable)
DVX-3250HD-T: 75 W, 70 V / 100 V mono amplifier

ICSLAN

ICSLan Connection

(1) RJ-45, 10/100 Port RJ-45 connector. Auto
MDI/MDI-X enabled. Supports IPv4 and IPv6 networks.
Supports HTTP, HTTPS, Telnet, FTP

ICSLan Link/Active Indicator

ICSLan LED (green) blinks when receiving Ethernet data
packets, one on Ethernet RJ-45 connector and one on
the front panel

ICSLan Speed Indicator

Speed LED (yellow) lights On when the connection
speed is 100 Mbps Ethernet connection and turns OFF
when the speed is 10 Mbps

ONBOARD MASTER

Controller

Integrated Controller is the equivalent of a NetLink NX­3200 Integrated Controller

Memory

•NVRAM: 1 MB

•Memory Card: 16 GB SD

•DDRAM: 1 GB

•Note: Supports external USB Solid State Drive

Processor

1600 MIPS

Program Port

(1) USB Standard B

Configuration Dip Switch

4-Position
