AMX DVX-2150HD-T, DVX-3155HD-T, DVX-3150HD-T, DVX-2155HD-SP, DVX-3155HD-SP Instruction Manual

...

INSTRUCTION MANUAL

ENOVA DVX-315XHD/21XXHD ALL-IN-ONE PRESENTATION SWITCHERS

DVX-3150HD-SP, DVX-3150HD-T, DVX-3155HD-SP, DVX-3155HD-T, DVX-3156HD-SP, DVX-3156HD-T, DVX-2150HD-SP, DVX-2150HD-T, DVX-2155HD-SP, DVX-2155HD-T, DVX-2110HD-SP, DVX-2110HD-T

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not f it into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the manufacturer.

12. USE ONLY with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.

17. Where the mains plug or an appliance coupler is used as the disconn ect device, the disconnect device sh all rema in readily operable.

18. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suff icient magnitude to constitute a risk of electrical shock to persons.

ESD Warning: The icon to the left indicates text regarding potential danger associated with the discharge of static electricity from an outside source (such as human hands) into an integrated circuit, often resulting in damage to the circuit.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources - such as candles - should be placed on the product.

WARNING: Equipment shall be connected to a MAINS socket outlet with a protective earthing connection.

WARNING: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.

AMX© 2015, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed extends to AMX hardware and software and includes all forms and matters copyrightable material and information now allowed by statutory or judicial law or herein after granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen display looks, etc. Reproduction or disassembly of embodied computer programs or algorithms is expressly prohibited.

LIABILITY NOTICE

No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this publication, AMX assumes no responsibility for error or omissions. No liability is assumed for damages resulting from the use of the information contained herein. Further, this publication and features described herein are subject to change without notice.

AMX WARRANTY AND RETURN POLICY

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

ESD WARNING

To avoid ESD (Electrostatic Discharge) damage to sensitive components, make sure you are properly grounded before touching any internal materials.

When working with any equipment manufactured with electronic devices, proper ESD grounding procedures must be followed to make sure people, products, and tools are as free of static charges as possible. Grounding straps, conductive smocks, and conductive work mats are specifically designed for this purpose. These items should not be manufactured locally, since they are generally composed of highly resistive conductive materials to safely drain static discharges, without increasing an electrocution risk in the event of an accident.

Anyone performing f ield maintenance on AMX equipment should use an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Place the equipment near a main power supply ou tlet and make sure that you can easily access the power breaker switch.

WARNING: This product is intended to be operated ONLY from the voltages listed on the back panel or the recommended, or included, power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

FCC AND CANADA EMC COMPLIANCE INFORMATION:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

CAN ICES-3 (B)/NMB-3(B)

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union WEEE (recast) Directive 2012/19/EU.

This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by visiting http://www.amx.com/techcenter/certifications.asp.

WEEE NOTICE:

This appliance is labeled in accordance with European Directive 2012/19/EU concerning waste of electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

This device is designed and evaluated under the condition of non-tropical climate; it can only be used in locations in non-tropical climate areas. Using the device in tropical climate areas could result in a potential safety hazard.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

This device is designed and evaluated under the condition of altitude below 2000 meters above sea level; it can only be used in locations below 2000 meters above sea level. Using the device above 2000 meters could result in a potential safety hazard.

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Table of Contents

Overview ..........................................................................................................12

Common Application ...................................................................................................... 12

Audio Processing............................................................................................................ 12

Integrated Control ......................................................................................................... 13

Enova 315x All-in-One Presentation Switchers ..............................................14

DVX-3150HD/3155HD/3156HD ..................................................................................... 14

Specifications ................................................................................................................. 14

Enova 21xx All-in-One Presentation Switchers ..............................................17

DVX-2150HD/2155HD/2110HD..................................................................................... 17

Specifications ................................................................................................................. 17

Installation ......................................................................................................21

Overview ......................................................................................................................... 21

Mounting the DVX into an Equipment Rack.................................................................... 21

Ventilation............................................................................................................................................. 21

Wiring and Device Connections ......................................................................22

Overview .......................................................................................................................... 22

Front Panel Controls and Indicators............................................................................... 25

LEDs ...................................................................................................................................................... 25

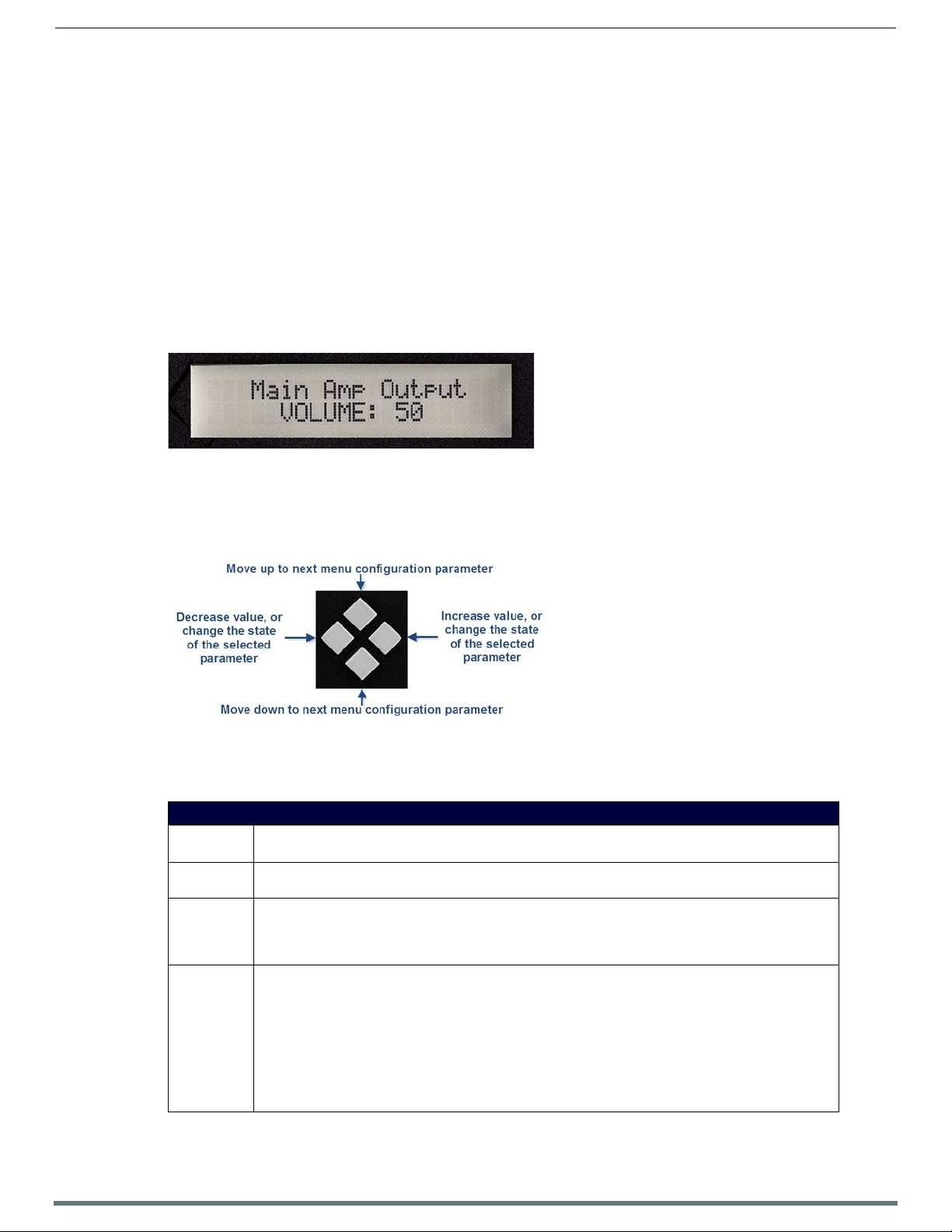

LCD Display ........................................................................................................................................... 25

SWITCH Pushbutton ............................................................................................................................. 26

TAKE Pushbutton .................................................................................................................................. 26

VIDEO MENU Pushbutton ...................................................................................................................... 26

AUDIO MENU Pushbutton ..................................................................................................................... 26

Navigation Pushbuttons ....................................................................................................................... 27

STATUS Pushbutton ............................................................................................................................. 27

EXIT Pushbutton................................................................................................................................... 27

VIDEO/AUDIO MUTE Pushbuttons ........................................................................................................ 28

Rear Panel Audio Inputs and Outputs............................................................................. 28

AUDIO INPUTS ...................................................................................................................................... 28

HDMI INPUTS........................................................................................................................................ 28

AUDIO INPUTS ...................................................................................................................................... 29

MIC INPUTS .......................................................................................................................................... 30

AMP OUT ............................................................................................................................................... 31

AUDIO OUTPUTS ................................................................................................................................... 31

S/PDIF OUTPUT .................................................................................................................................... 32

Rear Panel Video Inputs and Outputs ............................................................................. 32

MULTI-FORMAT VIDEO INPUTS ............................................................................................................ 32

HDMI INPUTS........................................................................................................................................ 34

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

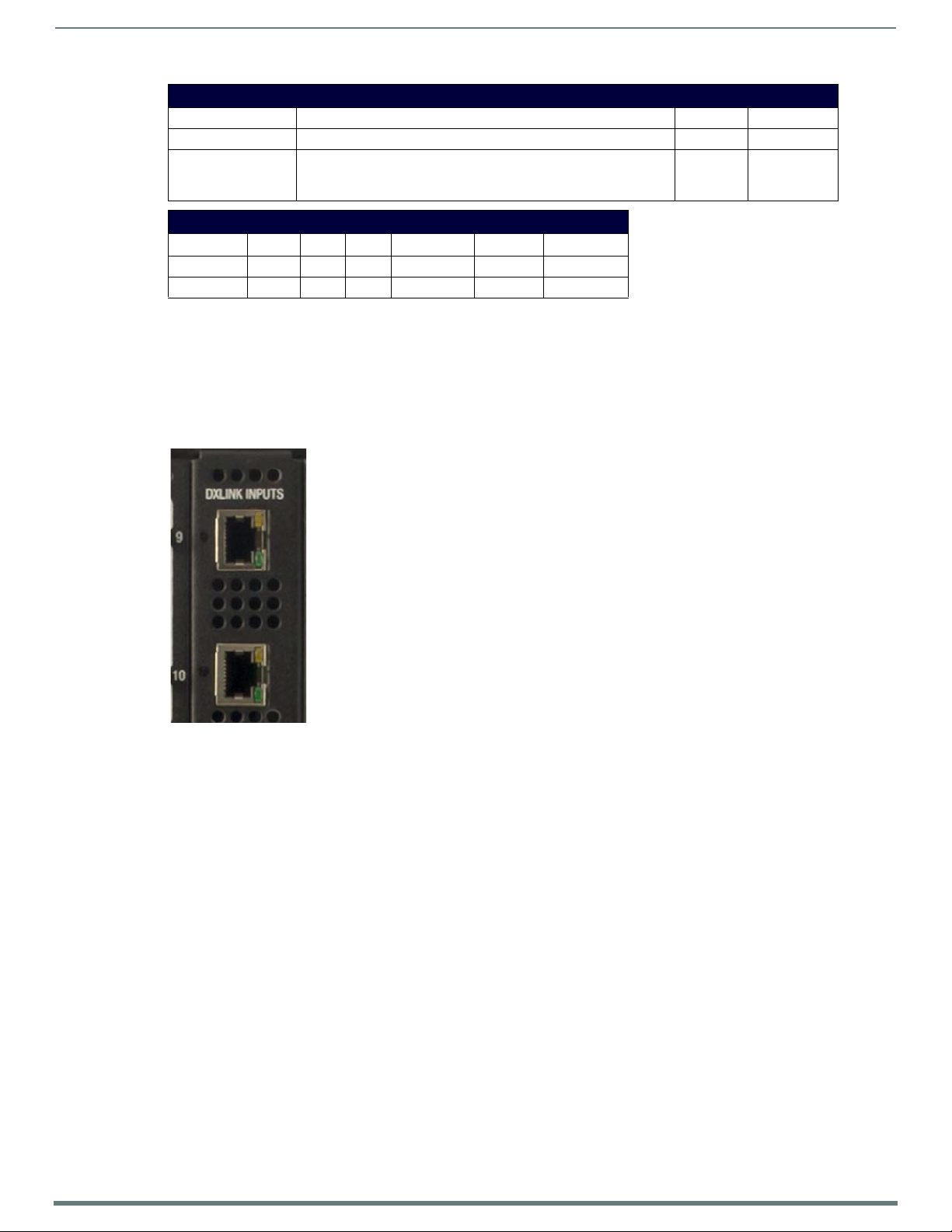

DXLink INPUTS...................................................................................................................................... 35

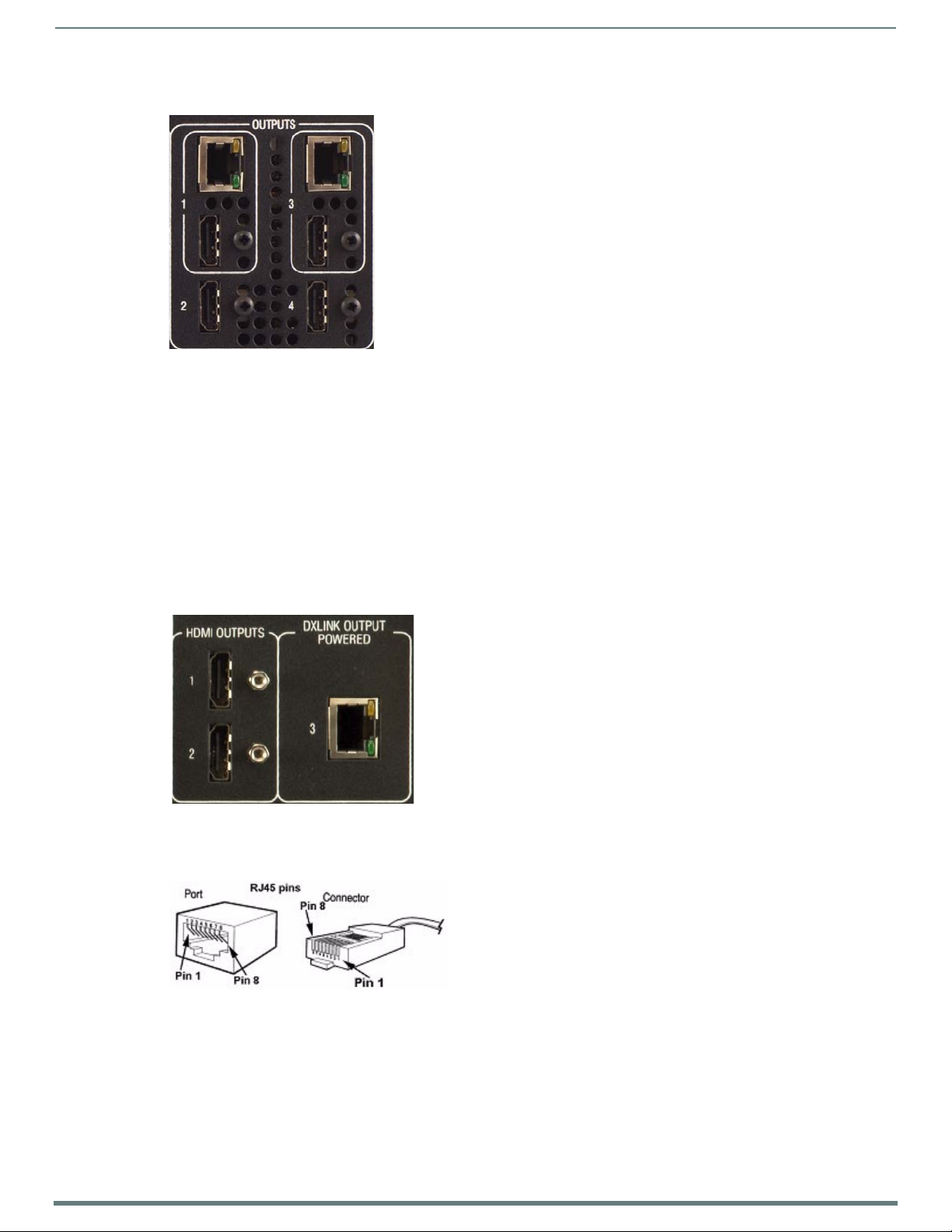

VIDEO OUTPUTS.................................................................................................................................... 35

315x Video Outputs ............................................................................................................................................ 35

21xx Video Outputs............................................................................................................................................. 36

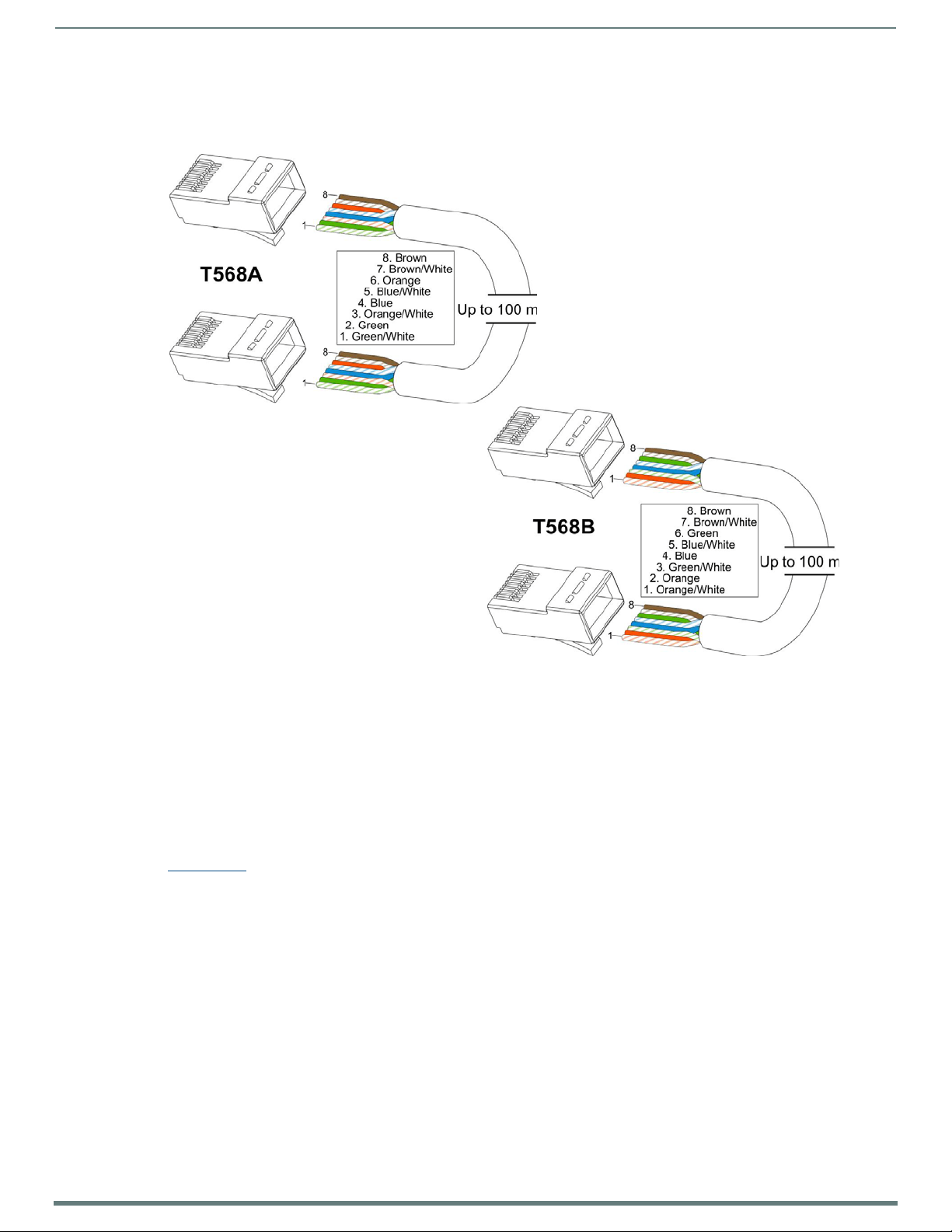

Twisted Pair Cable Pinouts ................................................................................................................... 37

Important Twisted Pair Cabling Requirements and Recommendations.............................................. 37

Rear Panel Control and Power ........................................................................................ 38

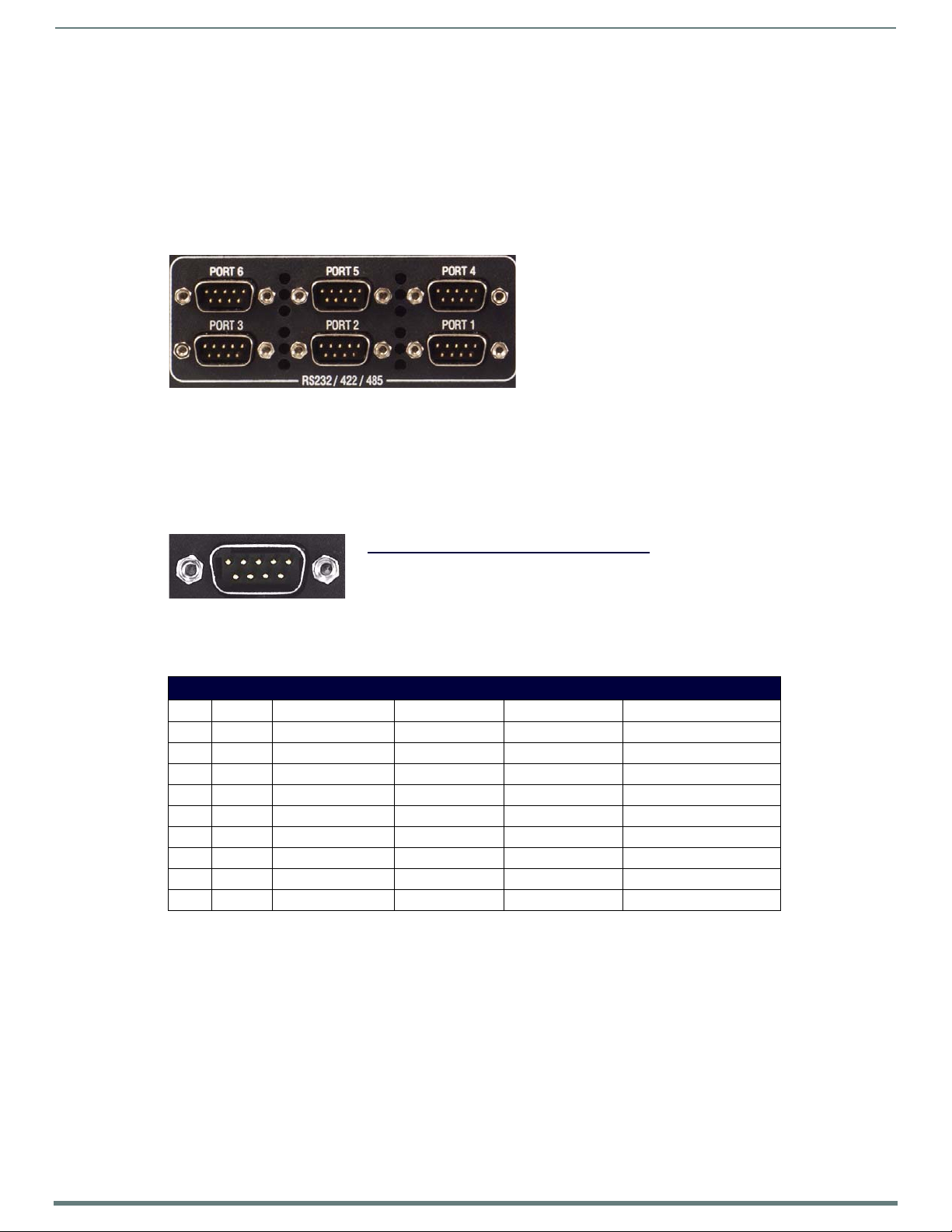

RS232/422/485 Serial Port Connectors .............................................................................................. 38

RELAYS .................................................................................................................................................. 39

I/O......................................................................................................................................................... 39

IR/SERIAL ............................................................................................................................................. 40

CONFIG DIP Switch ............................................................................................................................... 41

Baud Rate Settings ............................................................................................................................... 41

Program Run Disable (PRD) Mode ........................................................................................................ 41

PROGRAM Port ...................................................................................................................................... 42

ID Pushbutton....................................................................................................................................... 42

LAN (RJ-45)........................................................................................................................................... 42

AxLink Port and LED (4-pin captive-wire) ............................................................................................ 43

Power Connector/Switch/Fuse ............................................................................................................ 44

Cable Details and Pinout Information .............................................................45

Overview ......................................................................................................................... 45

DVI-D Male to DVI-D Male Single-Link Cable.................................................................. 46

DVI-to-DVI Cable Pinout Information................................................................................................... 46

DVI-A Male to 5-BNC Male Cable .................................................................................... 47

DVI-to-5-BNC Cable Pinout Information .............................................................................................. 47

DVI-A Male to Triple RCA Male Cable ............................................................................. 48

DVI-to-Triple RCA Cable Pinout Information ....................................................................................... 48

DVI-A Male to S-Video Male Cable.................................................................................. 49

DVI-to-S-Video Cable Pinout Information............................................................................................ 49

DVI-A Male to HD15 (VGA) Male Adapter....................................................................... 50

DVI-to-VGA Cable Pinout Information.................................................................................................. 50

HDMI Male to DVI-D Male Cable ..................................................................................... 51

HDMI-to-DVI-D Cable Pinout Information ............................................................................................ 51

Audio/Video Configuration .............................................................................52

Overview .......................................................................................................................... 52

Using the Front Panel Buttons ........................................................................................ 52

Video Settings....................................................................................................................................... 52

Setting the Video Type for a Video Input ............................................................................................. 54

Changing the Video Output Resolution ................................................................................................ 54

Changing the Output Aspect Ratio ....................................................................................................... 54

Selecting a Video Test Pattern ............................................................................................................. 55

Audio Settings ...................................................................................................................................... 55

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Microphone Settings............................................................................................................................. 56

Selecting an Audio Test Tone ............................................................................................................... 56

Switch Menu.......................................................................................................................................... 57

Status Menu .......................................................................................................................................... 57

DVX WebConsole ............................................................................................................. 58

Accessing the WebConsole .................................................................................................................. 58

Master Controller Configuration Options........................................................................ 59

WebConsole - Master Configuration Manager ..................................................................................... 59

Master Configuration Manager - Additional Documentation ............................................................... 59

Using a Web Browser ...................................................................................................... 59

Locating the IP Address of the DVX ...................................................................................................... 60

General Options.............................................................................................................. 60

Video Settings ................................................................................................................ 61

Video Out............................................................................................................................................... 61

Uploading an Image File....................................................................................................................... 62

Video In................................................................................................................................................. 62

Audio Settings ................................................................................................................ 64

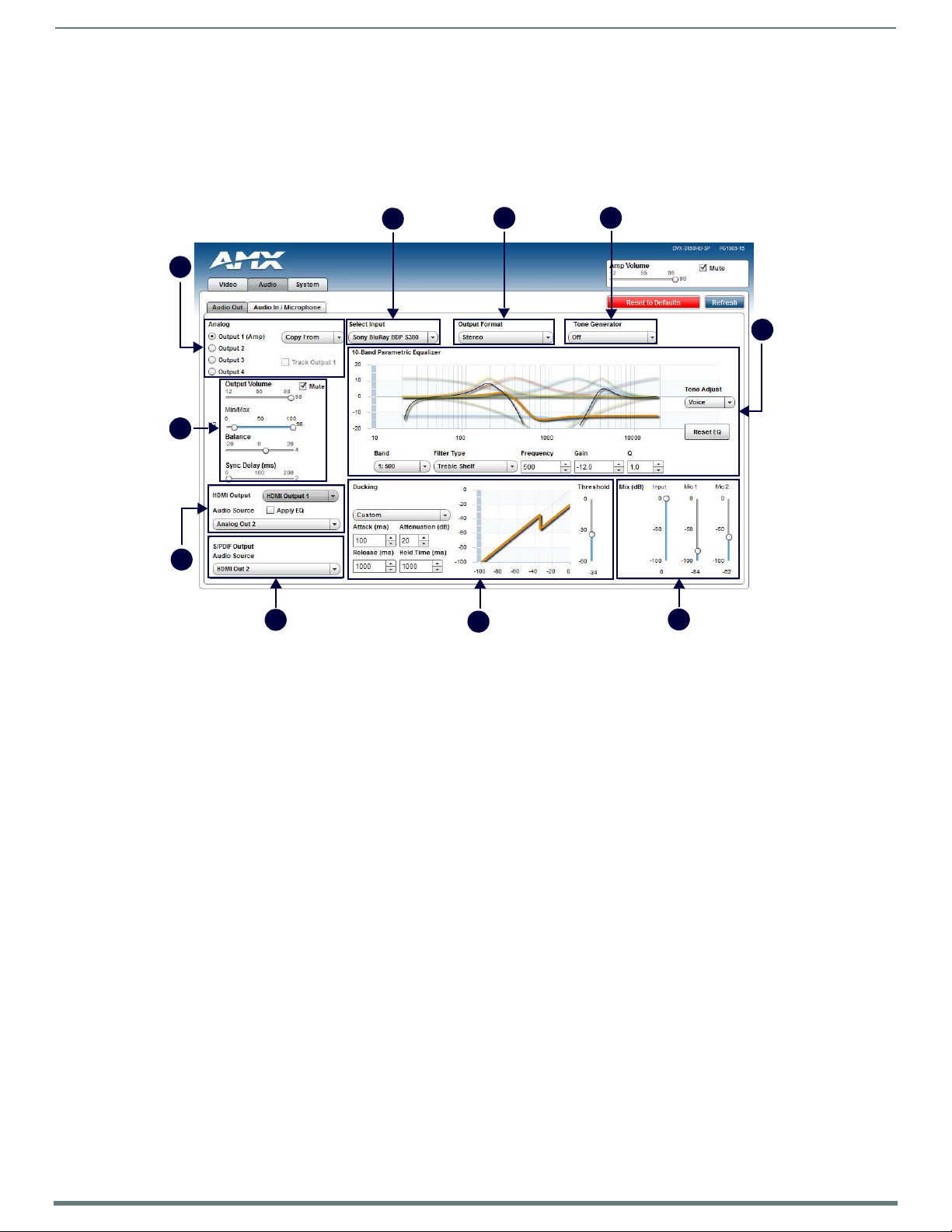

Audio Out .............................................................................................................................................. 64

Audio In/Microphone ........................................................................................................................... 65

Setting Up Surround Audio................................................................................................................... 67

Embedding Audio on an HDMI Output.................................................................................................. 67

Mixing Microphones onto Analog and HDMI Outputs .......................................................................... 67

System Settings............................................................................................................... 68

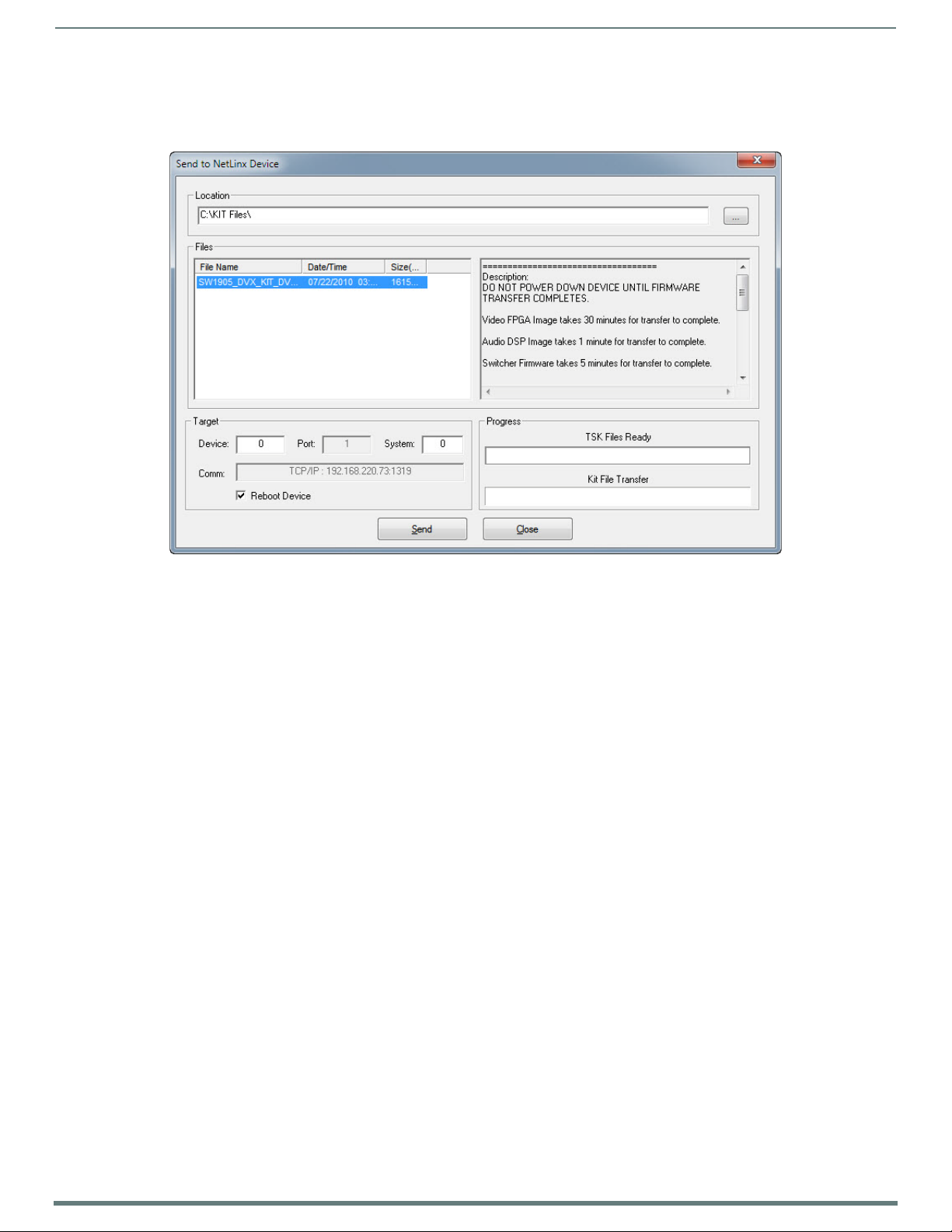

NetLinx Firmware Upgrades ...........................................................................69

Overview .......................................................................................................................... 69

Before You Start .............................................................................................................. 69

Verifying the Current Firmware Version ......................................................................... 69

Downloading the Latest Firmware Files from www.amx.com ........................................ 70

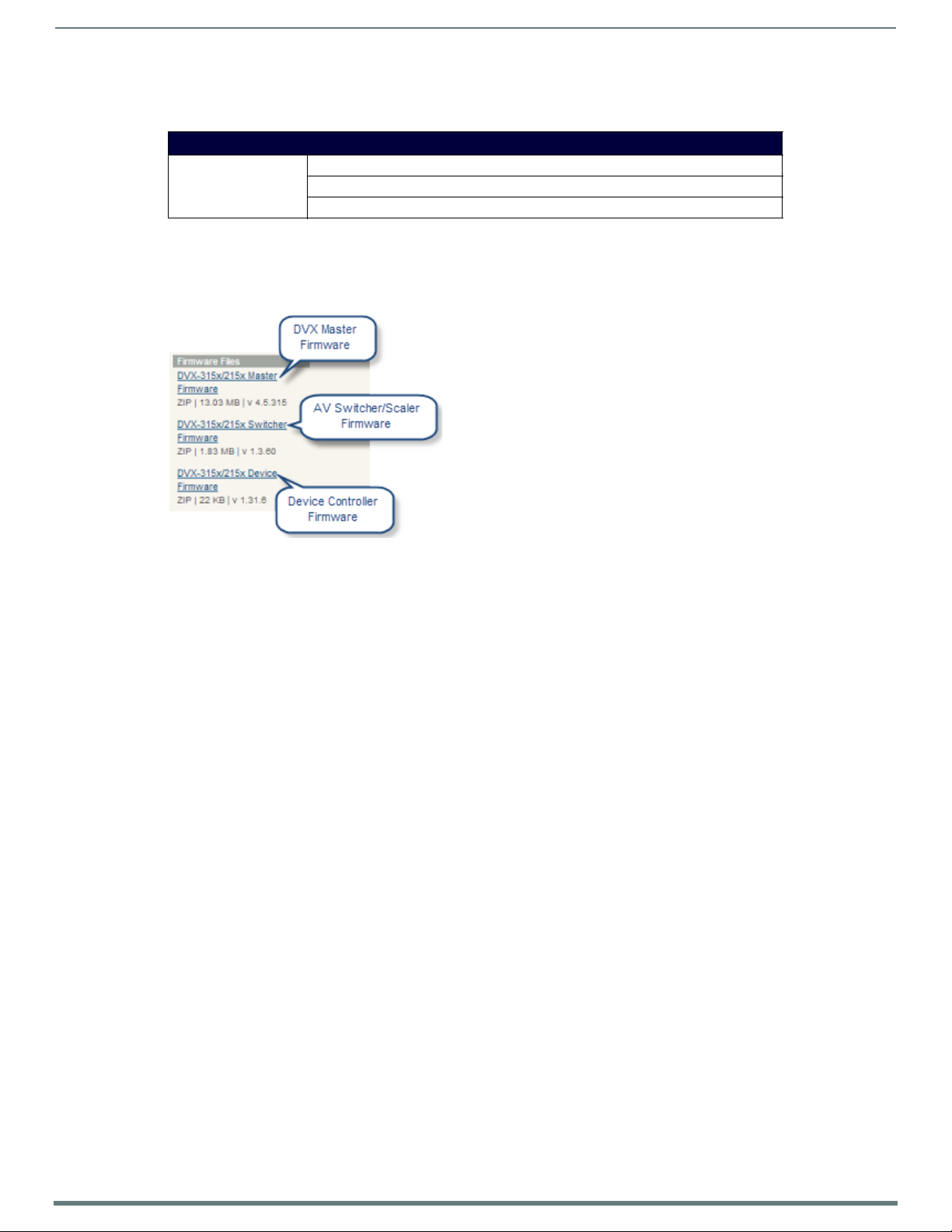

Downloading Enova DVX Firmware Files on www.amx.com................................................................. 70

Required Order of Firmware Updates for DVX Controllers................................................................... 70

Sending Firmware (*.KIT) Files to the DVX .................................................................... 71

Additional Documentation .................................................................................................................... 72

Programming ..................................................................................................73

Overview ......................................................................................................................... 73

NetLinx Channels and Levels.......................................................................................... 74

DVX-315x NetLinx Channels ................................................................................................................. 74

DVX-21xx NetLinx Channels ................................................................................................................. 75

Channel Video Switching.................................................................................................................................... 76

Standby Mode ..................................................................................................................................................... 76

DVX-315x NetLinx Levels ...................................................................................................................... 77

DVX-21xx NetLinx Levels ...................................................................................................................... 78

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

SEND_COMMANDS .......................................................................................................... 79

AUDIO SEND_COMMANDs............................................................................................... 80

AI<input>O<output>............................................................................................................................................................ 80

?AUDIN_COMPRESSION ........................................................................................................................................................ 80

AUDIN_COMPRESSION .......................................................................................................................................................... 80

?AUDIN_COMPRESSION_ATTACK ......................................................................................................................................... 80

AUDIN_COMPRESSION_ATTACK ........................................................................................................................................... 80

?AUDIN_COMPRESSION_RATIO ............................................................................................................................................ 80

AUDIN_COMPRESSION_RATIO .............................................................................................................................................. 80

?AUDIN_COMPRESSION_RELEASE ........................................................................................................................................ 81

AUDIN_COMPRESSION_RELEASE .......................................................................................................................................... 81

?AUDIN_COMPRESSION_THRESH ......................................................................................................................................... 81

AUDIN_COMPRESSION_THRESH ........................................................................................................................................... 81

?AUDIN_DIGITAL................................................................................................................................................................... 81

AUDIN_DIGITAL..................................................................................................................................................................... 81

?AUDIN_GAIN........................................................................................................................................................................ 81

AUDIN_GAIN.......................................................................................................................................................................... 81

?AUDIN_STEREO..................................................................................................................................................................... 82

AUDIN_STEREO....................................................................................................................................................................... 82

?AUDIO_MUTE ........................................................................................................................................................................ 82

AUDIO_MUTE .......................................................................................................................................................................... 82

?AUDMIC_COMPRESSION....................................................................................................................................................... 82

AUDMIC_COMPRESSION ........................................................................................................................................................ 82

?AUDMIC_COMPRESSION_ATTACK........................................................................................................................................ 82

AUDMIC_COMPRESSION_ATTACK ......................................................................................................................................... 82

?AUDMIC_COMPRESSION_RATIO .......................................................................................................................................... 82

AUDMIC_COMPRESSION_RATIO ............................................................................................................................................ 83

?AUDMIC_COMPRESSION_RELEASE....................................................................................................................................... 83

AUDMIC_COMPRESSION_RELEASE ........................................................................................................................................ 83

?AUDMIC_COMPRESSION_THRESH........................................................................................................................................ 83

AUDMIC_COMPRESSION_THRESH ......................................................................................................................................... 83

AUDMIC_DUCK_ATTACK ........................................................................................................................................................ 83

AUDMIC_DUCK_HOLD............................................................................................................................................................. 83

AUDMIC_DUCK_LEVEL ........................................................................................................................................................... 84

AUDMIC_DUCK_RELEASE ...................................................................................................................................................... 84

?AUDMIC_EQ_CF.................................................................................................................................................................... 84

AUDMIC_EQ_CF ..................................................................................................................................................................... 84

?AUDMIC_EQ_FT.................................................................................................................................................................... 84

AUDMIC_EQ_FT...................................................................................................................................................................... 84

?AUDMIC_EQ_GAIN ................................................................................................................................................................ 85

AUDMIC_EQ_GAIN.................................................................................................................................................................. 85

?AUDMIC_EQ_Q ...................................................................................................................................................................... 85

AUDMIC_EQ_Q ........................................................................................................................................................................ 85

?AUDMIC_GAIN ...................................................................................................................................................................... 85

AUDMIC_GAIN ........................................................................................................................................................................ 86

?AUDMIC_GATING.................................................................................................................................................................. 86

AUDMIC_GATING ................................................................................................................................................................... 86

?AUDMIC_GATING_ATTACK................................................................................................................................................... 86

AUDMIC_GATING_ATTACK..................................................................................................................................................... 86

?AUDMIC_GATING_DEPTH ..................................................................................................................................................... 86

AUDMIC_GATING_DEPTH ....................................................................................................................................................... 86

?AUDMIC_GATING_HOLD ....................................................................................................................................................... 86

AUDMIC_GATING_HOLD ........................................................................................................................................................ 87

?AUDMIC_GATING_RELEASE................................................................................................................................................. 87

AUDMIC_GATING_RELEASE .................................................................................................................................................. 87

?AUDMIC_GATING_THRESH.................................................................................................................................................. 87

AUDMIC_GATING_THRESH.................................................................................................................................................... 87

?AUDMIC_LIMITER................................................................................................................................................................ 87

AUDMIC_LIMITER.................................................................................................................................................................. 87

?AUDMIC_LIMITER_ATTACK ................................................................................................................................................. 87

AUDMIC_LIMITER_ATTACK.................................................................................................................................................... 88

?AUDMIC_LIMITER_RELEASE................................................................................................................................................. 88

AUDMIC_LIMITER_RELEASE................................................................................................................................................... 88

?AUDMIC_LIMITER_THRESH .................................................................................................................................................. 88

AUDMIC_LIMITER_THRESH.................................................................................................................................................... 88

?AUDMIC_ON .......................................................................................................................................................................... 88

AUDMIC_ON............................................................................................................................................................................ 88

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

?AUDMIC_PHANTOM_PWR ..................................................................................................................................................... 88

AUDMIC_PHANTOM_PWR....................................................................................................................................................... 89

?AUDMIC_PREAMP_GAIN....................................................................................................................................................... 89

AUDMIC_PREAMP_GAIN......................................................................................................................................................... 89

?AUDMIC_STEREO .................................................................................................................................................................. 89

AUDMIC_STEREO .................................................................................................................................................................... 89

?AUDOUT_BALANCE ............................................................................................................................................................... 89

AUDOUT_BALANCE ................................................................................................................................................................. 89

?AUDOUT_DELAY .................................................................................................................................................................... 89

AUDOUT_DELAY ..................................................................................................................................................................... 90

AUDOUT_DUCK_ATTACK ....................................................................................................................................................... 90

AUDOUT_DUCK_HOLD............................................................................................................................................................ 90

AUDOUT_DUCK_LEVEL........................................................................................................................................................... 90

AUDOUT_DUCK_RELEASE ...................................................................................................................................................... 90

?AUDOUT_DUCK_THRESH ..................................................................................................................................................... 90

AUDOUT_DUCK_THRESH ....................................................................................................................................................... 90

?AUDOUT_DUCKING .............................................................................................................................................................. 91

AUDOUT_DUCKING................................................................................................................................................................ 91

?AUDOUT_EQ_CF ................................................................................................................................................................... 91

AUDOUT_EQ_CF ..................................................................................................................................................................... 91

?AUDOUT_EQ_FT.................................................................................................................................................................... 91

AUDOUT_EQ_FT ..................................................................................................................................................................... 91

?AUDOUT_EQ_GAIN............................................................................................................................................................... 91

AUDOUT_EQ_GAIN.................................................................................................................................................................. 92

?AUDOUT_EQ_MODE ............................................................................................................................................................... 92

AUDOUT_EQ_MODE................................................................................................................................................................. 92

?AUDOUT_EQ_Q ...................................................................................................................................................................... 92

AUDOUT_EQ_Q ........................................................................................................................................................................ 92

?AUDOUT_MAXVOL ................................................................................................................................................................. 92

AUDOUT_MAXVOL................................................................................................................................................................... 93

?AUDOUT_MINVOL.................................................................................................................................................................. 93

AUDOUT_MINVOL ................................................................................................................................................................... 93

?AUDOUT_MUTE ..................................................................................................................................................................... 93

AUDOUT_MUTE ....................................................................................................................................................................... 93

?AUDOUT_STEREO.................................................................................................................................................................. 93

AUDOUT_STEREO.................................................................................................................................................................... 93

?AUDOUT_TESTTONE.............................................................................................................................................................. 93

AUDOUT_TESTTONE .............................................................................................................................................................. 94

?AUDOUT_VOLUME ................................................................................................................................................................ 94

AUDOUT_VOLUME.................................................................................................................................................................. 94

?GAIN..................................................................................................................................................................................... 94

GAIN ...................................................................................................................................................................................... 94

?HDMIOUT_AUDIO................................................................................................................................................................. 94

HDMIOUT_AUDIO................................................................................................................................................................... 94

?HDMIOUT_EQ ....................................................................................................................................................................... 94

HDMIOUT_EQ ......................................................................................................................................................................... 94

?INPUTEQ .............................................................................................................................................................................. 94

INPUTEQ ................................................................................................................................................................................ 94

?PHANTOM_PWR ................................................................................................................................................................... 94

PHANTOM_PWR ...................................................................................................................................................................... 95

?SPDIFOUT_AUDIO................................................................................................................

SPDIFOUT_AUDIO................................................................................................................................................................... 95

?VOLUME................................................................................................................................................................................. 95

VOLUME .................................................................................................................................................................................. 95

?XPOINT.................................................................................................................................................................................. 95

XPOINT ................................................................................................................................................................................... 95

................................................. 95

Video SEND_COMMANDs ................................................................................................. 96

CI<input>O<output>............................................................................................................................................................. 96

CL<sl>I<input>O<output> ................................................................................................................................................... 96

?INPUT.................................................................................................................................................................................... 96

?OSD ....................................................................................................................................................................................... 96

OSD ......................................................................................................................................................................................... 96

?OUTPUT................................................................................................................................................................................ 97

VI<input>O<output> ............................................................................................................................................................ 97

?VIDEO_MUTE........................................................................................................................................................................ 97

VIDEO_MUTE.......................................................................................................................................................................... 97

?VIDEO_TESTPATTERN.......................................................................................................................................................... 97

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

VIDEO_TESTPATTERN............................................................................................................................................................ 97

?VIDIN_BRIGHTNESS ............................................................................................................................................................ 97

VIDIN_BRIGHTNESS .............................................................................................................................................................. 97

?VIDIN_BW ............................................................................................................................................................................ 97

VIDIN_BW .............................................................................................................................................................................. 97

?VIDIN_COLOR....................................................................................................................................................................... 97

VIDIN_COLOR......................................................................................................................................................................... 97

?VIDIN_CONTRAST................................................................................................................................................................. 98

VIDIN_CONTRAST................................................................................................................................................................... 98

?VIDIN_EDID........................................................................................................................................................................... 98

VIDIN_EDID............................................................................................................................................................................. 98

?VIDIN_EDID_AUTO................................................................................................................................................................ 98

VIDIN_EDID_AUTO.................................................................................................................................................................. 98

?VIDIN_FORMAT ..................................................................................................................................................................... 98

VIDIN_FORMAT....................................................................................................................................................................... 98

?VIDIN_HDCP.......................................................................................................................................................................... 99

VIDIN_HDCP ........................................................................................................................................................................... 99

?VIDIN_HDMI_EQ.................................................................................................................................................................... 99

VIDIN_HDMI_EQ ..................................................................................................................................................................... 99

?VIDIN_HSHIFT ...................................................................................................................................................................... 99

VIDIN_HSHIFT ........................................................................................................................................................................ 99

?VIDIN_HUE............................................................................................................................................................................ 99

VIDIN_HUE........................................................................................................................................................................... 100

?VIDIN_NAME ...................................................................................................................................................................... 100

VIDIN_NAME ........................................................................................................................................................................ 100

?VIDIN_PHASE..................................................................................................................................................................... 100

VIDIN_PHASE....................................................................................................................................................................... 100

?VIDIN_PREF_EDID.............................................................................................................................................................. 100

VIDIN_PREF_EDID................................................................................................................................................................ 100

?VIDIN_RES_AUTO .............................................................................................................................................................. 101

VIDIN_RES_AUTO ................................................................................................................................................................ 101

?VIDIN_RES_REF.................................................................................................................................................................. 101

VIDIN_RES_REF ................................................................................................................................................................... 101

?VIDIN_SATURATION.......................................................................................................................................................... 101

VIDIN_SATURATION............................................................................................................................................................ 101

?VIDIN_STATUS................................................................................................................................................................... 101

?VIDIN_VSHIFT.................................................................................................................................................................... 101

VIDIN_VSHIFT ..................................................................................................................................................................... 102

?VIDOUT_ASPECT_RATIO.................................................................................................................................................... 102

VIDOUT_ASPECT_RATIO...................................................................................................................................................... 102

?VIDOUT_BLANK.................................................................................................................................................................. 102

VIDOUT_BLANK.................................................................................................................................................................... 102

?VIDOUT_BRIGHTNESS ....................................................................................................................................................... 102

VIDOUT_BRIGHTNESS ......................................................................................................................................................... 102

?VIDOUT_CONTRAST........................................................................................................................................................... 103

VIDOUT_CONTRAST............................................................................................................................................................. 103

?VIDOUT_FREEZE................................................................................................................................................................. 103

VIDOUT_FREEZE................................................................................................................................................................... 103

?VIDOUT_HSHIFT ................................................................................................................................................................ 103

VIDOUT_HSHIFT .................................................................................................................................................................. 103

?VIDOUT_HSIZE..................................................................................................................

VIDOUT_HSIZE..................................................................................................................................................................... 103

?VIDOUT_MUTE ................................................................................................................................................................... 104

VIDOUT_MUTE ..................................................................................................................................................................... 104

?VIDOUT_ON........................................................................................................................................................................ 104

VIDOUT_ON.......................................................................................................................................................................... 104

?VIDOUT_OSD ...................................................................................................................................................................... 104

VIDOUT_OSD........................................................................................................................................................................ 104

?VIDOUT_OSD_COLOR ......................................................................................................................................................... 104

VIDOUT_OSD_COLOR ........................................................................................................................................................... 104

?VIDOUT_OSD_POS.............................................................................................................................................................. 105

VIDOUT_OSD_POS................................................................................................................................................................ 105

?VIDOUT_RES ...................................................................................................................................................................... 105

?VIDOUT_RES_AUTO ........................................................................................................................................................... 105

VIDOUT_RES_AUTO ............................................................................................................................................................. 105

?VIDOUT_RES_REF............................................................................................................................................................... 105

VIDOUT_RES_REF ................................................................................................................................................................ 105

?VIDOUT_SCALE .................................................................................................................................................................. 105

................................................. 103

Tabl e o f Co n tent s

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

VIDOUT_SCALE .................................................................................................................................................................... 105

?VIDOUT_TESTPAT .............................................................................................................................................................. 106

VIDOUT_TESTPAT................................................................................................................................................................ 106

?VIDOUT_VSHIFT................................................................................................................................................................. 106

VIDOUT_VSHIFT .................................................................................................................................................................. 106

?VIDOUT_VSIZE ................................................................................................................................................................... 106

VIDOUT_VSIZE..................................................................................................................................................................... 106

?VIDOUT_ZOOM ................................................................................................................................................................... 106

VIDOUT_ZOOM ..................................................................................................................................................................... 107

Front Panel SEND_COMMANDs..................................................................................... 108

?FP_LOCKOUT ...................................................................................................................................................................... 108

FP_LOCKOUT........................................................................................................................................................................ 108

?FP_LOCKTYPE..................................................................................................................................................................... 108

FP_LOCKTYPE ...................................................................................................................................................................... 108

?INTENSITY_LCD ................................................................................................................................................................. 108

INTENSITY_LCD................................................................................................................................................................... 108

?INTENSITY_LEDS ............................................................................................................................................................... 108

System SEND_COMMANDs............................................................................................ 109

?DXLINK_ETH....................................................................................................................................................................... 109

DXLINK_ETH ........................................................................................................................................................................ 109

?DXLINK_IN_ETH ................................................................................................................................................................. 109

DXLINK_IN_ETH................................................................................................................................................................... 109

?FAN_SPEED ........................................................................................................................................................................ 109

?TEMP .................................................................................................................................................................................. 109

INTENSITY_LEDS ................................................................................................................................................................. 109

Appendix A - Input Resolutions ................................................................... 110

Available Pixel Display and Refresh Rates ................................................................... 110

DVI, HDMI, and VGA Supported Input Resolutions ............................................................................ 110

Composite and S-Video Supported Input Resolutions....................................................................... 111

Component Video Supported Input Resolutions................................................................................ 111

Appendix B - Output Resolutions ................................................................. 112

Available Pixel Display and Refresh Rates ................................................................... 112

DVI and HDMI Supported Output Resolutions.................................................................................... 112

Appendix C - Volume Attenuation Table ...................................................... 113

Overview ....................................................................................................................... 113

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Overview

Enova All-In-One Presentation Switchers combine all of the components you need to control/automate any environment into a sim ple, flexible, comprehensive solution includin g co ntrol, analog and digital audio /video inpu ts, audio and vide o switch ing, video scaling, local and remote distribution, plus audio mixing, and amplification - all in a single box.

FIG. 1 displays the DVX-3150HD-SP.

FIG. 1

The Enova All-in-One Presentation Switchers covered in this manual include:

Enova All-in-One Presentation Switchers

Name FG# Description Page Ref

DVX-3150HD-SP FG1905-15 10x4 All-In-One Presentation Switchers (Multi-Format, HDMI

DVX-3150HD-T FG1905-17 10x4 All-In-One Presentation Switchers (Multi-Format, HDMI

DVX-3155HD-SP FG1905-16 10x4 All-In-One Presentation Switchers (Multi-Format,

DVX-3155HD-T FG1905-18 10x4 All-In-One Presentation Switchers (Multi-Format,

DVX-3156HD-SP FG1905-22 10x4 All-In-One Presentation Switchers (Multi-Format,

DVX-3156HD-T FG1905-24

DVX-2150HD-SP FG1905-11 6x3 All-In-One Presentation Switchers (Multi-Format, HDMI

DVX-2150HD-T FG1905-13

DVX-2155HD-SP FG1905-12 6x3 All-In-One Presentation Switchers (Multi-Format, HDMI,

DVX-2155HD-T FG1905-14

DVX-2110HD-SP FG1905-07 4x2 All-In-One Presentation Switchers (Multi-Format, HDMI

DVX-2110HD-T FG1905-09

Enova DVX-3150HD-SP

(Discontinued)

Inputs), 2x25W, 8-Ohm

Inputs), 75W, 70/100V

HDMI, 2 DXLink Inputs), 2x25W, 8-Ohm

HDMI, 2 DXLink Inputs), 75W, 70/100V

HDMI, 4 DXLink Inputs), 2x25W, 8-Ohm

10x4 All-In-One Presentation Switchers (Multi-Format, HDMI, 4 DXLink Inputs), 75W, 70/100V

Inputs), 2x25W, 8-Ohm

6x3 All-In-One Presentation Switchers (Multi-Format, HDMI Inputs), 75W, 70/100V

DXLink Inputs), 2x25W, 8-Ohm

6x3 All-In-One Presentation Switchers (Multi-Format, HDMI, DXLink Inputs), 75W, 70/100V

Inputs), 2x25W, 8-Ohm

4x2 All-In-One Presentation Switchers (Multi-Format, HDMI Inputs), 75W, 70/100V

Overview

page 14

page 17

Common Application

Enova DVX All-in-One Presentation Switchers are ideal solutions when used to simplify A/V control and distribution in sophisticated presentation environments and conference rooms, including those supporting audio and video conferencing. It also fits well in classrooms and auditoriums that need multiple displays, or video previewing.

Audio Processing

Enova DVX All-in-One Presentation Switchers feature built-in audio mixing and amplif ication that outputs two channels at 25 Watts each into 8-ohms after passing through a mixer and an integrated equalizer to accommodate the size, furnishings, surfaces, and functional requirements in every room. There are also three stereo line level outputs each with its own mixing and equalization settings.

Overview

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Integrated Control

The 3000-series DVX includes the equivalent of a NetLinx 3101 central controller. The 2000-series DVX includes the equivalent of a NetLinx 2100 central controller. All DVX models also include a front control panel for an added level of convenience. The DVX features standard RS-232, IR, digital I/O, and relay co ntrol ports for control over environment and third-party equipment.

Enova 315x All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Enova 315x All-in-One Presentation Switchers

DVX-3150HD/3155HD/3156HD

FIG. 2 Enova DVX-3150HD-SP

Specifications

The following table lists the specifications for the Enova 315x All-in-One Presentation Switchers:

DVX-3150HD/3155HD/3156HD Specif ications

Power: • 100-240V, 47/63 Hz AC supply

Power Consumption: • 90 Watts typical without amplifier

• 95 to 100 Watts typical average with amplif ier

• 30 Watts typical in low-power mode

Memory: • 256 MB SDRAM

• 1 MB Non-volatile RAM ( NVRAM)

•4 GB Flash

Amplifier: • 2 x 25W into 8 Ohms Class D stereo amplifier (capable of driving loads in the range of 2-8 ohms) (-SP

models only)

• 70V or 100V at 75W amplif ied variable mono audio (-T models only)

Integrated Controller: • Equivalent of a NetLinx 3101-SIG central controller on-board

Front Panel Components:

LEDs: • LINK/ACT (green) - Link/Activity LED lights when the Ethernet cables are connected and terminated

correctly and blinks when receiving Ethernet data packets.

• STATUS (green) - Status LED blinks to indicate that the system is programmed and communicating properly.

• INPUT (yellow) - Input LED blinks to indicate that the Controller is receiving data.

• OUTPUT (red) - Output LED blinks to indicate that the Controller is transmitting data.

• RS-232/422/485 (red/yellow) - 6 sets of LEDs indicate that RS-232/422/485 Ports (1-6) are transmitting or receiving data.

• RELAYS (red) - 8 LEDs indicate relay channels 1-8 are active (closed) on Port 8.

• IR/SERIAL (red) - 8 LEDs indicate that IR/Serial channels 1-8 are transmitting control data on Ports 9-

16.

• I/O (yellow) - 8 LEDs indicate that I/O channels 1-8 are active on Port 17.

LCD display: Liq uid crystal display (2 lines with 20 characters per line) indicates current volum e level an d displays the

Video, Audio, and Status menus. See the LCD Display section on page 25 for details.

SWITCH pushbutton: Press to access the Switch menu on the LCD display. Use the menu to choose to switch audio, video or both

from any input to any output.

TAKE pushbutton: While in the Switch menu, press to implement an audio/video switch.

VIDEO MENU pushbutton: Press to access the Video menu on the LCD display. There are two video menus (VIDEO OUTPUT and VIDEO

INPUT) and both are accessible by using this button. Multiple presses cycle through the various VIDEO menus.

AUDIO MENU pushbutton: Press to access the Audio menu on the LCD display. There are three audio menus (AUDIO OUTPUT, AUDIO

INPUT, and MIC) and all are accessible by using this button. Multiple presses cycle through the various AUDIO menus.

Continued 

Enova 315x All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-3150HD/3155HD/3156HD Specif ications

Navigational pushbuttons: 4 directional buttons for navigating the options in the Switch, Video, Audio, and Status menus (on the LCD

STATUS pushbutton: Press to access the STATUS menu on the LCD display on which you can view system status and other

EXIT pushbutton: Press to exit the current menu and return to the default menu page, Main Amp Output/Volume.

VIDEO MUTE pushbu tton: Press to mute/un-mute (enable/disable) all video outpu t displays.

AUDIO MU TE pushbu tton: Press to mu te/un-mu te all audio ou tputs.

Rear Panel Components:

RS-232/422/485 (PORT 1-6):

RELAYS (PORT 8): 1 relay port (Port 8) provides Relay control via 8-pin 3.5 mm captive-wire connectors.

IR/SERIAL (PORTS 9-16):

I/O (PORT 17): Port 17 provides an 8-channel binary I/O port for contact closure with each input being capable of voltage

AUDIO INPUTS: 8 analog audio inputs:

MIC INPUTS: 2 3.5mm 3-pin captive-wire connectors receive up to 2 mono microphones (balanced or unbalanced audio

AMP OUT: • 1 5mm 4-position captive wire connector provides amplif ied audio output with volume control (-SP

AUDIO OUTPUTS: 3 3.5mm 5-pin captive-wire connector provides for balanced or unbalanced, mono or stereo line-level

S/PDIF OUTPUT: 1 Coaxial RCA connector provides digital S/PDIF audio output that can mirror any of the 4 analog audio

MULTI FORMAT VIDEO INPUTS:

HDMI INPUTS: • 6 HDMI inputs (5-10) receive digital audio and video from up to six video sources. (DVX-3150HD only)

DXLINK INPUTS: • 2 RJ-45 inputs (9-10) provide support for digital video, audio, Ethernet, bi-directional control and power

VIDEO OUTPUTS: • 4 HDMI Output connectors (1-4) each provide HDMI digital audio and video output.

CONFIG DIP Switch: 8-position Master configuration DIP switch allows setting the Serial Programming port baud rate and

display).

system information.

Video Mute results in a blank screen on the output displays.

RS-232/422/485 Ports 1-6 provide serial control via DB9 (male) connectors. See the RS232/422/485 Serial Port Connectors section on page 38 for more information.

See the RELAYS section on page 39 for more information.

8 IR/Serial ports (Ports 9-16) provide IR/Serial control via 2-pin 3.5 mm captive-wire connectors. See the IR/SERIAL section on page 40 for more information.

sensing. See the I/O section on page 39 for more information.

• 4 female 1/8" stereo mini-phono jacks receive up to four unbalanced line-level audio inputs. (There are only 2 jacks available on the DVX-3156HD.) See the AUDIO INPUTS section on page 28 for more information.

• 4 3.5mm 5-pin captive-wire connector provides for fixed or variable, balanced or unbalanced line-level audio inputs. See the AUDIO INPUTS section on page 29 for more information.

and switchable Phantom Power). See the MIC INPUTS section on page 30 for more information.

models only).

• Two 2-position captive wire connectors provide 70V or 100V mono amplified audio output (-T models only).

See the AMP OUT section on page 31 for more information.

audio output. See the AUDIO OUTPUTS section on page 31 for more information.

outputs or the 4 HDMI outputs.

4 DVI-I input connectors provide analog and digital video inputs for up to four video sources. (There are only 2 DVI-I connectors on the DVX-3156HD.)

Each MULTI FORMAT VIDEO INPUT connector supports VGA, S-Video, composite video, component video, DVI, or HDMI video input. See the Available Pixel Display and Refresh Rates section on page 110 for information on supported video formats and resolutions. See the Cable Details and Pinout Information section on page 45 for information about wiring conversion cables.

• 4 HDMI inputs (5-8) receive digital audio and video from up to four video sources. (DVX-3155HD only)

• 4 HDMI inputs (3-6) receive digital audio and video from up to four video sources. (DVX-3156HD only)

All HDMI inputs are HDCP compatible. See the HDMI INPUTS section on page 34 for more information.

over Category Cable from any DXLink transmitter. (DVX-3155HD only).

• 4 RJ-45 inputs (7-10) for video, audio, Ethernet, and bi-directional control of DXLink devices and power over Category Cable from any DXLink transmitter (DVX-3156HD only)

See the Supported Video Settings section on page 35 for more information.

• 2 DXLink outputs (1, 3) mirror HDMI outputs 1 and 3.

See the VIDEO OUTPUTS section on page 35 for more information and important cable recommendations.

onboard Master execution mode (PRD or normal). See the CONFIG DIP Switch section on page 41 for more information.

Continued 

Enova 315x All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-3150HD/3155HD/3156HD Specif ications

PROGRAM Port: DB9 connector (male) connects to a DB9 serial port on a PC, for serial communication. This connection is

ID Pushbutton: Black ID pushbutton sets the NetLinx Device ID assignments of the Internal Control Device. See the ID

LAN Port: RJ-45 connector provides TCP/IP communication. See the LAN (RJ-45) section on page 42 for more

AxLink Port: 1 3.5 mm 4-pin captive-wire connector provides data and power to external control devices. The AxLink

Power Connector: IEC Power cord connector: 100-240V AC, 47-63Hz

Operating Environment: • Storage temperature: -10º C to 70º C (14º F to 158º F)

Supported Video Resolutions:

Dimensions (HWD): 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)

Weight: 18.2 lb (8.26 kg)

Enclosure: Metal with black matte finish

Certifications: • FCC Part 15 Class A

Included Accessories: • 1 Power Cord, Universal

Optional Accessories: • CC-DVI-5BNCM DVI to 5 BNC adapter cable (FG10-2170-08)

used to configure system settings.

NOTE: This port is not recommended for firmware updates or large file transfers. Any large dataintensive operations are better handled via Ethernet.

See the PROGRAM Port section on page 42 for more information.

Pushbutton section on page 42 for more information.

information.

LED (green) indicates the state of the AxLink port. The AxLink port can be used to supply power to downstream AxLink-compatible devices as long as the maximum current draw is less than 1 Amp.

NOTE: The AxLink port provides only limited power to connected AxLink devices. It is recommended to use an alternate power source when connecting AxLink devices to the DVX.

NOTE: When using the DVX with the NXA-PDU-1508-8 power distribution unit, do NOT connect +12V power from any of the NXA-PDU's AxLink ports to the AxLink power pin.

See the AxLink Port and LED (4-pin captive-wire) section on page 43 for more information.

• Operating Temperature: 0º C to 40º C (32º F to 104º F)

• Operating Relative Humidity: 5% to 85% non-condensing

HD resolutions up to 1080p and RGB resolutions up to 1920x1200@60Hz. Higher resolutions are supported in pass-through mode. See the Available Pixel Display and Refresh Rates section on page 110 for a complete listing o f all supported video resolutions.

• IC CISPR 22 Class A

• C-Tick CISPR 22 Class A

• CE EN 55022 Class A and EN 55024

• LVD EN 60950-1

•IEC 60950-1

•cULus UL 60950-1

• 2 Connector, Phoenix2, M, TH, R/A, BLACK, 5.08mm

• 7 Connector, Phoenix5, F, BLACK

•2 Connector, Phoenix3, F, BLACK

• 1 Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector

• 1 Connector, Phoenix4, F, TH, BLACK, 3.5mm

• 2 Connector, Phoenix, 8-pin, FEM, BLACK

• 1 Connector, Phoenix, 10-pin, FEM, BLACK

• 2 Front Rack Mounting Brackets

• 8 Screw, #8-32 x .375, PFH, Undercut, BLACK

• 2 CC-NIRC, IR Emitter with 3.5mm Phoenix Connector (FG10-000-11)

• 1 CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10-2170-13)

• CC-DVI-RCA3M DVI to 3 Male RCA adapter cable for component and composite connections (FG10- 2170-09)

• CC-DVI-SVID DVI to S-Video adapter cable (FG10-2170-10)

• CC-DVIM-VGAF DVI to HD15 female adapter cable (FG10-2170-13)

• CC-3.5ST5-RCA2F 2 RCA Female to 5-Pin Phoenix Cable (FG10-003-20)

• AVB-RX-DXLINK-HDMI DXLink™ HDMI Receiver Module (FG1010-500)

• AVB-TX-HDMI-DXLINK DXLink HDMI Transmitter Module (FG1010-300)

• AVB-TX-MULTI-DXLINK DXLink Multi-Format Transmitters (FG1010-310)

• AVB-WP-TX-MULTI-DXLINK DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH)

Enova 21xx All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Enova 21xx All-in-One Presentation Switchers

DVX-2150HD/2155HD/2110HD

FIG. 3 Enova DVX-2150HD-SP

Specifications

The following table lists the specifications for the Enova 21xx All-in-One Presentation Switchers:

DVX-2150HD/2155HD/2110HD Specif ications

Power: 100-240V, 47/63 Hz AC supply

Power Consumption: • 80 Watts typical without amplifier

• 85 to 90 Watts typical average with amplifier

• 30 Watts typical in low-power mode

Memory: • 256 MB SDRAM

• 1 MB Non-volatile RAM (NVRAM)

•4 GB Flash

Amplifier: • 2 x 25W into 8 Ohms Class D stereo amplifier (capable of driving loads in the range of 2-8 ohms)

Integrated Controller: Equivalent of a NetLinx 2100 central controller on-board

Front Panel Components:

LEDs: • LINK/ACT (green) - Link/Activity LED lights when the Ethernet cables are connected and

LCD display: Liquid crystal display (2 lines with 20 characters per line) indicates current volume level and displays

SWITCH pushbutton: Press to access the Switch menu on the LCD display. Use the menu to choose to switch audio, video

TAKE pushbutton: While in the Switch menu, press to implement an audio/video switch.

VIDEO MENU pushbu tton:

AUDIO MENU pushbu tton:

(-SP models only)

• 70V or 100V at 75W amplified variable mono audio (-T models only)

terminated correctly and blinks when receiving Ethernet data packets.

• STATUS (green) - Status LED blinks to indicate that the system is programmed and communicating properly.

• INPUT (yellow) - Input LED blinks to indicate that the Controller is receiving data.

• OUTPUT (red) - Output LED blinks to indicate that the Controller is transmitting data.

• RS-232/422/485 (red/yellow) - 3 sets of LEDs indicate that RS-232/422/485 Ports (1-3) are transmitting or receiving data.

• RELAYS (red) - 4 LEDs indicate relay channels 1-4 are active (closed) on Port 4.

• IR/SERIAL (red) - 4 LEDs indicate that IR/Serial channels 1-4 are transmitting control data on Ports 5-8.

• I/O (yellow) - 4 LEDs indicate that I/O channels 1-4 are active on Port 9.

the Video, Audio, and Status menus. See the LCD Display section on page 25 for details.

or both from any input to any output.

Press to access the Video menu on the LCD display. There are two video menus (VIDEO OUTPUT and VIDEO INPUT) and both are accessible by using this button. Multiple presses cycle through the various VIDEO menus.

Press to access the Audio menu on the LCD display. There are three audio menus (AUDIO OUTPUT, AUDIO INPUT, and MIC) and all are accessible by using this button. Multiple presses cycle through the various AUDIO menus.

Continued 

Enova 21xx All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-2150HD/2155HD/2110HD Specif ications

Navigational pushbu ttons:

STATUS pushbutton: Press to access the STATUS menu on the LCD display on which you can view system status and

EXIT pushbutton: Press to exit the current menu and return to the default menu page, Main Amp Output/Volume.

VIDEO MUTE pushbu tton:

AUDIO MUTE pushbu tton:

Rear Panel Components:

RS-232/422/485 (PORT 1-3):

RELAYS (PORT 4): 1 relay port (Port 4) provides Relay control via 8-pin 3.5 mm captive-wire connectors.

IR/SERIAL (PORTS 5-8):

I/O (PORT 9): Port 9 provides an 8-channel binary I/O port for contact closure with each input being capable of

AUDIO INPUTS: 8 analog audio inputs:

MIC INPUTS: 2 3.5mm 3-pin captive-wire connectors receive up to 2 mono microphones (balanced or unbalanced

AMP OUT: • AMP: 4-position captive wire connector provides amplified audio output with volume control (-SP

AUDIO OUTPUTS: 2 3.5mm 5-pin captive-wire connector provides for balanced or unbalanced, mono or stereo line-

S/PDIF OUTPUT: 1 Coaxial RCA connector provides digital S/PDIF audio output that can mirror any of the 3 analog

MULTI FORMAT VIDEO INPUTS:

Rear Panel Components: (Cont.)

HDMI INPUTS: • 4 HDMI inputs (3-6) receive digital audio and video from up to four video sources. (DVX-2150HD

DXLINK INPUTS: 2 RJ-45 inputs (5-6) provide support for digital video, audio, Ethernet, bi-directional control and

VIDEO OUTPUTS: • 2 HDMI Output connectors (1-2) each provide HDMI digital audio and video output.

4 directional buttons for navigating the options in the Switch, Video, Audio, and Status menus (on the LCD display).

other system information.

Press to mute/un-mute (enable/disable) all video output displays. Video Mute results in a blank screen on the output displays.

Press to mute/un-mute all audio outputs.

RS-232/422/485 Ports 1-3 provide serial control via DB9 (male) connectors. See the RS232/422/485 Serial Port Connectors section on page 38 for more information.

See the RELAYS section on page 39 for more information.

4 IR/Serial ports (Ports 5-8) provide IR/Serial control via 2-pin 3.5 mm captive-wire connectors. See the IR/SERIAL section on page 40 for more information.

voltage sensing. See the I/O section on page 39 for more information.

• 2 female 1/8" stereo mini-phono jacks receive up to two unbalanced line-level audio inputs. See the AUDIO INPUTS section on page 28 for more information.

• 2 3.5mm 5-pin captive-wire connector provides for fixed or variable, balanced or unbalanced linelevel audio inputs. See the AUDIO INPUTS section on page 29 for more information.

audio and switchable Phantom Power). See the MIC INPUTS section on page 30 for more information.

models only).

• AMP: Two 2-position captive wire connectors provide 70V or 100V mono amplified audio outpu t (-T models only).

See the AMP OUT section on page 31 for more information.

level audio output. See the AUDIO OUTPUTS section on page 31 for more information.

audio outputs, 2 HDMI outputs, or DXLink output.

2 DVI-I input connectors provide analog and digital video inputs for up to two video sources. Each MULTI FORMAT VIDEO INPUT connector supports VGA, S-Video, composite video, component

video, DVI, or HDMI video inpu t. See the Available Pixel Display and Refresh Rates section on page 110 for information on supported video formats and resolutions. See the Cable Details and Pinout Information section on page 45 for information about wiring conversion cables.

only)

• 2 HDMI inputs (3-4) receive digital audio and video from up to two video sources. (DVX-2155HD and DVX-2110HD only)

All HDMI inputs are HDCP compatible. See the HDMI INPUTS section on page 34 for more information.

power over Category Cable from any DXLink transmitter (DVX-2155HD and DVX-2110HD only). See the Supported Video Settings section on page 35 for more information.

• 1 DXLink RJ-45 output (3) provides digital video, audio, Ethernet, and bi-directional control over Twisted Pair Cable to DXLink Receivers. (On the DVX-2110HD, the DXLink output mirrors HDMI port 1.)

See the VIDEO OUTPUTS section on page 35 for more information and important cable reco mmendations.

Continued 

Enova 21xx All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-2150HD/2155HD/2110HD Specif ications

CONFIG DIP Switch: 8-position Master configuration DIP switch allows setting the Serial Programming port baud rate

PROGRAM Port: DB9 connector (male) connects to a DB9 serial port on a PC, for serial communication. This

ID Pushbutton: Black ID pushbutton sets the NetLinx Device ID assignments of the Internal Control Device. See the

LAN Port: RJ-45 connector provides TCP/IP communication. See the LAN (RJ-45) section on page 42 for more

AxLink Port: 1 3.5 mm, 4-pin captive-wire connector provides data and power to external control devices. The

Power Connector: IEC Power cord connector: 100-240V AC, 47-63Hz

Operating Environment: • Storage temperature: -10º C to 70º C (14º F to 158º F)

Supported Video Resolutions:

Dimensions (HWD): 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)

Weight: • DVX-2150HD/DVX-2155HD: 18.3 lbs (8.31 kg)

Enclosure: Metal with black matte finish

Certifications: • FCC Part 15 Class A

Included Accessories: • 1 Power Cord, Universal

and on-board Master execution mode (PRD or normal). See the CONFIG DIP Switch section on page 41 for more information.

connection is used to conf igure system settings.

NOTE: This port is not recommended for f irmware updates or large f ile transfers. Any large data-intensive operations are better handled via Ethernet.

See the PROGRAM Port section on page 42 for more information.

ID Pushbutton section on page 42 for more information.

information.

AxLink LED (green) indicates the state of the AxLink port used to supply power to downstream AxLink-compatible devices as long as the maximum current draw is less than 1 Amp.

NOTE: The AxLink port provides only limited power to connected AxLink devices. It is recommended to use an alternate power source when connecting AxLink devices to the DVX.

NOTE: When using the DVX with the NXA-PDU-1508-8 power distribution unit, do NOT connect +12V power from any of the NXA-PDU's AxLink ports to the AxLink power pin.

See the AxLink Port and LED (4-pin captive-wire) section on page 43 for more information.

• Operating Temperature: 0º C to 40º C (32º F to 104º F)

• Operating Relative Humidity: 5% to 85% non-condensing

• DVX-2110HD-SP: 17 lbs (7.7 kg)

• DVX-2110HD-T: 21 lbs (9.5 kg)

• IC CISPR 22 Class A

• C-Tick CISPR 22 Class A

• CE EN 55022 Class A and EN 55024

•LVD EN 60950-1

• IEC 60950-1

• cULus UL 60950-1

• 2 Connector, Phoenix2, M, TH, R/A, BLACK, 5.08mm

• 7 Connector, Phoenix5, F, BLACK

• 2 Connector, Phoenix3, F, BLACK

• 1 Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector

• 1 Connector, Phoenix4, F, TH, BLACK, 3.5mm

• 2 Connector, Phoenix, 8-pin, FEM, BLACK

• 1 Connector, Phoenix, 10-pin, FEM, BLACK

• 2 Front Rack Mounting Brackets

• 8 Screw, #8-32 x .375, PFH, Undercut, BLACK

• 2 CC-NIRC, IR Emitter with 3.5mm Phoenix Connector (FG10-000-11)

• 1 CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10-2170-13)

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-2150HD/2155HD/2110HD Specif ications

Optional Accessories: • CC-DVI-5BNCM DVI to 5 BNC adapter cable (FG10-2170-08)

• CC-DVI-RCA3M DVI to 3 Male RCA adapter cable for component and composite connections (FG10-2170-09)

• CC-DVI-SVID DVI to S-Video adapter cable (FG10-2170-10)

• CC-DVIM-VGAF DVI to HD15 female adapter cable (FG10-2170-13)

• CC-3.5ST5-RCA2F 2 RCA Female to 5-Pin Phoenix Cable (FG10-003-20)

• AVB-RX-DXLINK-HDMI DXLink™ HDMI Receiver Module (FG1010-500)

• AVB-TX-HDMI-DXLINK DXLink HDMI Transmitter Module (FG1010-300)

• AVB-TX-MULTI-DXLINK DXLink Multi-Format Transmitters (FG1010-310)

• AVB-WP-TX-MULTI-DXLINK DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH)

Enova 21xx All-in-One Presentation Switchers

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Installation

Brackets attach at the side toward the front of the unit

Overview

This chapter provides information on installing a DVX into an equipment rack.

Mounting the DVX into an Equipment Rack

The DVX occupies three rack units in a standard equipment rack. The following steps apply to mounting the DVX.

1. Discharge any static electricity from your body by touching a grounded metal object.

2. Position and install the mounting brackets, as shown in FIG. 4, using the supplied mounting screws.

NOTE: The left and right mounting brackets are not identical. Please install in the orientation shown.

FIG. 4 displays how the brackets should be attached to the DVX:

Installation

Rack Mounting the DVX

FIG. 4

3. Install the DVX in the mounting rack by using the mounting screws to affix the unit to the rack.

4. Connect any applicable wires to the DVX. Refer to the Wiring and Device Connections section on page 22 for wiring diagrams and pinout descriptions.

WARNING: DO NOT stand other units directly on top of the DVX when it is rack mounted, as this will place excessive strain on the mounting brackets.

Ventilation

ALWAYS ensure that the rack enclosure is adequately ventilated. Do not block any ventilation openings. Suff icient airflow must be achieved (by convection or forced-air cooling) to satisfy the ventilation requirements of all the items of equipment installed within the rack.

WARNING: The maximum operating ambient temperature is 40°C (104°F). WARNING: When installing equipment into a rack, distribute the units evenly. Otherwise, hazardous conditions may be created

by an uneven weight distribution.

Reliable earthing (grounding) of rack-mounted equipment should be maintained.

The DVX should not be installed in enclosed spaces. It is recommended to leave 1 RU of space above the DVX when installing in a rack.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Wiring and Device Connections

VIDEO MUTE

AUDIO MUTE

EXIT Pushbutton STATUS Pushbutton

VIDEO MENU

AUDIO MENU

TAKE Pushbutton

SWITCH Pushbutton

Navigational Pushbuttons

LCD Display

INPUT LED

RS232/422/485 LEDs Relay LEDs IR/Serial LEDs

I/O LEDs

LINK/ACT LED

STATUS LED

OUTPUT LED

RS232/422/485 Ports

RELAYS (Port 8)

I/O (Port 17)

IR/SERIAL Ports (9-16)

AUDIO OUTPUTS

AxLink Port/LED

Config DIP

Switch ID Pushbu tton

PROGRAM Port

MULTI FORMAT VIDEO INPUTS

AUDIO

HDMI

INPUTS

AMP

OUTPUT

AUX AUDIO INPUTS

OUTPUTS

Power Connector

MIC

INPUTS

S/PDIF

OUTPUT

LAN Port

Overview

This chapter provides functional details for each item on the front and rear panel of the DVX. Wiring specifications are also provided, when applicable.

FIG. 5 displays the front panel of the DVX-3150HD, DVX-3155HD, and DVX-3156HD:

Wiring and Device Connections

DVX-3150HD-SP Front Panel

FIG. 5

FIG. 6 displays the rear panel of the DVX-3150HD-SP:

FIG. 6

DVX-3150HD-SP Rear Panel

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DXLINK INPU TS

EXIT Pushbutton

STATUS Pushbu tton

VIDEO MENU

AUDIO MENU

TAKE Pushbutton

SWITCH Pushbu tton

Navigational pushbuttons

LINK/ACT LED

STATUS LED

OUTPUT LED

INPUT LED

RS232/422/485

Relay

IR/Serial

I/O LEDs

LCD Display

LEDs

VIDEO MUTE

AUDIO MUTE

The DVX-3155HD-SP features the same options on the rear panel as the DVX-3150HD-SP with the exception that two DXLink inputs appear in place of two of the HDMI inputs. FIG. 7 displays the rear panel of the DVX-3155HD-T:

DVX-3155HD-SP Rear Panel

FIG. 7

The DVX-3156HD-SP features the same options on the rear panel as the DVX-3155HD-SP with the exception that two HDMI inputs appear in place of two 1/8" mini-audio jacks and two DVI inputs on ports 3 and 4 and two DXLink inputs appear in place of two HDMI inputs on ports 7 and 8. FIG. 8 displays the rear panel of the DVX-3156HD-SP:

FIG. 8

DVX-3156HD-SP Rear Panel

FIG. 9 displays the front panel of the DVX-2150HD-SP and DVX-2155HD-SP:

DVX-2150HD-SP Front Panel

FIG. 9

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

MULTI FORMAT VIDEO INPUTS

AUDIO

HDMI

INPUTS

AMP

OUTPUT

AUX

OUTPUTS

Power

RS232/422/485 Ports

RELAYS (Port 4)

I/O (Port 9)

IR/SERIAL Ports 5-8)

AUDIO OUPUTS

AxLink Port/LED

Config DIP

Switch ID Pushbu tton

PROGRAM Port

Connector

MIC

INPUTS

S/PDIF

OUTPUT

LAN Port

AUDIO INPUT

DXLINK INPUTS

FIG. 10 displays the rear panel of the DVX-2150HD-SP.

The DVX-2155HD-SP features the same options on the rear panel as the DVX-2150HD-SP with the exception that two DXLink inputs appear in place of two of the HDMI inputs.

FIG. 10

FIG. 11 displays the rear panel of the DVX-2155HD-SP.

FIG. 11

FIG. 12 displays the rear panel of the DVX-2110HD-SP.

DVX-2150HD-SP Rear Panel

DVX-2155HD-SP Rear Panel

DVX-2110HD-SP Rear Panel

FIG. 12

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

I/O

LEDs

IR/Serial LEDs

Relay LEDs

RS-232/422/485

Input LED

Status LED

LINK/ACT LED

Output LED

LEDs

I/O

LEDs

IR/Serial LEDs

Relay LEDs

RS-232/422/485

Input LED

Status LED

LINK/ACT LED

Output LED

LEDs

Front Panel Controls and Indicators

The following sub-sections describe each component on the front panel of the DVX. Refer to FIG. 5 on page 22 for the component layout of the front panel.

LEDs

The LEDs on the front panel indicate the communications status of several different connections, as described in the table below:

FIG. 13 displays the front panel LEDs for the 315x All-in-One Presentation Switchers:

Front Panel - LEDs ( 315x models)

FIG. 13

FIG. 14 displays the front panel LEDs for the 21xx All-in-One Presentation Switchers:

Front Panel - LEDs (21xx models)

FIG. 14

Front Panel LEDs

Label Color Description

LINK/ACT Green Blinks when receiving LAN data packets.

STATUS Green Blinks to indicate that the system is programmed and communicating

INPUT Yellow Blinks to indicate that the Controller is receiving data.

OUTPUT Red Blinks to indicate that the Controller is transmitting data.

RS-232/422/485 Red/yellow LEDs indicate that RS-232/422/485 Ports are transmitting or receiving

RELAYS Red Lights to indicate that one or more of the relay channels of the relay port

IR/SERIAL Red Lights to indicate that one or more of the IR/Serial channels of the

I/O Yellow Lights to indicate that one or more of the I/O channels of the I/O port are

properly.

data. Red = transmitting data Yellow = receiving data

are currently active (closed).

IR/SERIAL ports are currently transmitting control data.

currently active.

LCD Display

During normal operation, the 2 x 20 line LCD display indicates ou tp ut volume i nfo rmation. The LCD backlight on the display turns off after 35 seconds of inactivity.

FIG. 15 displays the LCD display.

FIG. 15

LCD display

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

The LCD Display also displays VIDEO menus (Video Output and Video Input), AUDIO menus (Audio Output, Audio Input, and Mic Input), SWITCH menu, and STATUS menu selections (see the Audio/Video Configuration section on page 52 for more information), and indicates current status of any adjustments made to settings within these menus.

SWITCH Pushbutton

Press the SWITCH pushbutton to access the SWITCH menu on the LCD display. Press this button to switch the audio, video, or both from any input to any output. Press the TAKE pushbu tton to implement the switch.

FIG. 16 displays the SWITCH pushbutton.

SWITCH Pushbutton

FIG. 16

TAKE Pushbutton

Press the TAKE pushbutton to implement an audio/video switch while you are in the Switch menu on the LCD display. When in an audio or video menu, press the button to cycle through audio and video inputs or outpu ts (depending on the menu.) This bu tton does not access the menus or change the currently selected menu.

FIG. 17 displays the TAKE pushbutton.

FIG. 17

TAKE Pushbutton

VIDEO MENU Pushbutton

Press the VIDEO MENU pushbutton to access the video options, displayed on the LCD display. There are two video menus (VIDEO OUTPUT and VIDEO INPUT) and both are accessible by using this button. Multiple presses cycle through the various VIDEO menus.

FIG. 18 displays the VIDEO MENU pushbutton.

FIG. 18

VIDEO MENU Pushbutton

The Video menu enables you to see and adjust most parameters of the video input and output signals.

Use the UP and DOWN navigational buttons to traverse the various configuration parameters.

Use the LEFT and RIGHT navigational buttons to adjust the selected video parameter.

Adjustments take effect immediately (some parameter changes may exhibit a slight delay) and are saved when you advance to another option or exit the menu. The menu exits automatically after no user interaction on the front panel for 30 seconds.

See the Video Settings section on page 52 for a listing of all available options and instructions on how to change the settings.

AUDIO MENU Pushbutton

Press the AUDIO MENU pushbutton to access the audio options, displayed on the LCD display. There are three audio menus (AUDIO OUTPUT, AUDIO INPUT, and MIC) and all are accessible by using this button. Multiple presses cycle through the various AUDIO menus.

FIG. 19 displays the AUDIO MENU pushbutton.

FIG. 19

AUDIO MENU Pu shbutton

The Audio menu enables you to see and adjust most parameters of the audio input and output signals.

Use the UP and DOWN navigational buttons to traverse the various parameters.

Use the LEFT and RIGHT navigational buttons to adjust the selected audio parameter.

Adjustments take effect immediately and are saved when you advance to another option or exit the menu. The menu exits automatically after no user interaction on the front panel for 30 seconds.

See the Audio Settings section on page 55 for a listing of all available options and instructions on how to change the settings.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Navigation Pushbuttons

The four directional navigation buttons (Left/Right/Up/Down) enable you to navigate through and adjust the conf igurable parameters shown on the LCD display. The UP and DOWN navigation buttons are used to move between configurable parameters within a menu. Pressing UP takes you to the previous configuration parameter. Pressing DOWN takes you to the next configuration parameter. These buttons do not change the currently selected menu.

The LEFT and RIGHT navigation buttons are used to change the setting of the displayed parameter. If the parameter is read-only the value cannot change. Pressing LEFT decreases the value displayed if the setting is numeric, or goes to the previously set item if the setting is a set selection. Pressing RIGHT increases the value displayed if the setting is numeric, or goes to the next set item if the setting is a set selection. These buttons do not change the currently selected menu.

FIG. 20 displays the Navigation pushbuttons.

FIG. 20

Navigation Pushbuttons

STATUS Pushbutton

Press the STATUS pushbutton to access the STATUS menu on the LCD display.

FIG. 21 displays the STATUS pushbutton.

STATUS Pushbutton

FIG. 21

The STATUS menu enables you to see status information such as IP address and installed firmware versions as well as adjust LCD and LED backlight intensity.

Use the UP and DOWN navigational buttons to traverse the various options.

Use the LEFT and RIGHT navigational buttons to adjust the selected LCD and LED backlight intensity (when selected).

Adjustments take effect immediately and are saved when you advance to another option or exit the menu. The menu exits automatically after no user interaction on the front panel for 30 seconds.

See the Status Menu section on page 57 for a listing of all available options and instructions on how to change the settings.

EXIT Pushbutton

Press the EXIT pushbutton (FIG. 22) to exit any menu on the LCD display.

FIG. 22 displays the EXIT pushbutton.

EXIT Pushbutton

FIG. 22

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Press to toggle mute (blank) video all display outputs

Press to toggle mute audio on all audio outputs

VIDEO/AUDIO MUTE Pushbuttons

Press the VIDEO MUTE button to enable or disable video on all output displays.

Press the AUDIO MUTE button to enable or disable audio for all audio outputs.

FIG. 23 displays the VIDEO/AUDIO MUTE pushbuttons.

FIG. 23

Video/Audio Mute Pushbuttons

The pushbuttons light (red) to indicate that Video and/or Audio muting is active.

Rear Panel Audio Inputs and Outputs

The following sub-sections describe each component on the rear panel of the DVX. Refer to FIG. 6 on page 22 for the component layout of the rear panel.

AUDIO INPUTS

The AUDIO INPUTS connectors are female 1/8" stereo mini-phono jacks that receive up to four unbalanced audio inputs, depending on the DVX model. These connectors feature the following specifications:

Nominal input level: +4 dBu (1.228 Vrms) or -10 dBu (0.3162 Vrms) unbalanced

Maximum input level: 2 Vrms

Input impedance: >12k ohms unbalanced, >12k ohms balanced, DC coupled

FIG. 24 displays the AUDIO INPUTS connectors from the DVX-3150HD-SP.

Audio Inputs Connectors (DVX-3150HD)

FIG. 24

The following table lists the number of ports and the port numbers for each model of DVX.

• AUDIO INPUTS Ports

DVX Model No. of Ports Port Numbers

DVX-3150HD/3155HD 4 1-4

DVX-3156HD 2 1-2

DVX-2150HD/2155HD/2110HD 2 1-2

HDMI INPUTS

The HDMI INPUT connectors on the rear panel routes digital audio (and video) from connected source input devices to the connected output devices. These inputs support the following audio formats:

Supported Audio Formats

SA-CD Dolby Digital Plus DST (as used in SA-CD)

DVD-Audio MPEG1-layerI* DSD (as used in SA-CD)

DTS-HD Master Audio™ MPEG 1-layerII DTS

Dolby TrueHD MP3* ATRAC*

LPCM MPEG2* WMA Pro*

Dolby Digital (AC-3) AAC LC* MLP (as used in DVD-Audio)

* - Not available as a compressed format, but supported when output as LPCM.

For more information about these connectors, including wiring, see the HDMI INPUTS section on page 34.

If you are using a DVX-3155HD, you have two DXLink input ports, which support embedded audio, in place of HDMI input ports 9-

10. If you are using a DVX-3156HD, you have 4 DXLink ports and only 4 HDMI inputs. See the Supported Video Settings section on page 35 for more information.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Balanced wiring

Unbalanced wiring

DVX

source device

The following table lists the number of digital audio ports and the port numbers for each model of DVX.

Digital Audio Ports

DVX Model HDMI

Ports

Port Numbers No. of

DXLink Ports

DVX-3150HD 6 5-10 0 N/A

DVX-3155HD 4 5-8 2 9-10

DVX-3156HD 43-6 47-10

DVX-2150HD 45-8 0N/A

DVX-2155HD 23-4 25-6

DVX-2110HD 2 3-4 2 5-6

Port Numbers

AUDIO INPUTS

The AUDIO INPUTS connectors are 3.5 mm 5-position captive-wire terminals that can be wired for either balanced (differential) or unbalanced (single-ended) stereo audio (FIG. 25). Since the DVX allows independent switching of video and audio, inputs of the same number do not have to be connected to the same source equipment. These connectors feature the following specifications:

Nominal input level: +4 dBu (1.228 Vrms) balanced or -10 dBu (0.3162 Vrms) unbalanced

Maximum input level: 2 Vrms

Input impedance: >12k ohms unbalanced, >12k ohms balanced, DC coupled

FIG. 25 displays the AUDIO INPUTS connectors on the DVX-3150HD-SP.

Audio Inputs Connectors

FIG. 25

The following table lists the number of ports and the port numbers for each model of DVX.

AUDIO INPU TS Ports

DVX Model No. of Ports Port Numbers

DVX-3150HD/3155HD/3156HD 4 11-14

DVX-2150HD/2155HD/2110HD 2 7-8

Source devices require either balanced (differential) or unbalanced (single-ended) connections. FIG. 26 illustrates options for wiring between sources and input connectors. More than one option can be used in the same system.

Stereo 5-Terminal Wiring

FIG. 26

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX

source device

RCA output

XLR output

DVX

FIG. 27 provides details for wiring from an audio input to a an unbalanced source device that has RCA connectors. Positive and ground wires connect to the source. You also can use a CC-3.5ST5-RCA2F 2 RCA Female to 5-Pin Phoenix Cable (FG10-003-20) for this type of connection.

FIG. 27

RCA Stereo Audio Source Wiring

WARNING: Do not connect the negative terminals to the source connector. Doing so can cause damage to your device.

MIC INPUTS

Two 3.5mm 3-pin captive-wire MIC INPUT connectors (FIG. 28) allow up to two mono microphones to be connected to the DVX. Each microphone input supports balanced and unbalanced audio. Each input supports up to 48V o f phantom power.

FIG. 28 displays the MIC INPUTS connectors.

MIC Inputs

FIG. 28

FIG. 29 illustrates wiring connections between the DVX and a mono RCA output and an XLR output.

FIG. 29

RCA (mono) and XLR Output Wiring

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

-SP models

-T models

AMP OUT

The AMP OUT amplified audio output (FIG. 30) differs according to the DVX model you are using:

The 4-position captive wire connector for -SP models provides amplified, variable, mono or stereo audio outpu t.

The two 2-position captive wire connectors for -T models provide 70V or 100V mono amplified audio output. Connect a

speaker to either the 70V or 100V terminal, but not both simultaneously.

FIG. 30 displays the AMP OUT CLASS 2 WIRING outputs.

FIG. 30

AMP Out Class 2 Wiring Output

On -SP models, connect speakers to the AMP OUT output as displayed in FIG. 31.

FIG. 31

Connecting Speakers to the Amplified Audio Output (-SP Models)

On -T models, connect a speaker to either the 70V or 100V terminals as displayed in FIG. 32.

Connecting Speakers to the Amplified Audio Outpu t (-T Models)

FIG. 32

AUDIO OUTPUTS

The Line Level audio outputs provide balanced or unbalanced, mono or stereo line-level audio output. The 315x models each feature three audio outputs (ports 2-4). The 21xx models featu re only two audio ou tputs each (ports 2-3).

FIG. 33 displays the AUDIO OUTPUTS connectors on the DVX-3150HD-SP.

FIG. 33

Audio Outputs

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Destination Device

DVX

Balanced Wiring

Unbalanced Wiring

Destination devices require either balanced (differential) or unbalanced (single-ended) connections. FIG. 34 illustrates options for wiring between output connectors and the destinations.

FIG. 34

Stereo 5-Terminal Wiring

WARNING:

Do not connect the negative terminals to the source connector. Doing so can cause damage to your device.

S/PDIF OUTPUT

The S/PDIF OUTPUT provides digital S/PDIF audio output that can mirror any of the analog audio outputs or HDMI outputs.

FIG. 35 displays the S/PDIF OUTPUT connector.

S/PDIF Output

FIG. 35

Rear Panel Video Inputs and Outputs

The following sub-sections describe each component on the rear panel of the DVX. All digital inputs and outputs on the DVX support HDCP. Refer to FIG. 6 on page 22 for the component layout of the rear panel.

MULTI-FORMAT VIDEO INPUTS

The MULTI-FORMAT VIDEO INPUT connectors on the rear panel are used to connect video source input devices to the DVX. The DVX routes video from connected source input devices to the connected output devices. The DVX-3150HD and 3155HD models each feature four audio outputs (ports 1-4). The DVX-3156HD and 21xx models feature only two audio outputs each (ports 1-2).

FIG. 36 displays the MULTI-FORMAT VIDEO INPUTS connectors on the DVX-3150HD-SP.

FIG. 36

Multi-Format Video Inputs (DVI-I Connectors)

These numbered inputs correspond to the input port number of the video signal when making a switch or adjusting video input parameters.

NOTE: The MULTI-FORMAT VIDEO INPUT connectors on the DVX are DVI-I (integrated digital/analog) connectors. These connectors support both DVI-A (analog) and DVI-D (digital) inputs.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

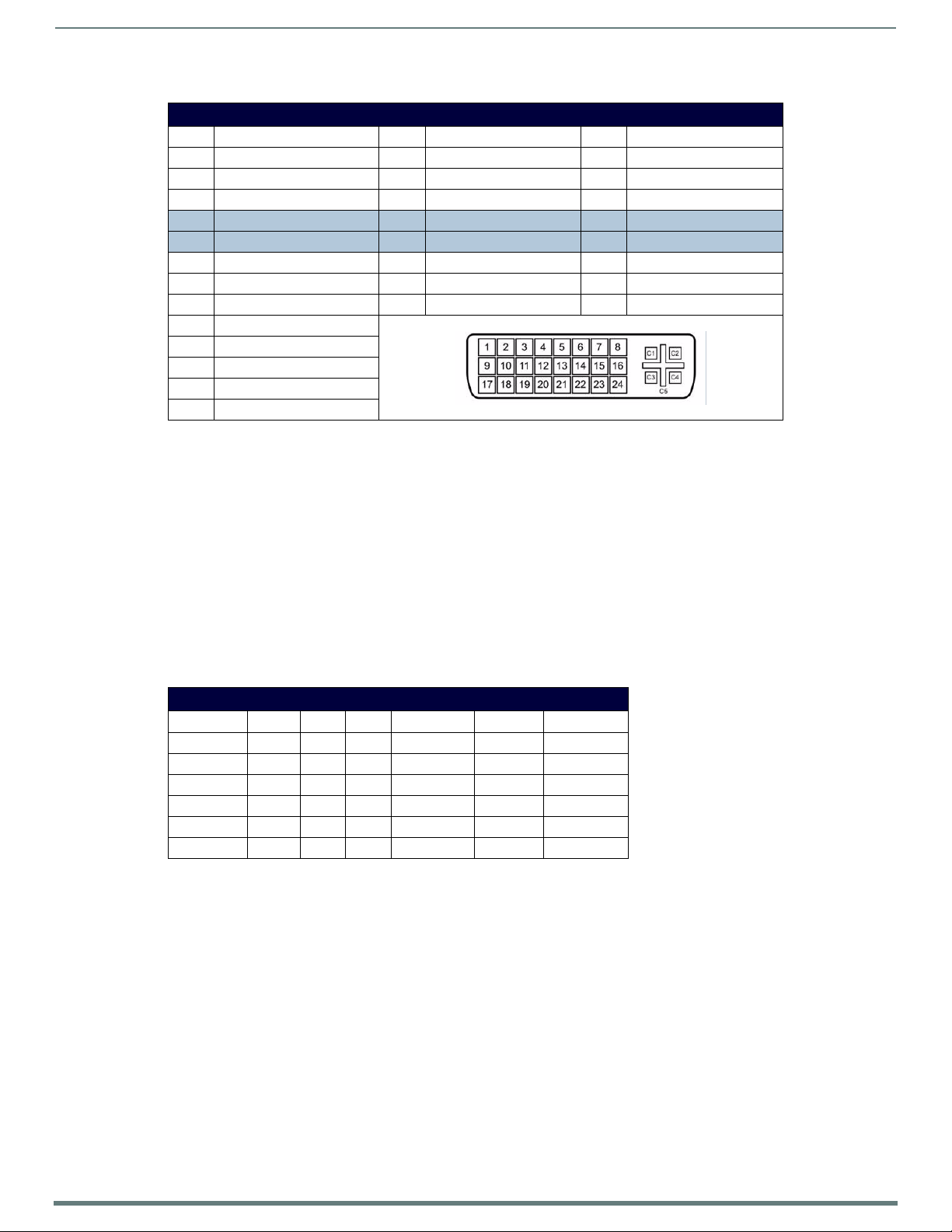

The following table describes the pinout conf iguration of the MULTI-FORMAT VIDEO INPUT connectors:

MULTI-FORMAT VIDEO INPUT Connectors - Pinouts and Signals

Pin Signal Pin Signal Pin Signal

1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-

2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+

3 TMDS Data2/4 Shield 11 TMDS Data1/3 Shield 19 TMDS Data0/5 Shield

4 n/c 12 n/c 20 n/c

5 n/c 13 n/c 21 n/c

6 DDC Clock [SCL] 14 +5 V Power 22 TMDS Clock Shield

7 DDC Data [SDA] 15 Ground (for +5 V) 23 TMDS Clock +

8 Analog vertical sync 16 Ho t Plug Detect 24 TMDS Clock -

C1 Analog Red

C2 Analog Green

C3 Analog Blue

C4 Analog Horizontal Sync

C5 Analog Ground

NOTE: If a DVI source is attached before setting the input to DVI, you may need to reboot the source for it to recognize the DVI input description information required by the DVI standard.

Each MULTI-FORMAT VIDEO INPUT connector supports HDMI and DVI-D, as well as RGBHV, S-Video, Composite, Component, and VGA inputs, using the appropriate conversion cables. Refer to the Cable Details and Pinout Information section on page 45 for cable details and pinout information for each cable type:

DVI-A Male to 5-BNC Male Cable section on page 47

DVI-A Male to Triple RCA Male Cable section on page 48

DVI-A Male to S-Video Male Cable section on page 49

DVI-A Male to HD15 (VGA) Male Adapter section on page 50

HDMI Male to DVI-D Male Cable section on page 51

NOTE: The DVX and the adapter cables listed above utilize industry-standard pinouts. The only adapter cable that is unique to AMX is the CC-DVI-SVID (DVI-to-S-Video) cable. The others are generally available to purchase from other vendors, assuming that they also utilize industry standard (or equivalent) pinouts.

The following table displays the supported video settings for each type of input connection:

Supported Video Settings

Type Phase Shift Hue Saturation Contrast Brightness

S-Video X X ü ü ü ü

Composite X X ü ü ü ü

Component X X ü ü ü ü

RGB ü ü ü ü ü ü

DVI X X ü ü ü ü

HDMI X X ü ü ü ü

NOTE: Deep Color pass-through is not supported on the MULTI-FORMAT VIDEO INPUTS.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

HDMI INPUTS

The HDMI INPUT connectors on the rear panel are used to connect source input devices to the DVX. The DVX routes digita l vi deo and audio from connected source input devices to the connected output devices. These ports support HDMI (with 3D and Deep Color) and HDCP.

FIG. 37 displays the HDMI INPUTS connectors on the DVX-3150HD-SP.

HDMI INPUTS Connectors

FIG. 37

The following table lists the number of video ports and the port numbers for each model of DVX.

Digital Audio Ports

DVX Model No. of HDMI Ports Port Numbers No. of DXLink Ports Port Numbers

DVX-3150HD 6 5-10 0 N/A

DVX-3155HD 4 5-8 2 9-10

DVX-3156HD 4 3-6 4 7-10

DVX-2150HD 4 5-8 0 N/A

DVX-2155HD 2 3-4 2 5-6

DVX-2110HD 2 3-4 2 5-6

The following table describes the pinout conf iguration of the HDMI INPUTS connectors:

HDMI INPUT Connectors - Pinouts and Signals

Pin Signal Pin Signal

1 TMDS Data 2+ 11 TMDS Clock Shield

2 TMDS Data 2 Shield 12 TMDS Clock-

3TMDS Data 2- 13CEC

4 TMDS Data 1+ 14 Reserved, HEC Data

5 TMDS Data 1 Shield 15 SCL

6 TMDS Data 1- 16 SDA

7 TMDS Data 0+ 17 DDC/CEC/HEC Ground

8 TMDS Data 0 Shield 18 +5V Power (max 50mA)

9 TMDS Data 0- 19 Hot Plug Detect, HEC Data+

10 TMDS Clock+

FIG. 38 displays the p in lo cations for the HDMI INPUTS:

HDMI Pinouts

FIG. 38

To connect HDMI input source devices (DVI and HDMI) to the HDMI INPUT connectors, the following (optional) adapter cables are required:

The following table displays the supported video settings for each type of input connection compatible with the HDMI INPUT connectors:

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI Input Adapter Cables

Name Description Length FG#

HDMI Interface Cable HDMI Male to HDMI Male 6 1/2’ (2m) FG10-2178-05

HDMI to DVI Cable HDMI Male to DVI Male

(See the HDMI Male to DVI-D Male Cable section on page 51 for more information on HDMI-to-DVI cable wiring.)

6’ (1.828m) FG10-2179

Supported Video Settings

Type Phase Shift Hue Saturation Contrast Brightness

DVI X X ü ü ü ü

HDMI X X ü ü ü ü

DXLink INPUTS

The DXLink INPUTS (RJ-45) connectors transpor t dig ital video, embedded a udio, Et her net, and bi-directional co ntrol over twis ted pair cable to DXLink devices or boards, including digitally trans-coded analog video signals. Both inputs support HDCP. These connectors are not available on all DVX models. Consult the Digital Audio Ports table on page 34 for a list of DVX models that feature DXLink INPUTS connectors.

FIG. 39 displays the DXLINK INPUTS connectors on the DVX-3155HD-SP.

FIG. 39

DXLINK Inputs

See the Important Twisted Pair Cabling Requirements and Recommendations section on page 37 for information abou t cable requirements for these ports.

VIDEO OUTPUTS

The following sections provide details on the video outputs for the 315x and 21xx DVX models.

315x Video Outputs

The VIDEO OUTPUTS for the 315x DVX models include 2 different types of connectors:

4 HDMI Output connectors (1-4) each provide digital DVI video and HDMI audio and video output.

2 DXLink Twisted Pair outputs (1, 3) mirror HDMI outputs 1 and 3. They provide digital video, audio, Ethernet, and

bi-directional control over Category Cable to DXLink Receivers. See the Important Twisted Pair Cabling Requirements and Recommendations section on page 37 for information about cable requirements.

NOTE: On Video outputs 1 and 3, if you are using both DXLink and HDMI outputs, it is recommended that they have the same native resolution. In this situation, the EDID from the HDMI display is used to determine the SmartScale resolution and timing.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

FIG. 40 displays t he H DMI and DXLink audio/video outpu t ports on the DVX-315 0HD-SP.

Video Outputs

FIG. 40

NOTE: All video output ports support HDCP.

21xx Video Outputs

The VIDEO OUTPUTS for the 21xx DVX models include 2 different types of connectors:

2 HDMI Outpu t connectors ( 1-2 ) each provide scaled digit al DVI video and HDMI au dio and video outpu t.

1 DXLink Twisted Pair output (3) providing digital video, em bedded audio, Ethernet (ICSP commands only), and

bi-directional control and power over Category Cable to DXLink Receivers. Video output on the DXLink port is NOT scaled. See the Important Twisted Pair Cabling Requirements and Recommendations section on page 37 information about cable requirements.

NOTE: The DVX-2110HD features 1 DXLink Twisted Pair output (1) which mirrors HDMI port 1. It provides digital video, audio, Ethernet, and bi-directional control over Twisted Pair Cable to DXLink Receivers.

FIG. 41 displays t he H DMI and DXLink audio/video outpu t ports on the DVX-215 0HD-SP.

FIG. 41

Video Outputs

Note: All video output ports support HDCP.

FIG. 42 displays male and female RJ-45 connectors. You can connect the DVX to the DXLink receivers via Category cabling.

RJ-45 Pinouts

FIG. 42

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Twisted Pair Cable Pinouts

AMX supports both the T568A and T568B pinout specif ications for termination of the twisted pair cable used between the DVX and the DXLink receiver.

FIG. 43

Twisted Pair Cable Pinouts for T568A (Recommended) and T568B Specifications

Important Twisted Pair Cabling Requirements and Recommendations

The following requirements and recommendations apply to cabling DXLink (RJ-45) connectors:

DXLink cable runs require shielded category cable (STP) of Cat6 (or better).

DXLink twisted pair cable runs for DXLink equipment shall only be run within a common building.*

DXLink delivers 10.2 GB/s throughput over shielded category cable. Based on this bandwidth requirement, we recommend

following industry standard practices designed for 10 Gigabit Ethernet when designing and installing the cable infrastructure.

The cables should be no longer than necessary to reach the end-points. We recommend terminating the cable to the actual

distance required rather than leaving any excess cable in a service loop.

For more details and helpful cabling information, reference the white paper titled "Cabling for Success with DXLink" available at

www.amx.com

* "Common building" is defined as: Where the walls of the structure(s) are physically connected and the structure(s) share a single ground reference.

or contact your AMX representative.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DB9 Serial Port pinouts (male connector)

Pin 2: RX signal Pin 3: TX signal Pin 5: GND

Pin 7: RTS Pin 8: CTS

RS-232

Pin 1: RX Pin 4: TX + Pin 5: GND Pin 6: RX +

Pin 9: TX -

RS-422

Pin 1: A (strap to 9) Pin 4: B (strap to 6) Pin 5: GND Pin 6: B (strap to 4) Pin 9: A (strap to 1)

RS-485

12345

67 89

Rear Panel Control and Power

The following sub-sections describe each component on the rear panel of the DVX. Refer to FIG. 6 on page 22 for the component layout of the rear panel.

RS232/422/485 Serial Port Connectors

The RS232/422/485 serial device ports are used for A/V sources and displays. These ports support most standard RS-232, RS422, and RS-485 communication protocols for data transmission. The 315x DVX models feature six connectors. The 21xx DVX models feature three connectors.

FIG. 44 displays the RS232/422/485 Serial Port connectors on the DVX-3150HD-SP.

FIG. 44

RS-232/422/485 Serial Port Connectors

These connectors feature the following specifications:

XON/XOFF (transmit on/transmit off)

CTS/RTS (clear to send/ready to send)

300-115,200 baud

FIG. 45 provides wiring specifications for the RS-232/422/485 connectors.

RS-232/422/485 (DB9 - male) Connector Pinouts

FIG. 45

VIDEO OUTPUTS

Pin Signal Function RS-232 RS-422 RS-485

1 RX- Receive data X X (strap to pin 9)

2RXD Receive data X

3TXD Transmit data X

4 TX+ Transmit data X X (strap to pin 6)

5 GND Signal ground X X X

6 RX+ Receive data X X (strap to pin 4)

7RTS Request to send X

8CTS Clear to send X

9 TX- Transmit data X X (strap to pin 1)

WARNING: When wiring the connections, do not use pre-made 9-wire cable or connect the wire in the cable to any connection that will not be used by the DB9 serial port. Only use wiring that connects the necessary pins.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

RELAYS

You can connect up to eight independent external relay devices to the Relay connectors on the device. When a relay is "OFF", terminals A and B are open-circuit. When a relay is "ON", terminals A and B are shorted together. The 315x DVX models feature eight connectors. The 21xx DVX models feature four connectors.

FIG. 46 displays the RELAYS connectors on the DVX-3150HD-SP.

FIG. 46

RELAYS Connectors

Each relay is isolated and normally open.

A metal commoning strip is supplied with each device to simplify the connection of multiple relays to a common reference if

needed.

8-channel single-pole single-t hrow rela y po rts

Each relay is independently controlled

Supports up to 8 independent external relay devices. (4 on 21xx DVX models)

Channel range = 1-8 (1-4 on 21xx DVX models)

Each relay can switch up to 24 VDC or 28 VAC peak @ 1 A

Two 8-pin 3.5mm mini-Phoenix (female) connector provides relay termination. (Only one 8-pin connector on 21xx DVX

models.)

Port 8 on 315x DVX models. Port 4 on 21xx DVX models.

I/O

The I/O port (FIG. 47) responds to switch closures and voltage level (high/low) changes, or can be used for logic-level outputs.

FIG. 47 displays the I/O port on the DVX-3150HD-SP.

I/O Connectors

FIG. 47

A contact closure between the GND and an I/O port is detected as a Push.

When used for voltage inpu ts, the I/O port detects a low signal (0 - 1.5 VDC) as a Push, and a high signal (3.5 - 5 VDC) as a

Release (this I/O port uses 5V logic but can handle up to 12V without harm).

When used for outputs, the I/O port acts as a switch to GND and is rated for 200mA @ 12 VDC.

The PWR pin provides +12 VDC @ 200 mA and is designed as a power output for the PCS Power Current Sensors, VSS2

Video Sync Sensors (or equivalent).

The GND connector is a common ground and is shared by all I/O ports.

The input format is software selectable with interactive power sensing for IR ports.

Channel range = 1-8 (1-4 on 21xx DVX models)

One 10-pin 3.5mm mini-Phoenix (female) connector provides I/O connection. (One 6-pin connector on 21xx DVX models.)

Port 17 on 315x DVX models. Port 9 on 21xx DVX models.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

IR/SERIAL

You can connect up to eight IR- or Serial-controllable devices to the IR/SERIAL connectors.

FIG. 48 displays the IR/SERIAL connectors on the DVX-3150HD-SP.

IR/Serial Connectors

FIG. 48

The IR/SERIAL connectors accept an IR Emitter (CC-NIRC) that mounts onto the controlled device's IR window, or a mini-

plug (CC-NSER) that connects to the controlled device's control jack.

You can also connect a data (0 - 5 VDC) device.

Supports high-frequency carriers of up to 1.142 MHz.

8 IR/Serial data signals can be generated simultaneously. (Four on 21xx DVX models.)

Ports 9-16 on 315x DVX models. Ports 5-8 on 21xx DVX models.

The IR/Serial connector wiring specif ications for 315x DVX models are listed in the following table.

IR/Serial Connector Wiring Specifications (per Port)

IR connections Port # Signal Function

19GND (-)

Signal 1 (+)

210GND (-)

Signal 2 (+)

311GND (-)

Signal 3 (+)

412GND (-)

Signal 4 (+)

513GND (-)

Signal 5 (+)

614GND (-)

Signal 6 (+)

715GND (-)

Signal 7 (+)

816GND (-)

Signal 8 (+)

Signal GND IR/Serial data

The IR/Serial connector wiring specif ications for 21xx DVX models are listed in the following table.

IR/Serial Connector Wiring Specifications (per Port)

IR connections Port # Signal Function

15GND (-)

Signal 1 (+)

26GND (-)

Signal 2 (+)

37GND (-)

Signal 3 (+)

48GND (-)

Signal 4 (+)

Signal GND IR/Serial data

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Switch Position 1 Sets PRD Mode (UP = ON)

Position 1 UP (ON) = PRD Mode Enabled Position 1 DOWN (OFF) = Normal (default) Mode - PRD Mode Disabled

CONFIG DIP Switch

Use the Conf iguration DIP switch to set the information used by the PROGRAM Port for communication or to set the on-board Master to Program Run Disable (PRD) mode.

FIG. 49 displays the CONFIG DIP switch.

FIG. 49

Config DIP Switch

Baud Rate Settings

Before programming the on-board Master, make sure the baud rate you set matches the communication parameters set on both your PC’s COM port and those set through your NetLinx Studio v 3.x.

By default, the baud rate is set to 38,400 (bps).

Baud Rate Settings on the Configuration DIP Switch

Baud Rate Position 5 Position 6 Position 7 Position 8

9600 bps OFF ON OFF ON

38,400 bps (defau lt)

57,600 bps ON OFF OFF OFF

115,200 bps ON ON ON ON

Note the orientation of the Configuration DIP Switch and the ON position label. DIP switches 2, 3, and 4 must remain in the OFF position at all times.

OFFONONON

Program Run Disable (PRD) Mode

You can also use the PROGRAM port’s Configuration DIP switch to set the on-board Master to Program Run Disable (PRD) mode according to the settings listed in the table below.

PRD Mode Settings

PRD Mode Position 1

Normal mode (default) OFF

PRD Mode ON

PRD mode prevents the NetLinx program stored in the on-board Master from running during the device’s power-up. This mode should be used if the resident NetLinx program is causing inadvertent communication and/or control problems.

If necessary, place the on-board Master in PRD mode and cycle power, then use the NetLinx Studio v 3.x program to resolve the communication and/or control problems with the resident NetLinx program. After doing so, download the corrected program, reset the configuration DIP switch to normal mode, recycle power, and try again.

To set the CONFIG DIP Switch:

1. Turn off the power switch on the rear of the unit.

2. Set the CONFIG DIP switch (refer to FIG. 49).

3. Turn on the power switch.

NOTE: Consider equating PRD Mode to a PC’s SAFE Mode setting. With PRD mode, you can continue to power a unit, update the firmware, and download a new program while circumventing any problems with a currently downloaded program. You must power cycle the unit after activating/deactivating PRD mode on Program Port DIP switch #1.

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

5 4

3 2 1

9 8

7 6

PROGRAM Port

The PROGRAM port is a DB-9 male RS-232 port that connects the DVX to a communication port on a PC, and is intended primarily to be used to configure system settings.

FIG. 50 displays the PROGRAM port.

Program Port

FIG. 50

The following table shows the rear panel Program Port connector (male), pinouts, and signals.

Program Port, Pinouts, and Signals

Program Port Connector Pin Signal

2RX

3TX

5GND

7RTS

8CTS

NOTE: The PROGRAM port is not recommended for f irmware updates or large file transfers. Any large data-intensive operations are better handled via LAN.

ID Pushbutton

The ID pushbutton sets the NetLinx ID assignments of the Internal Control Device. It has no effect on the Internal Switcher Device. Only the 5001 ID can be changed. It is not possible to change the 5002 device ID.

FIG. 51 displays the ID pushbutton.

FIG. 51

ID Pushbutton

LAN (RJ-45)

The LAN RJ-45 port provides 10/100 Mbps communication via Category cable. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables.

FIG. 52 displays the LAN port.

LAN Port

FIG. 52

The LAN port automatically negotiates the connection speed (10 Mbps or 100 Mbps), and whether to use half duplex or full duplex mode. This communication is reflected via the front ICSP LED.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

FIG. 53 provides the pinouts and signals for the LAN connector and cable.

A L

L/A - Activity LED (green)

lights when receiving or

transmitting LAN

data pac kets

SPD - Link LED (amber) lights when the LAN cables are connected and terminated correctly.

FIG. 53

RJ-45 Wiring Diagram

FIG. 54 describes the blink activity for the LAN connector and cable.

FIG. 54

LAN Connector / LEDs

Wiring and Device Connections

AxLink Port and LED (4-pin captive-wire)

The AxLink port (FIG. 55) allows the DVX to support AMX AxLink devices.

FIG. 55 displays the AxLink port and LED.

AxLink Port and LED

FIG. 55

The (green) AxLink LED indicates AxLink data activity:

Off - No power, or the controller is not functioning properly. 1 blink per second - Normal operation. 3 blinks per second - AxLink bus error. Check all AxLink bus connections.

The AxLink port can be used to supply power to downstream AxLink-compatible devices as long as the maximum current draw is less than 1 Amp. To isolate the DVX from high inrush current, AxLink devices, or potential power faults on the AxLink bus, it is strongly recommended that you power external AxLink devices from an independent power supply.

NOTE: The AxLink port provides only limited power to connected AxLink devices. It is recommended to use an alternate power source when connecting AxLink devices to the DVX.

When using the DVX with the NXA-PDU-1508-8 power distribution unit, do NOT connect +12V power from any of the NXA-PDU's AxLink ports to the AxLink power pin.

Refer to the following table for the wiring length information used with the DVX:

Wiring Guidelines

Wire size Maximum wiring length

18 AWG 154.83 feet (47.19 meters)

20 AWG 98.30 feet (29.96 meters)

22 AWG 63.40 feet (19.32 meters)

24 AWG 38.68 feet (11.79 meters)

Wiring and Device Connections

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

To p vie w

Top v i e w

To the Controller’s AxLink/PWR connector

To the external AxLink device

Top v i e w

To the Controller’s AxLink/PWR connector

To the external AxLink device

Local 12+ VDC power supply (coming from an external power supply)

Power switch

Fuse (2.5A)

Power cable connector

FIG. 56 provides wiring requirements for the AxLink connector:

FIG. 56

Mini-Phoenix Connector Wiring Diagram (Direct Data And Power)

To use the 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector for data communication and power transfer, the incoming PWR and GND cable from the 12 VDC-compliant power supply must be connected to the AxLink cable connector going to the All-InOne Presentation Switcher. FIG. 57 shows the wiring diagram.

FIG. 57

4-pin Mini-Phoenix Connector Wiring Diagram (Using External Power Source)

WARNING: When you connect an external power supply, do not connect the wire from the PWR terminal (coming from the external device) to the PWR terminal on the Phoenix connector attached to the Controller unit. Make sure to connect only the AXM, AXP, and GND wires to the Controller’s Phoenix connector when using an external power supply.

Make sure to connect only the GND wire on the AxLink/PWR connector when using a separate 12 VDC power supply. Do not connect the PWR wire to the AxLink connector’s PWR (+) opening.

Power Connector/Switch/Fuse

FIG. 58 displays the power switch and connector for the DVX.

FIG. 58

Power Connector/Switch/Fuse

WARNING: This unit should only have one source of incoming power.

Using more than one source of power to the Controller can result in damage to the internal components and a possible burn out.

CAUTION:

Apply power to the unit only after you have completed installing the device.

To reduce the risk of electric shock, grounding of the center pin of the power plug must be maintained.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Cable Details and Pinout Information

Overview

The DVI-I Input connectors on the rear panel are used to connect video source input devices to the DVX (FIG. 59). The DVX routes video from connected source input devices to the connected output device. Each connector supports HDMI and DVI as well as VGA, S-Video, Composite, and Component inputs.

FIG. 59 displays the DVI inputs on the DVX-3150HD-SP.

FIG. 59

DVI Inputs

To connect non-DVI input source devices (S-Video, Composite, VGA, Component, and HDMI) to the DVI Input connectors, the following (optional ) adapter cables are required:

DVI Input Adapter Cables

Name Description Length FG#

CC-DVI-5BNCM DVI-to-5 BNC Male

Note: Used for VGA, Component, or Composite inputs. When used for composite inputs, connect the green plug on the adapter cable to the composite video output jack on the source device.

CC-DVI-RCA3M DVI-to-3 RCA Male

Note: Used for Component or Composite inputs. When used for composite inputs, connect the green plug on the adapter cable to the composite video output jack on the source device.

CC-DVI-SVID DVI-to-S-Video 9’ (2.743m) FG10-2170-10

CC-DVIM-VGAF DVI-to-VGA (up to 1920x1200) 6’ (1.828m) FG10-2170-13

Cable Details and Pinout Information

6’ (1.828m) FG10-2170-08

6’ (1.828m) FG10-2170-09

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-D Male to DVI-D Male Single-Link Cable

Cable to be composed of the following:

Four UL20276 (28AWG twisted pair + drain wire + aluminum foil/mylar shield) for TMDS signals and shields

Five UL1589 (28AWG) for DDC_CLK, DDC_DATA, Hot_Plug_Detect, +5VDC, and GROUND

The above bundles jacketed together in aluminum foil shield and 85% (minimum) braid

EMI shield metal can on both DVI connectors and connected to braid

DVI-to-DVI Cable Pinout Information

The following table lists DVI-to-DVI cable pinouts:

DVI-to-DVI Cable Pinout Information

DVI-D Connector Pin Signal Name Signal Name

1 TMDS DATA 2 N TMDS DATA 2 N 1 28AWG twisted pair 2

2 TMDS DATA 2 P TMDS DATA 2 P 2 28AWG twisted pair 2

3 TMDS SHIELD 2/4 TMDS SHIELD 2/4 3 28AWG twisted pair 2 drain

4 TMDS DATA 4 N TMDS DATA 4 N 4 Pin not populated in DVI-D connector

5 TMDS DATA 4 P TMDS DATA 4 P 5 Pin no t populated in DVI-D connector

6 DDC CLOCK DDC CLOCK 6 28AWG

7 DDC DATA DDC DATA 7 28AWG

8 ANALOG

VERTICAL SYNC

9 TMDS DATA 1 N TMDS DATA 1 N 9 28AWG twisted pair 1

10 TMDS DATA 1 P TMDS DATA 1 P 10 28AWG twisted pair 1

11 TMDS SHIELD 1/3 TMDS SHIELD 1/3 11 28AWG twisted pair 1 drain

12 TMDS DATA 3 N TMDS DATA 3 N 12 Pin not populated in DVI-D connector

13 TMDS DATA 3 P TMDS DATA 3 P 13 Pin no t populated in DVI-D connector

14 +5VDC +5VDC 14 28AWG

15 GROUND GROUND 15 28AWG

16 HOT PLUG DETECT HOT PLUG DETECT 16 28AWG

17 TMDS DATA 0 N TMDS DATA 0 N 17 28AWG twisted pair 0

18 TMDS DATA 0 P TMDS DATA 0 P 18 28AWGtwisted pair 0

19 TMDS SHIELD 0/5 TMDS SHIELD 0/5 19 28AWGtwisted pair 0 drain

20 TMDS DATA 5 N TMDS DATA 5 N 20 Pin not populated in DVI-D connector

21 TMDS DATA 5 P TMDS DATA 5 P 21 Pin not populated in DVI-D connector

22 TMDS CLOCK

SHIELD

23 TMDS CLOCK P TMDS CLOCK P 23 28AWGtwisted pair CLK

24 TMDS CLOCK N TMDS CLOCK N 24 28AWGtwisted pair CLK

C1 C1 ANALOG RED C1 ANALOG RED C1 Pin not populated in DVI-D connector

C2 C2 ANALOG GREEN C2 ANALOG GREEN C2 Pin not populated in DVI-D connector

C3 C3 ANALOG BLUE C3 ANALOG BLUE C3 Pin not populated in DVI-D connector

C4 C4 ANALOG HSYNC C4 ANALOG HSYNC C4 Pin not populated in DVI-D connector

C5 C5 ANALOG GROUND C5 ANALOG GROUND C5 Pin populated in DVI-D connector, but

BACKSHELL SHIELD SHIELD BACKSHELL Outer braid

ANALOG VERTICAL SYNC

TMDS CLOCK SHIELD

DVI-D Connector Pin Notes:

8 Pin populated in DVI-D connector, but

not connected for this cable

22 28AWG twisted pair CLK drain

not connected for this cable

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-A Male to 5-BNC Male Cable

Cable to be composed of the following:

Five 75ohm 28 AWG mini-coax cables for the Red, Green, Blue, VSync, and HSync signals and returns

EMI shield metal can on DVI connector

Note: This cable type corresponds to the CC-DVI-5BNCM DVI-to-Component cable (FG10-2170-08), available from AMX.

DVI-to-5-BNC Cable Pinout Information

The following table lists DVI--to-5-BNC cable pinouts:

DVI-to-5-BNC Cable Pinout Information

DVI-A Connector Pin Signal Name Signal Name

1 TMDS DATA 2 N Pin populated in DVI-A connector, but

2 TMDS DATA 2 P Pin populated in DVI-A connector, but

3 TMDS SHIELD 2/4 Pin not populated in DVI-A connector

4 TMDS DATA 4 N Pin not populated in DVI-A connector

5 TMDS DATA 4 P Pin no t populated in DVI-A connector

6 DDC CLOCK Pin populated in DVI-A connector, but

7 DDC DATA Pin populated in DVI-A connector, but

8 ANALOG VERTICAL SYNC VSync Signal Black BNC center pin

9 TMDS DATA 1 N Pin not populated in DVI-A connector

10 TMDS DATA 1 P Pin not populated in DVI-A connector

11 TMDS SHIELD 1/3 Pin not populated in DVI-A connector

12 TMDS DATA 3 N Pin not populated in DVI-A connector

13 TMDS DATA 3 P Pin not populated in DVI-A connector

14 +5VDC Pin populated in DVI-A connector, but

15 GROUND VSync, HSync

Returns (shields)

16 HOT PLUG DETECT Pin populated in DVI-A connector, but

17 TMDS DATA 0 N Pin populated in DVI-A connector, but

18 TMDS DATA 0 P Pin populated in DVI-A connector, but

19 TMDS SHIELD 0/5 Pin not populated in DVI-A connector

20 TMDS DATA 5 N Pin not populated in DVI-A connector

21 TMDS DATA 5 P Pin not populated in DVI-A connector

22 TMDS CLOCK SHIELD Pin not populated in DVI-A connector

23 TMDS CLOCK P Pin populated in DVI-A connector, but

24 TMDS CLOCK N Pin populated in DVI-A connector, but

C1 C1 ANALOG RED Red Signal Red BNC center pin

C2 C2 ANALOG GREEN Green Signal Green BNC center pin

C3 C3 ANALOG BLUE Blue Signal Blue BNC center pin

C4 C4 ANALOG HSYNC HSync Signal Grey BNC center pin

C5 C5 ANALOG GROUND Red, Green,

Blue Returns (shields)

BACKSHELL SHIELD Pin populated in DVI-A connector, but

BNC connector pin Notes:

not connected for this cable

Black/Grey BNC shields

not connected for this cable

Red/Green/Blue BNC shields

not connected for this cable

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-A Male to Triple RCA Male Cable

Cable to be composed of the following:

Three 75ohm 28 AWG mini-coax cables for the Red, Green, and Blue signals and returns

EMI shield metal can on DVI connector

NOTE: This cable type corresponds to the CC-DVI-RCA3M DVI-to-Component/Composite cable (FG10-2170-09), available from AMX.

DVI-to-Triple RCA Cable Pinout Information

The following table lists the DVI-to-Triple RCA cable pinouts:

DVI-to-Triple RCA Cable Pinout Information

DVI-A Connector Pin Signal Name Signal Name

1 TMDS DATA 2 N Pin populated in DVI-A connector, but

2 TMDS DATA 2 P Pin populated in DVI-A connector, but

3 TMDS SHIELD 2/4 Pin not populated in DVI-A connector

4 TMDS DATA 4 N Pin not populated in DVI-A connector

5 TMDS DATA 4 P Pin not populated in DVI-A connector

6 DDC CLOCK Pin populated in DVI-A connector, but

7 DDC DATA Pin populated in DVI-A connector, but

8 ANALOG VERTICAL SYNC Pin populated in DVI-A connector, but

9 TMDS DATA 1 N Pin not populated in DVI-A connector

10 TMDS DATA 1 P Pin not populated in DVI-A connector

11 TMDS SHIELD 1/3 Pin not populated in DVI-A connector

12 TMDS DATA 3 N Pin not populated in DVI-A connector

13 TMDS DATA 3 P Pin not populated in DVI-A connector

14 +5VDC Pin populated in DVI-A connector, but

15 GROUND Pin populated in DVI-A connector, but

16 HOT PLUG DETECT Pin populated in DVI-A connector, but

17 TMDS DATA 0 N Pin populated in DVI-A connector, bu t

18 TMDS DATA 0 P Pin populated in DVI-A connector, but

19 TMDS SHIELD 0/5 Pin not populated in DVI-A connector

20 TMDS DATA 5 N Pin not populated in DVI-A connector

21 TMDS DATA 5 P Pin not populated in DVI-A connector

22 TMDS CLOCK SHIELD Pin not populated in DVI-A connector

23 TMDS CLOCK P Pin populated in DVI-A connector, but

24 TMDS CLOCK N Pin populated in DVI-A connector, but

C1 C1 ANALOG RED Component Pr

/ CVBS 1 Signal

C2 C2 ANALOG GREEN Component Y /

CVBS 2 Signal

C3 C3 ANALOG BLUE Component Pb

/ CVBS 3 Signal

C4 C4 ANALOG HSYNC Pin populated in DVI-A connector, but

C5 C5 ANALOG GROUND Pr, Y, Pb / CVBS

Returns (shields)

RCA connector pin Notes:

not connected for this cable

Red RCA connector center pin

Green RCA connector center pin

Blue RCA connector center pin

not connected for this cable

Red/Green/Blue RCA connector shields

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-to-Triple RCA Cable Pinout Information

BACKSHELL SHIELD Pin populated in DVI-A connector, but

not connected for this cable

DVI-A Male to S-Video Male Cable

Cable to be composed of the following:

Two 75ohm 28 AWG mini-coax cables for the Luminance (Y) and Chrominance (C) signals and returns

EMI shield metal can on DVI connector

NOTE: This cable corresponds to the CC-DVI-SVID DVI-to-S-Video adapter cable (FG10-2170-10), available from AMX.

DVI-to-S-Video Cable Pinout Information

The following table lists the DVI-to-S-Video cable pinouts:

DVI-to-S-Video Cable Pinout Information

DVI-A Connector Pin Signal Name Signal Name

1 TMDS DATA 2 N Pin populated in DVI-A connector, bu t not

2 TMDS DATA 2 P Pin populated in DVI-A connector, but not

3 TMDS SHIELD 2/4 Pin not populated in DVI-A connector

4 TMDS DATA 4 N Pin not populated in DVI-A connector

5 TMDS DATA 4 P Pin not populated in DVI-A connector

6 DDC CLOCK Pin populated in DVI-A connector, bu t not

7 DDC DATA Pin populated in DVI-A connector, bu t not

8 ANALOG

VERTICAL SYNC

9 TMDS DATA 1 N Pin not populated in DVI-A connector

10 TMDS DATA 1 P Pin not populated in DVI-A connector

11 TMDS SHIELD 1/3 Pin not populated in DVI-A connector

12 TMDS DATA 3 N Pin no t populated in DVI-A connector

13 TMDS DATA 3 P Pin not populated in DVI-A connector

14 +5VDC Pin populated in DVI-A connector, but not

15 GROUND Pin populated in DVI-A connector, bu t not

16 HOT PLUG DETECT Pin populated in DVI-A connector, bu t not

17 TMDS DATA 0 N Pin populated in DVI-A connector, but not

18 TMDS DATA 0 P Pin populated in DVI-A connector, but not

19 TMDS SHIELD 0/5 Pin not populated in DVI-A connector

20 TMDS DATA 5 N Pin no t populated in DVI-A connector

21 TMDS DATA 5 P Pin not populated in DVI-A connector

22 TMDS CLOCK SHIELD Pin no t populated in DVI-A connector

23 TMDS CLOCK P Pin populated in DVI-A connector, but not

24 TMDS CLOCK N Pin populated in DVI-A connector, but no t

C1 C1 ANALOG RED Pin populated in DVI-A connector, but not

C2 C2 ANALOG GREEN Luminance (Y) Signal

(center conductor)

C3 C3 ANALOG BLUE Chrominance (C)

Signal (center conductor)

C4 C4 ANALOG HSYNC Pin populated in DVI-A connector, but not

C5 C5 ANALOG GROUND Y, C Returns (shields) 1, 2

S-Video Connector Pin Notes:

connected for this cable

Pin populated in DVI-A connector, bu t not connected for this cable

connected for this cable

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-to-S-Video Cable Pinout Information

BACKSHELL SHIELD Pin populated in DVI-A connector, but not

connected for this cable

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVI-A Male to HD15 (VGA) Male Adapter

Cable to be composed of the following:

Three 75ohm 28 AWG mini-coax cables for the Red, Green, and Blue signals and returns

Seven UL1589 (28AWG) for VSYNC, HSYNC, DDC_CLK, DDC_DATA, Hot_Plug_Detect, +5VDC, and GROUND

The above bundles jacketed together in aluminum foil shield and 85% (minimum) braid

EMI shield metal can on both DVI and HD15 connectors and connected to braid

NOTE: This cable type corresponds to the CC-DVIM-VGAF DVI-to-VGA adapter (FG10-2170-13), available from AMX.

DVI-to-VGA Cable Pinout Information

The following table lists the DVI-to-VGA cable pinouts:

DVI-to-VGA Cable Pinout Information

DVI-A Connector Pin Signal Name Signal Name

1 TMDS DATA 2 N Pin populated in DVI-A connector, but not

2 TMDS DATA 2 P Pin populated in DVI-A connector, but not

3 TMDS SHIELD 2/4 Pin not populated in DVI-A connector

4 TMDS DATA 4 N Pin not populated in DVI-A connector

5 TMDS DATA 4 P Pin not populated in DVI-A connector

6 DDC CLOCK DDC CLOCK 15 28AWG

7 DDC DATA DDC DATA 12 28AWG

8 ANALOG VERTICAL SYNC VSYNC Signal 14 28AWG

9 TMDS DATA 1 N Pin not populated in DVI-A connector

10 TMDS DATA 1 P Pin not populated in DVI-A connector

11 TMDS SHIELD 1/3 Pin not populated in DVI-A connector

12 TMDS DATA 3 N Pin no t populated in DVI-A connector

13 TMDS DATA 3 P Pin not populated in DVI-A connector

14 +5VDC +5VDC 9 28AWG

15 GROU ND GND, HS Return 5 28AWG

16 HOT PLUG DETECT +5VDC 9 28AWG

17 TMDS DATA 0 N Pin populated in DVI-A connector, but not

18 TMDS DATA 0 P Pin populated in DVI-A connector, but not

19 TMDS SHIELD 0/5 Pin not populated in DVI-A connector

20 TMDS DATA 5 N Pin not populated in DVI-A connector

21 TMDS DATA 5 P Pin not populated in DVI-A connector

22 TMDS CLOCK SHIELD Pin not populated in DVI-A connector

23 TMDS CLOCK P Pin populated in DVI-A connector, but not

24 TMDS CLOCK N Pin populated in DVI-A connector, but not

C1 C1 ANALOG RED RED Coax Signal 1 Red mini-coax signal

C2 C2 ANALOG GREEN GREEN Coax Signal 2 Green mini-coax signal

C3 C3 ANALOG BLUE BLUE Coax Signal 3 Blue mini-coax signal

C4 C4 ANALOG HSYNC HSYNC Signal 13 28AWG

C5 C5 ANALOG GROUND RGB Coax,

VSync/DDC Returns

BACKSHELL Braided Shield Braided Shield BACKSHELL Outer braid, tied to 6, 7, 8, 10, 11

HD15 (VGA) Pin Notes:

connected for this cable

6, 7, 8, 10, 11Red, Green, Blue mini-coax returns;

VSync/DDC return; NC used as GND

Cable Details and Pinout Information

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

HDMI Male to DVI-D Male Cable

This section details the wiring for HDMI to DVI cabling.

HDMI-to-DVI-D Cable Pinout Information

The following table lists the HDMI-to-DVI-D cable pinouts:

HDMI-to-DVI-D Cable Pinout Information

HDMI Connector Pin Signal Name Wire

1TMDS Data 2+ A2

2TMDS Data Shield B3

3TMDS Data 2- A1

4TMDS Data 1+ A10

5TMDS Data Shield B11

6TMDS Data 1- A9

7TMDS Data 0+ A18

8TMDS Data 0 Shield B19

9TMDS Data 0- A17

10 TMDS Clock+ A 23

11 TMDS Clock Shield B 22

12 TMDS Clock- A 24

13 CEC N.C. N.C.

14 Reserved N.C. N.C.

15 SCL C 6

16 SDA C 7

17 DDC/CEC Ground D 14

18 +5V Power 5V 16

19 Hot Plug Detect C 15

DVI-D Pin

Notes:

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio/Video Conf iguration

Overview

You can access the configuration settings for the DVX by using one of the following methods:

Using the front panel buttons

Using a Web browser

Using the Front Panel Buttons

You can access the configuration settings for the All-In-One Presentation Switcher by using the VIDEO MENU, AUDIO MENU, SWITCH, and STATUS buttons on the front panel of the DVX. Pressing any button opens its respective menu on the LCD display on the front panel. FIG. 60 shows the LCD display. The LCD backlight on the display turns off after 35 seconds of inactivity.

FIG. 60 displays the LCD display.

LCD Display

FIG. 60

Press the TAKE pushbutton to implement an audio/video switch while you are in the Switch menu on the LCD display. If you are in any menu other than Switch, press the button to cycle through audio and/or video inputs.

Use the Navigational buttons to traverse the available configuration parameters and change their settings. FIG. 61 displays the navigational function of each button.

Audio/Video Co nf ig uration

FIG. 61

Navigation Buttons

Video Settings

The following table lists the Video Output menu options available by pressing the VIDEO MENU button.

Video Output Menu Options

Output Select Use the left and right buttons to manually select which video output you want to use.

Select 1, 2, 3, 4, or ALL. (1, 2, or ALL on 21xx DVX models.)

Scaling Use the left and right buttons to toggle whether you want to scale the output image. Select AUTO, MANUAL, or

Resolution Use the left and right buttons to manually select the desired resolu tion and ref resh rate of the selected output.

AR Use the left and right buttons to select how video inputs should be displayed when the input and output aspect

BYPASS. The default setting is AUTO.

For a complete list of output resolutions, see the DVI and HDMI Supported Output Resolutions section on page 112.

Changing the output resolution automatically switches the scaling mode to MANUAL.

ratio do not match. Select one of the following options:

• MAINTAIN: Maintains the input aspect ratio while filling the screen either vertically or horizontally. Black bars may appear above and below or to the left and right of the image.

• STRETCH: Ignores the input aspect ratio and stretches the image to fill the screen in all directions.

• ZOOM: Maintains the input aspect ratio while zooming the image to fill the screen in all directions. Image data may be lost on the top and bottom or to the left and right of the displayed image.

• ANAMORPHIC: Use with anamorphic formatted video sources so that images appear correctly on the display.

The default setting is STRETCH.

Continued 

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video Output Menu Options

Logo/Test Use the left and right buttons to choose an output test pattern. Select Off to disable the test pattern and view

Blank Screen Use the left and right buttons to select the color of the blank screen on the output. Select either Black or Blue.

OSD Use the left and right buttons to toggle whether you want the OSD overlay to be turned on or off.

OSD Pos Use the left and right buttons to select the on-screen displays’ relative position so it is unobtrusive to video.

OSD Color Use the left and right buttons to select the background color for the on-screen display. Select Black, White,

Source (Output Video Adjust):

Brightness Use the left and right buttons to alter the brightness level adjustment applied to the selected output.

Contrast Use the left and right buttons to alter the contrast level adjustment applied to the selected outpu t.

H Size Use the left and right buttons to set the horizontal size o f the image for the selected output.

H Shift Use the left and right buttons to move the location of the video output from left to right.

V Size Use the left and right buttons to set the vertical size of the image for the selected output.

V Shift Use the left and right buttons to move the location of the video output up and down.

Zoom Use the left and right buttons to set the zoom on the video output image. Adjusting the zoom also adjusts the

Freeze Use the left and right buttons to toggle whether you want the current image to freeze and remain on the

Revert to Default

video from the selected source. Select one of the following options: Color Bar, Gray Ramp, SMPTE Bar, HiLoTrak, Pluge, and Cross Hatch.

NOTE: If you have uploaded a logo to display on the output, you can also select the logo from this option. Logo images must be 24-bit color bitmap files at least 36x36 pixels in size.

The default setting is Black.

NOTE: If you have uploaded a logo to display on the output, you can also select the logo from this option. Logo images must be at least 36x36 pixels in size.

Select either Enabled or Disabled. The default setting is Disabled. When enabled, the input name and resolution displays in a small box in the upper left-hand corner of the screen whenever you select a new input source. The location of the input name and resolution can be changed using the OSD Position option.

Select Top L ef t, Top Right, Bottom Left, or Bottom Right. The default setting is Top Left.

Yel low , or Blue. The default setting is Black.

Set the brightness level from 0-100. The default setting is 50.

Set the contrast level from 0-100. The default setting is 50.

Set the size from 25 to 800. The default setting is 100.

Set the shift from -127 to 127. The default setting is 0.

Set the size from 25 to 800. The default setting is 100.

Set the shift from -127 to 127. The default setting is 0.

horizontal and vertical sizes of the video outpu t. Set the zoom from 25 to 800. The default setting is 100.

screen. Select either On or Off. The default setting is Off.

Use the left and right buttons to indicate that you want to return all video options to their default settings. When the display indicates to "Press TAKE for YES", pressing the Take button reverts all configurable output

image adjustments to their default values.

The following table lists the Video Input menu options available by pressing the VIDEO MENU button twice from the main volume screen.

Video Input Menu Options

Input Select Use the left and right buttons to select which video input you want to use. Choose any available input from 1-

10. (1-6 on 21xx DVX models.)

Status Use this option to view the status of the selected input. The status can read NO SIGNAL, SIGNAL OK, and

UNKNOWN. This is a read-only field and pressing the left/right arrow keys will have no effect.

Type Use the left and right buttons to indicate the video format of the selected input.

For Multi-Format inpu ts, select HDMI, DVI, VGA , Component, S-Video, or Composite. The default setting is Component.

For HDMI inputs, you can choose HDMI or DVI.

Auto Res Use the left and right buttons to toggle whether you want the video input resolution to be set automatically.

The default setting is ON.

Continued 

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video Input Menu Options

Resolution Use the left and right buttons to select the correct resolution and refresh rate of the selected output.

For a complete lis t of ou tput resolutions, see the DVI and HDMI Supported Output Resolutions section on page 112.

Changing the input resolution will automatically switch the scaling mode to MANUAL.

EDID Use the left and right buttons to indicate the type of EDID data to be sent to the source or which ou tpu t's EDID

EDID Update When the EDID is set to mirror one of the outputs, use the left and right buttons to indicate whether you want

Source (Input Video Adjust):

NOTE: The following input video adjustments have no effect on the display of the internally generated test patterns. Refer

to the Supported Video Settings table on page 33 for details on which settings apply to each input format type.

Black & White Use the left and right buttons to toggle whether you want the video from the selected input to display in black

Brightness Use the left and right buttons to alter the brightness level adjustment applied to the selected input.

Contrast Use the left and right buttons to alter the contrast level adjustment applied to the selected inpu t.

Saturation Use the left and right buttons to alter the saturation level adjustment applied to the selected input.

Hue Use the left and right buttons to alter the hue adjustment applied to the selected input.

Phase Use the left and right buttons to alter the phase adjustment for the selected input. This option is only available

H Shift Use the left and right buttons to shift the location of the video input from left to right. This option is only

V Shift Use the left and right buttons to shift the location of the video input up and down. This option is only available

Revert to Default

you would like to mirror to that source. Select All resolutions, Wide-Screen resolutions, Full-Screen resolutions, or to mirror the EDID from any of the

HDMI outputs.

the EDID going to the source to update anytime the output EDID changes or only when an update is requested manually. Select either AUTO or OFF. The default setting is AUTO.

and white. You can set the Black & White option to On or Off. The default setting is Off. This option is useful when displaying black & white content on a color document camera.

Set the brightness level from 0-100. The default setting is 50.

Set the contrast level from 0-100. The default setting is 50.

Set the saturation level from 0-100. The default setting is 50.

Set the hue level from 0-100. The default setting is 50.

for RGB inputs. Set the phase adjustment from 0-31. The default setting is 0.

available for RGB inputs. Set the shift from -50 to 50. The default setting is 0.

for RGB inputs. Set the shift from -10 to 10. The default setting is 0.

Use the left and right buttons to indicate that you want to return all video options to their default settings.

Setting the Video Type for a Video Input

Each video input type must be set manually. Perform these steps to set the video type for a video input:

1. Press the VIDEO MENU button on the front panel of the DVX two times to open the Video Input menu.

2. Press the left and right navigation buttons to select the input to change.

3. Press the down navigational button until the Type option appears.

4. Use the left and right navigational buttons to select the video format for the selected input.

Changing the Video Output Resolution

Perform these steps to change the video output resolution:

1. Press the VIDEO MENU button on the front panel of the DVX to open the Video Output menu.

2. Press the left and right navigation buttons to select the output to change.

3. Press the down navigational button until the Resolution option appears.

4. Use the left and right navigational buttons to locate the appropriate output resolution and refresh rate. You can also choose Auto to automatically detect the resolution and refresh rate.

Changing the Output Aspect Ratio

Perform these steps to change the output aspect ratio:

1. Press the VIDEO MENU button on the front panel of the DVX to open the Video Output menu.

2. Press the left and right navigation buttons to select the output to change.

3. Press the down navigational button until the Aspect Ratio option appears.

4. Use the left and right navigational buttons to locate the appropriate aspect ratio.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Selecting a Video Test Pattern

Selecting a test pattern for your input source can help determine if the displays are connected correctly. Perform these steps the select a test pattern:

1. Press the VIDEO MENU button on the front panel of the DVX to open the Video Output menu.

2. Press the left and right navigation buttons to select the ou tput on which to display the test pattern.

3. Press the down navigational button until the Logo/Test option appears.

4. Use the left and right navigational buttons to select the appropriate output test pattern.

Audio Settings

The following tables list the audio options available on the LCD display by pressing the AUDIO MENU button on the front panel:

Audio Output Menu Options

Audio Output Select

Volume Use the left and right buttons to set the volume of the selected audio output.

EQ Preset Use the left and right buttons to select a group of preset equalizer settings.

Balance Use the left and right buttons to adjust the balance level of the selected audio output.

Format Use the left and right buttons to change the audio format of the selected audio input.

Track Output 1 Use the left and right buttons to indicate whether you want to activate amp volume tracking on the selected

SRC Mix Use the left and right buttons to set the mix level of the audio input source in the overall mix.

Mic1 Mix Use the left and right buttons to set the mix level of microphone 1 in the overall mix.

Mic2 Mix Use the left and right buttons to set the mix level of microphone 2 in the overall mix.

HDMI Use the left and right buttons to indicate which analog audio output to embed in the selected HDMI output.

HDMI EQ Use the left and right buttons to toggle whether the equalizer settings for the selected analog output should

SPDIF Use the left and right buttons to indicate the audio stream to output through the S/PDIF output. Select from

Max Volume Use the left and right buttons to adjust the maximum volume of the audio output.

Min Volume Use the left and right buttons to adjust the minimum volume of the audio output.

Delay (ms) Use the left and right buttons to set the number of milliseconds to delay the audio.

Test Tone Use the left and right buttons to select an internally generated audible tone. The selected tone overrides any

Ducking Use the left and right buttons to set the ducking level of the audio output. Select Off, Low, Med, High, and

Mic Threshold Use the left and right buttons to set the threshold of the ducker for microphone 1.

Mic Priority Use the left and right buttons to indicate whether Mic 1 has priority over Mic 2.

Revert to Default

Use the left and right buttons to select which video output you want to use. Select 1, 2, 3, 4, or ALL. (1, 2, 3, or ALL on 21xx DVX models.)

Set the volume from 0 to 100. The default setting is 20.

Select Voice, Movie, Music, or Off.

Set the balance level from -20 to +20. The default value is 0.

Set the audio format to Stereo or Mono. The default setting is Stereo.

audio output. This option tracks the amp volume for Output 1 and is only available on ports 2-4. Select Off or On.

Set the mix level from 0 to -100. The default setting is 0.

Select Out1, Out2, Out3, Out4, Pass-thru, or Off.

be applied to the HDMI output. Select On or Off. The default value is Off.

any of the available audio outputs including the audio on the HDMI outputs.

Set the maximum volume from 0 to 100 in increments of 1. The default value is 100.

Set the minimum volume from 0 to 100 in increments of 1. The default value is 0.

The default value is 32.

input source selection. Select Off, 60Hz, 250Hz, 400Hz, 1kHz, 3kHz, 5kHz, 10kHz, Pink Noise, or White Noise. Selecting 'Off' removes

the override, allowing you to hear audio from the selected source.

Custom. The default setting is Off. All detailed parameter adjustments for the Custom setting can be made from the web user interface. See the Using a Web Browser section on page 59 for more information.

Set the threshold level from 0 to -60.

Select either None or Mic1.

Use the left and right buttons to indicate that you want to return all audio output options to their default settings.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio Input Menu Options

Audio Input Select

Gain Use the left and right buttons to adjust the gain/attention level of the audio inpu t.

Format Use the left and right buttons to toggle the analog format for the audio input. Select either Stereo or Mono.

Digital Use the left and right buttons to select a digital format for the selected audio input.

Compression Use the left and right buttons to adjust the compression level of the selected audio input.

Revert to Default

Use the left and right buttons to manually select which video input you want to use. Select any of the available audio inputs.

Set the gain from -24 to +24dB in 1dB increments. The default setting is 0.

The default setting is Stereo.

Select PCM 2-Channel, PCM Multi-Channel, AC-3 (Dolby), AC-3 + DTS, AC-3 + MPEG, AC-3 + AAC, Dolby Tr ue HD , or DTS HD Master.

Select Off, Low, Medium, High, and Custom. The default value is Off.

Use the left and right buttons to indicate that you want to return all audio input options to their default settings.

Microphone Settings

The following table lists the microphone options available on the LCD display by pressing the AUDIO MENU button on the front panel:

Mic Input Menu Options

Mic Input Mode Use the left and right buttons to select either Single Stereo to adjust both microphone inputs or Dual Mono

Mic Input Select Use the left and right buttons to manually select which microphone input you want to use. When in Dual

Enable Use the left and right buttons to toggle whether the selected microphone is active. Select either Off or On.

Preamp Gain Use the left and right buttons to adjust the preamp gain level of the microphone input.

Gain Use the left and right buttons to adjust the gain/attention level of the microphone input.

Compression Use the left and right buttons to adjust the compression level of the selected microphone. S

Limiter Use the left and right bu ttons to adjust the limiter function which suppresses loud noise bursts from

Gating Use the left and right buttons to adjust the noise gate which filters background noise.

Phantom Power Use the left and right buttons to turn on or turn off phantom power for the selected microphone. Select

Revert to Default Use the left and right buttons to indicate that you want to return all microphone options to their default

Mode to adjust the microphone settings individually. If you select Dual Mono Mode, be sure to select the desired microphone from the Mic Input Select option before adjusting the available settings for the microphone.

Mode, you can choose from 1 or 2.

The default setting is Off.

Set the gain from 0 to +65dB in 1dB increments. The default setting is 0.

Set the gain from -24 to +24dB in 1dB increments. The default setting is 0.

elect Off, Low, Medium, High, and Custom. The default value is Off.

dropping the mic and helps avoid feedback noise. Select Off, Low, Medium, High, and Custom. The default setting is Off.

Select Off, Low, Medium, High, and Custom. The default setting is Off.

either On or Off. The default setting is Off.

settings.

Selecting an Audio Test Tone

Selecting a test tone for your input source can help determine if you have your audio devices connected correctly. Perform these steps to select a test tone:

1. Press the AUDIO MENU button on the front panel of the DVX.

2. Press the left and right navigation buttons to select the output on which to play the test tone.

3. Press the down navigational button until the Test Tone option appears.

4. Use the left and right navigational buttons to select an appropriate audio test tone.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Switch Menu

Press the SWITCH button to access the Switch menu for switching between the available audio and video devices.

Use the UP and DOWN navigational buttons to scroll through the menu options. Use the RIGHT and LEFT navigational buttons to selected the desired input and output. Press the TAKE button to execute the switch.

Switch Menu

Switch Level Use the SWITCH button to indicate whether you want to switch the Video, Audio or Both. The

Select A+V Input Use the SWITCH button to cycle through the available inputs. This option is only available if you select

Select A+V Output Use the SWITCH button to cycle through the available outputs. This option is only available if you select

Select Video Input Use the SWITCH button to cycle through the available video inputs. This option is only available if you

Select Video Output Use the SWITCH button to cycle through the available video outputs. This option is only available if you

Select Audio Input Use the SWITCH button to cycle through the available audio inputs. This option is only available if you

Select Audio Output Use the SWITCH button to cycle through the available audio outputs. This option is only available if you

subsequent options in this menu depend on your choice with this option (see below).

Both on the Switch Level option.

select Video on the Switch Level option.

select Audio on the Switch Level option.

Status Menu

Press the STATUS button to access the Status menu and display system information on the LCD display. Use the UP and DOWN navigational buttons to scroll through the menu options. These options are view-only.

Status Menu

Vid Status Displays which video input is associated with each output.

Aud Status Displays which audio input is associated with each output.

Mic Status Displays the active status of each microphone output.

System Number: Displays the system number of the All-In-One Presentation Switcher.

Serial Number: Displays the serial number of the All-In-One Presentation Switcher.

MAC Address: Displays the MAC address of the All-In-One Presentation Switcher.

IP Address: Displays the IP address of the network.

IP Address Type: Displays whether the IP address is static or DHCP.

Subnet Mask: Displays the subnet mask of the network.

Gateway: Displays the gateway address of the network.

Hostname: Displays the hostname of the device.

DNS Address: Displays the IP or DNS address of the device.

Master Version: Displays the version number of the firmware the Master is using.

Switcher Version: Displays the version number of the firmware the switcher is using.

Device Version: Displays the version number of the firmware the device is using.

Fan: Displays the speed in Revolutions per Minute (RPM) for each fan.

Temperature: Displays the temperature of the device in degrees Celsius (C).

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Select this option to show/hide the Online Device Tree (showing all devices currently connected to this Master)

System/Device info: System (read-only): indicates the name of the System currently connected Device: click the down-arrow to select from a list of all devices connected to this Master Refresh: Click to refresh the Device list

Click to Login (only required if Master Security and HTTP Access security options are enabled on the target Master)

Click to access the three main sections of the WebConsole (initial view = WebControl)

DVX WebConsole

The DVX features an on-board WebConsole that allows you to conf igure the de vice and make various adju stments to audio/video and system settings. The WebConsole is accessed via a web browser on a PC that has network access to the DVX.

The DVX WebConsole can be divided into two primary parts:

Audio/Vide o Sw itcher Con figuration Setting s

Master Controller Configuration Options

Accessing the WebConsole

From any PC that has access to the LAN that the target DVX resides on:

1. Open a web browser and type the IP Add ress of the target DVX in the Address Bar.

2. Press Enter to access WebConsole for that DVX. The initial view is the WebControl page.

FIG. 62 displays the Master Configuration Manager - WebControl page.

Master Configuration Manager - WebControl Page (Initial View)

FIG. 62

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Device menu

Master Controller Conf iguration Options

The DVX features a NetLinx central controller, functionally equivalent to a NI-3101-SIG. Likewise, the DVX provides the same set of configuration pages that are available to the NI-3101-SIG.

NOTE: All NI-Series NetLinx Masters (including the NI-3101-SIG that is internal to the DVX-315xHD) share a common WebConsole, as described in the NetLinx Integrated Controllers WebConsole & Programming Guide

WebConsole - Master Conf iguration Manager

The DVX (and all other NetLinx Masters) features a built-in WebConsole that allows you to make various configuration settings via a web browser on any PC that has access to the Master.

The webconsole consists of a series of web pages that are collectively called the "Master Configuration Manager" (FIG. 62).

The webconsole is divided into three primary sections, indicated by three control buttons across the top of the main page (FIG. 63):

WebConso le Control Buttons

FIG. 63

WebControl: This is the option that is pre-selected when the WebConsole is accessed. Use the options in the Manage

WebControl Connections page to manage G4WebControl connections.

Security: Click to access the System Security page. The options in this page allow you to configure various aspects of

NetLinx System and Security on the Master.

System: Click to access the System Details page. The options on this page allow you to view and configure various aspects

of the NetLinx System.

Master Configuration Manager - Additional Documentation

For a full description of all Master Configuration pages, refer to the NI & DVX Central Controllers WebConsole & Programming

Guide, available at www.amx.com.

(available at www.amx.com).

Using a Web Browser

You can access the configuration settings for the All-In-One Presentation Switcher by using a web browser. (AMX supports any industry-standard web browser running Adobe Flash Player 10 or better.) The system configuration pages are available by entering the IP address of the NetLinx master into the location bar of your web browser. Entering your IP address into your web browser opens the Main WebControl page (FIG. 64).

FIG. 64

Main WebControl Page

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Amp Volume and Mute

Refresh

Reset to Defaults

Perform these steps to access the configuration settings:

1. Open a web browser.

2. Enter the IP address of the All-In-One Presentation Switcher in the location bar of the web browser. (If you do not know your switcher’s IP address, see the Locating the IP Address of the DVX section on page 60.) The Main WebControl page opens (FIG. 64).

NOTE: WebControl requires that you install the latest version of the Adobe Flash Player plug-in for your browser. If your browser does not have the Flash Player plug-in installed, you will be prompted to install it.

3. Use the Device options menu at the top of the screen to select the <DEVICE #> - DVX-315xHD-x Switch Device. (Substitute the model number of your unit for x.) The Enova DVX Setup page opens (FIG. 66).

If a web browser or Flash Player is not available, the All-In-One Presentation Switcher's front panel and NetLinx commands provide equivalent controls for audio/video configuration. See the Using the Front Panel Buttons section on page 52 for more information.

Locating the IP Address of the DVX

Locate the IP address of the DVX by using the buttons on the front panel of the unit. The IP address appears on the LCD display on the front panel of the DVX. Perform these steps to locate the IP address of the unit:

1. Press the STATUS button on the front panel of the unit. The Status menu appears on the LCD display.

2. Use the UP and DOWN navigational arrow buttons to navigate through the options until you locate the All-In-One Presentation Switcher’s IP address. Note the IP address for future reference.

NOTE: You can use the Status Menu to verify current TCP/IP settings using the UP and DOWN navigational buttons.

Ge n e r a l O p t i o n s

The WebConsole Configuration page contains settings that are accessible from each tab. FIG. 65 indicates the universally accessible options available on the web pages.

WebConsole Configuration Page

FIG. 65

NOTE: The number of available video and audio inputs and outputs vary depending upon which DVX model you are configuring.

The following table lists the general options for the WebConsole Conf iguration page:

Ge n era l Op t i o ns

Mute Turns off the audio for the device.

Amp Volume Sets the output volume.

Refresh Click to reload all settings.

Reset to Defaults Click to reset the current page’s settings to its factory default.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

911

Video Settings

The Video Out tab enables you to set the resolution, aspec t ratio, and picture qualities o f each individual video inpu t. A ny changes you make reflect instantaneously on your source input and output devices.

Video Out

FIG. 66 displays the V ideo Ou t page for the DVX.

WebConsole Configuration Page - Video Out Tab

FIG. 66

1 - Output Select: Select the corresponding option button to select the video output to adjust. When you select an output, the other options on the page change to reflect the output’s current settings. You can copy the settings from one output to the selected output by using the Copy From menu.

NOTE: If you have a Virtual device using the same port (5002) as the DVX, all notifications are routed to virtual device rather than the DVX. In this case, initial states for the video outputs will not be represented in the Web Console. When possible, avoid using virtual devices on the same port as the DVX.

2 - Blank Color/Logo: Use the drop-down menu to select the color of the blank screen on the output. If you have uploaded a logo to display on the output, you can also select the logo from this menu.

3 - OSD: This area allows you to activate the on-screen display. When enabled, the input name and resolution displays in a small box in a corner of the screen whenever you select a new input source. From the available menus in the same area, you can select the color scheme and location of the OSD.

4 - Select Input: Use the menu to select a video input to be switched to the selected video output.

5 - Logo/Test Pattern: Use the menu to choose an image logo or output test pattern to display on the video output. Select Off to disable the logo or test pattern and view video from the selected source. You can choose from Off, Color Bar, Gray Ramp, SMPTE Bar, HiLoTrak, Pluge, and Cross Hatch. If you have uploaded a logo to display on the output, you can also select the logo from this menu.

6 - Video Mute: Click to toggle whether the video is muted (blanked) on the video output. Freeze: Click the check box to freeze the current image so that it remains on the screen.

7 - Logo Setup: The Logo Setup area enables you to load up to three bitmap image files available for display on the video ou tpu t. Click eac h Upload File b utton to locate and upload an image f ile to the unit’s local me mory, then click the F lash Logos button to load the image files into memory. Images must be 24-bit color bitmap files at least 36x36 pixels in size. There is 8192kb of flash memory available for storing the three image files. The amount of free space remaining appears on the screen. See the Uploading an Image File section on page 62 for more information.

NOTE: Large images can cause a slowdown in performance. Though images up to 1920x1200 are supported, AMX recommends using an image size no greater than 640x480.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

8 - Scaling: Click Auto to have the unit automatically set the video resolution for the selected output display based on the EDID information received from the connected display device. Click Manual to manually override the video resolution for the output display. After choosing Manual, select a resolution and an aspect ratio from the corresponding menus. Select Bypass to disable scaling and send unscaled video from the selected input to the display.

9 - DXLink: This section enables you to establish scaling and aspect ratio settings for the DXLink outputs. If these outputs are not available on your unit, this area appears grayed-out.

10 - Image Settings: Use the sliders to set the brightness and contrast for the selected video output.

11 - Video Adjustments: Use the sliders to set the horizontal and vertical size and shift and the zoom for the selected video output.

NOTE: The video conf iguration is not affected by a power loss, restarting the unit, or upgrading the firmware.

Uploading an Image File

You can upload static image f iles to the DVX and display the log o im ages on a video output. You can uplo ad up to three images to the unit. There is 8192kb of flash memory available for storing the three image files. The amount of free space remaining appears on the Video Out tab. Images must be 24-bit colo r bi tmap f iles at least 36x3 6 pixels in size.

WARNING: Large images can cause a slowdown in performance. Though images up to 1920x1200 are supported, AMX recommends using an image size no greater than 640x480.

Perform these steps to upload an image file:

1. Open a web browser.

3. Use the Device options menu at the top of the screen to select the <DEVICE #> - DVX-xxxxHD-xx Switch Device. (Substitute the model number of your unit for xxxx.) The Configuration page opens in a separate pop-up window (FIG. 66).

4. On the Video Out tab, click Upload File. (You can click any of the three available buttons.)

5. Select an image f ile from a lo cation accessible to the DVX and click OK.

6. Once the f ile is uploaded, click Flash Logos to load the images files into memory.

WARNING: Using concurrent web browsers or users while uploading or flashing image files can cause corruption in your images. It is a best practice to use only a single web browser when uploading or flashing an image f ile.

NOTE: Closing and restarting your web browser removes all current image file information from the Web Console page. However, if

you completed uploading the image, the images are still loaded into the DVX’s memory.

Video In

FIG. 67 displays the Video In tab on the V ideo page. The Video In tab enables you to set the resolu tio n, aspect ratio, and pic ture qualities of each individual video input. Any changes you make reflect instantaneously on your source input and output devices.

FIG. 67

WebConsole Configuration Page - Video In Tab

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

1 - Input: Select the corresponding option button to switch that video input to the selected output (see Select Output below). When you select an input, the other options on the page change to reflect the input’s current settings. You can only select one video input at a time. Select None to send no signal to the selected output. You can click the Refresh button on the page to update the color coding on the Video Input Select Radio buttons. Click Refresh after connecting a new input or correcting a resolution on the input so you can be sure it is working.

2 - OSD Name: Enter a unique name for the device in the space provided to more easily identify each input. The name you enter here appears in the on-screen display (OSD), if enabled. The lettering changes color depending on whether video is detected on the selected input. Green indicates a signal is detected, gray indicates a signal is detected but cannot be identif ied, and red indicates no signal is detected. You can enter up to 63 characters for a single name. Space characters are valid, however, if they appear at the start of a name, they will be truncated. These fields are optional.

3 - Format: Use the drop-down menus to select the video format for each video input. The selection should indicate the type of connection used to connect the video source to the switcher.

For Multi-Format inputs, you can choose from HDMI, DVI, VGA, Component, S-Video, and Composite. The default setting is Component. For HDMI inputs, you can choose from HDMI or DVI.

4 - Select Output: Use the menu to select the video output you want to use.

5 - Resolution: Click Auto to have the unit automatically detect the video resolution for the selected input signal, or click Manual to manually select the video resolution for the selected input signal. After clicking the Manual option button, select a resolution from the corresponding drop-down menu.

The Auto option is selected by default.

NOTE: The recommended setting is Auto. In Manual mode, the DVX shows blank video if the input is set to any resolution other than the selected manual resolution. See the EDID Mode section below for information on controlling the resolution provided by connected sources.

6 - EDID Mode: Use the menus to indicate the desired EDID information to be sent to the selected video source. You can choose from one of the built-in EDID files which includes All Resolutions, only Full Screen Resolutions, or only Wide Screen Resolutions, or you can choose to mirror the EDID received from any connected display. Choosing one of the mirror modes turns off the HDMI Audio control for the selected input. The Preferred EDID menu is only available if you select one of the internal EDID files (All, Full, or Wide). In this mode you can select the specific preferred resolution to present to the connected source. The Auto EDID Update check box and the update EDID button are only available if you select to mirror the EDID from a connected display. Select the Auto EDID Update check box if you want the EDID sent to the source to update anytime the EDID received from the connected display changes. De-select this check box to prevent automatically updating the EDID sent to the source and only update the EDID when the Update EDID button is clicked.

7 - HDCP Setting: Click the check box to activate HDCP compliance on the selected input. HDCP compliance is active by default.

8 - Image Settings: Click the Color or B&W option button to select a color setting for the video input. Use the sliders to alter the brightness, contrast, saturation, and hue for the video input.

9 - VGA Settings: Use the sliders to alter the phase, horizontal shift, and vertical shift settings for VGA inputs.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio Settings

The Audio page enables you to set the audio qualities for each audio input, microphone inpu t, amplifier output, and line output. Any changes you make reflect instantaneously on your source input and output devices.

Audio Out

FIG. 68 displays the Audio Out page for the DVX.

WebConsole Configuration Page - Audio Out Tab

FIG. 68

1 - Analog Output: Select the corresponding option button to select an audio output to adjust. You can only select one audio output at a time.

Click the Track Output 1 check box to track the amp volume for Output 1. This option is only available for outputs 2, 3, and 4.

2 - Output Volume: Use the sliders to set the output levels for the selected audio output. You can set the following options for each audio output:

Output Volume: Use the slider to set the volume of the selected audio output. You can set the volume from 0 to 100. The default setting is 20.

Min/Max: Use the sliders to adjust the minimum and maximum volume of the audio output. There are separate sliders on this option for minimum and maximum volume. You can set the maximum volume from 0 to 100 in increments of 1. The default value is 100. You can set the minimum volume from 0 to 100 in increments of 1. The default value is 0.

Balance: Use the slider to adjust the balance level of the selected audio output. You can set the balance level from -20 to +20. The default value is 0.

Sync Delay: Use the slider to set the number of milliseconds to delay the audio. The default value is 32. Additionally, you can silence the audio output by clicking the Mute check box.

3 - HDMI Output: Use the available options to configure the HDMI output.

HDMI Output: Select the HDMI output for which you want to adjust the audio options.

Audio Source: Select the au dio stream to o utput through the selected HDMI ou tpu t. You can choose from Inpu t Pass-thru or

any of the four available Analog Outputs.

Apply EQ: Click the check box to toggle whether the volume and equalizer for the HDMI source port is active.

4 - S/PDIF Output: Select the audio stream to output through the S/PDIF output. You can choose from any of the available HDMI or Analog Outputs.

5 - Select Input: Use the menu to switch the audio input to the selected audio output.

6 - Output Format: Use the menu to change the audio format of the selected audio output. You can set the audio format to Stereo or Mono. The default setting is Stereo.

7 - Tone Generator: The tone generator provides an internally generated audible tone. The selected tone overrides any input source selection. Selecting 'Off' removes the override, allowing you to hear audio from the selected source. You can choose from Off, 60Hz, 250Hz, 400Hz, 1kHz, 3kHz, 5kHz, 10kHz, Pink Noise, and White Noise.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

8 - Equalizer: The equalizer is a 10 band parametric equalizer enabling you to set any of the 10 default frequencies (31Hz, 62Hz, 125Hz, 250Hz, 500Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz, 16000Hz) to any value from 20Hz to 20KHz. Each band is set individually by se lecting the band from the Band menu then adjusting the remaining settings.

A dynamic graph displays the resulting frequency response of the equalizer band. Changing the Gain, Frequency, or Q settings can change the frequency response.

Use the following options to change the settings on the equalizer:

Band: Use the menu to select which of the 10 equalizer bands you want to configure.

Filter Type: Use the menu to set the filter type for the selected equalizer band. You can choose from Bell, Band Pass, Band

Stop, High Pass, Low Pass, Treble Shelf, and Bass Shelf.

Frequ ency: Use the up and down arrows or direct text entry to set the center frequency for the selected equalizer band. You can set the center frequency to any value between 20Hz and 20KHz.

Ga i n : Use the up and down arrow buttons or direct text entry to adjust the gain/attention level of the selected band. You can set the gain from -12 to +12dB in 1dB increments. The default setting is 0.

Q: Q factor adjusts the filter from wider to narrower smoothing between inflection points on the frequency response. The default setting is 1.4. The range is from 0.1 to 20.0 in 0.1 increment/decrement steps.

Tone Ad jus t: Use the menu to select a fixed adjustment to the frequency response depending on the current use. You can choose from Off, Movie, Voice, and Music.

Enabled: Click to enable or disable the equalizer settings.

9 - Ducking: Use the menu to set the ducking level of the audio output. You can choose from Off, Low, Medium, High, and Custom. Selecting Custom activates settings you can adjust for Threshold, Attack, Release, Attenuation, and Hold-time. The default setting is Off.

Priority: Use this menu to set the ducking priority for the microphones. You can choose from Off or Mic1.

Threshold: Use the sliders to adjust the threshold levels for each microphone. You can set the threshold to any value

between 0 and -50.

10 - Mix: Use the sliders to set the mix levels for the audio input and the two microphones. Each device has its own mix level slider. You can set each level from 0 to 100dB.

Audio In/Microphone

FIG. 69 displays the A udio In/Microp hone page f or the DVX.

WebConsole Configuration Page - Audio In/Microphone Tab

FIG. 69

1 - Audio Input: Select the corresponding option button to switch that audio signal to the selected output. You can only select one audio input at a time. Select None if you do not want any audio.

2 - Format: Use the menu to select the analog format for the audio input. You can choose from Stereo or Mono.

3 - Select Output: Use the menu to select an audio output.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

4 - Input Gain: Use the slider to adjust the gain level of the audio input. You can set the gain from -24 to +24dB in 1dB increments. The default setting is 0.

5 - HDMI Audio: Use the menu to select the HDMI Audio type for the audio input. This option is not available if you select a mirrored input for the EDID Mode on the Video In tab.

6 - Compression: Use the menu to select the compression level of the selected audio input. You can choose from Off, Low, Medium, High, and Custom. The default value is Off. Selecting any option other than Off enables you to adjust settings for Attack, Release, Ratio, and Threshold.

Attack: Sets the duration, in milliseconds, of the attack phase while compressing. You can set a value between 1 and 2000.

Release: Sets the duration, in milliseconds, of the release phase while compressing. You can set a value between 1 and 5000.

Ratio: Sets the ratio while compressing. You can set a value between 1 and 20.

Threshold: Sets the threshold while compressing. You can set a value between 0 and -60.

7 - Microphone Mode: Click Dual Mono when using independent microphones. Each mono microphone input is mixed onto both the right and left channels. Click Single Stereo when connecting a single stereo source. Microphone input 1 is mixed only onto the left channel and Microphone input 2 is mixed only onto the right channel. Click the check boxes to activate phantom power for each individual mic. The unit supports a supply of up to 48V o f phantom power for each mic input.

NOTE: Enabling Phantom Power could damage some devices connected to the microphone input if the devices are not designed to accept it.

8 - Microphone Adjustment: There are two separate sections for configuring Mic 1 and Mic 2. If you select Single Stereo for the Microphone Mode, there is a single configuration that affects both microphones. Selecting Dual Mono allows independent configuration of each mic. You can set the following options for each microphone:

PreAmp Gain: Use the slider to set the preamp gain level for the mic. You can set the PreAmp Gain between 0 and 65 dB in 1 dB steps. Set the PreAmp Gain to 0 for line-level inputs.

Ga i n : Use the slider to set the input gain level for the mic. You can set the gain between -24 and +24 dB in 1 dB steps.

9 - This area contains a set of four tabs with different sets of options for more advanced microphone adjustments. Equalizer: The equalizer is a 3-band parametric equalizer enabling you to set 3 frequencies to any value from 20Hz to 20KHz.

The default center frequencies are 500Hz, 1000Hz, and 3000Hz. Each band is set individually by selecting the band from the Band menu then adjusting the remaining settings. A dynamics chart displays any activity on the equalizer band. Changing the Gain, Frequency, or Q settings can change the chart display.

Use the following options to change the settings on the equalizer:

Band: Use the menu to select which of the 3 equalizer bands you want to configure. Filter Type: Use the menu to set the filter type for the selected equalizer band. You can choose from Bell, Band Pass, Band Stop,

High Pass, Low Pass, Treble Shelf, and Bass Shelf. Frequ ency: Use the up and down arrows or direct text entry to set the center frequency for the selected equalizer band. You

can set the center frequency to any value between 20Hz and 20KHz. Ga i n : Use the up and down arrow buttons or direct text entry to adjust the gain/attention level of the audio input. You can set the gain from -12 to +12dB in 1dB increments. The default setting is 0. Q: Q factor adjusts the vector graph from wider to narrower smoothing between inflection points on the equalizer band. The

default setting is 1.4. The range is from 0.1 to 20.0 in 0.1 increment/decrement steps. Ga t i n g : Use the menu to select the gating level of the selected microphone input. You can choose from Off, Low, Medium, High,

and Custom. The default value is Off. Selecting any option other than Off enables you to adjust settings for Attack, Release, Depth, Hold Off, and Threshold. Limiter: Use the menu to select the Limiter settings of the selected microphone input. You can choose from Off, Low, Medium, High, and Custom. The default value is Off. Selecting any option other than Off enables you to adjust settings for Attack, Release and Threshold. Compression: Use the menu to select the compression level of the selected Microphone input. You can choose from Off, Low, Medium, High, and Custom. The default value is Off. Selecting any option other than Off enables you to adjust settings for Attack, Release, Ratio, and Threshold. The following settings serve identical purposes with identical ranges for each tab on which they appear:

Attack: Sets the duration, in milliseconds, of the attack phase. You can set a value between 1 and 2000.

Release: Sets the duration, in milliseconds, of the release phase. You can set a value between 1 and 5000.

Depth: Sets the depth in decibels. You can set a value between 0 and 20.

Ratio: Sets the ratio. You can set a value between 1 and 20.

Hold Off: Sets the gating hold off time. You can set a value between 0.25 and 4 seconds in 0.25 increments.

Enabled: Click to enable or disable the equalizer settings.

NOTE: Your audio configuration is not affected by a power loss, restarting the unit, or upgrading the firmware.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Setting Up Surround Audio

To pass surround audio from HDMI inputs to HDMI or S/PDIF outpu ts you must have an HDMI sink (display, AVR, etc.) that supports one or more surround formats. Follow these steps to configure the DVX to pass-through surround audio.

1. Connect a source that is capable of providing surround audio to an HDMI input on the DVX.

2. Connect a sink that supports surround audio to an HDMI output on the DVX.

3. See Using a Web Browser section on page 59 and follow the instructions to open the DVX Web Configuration page.

4. To manually select an audio format to request from the source (switcher firmware 1.4.4 or higher):

On the Audio In tab, select the HDMI Input connected to the source. Select the desired surround format from the HDMI Audio options menu.

5. To pass an HDMI sink's audio capabilities to the source device:

On the Video In tab, select the HDMI Input connected to the source. Select Mirror Out x from the EDID Mode options menu where x is the output number connected to the surround-capable

sink (see item 6 in the Video In section on page 62 for more information.)

6. In the HDMI Output section of the Audio Out tab, select the HDMI output that is the destination for surround audio and then Select Input Pass-Thru from the Audio Source options menu (see item 3 in the Audio Out section on page 64 for more information).

7. If sending surround audio to the S/PDIF output, select the same HDMI output used in step 6 above in the S/PDIF Output Audio Source options menu (see item 4 in the Audio Out section on page 64 for more information).

8. Route the video from the HDMI input connected to the surround audio source to the HDMI output selected in step 6 above.

Follow these same steps when receiving surround audio from a DXLink input and/or sending audio to DXLink outputs. Connect all DXLink transmitters/receivers to the DVX, connect sources and sinks to DXLink transmitters/receivers, and select the appropriate DXLink input/output on the DVX in the steps above.

Embedding Audio on an HDMI Output

Follow these steps to configure an HDMI, DXLink or S/PDIF output to embed audio from a stereo source:

1. Connect either a digital audio source on an HDMI input or an analog audio source on one of the analog audio inputs.

2. Connect an HDMI sink (display, AVR, etc.) that can accept audio over HDMI.

3. See Using a Web Browser section on page 59 and follow the instructions to open the DVX Web Configuration page.

4. In the HDMI Output section of the Audio Out tab, select the HDMI output that is the destination for audio and then select the analog output you want to embed from the Audio Source options menu. (See item 3 on Audio Out section on page 64 for more information).

5. Route the desired input audio (connected in step 2) to the analog output chosen in step 4, and it will automatically embed on the selected HDMI and/or S/PDIF output.

6. In the HDMI Output section, select the Apply EQ check box if you want the audio on the HDMI output to be affected by the DVX's Volume and Equalizer settings. De-select this box if you want un-equalized, unity gain audio on the HDMI output (recommended if adjusting volume and EQ at the downstream HDMI sink).

7. To send the same analog audio to the S/PDIF output, select the same Analog output used in step 4 above in the

S/PDIF Output Audio Source options menu (see item 4 in the Audio Out section on page 64 for more information).

Mixing Microphones onto Analog and HDMI Outputs

Follow these steps to connect and mix audio from a microphone input onto the source audio being routed to an audio output. The Mic inputs can accept both Microphone level and Line level audio.

1. Connect an audio source to one of the microphone inputs on the DVX.

2. See Using a Web Browser section on page 59 and follow the instructions to open the DVX Web Configuration page.

3. On the Audio In / Microphone tab, select the appropriate Pre-Amp gain setting for the input type you are using (see item 7 in the Audio In/Microphone section on page 65 for more information):

If the input source connected to the microphone input is a line-level signal, adjust the Pre-Amp Gain for that microphone

input to 0.

If the input source connected to the microphone input is a microphone-level signal, adjust the Pre-Amp Gain for that

microphone to a setting above 0 (typical values are between 20 and 30 dB).

4. If the connected microphone requires phantom power, check the Phantom Power check box for that microphone input (see item 6 in the Audio In/Microphone section on page 65 for more information).

5. In the same section, turn on the connected microphone by checking the Enable check box for that microphone input.

6. On the Audio Outpu t tab, select each analog audio output (see item 1 in the Audio Out section on page 64) and adjust the mix level as desired for each output (see item 10 in the Audio Out section on page 64).

To hear both program audio and microphone audio on an analog output, start by setting the mix sliders for both the Input

and the Mic all the way up and then make minor adjustments to these sliders to achieve the desired relative audio levels.

To hear only the program audio on an analog output, set the microphone mix levels all the way down (-100) and the Input

mix level all the way up.

Audio/Video Co nf ig uration

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

To hear only the microphone on an analog output, set the Input mix level all the way down (-100) and the Mic mix level all

the way up.

7. To hear the microphone on an HDMI output, follow the instructions for Mixing Microphones onto Analog and HDMI Outputs section on page 67 and select an analog output that has been mixed to receive microphone audio in step 6 above.

System Settings

FIG. 70 displays the System page. The System page allows you to switch any audio or video input to any output, set the front panel button lockout, adjust front panel LED and LCD intensity, and view the device information for the switcher.

FIG. 70

WebConsole Configuration Page - System Page

1 - Input/Output Matrix: Select an option button under each output to switch video or audio from the corresponding input to that particular output. Green text indicates a signal is detected, gray indicates a signal is detected but cannot be identified, and red indicates no signal is detected. You can only select one video and audio input at a time per output. Select None if you do not want any video or audio on the selected output.

2 - Save/Load: Click the bu ttons to save or lo ad your DVX settings. Files are saved as an .xdv file to any local or network drive o f your specification.

NOTE: Due to the way many browsers manage file upload requests while in an authenticated session, it is not possible to load a DVX setup (.xdv) file with any web browser AMX has tested, except Microsoft Internet Explorer when HTTP Security is enabled on the DVX Master.

3 - Microphone Mode: Click the checkboxes to activate or deactivate the microphones connected to Mic Inputs 1 and 2 when in Dual Mode, or the L/R Microphone when in Single Stereo Mode.

4 - Front Panel Lockou t Mode: Click the check box to activate a lockout of some or all o f the buttons on the front panel. Select the type of lockout in the Lockout Mode section. Select Full Lockout if you want the lockout to block the use of all front panel buttons. Select Menu-only Lockout if you want the lockout to only block the use of the menu options on the front panel. The Switch, Take, Status, Volume, and Mute buttons are still available with this option.

5 - Front Panel Backlight: Use the sliders to adjust the backlight intensity of the LCD display and the LEDs on front panel buttons. You can set the backlight intensity for each option between 0 and 100. The default setting for each option is 50.

6 - DXLink Ethernet: Use the menu to select the DXLink Input or the DXLink Output, then click the Auto check box to enter Auto mode for the selected input or outpu t. In Auto mode, Ethernet traffic is enabled if the port is connected to an end-point transmitter or receiver, but is automatically disabled if connected to a port on another Enova DVX or DGX. When Auto is not checked, Ethernet is turned off for the selected port.

7 - System Information: This area provides the following read-only information about your unit:

Serial number

MAC Address

IP Hostname

IP Address

IP Subnet Mask

IP Gateway

IP DNS Addresses

Switcher Firmware Version

Master Firmware Version

Device Firmware Version

Temp era tur e (º C )

Temp era tur e Al arm

Fan Speeds (RPMs)

Fan Alarm

Standby Mode

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

NetLinx Firmware Upgrades

NI Master (Port 0)

Device Controller (Port 5001)

Switcher (Port 5002)

Overview

Upgrading firmware on Enova DVX All-In-One Presentation Switchers involves downloading the latest firmware files from www.amx.com and using NetLinx Studio to transfer the files to a target DVX. The NetLinx Studio software application (available for free download from www.amx.com) provides the ability to transfer KIT firmware files to a NetLinx device such as the DVX.

Use the Online Device tree in NetLinx Studio to view the firmware files currently loaded on the Central Controller. FIG. 71 shows an example Online Tree:

FIG. 71

NetLinx Studio - Sample Online Tree

DVX Switchers contain three devices (NI Master, Device Controller, and A/V Switcher/Scaler), each of which require a separate Kit file. These three devices must be kept at compatible firmware versions for proper operation. Therefore, all three files should be used when upgrading any firmware associated with the DVX.

DVX Controllers - Firmware Files

NI Master Firmware The on-board NI Master is listed first in the Online Tree as

Device Controller Firmware The Device Controller is listed next as

A/V Switcher/Scaler Firmware The A/V Switcher/Scaler is listed third as

"00000 NI Master (<firmware version>)"

• "00000" represents Device ID 0, which is reserved for the Master

• The number in parenthesis is the current Master firmware version.

"05001 NI-XXXX (<f irmware version>)"

• "05001" represents Device ID 5001, which is reserved for the Device Control ports.

• The number in parenthesis is the current Device Controller firmware version.

"05002 NI-XXXX (<f irmware version>)"

• "05002" represents Device ID 5002, which is reserved for the A/V Switcher/Scaler.

• The number in parenthesis is the current Device Controller firmware version.

NetLinx Firmware Upgrades

Before You Start

Perform the following steps before upgrading your firmware version:

1. Verify you have the latest version of NetLinx Studio on your PC. Use the Web Update option in NetLinx Studio’s Help menu to obtain the latest version. Alternatively, go to www.amx.com and login as a Dealer to download the latest version.

2. Go to www.amx.com and down load the latest Firmwa re f ile. Firmware f iles are available to download from www.amx.co m - on the product’s page in the online catalog.

3. Verify that an Ethernet cable is connected from the DVX to the Ethernet Hub.

4. Verify that the DVX is powered On.

5. Determine the Device Number assigned to the target DVX.



By default, the Device Number assigned to the DVX is 0 (zero). (The Master device number is always 0 and cannot be changed.)

The Device Number can be viewed on the DVX Configuration Manager - Device Configuration page.

6. Launch NetLinx Studio and open the Online Device Tree.

Verifying the Current Firmware Version

Use the Online Tree in NetLinx Studio (see FIG. 71 on page 69) to verify which version of each f irmware file is currently installed.

1. In NetLinx Studio, click on the Online Tree tab (in the Workspace Bar) to view the devices on the System.

2. Click Display and select Refresh System from the context menu. This establishes a new connection to the System and populates the device tree with devices on that system.

3. After the Communication Verif ication dialog box indicates active communication between the PC and the Central Controller, verify the Central Controller and associated devices are listed in the Online Tree.

4. Check the appropriate product page on www.amx.com for the latest NI Master, Device Controller, and A/V Switcher/Scaler firmware files in the case of Enova DVX) for your device.

If necessary, follow the procedures outlined in the following sections to obtain these f irmware (*.kit) files from www.amx.com and then transfer the new firmware files to the device.

NetLinx Firmware Upgrades

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Downloading the Latest Firmware Files from www.amx.com

Below is a table outlining the Master, Device, and Switcher firmware (*.kit) files used by Enova DVX Controllers:

Master Firmware Kit File Usage for Enova DVX Controllers

DVX-3150/3155/3156 2150/2155/2110 HD

Downloading Enova DVX Firmware Files on www.amx.com

Visit the appropriate product page on www.amx.com for the latest NI Master, Device Controller, and A/V Switcher/Scaler f irmware (*.kit) f iles for your DVX. Firmwa re f ile links are available along the right-side of the cata log page

(FIG. 72):

Master Firmware: SW1905-25_Master_v4_x_xxx.kit

Device Firmware: SW2105_NI_X101_Device_v1_xx_x.kit

A/V Switcher/Scaler Firmware: SW1905-20_DVX-HD_v1_x_xx.kit

FIG. 72

www.amx.com - Sample Enova DVX Firmware File Links

Firmware f iles are bundled i n a Z IP f ile, along with a Readme.TXT f ile that provides details on this f irmware release.

1. Accept the AMX Licensing Agreement.

2. Download the ZIP f ile and unzip the contents to a known location.

Required Order of Firmware Updates for DVX Controllers

Upgrade firmware in the following order:

1. First, upgrade the A/V Switcher/Scaler firmware.

2. When that process is complete, upgrade the Master firmware.

3. When that process is complete, upgrade the Device firmware.

NOTE: ALWAYS consult the Readme.TXT file bundled with the firmware f ile for any special instructions before upgrading to a newer firmware version. If no specifics are provided, use the order provided above.

NetLinx Firmware Upgrades

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Click to locate

the KIT file

Sending Firmware (*.KIT) Files to the DVX

Use the Firmware Transfers options in the Tools menu to update the firmware in the DVX. NetLinx Devices such as the DVX use KIT files for firmware upgrades.

NOTE: A Kit file (*.KIT) is a package of several files, all of which are required to upgrade the f irmware, and are available online via www.amx.com. Firmware download links are provided in the relevant product page.

The Online Device Tree (Online Tree tab of the Workspace Window) displays information about each online device, including

the current firmware version.

Before attempting to upgrade the firmware, you must have the appropriate Kit file for your DVX.

The DVX contains three devices which each require a separate Kit file. These three devices must be kept at compatible firmware versions for proper operation.

Device ID 0: NetLinx Master Controller

Default Device ID 5001: Device Control Ports

Default Device ID 5002: A/V Switcher/Scaler

To up dat e Net L inx f ir m ware :

1. Choose Tools > Firmware Transfers > Send to NetLinx Device to open the Send to NetLinx Device dialog box (FIG. 73).

Send to NetLinx Device Dialog Box (NetLinx Studio)

FIG. 73

2. Click the Browse (...) button to navigate to the target directory in the Browse For Folder dialog box (FIG. 74).

Browse For Fo lder Dialog Box (NetLinx Stu dio)

FIG. 74

NetLinx Firmware Upgrades

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

The selected directory path is displayed in the Send To NetLinx Device dialog (Location text box).

Assuming that the specified target directory contains one or more KIT files, the KIT files in the selected directory are

disp layed in the Files list b ox, with the f ile's last mo dif ied date and time (FIG. 75).

Send to NetLinx Device Dialog Box (NetLinx Studio)

FIG. 75

3. Select the appropriate *.KIT f ile fro m the Files list.

NOTE: Always update DVX devices in the following order: Device 5002 (A/V Switcher) Device 0 (NetLinx Master) Device 5001 (Integrated Control Ports) ALWAYS consult the Readme.TXT f ile bundled with the firmware file for any special instructions before upgrading to a newer firmware version. If no specifics are provided, use the order provided above.

4. Enter the Device ID number of the integrated device to be upgraded in the Device text box and the System ID numbers for the DVX in the System text box.

The device number of the NetLinx Master is 0.

By default, the Device number assigned to the integrated control ports is 5001.

By default, the Device Number assigned to the integrated A/V switcher is 5002.

Use the Online Device Tree to determine the device's assigned IDs, if it has been changed.

5. Review the File, Connection, Address, and Target Device information before you send.

6. Click the Send button. You can watch the progress of the transfer in the Send to NetLinx Device dialog box.

NetLinx Studio transfers the files to the DVX and then tells it to reboot. After it reboo ts, the DVX actually goes through the upgrade process.

During the upgrade process, the Status LED blinks, and the DVX stays offline.

Once the upgrade is complete, the LED will stop blinking and the DVX will be online.

Repeat the f irmware update process for the next dev ice until all devices are updated.

NOTE: Upgrading the Master or device firmware can take several minutes. If you are unsure of the progress of the upgrade, you can see the status of the upgrade on the LCD display on the front panel of the All-In-One Presentation Switcher.

WARNING: If for any reason your Kit f ile transfer should fail, continue to retry the transfer until you are successful. DO NOT reboot the DVX, or change connections until the transfer is complete. Failure to complete this operation successfully may require a factory repair of the DVX.

Additional Documentation

For additional information on using NetLinx Studio, refer to the NetLinx Studio online help and Instruction Manual (available at www.amx.com).

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Programming

Overview

The chapter defines all programming commands available for the DVX.

NOTE: This chapter lists programming commands unique to the DVX. Please consult the WebConsole & Programming Guide for NetLinx Integrated Controllers for more details on NetLinx c ontroller commands. The DVX supports all commands compatible with the NI-3101-SIG.

WARNING: Some DVX-2100HD commands operate under different names on the DVX-315xHD and DVX-21xxHD. The functionality of these commands are identical to their original counterparts.

The following table lists the commands which have changed and the new name of the command.

SEND_COMMAND Changes

Original Command New Command Page Ref

GAIN AUDIN_GAIN page 81

?GAIN ?AUDIN_GAIN page 81

INPUTEQ AUDMIC_EQ_GAIN page 85

?INPUTEQ ?AUDMIC_EQ_GAIN page 85

PHANTOM_PWR AUDMIC_PHANTOM_PWR page 89

?PHANTOM_PWR ?AUDMIC_PHANTOM_PWR page 88

AUDIO_MUTE AUDOUT_MU TE page 93

?AUDIO_MUTE ?AUDOUT_MUTE page 93

VOLUME AU DOUT_VOLU ME page 94

?VOLUME ?AUDOUT_VOLUME page 94

VIDIN_COLOR VIDIN_BW page 97

?VIDIN_COLOR ?VIDIN_BW page 97

VIDEO_MUTE VIDOUT_MUTE page 104

?VIDEO_MUTE ?VIDOUT_MUTE page 104

OSD VIDOUT_OSD page 104

?OSD ?VIDOUT_OSD page 104

VIDEO_RES_AUTO VIDOUT_SCALE page 105

?VIDEO_RES_AUTO ?VIDOUT_SCALE page 105

VIDEO_TESTPATTERN VIDOUT_TESTPAT page 106

?VIDEO_TESTPATTERN ?VIDOUT_TESTPAT page 106

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

NetLinx Channels and Levels

The following sections define the NetLinx channels and levels available for the DVX.

DVX-315x NetLinx Channels

The following table lists the NetLinx channels for the 315x DVX models.

DVX-315x NetLinx Channels

Channel Ports Description

24 1-4 Volume Up

25 1-4 Volume Down

26 1-4 Volume Mute Cycle

31 1-4 Switches video input 1 to the video output specif ied in the DPS (see page 76 for details)

32 1-4 Switches video input 2 to the video output specified in the DPS (see page 76 for details)

33 1-4 Switches video input 3 to the video output specified in the DPS (see page 76 for details)

34 1-4 Switches video input 4 to the video output specif ied in the DPS (see page 76 for details)

35 1-4 Switches video input 5 to the video output specified in the DPS (see page 76 for details)

36 1-4 Switches video input 6 to the video output specified in the DPS (see page 76 for details)

37 1-4 Switches video input 7 to the video output specif ied in the DPS (see page 76 for details)

38 1-4 Switches video input 8 to the video output specified in the DPS (see page 76 for details)

39 1-4 Switches video input 9 to the video output specified in the DPS (see page 76 for details)

40 1-4 Switches video input 10 to the video output specif ied in the DPS (see page 76 for details)

41 1-4 Switches audio input 1 to the video output specified in the DPS

42 1-4 Switches audio input 2 to the video output specified in the DPS

43 1-4 Switches audio input 3 to the video output specified in the DPS

44 1-4 Switches audio input 4 to the video output specified in the DPS

45 1-4 Switches audio input 5 to the video output specified in the DPS

46 1-4 Switches audio input 6 to the video output specified in the DPS

47 1-4 Switches audio input 7 to the video output specified in the DPS

48 1-4 Switches audio input 8 to the video output specified in the DPS

49 1-4 Switches audio input 9 to the video output specified in the DPS

50 1-4 Switches audio input 10 to the video output specif ied in the DPS

51 1-4 Switches audio input 11 to the video output specif ied in the DPS

52 1-4 Switches audio input 12 to the video output specified in the DPS

53 1-4 Switches audio input 13 to the video output specified in the DPS

54 1-4 Switches audio input 14 to the video output specif ied in the DPS

70 1-4 Video Output Enable

71 1-2 Mic Enable

83 1-10 Video In Phase Ramp Up

84 1-10 Video In Phase Ramp Down

100 1 Standby Mode. See the Standby Mode on page 76 for more information.

132 1-10 Video In V-Shift Ramp Up

133 1-10 Video In V-Shift Ramp Down

134 1-10 Video In H-Shift Ramp Up

135 1-10 Video In H-Shift Ramp Down

140 1-14 Gain Up

141 1-14 Gain Down

142 1-10 Black and White State

143 1-14 Gain Mute

144 1-14 Gain Cycle

148 1-10 Video In Brightness Ramp Up

149 1-10 Video In Brightness Ramp Down

Programming

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-315x NetLinx Channels

150 1-10 Video In Saturation Ramp Up

151 1-10 Video In Saturation Ramp Down

152 1-10 Video In Contrast Ramp Up

153 1-10 Video In Contrast Ramp Down

156 1-10 Video In Hue Ramp Up

157 1-10 Video In Hue Ramp Down

158 1-4 Output Zoom Ramp Up

159 1-4 Output Zoom Ramp Down

164 1-4 Balance Ramp Up

165 1-4 Balance Ramp Down

196 1-4 Source Cycle

199 1-4 Volume Mute Set and State

210 1-4 Video Mute State

213 1-4 Video Freeze State

216 1 Fan Alarm

217 1 Temperature Alarm

234 1-4 OSD State

DVX-21xx NetLinx Channels

The following table lists the NetLinx channels for the 21xx DVX models.

DVX-21xx NetLinx Channels

Channel Ports Description

24 1-3 Volume Up

25 1-3 Volume Down

26 1-3 Volume Mute Cycle

31 1-3 Switches video input 1 to the video output specified in the DPS (see page 76 for details)

32 1-3 Switches video input 2 to the video output specified in the DPS (see page 76 for details)

33 1-3 Switches video input 3 to the video output specified in the DPS (see page 76 for details)

34 1-3 Switches video input 4 to the video output specified in the DPS (see page 76 for details)

35 1-3 Switches video input 5 to the video output specified in the DPS (see page 76 for details)

36 1-3 Switches video input 6 to the video output specified in the DPS (see page 76 for details)

41 1-3 Switches audio input 1 to the video output specified in the DPS

42 1-3 Switches audio input 2 to the video output specified in the DPS

43 1-3 Switches audio input 3 to the video output specified in the DPS

44 1-3 Switches audio input 4 to the video output specified in the DPS

45 1-3 Switches audio input 5 to the video output specified in the DPS

46 1-3 Switches audio input 6 to the video output specified in the DPS

47 1-3 Switches audio input 7 to the video output specified in the DPS

48 1-3 Switches audio input 8 to the video output specified in the DPS

70 1-2 Video Output Enable

71 1-2 Mic Enable

83 1-2 Video In Phase Ramp Up

84 1-2 Video In Phase Ramp Down

100 1 Standby State. See the Standby Mode on page 76 for more information.

132 1-6 Video In V-Shift Ramp Up (only applicable when routed to a scaled output)

133 1-6 Video In V-Shift Ramp Down

134 1-6 Video In H-Shift Ramp Up

135 1-6 Video In H-Shift Ramp Down

140 1-6 Audio Input Gain Up

Programming

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-21xx NetLinx Channels

141 1-6 Audio Input Gain Down

142 1-6 Black and White State

143 1-6 Audio Input Gain Mute (Reserved for future use)

144 1-6 Audio Input Gain Mute Cycle (Reserved for future use)

148 1-6 Video In Brightness Ramp Up (only applicable when routed to a scaled output)

149 1-6 Video In Brightness Ramp Down (only applicable when routed to a scaled output)

150 1-6 Video In Saturation Ramp Up (only applicable when routed to a scaled output)

151 1-6 Video In Saturation Ramp Do wn (only applicable when routed to a scaled output)

152 1-6 Video In Contrast Ramp Up (only applicable when routed to a scaled output)

153 1-6 Video In Contrast Ramp Down (only applicable when routed to a scaled output)

156 1-6 Video In Hue Ramp Up (only applicable when routed to a scaled output)

157 1-6 Video In Hue Ramp Down (only applicable when routed to a scaled output)

158 1-2 Output Zoom Ramp Up

159 1-2 Output Zoom Ramp Down

164 1-3 Audio Output Balance Ramp Left (output 1 is only applicable on -SP units)

165 1-3 Audio Outpu t Balance Ramp Right (output 1 is only applicable on -SP units)

196 1-3 Source Cycle

199 1-3 Volume Mute Set and State

210 1-3 Video Mute Set and State

213 1-2 Video Freeze Set and State

216 1 Fan Alarm (read-only channel)

217 1 Temperature Alarm (read-only channel)

234 1-2 OSD State

Programming

Channel Video Switching

To switch video via channels, the channel must be turned ON (as opposed to pulsing the channel).

For example, turn on Channel 31 on Port 1 for Input 1 to output video.

The DVX-315x video channels are 31-40 (Ports 1-4) - see DVX-315x NetLinx Channels on page 74 The DVX-21xx video channels are 31-36 (Ports 1-3) - see DVX-21xx NetLinx Channels on page 75

These channels are mutually exclusive:

Tur nin g On another channel will change input and turn off the last channel.

Tur nin g Of f a selected channel will select input none.

Pulsing any channel will set input to none as it turns on, and then back off the channel pulsed.

Standby Mode

Standby Mode can be activated via channel 100 on the DVX. The following points apply to Standby Mode on the DVX:

After exiting Standby Mode, the DVX cannot re-enter Standby Mode for a period of 20 seconds. Any attempt to re-enter

standby mode within this 20 second window is ignored.

When the DVX e nters Sta ndby Mo de, all video and audio circuitry are turned off. The DVX does no t produce a video or audio

output signal in low power state.

The 5002 Device stays online when Standby Mode is active.

All switch and configuration commands sent while in Standby Mode are implemented, and any changes will be noticed after

the DVX exits Standby Mode.

All audio and video signals are restored in less than 10 seconds after exiting Standby Mode.

The DVX exits Standby Mode on any power cycle or reboot.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-315x NetLinx Levels

The following table list the NetLinx levels for the 315x DVX models:

DVX-315x NetLinx Levels

Level Ports Range Function

1 1-4 0-100 Output volume

2 1-4 (-20)-(20) Audio Output Balance

5 1-14 (-24)-(24) Audio Input Gain

8 1 Temperature (read-only level)

10 1-10 0-100 Input Video Brightness

11 1-10 0-100 Input Video Saturation

12 1-10 0-100 Input Video Contrast

14 1-10 0-100 Input Video Hue

15 1-4 25-800 Video Output Zoom

17 1-10 (-50)-(50) Video Input Horizontal Shift

19 1-10 (-10)-(10) Video Input Vertical Shift

20 1-4 0-100 Video Output Brightness

22 1-4 0-100 Video Output Contrast

26 1-4 25-800 Video Output Horizontal Size

27 1-4 (-127)-

(127)

28 1-4 25-800 Video Output Vertical Size

29 1-4 (-127)-

(127)

31 1-4 (-12)-(12) Audio EQ Band 1

32 1-4 (-12)-(12) Audio EQ Band 2

33 1-4 (-12)-(12) Audio EQ Band 3

34 1-4 (-12)-(12) Audio EQ Band 4

35 1-4 (-12)-(12) Audio EQ Band 5

36 1-4 (-12)-(12) Audio EQ Band 6

37 1-4 (-12)-(12) Audio EQ Band 7

38 1-4 (-12)-(12) Audio EQ Band 8

39 1-4 (-12)-(12) Audio EQ Band 9

40 1-4 (-12)-(12) Audio EQ Band 10

41 1-4 (-100)-0 Audio Program Source Mixing Level

42 1-4 (-100)-0 Audio Line Mic 1 Mixing Level

43 1-4 (-100)-0 Audio Line Mic 2 Mixing Level

50 1-4 0-10 Video Switching: Level 50 for each output port 1-4 will be a value from 0 to 10 indicating which

51 1-4 0-14 Audio Switching: Level 51 for each output port 1-4 will be a value from 0 to 14 indicating which

52 1-3 0-65 Audio Mic PreAmp Gain

53 1-3 (-24)-(24) Audio Mic Gain

61 1-3 (-12)-(12) Mic EQ Band 1

62 1-3 (-12)-(12) Mic EQ Band 2

63 1-3 (-12)-(12) Mic EQ Band 3

Video Output Horizontal Shift

Video Output Vertical Shift

video input is switched to that output. Changing the value of this level will result in a video switch.

audio input is switched to that output. Changing the value of this level will result in an audio switch.

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

DVX-21xx NetLinx Levels

The following table list the NetLinx levels for the 21xx DVX models:

DVX-21xx NetLinx Levels

Level Ports Range Function

1 1-3 0-100 Output volume

2 1-3 (-20)-(20) Audio Output Balance

5 1-8 (-24)-(24) Audio Input Gain

8 1 Temperature (read-only level)

10 1-6 0-100 Input Video Brightness

11 1-6 0-100 Input Video Saturation

12 1-6 0-100 Input Video Contrast

14 1-6 0-100 Input Video Hue

15 1-2 25-800 Video Output Zoom

17 1-6 (-50)-(50) Video Input Horizontal Shift

19 1-6 (-10)-(10) Video Input Vertical Shift

20 1-2 0-100 Video Output Brightness

22 1-2 0-100 Video Output Contrast

26 1-2 25-800 Video Output Horizontal Size

27 1-2 (-127)-

(127)

28 1-2 25-800 Video Output Vertical Size

29 1-2 (-127)-

(127)

31 1-3 (-12)-(12) Audio EQ Band 1

32 1-3 (-12)-(12) Audio EQ Band 2

33 1-3 (-12)-(12) Audio EQ Band 3

34 1-3 (-12)-(12) Audio EQ Band 4

35 1-3 (-12)-(12) Audio EQ Band 5

36 1-3 (-12)-(12) Audio EQ Band 6

37 1-3 (-12)-(12) Audio EQ Band 7

38 1-3 (-12)-(12) Audio EQ Band 8

39 1-3 (-12)-(12) Audio EQ Band 9

40 1-3 (-12)-(12) Audio EQ Band 10

41 1-3 (-100)-0 Audio Program Source Mixing Level

42 1-3 (-100)-0 Audio Line Mic 1 Mixing Level

43 1-3 (-100)-0 Audio Line Mic 2 Mixing Level

50 1-3 0-10 Video Switching: Level 50 for each output port 1-3 will be a value from 0 to 6 indicating which

51 1-3 0-14 Audio Switching: Level 51 for each output port 1-3will be a value from 0 to 8 indicating which

52 1-3 0-65 Audio Mic PreAmp Gain

53 1-3 (-24)-(24) Audio Mic Gain

61 1-3 (-12)-(12) Mic EQ Band 1

62 1-3 (-12)-(12) Mic EQ Band 2

63 1-3 (-12)-(12) Mic EQ Band 3

Video Output Horizontal Shift

Video Output Vertical Shift

video input is switched to that output. Changing the value of this level will result in a video switch.

audio input is switched to that output. Changing the value of this level will result in an audio switch.

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

SEND_COMMANDS

The commands listed in the following sections are for the switcher only. For generic NetLinx commands, see the NetLinx Integrated Controllers WebConsole and Programming Guide.

The commands derive their input/output port addressing from the target D:P:S.

INPUT ports range from 5-14 for Audio and from 1-10 for Video. HDMI inputs are capable of carrying both digital audio

and video signals

The extra ports 1 and 2 on the Audio subsystem represent MIC1 and MIC2 respectively.

There are four Audio output ports (05002:1:0, 05002:2:0, 05002:3:0, and 05002:4:0).

Audio Output Port #1 is the Main Amp Output and most audio commands are addressed to this port.

Audio Output Ports 2-4 are the Line Outputs and normally track the Main Amp Output port with small exceptions.

There are four Video output ports (05002:1:0, 05002:2:0, 05002:3:0, and 05002:4:0).

Input and Outpu t functional distinctions are disambiguated from the overlapped port numbers by combining them with the

command name.

The following table lists the port functionality mapping for the audio/video ports on the DVX:

Port Functionality Mapping

Port Number Description Address

1 Audio/Video Input 1 05002:1:0

2 Audio/Video Input 2 05002:2:0

3 Audio/Video Input 3 05002:3:0

4 Audio/Video Input 4 05002:4:0

5 Audio/Video Input 5 05002:5:0

6 Audio/Video Input 6 05002:6:0

7 Audio/Video Input 7 05002:7:0

8 Audio/Video Input 8 05002:8:0

9 Audio/Video Input 9 05002:9:0

10 Audio/Video Input 10 05002:10:0

11 Audio Input 11 05002:11:0

12 Audio Input 12 05002:12:0

13 Audio Input 13 05002:13:0

14 Audio Input 14 05002:14:0

1 Mic In 1 05002:1:0

2 Mic In 2 05002:2:0

1 Audio Output 1 (Amplified ) 05002:1:0

2 Audio Output 2 05002:2:0

3 Audio Output 3 05002:3:0

4 Audio Output 4 05002:4:0

1 Audio/Video Output1 05002:1:0

2 Audio/Video Output2 05002:2:0

3 Audio/Video Output3 05002:3:0

4 Audio/Video Output4 05002:4:0

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

AUDIO SEND_COMMANDs

The following table lists the audio SEND_COMMANDs available for the DVX:

Audio SEND_COMMANDs

AI<input>O<output> Switches audio input port <input> to audio output port <output>.

Syntax:

SEND_COMMAND "'AI<input>O<output>'"

Variables:

input = The source audio input number.

output = The audio output port number to switch to.

Example:

SEND_COMMAND SWITCHER,"'AI2O1'"

Switch audio input port #2 to audio output #1.

?AUDIN_COMPRESSION Requests the setting of compression for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION'"

Example:

SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_COMPRESSION'"

Returns a COMMAND string of the form:

AUDIN_COMPRESSION-<setting>

AUDIN_COMPRESSION Sets the setting of compression for the specified audio port.

Syntax

SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION-<setting>'"

Variable:

setting =off, low, medium, high, custom

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION-high'"

Sets the compression setting of the audio input port (#1 based on D:P:S) to high.

?AUDIN_COMPRESSION_ATTACK Requests the compression's attack phase for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION_ATTACK'"

Example:

SEND_COMMAND AUDIO_1, "'?AUDIN_COMPRESSION_ATTACK'"

Returns a COMMAND string of the form:

AUDIN_COMPRESSION_ATTACK-<attack>

AUDIN_COMPRESSION_ATTACK Sets the duration of the compression attack for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION_ATTACK-200'"

Sets the compression attack for the audio port (#1 based on the D:P:S) to 200.

?AUDIN_COMPRESSION_RATIO Requests the compression ratio for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION_RATIO'"

Example:

SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_COMPRESSION_RATIO'"

Returns a COMMAND string of the form:

AUDIN_COMPRESSION_RATIO-<ratio>

AUDIN_COMPRESSION_RATIO Sets the compression ratio for the specif ied audio input port.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION_RATIO-<ratio>'"

Variable:

ratio = 1 to 20

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION_RATIO-5'"

Programming

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

?AUDIN_COMPRESSION_RELEASE Requests the compression release for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION_RELEASE'"

Example:

SEND_COMMAND AUDIO_1, "'?AUDIN_COMPRESSION_RELEASE'"

Returns a COMMAND string of the form:

AUDIN_COMPRESSION_RELEASE-<release>

AUDIN_COMPRESSION_RELEASE Sets the duration of the compression release phase for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION_RELEASE-<release>'"

Variable:

release = 1 to 5000

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION_RELEASE-200'"

Sets the compression release for the audio port (#1 based on the D:P:S) to 200.

?AUDIN_COMPRESSION_THRESH Requests the compression threshold for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION_THRESH'"

Example:

SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_COMPRESSION_THRESH'"

Returns a COMMAND string of the form:

AUDIN_COMPRESSION_THRESH-<threshold>

AUDIN_COMPRESSION_THRESH Sets the compression threshold for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION_THRESH-<threshold>'"

Variable:

threshold = 0 to -60 in dB

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION_THRESH--10'"

Sets the threshold while compressing for the selected audio input port (#1 based on D:P:S) to -10dB.

?AUDIN_DIGITAL Requests the format of the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_DIGITAL'"

Example:

SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_DIGITAL'"

Returns a string of the form:

AUDIN_DIGITAL-<format>

AUDIN_DIGITAL Sets the format for the specified audio input port.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_DIGITAL-<format>'"

Variable:

format = PCM-2ch, PCM-8ch, AC3, DTS, MPEG, AAC, TrueHD, DTSHD

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_DIGITAL-AAC'"

Sets the audio format for the audio input port (#1 based on D:P:S) to AAC.

?AUDIN_GAIN Requests the gain of the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_GAIN'"

Example:

SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_GAIN'"

Returns a COMMAND string of the form:

AUDIN_GAIN-<gain>

AUDIN_GAIN Sets the gain of the specified audio port to <gain>.

Syntax:

SEND_COMMAND <DEV>, "'AUDIN_GAIN-<gain>'"

Variable:

gain = -24 to 24 in dB

Example:

SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_GAIN-12'"

Sets the gain of the audio input port (#1 based on D:P:S) to 12 dB.

Programming

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

?AUDIN_STEREO Requests the stereo setting (stereo/mono) of the specified audio input port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDIN_STEREO'"

Example:

SEND_COMMAND AUDIO_INPUT_1,"'?AUDIN_STEREO'"

Returns a COMMAND string of the form:

AUDIN_STEREO-<setting>.

AUDIN_STEREO Sets the stereo setting on the specified input port.

If enabled, the stereo setting is on. If disabled, the stereo setting is off, which means it is mono. Syntax:

SEND_COMMAND <DEV>,"'AUDIN_STEREO-<setting>'"

Variable:

setting = stereo or mono

Example:

SEND_COMMAND AUDIO_INPUT_1,"'AUDIN_STEREO-stereo'"

?AUDIO_MUTE See the ?AUDOUT_MUTE section on page 93.

AUDIO_MUTE See the AUDOUT_MUTE section on page 93.

?AUDMIC_COMPRESSIO N Requests the compression setting for the microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_COMPRESSION'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_COMPRESSION'"

Returns a COMMAND string of the form:

AUDMIC_COMPRESSION-<setting>

AUDMIC_COMPRESSION Sets the compression setting for the specified microphone to <setting>.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION-<setting>'"

Variable:

setting = off, low, medium, high, custom

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION-high'"

Sets the compression for the microphone port (#1 based on D:P:S) to high.

?AUDMIC_COMPRESSIO N_ATTACK Requests the duration of the attack phase while compressing for a specified microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_COMPRESSION_ATTACK'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_COMPRESSION_ATTACK'"

Returns a COMMAND string of the form:

AUDMIC_COMPRESSION-ATTACK-<attack>.

AUDMIC_COMPRESSION_ATTACK Sets the duration of the compression attack for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION_ATTACK-200'"

Sets the compression attack for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_COMPRESSIO N_RATIO Requests the compression ratio setting for the specif ied microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_COMPRESSION_RATIO'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_COMPRESSION_RATIO'"

Returns a COMMAND string of the form:

AUDMIC_COMPRESSION-RATIO-<ratio>

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_COMPRESSION_RATIO Sets the compression ratio for the specif ied microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION_RATIO-<ratio>'"

Variable:

ratio = 1 to 20

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION_RATIO-5'"

Sets the compression ratio for the microphone port (#1 based on the D:P:S) to 5.

?AUDMIC_COMPRESSION_RELEASE Requests the duration of the release phase while compressing for a specified microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_COMPRESSION_RELEASE'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_COMPRESSION_RELEASE'"

Returns a COMMAND string of the form:

AUDMIC_COMPRESSION-RELEASE-<release>

AUDMIC_COMPRESSION_RELEASE Sets the duration of the release phase while compressing for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION_RELEASE-<release>'"

Variable:

release = 1 to 5000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION_RELEASE-200'"

Sets the compression release for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_COMPRESSION_THRESH Requests the compression threshold for a specified microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_COMPRESSION_THRESH'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_COMPRESSION_THRESH'"

Returns a COMMAND string of the form:

AUDMIC_COMPRESSION-THRESH-<thresh>.

AUDMIC_COMPRESSION_THRESH Sets the compression threshold for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION_THRESH-<thresh>'"

Variable:

thresh = 0 to -60

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION_THRESH--20'"

Sets the compression threshold for the microphone port (#1 based on the D:P:S) to -20.

AUDMIC_DUCK_ATTACK Sets the ducking attack for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_DUCK_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_DUCK_ATTACK-200'"

Sets the ducking attack for the microphone port (#1 based on the D:P:S) to 200.

AUDMIC_DUCK_HOLD Sets the ducking hold for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_DUCK_HOLD-<hold>'"

Variable:

hold = 0 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_DUCK_HOLD-200'"

Sets the ducking hold for the microphone port (#1 based on the D:P:S) to 200.

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_DUCK_LEVEL Sets the ducking level for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_DUCK_LEVEL-<level>'"

Variable:

level = 0 to 20

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_DUCK_LEVEL-4'"

Sets the ducking level for the microphone port (#1 based on the D:P:S) to 4.

AUDMIC_DUCK_RELEASE Sets the ducking release for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_DUCK_RELEASE-<release>'"

Variable:

release = 10 to 5000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_DUCK_RELEASE-200'"

Sets the ducking release for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_EQ_CF Requests the frequency for the specific band of the equalizer for the specified microphone

AUDMIC_EQ_CF Sets the frequency for the specific band of the equalizer for the specified microphone port.

?AUDMIC_EQ_FT Requests the filter type of a specific band o f the equalizer for the specified microphone port.

AUDMIC_EQ_FT Sets the filter type on a specific band of the equalizer for the specified microphone port.

port. Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_EQ_CF-<band>'"

Variables:

band = 1..3 on the microphone inputs.

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_EQ_CF-1'"

Returns a COMMAND string of the form:

AUDMIC_EQ_CF-<band>,<value>

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_EQ_CF-<band>,<frequency>'"

Variables:

band = 1..3 on the microphone inputs.

frequency = 20 to 20,000 in Hz.

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_EQ_CF-1,1000'"

Sets the frequency for the first band of the equalizer for the selected microphone port (#1 based on D:P:S) to be 1000.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_EQ_FT-<band>'"

Variable:

band = 1..3 on the microphone inputs.

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_EQ_FT-1'"

Returns a COMMAND string of the form:

AUDMIC_EQ_FT-<band>,<value>

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_EQ_FT-<band>,<type>'"

Variables:

band = 1..3 on the microphone inputs.

type = bell, band pass, band stop, high pass, low pass, treble shelf, bass shelf

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_EQ_FT-1,band pass'"

Sets the filter type for the first band of the equalizer for the selected microphone port (#1 based on D:P:S) to band pass.

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

?AUDMIC_EQ_GAIN Requests the gain on the microphone equalizer setting of band <band> for the specified

AUDMIC_EQ_GAIN Sets the gain on the microphone equalizer band <band> on the specified microphone port.

?AUDMIC_EQ_Q Requests the quality factor (Q) for a specific band of the equalizer for the specified

AUDMIC_EQ_Q Sets the quality factor (Q) for a specific band of the equalizer for the specified microphone

?AUDMIC_GAIN Requests the gain setting for the specified microphone.

microphone port. Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_EQ_GAIN-<band>'"

Variable:

band = 1..3 on the microphone inputs.

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_EQ_GAIN-1'"

Returns a COMMAND string of the form:

AUDMIC_EQ_GAIN-<band>,<value>.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_EQ_GAIN-<band>,<value>'"

Variables:

band = 1..3 on the microphone inputs.

value = -12..12. The units are in dB.

Example:

SEND_COMMAND MIC_1,"'AUDMIC_EQ_GAIN-1,8'"

Sets the gain on microphone band #1 of microphone 1 equalizer to 8.

SEND_COMMAND MIC_2,"'AUDMIC_EQ_GAIN-3,10'"

Sets the gain on microphone band #3 of microphone 2 equalizer to 10.

microphone port. Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_EQ_Q-<band>'"

Variable:

band = 1..3 on the microphone inputs.

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_EQ_Q-1'"

Returns a COMMAND string of the form:

AUDMIC_EQ_Q-<band>,<value>.

port. Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_EQ_Q-<band>,<factor>'"

Variables:

band = 1 to 3 on the microphone inputs.

factor = range depends on filter type (set by AUDMIC_EQ_FT, see page 84)

Bell: range is 0.1 - 20.0

Band Pass:range is 0.1 - 20.0

Band Stop:range is 0.1 - 20.0

High Pass:range is 0.5 - 1.4

Low Pass:range is 0.5 - 1.4

Treble Shelf:range is 0.5 - 1.0

Bass Shelf:range is 0.5 - 1.0

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_Q-1,1'"

Sets the quality factor for the first band of the equalizer for the selected microphone port (#1 based on D:P:S) to 1.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GAIN'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_GAIN'"

Returns a COMMAND string of the form:

AUDMIC_GAIN-<gain>

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_GAIN Sets the gain of the specified microphone port to <gain>.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GAIN-<gain>'"

Variable:

gain = -24 to 24 in dB

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GAIN-3'"

Sets the gain for the microphone port (#1 based on the D:P:S) to 3dB.

?AUDMIC_GATING Requests the gating setting for the specified microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_GATING'"

Returns a COMMAND string of the form:

AUDMIC_GATING-<setting>

AUDMIC_GATING Sets the gating setting for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING-<setting>'"

Variable:

setting = off, low, medium, high, custom

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING-low'"

Sets the gating for the microphone port (#1 based on D:P:S) to low.

?AUDMIC_GATING_ATTACK Requests the duration of the attack phase while gating for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING_ATTACK'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_GATING_ATTACK'"

Returns a string of the form:

?AUDMIC_GATING_ATTACK=<value>

AUDMIC_GATING_ATTACK Sets the gating attack for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_ATTACK-200'"

Sets the gating attack for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_GATING_DEPTH Requests the gating depth for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING_DEPTH'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_GATING_DEPTH'"

Returns a string of the form:

?AUDMIC_GATING_DEPTH=<value>

AUDMIC_GATING_DEPTH Sets the gating depth for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING_DEPTH-<depth>'"

Variable:

dept h = 0 to 20

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_DEPTH-8'"

Sets the gating depth for the microphone port (#1 based on the D:P:S) to 8.

?AUDMIC_GATING_HOLD Requests the hold setting while gating from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING_HOLD'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_GATING_HOLD'"

Returns a string of the form:

?AUDMIC_GATING_HOLD=<value>

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_GATING_HOLD Sets the duration of the hold phase while gating for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING_HOLD-<hold>'"

Variable:

hold = 0 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_HOLD-200'"

Sets the gating hold for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_GATING_RELEASE Requests the duration of the release phase while gating from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING_RELEASE'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_GATING_RELEASE'"

Returns a string of the form:

?AUDMIC_GATING_RELEASE=<value>

AUDMIC_GATING_RELEASE Sets the duration of the release phase while gating from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING_RELEASE-<release>'"

Variable:

release = 10 to 5000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_RELEASE-200'"

Sets the gating release for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_GATING_THRESH Requests the threshold setting while gating from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_GATING_THRESH'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_GATING_THRESH'"

Returns a string of the form:

?AUDMIC_GATING_THRESH=<value>

AUDMIC_GATING_THRESH Sets the gating threshold for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_GATING_THRESH-<thresh>'"

Variable:

thresh = 0 to -60

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_THRESH--20'"

Sets the gating threshold for the microphone port (#1 based on the D:P:S) to -20.

?AUDMIC_LIMITER Requests the limiter setting for a specif ied microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_LIMITER'"

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_LIMITER'"

Returns a COMMAND string of the form:

AUDMIC_LIMITER-<setting>

AUDMIC_LIMITER Turns on or turns off the limiter function on the specified microphone.

Syntax:

SEND_COMMAND <DEV>,"'AUDMIC_LIMITER-<setting>'"

Variable:

setting = off, low, medium, high, custom

Example:

SEND_COMMAND MIC_1,"'AUDMIC_LIMITER-off'"

Turns off the limiter for the microphone port (#1 based on D:P:S).

?AUDMIC_LIMITER_ATTACK Requests the duration of the attack phase while limiting from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_LIMITER_ATTACK'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_LIMITER_ATTACK'"

Returns a string of the form:

?AUDMIC_LIMITER_ ATTACK=< value>

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_LIMITER_ATTACK Sets the duration of the attack phase while limiting for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_LIMITER_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_LIMITER_ATTACK-200'"

Sets the limiter attack for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_LIMITER_RELEASE Requests the duration of the release phase while limiting from the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_LIMITER_RELEASE'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_LIMITER_RELEASE'"

Returns a string of the form:

?AUDMIC_LIMITER_ RELEASE=< release>

AUDMIC_LIMITER_RELEASE Sets the duration of the release phase while limiting for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_LIMITER_RELEASE-<release>'"

Variable:

release = 10 to 5000

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_LIMITER_RELEASE-200'"

Sets the limiter release for the microphone port (#1 based on the D:P:S) to 200.

?AUDMIC_LIMITER_THRESH Requests the duration of the threshold phase while limiting from the specified microphone

AUDMIC_LIMITER_THRESH Sets the limiter threshold for the specified microphone port.

?AUDMIC_ON Requests the status of the specif ied microphone port.

AUDMIC_ON Enables or disables the specified microphone port.

?AUDMIC_PHANTOM_PWR Requests the phantom power setting for the specified microphone.

port. Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_LIMITER_THRESH'"

Example:

SEND_COMMAND MIC_1, "'?AUDMIC_LIMITER_THRESH'"

Returns a string of the form:

?AUDMIC_LIMITER_ THRESH=< thresh>

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_LIMITER_THRESH-<thresh>'"

Variable:

thresh = 0 to -60

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_LIMITER_THRESH--20'"

Sets the limiter threshold for the microphone port (#1 based on the D:P:S) to -20.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_ON'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_ON'"

Returns a COMMAND string of the form:

AUDMIC_ON-<setting>

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_ON-<setting>'"

Variable:

setting = on, off

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_ON-off'"

Disables the microphone port (#1 based on the D:P:S).

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_PHANTOM_PWR'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_PHANTOM_PWR'"

Returns a COMMAND string of the form:

AUDMIC_PHANTOM_PWR-<result>.

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDMIC_PHANTOM_PWR Enables or disables phantom power for the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_PHANTOM_PWR-<setting>'"

Variable:

setting = on, off

Example:

SEND_COMMAND MICROPHONE_1, "'AUDMIC_PHANTOM_PWR-on'"

Allows phantom power for the microphone port (#1 based on D:P:S).

?AUDMIC_PREAMP_GAIN Requests the pre-amplifier gain setting on the specif ied microphone.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_PREAMP_GAIN'"

Example:

SEND_COMMAND MIC_1,"'?AUDMIC_PREAMP_GAIN'"

Returns a COMMAND string of the form:

AUDMIC_PREAMP_GAIN-<gain>

AUDMIC_PREAMP_GAIN Sets the pre-amplifier gain on the specified microphone.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_PREAMP_GAIN-<gain>'"

Variables:

gain = 0-100. The units are in %.

Example:

SEND_COMMAND MIC_1,"'AUDMIC_PREAMP_GAIN-50'"

Sets the pre-amplifier gain for the microphone port (#1 based on D:P:S) to 50%.

?AUDMIC_STEREO Requests the microphone port(s) that is/are in use.

Syntax:

SEND_COMMAND <DEV>, "'?AUDMIC_STEREO'"

Example:

SEND_COMMAND MICROPHONE_1, "'?AUDMIC_STEREO'"

Returns a COMMAND string of the form:

AUDMIC_STEREO-<option>

AUDMIC_STEREO Sets the microphone to be used by the specified microphone port.

Syntax:

SEND_COMMAND <DEV>, "'AUDMIC_STEREO-<option>'"

Variable:

option = "dual mono" or "single stereo"

Example:

SEND_COMMAND MIC_1, "'AUDMIC_STEREO-single stereo'"

Sets the microphone port (#1 based on the D:P:S) to use both the microphone inputs as dual mono.

?AUDOUT_BALANCE Request the current balance setting for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_BALANCE'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_BALANCE'"

Returns a COMMAND string of the form:

AUDOUT_BALANCE-<balance>

AUDOUT_BALANCE Sets the left and right balance for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_BALANCE-<balance>'"

Variable:

balance = -20 to 20 in dB.

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_BALANCE-5'"

Sets the balance to favor the right speaker for audio output port (#1 based on D:P:S) to 5dB.

?AUDOUT_DELAY Requests the current delay for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_DELAY'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_DELAY'"

Returns a COMMAND string of the form:

AUDOUT_DELAY-<delay>

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDOU T_DELAY Sets the delay for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DELAY-<delay>'"

Variable:

delay = 0 to 200 in milliseconds

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DELAY-50'"

Sets the delay for the audio output port (#1 based on D:P:S) to 50.

AUDOU T_DUCK_ATTACK Sets the duration of the attack phase while ducking for the specified audio output port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCK_ATTACK-<attack>'"

Variable:

attack = 1 to 2000

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_ATTACK-200'"

Sets the ducking attack for the output port (#1 based on the D:P:S) to 200.

AUDOU T_DUCK_HOLD Sets the duration of the hold phase while ducking for the specified output port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCK_HOLD-<hold>'"

Variable:

hold = 0 to 2000

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_HOLD-200'"

Sets the ducking hold for the output port (#1 based on the D:P:S) to 200.

AUDOU T_DUCK_LEVEL Sets the ducking level for the specified output port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCK_LEVEL-<level>'"

Variable:

level = 0 to 20

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_LEVEL-4'"

Sets the ducking level for the output port (#1 based on the D:P:S) to 4.

AUDOU T_DUCK_RELEASE Sets the duration of the release phase while ducking from the specified output port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCK_RELEASE-<release>'"

Variable:

release = 10 to 5000

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_RELEASE-200'"

Sets the ducking release for the output port (#1 based on the D:P:S) to 200.

?AUDOUT_DUCK_THRESH Requests the ducking threshold for the microphones on the specif ied audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_DUCK_THRESH'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_DUCK_THRESH'"

Returns a COMMAND string of the form:

AUDOUT_DUCK_THRESH-<mic1_thresh>,<mic2_thresh>

AUDOU T_DUCK_THRESH Individually sets the ducking thresholds of both microphone ports for the specified audio

port. Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCK_THRESH-<mic1_thresh>'"

Variables:

mic1_thresh = -60 to 0

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_THRESH--12'"

Sets the two microphone thresholds for the audio output port (#1 based on D:P:S) to -12.

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

?AUDOUT_DUCKING Requests the ducking setting for the specif ied audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_DUCKING'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_DUCKING'"

Returns a COMMAND string of the form:

AUDOUT_DUCKING-<setting>

AUDOU T_DUCKING Sets the ducking for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_DUCKING-<setting>'"

Variable:

setting = off, low, medium, high, custom

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCKING-low'"

Sets the ducking for the audio output port (#1 based on D:P:S) to low.

?AUDOUT_EQ_CF Requests the center frequency on the specified equalizer band on the specified audio output

AUDOU T_EQ_CF Sets the center frequency on the specified equalizer band on the specified audio outpu t port.

?AUDOUT_EQ_FT Requests the filter type on the specified equalizer band on the specified audio output port.

AUDOU T_EQ_FT Sets the filter type on a specific equalizer band on the specified audio output port.

?AUDOUT_EQ_GAIN Requests the gain on a specific equalizer band on the specified audio outpu t port.

port. Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_EQ_CF-<band>'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDOUT_EQ_CF-1'"

Returns a COMMAND string of the form:

AUDOUT_EQ_CF-<band>,<value>

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_EQ_CF-<band>,<value>'"

Variables:

band = 1..10 if on the audio output port.

value =20..20000. The units are in Hz.

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'AUDOUT_EQ_CF-1=80'"

Sets the center frequency on band #1 of audio port 1 equalizer to 80.

SEND_COMMAND AUDIO_OUTPUT_2,"'AUDOUT_EQ_CF-5=100'"

Sets the center frequency on band #5 of audio port 2 equalizer to 100.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_EQ_FT-<band>'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDOUT_EQ_FT-1'"

Returns a COMMAND string of the form:

AUDOUT_EQ_FT-<band>,<filter>

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_EQ_FT-<band>=<filter type>'"

Variables:

band = 1..10 if on the audio output port.

filter type = Bell, Band Pass, Band Stop, High Pass, Low Pass, Treble Shelf, and Bass Shelf

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'AUDOUT_EQ_FT-1=Low Pass'"

Sets the filter type on band #1 of audio port 1 equalizer to Low Pass.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_EQ_GAIN-<band>'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDOUT_EQ_GAIN-1'"

Returns a COMMAND string of the form:

AUDOUT_EQ_GAIN-<band>,<value>

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDOU T_EQ_GAIN Sets the gain on a specific equalizer band on the specified audio output port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_EQ_GAIN-<band>,<value>'"

Variables:

band = 1..10 if on the audio output port.

value = -12..12. The units are in dB.

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'AUDOUT_EQ_GAIN-1=8'"

Sets the gain on band #1 of audio port 1 equalizer to 8.

SEND_COMMAND AUDIO_OUTPUT_2,"'AUDOUT_EQ_GAIN-5=-10'"

Sets the gain on band #5 of audio port 2 equalizer to -10.

?AUDOUT_EQ_MODE Request the current mode of the equalizer for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "?'AUDOUT_EQ_MODE'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_EQ_MODE'"

Returns a COMMAND string of the form:

AUDOUT_EQ_MODE-<mode>

AUDOUT_EQ_MODE Sets the mode for the equalizer for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_EQ_MODE-<mode>'"

Variables:

mode = off, voice, music, movie

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_EQ_MODE-movie'"

Sets the equalizer to favor the sounds of a movie for the audio output port (#1 based on D:P:S).

?AUDOUT_EQ_Q Requests the quality factor (Q) on a specific equalizer band on the specified audio output

AUDOU T_EQ_Q Sets the quality factor (Q) on a specific equalizer band on the specified audio output port.

?AUDOUT_MAXVOL Requests the current maximum volume for the specified audio port.

port. Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_EQ_Q-<band>'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDOUT_EQ_Q-1'"

Returns a COMMAND string of the form:

AUDOUT_EQ_Q-<band>,<factor>

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_EQ_Q-<band>=<factor>'"

Variables:

band = 1-10 if on the audio output port.

factor = range depends on filter type (AUDOUT_EQ_FT)

Bell: range is 0.1 - 20.0

Band Pass: range is 0.1 - 20.0

Band Stop: range is 0.1 - 20.0

High Pass: range is 0.5 - 1.4

Low Pass: range is 0.5 - 1.4

Treble Shelf: range is 0.5 - 1.0

Bass Shelf: range is 0.5 - 1.0

Example:

SEND_COMMAND AUDIO_OUTPUT_1,"'AUDOUT_EQ_Q-1=8'"

Sets the Q on band #1 of the audio port 1 equalizer to 8.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_MAXVOL'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_MAXVOL'"

Returns a COMMAND string of the form:

AUDOUT_MAXVOL-<maximum>

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDOU T_MAXVOL Sets the maximum volume for the specif ied audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_MAXVOL-<maximum>'"

Variable:

maximum = 0 to 100 in percent

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_MAXVOL-75'"

Sets the maximum for the audio output port (#1 based on D:P:S) to 75%.

?AUDOUT_MINVO L Requests the current minimum volume for the specif ied audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_MINVOL'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_MINVOL'"

Returns a COMMAND string of the form:

AUDOUT_MINVOL-<minimum>

AUDOU T_MINVOL Sets the minimum volume for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_MINVOL-<minimum>'"

Variable:

minimum = 0 to 100 in percent.

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_MINVOL-5'"

Sets the minimum for the audio output port (#1 based on D:P:S) to 5%.

?AUDOUT_MU TE Requests audio mu te status.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_MUTE'"

Example:

SEND_COMMAND dxDev, "'?AUDOUT_MUTE'"

Returns a COMMAND string of the form:

AUDOUT_MUTE-<enable|disable>

AUDOUT_MUTE Enables or disables audio muting on all ports.

Syntax:

SEND_COMMAND <DEV>,"'AUDOUT_MUTE-<setting>'"

Variables:

setting = desired mute state, either ENABLE or DISABLE

Example:

SEND_COMMAND dxDev,"'AUDOUT_MUTE-DISABLE'"

?AUDOUT_STEREO Requests if audio amp output is in stereo.

Syntax:

SEND_COMMAND <device>, "'?AUDOUT_STEREO'"

Example:

SEND_COMMAND dxDev, "'?AUDOUT_STEREO'"

Returns a COMMAND string of the form:

AUDOUT_STEREO-<enable|disable>

AUDOU T_STEREO Enables or disables audio amp output in stereo.

Syntax:

SEND_COMMAND <device>, "'AUDOUT_STEREO-<setting>'"

Variables:

setting = Stereo setting, either "ENABLE" or "DISABLE"

Example:

SEND_COMMAND dxDev,"'AUDOUT_STEREO-ENABLE'"

?AUDOUT_TESTTONE Requests the frequency of the test tone for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_TESTTONE'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_TESTTONE'"

Returns a COMMAND string of the form:

AUDOUT_TESTTONE-<frequency>

Programming

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

AUDOU T_TESTTONE Sets the frequency (if any) of a test tone for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_TESTTONE-<frequency>'"

Variable:

frequency = off, 60Hz, 250Hz, 400Hz, 1KHz, 3KHz, 5KHz, 10KHz, PINK NOISE, WHITE NOISE

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_TESTTONE-250Hz'"

Sets a test tone of 250Hz to play for the audio output port (#1 based on D:P:S).

?AUDOUT_VOLUME Requests the volume setting of the audio output port addressed by the D:P:S.

Syntax:

SEND_COMMAND <DEV>, "'?AUDOUT_VOLUME'"

Example:

SEND_COMMAND AUDOUT_VOLUME_1, "'?AUDOUT_VOLUME'"

Returns a COMMAND string of the form:

AUDOUT_VOLUME-<value>

AUDOU T_VOLUME Sets the volume on the specified audio output.

Syntax:

SEND_COMMAND <DEV>, "'AUDOUT_VOLUME-<VALUE>'"

Variable:

value = 0..100

Example:

SEND_COMMAND AUDOUT_VOLUME_1, "'AUDOUT_VOLUME-50'"

Sets the volume of audio output port #1 to 50.

?GAIN See the ?AUDIN_GAIN section on page 81.

GAIN See the AUDIN_GAIN section on page 81.

?HDMIOUT_AUDIO Requests the HDMI output port followed by the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?HDMIOUT_AUDIO'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?HDMIOUT_AUDIO'"

Returns a COMMAND string of the form:

HDMIOUT_AUDIO-<option>

HDMIOUT_AUDIO Sets the output used by the specified HDMI output port.

Syntax:

SEND_COMMAND <DEV>, "'HDMIOUT_AUDIO-<option>'"

Variable:

option = off, input pass-thru, analog out 1, analog out 2, analog out 3, analog out 4

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'HDMIOUT_AUDIO-input pass-thru"

Sets the audio output port (#1 based on D:P:S) to use the audio associated with the HDMI source.

?HDMIOUT_EQ Requests the status of the HDMI equalizer for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'?HDMIOUT_EQ'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?HDMIOUT_EQ'"

Returns a COMMAND string of the form:

HDMIOUT_EQ-<option>

HDMIOUT_EQ Enables or disables the HDMI equalizer for the specified audio port.

Syntax:

SEND_COMMAND <DEV>, "'HDMIOUT_EQ-<option>'"

Variable:

option = off, on

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'HDMIOUT_EQ-on'"

Turns on the HDMI output equalizer for the audio output port (#1 based on D:P:S).

?INPUTEQ See the ?AUDMIC_EQ_GAIN section on page 85.

INPUTEQ See the AUDMIC_EQ_GAIN section on page 85.

?PHANTOM_PWR See the ?AUDMIC_PHANTOM_PWR section on page 88.

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Audio SEND_COMMANDs

PHANTOM_PWR See the AUDMIC_PHANTOM_PWR section on page 89.

?SPDIFOUT_AUDIO Requests to which output the specified audio port is connected.

Syntax:

SEND_COMMAND <DEV>, "'?SPDIFOUT_AUDIO'"

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'?SPDIFOUT_AUDIO'"

Returns a COMMAND string of the form:

SPDIFOUT_AUDIO-<option>

SPDIFOUT_AUDIO Sets the output to which the specif ied audio port is connected.

Syntax:

SEND_COMMAND <DEV>, "'SPDIFOUT_AUDIO-<option>'"

Variable:

option = off, HDMI out 1, HDMI out 2, HDMI ou t 3, HDMI out 4, analog out 1, analog out 2, analog out 3, analog out 4

Example:

SEND_COMMAND AUDIO_OUTPUT_1, "'SPDIFOUT_AUDIO-HDMI out 1'"

Sets the audio of HDMI out 1 to play through the audio output port (#1 based on D:P:S).

?VOLUME See the ?AUDOUT_VOLUME section on page 94.

VOLUME See the AUDOUT_VOLUME section on page 94.

?XPOINT Requests the mix level contribution of the audio input port addressed by <input> to the

XPOINT Sets the mix level that the audio input addressed by the parameter <input> provides to the

audio output mixer addressed by <output>. Syntax:

SEND_COMMAND <DEV>, "'?XPOINT-<input>,<output>'"

Variables:

input = 1, 2, 3 where 1=LINE, 2=Mic1, and 3=Mic2

output = 1..4 where 1 is for the AMP output and 2, 3, and 4 are for the LINEOUT output.

Example:

SEND_COMMAND AUDIO_OUTPUT_2,"'?XPOINT-1,2'"

Returns a COMMAND string of the form:

XPOINT-<value>,<input>,<output>

audio output <output> to <value>.

NOTE: Audio input ports 1..10 share a setting across them for a specific output mixer's value.

Syntax:

SEND_COMMAND <DEV>, "'XPOINT-<value>,<input>,<output>'"

Variables:

value = -100..0

input = 1, 2, 3 where 1=Selected audio input, 2=Mic1, and 3=Mic2

output = 1..4 where 1 is for the AMP output and 2, 3, and 4 are for the LINEOUT 2-4 outputs.

Example:

SEND_COMMAND AUDIO_OUTPUT_2,"'XPOINT--75,LINE,2'"

Sets the mix level of the selected input’s contribution to the audio LINEOUT (2) ou tput to

-75.

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video SEND_COMMANDs

The following table lists the video SEND_COMMANDs available for the DVX:

Video SEND_COMMANDs

CI<input>O<output> Switches both the audio and video input port to the output port.

Syntax:

SEND_COMMAND <DEV>, "'CI<input>O<output>'"

Variables:

input = The source input port number.

output = The output port number to switch to.

Examples:

SEND_COMMAND SWITCHER,"'CI2O1'"

Switch (audio/video) input port #2 to output #1.

SEND_COMMAND SWITCHER,"'CI4O2'"

Switch video input port #4 to video output #2. Also switches audio input port #4 to audio outpu t port #2.

SEND_COMMAND SWITCHER,"'CI3O1,2'"

Switches video input port #3 to output video ports #1 and #2. Switches audio input port #3 to audio output port #1 and #2.

CL<sl>I<input>O<output> Switches the audio or video (or both) inputs to the output port.

Syntax:

SEND_COMMAND <DEV>, "'CL<sl>I<input>O<output>'"

Variables:

sl = AUDIO or VIDEO or ALL. ALL = both AUDIO and VIDEO.

input = The source input port number.

output = The output port number to switch to.

Examples:

SEND_COMMAND SWITCHER,"'CLALLI2O1'"

Switch audio and video inputs (port #2) to output #1.

SEND_COMMAND SWITCHER,"'CLVIDEOI3O1,2'"

Switch video input (port #3) to video output ports #1 and #2.

SEND_COMMAND SWITCHER,"'CLAUDIOI4O1'"

Switch audio input (port #4) to audio output port #1.

SEND_COMMAND SWITCHER,"'CLALLI1O1,2'"

Switches video input (port #1) to video output ports #1 and #2. Switches audio input (port #1) to audio output port #1.

?INPUT Requests for the input connected to an output.

Normally, if the output port is not connected to any input port then the reply will indicate this with an input port number o f ZERO (0). For the DVX products, at this time, the output parameter is ignored and assumed to be 1. Syntax:

SEND_COMMAND <DEV>, "'?INPUT-<sl>,<output>'"

Variables:

sl = AUDIO or VIDEO.

output = The output port number.

Example:

SEND_COMMAND SWITCHER,"'?INPUT-AUDIO,1'"

Think of it as asking: Which audio input port is connected to output port #1?

Returns a COMMAND string of the form:

SWITCH-L<AUDIO|VIDEO>I<input>O<output>

?OSD See the ?VIDOUT_OSD on page 104.

OSD See the VIDOUT_OSD on page 104.

Programming

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video SEND_COMMANDs

?OUTPUT Requests for the outputs connected to an input. If the input port is not connected to any ou tput port then

VI<input>O<output> Switch input to one or more outputs for switcher level Video.

?VIDEO_MUTE See the ?VIDOUT_MUTE section on page 104.

VIDEO_MUTE See the VIDOUT_MUTE section on page 104.

?VIDEO_TESTPATTERN See the ?VIDOUT_TESTPAT section on page 106.

VIDEO_TESTPATTERN See the VIDOUT_TESTPAT section on page 106.

?VIDIN_BRIGHTNESS Requests the input brightness of the specified video port

VIDIN_BRIGHTNESS Sets the input brightness of the specified video port to <value>.

?VIDIN_BW Requests the COLOR setting status (enabled/disabled) on the specified video input port.

VIDIN_BW Enables or disables the COLOR setting on the specified video port.

?VIDIN_COLOR See the ?VIDIN_BW on page 97 for more information.

VIDIN_COLOR See the VIDIN_BW on page 97 for more information.

the reply will indicate this with an output port number of ZERO (0). Syntax:

SEND_COMMAND <DEV>, "'?OUTPUT-<sl>,<input>'"

Variables:

sl = AUDIO, VIDEO, or ALL. ALL = both AUDIO -and- VIDEO.

input = The source input port number.

Example:

SEND_COMMAND SWITCHER,"'?OUTPUT-AUDIO,1'"

Think of it as asking: Which audio output ports are connected to input port #1?

Returns a COMMAND string of the form:

SWITCH-L<AUDIO|VIDEO>I<input>O<output>

Set <input> to 0 for disconnect. Syntax:

SEND_COMMAND <DEV>, "'VI<input>O<output>'"

Variables:

input = The source video input port number.

output = The video output port number to switch to.

Example:

SEND_COMMAND SWITCHER,"'VI2O1'"

Switch video input port #2 to video output #1.

SEND_COMMAND SWITCHER,"'VI3O1,2'"

Switch video input port #3 to video output ports #1 (DVI) and #2 (RGB).

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_BRIGHTNESS'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_BRIGHTNESS'"

Returns a COMMAND string of the form:

VIDIN_BRIGHTNESS-<value>

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_BRIGHTNESS-<value>'"

Variables:

value = 0..100

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_BRIGHTNESS-50'"

Sets the brightness of video input port (#1 based on D:P:S) to 50.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_BW'"

Example:

SEND_COMMAND SWITCHER,"'?VIDIN_BW'"

Returns a COMMAND string of the form:

VIDIN_BW-<ENABLE|DISABLE>

If enabled, then the COLOR setting is true. If disabled, then the COLOR setting is false which means it's black & white instead. Syntax:

SEND_COMMAND <DEV>,"'VIDIN_BW-<ENABLE|DISABLE>'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_BW-ENABLE'"

Continued 

Programming

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video SEND_COMMANDs

?VIDIN_CONTRAST Requests the input contrast of the specified video port.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_CONTRAST'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_CONTRAST'"

Returns a COMMAND string of the form:

VIDIN_CONTRAST-<value>

VIDIN_CONTRAST Sets the input contrast of the specif ied video port to <value>.

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_CONTRAST-<value>'"

Variables:

value = 0..100

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_CONTRAST-50'"

Sets the contrast of video input port (#1 based on D:P:S) to 50.

?VIDIN_EDID Requests the EDID source being mirrored by the specified video port. See the VIDIN_EDID command

VIDIN_EDID Sets the EDID source to mirror the specified video input.

?VIDIN_EDID_AUTO Requests whether the EDID source for the specif ied video input updates the available list of resolutions at

VIDIN_EDID_AUTO Sets whether the EDID source for the specified video input will automatically update the list of available

?VIDIN_FORMAT Requests the input format of the specified video port.

VIDIN_FORMAT Sets the input format of the specif ied video port.

(page 98) for the list of potential sources.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_EDID'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_EDID'"

Returns a COMMAND string of the form:

VIDIN_EDID-<source>

Syntax:

SEND_COMMAND <DEV>,"'VIDIN_EDID-<source>'"

Variables:

source = All Resolutions, Wide-screen, Full-screen, Mirror Out 1, Mirror Out 2, Mirror Out 3, Mirror Out 4

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_EDID-MIRROR OUT 2'"

regular intervals. Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_EDID_AUTO'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_EDID_AUTO'"

Returns a COMMAND string of the form:

VIDIN_EDID_AUTO-<status>

resolutions at regular intervals. Syntax:

SEND_COMMAND <DEV>,"'VIDIN_EDID_AUTO-<ENABLE|DISABLE>'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_EDID_AUTO-ENABLE'"

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_FORMAT'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_FORMAT'"

Returns a COMMAND string of the form:

VIDIN_FORMAT-<format>.

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_FORMAT-<format>'"

Variables:

format = HDMI, DVI, S-VIDEO, COMPONENT, COMPOSITE, VGA for Multi-Format inputs. HDMI and DVI only for HDMI inputs.

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_FORMAT-COMPONENT'"

Sets the format of video input port (#1 based on D:P:S) to COMPONENT.

Continued 

Enova DVX-315xHD & DVX-215xHD All-in-One Presentation Switchers - Instruction Manual

Video SEND_COMMANDs

?VIDIN_HDCP Queries the video input HDCP compliance setting of the specified video input port.

Syntax:

SEND_COMMAND <DEV>,"'?VIDIN_HDCP'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HDCP'"

Returns a string of the form:

VIDIN_STATUS-<ENABLE|DISABLE>

VIDIN_HDCP Sets the video input HDCP compliance setting of the specified video input port.

When VIDIN_HDCP is disabled, the addressed video input will appear to any source as not being HDCP compliant.

For computer sources that encrypt all video when connected to an HDCP compliant display, disabling HDCP compliance on the input will cause the computer to send non-encrypted video which can then be routed to non-compliant displays and video conferencing systems. This command is not available for DXLink input ports.

NOTE: It may be necessary to disconnect and re-connect PC sources after changing this setting.

WARNING: Disabling HDCP compliance for sources that do not support non-compliant displays (such as DVD and Blu-Ray players) is not recommended and may affect DVX performance.

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_HDCP-<option>'"

Variables:

option = ENABLE, DISABLE (default = ENABLE)

Example:

SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_HDCP-ENABLE'"

Enables the HDCP compliance of video input port (#1 based on D:P:S).

?VIDIN_HDMI_EQ Requests the status of the equalizer on the HDMI port.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_HDMI_EQ'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HDMI_EQ'"

Returns a COMMAND string of the form: VIDIN_HDMI_EQ-DISABLE.

VIDIN_HDMI_EQ Enables/disables the equalizer on the HDMI port addressed by D:P:S.

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_HDMI_EQ-<ENABLE|DISBALE>'"

Example:

SEND_COMMAND "'VIDIN_HDMI_EQ-DISABLE'"

Disables the equalizer on the HDMI port.

?VIDIN_HSHIFT Requests the input Horizontal shift of the specified VGA video port.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_HSHIFT'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HSHIFT'"

Returns a COMMAND string of the form:

VIDIN_HSHIFT-<value>

VIDIN_HSHIFT Sets the horizontal shift of the specified video port to <value>.

Syntax:

SEND_COMMAND <DEV>, "'VIDIN_HSHIFT-<value>'"

Variables:

value = -50..50

Example:

SEND_COMMAND "'VIDIN_HSHIFT-2'"

Sets the Horizontal shifting of VGA video input port (#1 based on D:P:S) to 2 (shift to right).

SEND_COMMAND "'VIDIN_HSHIFT--3'"

Sets the horizontal shifting of VGA video input port (#1 based on D:P:S) to -3 (shift to left).

?VIDIN_HUE Requests the input hue of the specified video port.

Syntax:

SEND_COMMAND <DEV>, "'?VIDIN_HUE'"

Example:

SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HUE'"

Returns a COMMAND string of the form:

VIDIN_HUE-<value>

Programming

Continued 

AMX DVX-2150HD-T, DVX-3155HD-T, DVX-3150HD-T, DVX-2155HD-SP, DVX-3155HD-SP Instruction Manual

Specifications and Main Features

Frequently Asked Questions
