1 Introduction
This manual guides you in using the USB Fieldbus Interface to power and/or
configure fieldbus devices. Included here are basic setup, configuration, and
troubleshooting information, as well as guidelines on how to use the
interface with AMS Device Manager and with a third-party FDT Frame
Application.
This USB Fieldbus Interface User's Manual contains the following
information:
• Chapter 1: Introduction – contains safety messages and information
about this manual.
• Chapter 2: USB Fieldbus Interface – contains information about the
interface, its parts, usage, and features.
• Chapter 3: Software installation and device setup – contains system
requirements, software installation instructions, and device setup
information.
• Chapter 4: USB Fieldbus Interface Configuration utility – contains
information on how to use the utility to power, commission, and/or
configure some parameters of fieldbus devices, including device address
and tag.
• Chapter 5: Using with AMS Device Manager – contains setup
information and instructions in using the interface with AMS Device
Manager to configure fieldbus devices.
• Chapter 6: Using with an FDT Frame Application – contains setup
information and instructions in using the interface with an FDT Frame
Application to configure fieldbus devices.
• Chapter 7: Troubleshooting – contains solutions to the most common
operating problems.
• Appendix A: Approvals and certifications – contains certifications and
approval information.
• Appendix B: Specifications – contains specifications such as operating
temperature, software, electrical information, and environmental
considerations.
• Appendix C: Waste disposal – contains disposal guidelines.
Appendix D: Remove pre-release driver versions on a Windows 10
•
operating system – contains instructions on how to remove previous
driver versions.
User's Manual 3
User's Manual February 2022
1.1 Safety message
WARNING
Do not connect the USB Fieldbus Interface to a live segment (with an active
DCS Host and power supply attached) if the power indicator light on the
interface is amber in color. Doing so can disrupt communications and may
compromise automation safety.
4
February 2022 User's Manual
2 USB Fieldbus Interface
2.1 Overview
The USB Fieldbus Interface enables two-way communication between a
computer and fieldbus devices. Its primary function is to allow the setup,
configuration, monitoring, and troubleshooting of fieldbus devices at any
valid FF address through a computer.
The interface is fully compatible with all FOUNDATION fieldbus (FF) devices
and is always configured as a "visitor."
It is particularly useful in these plant scenarios:
• Workbench setup and troubleshooting of fieldbus devices
• With a laptop in the field to configure, commission, decommission, set
device address, or troubleshoot fieldbus devices
The USB Fieldbus Interface comes with a USB cable, lead set, user's manual*,
and installation CD/DVD*. The user's manual and installation CD/DVD are
not included in the illustration.
Figure 2-1: Box Contents
User's Manual 5
User's Manual February 2022
2.2 Parts and function
Figure 2-2: USB Fieldbus Interface
Field connection indicator
1
2 Power indicator light
3 USB port
4
* See the Indicator light scenarios table.
6
*
light
Fieldbus device connection
socket
Indicates the fieldbus device connection status
Indicates the power mode of the interface
Enables USB connection
Enables fieldbus device or segment connection
February 2022 User's Manual
Table 2-1: Indicator light scenarios
Power
indicator
light
Green Green
Amber Green
Off Off
Green Off
Off Green
Amber Red
Amber Off
Amber Amber
Field
connection
indicator
light
Scenarios
Normal scenarios
The USB Fieldbus Interface is connected to an
externally powered segment and is able to
communicate.
The USB Fieldbus Interface is providing power to a
fieldbus segment and is able to communicate.
Other scenarios
The USB Fieldbus Interface is not connected to a
powered computer.
-OR-
The USB Fieldbus Interface is connected to a
computer but the computer power is off.
-OR-
The USB FF HSE Server is not running on the
connected computer.
The USB Fieldbus Interface is not connected to a
powered segment.
-OR-
The USB Fieldbus Interface is connected to a
powered segment with the wrong polarity.
The USB Fieldbus Interface is connected normally to
a powered segment but the USB FF HSE Server is not
running.
The USB Fieldbus Interface is providing power but a
short circuit has been detected on the field
connection.
The USB Fieldbus Interface is providing power and
connected to an already powered fieldbus segment
with reverse polarity.
The USB Fieldbus Interface is providing power to a
fieldbus segment and the load on that segment has
exceeded its limit.
User's Manual 7
User's Manual February 2022
2.3 Power modes
The USB Fieldbus Interface has two power modes:
• Mode 1 - The interface does not supply power to the connected fieldbus
device or segment. The fieldbus device or segment is powered by an
external source.
Mode 1 is the default.
• Mode 2 - The interface powers the connected fieldbus device or
segment and no external power is needed.
In Mode 2, it can provide current of up to 85 mA (typically sufficient for
three or four fieldbus devices on the same segment).
You can configure Mode 2 using the USB Fieldbus Interface
Configuration utility. For more information, see Power fieldbus device
with the USB Fieldbus Interface Configuration utility.
WARNING
Choose only one power mode. Never attempt to use two power sources at
the same time. Doing so can disrupt communications and may compromise
automation safety.
8
February 2022 User's Manual
3 Software installation and device setup
Perform software installation and device setup in the following order:
1. Install the USB Fieldbus Interface Configuration utility.
This allows you to configure the USB Fieldbus Interface and
connected fieldbus devices.
2. Install the Emerson DTM Library.
This allows you to use DTMs associated with Emerson devices
through an FDT Frame Application.
Note
Device DTMs are usually acquired from device suppliers. Contact
your device supplier if you have a non-Emerson device and install the
appropriate third-party DTM library.
3. Set up and configure connected fieldbus devices.
3.1 System requirements
Supported operating systems
Windows 10
Hard disk space
500MB or more
Hardware
USB 1.1, 2.0, or 3.x port
3.2 Install the USB Fieldbus Interface Configuration utility
Notes
• Do not connect the USB Fieldbus Interface to the computer or to a
fieldbus device or segment until software installation is complete.
• You may be prompted to determine the operating system and the
Windows version (32-bit or 64-bit) running on your computer. Keep this
information handy.
• For installation purposes, the user must use the Administrator account.
Procedure
1. Insert the USB Fieldbus Interface installation CD/DVD.
Software and driver installation should start automatically.
User's Manual 9
User's Manual February 2022
If AutoRun is not enabled, double-click setup.exe.
2. Follow the prompts on the installation window.
3. Click Finish.
3.3 Install the Emerson DTM Library
Procedure
1. Insert the USB Fieldbus Interface installation CD/DVD.
2. Navigate to the Emerson DTM Library folder.
The DTM library folder is typically named "Emerson Process
Management FF Device DTM Library v1.x.x".
3. Double-click Setup → Setup.exe.
4. Click Next and follow the prompts on the installation window.
Figure 3-1: Emerson DTM Library installation
10
5. Click Close.
February 2022 User's Manual
3.4 Setup and connection
Note
Install the USB Fieldbus Interface Configuration utility first before setting up
and connecting the USB Fieldbus Interface. For more information, see Install
the USB Fieldbus Interface Configuration utility
Procedure
1. Connect the USB Fieldbus Interface to the computer using the USB
cable provided.
USB driver installation should start automatically.
2. Connect the interface to a fieldbus device or to a fieldbus segment
using the field leads.
WARNING
Do not proceed to the next step if you are connecting to a live
(powered) segment. Providing additional power source to an already
powered segment can disrupt communications and may
compromise automation safety.
3. Power the connected fieldbus device or segment.
Connect the fieldbus device or the unpowered segment to an
external power source (Mode 1), or provide power using the USB
Fieldbus Interface Configuration utility (Mode 2). For more
information on the power modes, see Power modes.
User's Manual 11
User's Manual February 2022
Figure 3-2: Sample benchtop connection
3.5 Connect to a live fieldbus segment
Warning
Do not use the Supply Power option on the USB Fieldbus Interface
Configuration utility when connecting to a live segment. Doing so can
disrupt communications and may compromise automation safety.
12
Procedure
1. Make sure the USB Fieldbus Interface is connected to the computer
and that all software and drivers are installed.
2. Plug one end of the field lead to the fieldbus device connection
socket of the interface and connect the other end to the live fieldbus
segment.
Notes
• The USB Fieldbus Interface draws current of 10 mA from the
segment. Make sure the segment has enough power and has the
capacity to provide this additional current.
• Make sure the lead set is connected to the live fieldbus segment
with the correct polarity.
• Changing the device tag/address is only allowed when the USB
fieldbus Interface is acting as Link Active Scheduler (LAS).
February 2022 User's Manual
• When a fieldbus device is acting as a LAS, you can cycle power to
the device, or remove and replace the fieldbus device from the
segment to make the USB Fieldbus interface act as the LAS. You
can check the LAS address next to the segment info to find out
which device is the LAS.
User's Manual 13
User's Manual February 2022
4 USB Fieldbus Interface Configuration utility
4.1 Launch the USB Fieldbus Interface Configuration utility
Procedure
Click Start → All Programs → Emerson Process Management → USB
Fieldbus Interface.
Note
If no fieldbus device is detected after 35 seconds, this dialog is displayed.
Click OK to continue.
Figure 4-1: No device detected dialog
4.2
14
A connected fieldbus device or segment has to be powered by an external
power source or by the USB Fieldbus Interface Configuration utility for it to
be detected. For more information, see Fieldbus device not detected in USB
Fieldbus Interface Configuration utility.
Start or stop the USB FF HSE Server manually
The USB FF HSE Server automatically starts when you launch the USB
Fieldbus Interface Configuration utility. It is typically not necessary to start or
stop the USB FF HSE Server manually.
Procedure
1. Launch the USB Fieldbus Interface Configuration utility.
2. Click Start Server or Stop Server.
February 2022 User's Manual
Figure 4-2: Start Server/Stop Server
Note
The USB FF HSE Server should be running to use the USB Fieldbus
Interface Configuration utility to power or configure a fieldbus device
or segment.
User's Manual 15
User's Manual February 2022
4.3 Power fieldbus device with the USB Fieldbus Interface Configuration utility
You can power a fieldbus device or segment by connecting it to an external
power source or by using the USB Fieldbus Interface Configuration utility.
Note
You can also power a fieldbus device or segment by connecting it to an
external power source.
Procedure
1. Launch the USB Fieldbus Interface Configuration utility.
2. Select the Supply Power check box.
Note
The USB Fieldbus Interface is only capable of providing an output
current of up to 85 mA. Typically, you should not attempt to connect
more than three or four fieldbus devices on the same segment when
using the Supply Power option.
Figure 4-3: Supply Power option
16
WARNING
Do not use the Supply Power option on a live (already powered)
segment. Doing so can disrupt communications and may
compromise automation safety.
February 2022 User's Manual
3. Select Yes to acknowledge the warning and restart the USB FF HSE
Server.
4.4 Set Fieldbus Device Permanent Address/Tag
Device Address can be set to permanent, which commissions the device.
Device Tag can be set and cleared.
Notes
• You need to commission fieldbus devices first before you can use them
with AMS Device Manager or with an FDT Frame Application.
• The USB Fieldbus Interface must be acting as the Link Master to
commission or decommission.
Procedure
1. Launch the USB Fieldbus Interface Configuration utility.
2. Double-click the Fieldbus device icon you want to configure. A device
screen is displayed.
Note
A connected fieldbus device or segment should be powered by an
external power source or by the USB Fieldbus Interface Configuration
utility for it to be detected.
3. Optionally, select a permanent device address from 17 to 40 or from
223 to 247. Otherwise, the first available address is assigned.
Note
The utility only accepts device addresses in the range of 17 through
40 and the range of 223 through 247.
4. Optionally, enter a device tag or clear a device tag.
5. Click Apply to accept the new tag. Or, click Set Permanent Address
and Tag to accept both the permanent device address and the tag.
User's Manual 17
User's Manual February 2022
Figure 4-4: Set Permanent Address and Tag
Note
The set permanent address and tag process takes about 1 to 2
minutes to complete.
6. Repeat steps 2 through 5 for each device on which you want to set a
permanent address.
4.5
18
Set Fieldbus Device Default Address
Device address can be set to a default address, which decommissions the
device.
Note
Fieldbus devices on a live segment cannot be decommissioned.
Procedure
1. Launch the USB Fieldbus Interface Configuration utility.
2. Double-click the Fieldbus device icon you want to configure. A device
screen is displayed.
Note
A connected fieldbus device or segment should be powered by an
external power source or by the USB Fieldbus Interface Configuration
utility for it to be detected.
3. Click Set Default Address.
February 2022 User's Manual
Figure 4-5: Set Default Address
4. If the device was set to a permanent address by a different host, it is
not recommended that you set the device to a Default Address. If
you click the Set Default Address button, you will be asked to
confirm if you really want to set the device to a default address.
• If you select Yes, the device will be set to a default address.
• If you select No, the operation will be canceled.
5. Repeat steps 2 through 4 for each device you want to set to a default
address.
4.6
User's Manual 19
Change the device class
A connected fieldbus device can be assigned as a Link Master (LM) or as a
basic device. A Link Master contains the LAS functionality that controls
communications on a fieldbus link or segment.
Procedure
1. Launch the USB Fieldbus Interface Configuration utility.
2. Double-click the Fieldbus device icon you want to configure. A device
screen is displayed.
Note
A connected fieldbus device or segment should be powered by an
external power source or by the USB Fieldbus Interface Configuration
utility for it to be detected.
User's Manual February 2022
3. If Device Class is not displayed, click Read to identify if the fieldbus
device is a Link Master or a basic device.
Note
Only the device class of a fieldbus device at a permanent address can
be identified. For more information on setting a permanent device
address, see Set Fieldbus Device Permanent Address/Tag.
Figure 4-6: Identify the device class
20
4. Switch to Basic or Link Master from the drop-down menu and click
Apply.
February 2022 User's Manual
Figure 4-7: Change the device class
5. Click Yes to acknowledge the restart of the device.
6. Click OK to continue. The operation is complete when the Apply
button is grayed out.
Note
Changing the device class takes about 1 minute to complete.
User's Manual 21
User's Manual February 2022
5 Using with AMS Device Manager
AMS Device Manager provides a single application for predictive diagnostics,
documentation, calibration management, and device configuration. Using
AMS Device Manager gives you better visibility into the assets in your plant,
resulting in faster startup and increased availability through more costeffective maintenance and improved asset performance.
Contact your Emerson Sales/Support representative for more information
on AMS Device Manager.
5.1 Add a network component in AMS Device Manager
An FF HSE network component is required to use the USB Fieldbus Interface
with AMS Device Manager.
Notes
• If there is an existing FF HSE network configured for another fieldbus
device, you do not need to add a new FF HSE network component.
• You must have an updated license file that includes an HSE license. The
HSE license enables you to add an FF HSE network component in AMS
Device Manager.
If you do not yet have an HSE license, contact your Emerson sales
representative and place an order for part number AW7060HSE.
22
Procedure
1. Click Start → All Programs → AMS Device Manager → Network
Configuration to open the AMS Device Manager Network
Configuration utility.
2. Click Add.
February 2022 User's Manual
Figure 5-1: Add a network component
3. Select the FF HSE Network component, and click Install.
User's Manual 23
User's Manual February 2022
Figure 5-2: Install an FF HSE network component
4. Click Next.
5. Enter a name for the FF HSE network, and click Next.
24
February 2022 User's Manual
Figure 5-3: Enter a network name
6. Choose to automatically discover FF HSE linking devices or manually
configure IP addresses for FF HSE linking devices.
User's Manual 25
User's Manual February 2022
Figure 5-4: Configure the network connection
26
Notes
• Choosing the PC NIC address in the Primary HSE NIC Address field
displays the USB Fieldbus Interface and any local FF HSE
interfaces on the network in the AMS Device Manager hierarchy.
• Choosing the localhost address (127.0.0.1) in the Primary HSE
NIC Address field displays only the USB Fieldbus Interface in the
AMS Device Manager hierarchy.
• Manually entering IP addresses displays manually entered FF HSE
networks and the USB Fieldbus Interface in the AMS Device
Manager hierarchy.
February 2022 User's Manual
• The USB Fieldbus Interface does not support FF device alerts.
7. Click Finish.
5.2 Configure fieldbus devices in AMS Device Manager
Note
Commission fieldbus devices first in the USB Fieldbus Interface
Configuration utility before configuring them in AMS Device Manager. For
more information, see Set Fieldbus Device Permanent Address/Tag.
Procedure
1. Click Start → All Programs → AMS Device Manager → AMS Device
Manager to open AMS Device Manager.
2. From the Device Connection or Device Explorer view, right-click the
FF HSE network icon and select Rebuild Hierarchy.
The USB Fieldbus Interface icon then appears under the FF HSE
network.
Figure 5-5: USB Fieldbus Interface icon in AMS Device Manager
3. If you are using the Device Connection View, click the sign next
to the USB Fieldbus Interface icon to display a list of connected
fieldbus devices.
User's Manual 27
User's Manual February 2022
4. If necessary, right-click the USB Fieldbus Interface icon and then scan
new devices.
Scanning synchronizes the AMS Device Manager database with
connected live devices.
5. Right-click the fieldbus device you want to configure and select from
the context menus.
Figure 5-6: Fieldbus device context menus
28
Configure Displays configuration parameters that
define the physical attributes and operating
characteristics of the device.
Compare Lets you compare two configurations of the
device.
Service Tools or
Device Diagnostics
Displays alert conditions. These include
hardware and software malfunctions or
parameters with values beyond the device
specifications.
Overview or
Displays the current output from the device.
Process Variables
February 2022 User's Manual
For more information about the context menus and other AMS
Device Manager functions, refer to AMS Device Manager Books Online.
User's Manual 29
User's Manual February 2022
6 Using with an FDT Frame Application
You can also configure fieldbus devices using third-party FDT Frame
Applications. For the purpose of this document, PACTware is used as an
example. PACTware can be downloaded from multiple sites on the Internet.
6.1 Install an FDT Frame Application
Note
Install the Communication DTM software (provided separately) and the
Emerson DTM Library first before installing an FDT Frame application. For
instructions, see Install the Emerson DTM Library.
To be able to view DTMs associated with a device, an FDT Frame Application
should be installed. Follow the manufacturer's recommended software
installation instructions.
For the purpose of this document, PACTware is used.
6.2 Update the DTM library
Note
You only need to update the DTM library when a new DTM is recently added.
Procedure
1. Launch PACTware.
2. Press F3 to show the Device catalog and click Update device catalog.
30
Figure 6-1: Update device catalog
February 2022 User's Manual
3. Click Yes when prompted to create a new PACTware device catalog.
4. Close the device catalog when done.
6.3 Configure fieldbus devices in an FDT Frame Application
Notes
• Install the Communication DTM software (provided separately) and the
DTM Library first before configuring fieldbus devices in an FDT Frame
Application. For more information, see Install the Emerson DTM Library.
• If necessary, update the DTM library. For more information, see Update
the DTM library.
• Make sure the USB Fieldbus Interface and fieldbus devices are correctly
set up and that the USB Fieldbus Interface Configuration utility is
installed and running. For more information, see Setup and connection
and USB Fieldbus Interface Configuration utility.
Procedure
1. Launch PACTware.
2. From the Project pane, right-click HOST PC and click Add device.
Figure 6-2: Project pane
Press F2 to display the Project pane if it is not already displayed.
3. Select Emerson FF HSE Server and click OK.
User's Manual 31
User's Manual February 2022
Figure 6-3: Add the Emerson FF HSE Server
4. Right-click FF HSE Server on the Project pane and click Add device.
32
February 2022 User's Manual
Figure 6-4: FF HSE Server - Add device
5. Select Emerson USB Fieldbus Interface and click OK.
User's Manual 33
User's Manual February 2022
Figure 6-5: Add the Emerson USB Fieldbus Interface
6. Right-click USB Fieldbus Interface on the Project pane and click Add
device.
34
February 2022 User's Manual
Figure 6-6: USB Fieldbus Interface - Add device
7. Select the device you want to add then click OK.
User's Manual 35
User's Manual February 2022
Figure 6-7: Add device
Only devices with DTMs available and installed appear on the list. For
more information on DTM library installation, see Install the Emerson
DTM Library.
Repeat steps 6 and 7 if you want to add more devices to the list.
8. Right-click USB Fieldbus Interface and select Additional functions →
Edit DTM Address.
36
February 2022 User's Manual
Figure 6-8: Edit DTM Address
9. On the right pane, select the fieldbus device from the list, enter the
device address in the Node ID field, and click Apply.
Figure 6-9: Enter Node ID
Note
The device address and Node ID should match. The device address is
set and can be found in the USB Fieldbus Interface Configuration
User's Manual 37
User's Manual February 2022
utility. For more information on setting the device address, see Set
Fieldbus Device Permanent Address/Tag.
10. Right-click HOST PC and click Connect.
Figure 6-10: Connect devices
This connects all devices under the host PC. You can also opt to select
each device you want connected and click Connect.
Connected devices appear in bold face type in the menu tree.
38

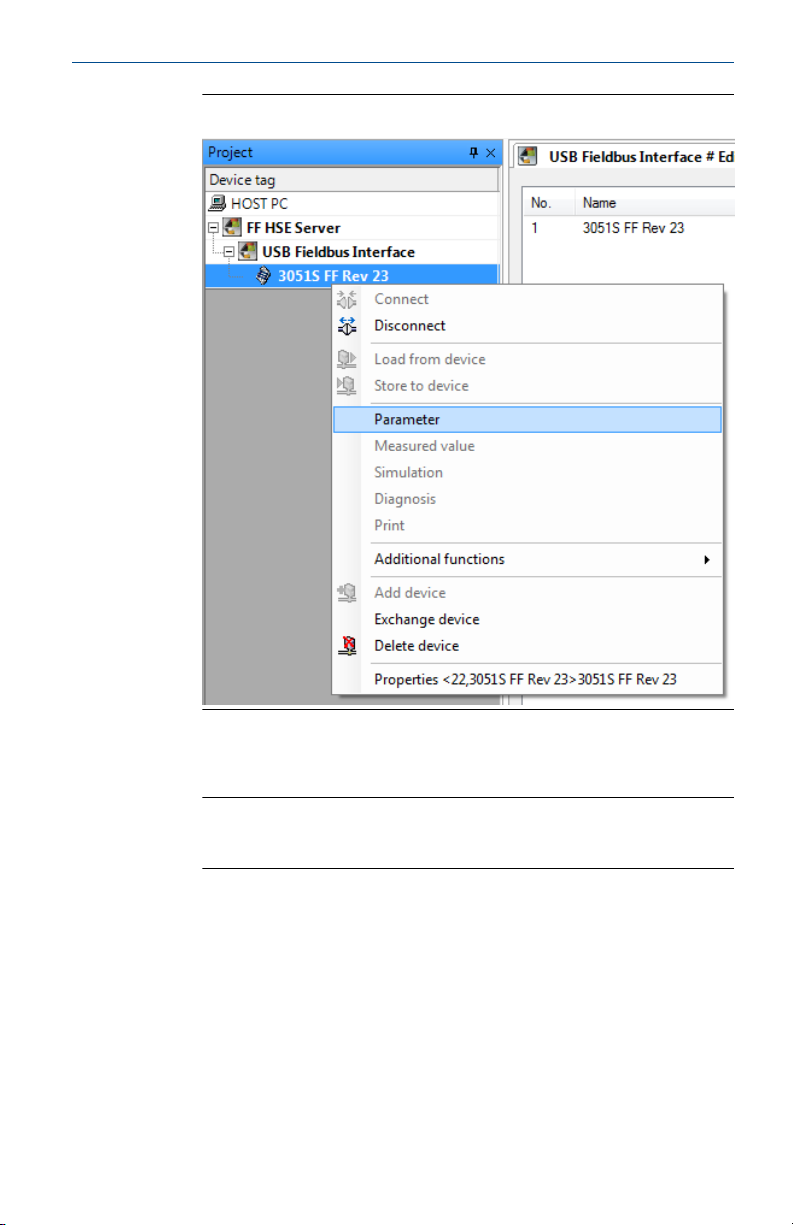

11. Right-click the fieldbus device you want to configure and click
Parameter.
February 2022 User's Manual
Figure 6-11: Parameter
This displays the various parameters you can edit for the device.
12. Configure the parameters of the device.
Note
The parameter display varies and is dependent on the device
manufacturer.
User's Manual 39
User's Manual February 2022
Figure 6-12: Edit device parameters
40
February 2022 User's Manual
7 Troubleshooting
7.1 Fieldbus device not responding in AMS Device Manager
To configure a fieldbus device in AMS Device Manager, you must first
commission the device in the USB Fieldbus Interface Configuration utility.
For more information on commissioning a device, see Set Fieldbus Device
Permanent Address/Tag.
Uncommissioned devices are marked in AMS Device Manager with the
(non-responding device) icon and are characterized by an empty device tag
or by the device default address.
Figure 7-1: Uncommissioned device in AMS Device Manager
Commissioned fieldbus devices appear with their own icons in AMS Device
Manager and are characterized by a valid permanent address or by a valid
device string.
User's Manual 41
User's Manual February 2022
Figure 7-2: Commissioned device in AMS Device Manager
7.2 Fieldbus device not detected in USB Fieldbus Interface Configuration utility
The USB Fieldbus Interface Configuration utility immediately detects
connected fieldbus devices. If 35 seconds have elapsed and no device is
detected, the following dialog is displayed.
Figure 7-3: No device detected dialog
42
February 2022 User's Manual
Procedure
Click OK and check for the following:
• Make sure the fieldbus device or segment is powered either by an
external source or by the USB Fieldbus Interface. For more information,
see Power modes.
• Make sure drivers are installed and that the hardware is ready for use.
• Check that there are no loose connections and that the USB cable does
not exceed 2 meters in length.
• Make sure the USB FF HSE Server is running.
7.3 Cannot edit device parameters in FDT Frame Application
Figure 7-4: Cannot edit device parameters in PACTware
• Check the Node ID in PACTware and the Device Address in the USB
Fieldbus Interface Configuration utility. The Node ID and Device Address
should match. You may need to manually enter the Node ID in
PACTware. For more information on entering the Node ID, see Configure
fieldbus devices in an FDT Frame Application.
• Update the DTM library. If a new DTM is added, you may need to update
the DTM library. For more information, see Update the DTM library.
User's Manual 43
User's Manual February 2022
• Check physical connections. Make sure all devices are properly
connected and have access to a power source. For more information, see
Setup and connection.
• Commission the fieldbus device. For more information, see Set Fieldbus
Device Permanent Address/Tag.
44
February 2022 User's Manual
A Approvals and certifications
Fieldbus Foundation Communication
FF Physical Layer Specification (IEC 61158-2)
FF Physical Layer Conformance Test (FF830)
CE
EN 61326-1-2006, Radiated Emissions Class B, Basic Immunity Test
Requirements.
ETL (US and Canada)
Conforms to ANSI/UL STD 60950-1; Certified to CAN/CSA STD C22.2 NO.
60950-1.
IC
This Class B digital apparatus complies with Canadian ICES-003, Issue
4:2004.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
FCC
This device complies with Part 15 Subpart B of the FCC Rules. Operation is
subject to the following conditions:
47 CFR, Part 15:2009, §15.107, §15.109, Class B
Any modifications made to this device that are not approved by Emerson
may void the authority granted to the user by the FCC to operate this
equipment.
User's Manual 45
User's Manual February 2022
46
February 2022 User's Manual
B Specifications
Software
Supported operating systems Windows 10
USB 1.1 and USB 2.0 interface Drivers included
Application software
AMS Device Manager Version 11.5 or later
License
AMS Device Manager HSE license Part number AW7060HSE
Electrical
Power consumption (Mode 1) ≤ 0.2 W
Power consumption (Mode 2)
Power supply to a fieldbus segment
(in Mode 2)
Environmental
Operating temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Storage humidity 0 to 95% relative humidity
at 85 mA output current ≤ 2.5 W
at 50 mA output current ≤ 1.7 W
85 mA at 10V
User's Manual 47
User's Manual February 2022
48
February 2022 User's Manual
C Waste disposal
Products with the following label comply with the Waste Electrical and
Electronic Equipment (WEEE) directive, 2002/96/EC, which applies to
European Union (EU) member states only.
The label indicates this product should be recycled and not treated as
household waste. Customers in EU member states should contact their
Emerson sales representative for information on discarding any part of the
USB Fieldbus Interface.
For customers in all other world areas, if it is necessary to discard any part of
the USB Fieldbus Interface, follow the waste disposal regulations applicable
in your location.
User's Manual 49
User's Manual February 2022
50
February 2022 User's Manual
D Remove pre-release driver versions on a
Windows 10 operating system
Uninstall the USB drivers using Windows Device Manager:
Procedure
1. Launch Windows Device Manager (Start → Run, type
devmgmt.msc, or device manager, and click on the found item).
2. Expand Ports (COM & LPT).
3. Connect the USB Fieldbus Interface to the computer through the USB
port and wait a few seconds to see if 770 Fieldbus Interface
(COMxx) appears on the list.
4. Right-click 770 Fieldbus Interface (COMxx), and select Uninstall.
5. Click OK to confirm the driver removal.
6. Expand Universal Serial Bus controllers, right-click 770 Fieldbus
Interface, and select Uninstall.
7. Click OK to confirm the driver removal.
User's Manual 51
User's Manual February 2022
52
February 2022 User's Manual
Index
A
AMS Device Manager
adding network component 22
using to configure fieldbus devices
27
C
change the device class 19
commission fieldbus devices 17
configure fieldbus devices
using AMS Device Manager 27
using PACTware 31
connect to live fieldbus segment 12
contents of box 5
D
decommission fieldbus devices 18
device class, changing 19
drivers
automatic installation 9
DTM library, installation 10
F
fieldbus device (continued)
live segment connection and setup
12
not detected in utility,
troubleshooting 42
not responding in AMS Device
Manager, troubleshooting 41
providing power 16
set default address 18
setting device address 17
setting device tag 17
setup and connection 11
setup and connection, live segment
12
H
hard disk space requirement 9
I
indicator light status 6
install Emerson DTM Library 10
install FDT Frame Application 30
install USB Fieldbus Interface
Configuration utility 9
features 5
FF HSE network component
adding 22
field connection indicator light status 6
fieldbus device
basic device 19
cannot edit device parameters 43
changing device class 19
commissioning 17
configuring, using AMS Device
Manager 27
configuring, using PACTware 31
decommissioning 18
Link Master 19
User's Manual 53
L
launch the utility 14
Link Active Scheduler (LAS) 19
Link Master 19
live segment connection 12
O
operating systems, supported 9
overview 5
P
PACTware
User's Manual February 2022
PACTware (continued)
update device catalog 30
usage 31
parts and function 6
power indicator light status 6
power modes 8
Provide Power 16
R
remove pre-release driver versions 51
S
set fieldbus device default address 18
setup and connection
benchtop/segment connection 11
live segment connection 12
system requirements 9
T
troubleshooting
cannot edit device parameters,
PACTware 43
fieldbus device not detected in
utility 42
fieldbus device not responding in
AMS Device Manager 41
U
update device catalog 30
USB FF HSE Server
starting, stopping 14
USB Fieldbus Interface Configuration
utility
installing 9
launching 14
starting/stopping HSE server
manually 14
54
February 2022 User's Manual
User's Manual 55
User's Manual
AW7060MNL, Rev. 4
February 2022
Loading...
