AMS Reference Guide: AMS Accessories Manuals & Guides

AMS Accessories

REFERENCE GUIDE

1

AMS 2140 Machinery Health

AMS 2140 (all options)

Strobelight Cables

D25535 MODEL 555 STROBE INTERFACE CABLE - 2 connections to Strobelight

Extension Cables

MHM-65003-PBF 4-CH ADAPTER ACCEL INTERFACE CABLE 0.2M

MHM-65004-PBF ACCEL EXT CABLE. 5P M12 TO 5P M12 2M BLACK

Triaxial Cable

D25777 TRIAXIAL ACCEL CABLE, FW STRAIGHT 5P M12 TO 5P 1/2IN-20UNF

Extension Cables

MHM-65006-PBF 4-CH VOLTS INTERFACE CABLE 8P M12 TO 8P M12 0.2M

MHM-65007-PBF TACH/VOLTS EXT CABLE 8P M12 TO 8P M12 2M BLACK

Volts Cables

Volts Cables CH A VOLTS CABLE 8P M12 TO BNC 4FT BLACK

D25506 2 WAY SPLITTER CABLE 8P M12 TO 2X BNC, VOLTS A, B

D25688 3 WAY SPLITTER CABLE 8P M12 TO 3X BNC 0.2M VOLTS A, B, TACH

SpeedVue Cables

D25473 SPEEDVUE CABLE 8P M12 TO 4P LEMO 24IN – used with SpeedVue

D25474 SPEEDVUE CABLE 8P M12 TO 4P LEMO 42IN BLACK – used with SpeedVue

D25475 SPEEDVUE CABLE 8P M12 TO 4P LEMO 6FT – used with SpeedVue

Phototach Cables

D25472 TACH CABLE 8P M12 TO BNC 4FT BLACK – used with Phototach

D25476 TACH CABLE 8P-M12 TO AMP CONNECTOR 2M BLACK – used with Phototach

Channel A Cables

D25782 CH A ACCEL CABLE 5P M12 TO 2P MIL COILED 6FT BLACK - FIELD WIREABLE

D25480 CH A ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT RED

D25483 CH A ACCEL CABLE 5P M12 TO BNC STRAIGHT 2M RED

Channel B Cables

D25481 CH B ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT BLUE

D25484 CH B ACCEL CABLE 5P M12 TO BNC STRAIGHT 2M BLUE

Channel D Cables

D25525 CH D ACCEL CABLE, STRAIGHT BLACK 5PIN M12 TO BNC

D25526 H D ACCEL CABLE, STRAIGHT BLACK 5PIN M12 TO 2PIN MIL

Breakaway Cable

D25543 BREAKAWAY ACCEL CABLE ASM, 6FT. COILED, 5 PIN M12 CONN TO 2 PIN MIL CONN,

CONSISTS OF TWO PARTS

D25494 CH A ACCEL CABLE 2P MIL TO 3P HALF BREAKAWAY COILED 6FT BLACK

D25495 CH A ACCEL CABLE 5P MIL TO 3P HALF BREAKAWAY 15IN BLACK

2 3

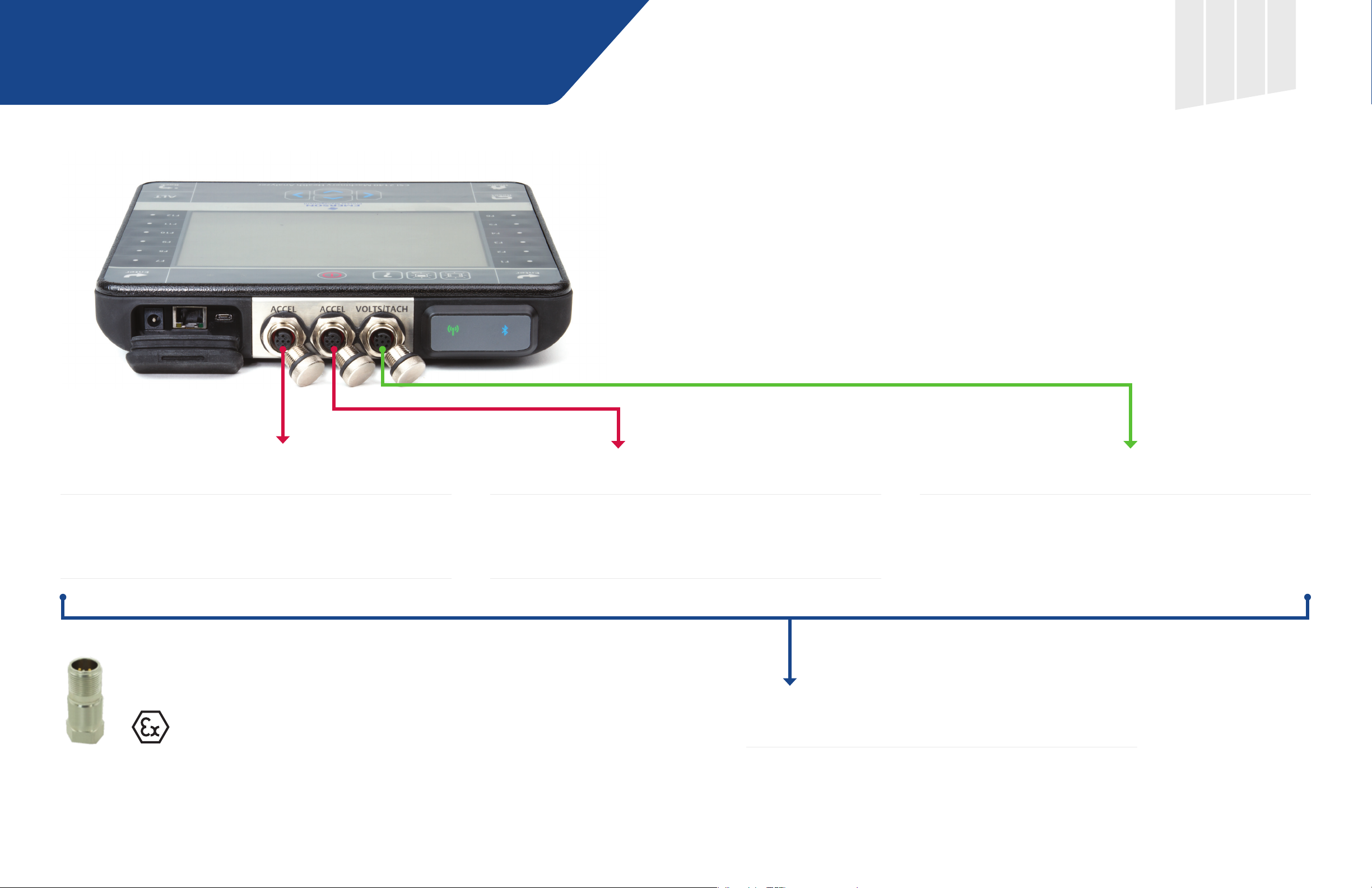

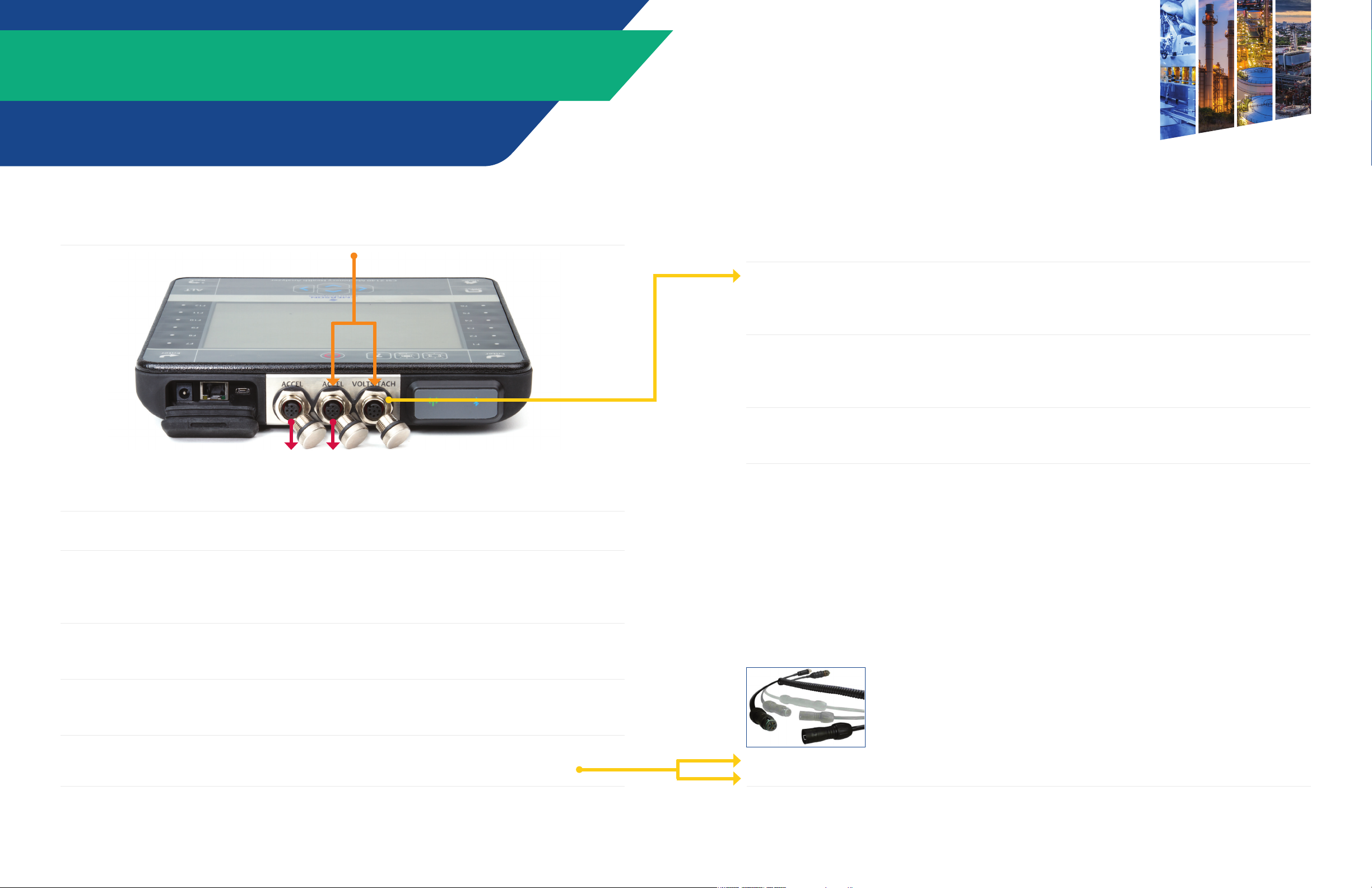

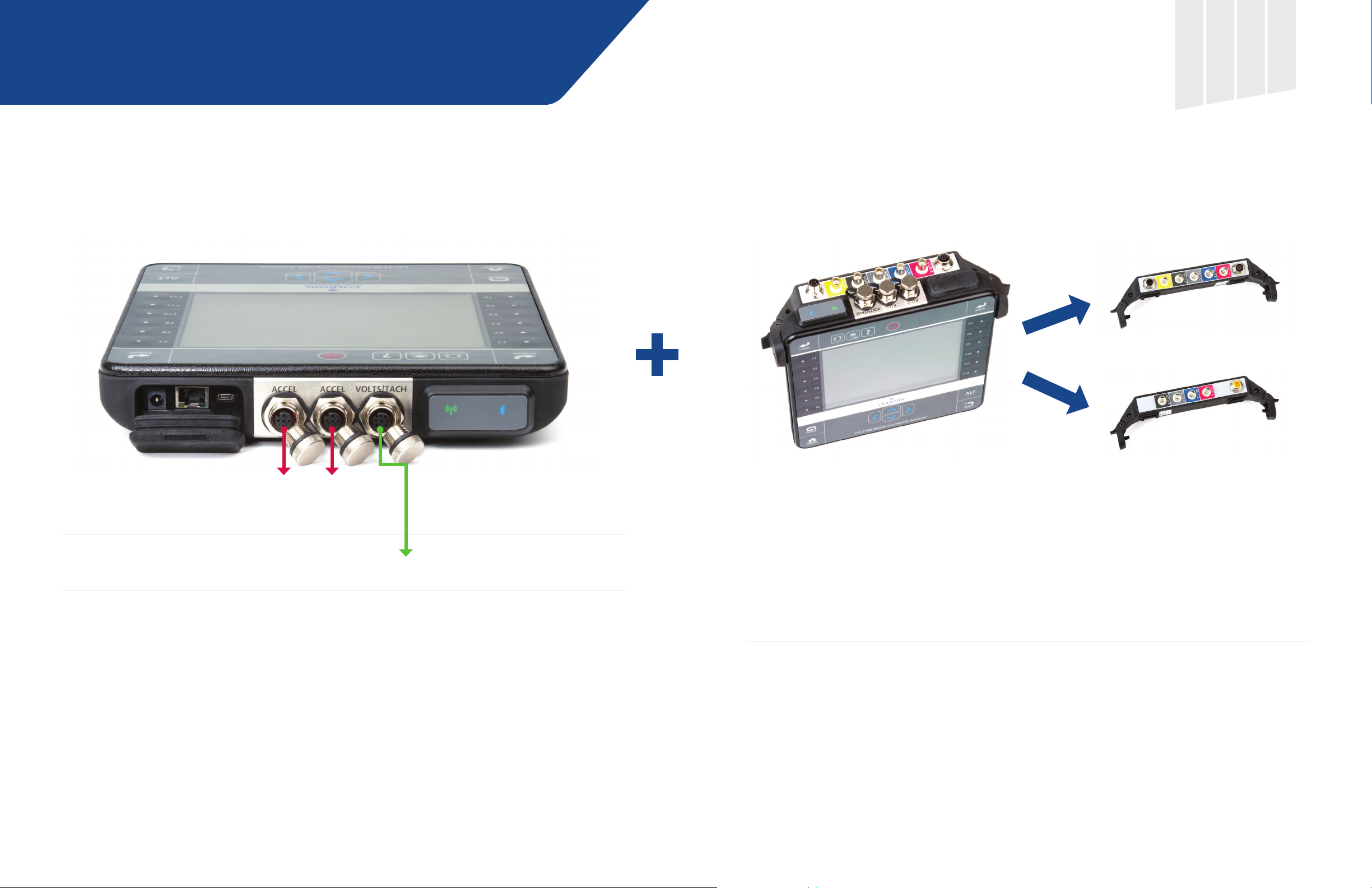

AMS 2140 – Multi-channel input

(all options)

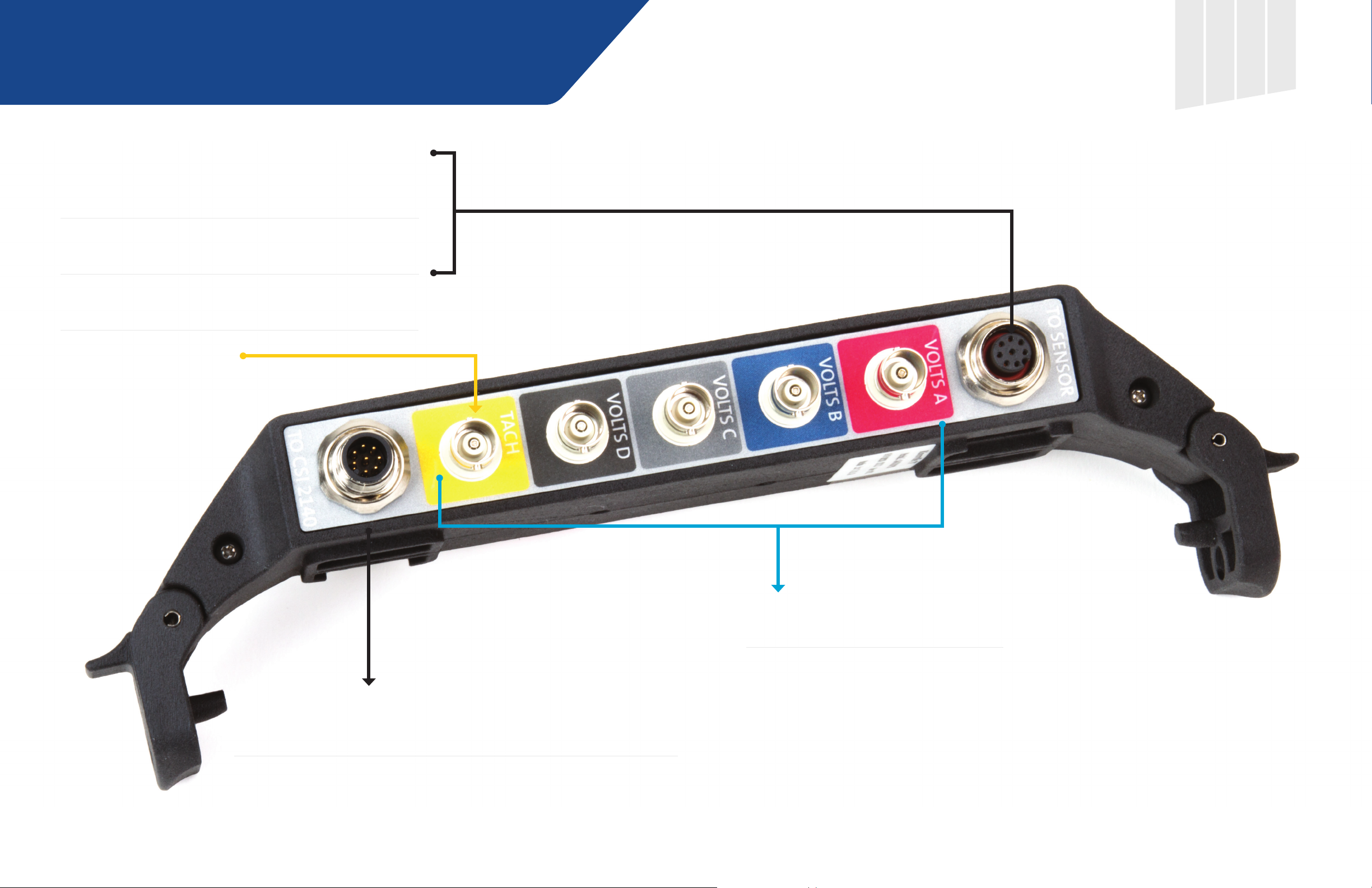

Volt Side

D25504 Accel splitter cable A and B, M12 to 2X BNC

D25505 Accel splitter cable C and D, M12 to 2X BNC

D25506 Volts A and B M12 to BNC splitter cable

D25688 3 WAY SPLITTER CABLE 8P M12 TO BNC 0.2M VOLTS A, VOLTS B, TACH

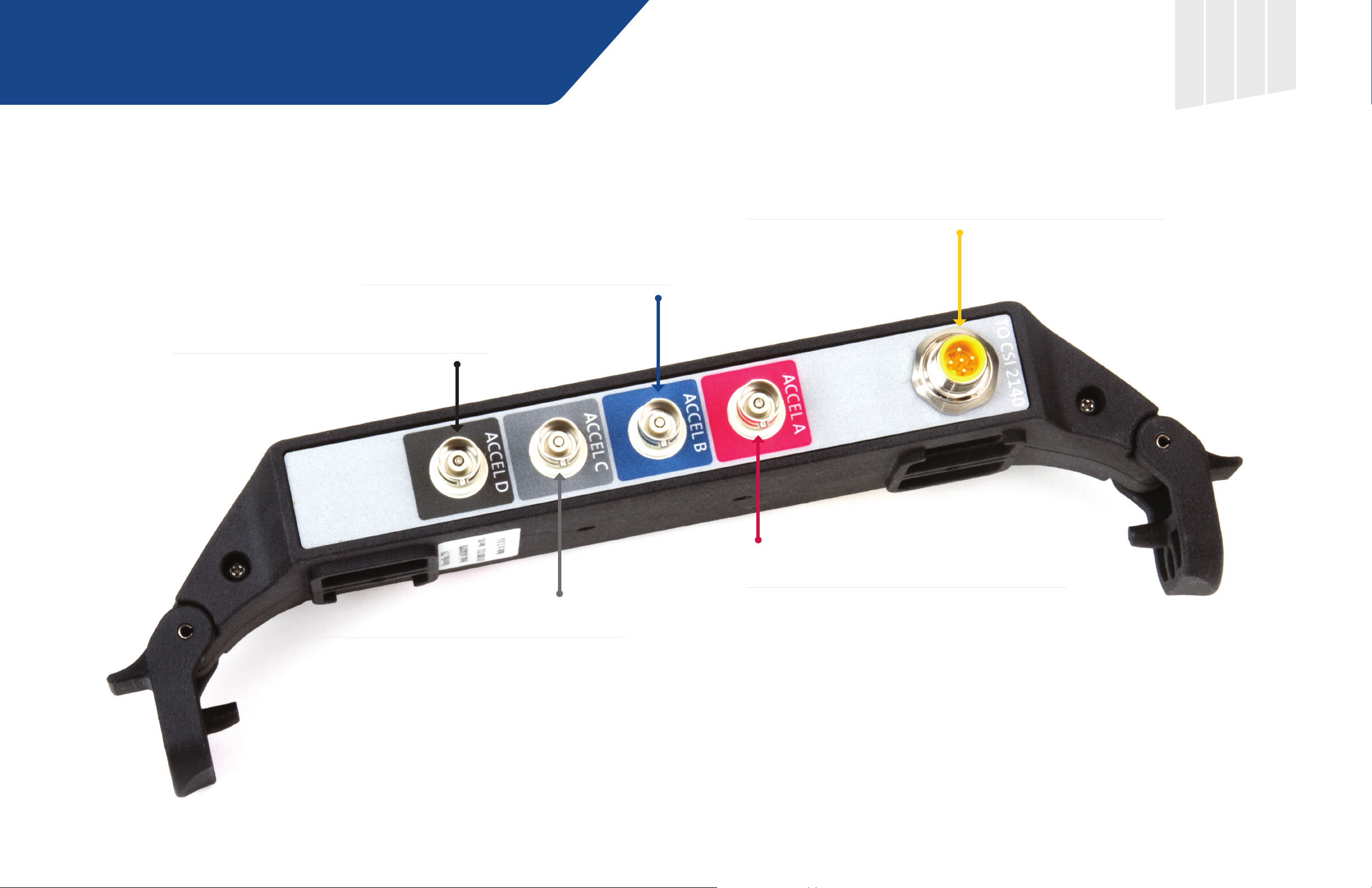

Accel Side

OR

( For Non-Hazardous Areas ONLY)

A40ADPTR 4CH INPUT ADAPTER PACKAGE - WRAPS AROUND THE BACK OF THE AMS 2140

AND IS REVERSIBLE FOR USING UP TO 4 SENSOR INPUTS PLUS A TACHOMETER INPUT.
ACCEL INPUTS ON ONE SIDE AND VOLT INPUTS ON THE OTHER.

NOTE: Not approved for use in hazardous rated areas. Can be used with the shoulder strap.
This P/N ships with 2 connector cables:

 MHM-65003-PBF (replaced D25501)

 MHM-65006-PBF (replaced D25502)

B40ADPTR 4CH Input Adapter only (WITHOUT CABLES).

4 5

AMS 2140 – A40ADPTR Input Adapter: ACCEL

(Non-Hazardous Areas ONLY)

D25486 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLUE

D25490 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT BLUE

D25488 CH D ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLACK

D25492 CH D ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT BLACK

MHM-65003-PBF 4-CH ACCEL INTERFACE CABLE 5P M12 TO 5P M12 (Replaces D25501)

MHM-65004-PBF ACCEL EXT CABLE. 5P M12 TO 5P M12 2M BLACK (Replaces D25498)

D25485 CHAN A ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT RED

D25489 CHAN A ACCEL CABLE 2P MIL TO BNC STRAGIHT 4FT RED

D25487 CH C ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT GREY

D25491 CH C ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT GREY

6 7

AMS 2140 – A40ADPTR Input Adapter: VOLTS

(Non-Hazardous Areas ONLY)

For Use with SpeedVue (Provides Power)

D25473 SPEEDVUE CABLE 8P M12 TO 4P LEMO 24IN

D25474 SPEEDVUE CABLE 8P M12 TO 4P LEMO 42IN BLACK

D25475 SPEEDVUE CABLE 8P M12 TO 4P LEMO 6FT

For Use with 404 Phototach (Provides Power)

D25472 TACH CABLE 8P M12 TO BNC 4FT BLACK

D25476 TACH CABLE 8P-M12 TO AMP CONNECTOR 2M BLACK

Extension Cables

MHM-65006-PBF 4-CH VOLTS INTERFACE CABLE 8P M12 TO 8P M12 0.2M

MHM-65007-PBF TACH/VOLTS EXT CABLE 8P M12 TO 8P M12 2M BLACK

NOTE: Input for Self-Powered Tach Signal

Input Cables

D25499 ACCEL EXT CABLE BNC TO BNC 4FT BLACK

D25500 ACCEL EXT CABLE BNC TO BNC 9FT BLACK

Cable to AMS 2140

MHM-65006-PBF 4-CH VOLTS INTERFACE CABLE 8P M12 TO 8P M12 0.2M (Replaces D25502)

MHM-65007-PBF TACH/VOLTS EXT CABLE 8P M12 TO 8P M12 2M BLACK (Replaces D25503)

8 9

AMS 2140

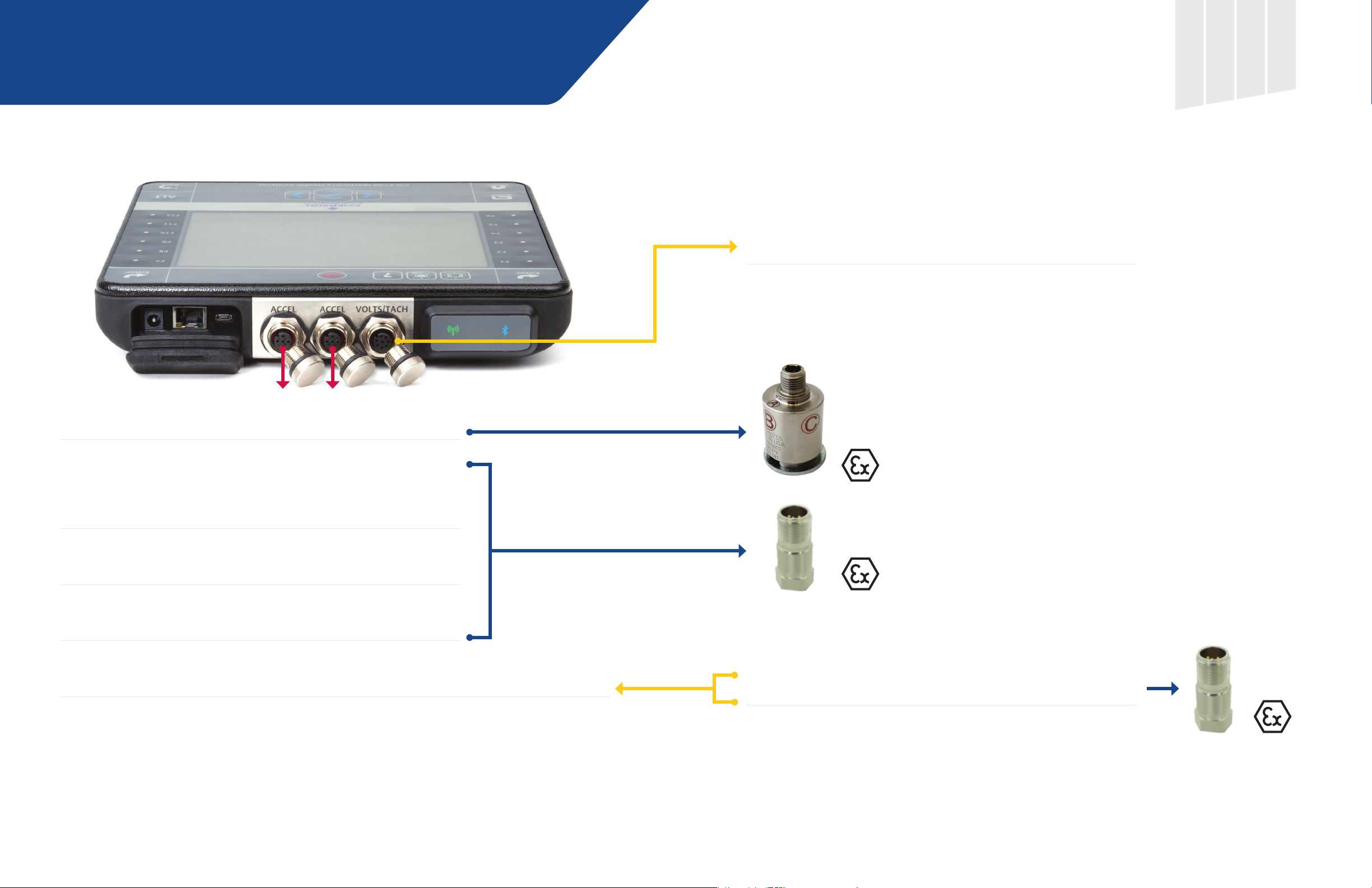

(Single Input in Hazardous Areas)*

Volts Cable

D25506 2 WAY SPLITTER CABLE 8P M12 TO 2X BNC, VOLTS A, B

NOTE: Any connections to this port must adhere to the permissible entity parameters.*

Triaxial Cable

D25777 TRIAXIAL ACCEL CABLE, FW STRAIGHT 5P M12 TO 5P 1/2IN-20UNF

Channel A Cables

D25782 CH A ACCEL CABLE 5P M12 TO 2P MIL COILED 6FT BLACK - FIELD WIREABLE

D25480 CH A ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT RED

D25483 CH A ACCEL CABLE 5P M12 TO BNC STRAIGHT 2M RED

Channel B Cables

D25481 CH B ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT BLUE

D25484 CH B ACCEL CABLE 5P M12 TO BNC STRAIGHT 2M BLUE

Channel D Cables

D25525 CH D ACCEL CABLE, STRAIGHT BLACK 5PIN M12 TO BNC

D25526 CH D ACCEL CABLE, STRAIGHT BLACK 5PIN M12 TO 2PIN MIL

Breakaway Cable

D25543 BREAKAWAY ACCEL CABLE ASM, 6FT. COILED, 5 PIN M12 CONN TO 2 PIN MIL CONN, CONSISTS OF TWO PARTS

A0643TX-EX

A0761GP-EX

D25494 CH A ACCEL CABLE 2P MIL TO 3P HALF BREAKAWAY COILED 6FT BLACK

D25495 CH A ACCEL CABLE 5P MIL TO 3P HALF BREAKAWAY 15IN BLACK

A0761GP-EX

10 11

*Information shown is for illustration only. Refer to appropriate installation drawing for specic details

AMS 2140

(Multi-sensor input in Hazardous Areas)*

D25504 Accel splitter cable A and B, M12 to 2X BNC

D25485 CH A ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT RED

D25489 CH A ACCEL CABLE 2P MIL TO BNC STRAGIHT 4FT RED

D25486 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLUE

D25490 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT BLUE

A0761GP-EX

D25505 Accel splitter cable C and D, M12 to 2X BNC

D25487 CH C ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT GREY

D25491 CH C ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT GREY

D25488 CH D ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLACK

D25492 CH D ACCEL CABLE 2P MIL TO BNC STRAIGHT 4FT BLACK

Extension Cables

D25499 ACCEL EXT CABLE BNC TO BNC 4FT BLACK

D25500 ACCEL EXT CABLE BNC TO BNC 9FT BLACK

D25506 Volts A and B M12 to BNC splitter cable

NOTE: Any connections to this port must adhere to the permissible entity parameters.*

12 13

*Information shown is for illustration only. Refer to appropriate installation drawing for specic details

AMS 2140 Model String Options

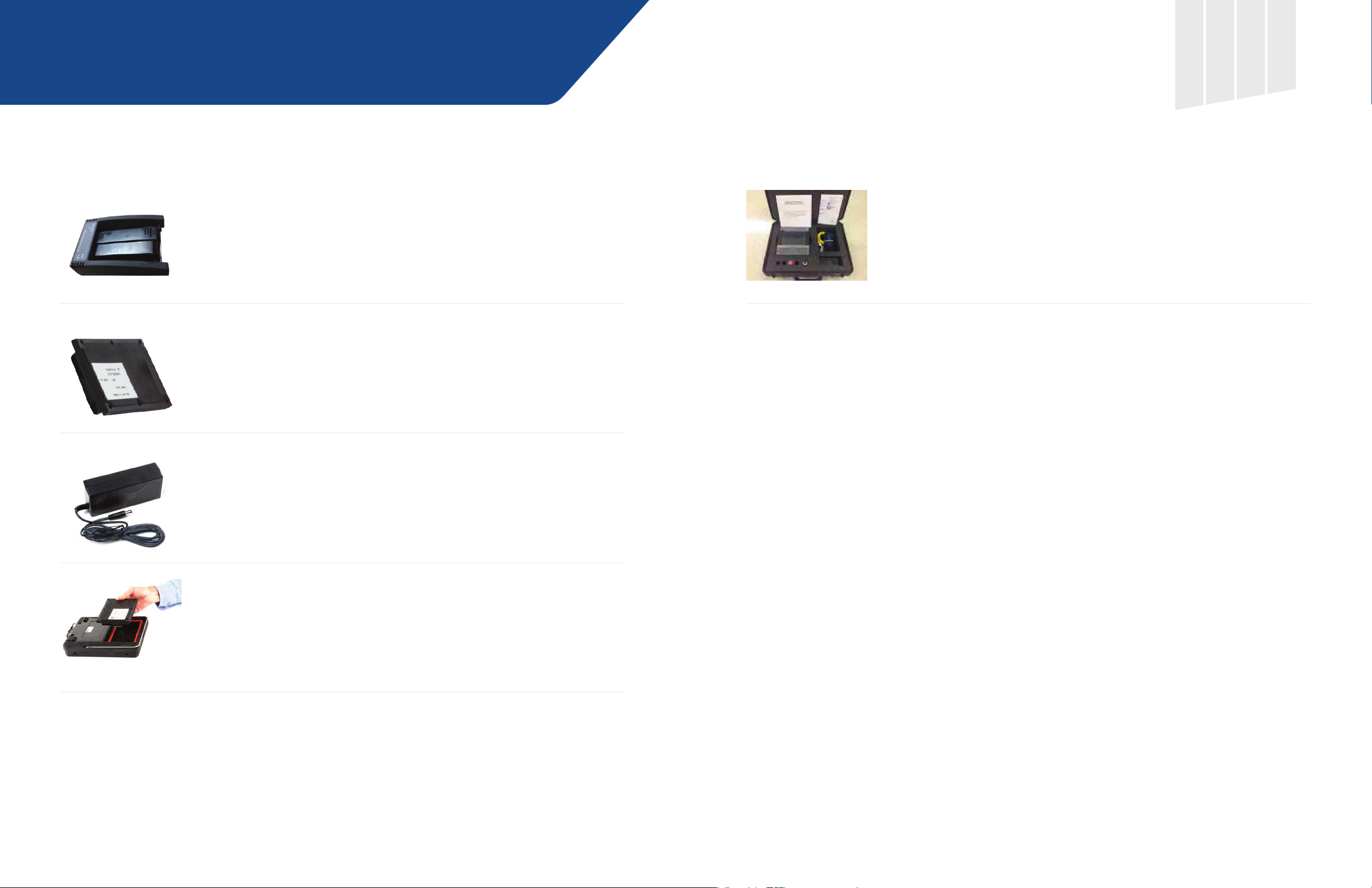

Power and Storage Solutions

External Charging Kit (Option “E”)

A40EXCHRG

EXTERNAL BATTERY CHARGER

B2140BATPACK

BATTERY PACK

MHM-93046-PBF

POWER SUPPLY, EXTERNAL, DESKTOP UNIV AC LINE-IN, 15VDC@4A OUT

Hard Shell Carry Case (Option “H”)

A2140CASE

HARDSHELL CASE - VERY DURABLE, IMPACT RESISTANT, WATERPROOF, PELICAN HARD SIDEDED
CARRY CASE FOR THE AMS 2140

Use the external battery charger to charge the spare battery pack. Swap the battery packs when
you need extra run time.

14 15

AMS 2140 Model String Options – Sensor Kits

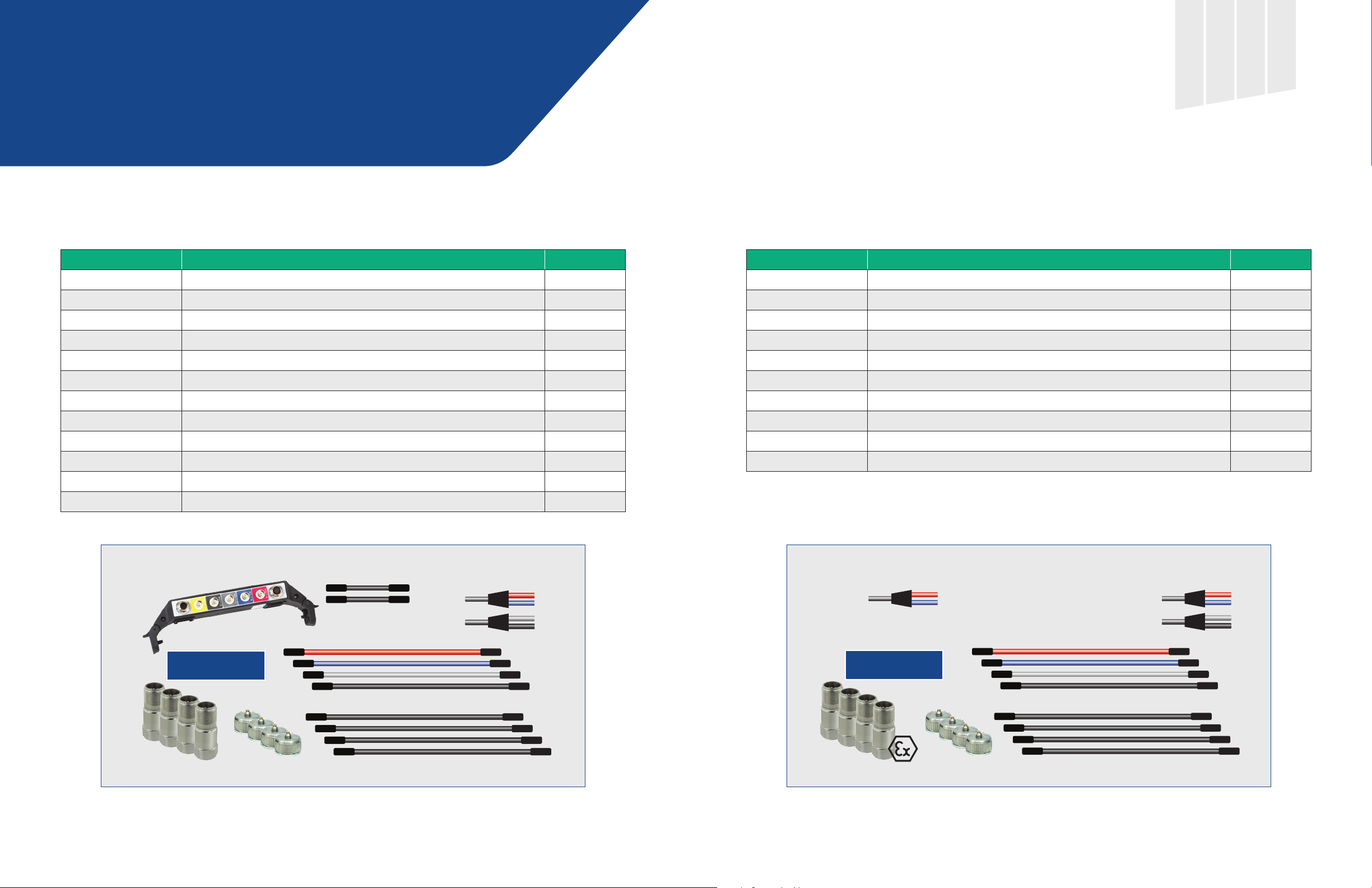

(Option “K”) 4 Sensor Kit with Accessories
for Multi-Channel Analysis

A21404CHACC-ADV

Non-rated

Item Description Qty

B40ADPTR 4CH Input Adapter - Wraps around the back of AMS 2140 1

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 4

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 4

D25489 CH A ACCEL CABLE 2P MIL TO BNC 4FT RED 1

D25490 CH B ACCEL CABLE 2P MIL TO BNC 4FT BLUE 1

D25491 CH C ACCEL CABLE 2P MIL TO BNC 4FT GREY 1

D25492 CH D ACCEL CABLE 2P MIL TO BNC 4FT BLACK 1

D25499 ACCEL EXT CABLE BNC TO BNC 4FT BLACK 4

D25504 ACCEL SPLITTER CABLE - A & B 5P M12 TO 2XBNC 1

D25505 ACCEL SPLITTER CABLE - C & D 5P M12 TO 2XBNC 1

MHM-65006-PBF VOLTS ADAPTER INTERFACE CABLE, 0.2M 1

MHM-65003-PBF ACCEL ADAPTER INTERFACE CABLE, 0.2M 1

A2140Q4CHACC-ADV

Rated (For use with Option “KL” or “EX”)

Item Description Qty

A0761GP-EX IS ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 4

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 4

D25489 CH A ACCEL CABLE 2P MIL TO BNC 4FT RED 1

D25490 CH B ACCEL CABLE 2P MIL TO BNC 4FT BLUE 1

D25491 CH C ACCEL CABLE 2P MIL TO BNC 4FT GREY 1

D25492 CH D ACCEL CABLE 2P MIL TO BNC 4FT BLACK 1

D25499 ACCEL EXT CABLE BNC TO BNC 4FT BLACK 4

D25504 ACCEL SPLITTER CABLE - A & B 5P M12 TO 2XBNC 1

D25505 ACCEL SPLITTER CABLE - C & D 5P M12 TO 2XBNC 1

D25506 VOLT SPLITTER CABLE - A & B 8P M12 TO 2XBNC 1

Interface Cables

Accel Cables

Accel Cables

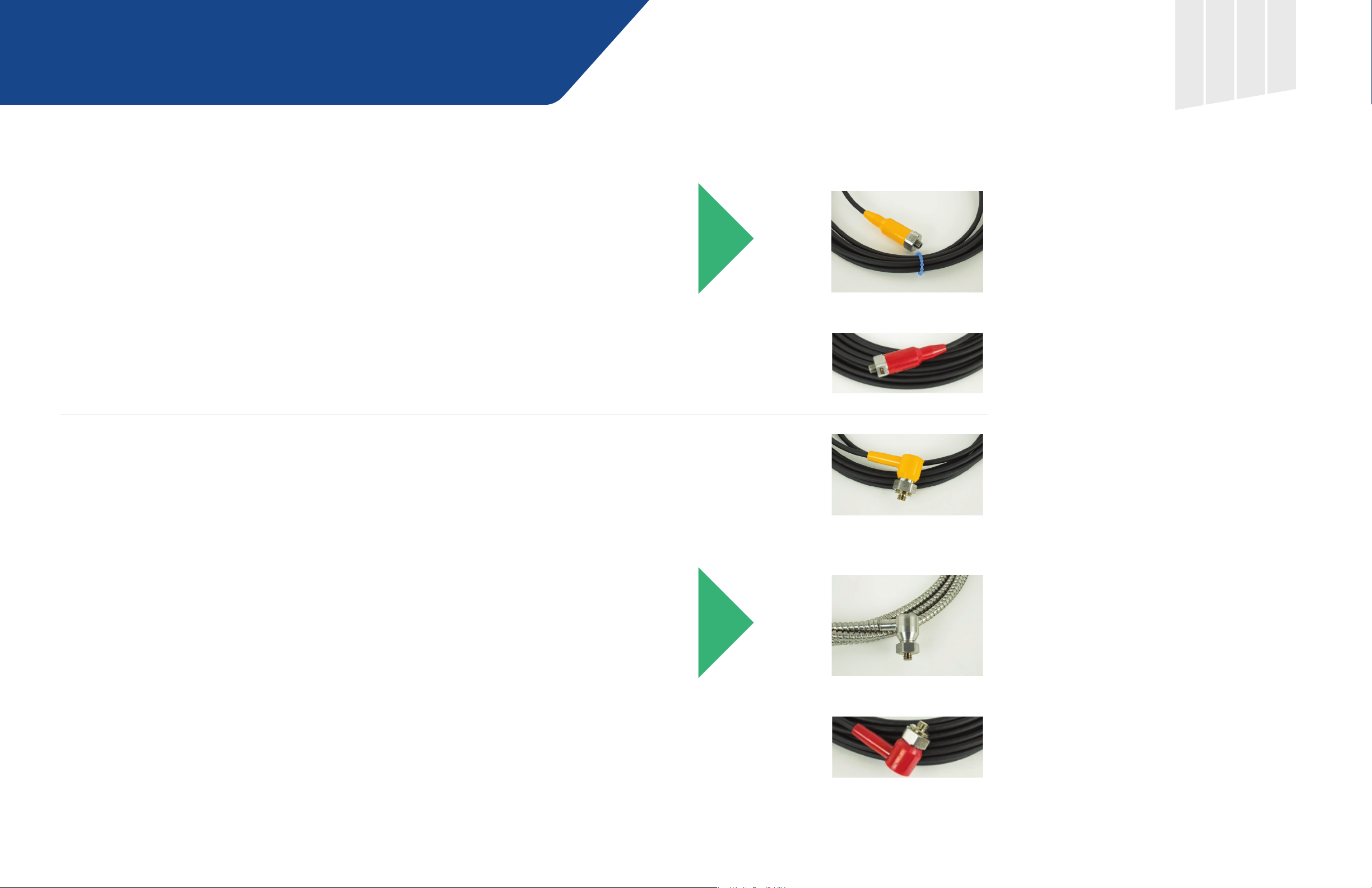

Accel Cables

100 mV/g

Extension Cables

Extension Cables

Extension Cables

16 17

Accel Splitters

Accel Splitters

Accel Cables

100 mV/g

Extension Cables

Accel SplittersVolt Splitters

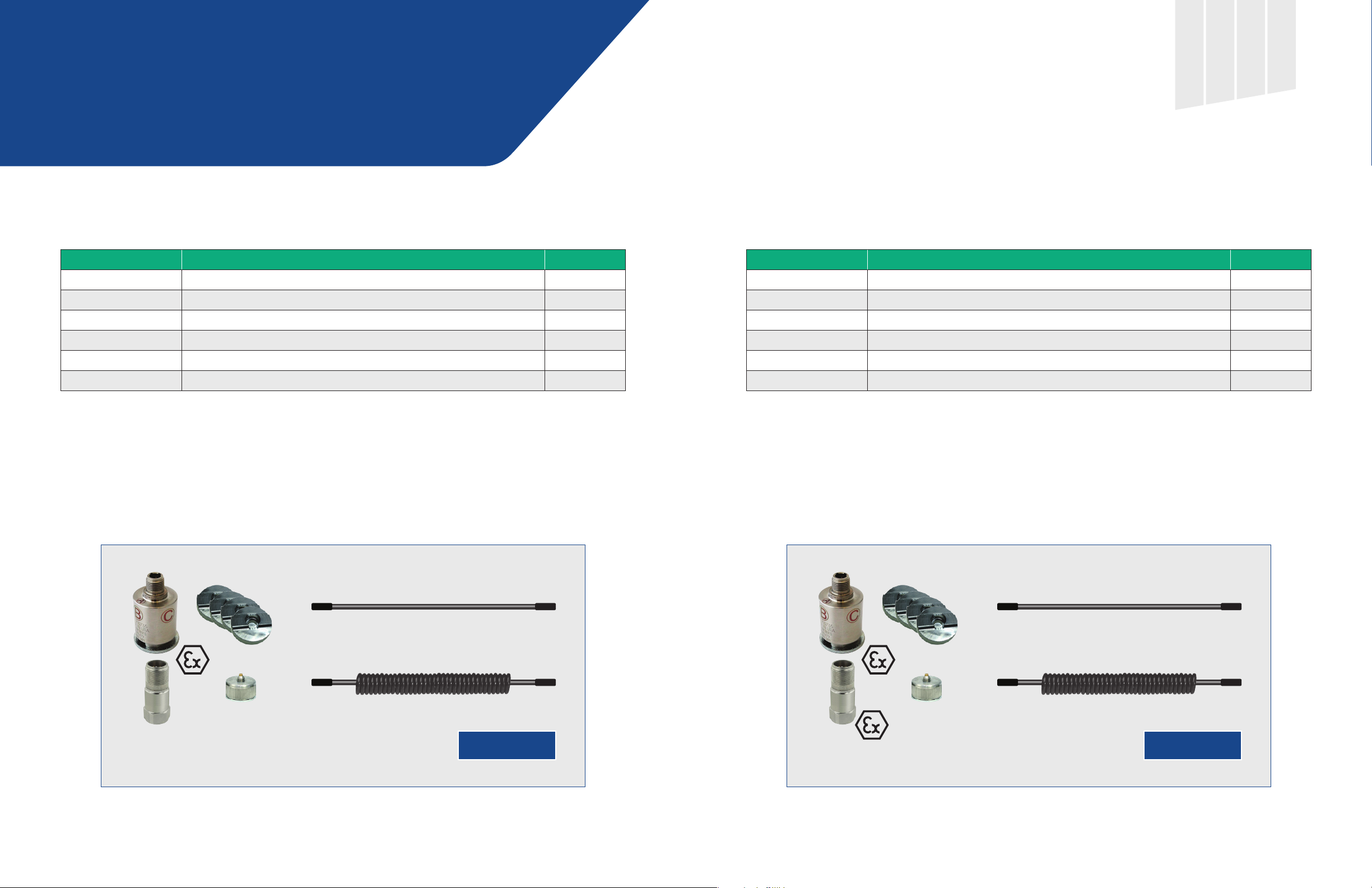

AMS 2140 Model String Options – Sensor Kits
(Option “X”) Triax plus Standard Accel with
Coiled Cable for Routine Data Collection

A21404CHACC-TU

Non-rated

Item Description Qty

A0643TX-EX SAFETY RATED INTEGRAL MAGNET TRIAX ACCEL 1

D24826 MOUNTING PAD, TRIAX A0643TX 4

D25777 TRIAXIAL ACCEL CABLE, 5P M12 TO 5P 1/2IN-20UNF 1

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 1

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

A2140Q4CHACC-TU

Rated (For use with Option “KL” or “EX”)

Item Description Qty

A0643TX-EX SAFETY RATED INTEGRAL MAGNET TRIAX ACCEL 1

D24826 MOUNTING PAD, TRIAX A0643TX 4

D25777 TRIAXIAL ACCEL CABLE, 5P M12 TO 5P 1/2IN-20UNF 1

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 1

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

Triax Cable

Coiled Cable

100 mV/g

18 19

Triax Cable

Coiled Cable

100 mV/g

AMS 2140 Accessory Package – 2 Channel

A21402CHACC-TU

Non-rated

Item Description Qty

D25480 CH A ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT RED 1

D25481 CH B ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT BLUE 1

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 2

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 2

D25688 3 WAY SPLITTER CABLE 8P M12 TO BNC 0.2M RED, BLUE & TACH 1

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

A2140Q2CHACC-TU

Rated (For use with Option “KL” or “EX”)

Item Description Qty

D25480 CH A ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT RED 1

D25481 CH B ACCEL CABLE 5P M12 TO 2P MIL STRAIGHT 5FT BLUE 1

A0761GP-EX IS ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 2

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 2

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

Accel Cables

Accel Cables

3-Way Splitter Cable

Coiled Cable

100 mV/g

20 21

Coiled Cable

100 mV/g

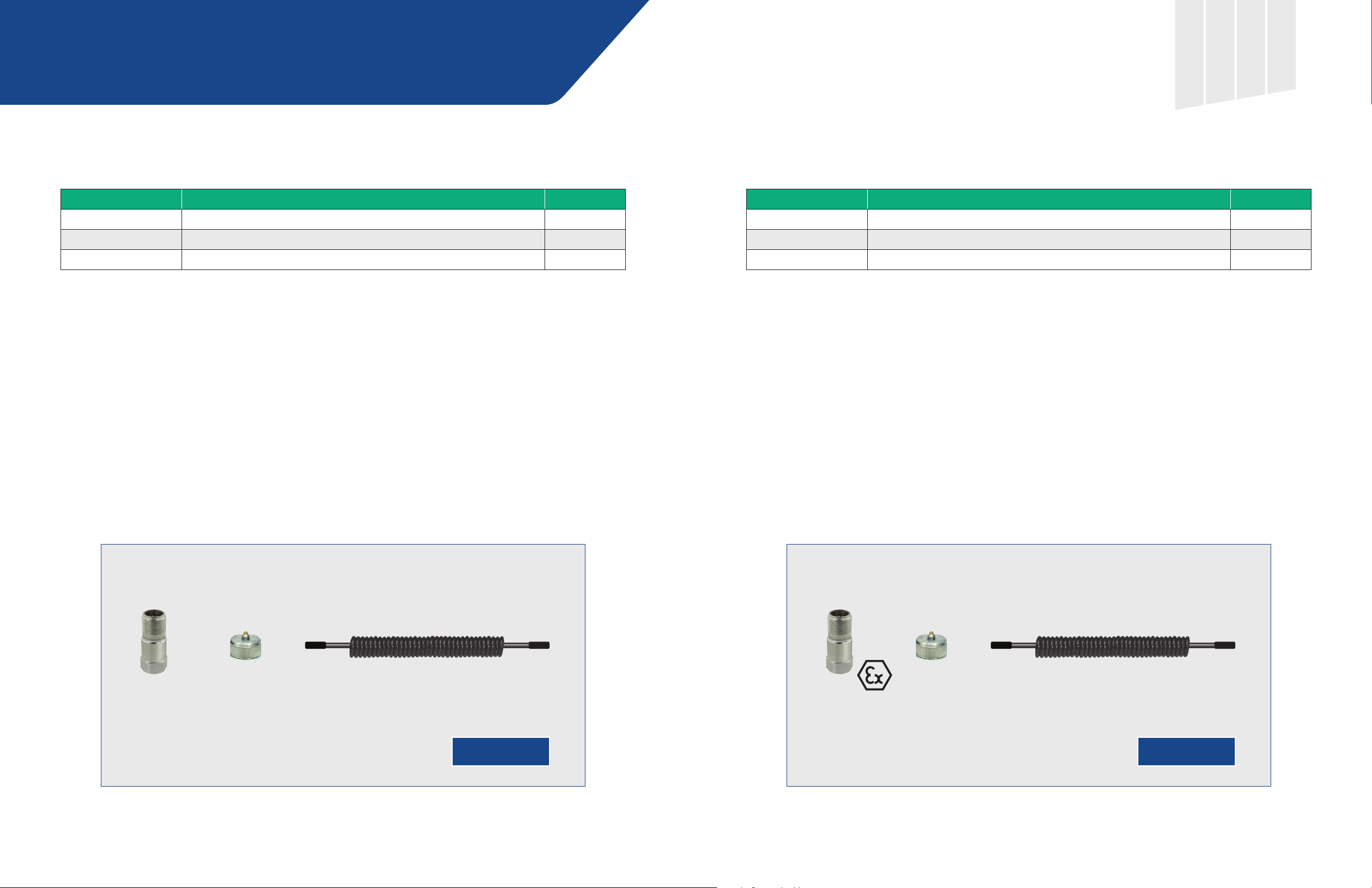

AMS 2140 Accessory Package – 1 Channel

A21401CHACC-TU

Non-rated

Item Description Qty

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 1

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

A2140Q1CHACC-TU

Rated (For use with Option “KL” or “EX”)

Item Description Qty

A0761GP-EX IS ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 1

D25782 CH A ACCEL COILED CABLE 5P M12 TO 2P MIL 6FT 1

Coiled Cable

100 mV/g

22 23

Coiled Cable

100 mV/g

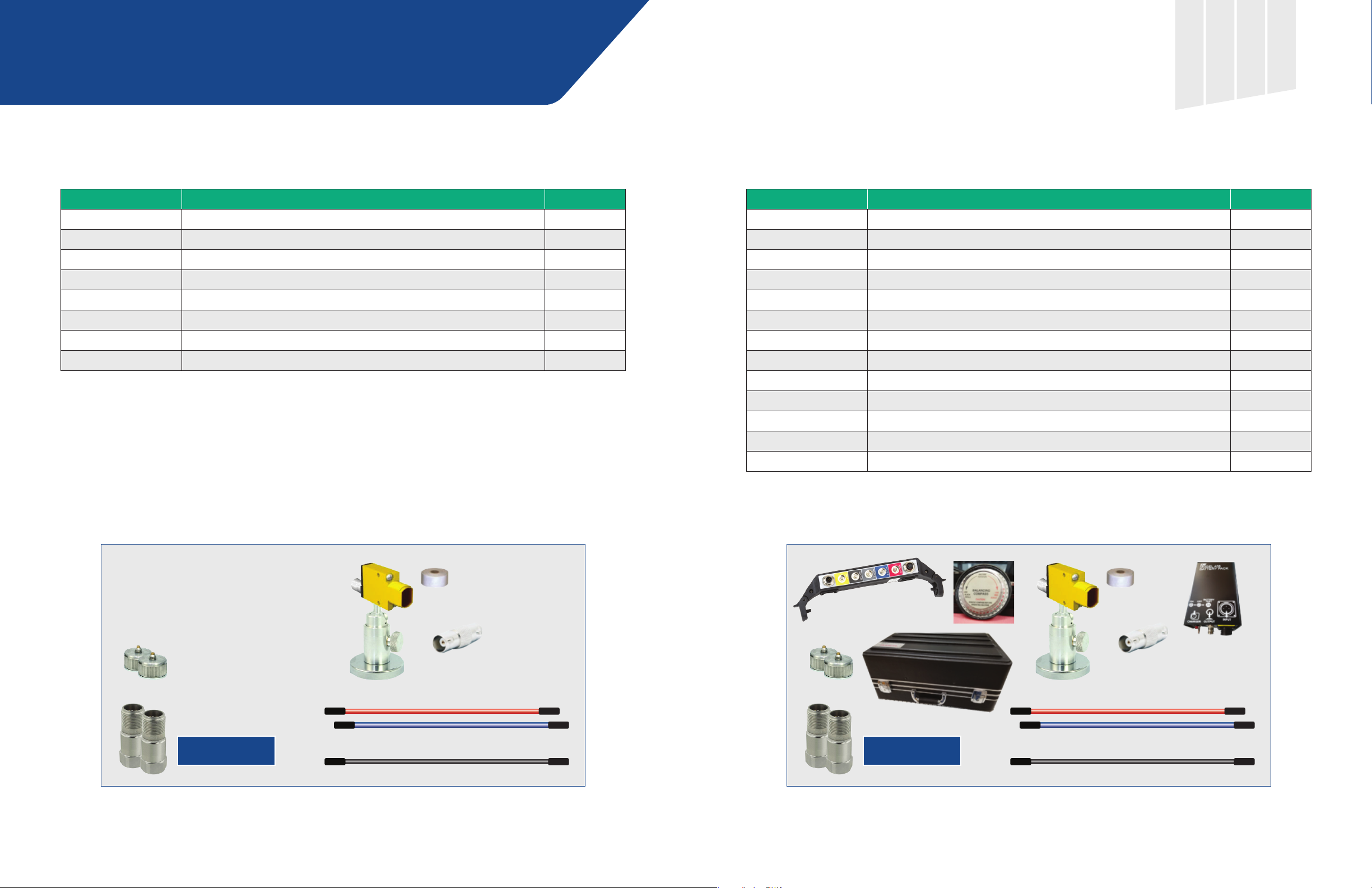

AMS 2140 Balancing Accessory Packages

B1740P1

AMS 2140 STANDARD BALANCING PACKAGE

Item Description Qty

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 2

D25485 CH A ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT RED 1

D25486 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLUE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 2

B40405 404B PROBE 1

D25476 404 TACH CABLE 8P M12 TO AMP CONNECTOR 2M 1

B404-BASE 404 ADJUSTABLE MAGNETIC BASE 1

A403 403 TACHOMETER REFLECTIVE TAPE 1

B1740P2

AMS 2140 ADVANCED BALANCING PACKAGE

Item Description Qty

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 2

D25485 CH A ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT RED 1

D25486 CH B ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLUE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 2

B40405 404B PROBE 1

D25472 TACH CABLE 8P M12 TO BNC 4FT BLACK 1

A040801 408 BATTERY PACK 1

B404-BASE 404 ADJUSTABLE MAGNETIC BASE 1

A403 403 TACHOMETER REFLECTIVE TAPE 2

A8BA1 BALANCING COMPASS 1

A650 ADAPTER, BNC BARREL, BNC (F) TO BNC (F) 1

D24786 1730 BALANCE KIT CASE 1

A40ADPTR AMS 2140 4CH Input Adapter- 4-channel input adapter 1

Accel Cables

100 mV/g

24 25

Phototach Cable

100 mV/g

Accel Cables

Phototach Cable

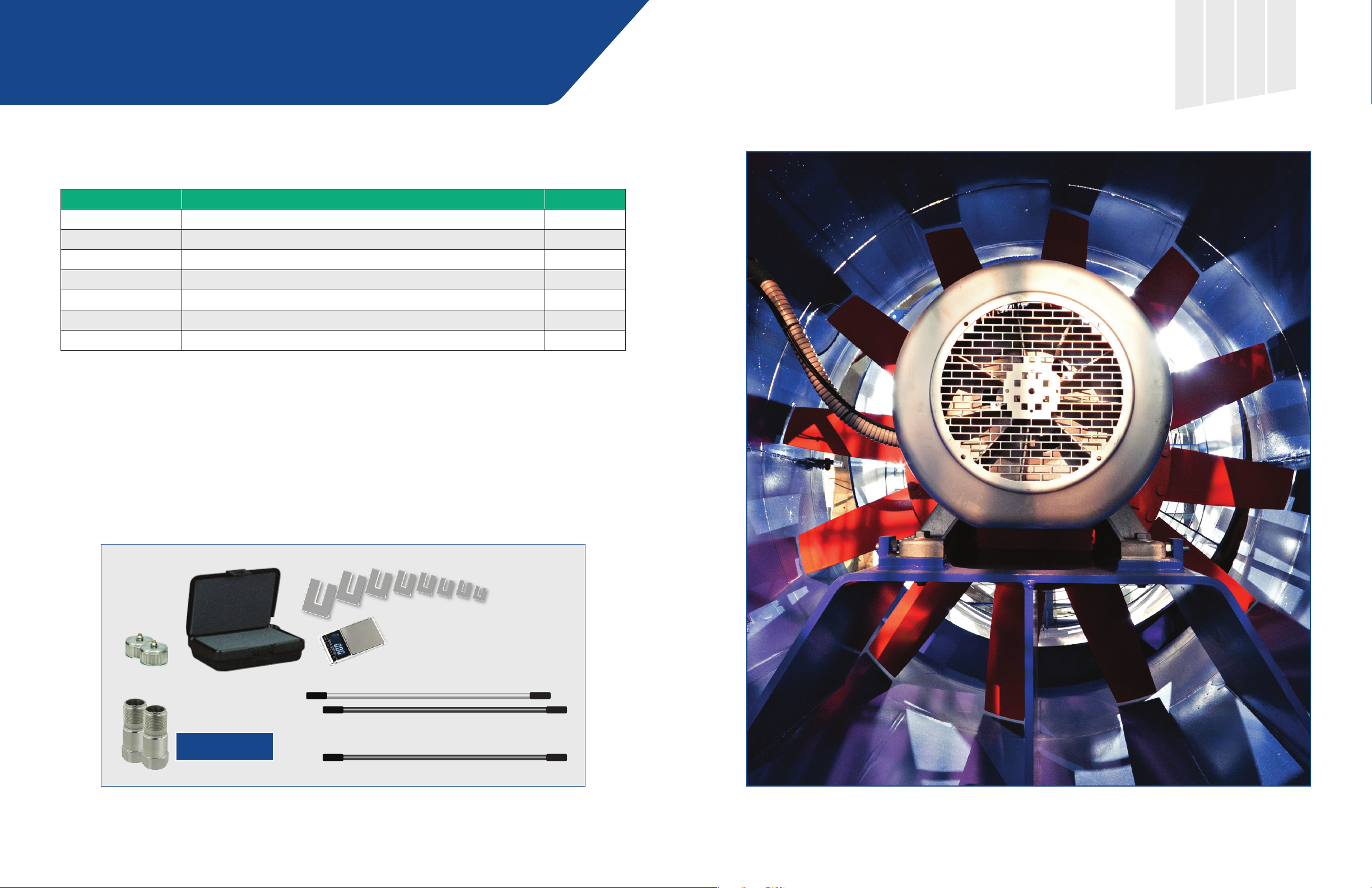

AMS 2140 Balancing Accessory Packages

A174001

2-4 SENSOR UPGRADE PACKAGE FOR AMS 2140 BALANCE PACKAGE

Item Description Qty

A0760GP ACCEL, 100MV/G ±5%, 0.5HZ-10KHZ, IP68, CE 2

D25487 CH C ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT GREY 1

D25488 CH D ACCEL CABLE 2P MIL TO BNC STRAIGHT 9FT BLACK 1

MHM-65007-PBF CABLE ASSEMBLY AMS 2140 VOLTS EXTENSION CABLE 1

A090835 MAGNET 2 POLE, 1IN CURVED SURFACE 2

A8BA25 BALANCE SCALES & TRIAL WGHT KIT 1

MHM-97546-PBF Envelope Documentation 6in x 9in White Wove w/Graphics 1

Accel Cables

100 mV/g

26 27

Extension Cable

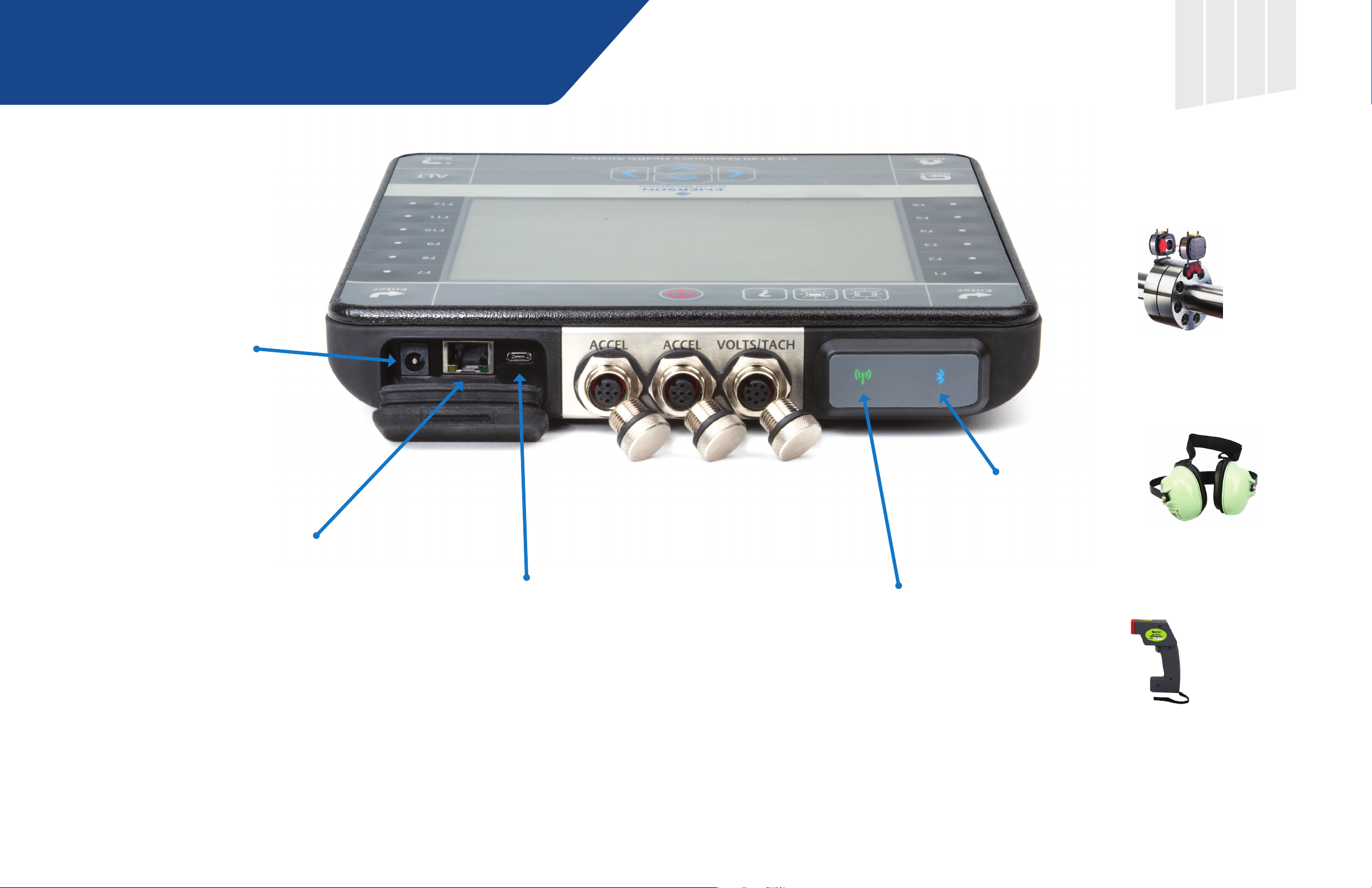

AMS 2140 – Wireless and Connections

Power Source

MHM-93046-PBF

POWER SUPPLY, EXTERNAL,

DESKTOP UNIV AC LINE-IN,

15VDC@4A OUT, FERRITE CABLE

A2140RF2

WIRELESS MODULE ENABLES

BLUETOOTH AND WIRELESS ETHERNET

A8240

LASER ALIGNMENT KIT

FOR AMS 2140

[NOTE: Add appropriate cord set

for end user location.]

Ethernet

USB 2.0

MHM-93368-PBF

USB 2.0 2 METERS USB STD-A

PLUG USB MICRO-B PLUG

Bluetooth to

Accessories

A647BT

BLUETOOTH HEADPHONES

FOR AMS 2140

Wireless Ethernet to

AMS Machinery Manager

Wireless-Ethernet

377BT

BLUETOOTH TEMPERATURE GUN

(Order directly from Manufacturer

www.testproductsintl.com)

28 29

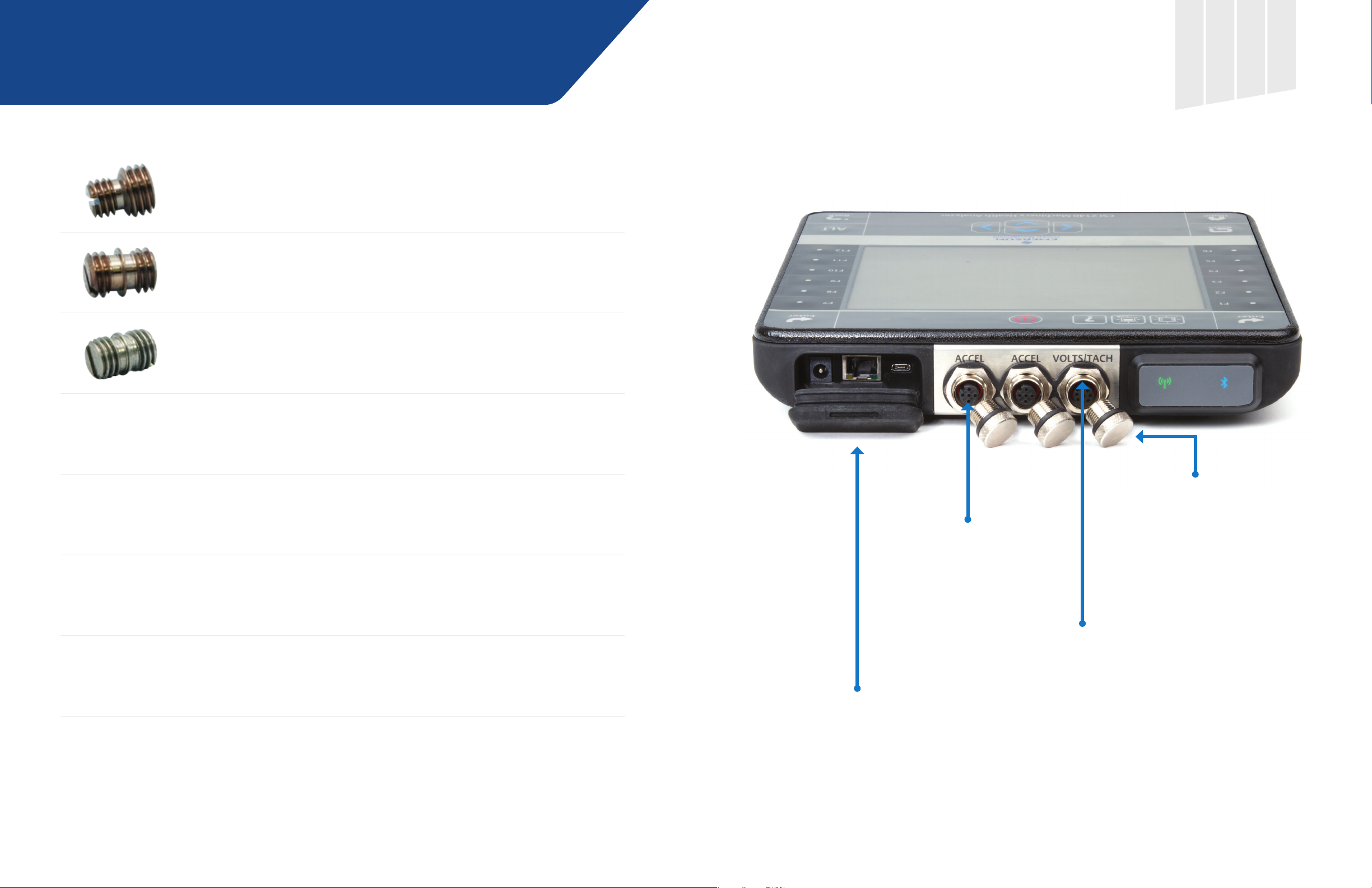

AMS 2140 – Small Accessory Items

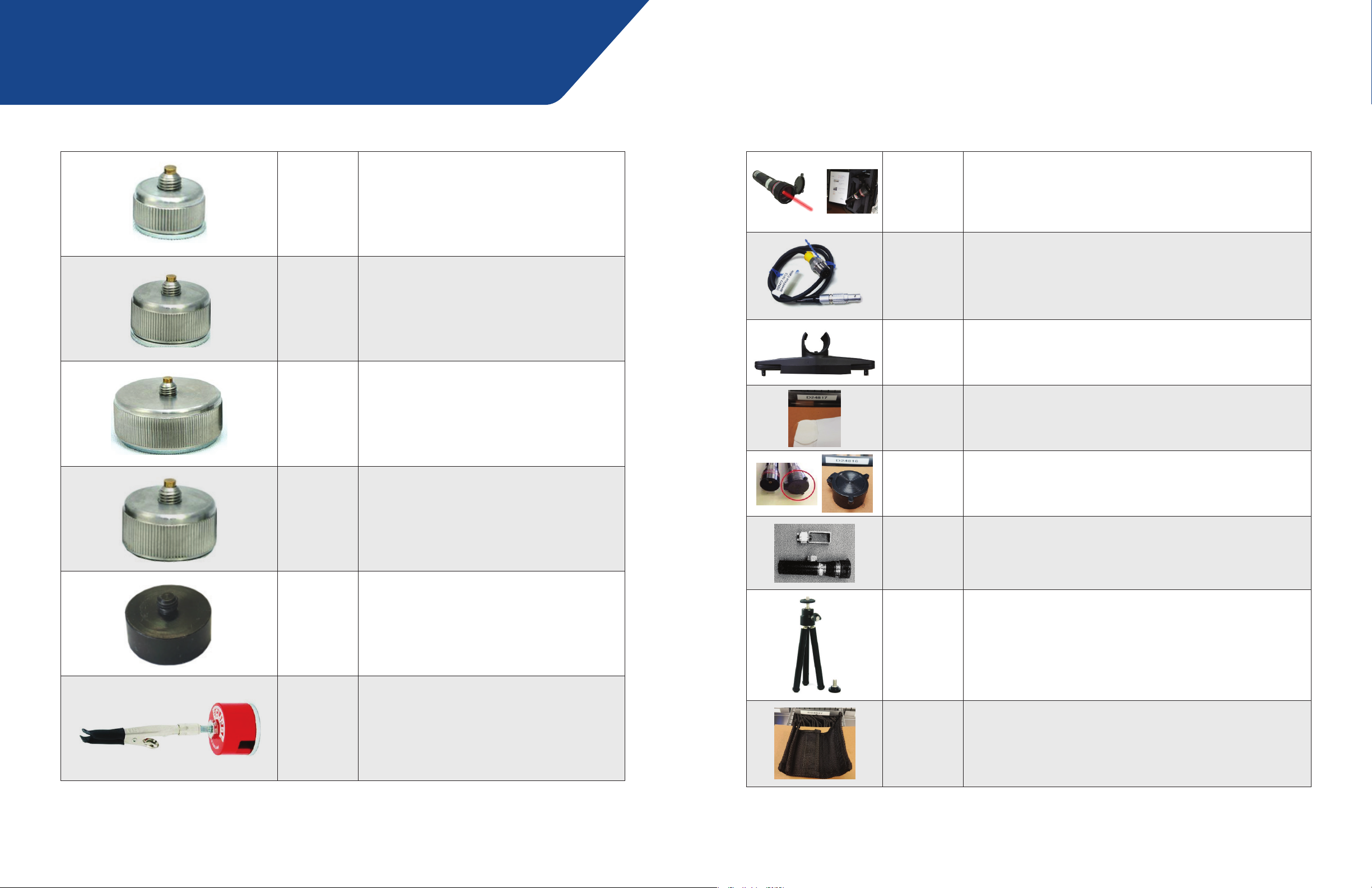

A914 – ADAPTER 914 MOUNT STUD 10-32 TO 1/4-28

For use with magnets or sensors with removable mounting studs for converting
to 10-32 threading

A915 – ADAPTER 915 MOUNT STUD 10-32 TO 10-32

A916 – ADAPTER. 916 MOUNT STUD 1/4-28 TO 1/4-28

MHM-62390-PBF – MOUNTING STUD, 1/2-20 UNF TO M8X1.0 THREAD

MHM-62392-PBF – MOUNTING STUD, 1/2-20 UNF TO M8X1.25 THREAD MOUNTING STUD,

1/2-20 UNF TO M8X1.25 THREAD FOR USE WITH THE A0394 SERIES OF SENSORS

MHM-62394-PBF – MOUNTING STUD, 1/2-20 UNF TO M6X1.0 THREAD

MHM-85493 – Mounting base, 1/2-20 UNF OD thds, integral 1/4-28 stud, tapped 1/8in hex hole

(for A0394 and A0322 Series accels)

D25384

AMS 2140 DUST CAP

MHM-10666-PBF

O-Ring

(Available only via Repair Centers)

D25386

AMS 2140 CONNECTOR CAP TETHERSI

(Available only via Repair Centers)

D25375

RF Rubber Cap

(Available only via Repair Centers)

30 31

AMS 2140 Accessories – Sensors – Top Exit

Non-Safety Rated

A0760GP HIGH LINEAR FREQUENCY; ACCEL, 100MV/G ±5%, TOP C5015 CONN, 0.5HZ-10KHZ, IP68, CE

100 mV/g 100 mV/g

Safety Rated

A0761GP-EX MULTIPLE AGENCY APPROVALS; ACCEL, 100MV/G ±5%, TOP C5015 CONN, 0.5HZ-10KHZ, IP68, CE,

CSA, ATEX

32 33

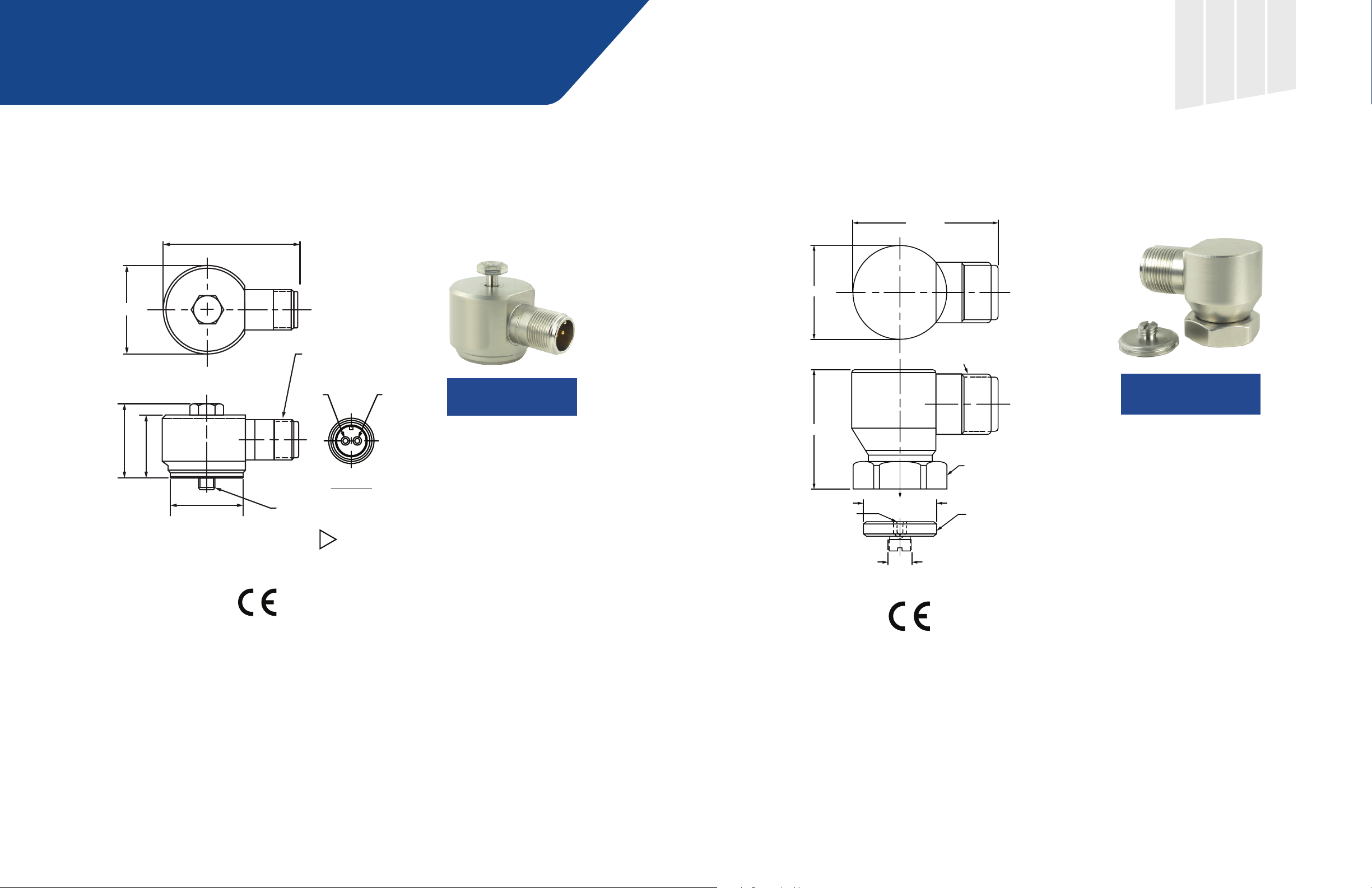

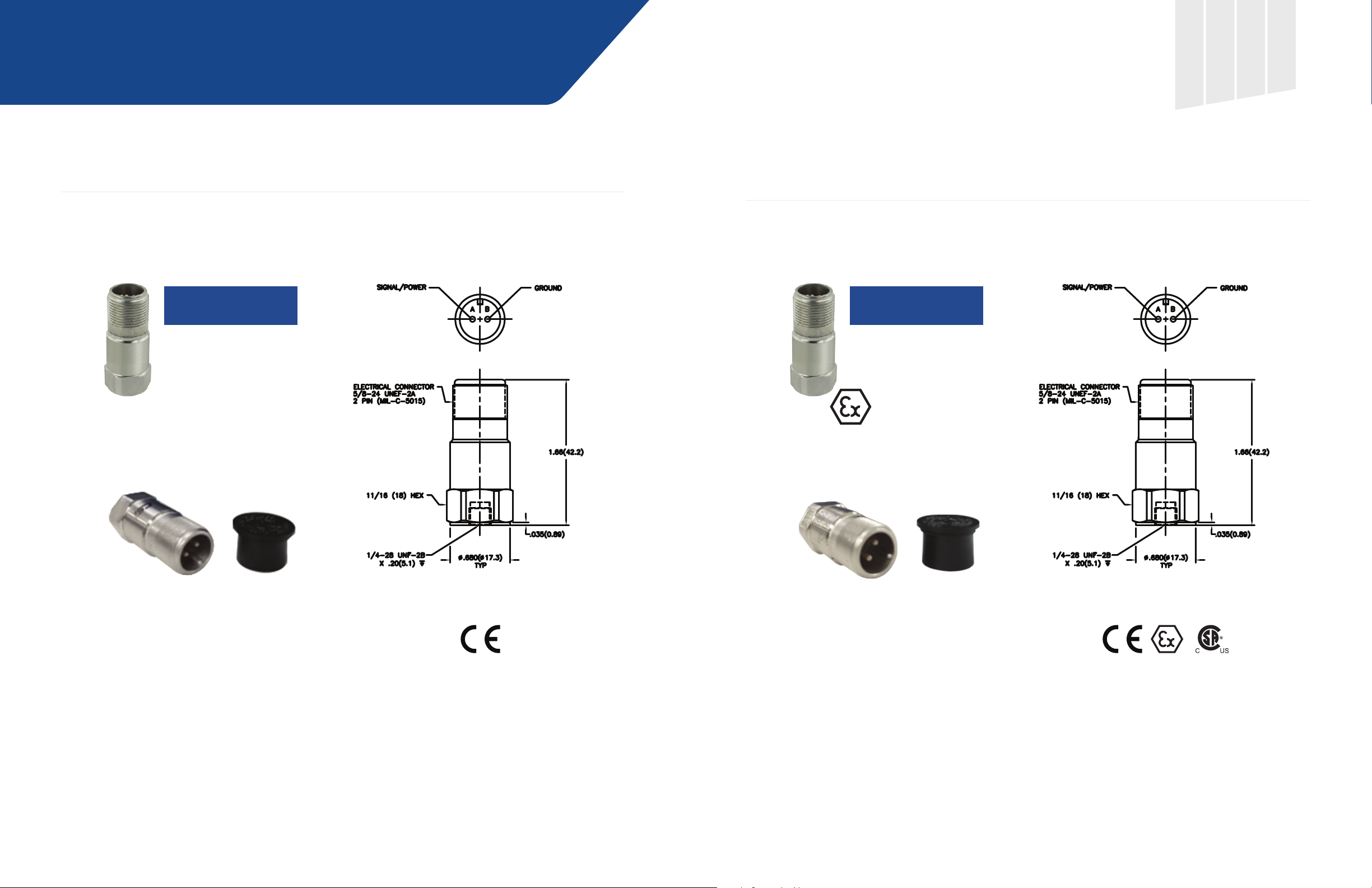

AMS 2140 Accessories – Sensors – Side Exit

Non-Safety Rated

A0710GP GENERAL PURPOSE; ACCEL, 100MV/G ±5%, SIDE C5015 CONN, 0.2HZ-10.5KHZ, IP68, CE

2.09 [53.0]

ø1.36 [34.7]

ELECTRICAL CONNECTOR
5/8-24 UNEF-2A
2-PIN (MIL-C-5015)

1.29 [32.7]

1.13 [28.7]

SIGNAL/
POWER

END VIEW OF
CONNECTOR

GROUND

100 mV/g

Non-Safety Rated

A0322RM HIGH LINEAR FREQUENCY; ACCEL, 100MV/G ±5%, TOP C5015 CONN, 0.5HZ-10KHZ, IP68, CE

1.52 (38.6)

ø1.00(ø25.4)

100 mV/g

1.23(31.2)

7/8(22mm) HEX

ø1.11[ø28.2]

MOUNTING BOLT
1/4-28 UNF-2A
X 1.34 [34.0]LONG
(SUPPLIED)

1

1/8 HEX ALLEN
KEY REQUIRED

3/4–16 UNF–2A

MOUNTING STUD
(SUPPLIED)

1/4-28 UNF-2A

A0322LC-NT QUICK RELEASE NUT & BASE, STAINLESS STEEL, 1/4-28

34 35

AMS 2140 Accessories – Triaxial Sensor AMS 2140 Accessories – For Triaxial Sensor

TOP EXIT – TRIAXIAL

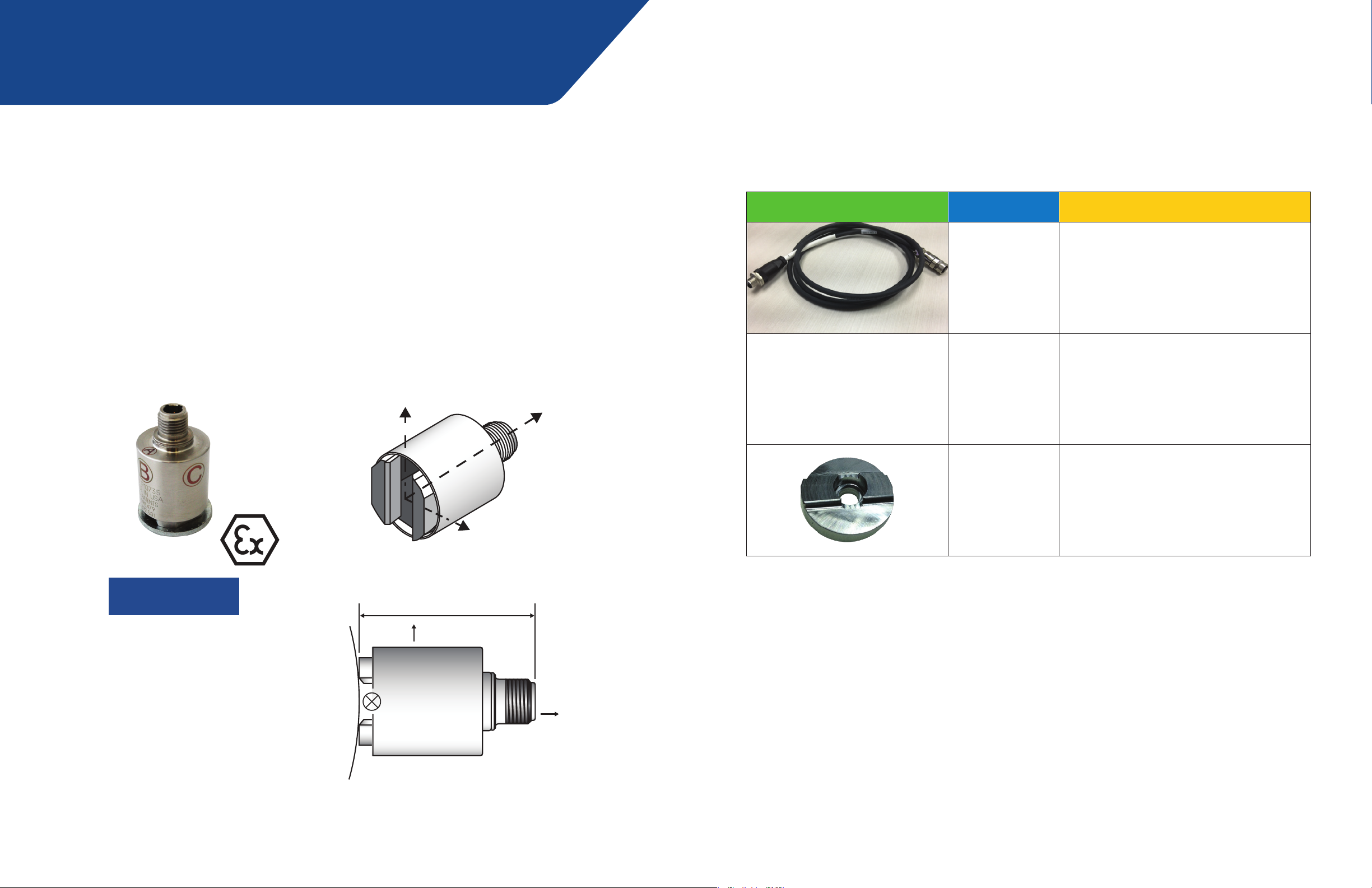

A0643TX-EX
SAFETY RATED INTEGRAL MAGNET TRIAXIAL ACCELEROMETER

This small, hazardous area rated for Class1 Division 2 and ATEX/IECeX Zone 2 unique triaxial
accelerometer attaches to the Model 2130 or AMS 2140 Machinery Health Analyzer by a single
cable without the need for bulky adapters. It provides excellent measurements in all three axes
using the integral magnet and the companion mounting pad (part#D24826 – Details on next
slide). Collected data provides information about traditional machine health parameters such
as imbalance, misalignment, and bearing condition, but also helps detect insufcient lubrication.
For standard applications, this sensor can also be used as a quality, single axis accelerometer
without the need for a mounting pad

B

A

TRIAX

FEATURED ACCESSORY PART # DESCRIPTION

D25777 TRIAXIAL ACCEL CABLE, FW STRAIGHT 5P M12 TO

5P 1/2IN-20UNF

D24826 MOUNTING PAD, TRIAX A0643TX

This mounting pad is keyed to ensure that the
A0643TX sensor is oriented in the proper direction
while providing superior measurement results. It
can either be glued onto the machine or it can be
installed via an allen screw after drilling and tapping
the measurement point location

A0643TX-200 KIT WITH 200 MOUNTING PADS FOR TRIAX A0643TX

100 mV/g

C

Directions in which each AMS 2140
channel collects data on the sensor.

51mm (2.0”)

C=Vertical

B =Axial

A=Horizontal

TYPICAL ORIENTATION

3736

AMS 2140 Accessories

FEATURED ACCESSORY PART # DESCRIPTION

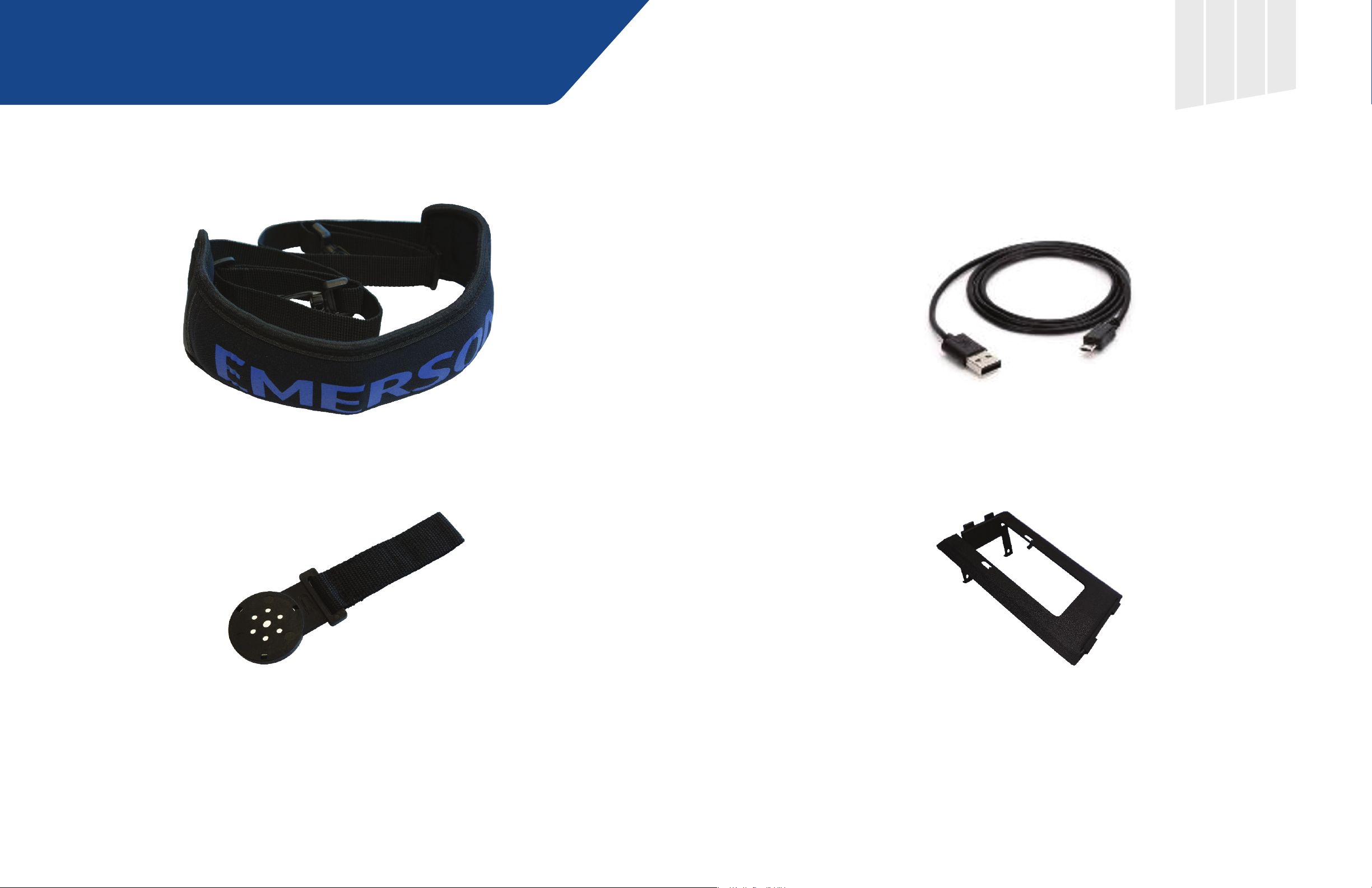

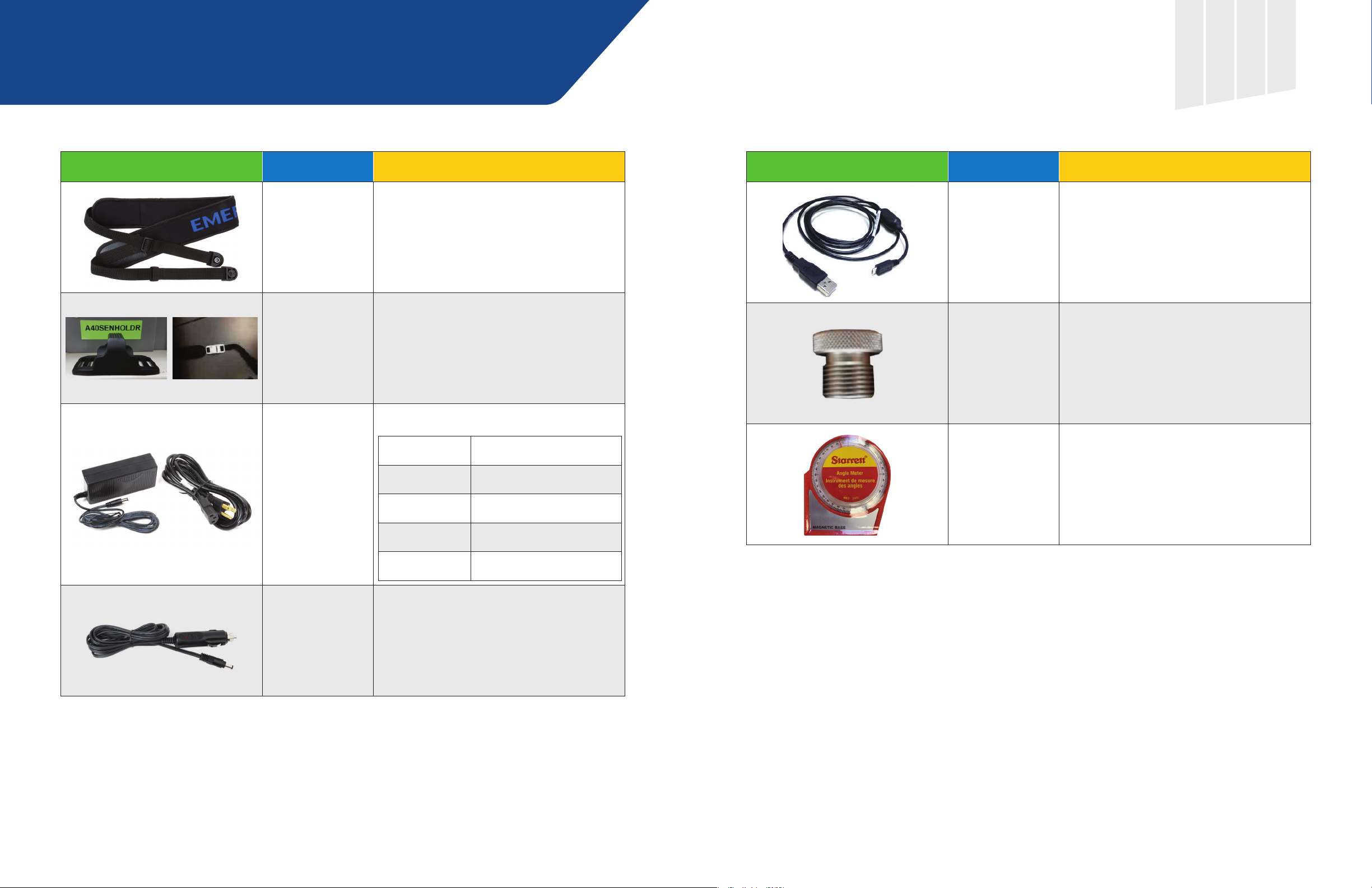

D25438 NECK STRAP ASSEMBLY

A40SENHOLDR STRAP MOUNTED DUAL ACCELEROMETER HOLDER FOR

THE AMS 2140

MHM-93046-PBF POWER SUPPLY, EXTERNAL, DESKTOP UNIV AC LINE-IN,

15VDC@4A OUT, FERRITE CABLE

A650100 US/CANADA AC POWER CABLE 3

COND. W/PLUG & RECT 125V

B2140CORD-AU AUSTRALIA AC POWER CORD 3

COND. W/PLUG & RECT 230V

B2140CORD-EU EU AC POWER CORD 3

COND. W/PLUG & RECT 230V

B2140CORD-UK UK AC POWER CORD 3

COND. W/PLUG & RECT 230V

MHM-65142-C ARGENTINA AC POWER CORD

W/PLUG & RECT 230V

FEATURED ACCESSORY PART # DESCRIPTION

MHM-93368-PBF USB 2.0 2 METERS USB STD-A PLUG USB MICRO-B PLUG

D25384 REPLACEMENT DUST CAP

A8BA1 ANGLE METER

MHM-65139-PBF AUTOMOBILE 6’ PWR CBL,

PLUGS INTO CAR 12V ADAPTER
The AMS 2140 car charger plugs into your car’s

12 Volt DC adapter and allows you to charge the
AMS 2140 battery safely while traveling from
site to site.

38 39

AMS 2140 Accessories - Magnets

AMS 2140 Accessories – SpeedVue Laser Sensor

A090515 MAGNET BASE 0.75IN 1/4-28 15LB PULL

A090535 MAGNET BASE 1.00IN 1/4-28 35LB PULL

A090550 MAGNET BASE 1.50IN 1/4-28 50LB PULL

A090835 MAGNET BASE 1.00IN 1/4-28 35LB PULL,

TWO POLE FOR USE ON CURVED SURFACES

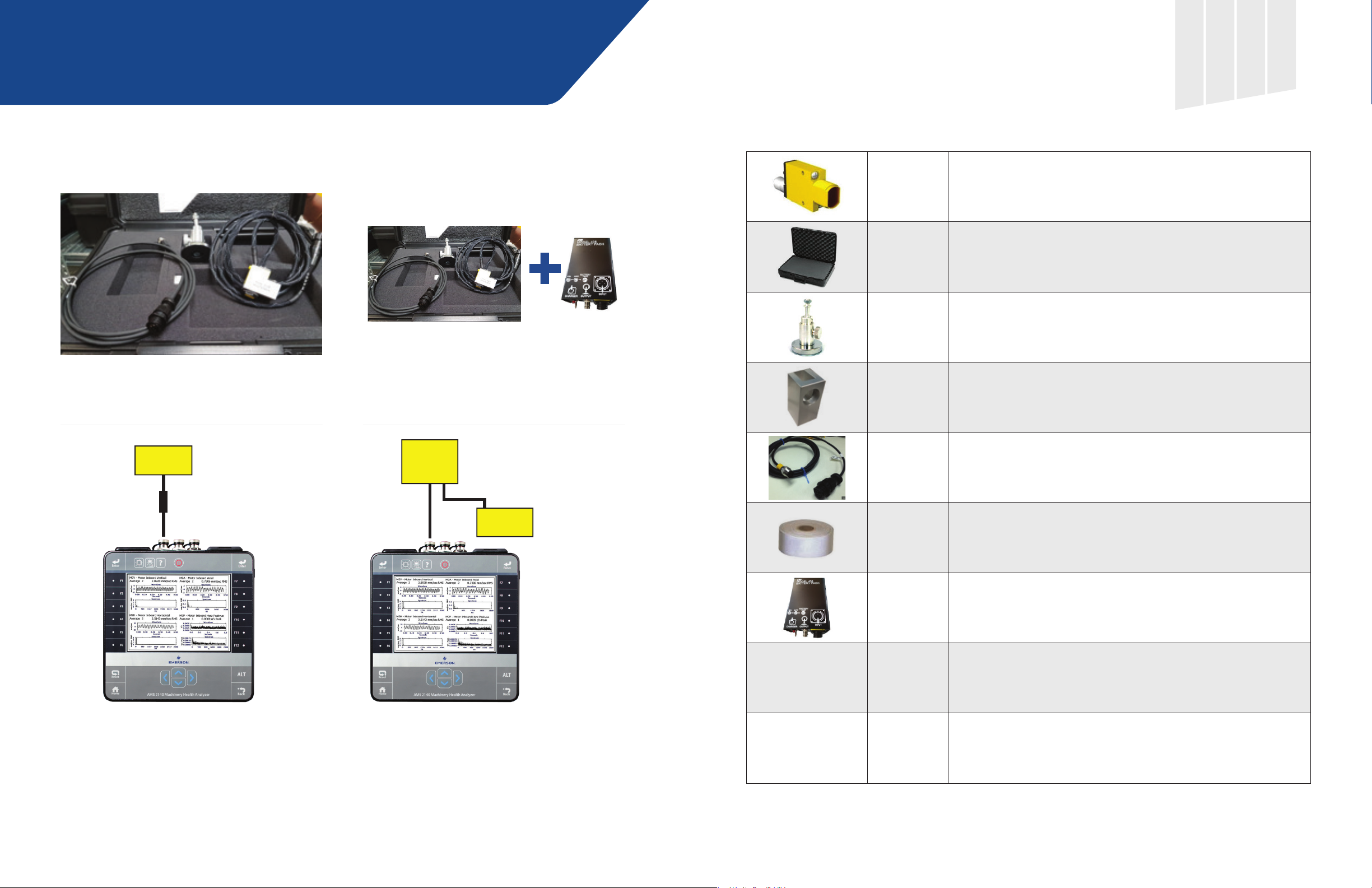

A0430L4 Model 430 Laser Speed Sensor with AMS 2140 compatible M12-to-Lemo cable

(D25473) in hard-shell carrying case.

D25473
D25474
D25475

A40SVMNT MODEL 430 MOUNT FOR THE AMS 2140 MACHINERY HEALTH ANALYZER

D24817 430LS PROTECTIVE LENS

D24816 430LS BEAM ATTENUATOR (SpeedVue Cover)

SPEEDVUE CABLE 8P M12 TO 4P LEMO 24IN
SPEEDVUE CABLE 8P M12 TO 4P LEMO 42IN
SPEEDVUE CABLE 8P M12 TO 4P LEMO 6FT

A904 MAGNET BASE 1.00IN 1/4-28 , FLAT RARE EARTH

A918 MAGNETIC CABLE HOLDER

A0430MB 430LS MAGNETIC BASE

A0430TR 430LS TRIPOD

D24937 HAND STRAP PAD FOR SpeedVue

4140

AMS 2140 Accessories – Phototach

A0404B40 - 404B TACHOMETER WITH CABLE (M12 CABLE

TO AMPHENOL) FOR DIRECT CONNECTION TO AMS 2140.
[NOTE: PHOTOTACH IS POWERED BY THE AMS 2140.]

THE 404B INFRARED PHOTOTACH IS A SELF-CONTAINED, REFLECTIVE SENSOR. IT PROVIDES DIRECT READINGS UP TO 20,000 RPM AT
DISTANCES UP TO 3 FEET. DISTANCE MAY VARY WITH RPM

A0404P40 - 404B PHOTOTACH KIT WITH EXTERNAL POWER
SUPPLY AND CABLE (M12 TO BNC) FOR CONNECTING TO
AMS 2140

A0404B40 A0404P40

404B

B40405 –

404B PROBE

408

pack

A040801 –

408 Battery pack

B40405 404B PROBE

A840 SUITCASE FOR PHOTOTACH (ALL MODELS)

B404-BASE 404 ADJUSTABLE MAGNETIC BASE

D10420 404 SENSOR HOLDER, ALUMINUM W/BRACKET, 2IN X 1IN

D25476 404 TACH CABLE 8P-M12 TO AMP CONNECTOR 2M BLACK

D25476

D25472

404B

B40405 –

404B PROBE

A403 403 TACHOMETER REFLECTIVE TAPE

A040801 408 BATTERY PACK

A0404P1 CABLE 404B POWER TACHOMETER W/TURCK & BNC

D25472 TACH CABLE 8P M12 TO BNC 4FT BLACK

42 43

AMS 2140 Accessories – Strobelight

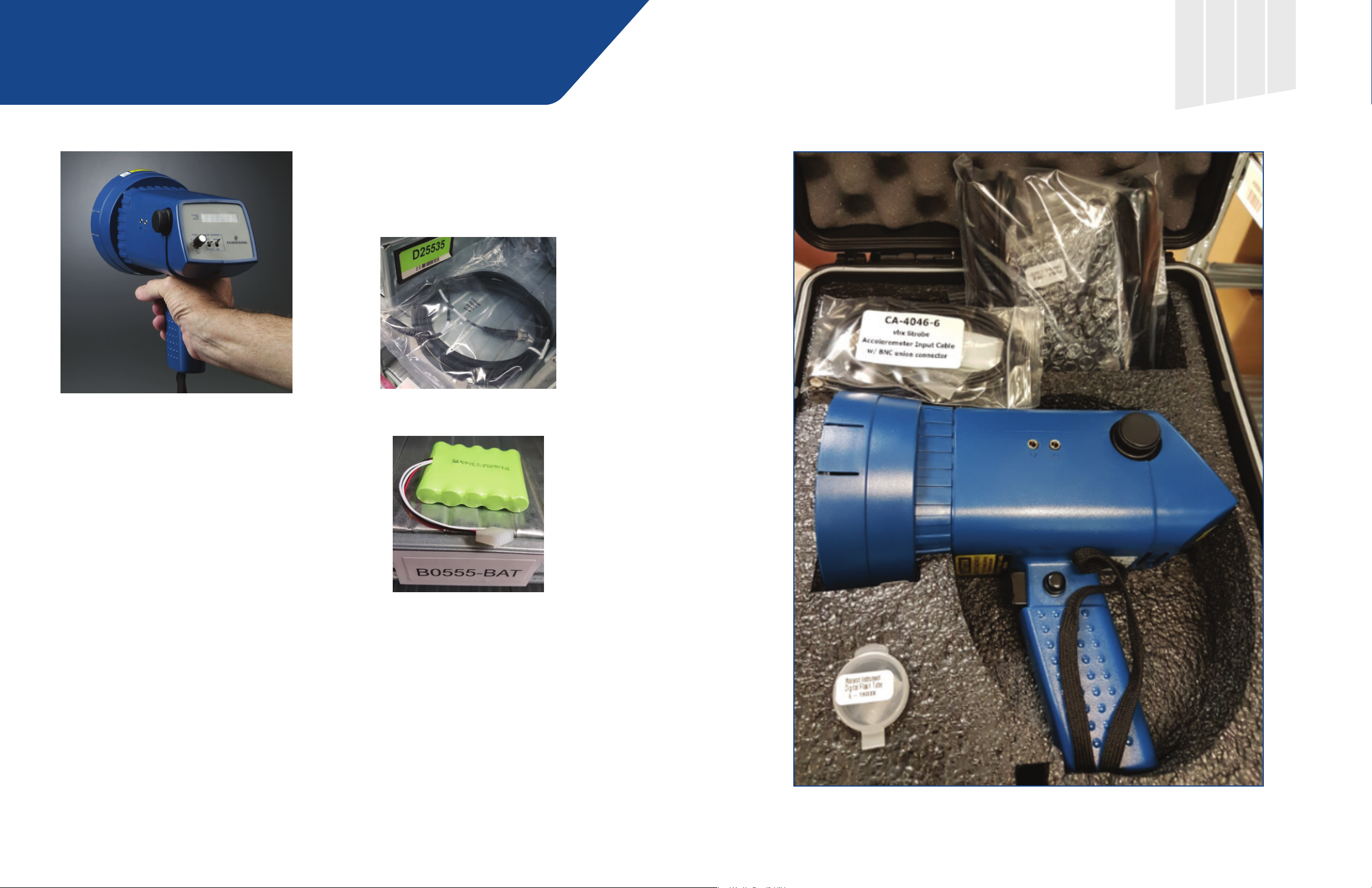

A0555-40

AMS VIBRATION STROBE LIGHT 115/230VAC WITH AMS 2140 CABLE

D25535

MODEL 555 STROBE TO AMS 2140 INTERFACE CABLE

B0555-BAT

555 STROBE REPLACEMENT BATTERY PACK NI-MH

44 45

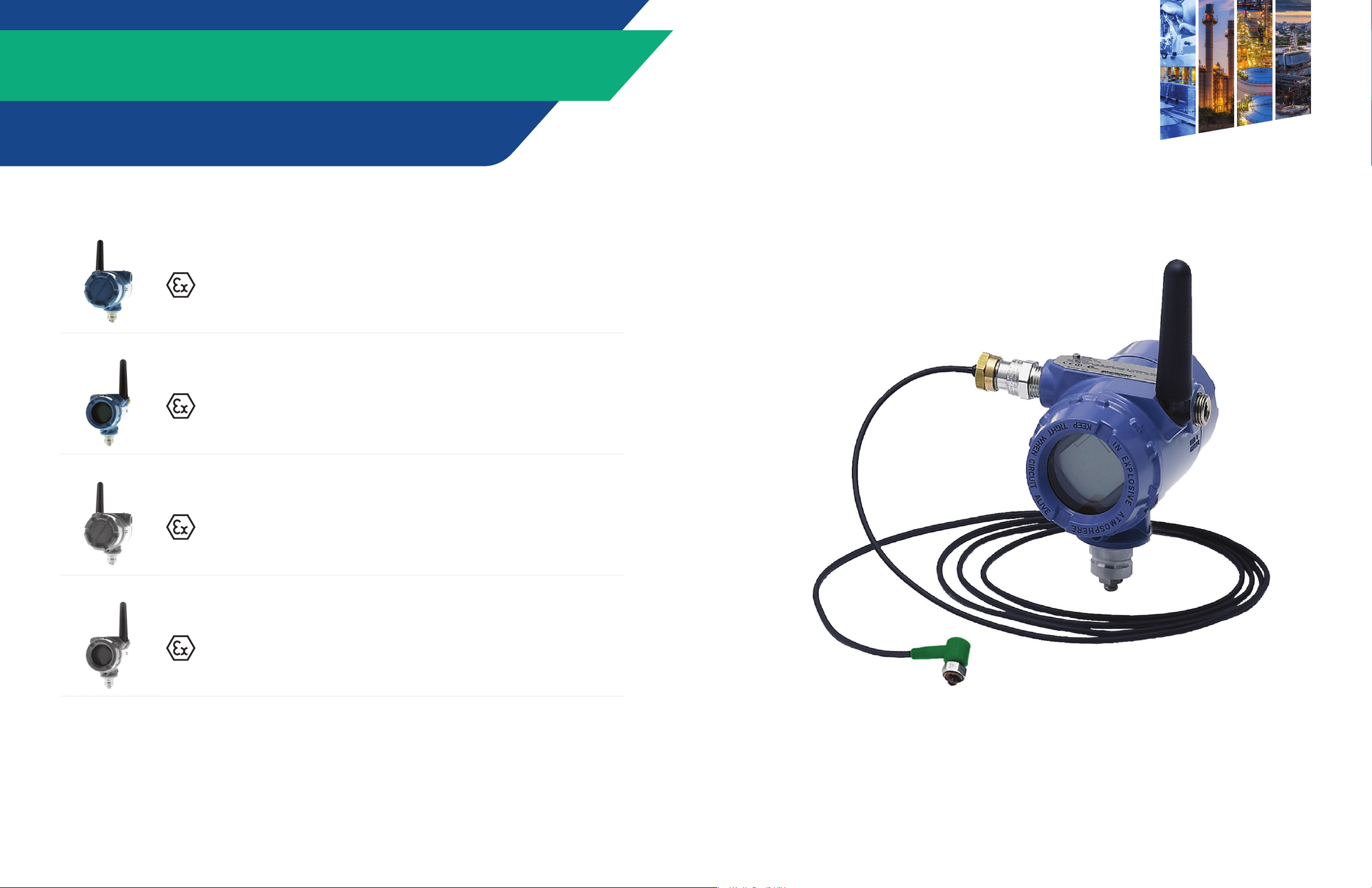

AMS 9420 Wireless Vibration Transmitter

AMS 9420

BASE UNITS

B9420WA1J - Aluminum

AMS 9420 W/O LCD, 2.4 GHZ WIRELESSHART (CL I, DIV I/CL I, DIV II / ZONE 0 / ZONE 2)

B9420WA1LJ - Aluminum

AMS 9420 W/LCD, 2.4 GHZ WIRELESSHART (CL I, DIV I/CL I, DIV II / ZONE 0 / ZONE 2)

B9420WA1SSJ – Stainless Steel

AMS 9420 W/O LCD, 2.4 GHZ WIRELESSHART (CL I, DIV I/CL I, DIV II / ZONE 0 / ZONE 2)

B9420WA1LSSJ – Stainless Steel

AMS 9420 W/LCD, 2.4 GHZ WIRELESSHART (CL I, DIV I/CL I, DIV II / ZONE 0 / ZONE 2)

46 47

AMS 9420 – Power Options and Accessories

POWER OPTIONS

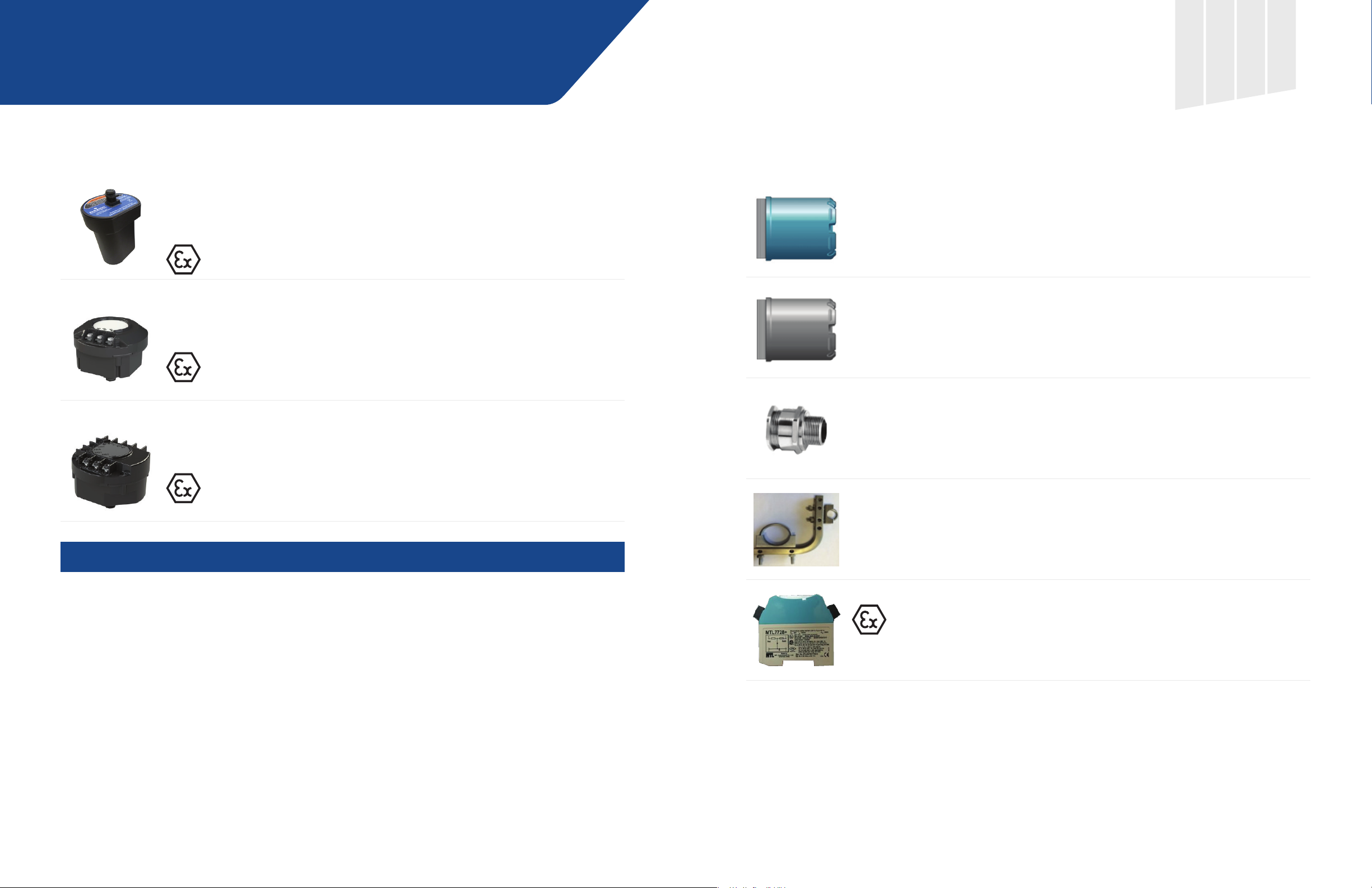

A0701PBU – EXTENDED LIFE SMART POWER MODULE

Specially designed for use with the AMS 9420, but may also be applicable for other Emerson transmitters.

Refer to specic device information for details.

Intrinsically Safe for use with the AMS 9420 – may be changed out in the hazardous area.

A9000PA – POWER ADAPTER
Power adapter for WirelessHART transmitters enables device to be powered by 10-28V external DC line

power. The adapter plugs into the same receptacle in place of the power module.

A9000PS-A – POWER/SIGNAL ADAPTER
Power and Signal adapter with 2 Accel inputs for the AMS 9420. Allows the device to be powered by

10-28V external DC power and accepts input signals from up to 2 standard 100 mV/g ICP accelerometers.

ACCESSORIES

B9000AL – EXT ALUM END CAP FOR EXT LIFE POWER MODULE

B9000SS – EXT SS END CAP FOR EXT LIFE POWER MODULE

MHM-62398-PBF – CABLE GLAND, 1/2IN NPT (3.3-8.64 MM) SAFETY RATED

For use with100 mV/g

A9420WFM – AMS 9420 BRACKET FOR FIELD MOUNTING

MHM-99515 – AMS 9420 POWER INPUT SAFETY BARRIER FOR DIV 1/ZONE 0 APPLICATIONS

48 49

AMS 9420 – Low Power Sensors with Integral Cable

(25 mV/g)

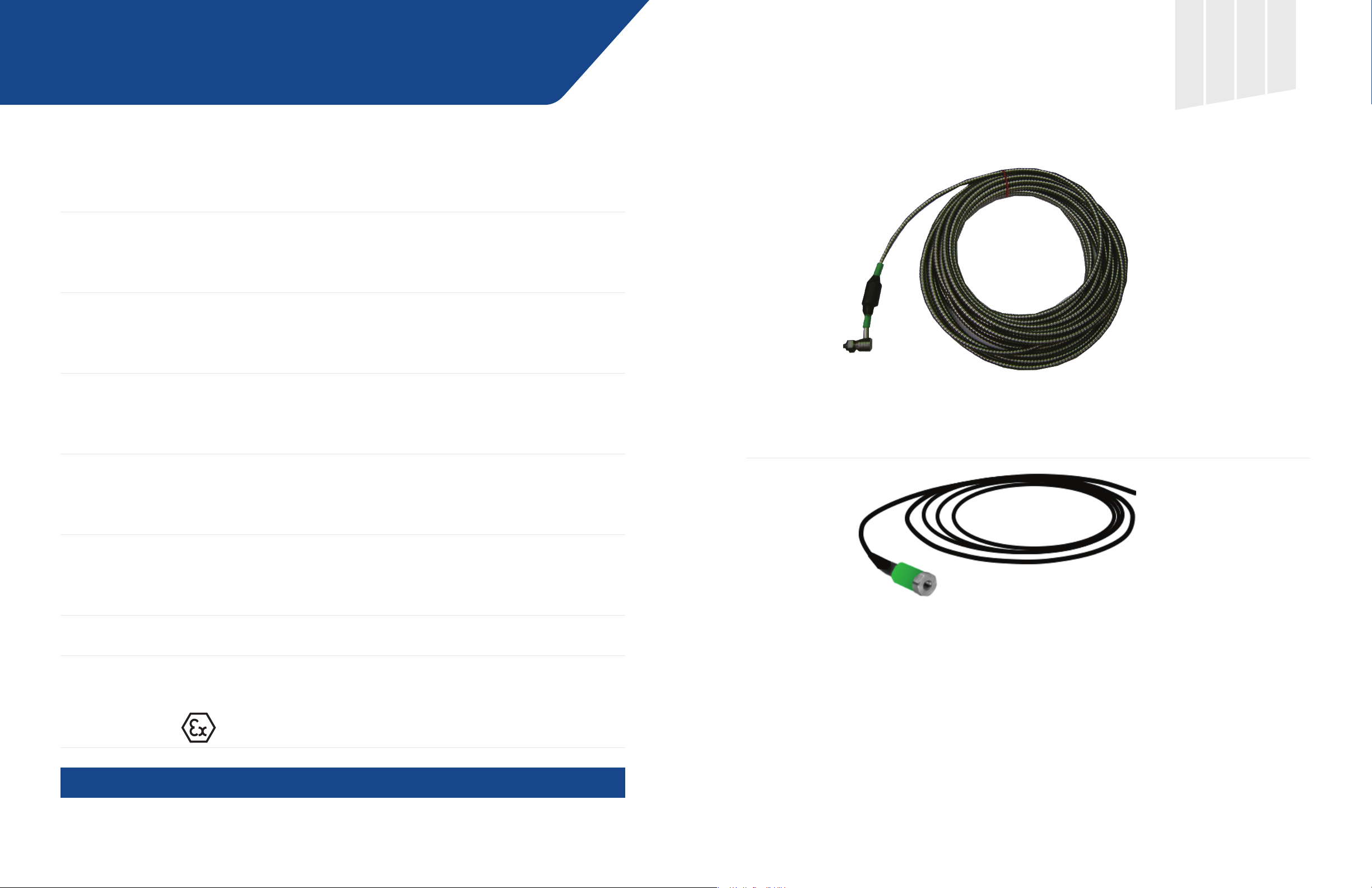

A0394RI – SPECIAL ORDER ACCEL, LOW PWR, RT ANG GREEN JKT, 10FT CBL, DIV 1/ZONE 0

A0394RI-1 – ACCEL, LOW PWR, RT ANG GREEN JKT, 30FT CBL, DIV 1/ZONE 0

A0394RI-4 – SPECIAL ORDER ACCEL, LOW PWR, RT ANG GREEN JKT, 95FT CBL, DIV 1/ZONE 0

2A0394RA – SPECIAL ORDER ACCEL, LOW PWR, RT ANG GREEN JKT, 10FT ARM CBL, DIV 1/ZONE 0

A0394RA-1 – ACCEL, LOW PWR, RT ANG GREEN JKT, 30FTARMCBL, DIV 1/ZONE 0

A0394RA-4 – SPECIAL ORDER ACCEL, LOW PWR, RT ANG GREEN JKT, 95FT CBL W/75FT ARM, DIV 1/ZONE 0

A0394RAC – SPECIAL ORDER ACCEL, LOW PWR, RT ANG GREEN JKT, 10FT ARM CBL W/PTFE, DIV 1/ZONE 0

A0394RAC-1 – ACCEL, LOW PWR, RT ANG GREEN JKT, 30FT ARM CBL W/PTFE, DIV 1/ZONE 0

A0394RAC-4 – ACCEL, LOW PWR, RT ANG GREEN JKT, 30FT ARM CBL W/PTFE, DIV 1/ZONE 0

A0394DI – SPECIAL ORDER ACCEL W/TEMP, LOW PWR, RT ANG BLUE JKT, 10FT CBL, DIV 1/ZONE 0

A0394DI-1 – ACCEL W/TEMP, LOW PWR, RT ANG BLUE JKT, 30FT CBL, DIV 1/ZONE 0

A0394DI-4 – SPECIAL ORDER ACCEL W/TEMP, LOW PWR, RT ANG BLUE JKT, 95FT CBL, DIV 1/ZONE 0

A0394DA – SPECIAL ORDER ACCEL W/TEMP, LOW PWR, RT ANG, 10FT ARM CBL, DIV 1/ZONE 0

A0394DA-1 – ACCEL W/TEMP, LOW PWR, RT ANG, 30FT ARM CBL, DIV 1/ZONE 0

A0394DA-4 – SPECIAL ORDER ACCEL W/TEMP, LOW PWR, RT ANG, 95FT CBL W/75FT ARM, DIV 1/ZONE 0

A0394DAC – AL ORDER ACCEL W/TEMP, LOW PWR, RT ANG, 10FT ARM CBL W/PTFE, DIV 1/ZONE 0

A0394DAC-1 – ACCEL W/TEMP, LOW PWR, RT ANG, 30FT ARM CBL W/PTFE, DIV 1/ZONE 0

A0394DAC-4 – SPECIAL ORDER ACCEL W/TEMP, LOW PWR, RT ANG, 95FT CBL W/PTFE AND 75FT ARM, DIV 1/ZONE 0

A0394LC – LOW COST ACCEL, LOW PWR, TOP EXIT GREEN JKT, 10FT CBL, DIV 1/ZONE 0

** MHM-85493 ** – Mounting Base 1/2-20 UNF OD thds, integral 1/4-28 stud, tapped 1/8in hex hole

(for A0394 and A0322 Series accels)

A0394RA-1

ACCEL, LOW PWR, RIGHT ANGLE GREEN JACKET,

30FT ARMORED CABLE, DIV 1/ZONE 0

A0394LC

LOW COST ACCEL, LOW PWR, TOP EXIT GREEN JKT,

10FT CABLE, DIV 1/ZONE 0

25 mV/g

50 51

AMS 6500 ATG Protection System

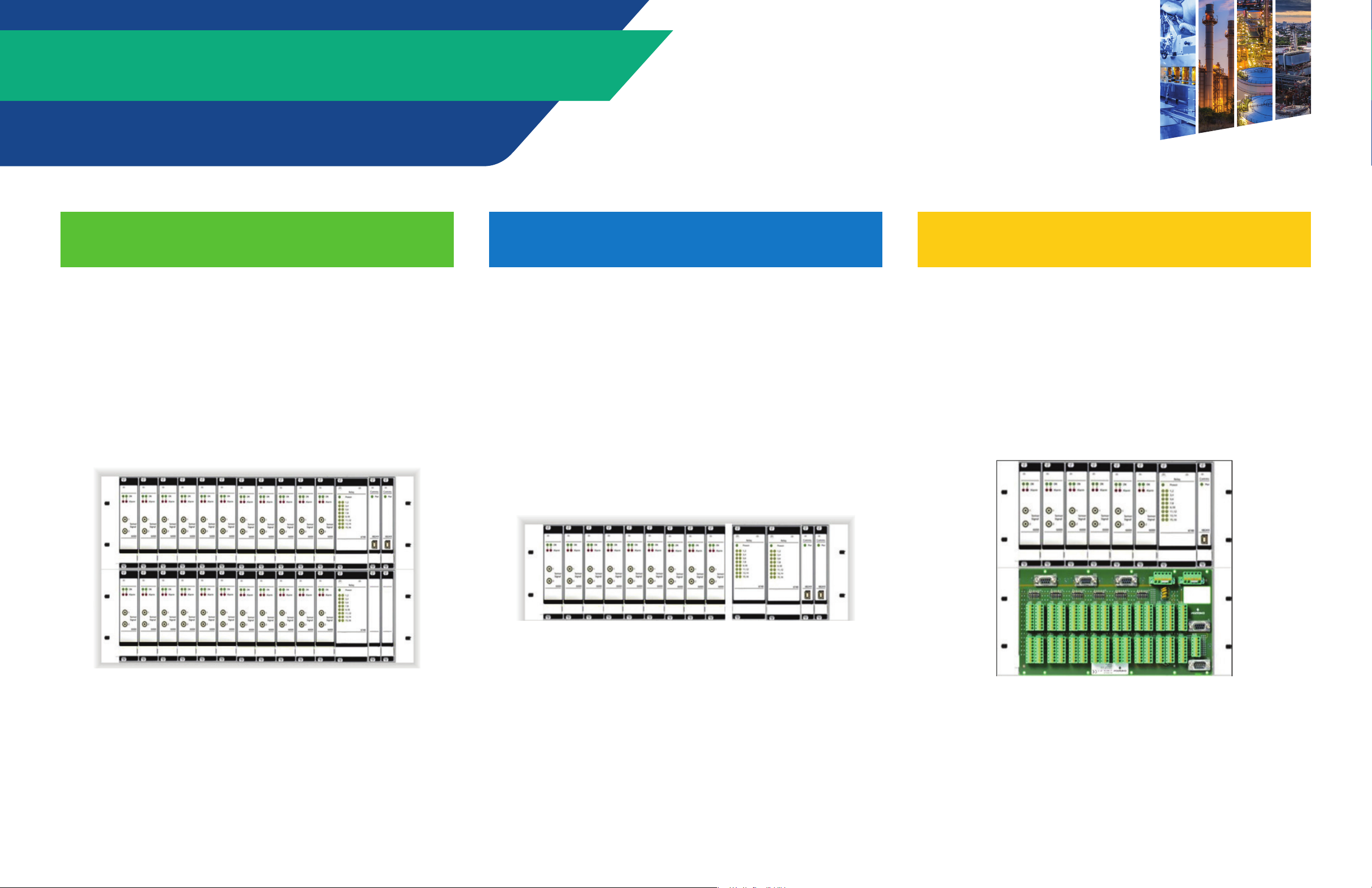

AMS 6500 ATG Form Factors

Standard Rack

A6500-SR

 3U height (one rack) / 6U (two racks)

 19 inch wide (84 HP)

 240mm depth (+100mm installation space)

 Rear termination

 Each rack chassis (3U) for:

z Up to two communication cards (A6500-CC)

z One single relay card (A6500-RC)

z Up to 11 UM or TP cards (A6500-UM and/or A6500-TP)

Redundant Relay Rack

A6500-RR

 3U height (one rack) / 6U (two racks)

 19 inch wide (84 HP)

 240mm depth (+100mm installation space)

 Rear termination

 Each rack chassis (3U) for:

z Up to two communication cards (A6500-CC)

z Up to two relay cards (A6500-RC)

z Up to 9 UM or TP cards (A6500-UM and/or A6500-TP)

Front Termination Rack

A6500-FR

 6U height

 12.25 inch wide (50HP)

 240mm depth

 Front termination

 Compact rack chassis for:

z One communication card (A6500-CC)

z One single relay card (A6500-RC)

z Up to 6 UM or TP cards (A6500-UM and/or A6500-TP)

52 53

A6910 Configuration Kit

Bill of Material

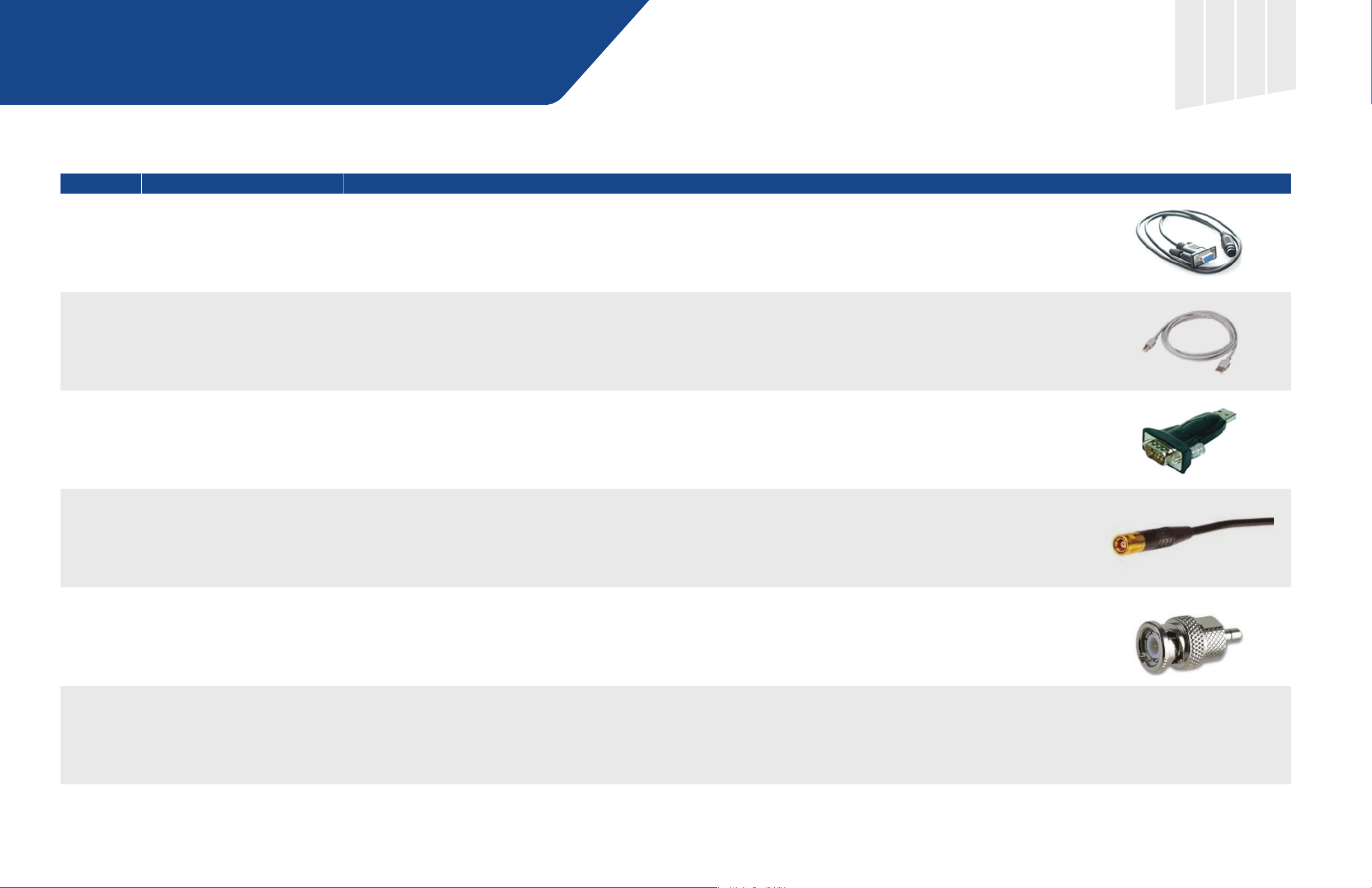

Quantity Model Number Product Description

1 MHM-6XXX-CONFIGCABLE AMS 6500 & AMS 6300 SIS V1 CONFIGURATION CABLE

Approx. 2m cable length, Sub-D 9 pole (female) connection (PC) and PS2 connection (Card)

1 MHM-6XXX-USB-CABLE AMS 6500 ATG & AMS 6300 SIS V2 CONFIGURATION CABLE

Approx. 1m cable length, USB-A connection (PC) and USB-B connection (Card)

1 MHM-6XXX-USB-ADTR RS232 TO USB-A ADAPTER (USB 2.0), INCL. 0.7M CABLE

Spectra 112315 USB to RS-232 converter,

Length of included USB connection cable approx. 0.7m, Sub-D 9 pole (male) and USB 2.0 (compatible to USB 1.1) connection, up to 115.2kbps baud rate,
driver for Windows XP & Windows 7 (32- & 64Bit)

2 MHM-6XXX-SMBCABLE SMB SIGNAL OUTPUT CABLE

Approx. 3m cable length, Subclic SMB connection (both sides)

2 MHM-6XXX-SMBADTR SMB TO BNC ADAPTER

Approx. 30mm length, Subclic SMB connection (Input) and BNC connection (Output)

1 Documentation CD Product Manuals

54 55

AMS 6500 Machinery Health Monitor
Prediction System

AMS 6500

RACK VERSIONS

ALL RACKS INCLUDE PEAKVUE AND MODBUS

A6500MS-12 MONITOR

12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A6500MS-24 MONITOR
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS
A6500TS-12 TRANSIENT
12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A6500TS-24 TRANSIENT
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS

A6500MR-12 MONITOR
12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A6500MR-24 MONITOR
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS
A6500TR-12 TRANSIENT
12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A6500TR-24 TRANSIENT
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS

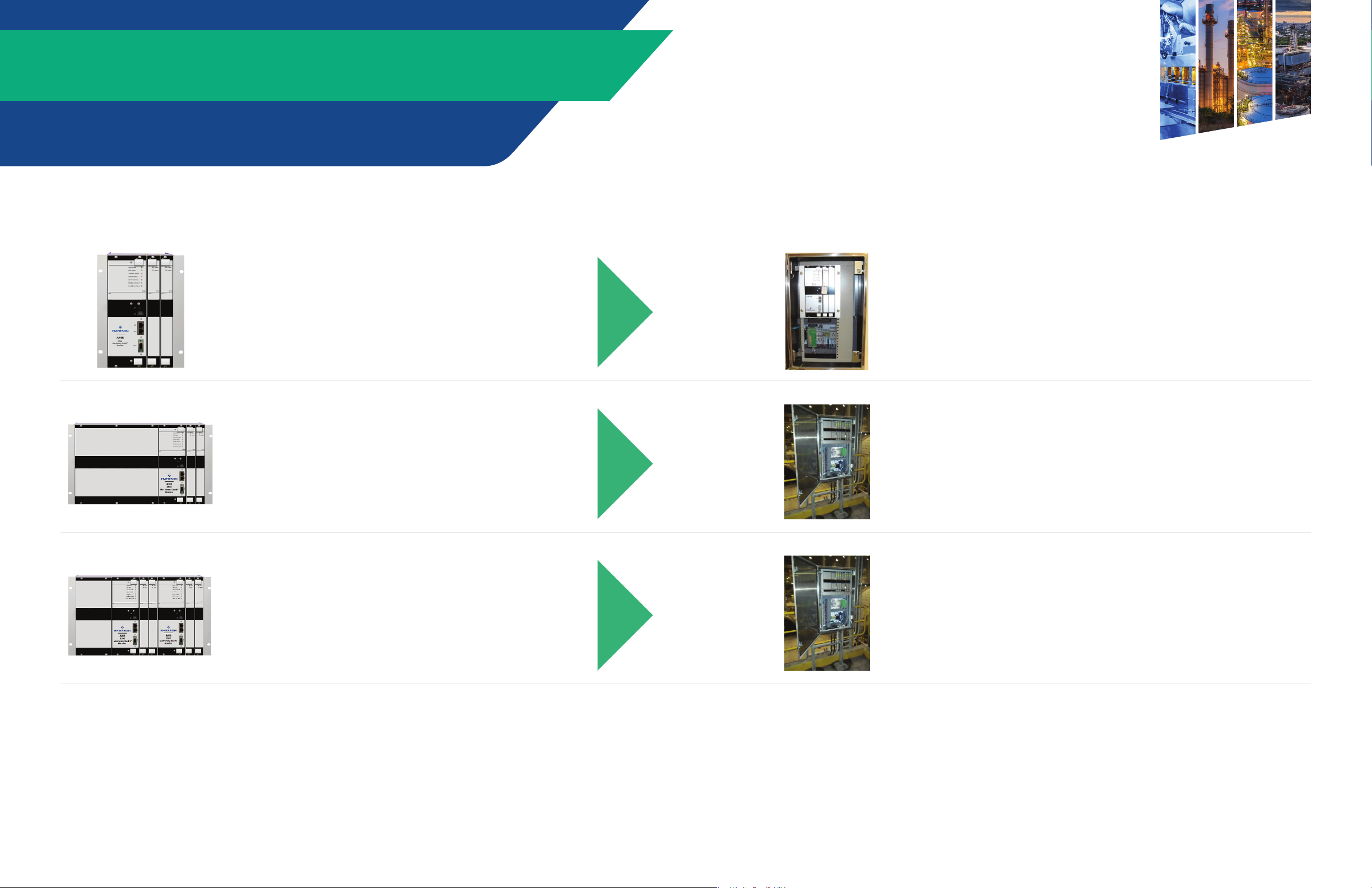

WALL MOUNT CABINETS

RACKS ASSEMBLED WITH CABINET IF PURCHASED AT THE SAME TIME

A6500MS-24-ENCL-IC WALL MOUNT CABINET

12 or 24 CHANNEL RACK
24” TALL x 16” WIDE x 12” DEEP

A6500PRE-SS-WM-24-IC WALL MOUNT CABINET
12 or 24 CHANNEL RACK
36” TALL x 24” WIDE x 12” DEEP

A6500MR-36 MONITOR
36 ANALOG, 6 TACHOMETER & 6 RELAY CHANNELS
A6500MR-48 MONITOR
48 ANALOG, 8 TACHOMETER & 8 RELAY CHANNELS
A6500TR-36 TRANSIENT
36 ANALOG, 6 TACHOMETER & 6 RELAY CHANNELS
A6500TR-48 TRANSIENT
48 ANALOG, 8 TACHOMETER & 8 RELAY CHANNELS

56 57

A6500PRE-SS-WM-48-IC WALL MOUNT CABINET
36 or 48 CHANNEL RACK
36” TALL x 24” WIDE x 12” DEEP

AMS 2600 – portable AMS 6500

VERSIONS

ALL AMS 2600 SYSTEMS INCLUDE PEAKVUE AND MODBUS

A2600M7 MONITOR

12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A2600M8 MONITOR
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS

A2600T7 TRANSIENT
12 ANALOG, 2 TACHOMETER & 2 RELAY CHANNELS
A2600T8 TRANSIENT
24 ANALOG, 4 TACHOMETER & 4 RELAY CHANNELS

AMS 2600 PORTABLE
12 or 24 CHANNEL RACK

20.25” TALL x 8.25” WIDE x 16” DEEP
30 lb

58 59

A0322 – Accelerometers with Integral Cable

STANDARD, TOP EXIT (2 WIRE)

A0322LC ACCEL 100MV/G ±10% TOP EXIT 10’ CABLE 0.5HZ-10KHZ IP68

A0322LC-1 ACCEL 100MV/G ±10% TOP EXIT 30’ CABLE 0.5HZ-10KHZ IP68

A0322LC-2 ACCEL 100MV/G ±10% TOP EXIT 50’ CABLE 0.5HZ-10KHZ IP68

AGENCY RATED, TOP EXIT (2 WIRE)

A0322LC-EX ACCEL 100MV/G ±10% TOP EXIT 10’ CABLE 0.5HZ-10KHZ IP68 ATEX

A0322LC-1-EX ACCEL 100MV/G ±10% TOP EXIT 30’ CABLE 0.5HZ-10KHZ IP68 ATEX

WITH TEMPERATURE OUTPUT (3 WIRE)

A0322DS ACCEL/TEMP 100MV/G ±10% TOP EXIT 10’ CABLE 0.5HZ-10KHZ IP68 CE

A0322DS-1 ACCEL/TEMP 100MV/G ±10% TOP EXIT 30’ CABLE 0.5HZ-10KHZ IP68 CE

STANDARD, SWIVELER, SIDE EXIT (2 WIRE)

A0322RI ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ CABLE 0.43HZ-10KHZ IP68 CE

A0322RI-1 ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 30’ CABLE 0.43HZ-10KHZ IP68 CE

EMERSON
ACCELEROMETER
ADVANTAGES

1. PEAKVUE TUNED; BEST PEAKVUE READINGS

2. CALIBRATION WITH EACH SENSOR

3. 10% SENSITIVITY UNCERTAINITITY

4. ONE SOURCE RESPONSIBILITY FOR EVERYTHING

A0394RI-2 ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 50’ CABLE 0.43HZ-10KHZ IP68 CE

ARMORED CABLE, SWIVELER, SIDE EXIT (2 WIRE)

A0322RA ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ ARMOR CBL 0.43-10KHZ IP68 CE

A0322RA-1 ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 30’ ARMOR CBL 0.43-10KHZ IP68 CE

A0322RA-2 ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 50’ ARMOR CBL 0.43-10KHZ IP68 CE

AGENCY RATED, ARMORED, SWIVELER, SIDE EXIT (2 WIRE)

A0322RA-EX ACCEL 100MV/G ±10% SIDE EX SWIVEL 10’ ARMOR CBL .43-10K IP68 CE ATEX

A0322RA-1-EX ACCEL 100MV/G ±10% SIDE EX SWIVEL 30’ ARMOR CBL 0.43-10K IP68 CE ATEX

WITH TEMPERATURE OUTPUT, SWIVELER, SIDE EXIT (3 WIRE)

A0322DR ACCEL/TEMP 100MV/G ±10% SIDE EXIT SWIVEL 10’ CABLE 0.5HZ-10K IP68 CE

A0322DR-1 ACCEL/TEMP 100MV/G ±10% SIDE EXIT SWIVEL 30’ CABLE 0.5HZ-10K IP68 CE

60 61

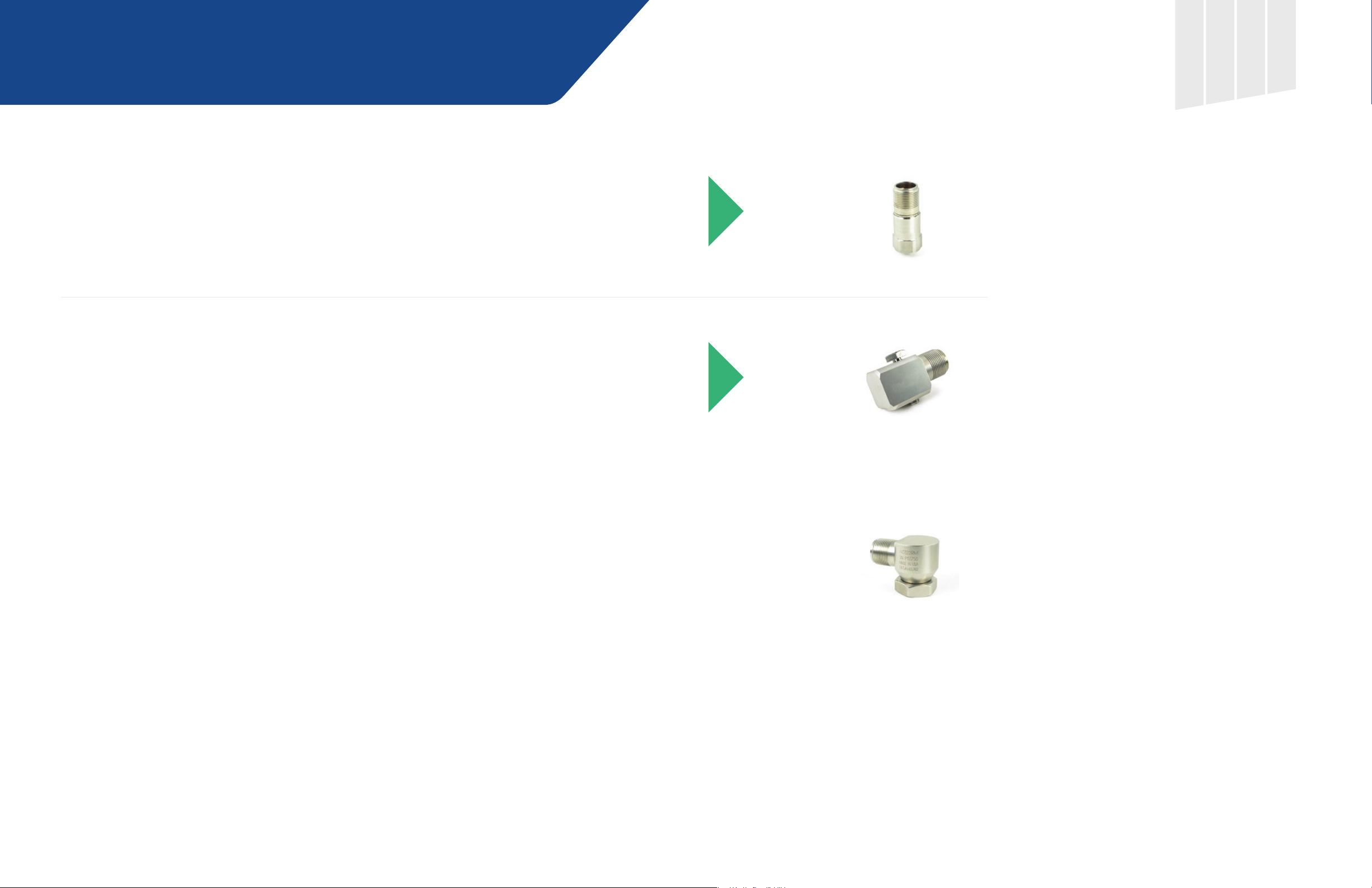

A0322 – Accelerometers with Connectors

STANDARD, TOP EXIT (2 PIN)

A0322L5 ACCEL 100MV/G ±10% TOP EXIT C5015 CONNECTOR 0.5HZ-10KHZ IP68 CE

AGENCY RATED, TOP EXIT (2 PIN)

A0322L5-EX ACCEL 100MV/G ±10% TOP EXIT C5015 CONN 0.5HZ-10KHZ IP68 CE CSA ATEX

STANDARD, SIDE EXIT (2 PIN)

A0322R5 ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ CABLE 0.43HZ-10KHZ IP68 CE

HIGH TEMPERATURE, SIDE EXIT (2 PIN)

A0322R5-HT ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ CABLE 0.43HZ-10KHZ IP68 CE

THERMO SHOCK COMPETENT, SIDE EXIT (2 PIN) (NOTE: NOT PEAKVUE TUNED) NO PICTURE

A0322RTS ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ CABLE 0.43HZ-10KHZ IP68 CE

THIS SENSOR CAN WITHSTAND COLD WATER WASHUPS WITHOUT CRACKING

EMERSON
ACCELEROMETER
ADVANTAGES

1. PEAKVUE TUNED; BEST PEAKVUE READINGS

2. CALIBRATION WITH EACH SENSOR

3. 10% SENSITIVITY UNCERTAINITITY

4. ONE SOURCE RESPONSIBILITY FOR EVERYTHING

STANDARD, SWIVELER, SIDE EXIT (2 WIRE)

A0322RM ACCEL 100MV/G ±10% SIDE EXIT SWIVEL 10’ ARMOR CBL 0.43-10KHZ IP68 CE

62 63

Other Sensors and Cables for Sensors
with Connectors

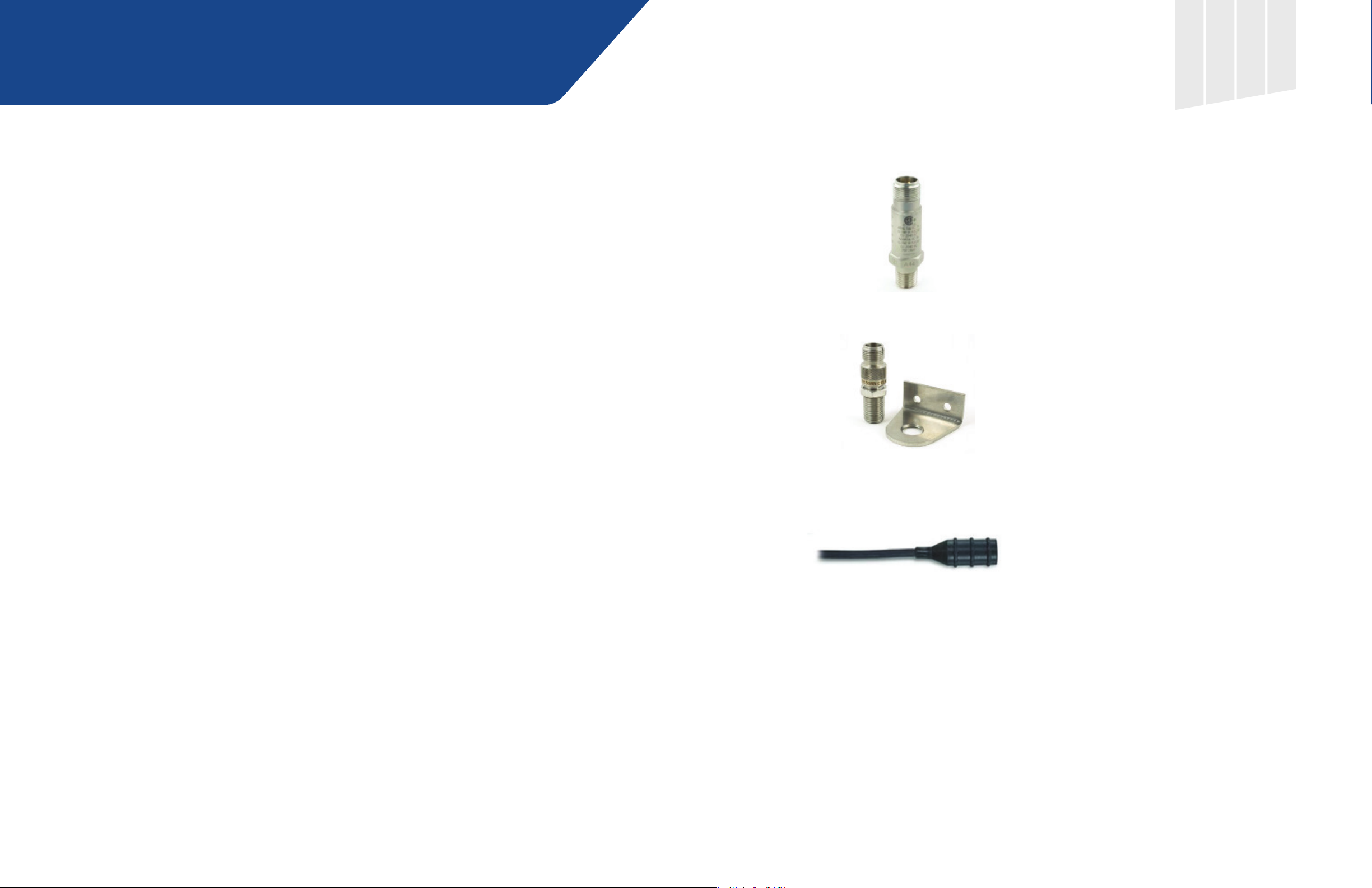

DYNAMIC PRESSURE SENSOR, TOP EXIT (2 PIN)

A0730DP DYNAMIC PRESS 100MV/PSI ±15% TOP C5015 CONN 0.5HZ-60KHZ IP68

TACHOMETER, PASSIVE MAGNETIC (2 PIN)

V425 PASSIVE MAGNETIC WITH BRACKET & 2 PIN C5015 CONNECTOR

STANDARD CABLE WITH C5015 BOOT CONNECTOR, (2 PIN)

A612-NA-09-0 SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 9M/30’ LONG, BLUNT CUT

A612-NA-18-0 SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 18M/60’ LONG, BLUNT CUT

A612-NA-30-0 SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 30M/100’ LONG, BLUNT CUT

BNC CONNECTOR, STANDARD CABLE WITH C5015 BOOT CONNECTOR, (2 PIN)

A612-NA-09-B SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 9M/30’ LONG, MALE BNC NO PICTURE

A612-NA-18-B SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 18M/60’ LONG, MALE BNC

A612-NA-30-B SENSOR CABLE, C5015 2Pin PUSH ON BOOT, 9M/30’ ARMOR, 30M/100’ LONG, BLUNT CUT

ARMORED CABLE WITH C5015 BOOT CONNECTOR, (2 PIN)

A612-AR-09-0 SENSOR CABLE, C5015 2Pin PUSH ON BOOT, ARMOR 9M/30’ LONG, BLUNT CUT NO PICTURE

A612-AR-18-0 SOR CABLE, C5015 2Pin PUSH ON BOOT, 9M/30’ ARMOR, 18M/60’ LONG, BLUNT CUT

A612-AR-30-0 SENSOR CABLE, C5015 2Pin PUSH ON BOOT, NO ARMOR, 30M/100’ LONG, BLUNT CUT

THESE CABLES WILL CONNECT DIRECTLY TO AN AMS 2600

THESE CABLES HAVE A MAXIMUM OF 30’ OF ARMOR

64 65

AMS Trex Device Communicator

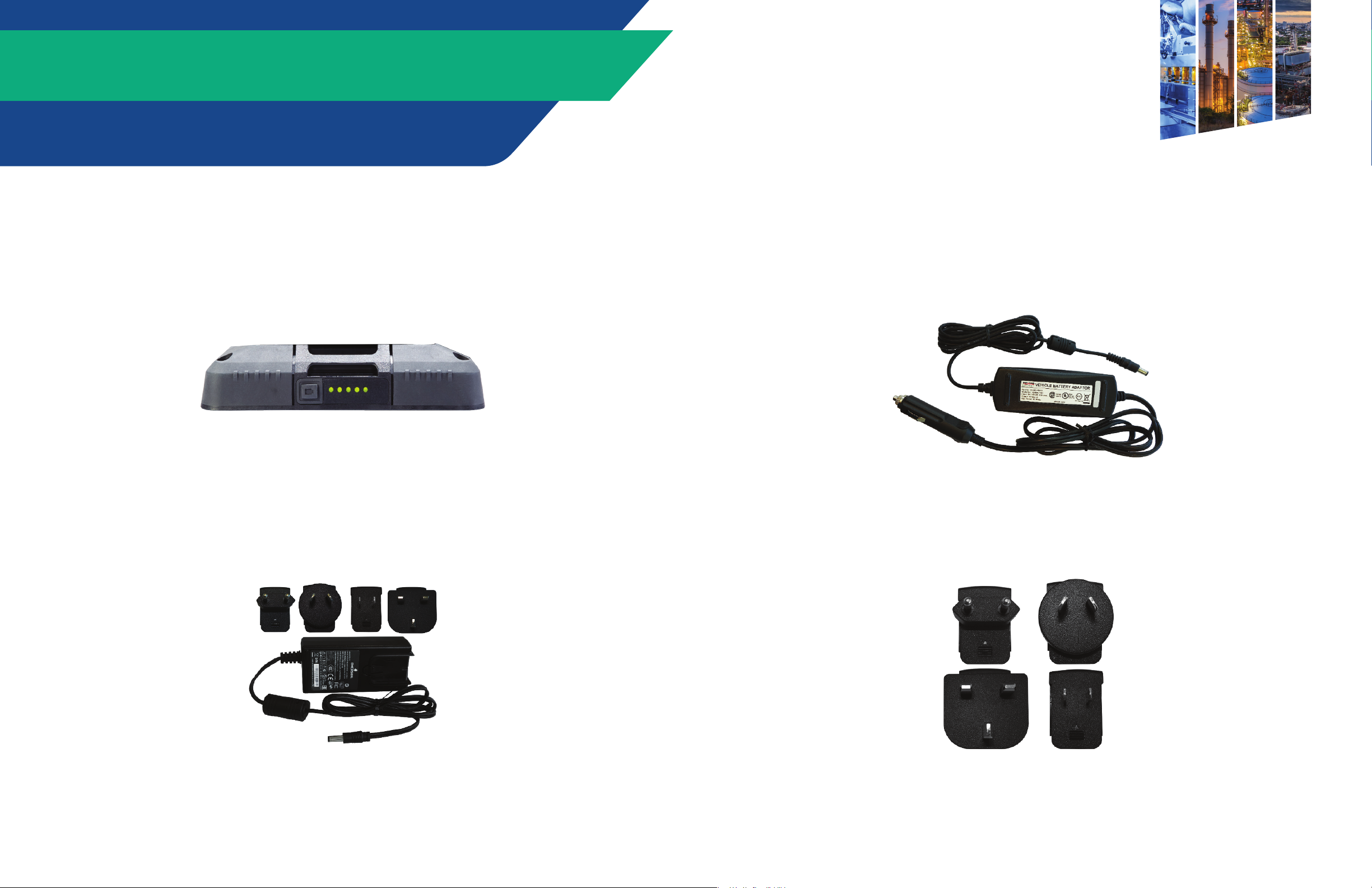

AMS Trex Power Accessories

Rechargeable Li-Ion Power Module

 TREX-0002-1211

 TREX-0002-3611 (with 3 years premium coverage)

AC Adapter (includes US, EU, UK, AU outlet plugs)

 TREX-0003-0011

DC Adapter (12v vehicle accessory outlet)

 TREX-0003-0022

AC Outlet Plugs (replacement set includes US, EU, UK, AU)

 TREX-0003-0002

66 67

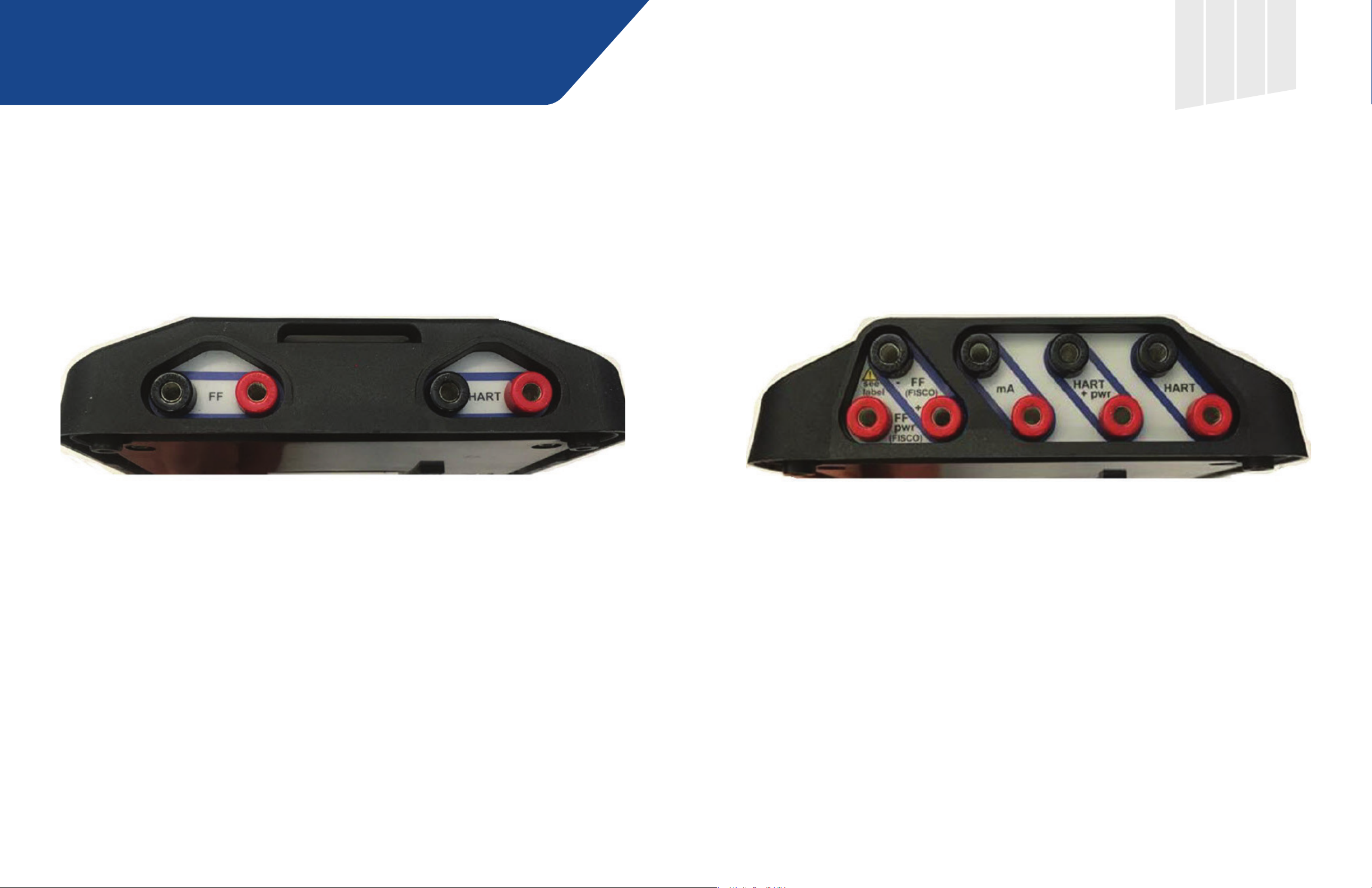

AMS Trex Communication Module

Device Communicator Communication Module

 TREX-PMDC-1211

 All spare parts with 3 years of premium support (Communication Modules and Power Supply) are no longer available

for purchase. Customers are encouraged to purchase AMS Trex Premium Support for the entire unit to receive
one FREE repair per calendar year if needed.

Device Communicator Plus Communication Module

 TREX-PMDP-1211

 All spare parts with 3 years of premium support (Communication Modules and Power Supply) are no longer available for

purchase. Customers are encouraged to purchase AMS Trex Premium Support for the entire unit to receive
one FREE repair per calendar year if needed.

68 69

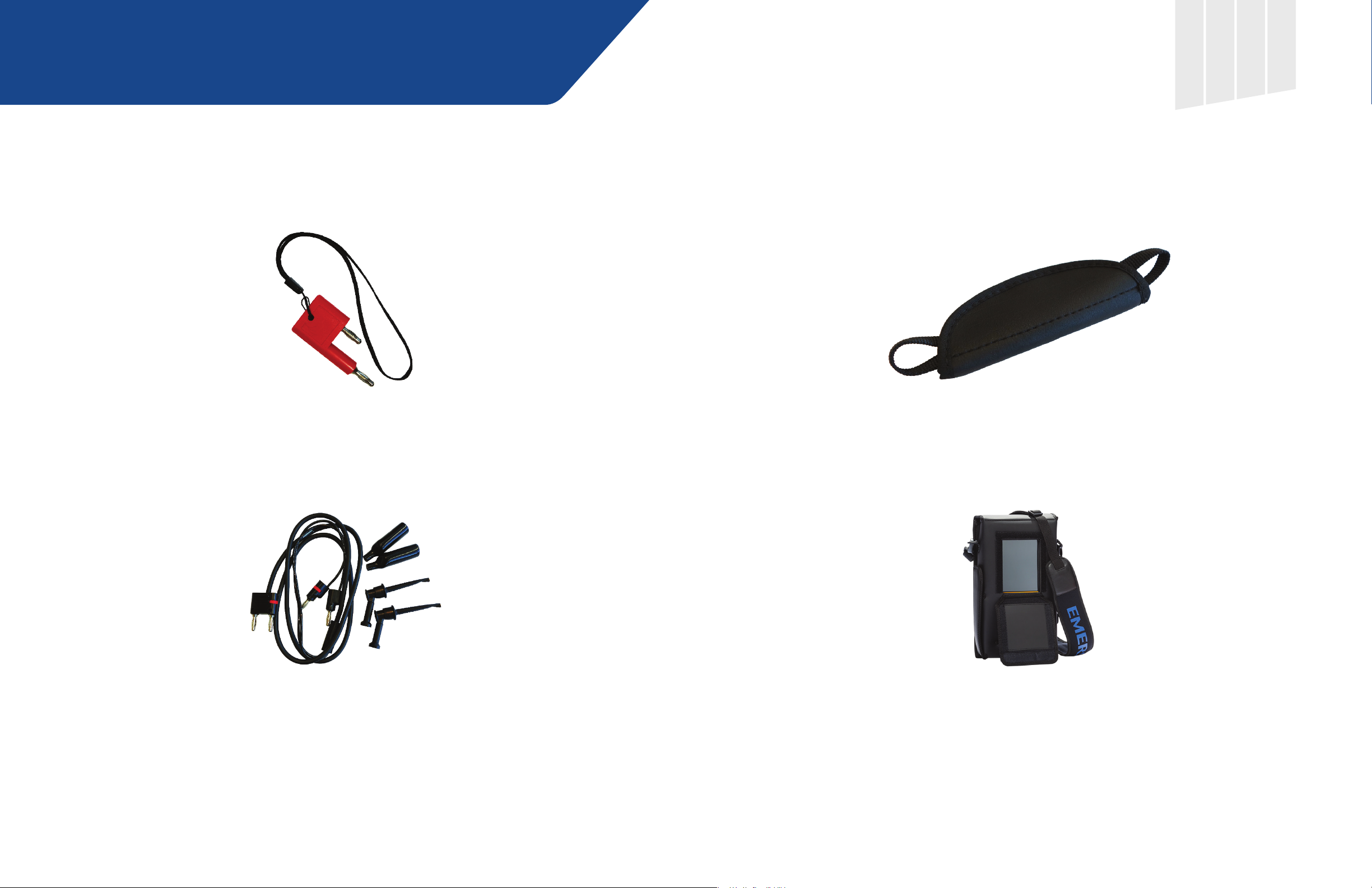

Others

FOUNDATION Fieldbus Power Plus

 TREX-FFPA-0001

Lead Set with connectors

 TREX-0004-0001

Hand Strap (replacement set of 2)

 TREX-0005-0002

Carrying Case ( includes hand & shoulder straps )

 TREX-0005-0011

70 71

Others

Shoulder Strap (replacement for use with carrying case)

 TREX-0005-0009

Magnetic Hanger

 TREX-0005-0004

USB cable (USB to micro USB)

 TREX-0004-0002

Stand ( replacement integral to communication module)

 TREX-0012-0011

72 73

Contact Us

www.emerson.com/contactus

© 2021, Emerson. All rights reserved.

The Emerson logo is a trademark and service mark of Emerson Electric Co. The AMS logo is a mark of one of the Emerson family of companies.
All other marks are the property of their respective owners.

The contents of this publication are presented for information purposes only, and while diligent efforts were made to ensure their accuracy,
they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use
or applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve

the designs or specications of our products at any time without notice.
