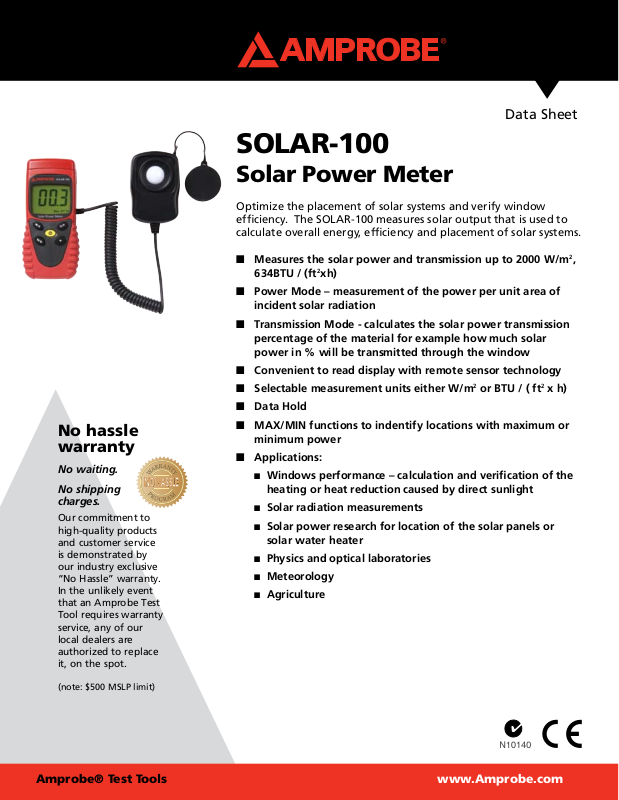

Amprobe SOLAR-100 Specifications
Data Sheet
SOLAR-100
Solar Power Meter
Optimize the placement of solar systems and verify window
efficiency. The SOLAR-100 measures solar output that is used to
calculate overall energy, efficiency and placement of solar systems.
n Measures the solar power and transmission up to 2000 W/m2,
2
634BTU / (ft
n Power Mode – measurement of the power per unit area of
incident solar radiation
n Transmission Mode - calculates the solar power transmission
percentage of the material for example how much solar
power in % will be transmitted through the window
n Convenient to read display with remote sensor technology
n Selectable measurement units either W/m
n Data Hold
xh)
2
or BTU / ( ft2 x h)
No hassle
warranty
No waiting.
No shipping
charges.
Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.
(note: $500 MSLP limit)
n MAX/MIN functions to indentify locations with maximum or
minimum power
n Applications:
n Windows performance – calculation and verification of the
heating or heat reduction caused by direct sunlight
n Solar radiation measurements
n Solar power research for location of the solar panels or
solar water heater
n Physics and optical laboratories
n Meteorology
n Agriculture
Amprobe® Test Tools
www.Amprobe.com
SOLAR-100 Solar Power Meter
Data Sheet
Specifications
Display 3½ digits, 2000 readings
Range 1999 W/m2, 634BTU / (ft2xh)
Accuracy Typically within +/- 10W/m2 [+/-3 BTU/ (ft2xh)] or +/- 5% whichever is greater in sunlight
Additional temperature included error +/- 0.38 W/m2 / º C [+/-0.12 BTU/ (ft2xh)] / º C] from 25 º C
Angular Accuracy Cosine corrected < 5% for angles < 60º
Drift < +/- 2% per year
Over-input Display “OL”
Sampling Time Approx 0.25 second
Operating Temp. & Humidity 5ºC to 40ºC (41ºF to 104ºF)below 80% RH
Dimensions 132(L) x 60(W) x 38(H) mm (5.2 x 2.4 x 1.5 in)
Weight About 150g (0.3 lb)
Battery 1 X 9V Alkaline Battery (NE DA 1604A, IE C 6LR61) included
Amprobe® Test Tools
website: www.Amprobe.com
email: info@amprobe.com
Everett, WA 98203
Tel: 877-AMPROBE
Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
Tel.: +49 (0) 7684 8009 - 0
Amprobe® Test Tools
©2009 Amprob e Test Tools. All rights re serve d.
7/2009 3520400 Rev A
