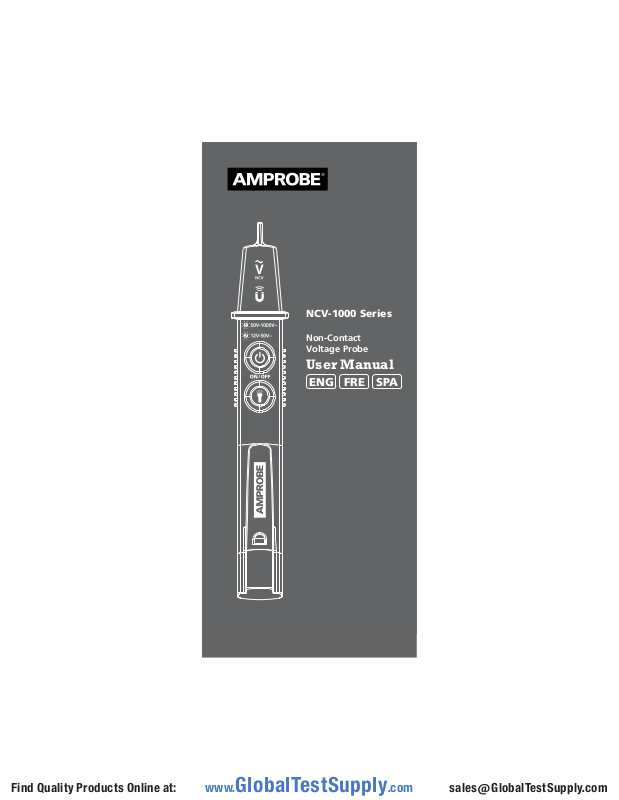

Amprobe NCV-1020 User manual

NCV-1000 Series

Non-Contact
Voltage Probe

User Manual

ENG FRE SPA

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

NCV-1000 Series

Non-Contact Voltage
Probe

User Manual

9/2018, 6009474 B
©2018 Amprobe
All rights reserved. Printed in China

English

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Limited Warranty and Limitation of Liability

Your Amprobe product will be free from defects in material
and workmanship for one year from the date of purchase
unless local laws require otherwise. This warranty does
not cover fuses, disposable batteries or damage from
accident, neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling. Resellers
are not authorized to extend any other warranty on the
behalf of Amprobe. To obtain service during the warranty
period, return the product with proof of purchase to an
authorized Amprobe Service Center or to an Amprobe
dealer or distributor. See Repair Section for details. THIS
WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES

- WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING
IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED.
MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limitation of
an implied warranty or of incidental or consequential damages,
this limitation of liability may not apply to you.

Repair

All Amprobe returned for warranty or non-warranty repair
or for calibration should be accompanied by the following:
your name, company’s name, address, telephone number,
and proof of purchase. Additionally, please include a brief
description of the problem or the service requested and
include the test leads with the meter. Non-warranty repair
or replacement charges should be remitted in the form of a
check, a money order, credit card with expiration date, or a
purchase order made payable to Amprobe.

In-warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery
before requesting repair. During the warranty period,
any defective test tool can be returned to your Amprobe
distributor for an exchange for the same or like product.

for a list of distributors near you. Additionally, in the United
States and Canada, in-warranty repair and replacement units
can also be sent to an Amprobe Service Center (see address
below).

Non-warranty Repairs and Replacement – United States and
Canada

Non-warranty repairs in the United States and Canada
should be sent to an Amprobe Service Center. Call Amprobe
or inquire at your point of purchase for current repair and
replacement rates.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Non-Contact Voltage Probe

1

2

3

4

6

7

5

1

Probe tip with voltage sensor, magnetic sensor

(NCV-1040-EUR only) and indication.

2

Finger guard

3

Power ON/OFF / range selection

(NCV-1030 and 1040 only)

4

Light button (NCV-1030 and 1040 only)

5

Battery cap

6

Flashlight (NCV-1030 and 1040 only)

7

Voltage range

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Non-Contact Voltage Probe

CONTENTS

SYMBOLS ...................................................... 1

SAFETY INFORMATION ................................2

FEATURES .....................................................3

APPLICATIONS ..............................................3

OPERATING INSTRUCTIONS .........................4

SPECIFICATIONS ............................................6

BATTERY REPLACEMENT & CARE ................ 7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SYMBOLS

Caution! Risk of electric shock



Caution! Refer to the explanation in



this instruction sheet

Double insulated



Equipment is for measurements
performed at the source of a low
voltage installation (i.e. electrical

CAT IV

meters and measurements on primary
over current protection devices and
ripple control units)

Battery

Solid particle protection: dust tight IP6x

Liquid ingress protection: water jets IPx5

Do not dispose of this product as
unsorted municipal waste-contact a



qualified recycler

Complies with European Directives



Canadian Standards Association (NRTL/C)

Conforms to relevant Australian standards

Conforms to relevant South Korean
EMC Standards

For Use by Competent Persons

Anyone using this instrument should be
knowledgeable and trained about the risks
involved with measuring voltage, especially in an
industrial setting, and the importance of taking
safety precautions. The instrument should be
tested before and after use to ensure that it is in
good working condition.

1

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SAFETY INFORMATION
 Warning

To prevent possible electrical shock, fire, or
personal injury:

• If the Tester is used in a manner not specified
by the manufacturer, protection provided by
the Tester may be affected.

• Test on a known live source within the rated
AC voltage range of the product both before
and after use to ensure the Tester is in good
working condition.

• When using the Tester, voltage may be
present even if the tip does not glow. The
Tester indicates active voltage in the presence
of electrostatic fields of sufficient strength
generated from the source voltage. If the field
strength is low, the Tester may not provide
indication of live voltage. Lack of an indication
occurs if the Tester is unable to sense the
presence of voltage which may be influenced
by several factors including, but not limited to:

- Position of the earth conductors in the
environment under test

- Shielded wire/cables

- Thickness and type of insulation

- Distance from the voltage source

- Fully-isolated users that prevent an
effective ground

- Receptacles in recessed sockets / differences
in socket design

- Condition of the Tester and batteries

• The Tester is not the appropriate tool to check
for the absence of voltage. Use a voltage
tester therefore.

• Do not use the Tester if it appears damaged or
is not operating properly. Closely examine the
probe tip for cracks or breakage before use. If
in doubt, have the Tester serviced.

• Do not apply more than the rated voltage as
marked on the Tester.

• When operating the Tester, keep fingers
behind the finger guard.

• Do not use the Tester if it is not flashing upon
power on.

• Use caution with voltages above 30 V AC as a
shock hazard may exist.

• Comply with local and national safety requirements.

• Use proper protective equipment as required
by local or national authorities.

2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

FEATURES

The Amprobe NCV-1000 series Non-Contact
Voltage (NCV) tester provides maximum safety
and convenience for detecting AC voltage without
interrupting electrical systems. Designed to
conveniently fit in your shirt pocket, the
NCV-1000 series tester performs in indoor and
outdoor settings. Safety tested to the highest
category measurement, CAT IV 1000 V, as well as
IP65 water and dust resistant, the NCV-1000 series is
fit for the toughest industrial applications.

• Non-contact voltage detection up to 1000 V AC

• Built-in flashlight (NCV-1030 and NCV-1040)

• Water and dust resistant - IP65 rated

• Audible (buzzer) and visual (LED) voltage indication

• On/off switch

• Auto power off (NCV-1030 and NCV-1040)

• CAT IV 1000 V safety rated

• Magnetic solenoid testing (NCV-1040)

• Low battery indication (NCV-1030 and NCV-1040)

NCV-1020 NCV-1030 NCV-1040

NCV Default
range

NCV High
Sensitivity
range (AC)

Magnetic
solenoid
testing

* Note: High sensitivity range is optimized for
12 to 50 V range with a maximum indication up
to 1000 V. Using the tester above 50 V in high
sensitivity range may affect polarity indication.

Your shipping carton includes a Tester, user manual
and 2 1.5 V AAA batteries (installed).

50 to 1000 V 50 to 1000 V 50 to 1000 V

(AC)

12 to 50 V *12 to 50 V

*

•

APPLICATIONS

• Detects the presence of AC voltage in cables,
circuit breakers, wall sockets, junction boxes,
fuses, extension cords and more.

• Tests voltage through wire insulation.

• Identifies cable breaks in wires, cords and
lighting systems connected in series.

• Identifies polarity (line vs. neutral) of receptacles
and cables. (Depending of the internal
construction and dimension of receptacles in
different countries this application may be
influenced.)

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

• Tests voltage without contact.

• Safety CAT IV 1000 V rated for a wide range of
applications including industrial, commerical,
and residential.

• Water-resistant IP65 rated for indoor and
outdoor use.

• Magnetic solenoid detection to diagnose
electromagnets and relays (NCV-1040 only).

OPERATING INSTRUCTIONS
Turning the Tester ON

To turn the Tester on, momentarily press the ON/OFF
button. A continual single flash visually indicates the
Tester is active in default voltage range

Press the ON/OFF button again to switch to high
sensitivity range

only).

A continual double flash indicates the Tester’s
sensitivity range is at the 12 to 50 V range.
Note: Please remove the battery insulator before first
time use.

(12 to 50 V for NCV-1030 and NCV-1040

(50 to 1000 V).

Turning the Tester OFF

Press and hold the ON/OFF button for longer
than two second to turn the Tester off. The absence
of flash at the tip indicates the Tester is inactive.

Auto Power Off

To save battery life, the NCV-1030 and NCV-1040
are enabled with an automatic power off feature.
The Tester will automatically power off after

approximately 3 minutes of non-use.

Checking for the Presence of AC Voltage

To test for the presence of AC voltage in a
receptacle, insert the tip of the Tester. To test a
wire, approach the wire with the tip of the Tester.
Switch between default (50 V to 1000 V AC) and
high sensitivity (12 V to 50 V AC) voltage range
detection by short pressing the ON/OFF button
(NCV-1030 and 1040 only). The LED at the tip of the
Tester will illuminate solid bright red and a buzzer
will sound when AC voltage is detected. Note: High
sensitivity range is optimized for 12 to 50 V range
with a maximum indication up to 1000 V. Using
the tester above 50 V in high sensitivity range may
affect polarity indication.

When operating the Tester, keep fingers behind
the finger guard.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Checking for the Magnetic Field (NCV-1040)

The NCV-1040 can test for a magnetic field in
addition to AC voltage detection. A solid yellow
LED will illuminate when a magnetic field is
detected.

Note: If AC voltage and a magnetic field are
detected simultaneously, the Tester will flash both

red and yellow.

Testing receptacle:

LINE Contact

m

Testing wire and cable breaks:

LINE

m

Cable break

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Using the Flashlight

A flashlight is installed in the NCV-1030 and NCV-1040.
Activate the flashlight by pressing the button .
To switch OFF the flashlight press the button again.

SPECIFICATIONS

Operating
Voltage Range

Voltage
Detection
(default
range)/
sensitivity

Detection of
Magnetic Field/
sensitivity

Measuring
category

Ingress
protection

Temperature
Range

Storage
Conditions

Operating
Altitude

Duty Cycle Continuous
Power Supply 2 x 1.5 V LR03 AAA batteries
Current

Consumption
Dimensions

(L x W x H)
Weight

(with batteries
installed)

Safety
Compliance

NCV-1020:

50-1000 Vac, 50-400 Hz
NCV-1030:

12-50 Vac, 50-1000 Vac, 50-400 Hz
NCV-1040:

12-50 Vac, 50-1000 Vac, 50-400 Hz

LED and buzzer indications at
approximately 5 mm (0.20 in)
distance from a wire carrying
120 Vac

NCV-1040:
approximately >2.5 mT

CAT IV 1000V

IP65

32 °F to 104 °F (0 °C to 40 °C),
≤ 80% RH

14 °F to 104 °F (-10 °C to 40 °C),
≤ 85% RH

≤ 6561 ft (2000 m)

Approximately 80 mA

6.14 x 0.92 x 1.08 in
(156.2 x 23.5 x 27.5 mm)

NCV-1020: Approx. 0.12 lb (58 g)
NCV-1030: Approx. 0.13 lb (60 g)
NCV-1040: Approx. 0.136 lb (62 g)

IEC 61010-1 3rd Ed., UL 61010-1 3rd
Ed., UL 61010-2-030, CAN/CSA-C22.2
No.61010-1-12, CAN/CSA-C22.2 No.
61010-2-030-12 to CAT IV 1000 V,
Pollution degree 2, IP65

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

EMC
Compliance

Certifications

IEC 61326-1
Korea (KCC): Class A Equipment

(Industrial Broadcasting &
Communication Equipment)

[1]

This product meets requirements
for industrial (Class A) electromagnetic
wave equipment and the seller or
user should take notice of it. This
equipment is intended for use in
business environments and is not to
be used in homes.

[1]



BATTERY REPLACEMENT & CARE
Low Battery Indication

The NCV-1030 and NCV-1040 Testers provide a low
battery indication in the form of a slowly blinking
red LED upon power on when battery level is low
and the batteries should be replaced. At that point
no voltage indication is possible.

The NCV-1020 does not provide the same
indication; instead, batteries will need to be
replaced when no LED appears upon power on.

Battery Replacement

To remove the battery cap, use the thumb grip to
pull it upwards and outwards. Remove batteries
and replace with (2) AAA 1.5 V alkaline batteries,
noting the battery orientation as shown on the
side of the tester. Replace the cap.

If the Tester will not be used for a long period
of time, remove the batteries.

Latch

Battery Cap

Pull to open the

battery cap

Cleaning

The Tester can be cleaned with a mild solution of
soapy water. Apply sparingly with a soft cloth and
allow to dry completely before using. Do not use
aromatic hydrocarbons, gasoline, or chlorinated
solvents for cleaning.

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
