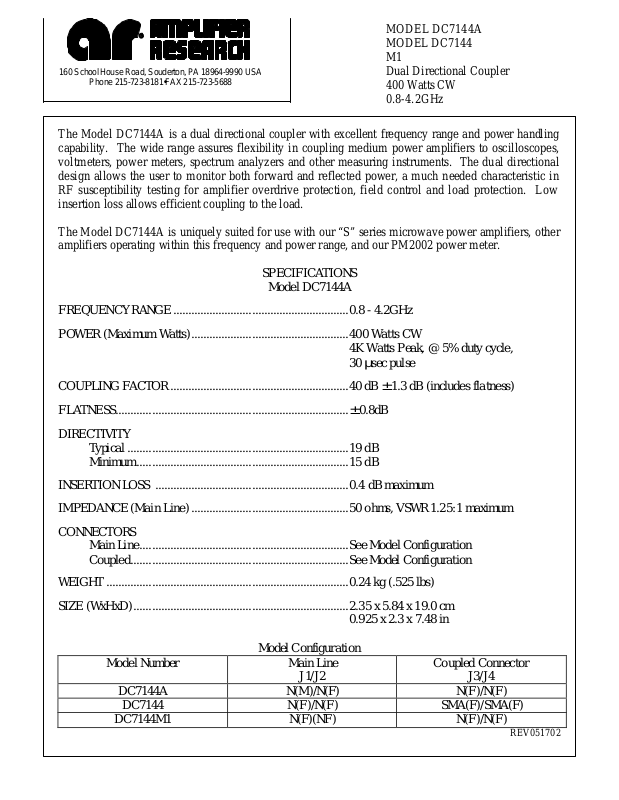

Amplifier Research DC7144 Data Sheet

160 School House Road, Souderton, PA 18964-9990 USA

Phone [phone]•FAX [phone]

MODEL DC7144A

0.8-4.2GHz

The Model DC7144A is a dual directional coupler with excellent frequency range and power handling

MODEL DC7144
M1
Dual Directional Coupler
400 Watts CW

capability. The wide range assures flexibility in coupling medium power amplifier s to oscilloscopes,
voltmeters, power meters, spectrum analyzers and other measuring instruments. The dual directional
design allows the user to monitor both forward and reflected power, a much needed characteristic in
RF susceptibility testing for amplifier overdrive protection, field control and load protection. Low
insertion loss allows efficient coupling to the load.

The Model DC7144A is uniquely suited for use with our “S” series microwave power amplifiers, other
amplifiers operating within this frequency and power range, and our PM2002 power meter.

SPECIFICATIONS

Model DC7144A

FREQUENCY RANGE ..........................................................0.8 - 4.2GHz

POWER (Maximum Watts) ....................................................400 Watts CW

4K Watts Peak, @ 5% duty cycle,
30 µsec pulse

COUPLING FACTOR ...........................................................40 dB ± 1.3 dB (includes flatness)

FLATNESS.............................................................................± 0.8dB

DIRECTIVITY

Typical .........................................................................19 dB

Minimum......................................................................15 dB

INSERTION LOSS ................................................................0.4 dB maximum

IMPEDANCE (Main Line) ....................................................50 ohms, VSWR 1.25:1 maximum

CONNECTORS

Main Line.....................................................................See Model Configuration

Coupled........................................................................See Model Configuration

WEIGHT ................................................................................0.24 kg (.525 lbs)

SIZE (WxHxD).......................................................................2.35 x 5.84 x 19.0 cm

0.925 x 2.3 x 7.48 in

Model Configuration

Model Number Main Line

J1/J2

Coupled Connector

J3/J4

DC7144A N(M)/N(F) N(F)/N(F)

DC7144 N(F)/N(F) SMA(F)/SMA(F)

DC7144M1 N(F)(NF) N(F)/N(F)

REV051702
