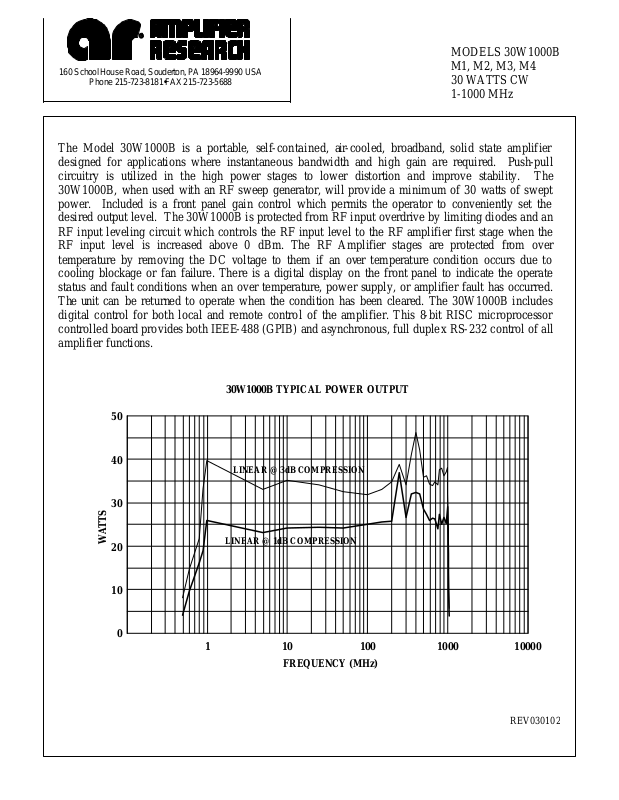

Page 1
160 School House Road, Souderton, PA 18964-9990 USA
Phone 215-723-8181•FAX 215-723-5688
REV030102
MODELS 30W1000B
M1, M2, M3, M4
30 WATTS CW
1-1000 MHz
The Model 30W1000B is a portable, self-contained, air-cooled, broadband, solid state amplifier
designed for applications where instantaneous bandwidth and high gain are required. Push-pull
circuitry is utilized in the high power stages to lower distortion and improve stability. The
30W1000B, when used with an RF sweep generator, will provide a minimum of 30 watts of swept
power. Included is a front panel gain control which permits the operator to conveniently set the
desired output level. The 30W1000B is protected from RF input overdrive by limiting diodes and an
RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the
RF input level is increased above 0 dBm. The RF Amplifier stages are protected from over
temperature by removing the DC voltage to them if an over temperature condition occurs due to
cooling blockage or fan failure. There is a digital display on the front panel to indicate the operate
status and fault conditions when an over temperature, power supply, or amplifier fault has occurred.
The unit can be returned to operate when the condition has been cleared. The 30W1000B includes
digital control for both local and remote control of the amplifier. This 8-bit RISC microprocessor
controlled board provides both IEEE-488 (GPIB) and asynchronous, full duplex RS -232 control of all
amplifier functions.
50
40
30
WATTS
20
10
0

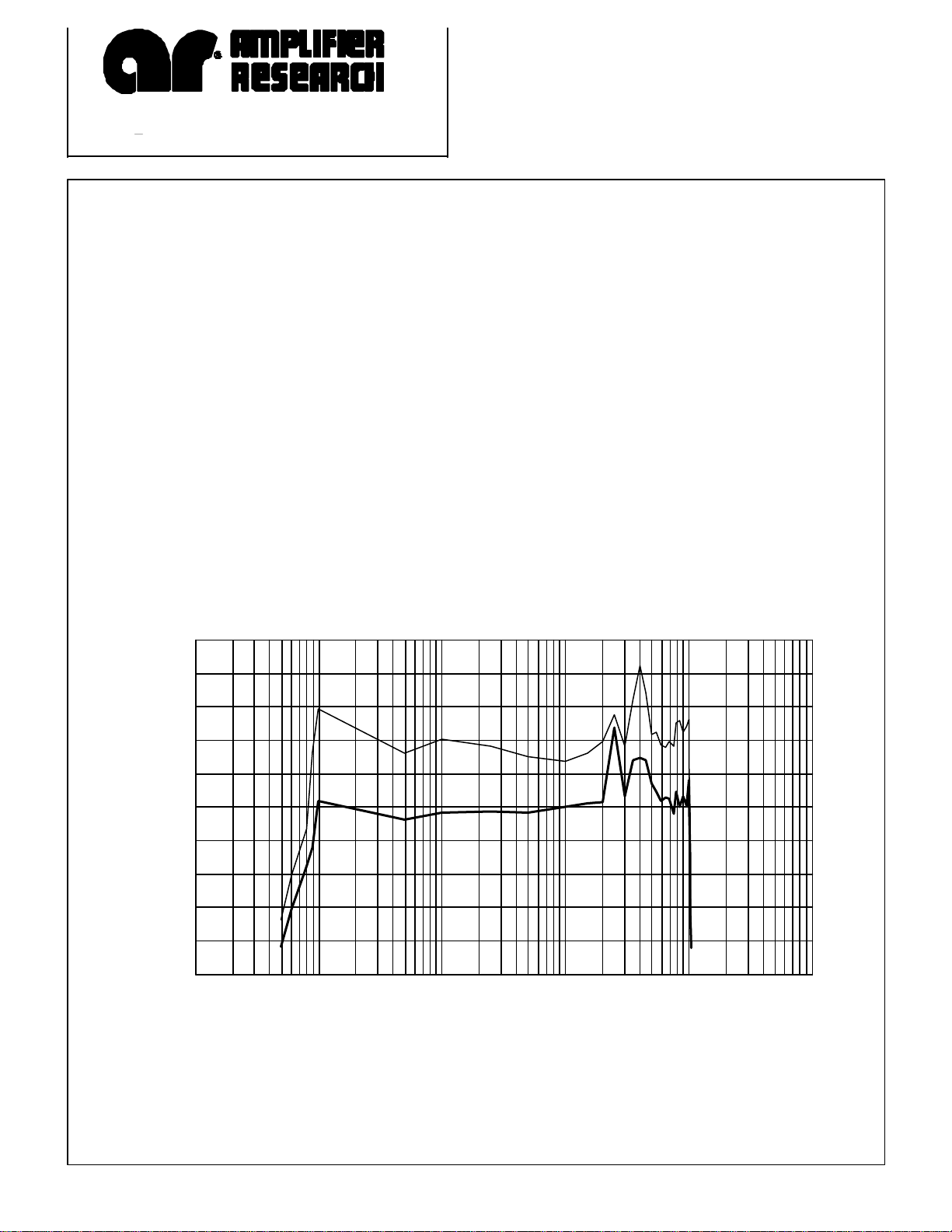

30W1000B TYPICAL POWER OUTPUT
LINEAR @ 3dB COMPRESSION
LINEAR @ 1dB COMPRESSION
1 10 100 1000 10000
FREQUENCY (MHz)
Page 2
SPECIFICATIONS
Model 30W1000B
RATED OUTPUT POWER.................................................................................. 30 watts minimum
INPUT FOR RATED OUTPUT........................................................................... 1.0 milliwatt maximum
POWER OUTPUT @ 3dB COMPRESSION
Nominal ............................................................................................................. 36 watts
Minimum........................................................................................................... 30 watts
POWER OUTPUT @ 1dB COMPRESSION
Nominal ............................................................................................................. 27 watts
Minimum........................................................................................................... 20 watts
FLATNESS........................................................................................................... ±1.0 dB typical
±1.5 dB maximum
FREQUENCY RESPONSE.................................................................................. 1-1000 MHz instantaneously
GAIN (at maximum setting)................................................................................. 45 dB minimum
GAIN ADJUSTMENT (Continuous Range)....................................................... 20 dB minimum (4096 steps remote)
INPUT IMPEDANCE.......................................................................................... 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE....................................................................................... 50 ohms, nominal
MISMATCH TOLERANCE *.............................................................................. 100% of rated power without foldback. Will operate
without damage or oscillation with any magnitude
and phase of source and load impedance.
MODULATION CAPABILITY............................................................................ Will faithfully reproduce AM, FM, or pulse
modulation appearing on the input signal
HARMONIC DISTORTION................................................................................ Minus 20 dBc maximum at 25 watts
THIRD ORDER INTERCEPT POINT................................................................ 52 dBm typical
PRIMARY POWER (selected automatically)...................................................... 90-132, 180-264 VAC
50/60 Hz, single phase
325 watts maximum
REMOTE INTERFACES..................................................................................... IEEE-488, RS-232
CONNECTORS
RF ................................................................................................................ Type N female
REMOTE CONTROL
IEEE-488......................................................................................................... 24 pin female
RS-232.............................................................................................................. 9 pin Subminiature D female
REMOTE INTERLOCK....................................................................................... 15 Pin Subminiature D
COOLING ............................................................................................................. Forced air (self contained fans)
WEIGHT............................................................................................................... See Model Configurations
SIZE (WxHxD)...................................................................................................... See Model Configurations
* See Application Note #27
MODEL CONFIGURATIONS
MODEL
NUMBER
RF INPUT RF OUTPUT WEIGHT WEIGHT
30W1000B Type N female on front panel Type N female on front panel 20.5 kg (45.0 lb)
30W1000BM1 Type N female on rear panel Type N female on rear panel 20.5 kg (45.0 lb)
30W1000BM2 Same as 30W1000B with enclosure removed for rack mounting 16.0 kg (35.0 lb)
30W1000BM3 Same as 30W1000BM1 with enclosure removed for rack mounting 16.0 kg (35.0 lb)
30W1000BM4 Same as 30W1000B – modified to operate when AC input applied
20.5 kg (45.0 lb)
Local/Remote Switch from toggle to rocker switch
50.3 x 15.5 x 37.6 cm
19.8 x 6.1 x 14.8 in
50.3 x 15.5 x 37.6 cm
19.8 x 6.1 x 14.8 in
48.3 x 12.7 x 37.6 cm
19.0 x 5.0 x 14.8 in
48.3 x 12.7 x 37.6 cm
19.0 x 5.0 x 14.8 in
50.3 x 15.5 x 37.6 cm
19.8 x 6.1 x 14.8 in
