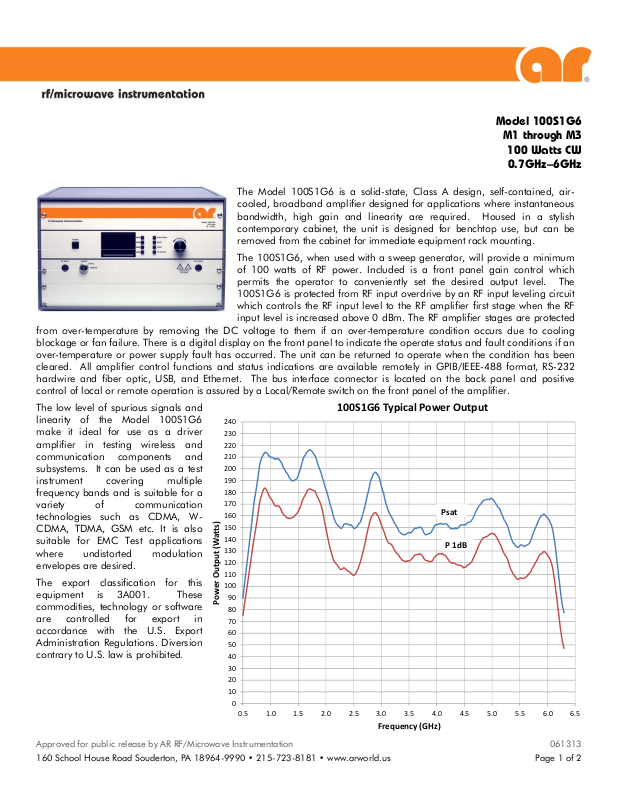

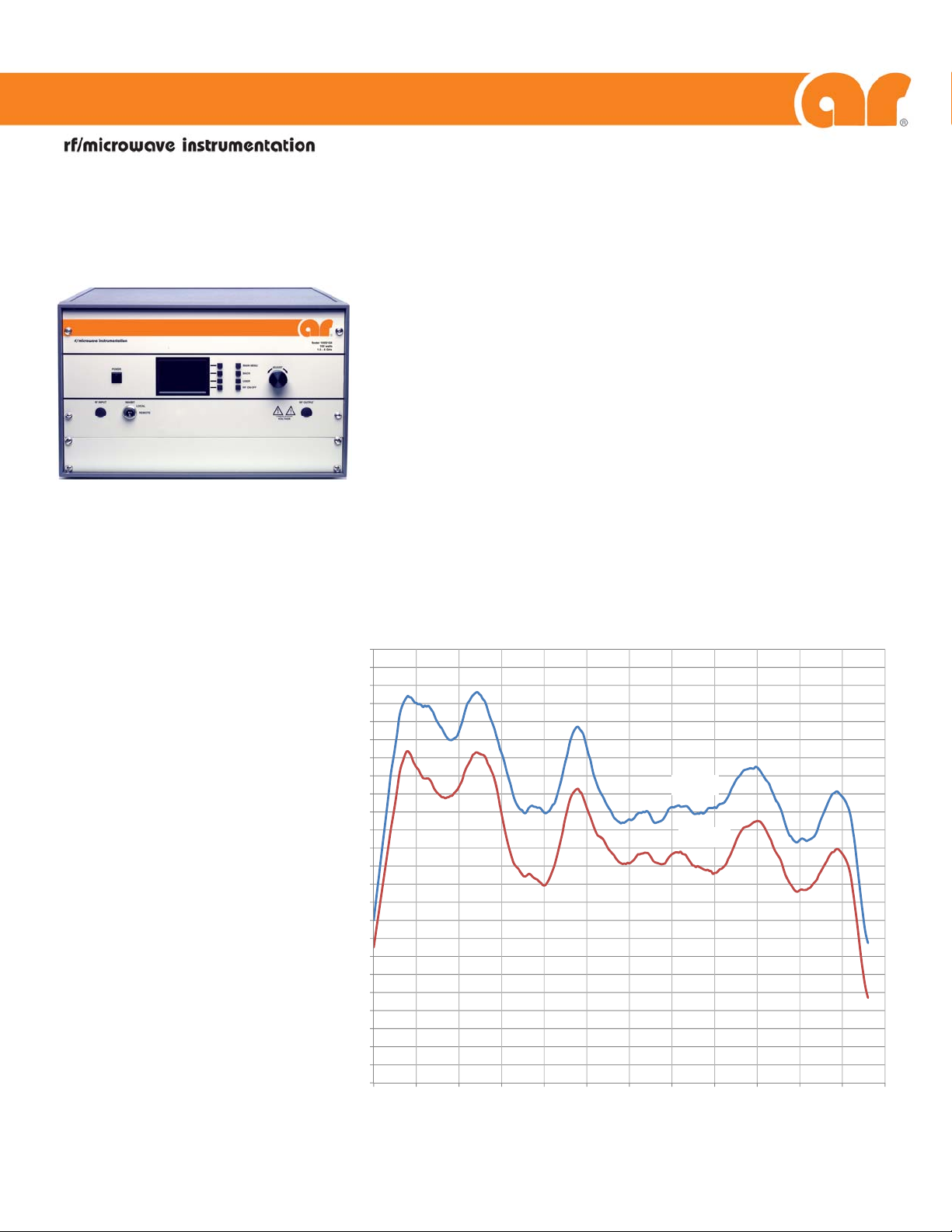

Page 1
Model 100S1G6
M1 through M3
100 Watts CW
0.7GHz–6GHz
The Model 100S1G6 is a solid-state, Class A design, self-contained, aircooled, broadband amplifier designed for applications where instantaneous
bandwidth, high gain and linearity are required. Housed in a stylish
contemporary cabinet, the unit is designed for benchtop use, but can be
removed from the cabinet for immediate equipment rack mounting.
The 100S1G6, when used with a sweep generator, will provide a minimum
of 100 watts of RF power. Included is a front panel gain control which
permits the operator to conveniently set the desired output level. The
100S1G6 is protected from RF input overdrive by an RF input leveling circuit
which controls the RF input level to the RF amplifier first stage when the RF
input level is increased above 0 dBm. The RF amplifier stages are protected
from over-temperature by removing the DC voltage to them if an over-temperature condition occurs due to cooling
blockage or fan failure. There is a digital display on the front panel to indicate the operate status and fault conditions if an
over-temperature or power supply fault has occurred. The unit can be returned to operate when the condition has been
cleared. All amplifier control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232
hardwire and fiber optic, USB, and Ethernet. The bus interface connector is located on the back panel and positive
control of local or remote operation is assured by a Local/Remote switch on the front panel of the amplifier.
The low level of spurious signals and
linearity of the Model 100S1G6
make it ideal for use as a driver
amplifier in testing wireless and
communication components and
subsystems. It can be used as a test
instrument covering multiple
frequency bands and is suitable for a
variety of communication
technologies such as CDMA, WCDMA, TDMA, GSM etc. It is also
suitable for EMC Test applications
where undistorted modulation
envelopes are desired.
The export classification for this
equipment is 3A001. These
commodities, technology or software
are controlled for export in
accordance with the U.S. Export
Administration Regulations. Diversion
contrary to U.S. law is prohibited.
240
230
220
210
200
190
180
170
160
150
140
130
120
110
100
90
PowerOutput(Watts)
80
70
60
50
40
30
20
10
0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5
Approved for public release by AR RF/Microwave Instrumentation 061313
160 School House Road Souderton, PA 18964-9990 • 215-723-8181 • www.arworld.us Page 1 of 2
100S1G6TypicalPowerOutput
Psat
P1dB
Frequency(GHz)
Page 2
RATED POWER OUTPUT ............................................... 100 watts minimum (0.7–6.0 GHz)
INPUT FOR RATED OUTPUT .......................................... 1.0 milliwatt maximum
POWER OUTPUT @ 3dB COMPRESSSION
Nominal ................................................................ 120 watts
Minimum ............................................................... 100 watts
POWER OUTPUT @ 1dB COMPRESSION
Nominal ................................................................ 100 watts
Minimum ............................................................... 80 watts
SMALL SIGNAL GAIN FLATNESS .................................... ±1.5 dB typical
±2.5 dB maximum
FREQUENCY RESPONSE ............................................... 0.7–6 GHz instantaneously
GAIN (at maximum setting) ........................................... 52 dB minimum
GAIN ADJUSTMENT
(Continuous Range) ................................................ 10 dB minimum
(4096 steps remote)
INPUT IMPEDANCE ....................................................... 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE ................................................... 50 ohms, nominal
MISMATCH TOLERANCE* ............................................. 100% of rated power without foldback. Will operate without damage or
MODULATION CAPABILITY ........................................... Will faithfully reproduce AM, FM, or pulse Modulation appearing on the input
THIRD ORDER INTERCEPT ............................................. 58 dBm typical
NOISE FIGURE ............................................................. 10 dB typical
HARMONIC DISTORTION ............................................. Minus 20 dBc maximum at 80 watts, (1.0-6.0 GHz)
Minus 15 dBc typical at 80 watts, (0.7–1.0 GHz)
SPURIOUS .................................................................... Minus 73 dBc Typ.
PHASE LINEARITY .......................................................... 1.0 deg/100 MHz, Typ
PRIMARY POWER (Selected Automatically) ...................... 90-132, 180-264 VAC
50/60 Hz, single phase
1100 watts maximum
CONNECTORS
RF.......................................................................... Type N female
REMOTE INTERFACES
IEEE-488 ............................................................ 24 pin
RS-232 .............................................................. 9 pin Subminiature D
RS-232 (fiber optic) ............................................. Type ST
USB 2.0 .............................................................. Type B
Ethernet .............................................................. RJ-45
SAFETY INTERLOCK ...................................................... 15 pin Subminiature D
COOLING .................................................................... Forced air (self contained fans)
EXPORT CLASSIFICATION ............................................. 3A001
MODEL RF INPUT RF OUTPUT WEIGHT SIZE (W x H x D)
100S1G6 Type N female, front panel Type N female, front panel 45 kg (100 lbs) 50.3 x 30 x 61 cm
100S1G6M1 Type N female, rear panel Type N female, rear panel 45 kg (100 lbs) 50.3 x 30 x 61 cm
100S1G6M2 Same as 100S1G6 with enclosure removed for rack mounting 34.5 kg (76 lbs) 48.3 x 26.7 x 61 cm
100S1G6M3 Same as 100S1G6M1 with enclosure removed for rack mounting 34.5 kg (76 lbs) 48.3 x 26.7 x 61 cm
SPECIFICATIONS, MODEL 100S1G6
oscillation with any magnitude and phase of source and load impedance. *See
Application Note #27.
signal
MODEL CONFIGURATIONS
19.8 x 11.8 x 24 in
19.8 x 11.8 x 24 in
19.0 x 10.5 x 24 in
19.0 x 10.5 x 24 in
Page 2 of 2
