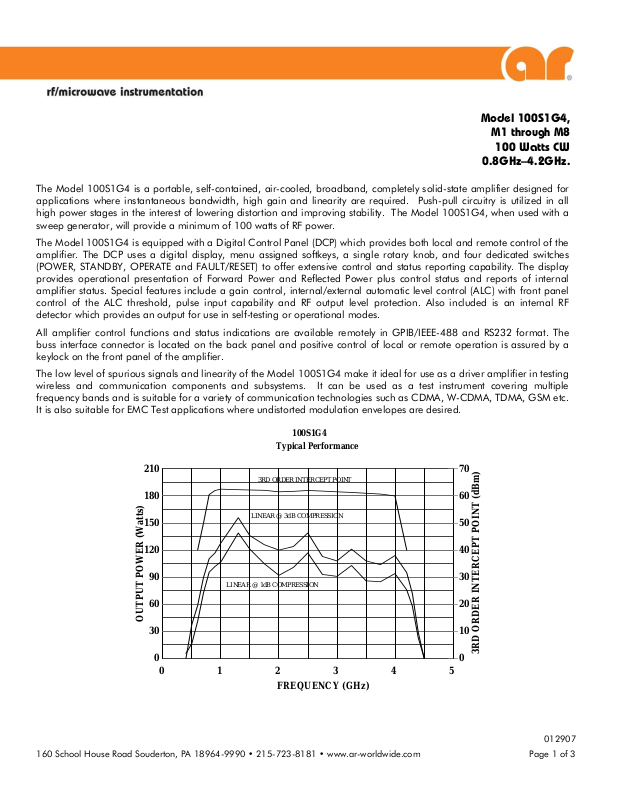

Model 100S1G4,

M1 through M8

100 Watts CW

0.8GHz–4.2GHz.

The Model 100S1G4 is a portable, self-contained, air-cooled, broadband, completely solid-state amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. Push-pull circuitry is utilized in all high power stages in the interest of lowering distortion and improving stability. The Model 100S1G4, when used with a sweep generator, will provide a minimum of 100 watts of RF power.

The Model 100S1G4 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The DCP uses a digital display, menu assigned softkeys, a single rotary knob, and four dedicated switches (POWER, STANDBY, OPERATE and FAULT/RESET) to offer extensive control and status reporting capability. The display provides operational presentation of Forward Power and Reflected Power plus control status and reports of internal amplifier status. Special features include a gain control, internal/external automatic level control (ALC) with front panel control of the ALC threshold, pulse input capability and RF output level protection. Also included is an internal RF detector which provides an output for use in self-testing or operational modes.

All amplifier control functions and status indications are available remotely in GPIB/IEEE-488 and RS232 format. The buss interface connector is located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.

The low level of spurious signals and linearity of the Model 100S1G4 make it ideal for use as a driver amplifier in testing wireless and communication components and subsystems. It can be used as a test instrument covering multiple frequency bands and is suitable for a variety of communication technologies such as CDMA, W-CDMA, TDMA, GSM etc. It is also suitable for EMC Test applications where undistorted modulation envelopes are desired.

100S1G4

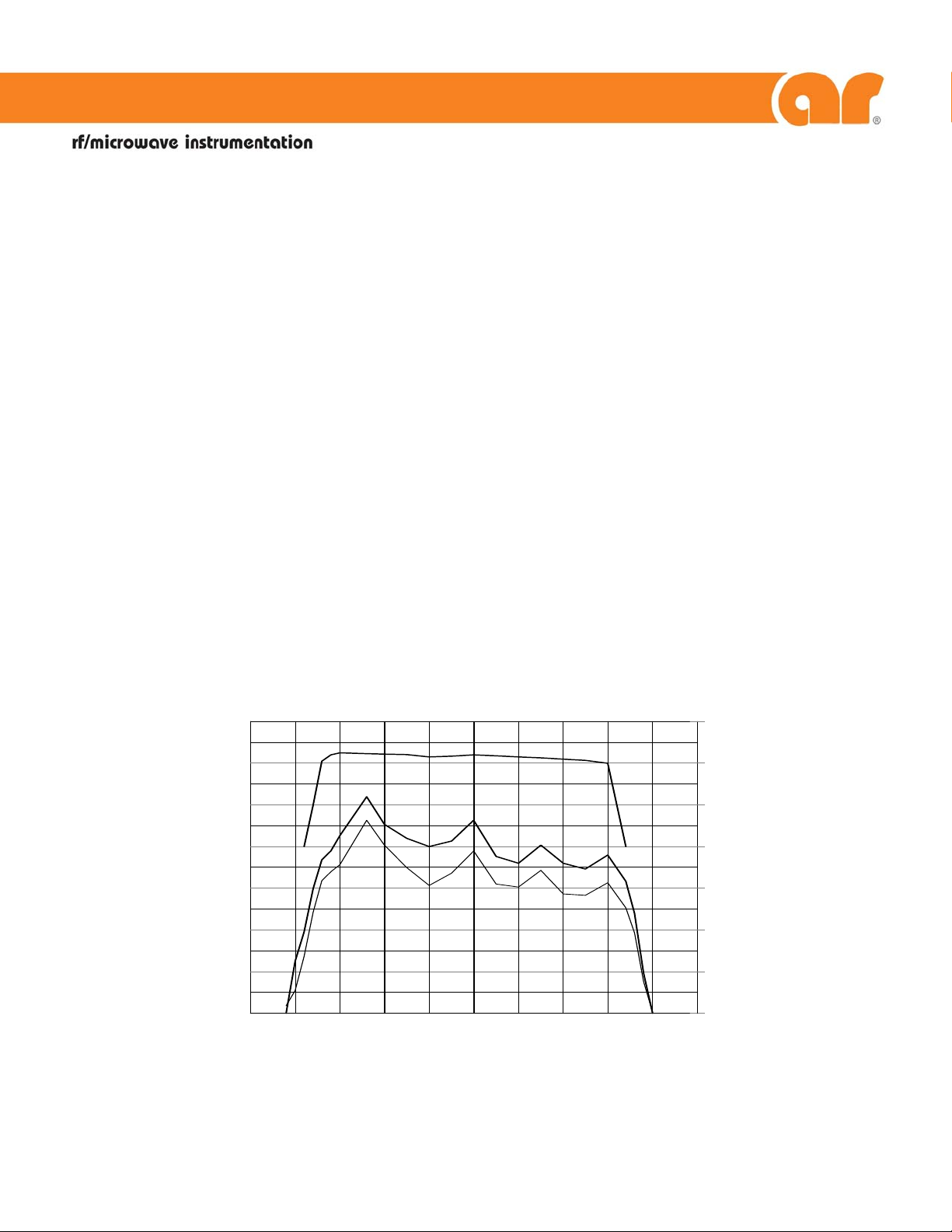

Typical Performance

210

180

150

120

3RD ORDER INTERCEPT POINT

LINEAR @ 3dB COMPRESSION

LINEAR @ 1dB COMPRESSION

OUTPUT POWER (Watts)

3RD ORDER INTERCEPT POINT (dBm)

0 1 2 3 4 5

FREQUENCY (GHz)

012907

160 School House Road Souderton, PA 18964-9990 • 215-723-8181 • www.ar-worldwide.com Page 1 of 3

Page 2

SPECIFICATIONS

RATED POWER OUTPUT ...............................................100 watts minimum

INPUT FOR RATED OUTPUT ..........................................1.0 milliwatt maximum

POWER OUTPUT @ 3dB COMPRESSSION

Nominal ................................................................120 watts

Minimum ...............................................................90 watts

POWER OUTPUT @ 1dB COMPRESSION

Nominal ................................................................100 watts

Minimum ...............................................................70 watts

FLATNESS.....................................................................±1.5 dB typical

±2.0 dB maximum ± 1dB with Internal Leveling

FREQUENCY RESPONSE ...............................................0.8 – 4.2 GHz instantaneously

GAIN (at maximum setting) ...........................................50 dB minimum

GAIN ADJUSTMENT......................................................(Continuous Range), 15 dB minimum, (4096 steps remote)

INPUT IMPEDANCE.......................................................50 ohms, VSWR 2.0:1 maximum

RF POWER DISPLAY ......................................................0–150 Watts

OUTPUT IMPEDANCE ...................................................50 ohms, nominal

MISMATCH TOLERANCE...............................................100% of rated power without foldback. Will operate without damage or

oscillation with any magnitude and phase of source and load impedance. (See

MODULATION CAPABILITY...........................................Will faithfully reproduce AM, FM, or pulse modulation appearing on the input

THIRD ORDER INTERCEPT .............................................See chart. The third order intercept points for this chart have been determined

HARMONIC DISTORTION.............................................Minus 20 dBc, maximum at 80 watts

SPURIOUS ....................................................................Minus 73 dBc typical.

PHASE LINEARITY..........................................................± 1.0 deg/100 MHz, Typ

PRIMARY POWER (Selected Automatically) ......................90-132, 180-264 VAC, 50/60 Hz, single phase, 1200 watts maximum

CONNECTORS

RF..........................................................................See Model Configurations on page 3.

REMOTE INTERFACES

IEEE-488......................................................... 24 pin

RS-232 ...........................................................9 pin Subminiature D

ALC & Pulse ....................................................Type BNC on front panel

SAFETY INTERLOCK ......................................................15 pin Subminiature D

COOLING....................................................................Forced air (self contained fans)

Application Note #27)

signal

using two tones spaced 1 MHz apart. This is typical for W-CDMA systems. Closer tone spacing such as 60 kHz generally provides about a 1db to 3dB improvement in the IP.

Page 2 of 3

Page 3

MODEL CONFIGURATIONS

NUMBER

100S1G4 N FEM FRONT N FEM FRONT YES 86.2kg

100S1G4M1 N FEM REAR N FEM REAR YES 86.2kg

100S1G4M2 N FEM FRONT N FEM FRONT NO,

100S1G4M3 N FEM REAR N FEM REAR NO,

100S1G4M4 N FEM FRONT N FEM REAR YES 86.2KG

100S1G4M5 N FEM REAR N FEM REAR NO,

100S1G4M6 N FEM FRONT N FEM FRONT NO,

*100S1G4M7 N FEM FRONT N FEM FRONT YES 86.2kg

100S1G4M8 N FEM FRONT N FEM FRONT Equipment

*The gain control can be used to optimize ACP performance

RF INPUT RF OUTPUT MODEL

TYPE LOCATION TYPE LOCATION

INSTRUMENT

CASE

(Rack Mount)

rack w/casters

WEIGHT SIZE OTHER

(190lbs)

68.0kg

(150lbs)

68.0kg

(150lbs)

(190lbs)

68.0kg

(150lbs)

68.0kg

(150lbs)

(190lbs)

104kg

(230lbs)

50.3 x 47.0 x 61.0cm

48.3 x 44.5 x 61.0cm

50.3 x 47.0 x 61.0cm

48.3 x 44.5 x 61.0cm

50.3 x 47.0 x 61.0cm

56.1 x 82.6 x 65.9 cm

19.8 x 18.5 x 24.0in

19.0 x 17.5 x 24.0in

19.8 x 18.5 x 24.0in

19.0 x 17.5 x 24.0in

19.8 x 18.5 x 24.0in

22.1 x 32.5 x 26.0 in

N/A

Modified for

-55dB ACP at

+36 dBm output

Modified for

–55dB ACP at

+36 dBm output

N/A
