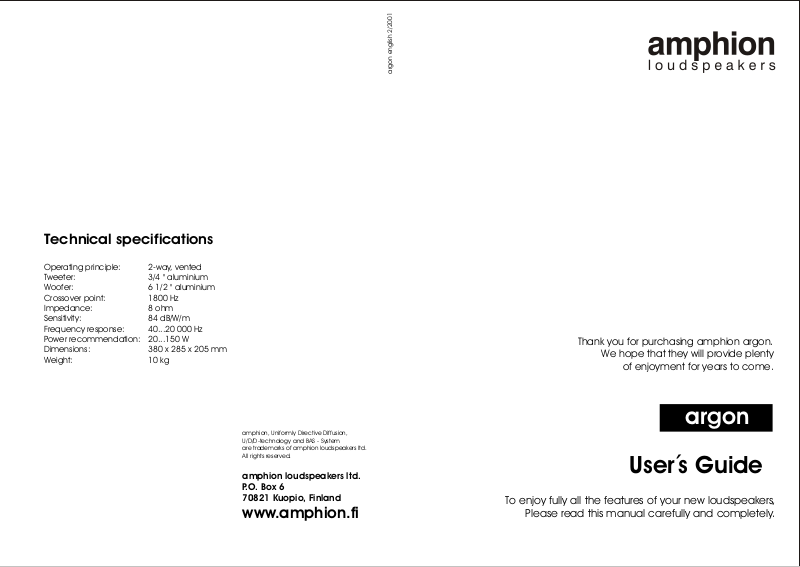

Page 1
Technical specifications
argon english 2/2001
Operating principle:
Tweeter:
Woofer:
Crossover point:
Impedance:
Sensitivity:
Frequency response:
Power recommendation:
Dimensions:
Weight:
2-way, vented
3/4 " aluminium
6 1/2 " aluminium
1800 Hz
8 ohm
84 dB/W/m
40...20 000 Hz
20...150 W
380 x 285 x 205 mm
10 kg
amphion, Uniformly Directive Diffusion,
U/D/D-technology and BAS - System
are trademarks of amphion loudspeakers ltd.
All rights reserved.
amphion loudspeakers ltd.
P.O. Box 6
70821 Kuopio, Finland
www.amphion.fi
Thank you for purchasing amphion argon.
We hope that they will provide plenty
of enjoyment for years to come.
argon
User´s Guide
To enjoy fully all the features of your new loudspeakers,
Please read this manual carefully and completely.
Page 2
Positioning
the speaker
When positioning the speaker kindly
note that the acoustical center point
is located between the drivers and
not at the tweeter level as with
traditional designs. Therefore the
optimum listening height is found by
positioning the acoustical center point
to the ear level.
We recommend that argons should
be positioned with 60 or 70 cm stands
The speakers should be turned slightly
towards the listening position. Please
note that we do not advice to aim the
speakers directly towards the listener,
but slightly outside the shoulder area.
The final positioning and identical aim
of the speaker depend on the room
boundaries and naturally also
personal taste. If the speakers need to
positioned close to the walls, we
recommend aiming the speakers
slightly in toward the listening seat, but
still not directly at the listener.
acoustical
center
point
60 -70 cm
Single/ bi-wiring
For bi-wiring purposes amphion
argon is equipped with two pairs
of binding posts. The speakers
are delivered with lintel attacted
i.e for single wiring use. In case
bi-wiring will be used simply
remove the lintel.
Positioning
the speaker
amphion loudspeakers ltd, finland
No:
model
impedance
max power
www.amphion.fi
argon
8 ohm
200 W
