Ampeg B410HLF, B410HE User Manual

B410H Series

Bass Cabinets

Please read this user’s guide prior

to using your new enclosure.

B410HLF

B410HE

B410H Series Bass Cabinets

Ampeg B410H Series 4x10 Bass Cabinets are quality

two-way speaker cabinets suitable for all venue sizes.

The cabinets feature heavy duty recessed handles,
removeable casters, and are built of void free baltic birch
plywood.

The jackplate features two 1/4” jacks wired in parallel,
allowing easy daisy chaining from one speaker to another.
Each of the jacks may be used as an input or a through con­nection.

The three position HF Horn switch allows for:

• Full high frequency output (0 setting)

• High frequencies reduced by 6dB (-6 setting)

• Horn shutoff (off setting)

IMPORTANT SAFETY INSTRUCTIONS:

1.Read, follow and keep these instructions. Heed all warnings.

2.This speaker is capable of producing high sound pressure levels that may cause
permanent hearing damage. User caution is advised and ear protection is recom­mended during use.

3.This speaker is designed for use on a sturdy, level surface. Whenever stacking
speaker cabinets, do not stack more than two high. Only speaker cabinets which
are equipped with caster cups on their top surfaces are to be used underneath a
cabinet which is equipped with casters.

4.Speaker cables are a tripping hazard and must be routed out of traffic areas and
away from any possible accidental contact.

5.Do not expose this speaker to rain or moisture. Do not place liquid filled contain­ers on this speaker. Clean only with a damp cloth.

6.Repair or service of this speaker should be performed only by qualified personnel.

B410H Series Bass Cabinets

1: 1/4” Input / Output Jacks

2: High Frequency Horn Level Switch

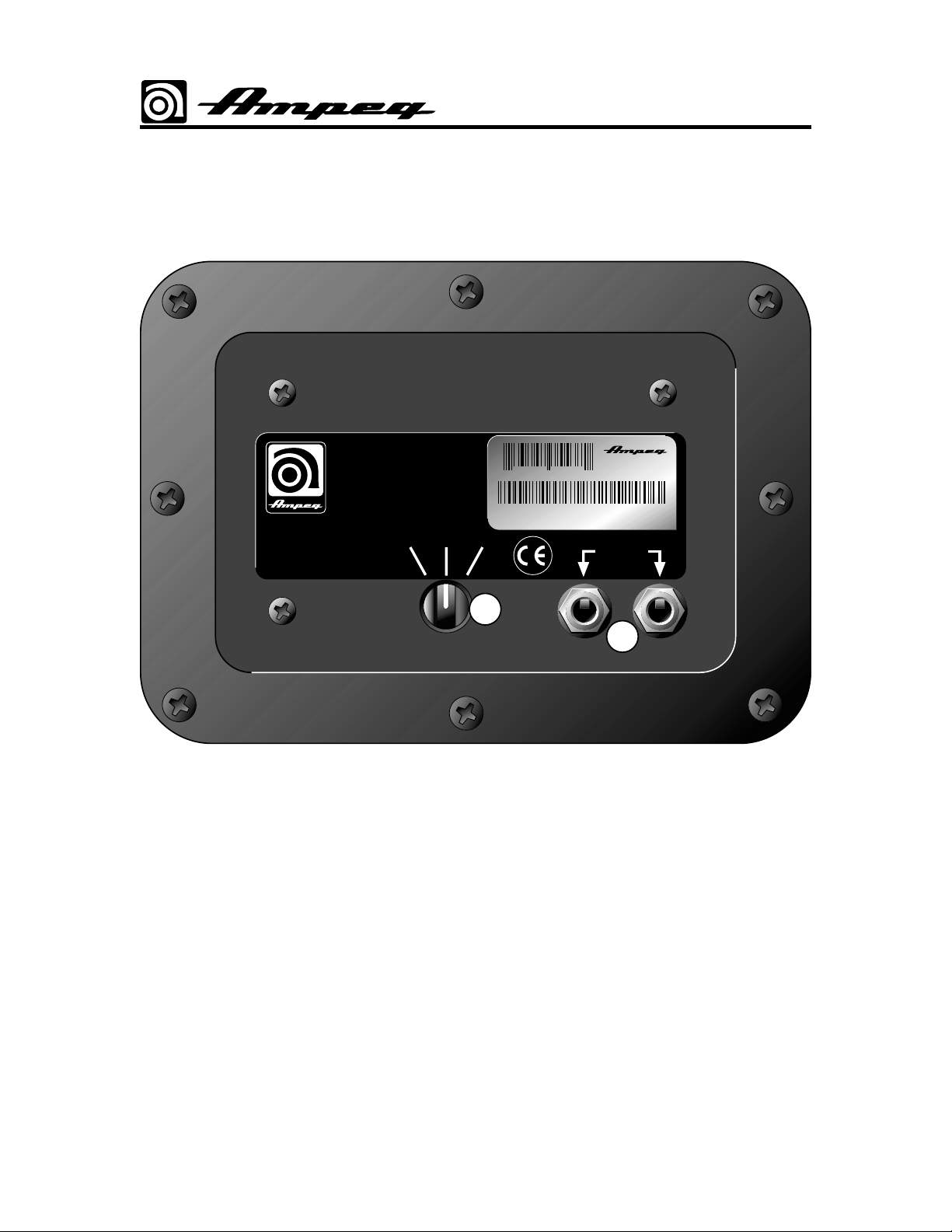

The B410H Series Jackplate:

MODEL B410HE

POWER HANDLING
200 WATTS RMS
IMPEDANCE
8 OHMS

SLM ELECTRONICS
1400 FERGUSON AVE.
ST. LOUIS, MO 63133

HIGH

FREQUENCY

ATTENUATOR

OFF –6 0

7 43565 15531 9

(Place Serial Number label here)

(21) SERIAL# BMCDN20083

Line: Freq: Pwr:

47-928-66

FULL RANGE

INPUTS

B410HE

2

1

Ampeg continually develops new products, as well as improves existing ones. For this reason,

the specifications and information in this manual are subject to change without notice.

47-776-41 • 113005

AMPEG B410H

Series Bass Cabinets

©2005 AMPEG, 1400 Ferguson Avenue, St. Louis, MO 63133 U.S.A.

CAUTION: THIS SPEAKER IS CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPO­SURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER

CAUTION IS ADVISED, AND EAR PROTECTION RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.

TECHNICAL SPECIFICATIONS:

B410HE B410HLF

TYPE 4x10” Bass Enclosure 4x10” Bass Enclosure
FREQ RESPONSE (+/-3dB) 55Hz – 18kHz 50Hz – 18kHz
USABLE LOW FREQ (-10dB) 40Hz 36Hz
POWER HANDLING 200W RMS 400W RMS
IMPEDANCE 8 ohms 4 ohms
SENSITIVITY 95dB SPL 1w/1m 99dB SPL 1w/1m
MAXIMUM SPL 118dB 125dB
COMPONENTS 4-10” Custom Designed 4-10” Special Design

LF Speakers, LF Speakers,
1” diaphragm HF Horn 1” diaphragm HF Horn

DIMENSIONS (H x W x D) 22.75” x 22.75” x 17.5” 25.75” x 22.75” x 17.5”
WEIGHT 74 lbs. 90 lbs.
