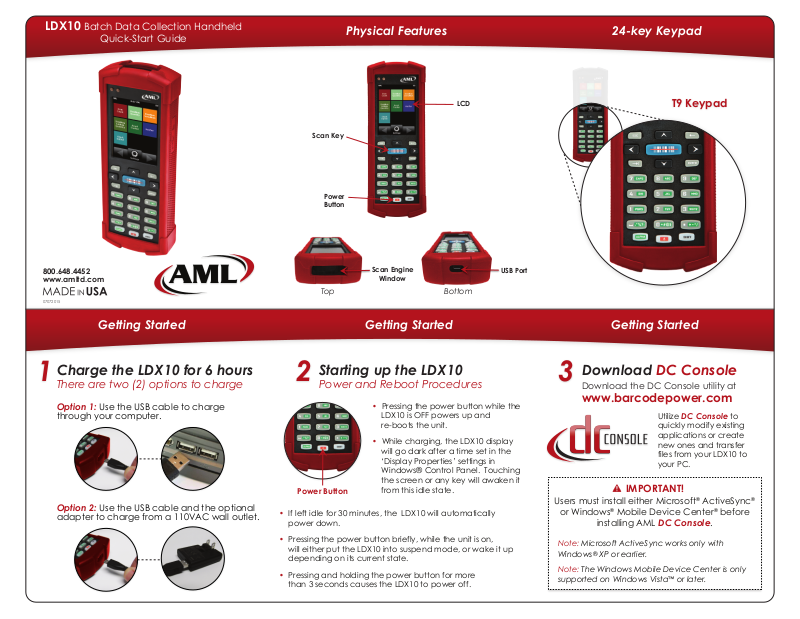

LDX10 Batch Data Collection Handheld
Quick-Start Guide
Physical Features 24-key Keypad
Scan Key
Power
Button
800.648.4452
www.amltd.com
Top
07072015
Scan Engine
Window
Getting StartedGetting Started Getting Started
Charge the LDX10 for 6 hours
1
There are two (2) options to charge Power and Reboot Procedures
Option 1: Use the USB cable to charge
through your computer.
Option 2: Use the USB cable and the optional
adapter to charge from a 110VAC wall outlet.
• If left idle for 30 minutes, the LDX10 will automatically
power down.
• Pressing the power button briefly, while the unit is on,
will either put the LDX10 into suspend mode, or wake it up
depending on its current state.
• Pressing and holding the power button for more
than 3 seconds causes the LDX10 to power off.
Starting up the LDX10
2
• Pressing the power button while the
LDX10 is OFF powers up and
re-boots the unit.
• While charging, the LDX10 display
will go dark after a time set in the
‘Display Properties’ settings in
Windows® Control Panel. Touching
the screen or any key will awaken it
Power Button
from this idle state.
LCD
Bottom
USB Port
T9 Keypad
Download DC Console
3
Download the DC Console utility at
www.barcodepower.com
Utilize DC Console to
quickly modify existing
applications or create
new ones and transfer
files from your LDX10 to
your PC.
IMPORTANT!
Users must install either Microsoft® ActiveSync®
or Windows
Note: Microsoft ActiveSync works only with
Windows
Note: The Windows Mobile Device Center is only
supported on Windows Vista
®
Mobile Device Center® before
installing AML DC Console.
®
XP or earlier.
™
or later.
DC Suite Software
DC Suite Software DC Suite Software
Simple one-field
The LDX10 comes with
a suite of pre-installed
applications as a part
of our DC Suite. These
applications were
developed for
common data
collection tasks and
are ready to go right
out of the box.
As future
applications are
developed, they will
be made available
on the web at
barcodepower.com.
Dashboard
All applications are
launched from here.
scanning.
Scan the Item
Number and
key in the
Quantity.
Scan in Item
Number and
the unique
Serial Number.
Scan the Item
Number and
then collect
Lot Number
and Quantity
information.
SupportAccessories
Protective Cases Learn More About the LDX10 at:
www.amltd.com/ldx10
Black
(Standard)
Red
Orange
Yellow
Blue
Green
For DC Suite downloads and support visit:
www.barcodepower.com
Warranty Agreements
SVC-EWLDX10
Extended Warranty, 3 year, LDX10
Asset Tracking
application.
Compare two scans
and confirm that
they are the same
OR not the same.
Check-In/Out application for
tool or part rooms.
