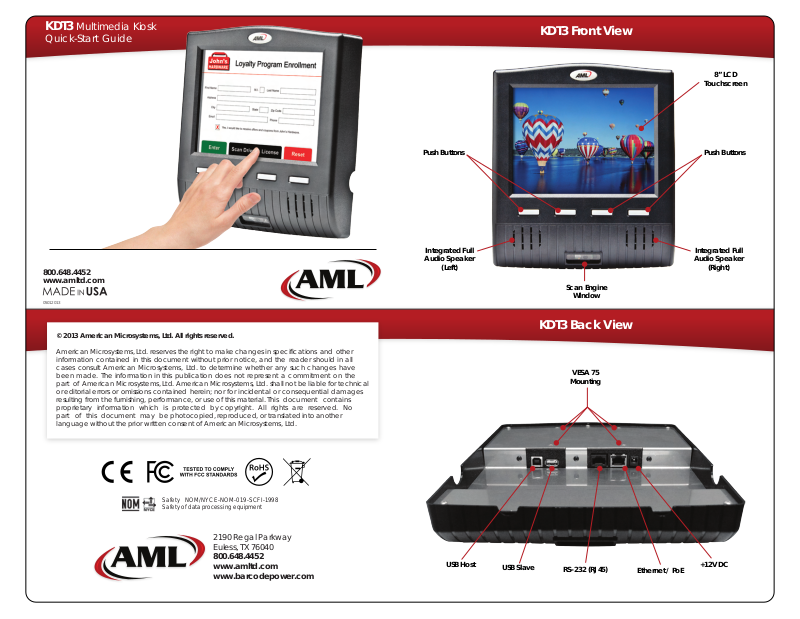

KDT3 Multimedia Kiosk
Quick-Start Guide
KDT3 Front View
8” LCD
Touchscreen
800.648.4452
www.amltd.com
05012013
© 2013 American Microsystems, Ltd. All rights reserved.
American Microsystems, Ltd. reserves the right to make changes in specifications and other
information contained in this document without prior notice, and the reader should in all
cases consult American Microsystems, Ltd. to determine whether any such changes have
been made. The information in this publication does not represent a commitment on the
part of American Microsystems, Ltd. American Microsystems, Ltd. shall not be liable for technical
or editorial errors or omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material. This document contains
proprietary information which is protected by copyright. All rights are reserved. No
part of this document may be photocopied, reproduced, or translated into another
language without the prior written consent of American Microsystems, Ltd.
Push Buttons
Integrated Full
Audio Speaker
(Left)
Push Buttons
Integrated Full
Audio Speaker
(Right)
Scan Engine
Window
KDT3 Back View
VESA 75
Mounting
Safety NOM/NYCE-NOM-019-SCFI-1998
Safety of data processing equipment
2190 Regal Parkway
Euless, TX 76040
800.648.4452
www.amltd.com
www.barcodepower.com
USB Host
USB Slave
RS-232 (RJ45)
Ethernet / PoE
+12V DC
VESA 75 Mounting
3.94” (100 mm)
2.95” (75 mm)
2.95” (75 mm)
3.94” (100 mm)
Accessories
The KDT3 includes the VESA 75 standard for mounting. The four
mounting holes are centered left-to-right on the upper portion of the
back panel. These holes are exactly 75mm x 75mm on center and
accept the standard 4mm screw.
What You Need to Know About the KDT3
The KDT3 can utilize two power sources: An external DC power
supply or Power-over-Ethernet.
External Power Supply, 12VDC, 2.5A
WARNING: Using power supplies that are not supplied by AML
for use with the KDT3 unit can cause damage to the unit and
will void all warranties.
Internal Power-over-Ethernet Supply
The KDT3 contains an 802.3af compatible power supply. The
unit can be powered via category 5 networking cable when
used with an 802.3af compatible power injector. Both network
traffic and power can be sent via the same category 5 wire.
ACC-0780 Quick-Mount Bracket
The ACC-0780 quick-mount
bracket is designed for fast, easy
mounting and removal on a wall.
PWR-8050 Power Supply, 12VDC, 2.5 A
The PWR-8050 is a power supply
alternative to the standard
Power-over-Ethernet.
Support
Learn More About the KDT3 at:
www.amltd.com/kdt3
or
www.amlkiosks.com/kiosks/kdt3
Warranty Agreements
SVC-EWKDT3
Extended Warranty, 3 year, KDT3
WARNING: Do not move, rename or delete root directory files
on the SD card!
SVC-EWPKDT3
Extended Warranty PLUS, 3 year, KDT3
