Fixed-Mount Computer
Quick-Start Guide
Front View Back View
800.648.4452
www.amltd.com
04242014
Interface Cable
Panic
Key
LCD
Speaker
x2
Home
Brightness
Controls
Key
Volume
Controls
Power
Button
SD/SDHC Card Memory Expansion
up to 32GB.
Getting StartedGetting Started Getting Started
SD Card
Mounting the Device
1
If you choose to mount the Guardian to a
vehicle or table-top, utilize the available
mounting patterns.
RAM™ Mount
Pattern
VESA 50mm
Mount Pattern
Connect Power
2
Locate the DC input on the Extended Interface
cable and connect the power adapter.
Extended Interface Cable
See the back of this document for more
details about the Extended Interface Cable.
Connect Peripheral Devices
3
Use the Extended Interface Cable or
the additional I/O ports shown below.
USB OTG
Host USB
Headphone
Jack
Microphone
Jack

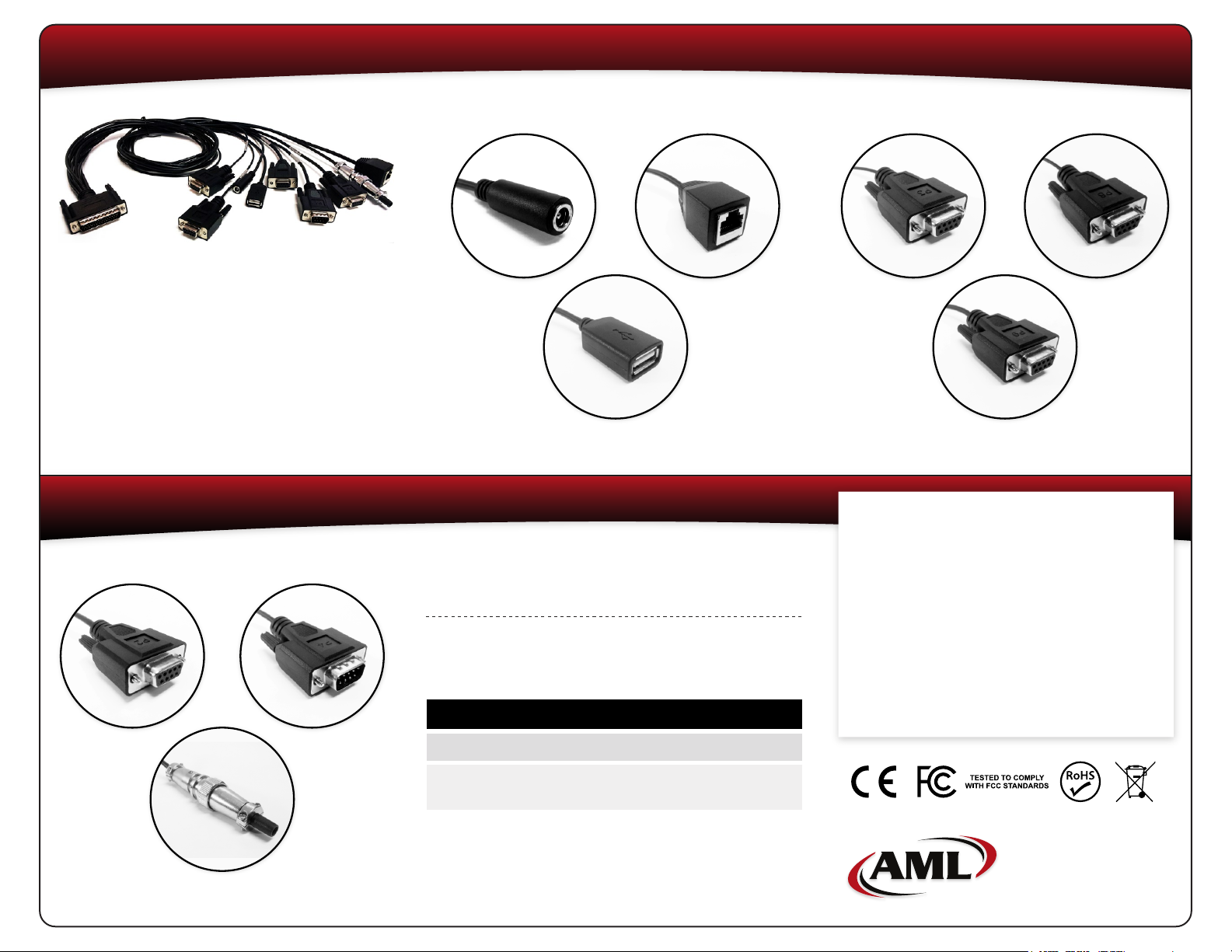

Extended Interface Cable
The Guardian comes with an Extended
Interface Cable that allows communications
through multiple interfaces simultaneously.
Included interfaces:
• USB Host 2.0
• RS422
• 3 x RS232
• DC Power
• LAN
• CAN Bus
• GPIO
Extended Interface Cable Extended Interface Cable
DC Power RS232 (P3)LAN RS232 (P8)
USB Host 2.0
RS232 (P9)
Extended Interface Cable
RS422 (P2) CAN Bus (P4)
General Purpose Input/Output
GPIO
Support
Download Support Documentation at
www.amltd.com/downloads
Learn more about the Guardian at
www.amltd.com/guardian
Warranty Agreements
SVC-EWFMC7
SVC-EWPFMC7
Don’t forget to register your product(s) online at
www.amltd.com/register to receive updates about
Extended Warranty, 3 yr., Guardian
Extended Warranty PLUS, 3 yr.,
Guardian
Get Updates from AML
AML products and software.
