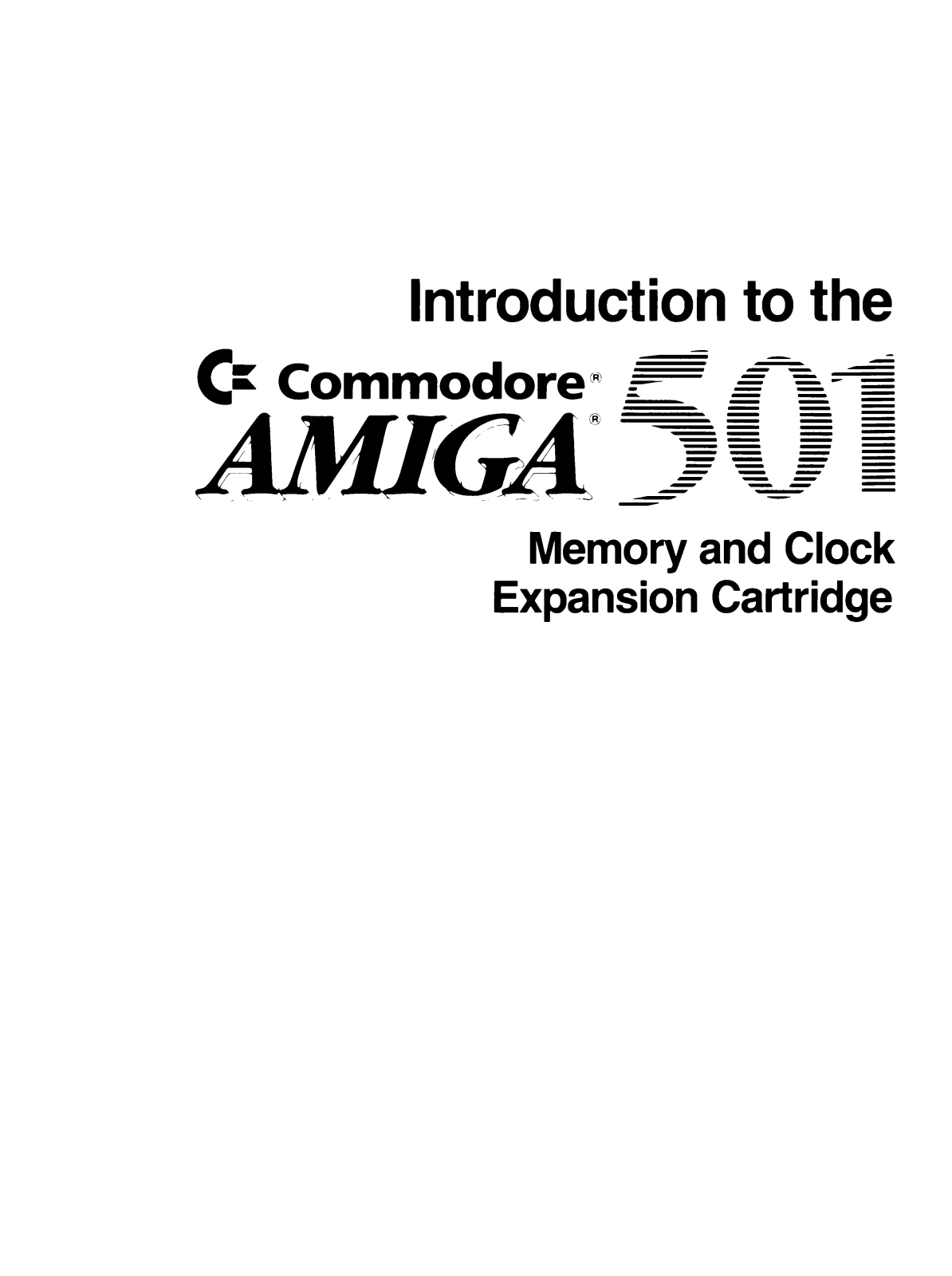

Amiga 501 a

Introduction to the

Cr Commodore* ç ; m n

Memory and Clock

Expansion Cartridge

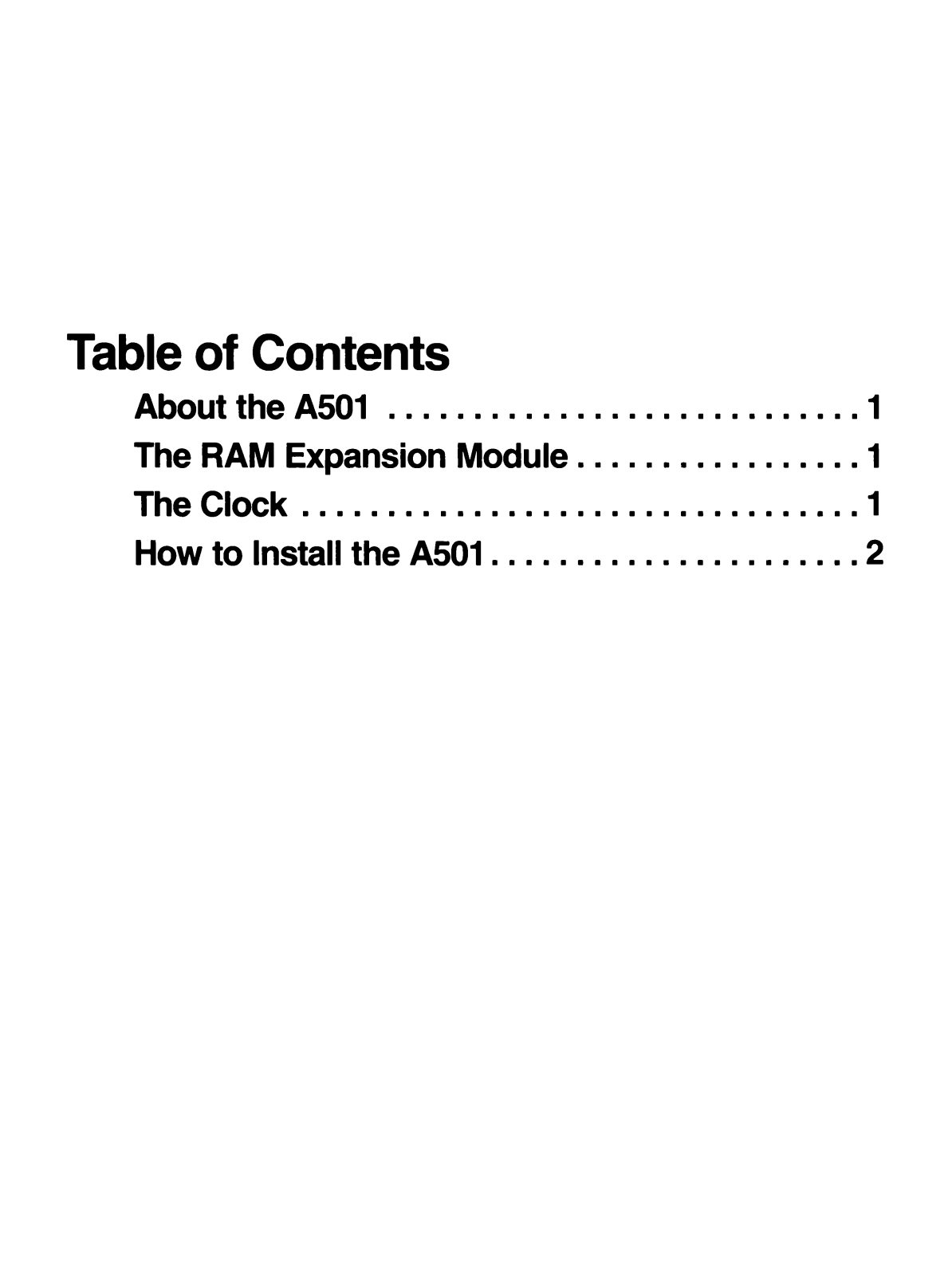

Table of Contents

About the A501 ......................................................1

The RAM Expansion Module

The Clock................................................................1

How to Install the A501..........................................2

................................

1

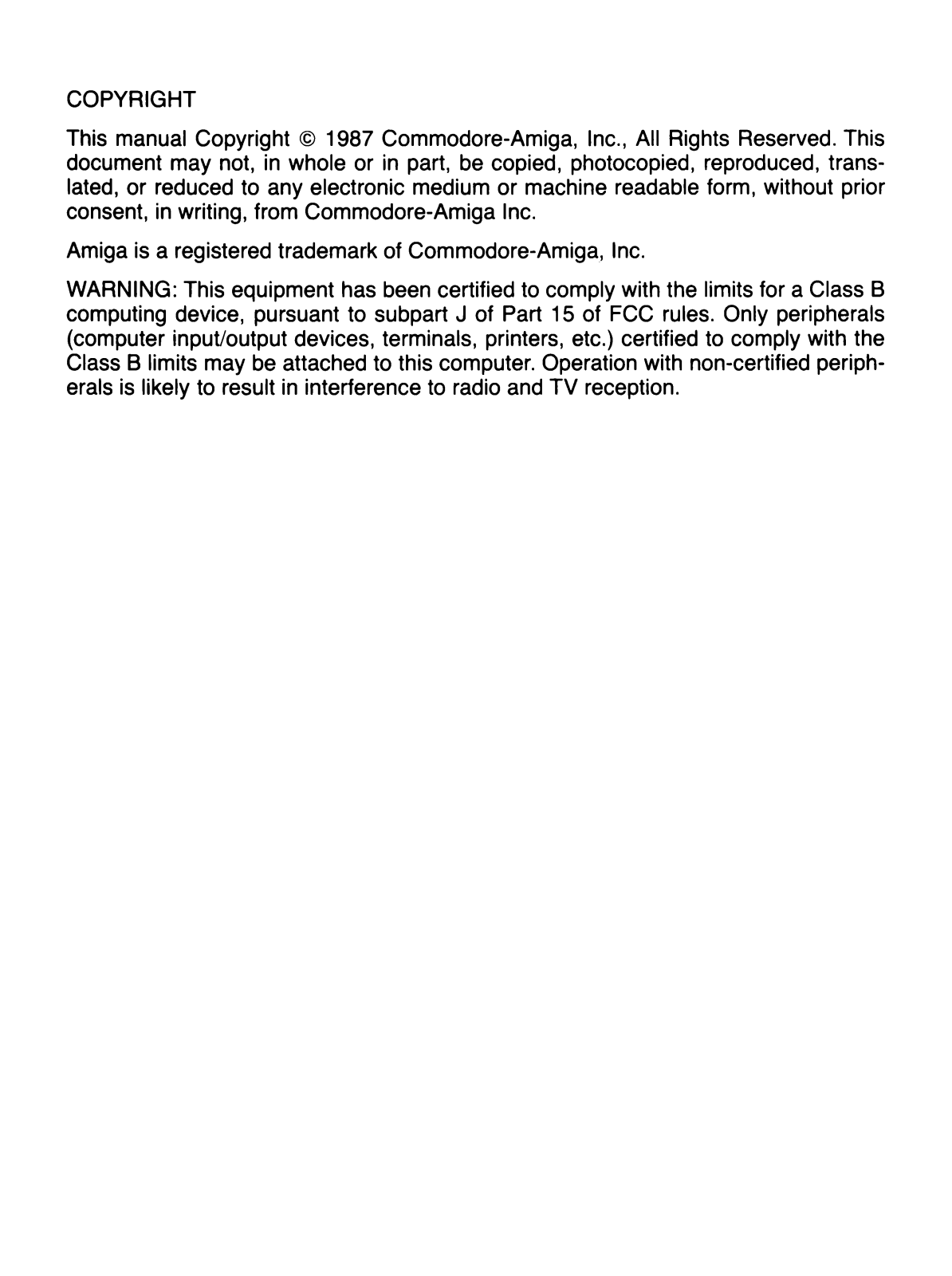

COPYRIGHT

This manual Copyright © 1987 Commodore-Amiga, Inc., All Rights Reserved. This
document may not, in whole or in part, be copied, photocopied, reproduced, trans
lated, or reduced to any electronic medium or machine readable form, without prior
consent, in writing, from Commodore-Amiga Inc.

Amiga is a registered trademark of Commodore-Amiga, Inc.
WARNING: This equipment has been certified to comply with the limits for a Class B

computing device, pursuant to subpart J of Part 15 of FCC rules. Only peripherals
(computer input/output devices, terminals, printers, etc.) certified to comply with the
Class B limits may be attached to this computer. Operation with non-certified periph
erals is likely to result in interference to radio and TV reception.

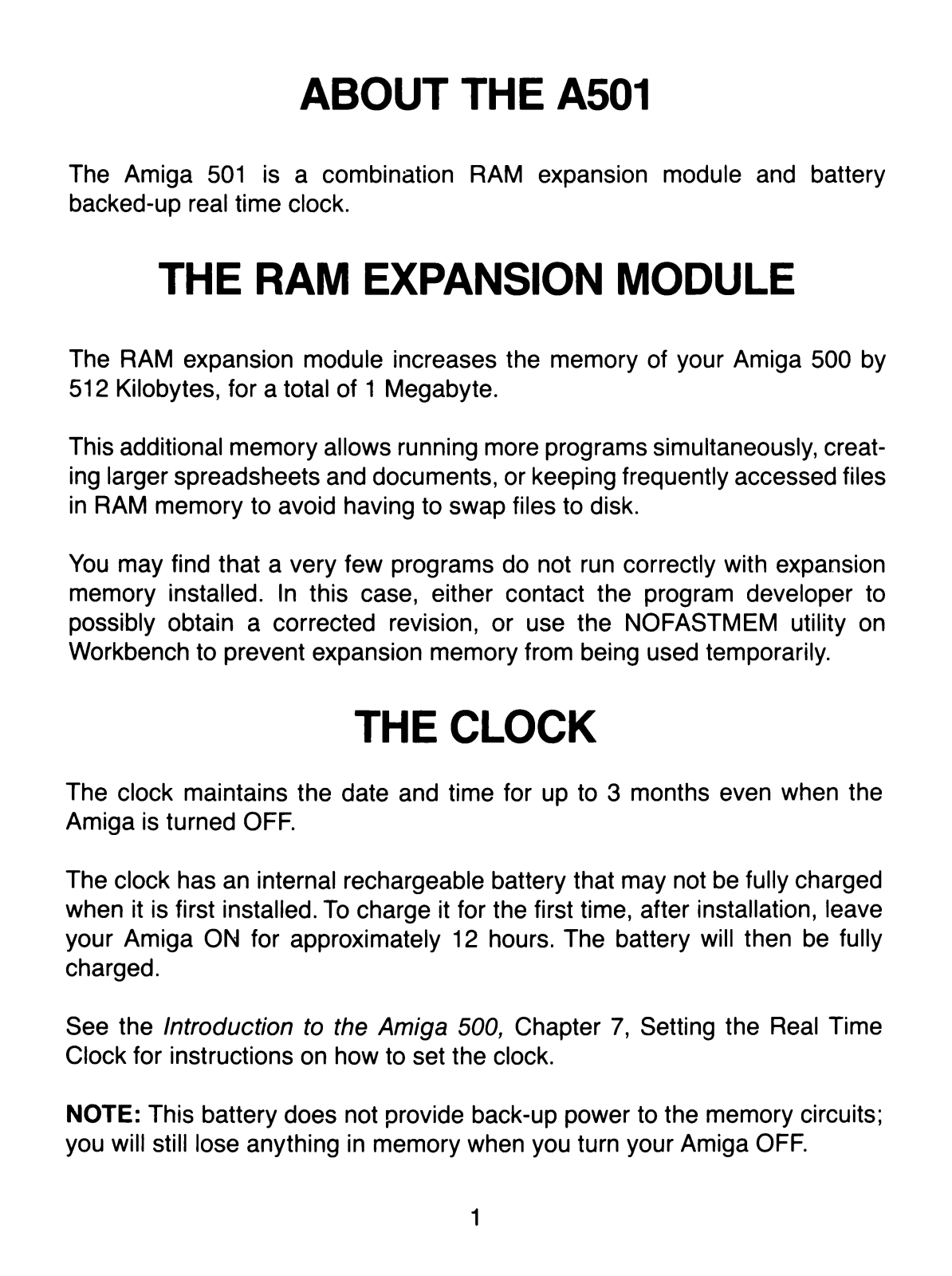

ABOUT THE A501

The Amiga 501 is a combination RAM expansion module and battery

backed-up real time clock.

THE RAM EXPANSION MODULE

The RAM expansion module increases the memory of your Amiga 500 by
512 Kilobytes, for a total of 1 Megabyte.

This additional memory allows running more programs simultaneously, creat

ing larger spreadsheets and documents, or keeping frequently accessed files
in RAM memory to avoid having to swap files to disk.

You may find that a very few programs do not run correctly with expansion

memory installed. In this case, either contact the program developer to
possibly obtain a corrected revision, or use the NOFASTMEM utility on

Workbench to prevent expansion memory from being used temporarily.

THE CLOCK

The clock maintains the date and time for up to 3 months even when the
Amiga is turned OFF.

The clock has an internal rechargeable battery that may not be fully charged
when it is first installed. To charge it for the first time, after installation, leave
your Amiga ON for approximately 12 hours. The battery will then be fully
charged.

See the Introduction to the Amiga 500, Chapter 7, Setting the Real Time
Clock for instructions on how to set the clock.

NOTE: This battery does not provide back-up power to the memory circuits;
you will still lose anything in memory when you turn your Amiga OFF.

1

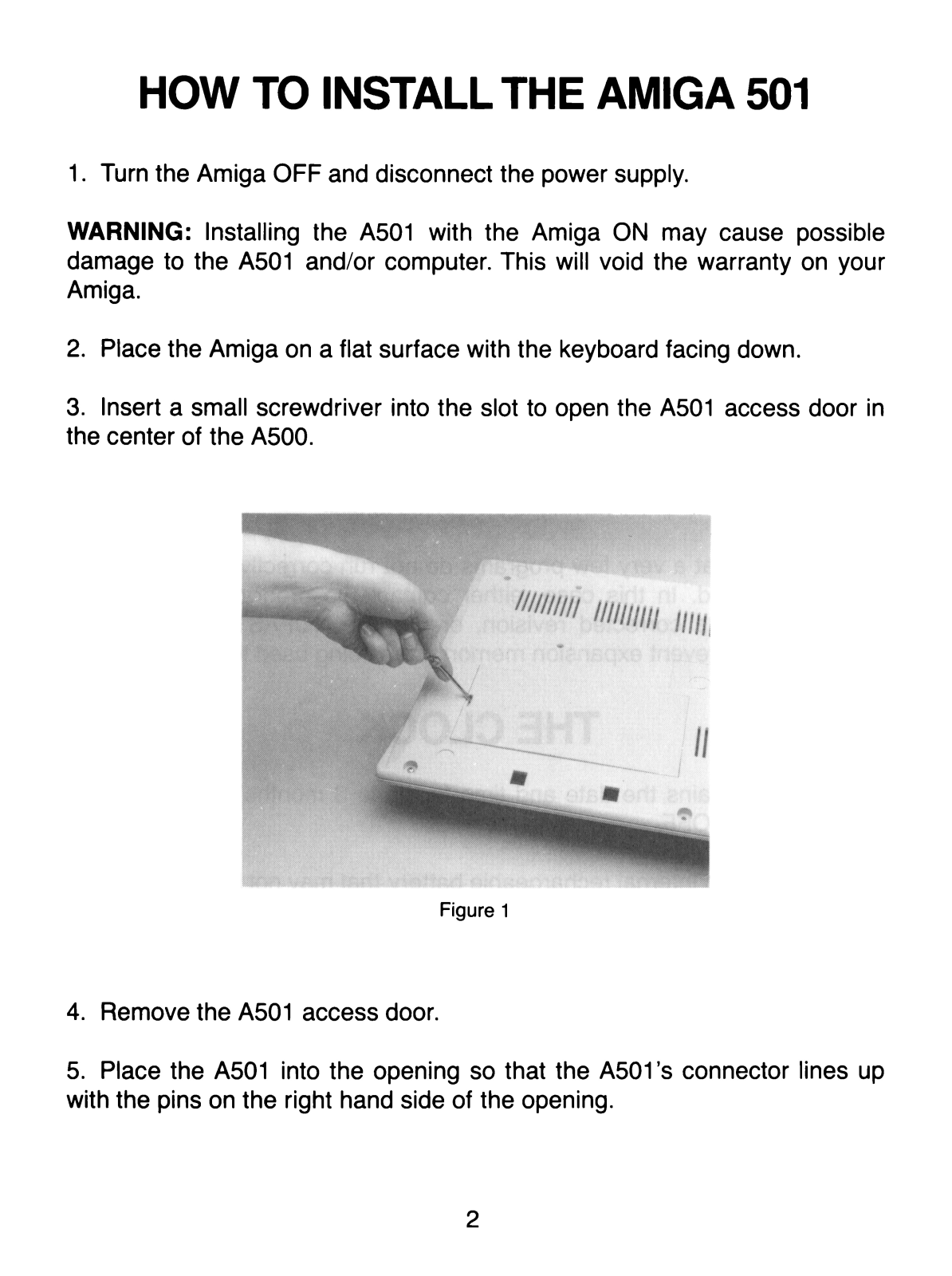

HOW TO INSTALL THE AMIGA 501

1. Turn the Amiga OFF and disconnect the power supply.

WARNING: Installing the A501 with the Amiga ON may cause possible
damage to the A501 and/or computer. This will void the warranty on your
Amiga.

2. Place the Amiga on a flat surface with the keyboard facing down.

3. Insert a small screwdriver into the slot to open the A501 access door in
the center of the A500.

Figure 1

4. Remove the A501 access door.

5. Place the A501 into the opening so that the A501 ’s connector lines up

with the pins on the right hand side of the opening.

2

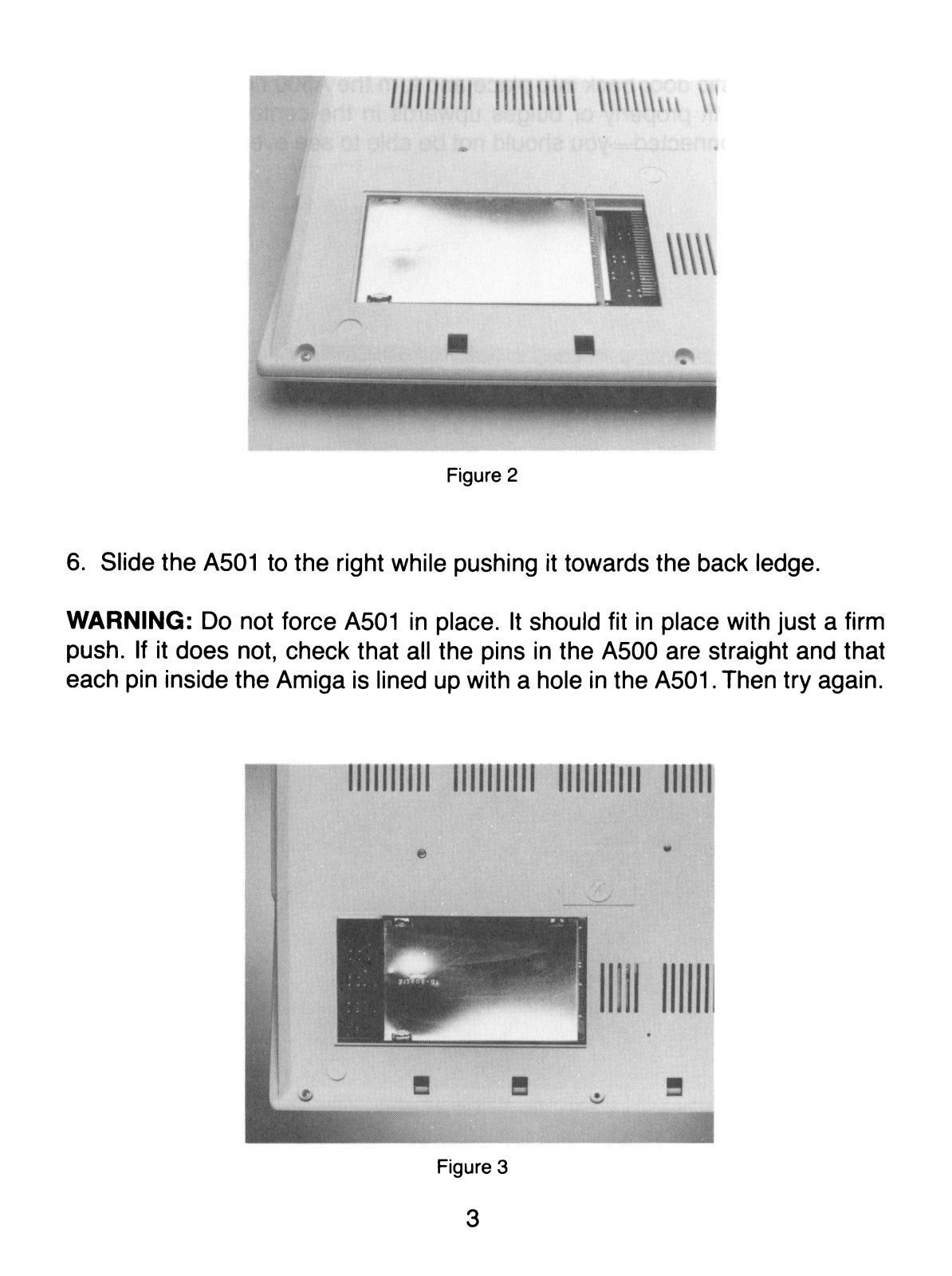

Figure 2

6. Slide the A501 to the right while pushing it towards the back ledge.

WARNING: Do not force A501 in place. It should fit in place with just a firm
push. If it does not, check that all the pins in the A500 are straight and that
each pin inside the Amiga is lined up with a hole in the A501. Then try again.

Figure 3

3

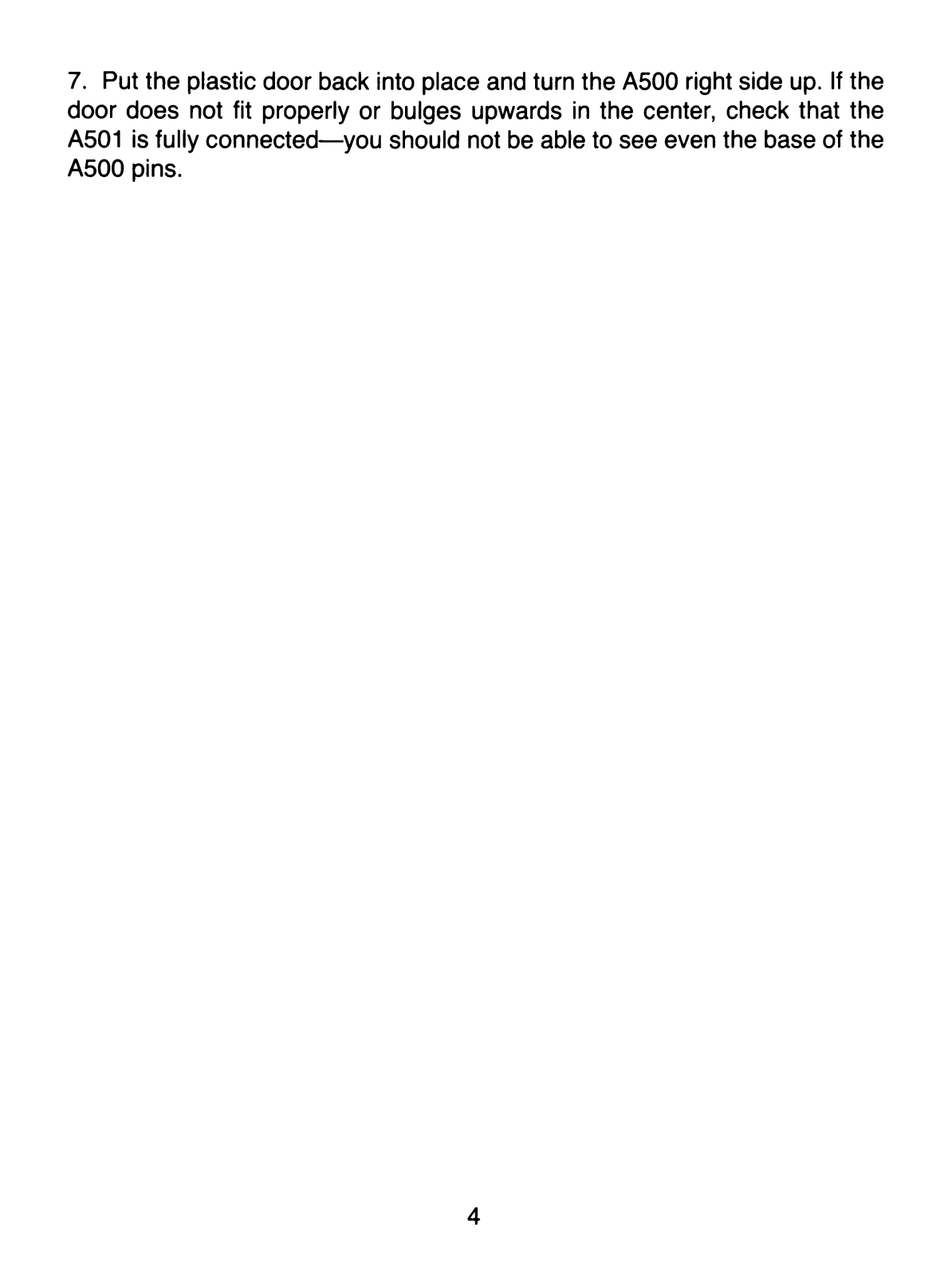

7. Put the plastic door back into place and turn the A500 right side up. If the
door does not fit properly or bulges upwards in the center, check that the
A501 is fully connected— you should not be able to see even the base of the
A500 pins.
