Amiga 2088 a

Page 1
users guide
BRIDGEBOARD
For A2000/IBM-PC XT Compatibility
c* Commodore
Page 2
Page 3
users guide
BRIDGEBOARD
For A2000/IBM-PC XT Compatibility
Commodore
Page 4

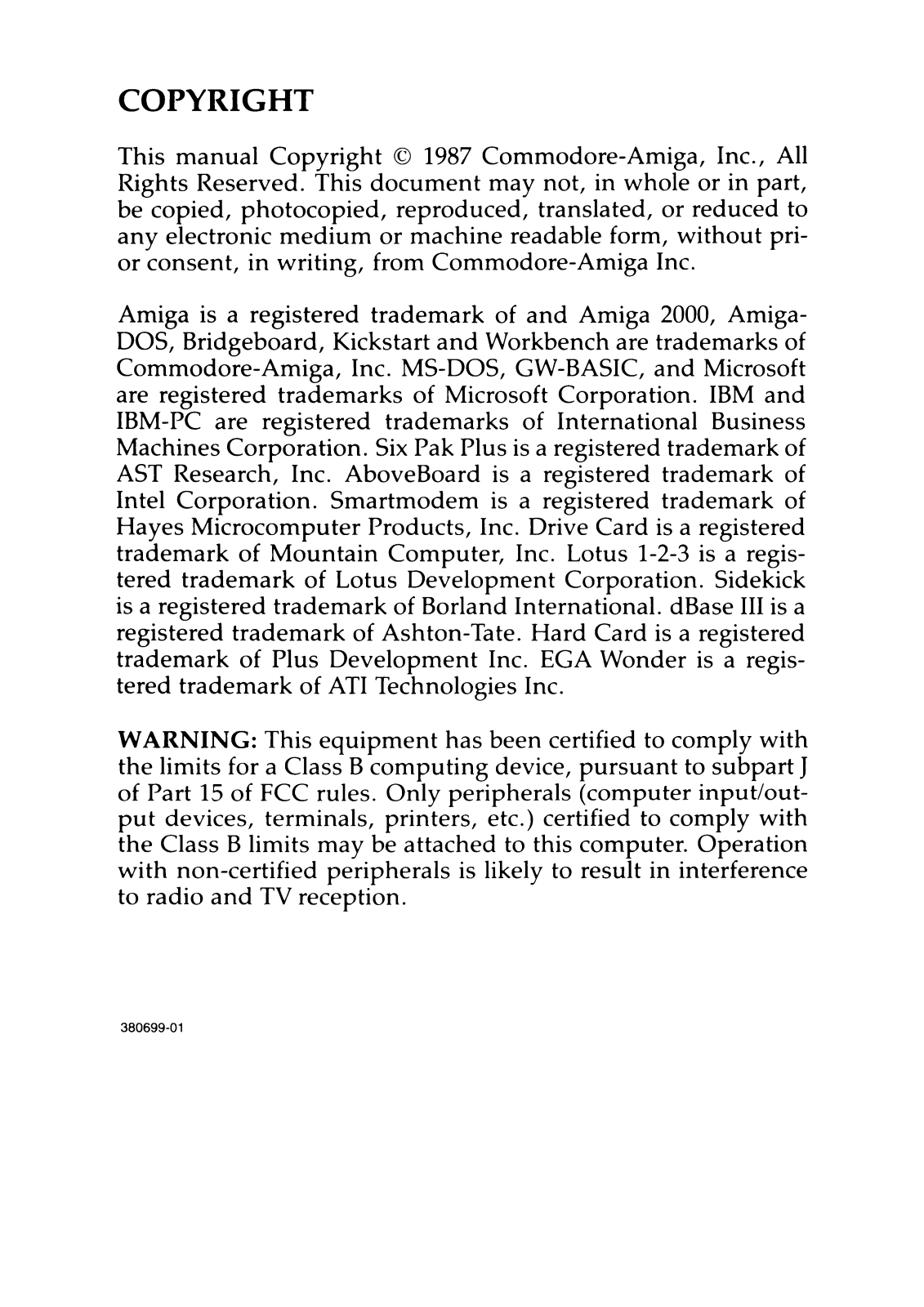

This manual Copyright © 1987 Commodore-Amiga, Inc., All Rights Reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form, without pri or consent, in writing, from Commodore-Amiga Inc.
Amiga is a registered trademark of and Amiga 2000, Amiga- DOS, Bridgeboard, Kickstart and Workbench are trademarks of Commodore-Amiga, Inc. MS-DOS, GW-BASIC, and Microsoft are registered trademarks of Microsoft Corporation. IBM and IBM-PC are registered trademarks of International Business Machines Corporation. Six Pak Plus is a registered trademark of AST Research, Inc. AboveBoard is a registered trademark of Intel Corporation. Smartmodem is a registered trademark of Hayes Microcomputer Products, Inc. Drive Card is a registered trademark of Mountain Computer, Inc. Lotus 1-2-3 is a regis tered trademark of Lotus Development Corporation. Sidekick is a registered trademark of Borland International. dBase III is a registered trademark of Ashton-Tate. Hard Card is a registered trademark of Plus Development Inc. EGA Wonder is a regis tered trademark of ATI Technologies Inc.
WARNING: This equipment has been certified to comply with
the limits for a Class B computing device, pursuant to subpart J
of Part 15 of FCC rules. Only peripherals (computer input/out
put devices, terminals, printers, etc.) certified to comply with
the Class B limits may be attached to this computer. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.
380699-01
Page 5

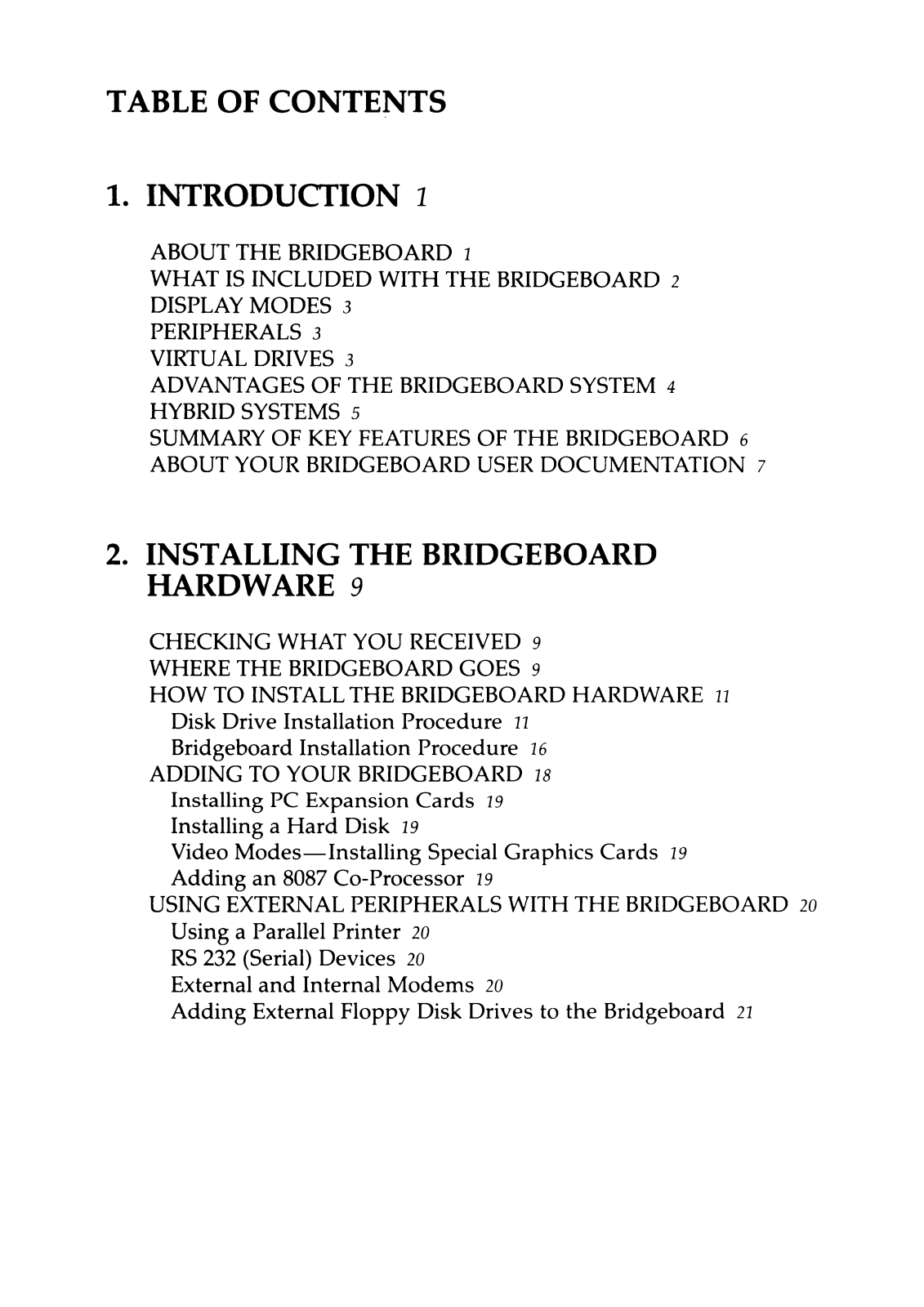

TABLE OF CONTENTS
1. INTRODUCTION 1
ABOUT THE BRIDGEBOARD 2 WHAT IS INCLUDED WITH THE BRIDGEBOARD 2 DISPLAY MODES 3 PERIPHERALS 3 VIRTUAL DRIVES 3 ADVANTAGES OF THE BRIDGEBOARD SYSTEM 4 HYBRID SYSTEMS 5 SUMMARY OF KEY FEATURES OF THE BRIDGEBOARD 6 ABOUT YOUR BRIDGEBOARD USER DOCUMENTATION 7
2. INSTALLING THE BRIDGEBOARD HARDWARE 9
CHECKING WHAT YOU RECEIVED 9 WHERE THE BRIDGEBOARD GOES 9 HOW TO INSTALL THE BRIDGEBOARD HARDWARE 22
Disk Drive Installation Procedure 22 Bridgeboard Installation Procedure 26
ADDING TO YOUR BRIDGEBOARD 18
Installing PC Expansion Cards 29 Installing a Hard Disk 29 Video ModesInstalling Special Graphics Cards 29 Adding an 8087 Co-Processor 29
USING EXTERNAL PERIPHERALS WITH THE BRIDGEBOARD 20
Using a Parallel Printer 20 RS 232 (Serial) Devices 20 External and Internal Modems 2o Adding External Floppy Disk Drives to the Bridgeboard 22
Page 6

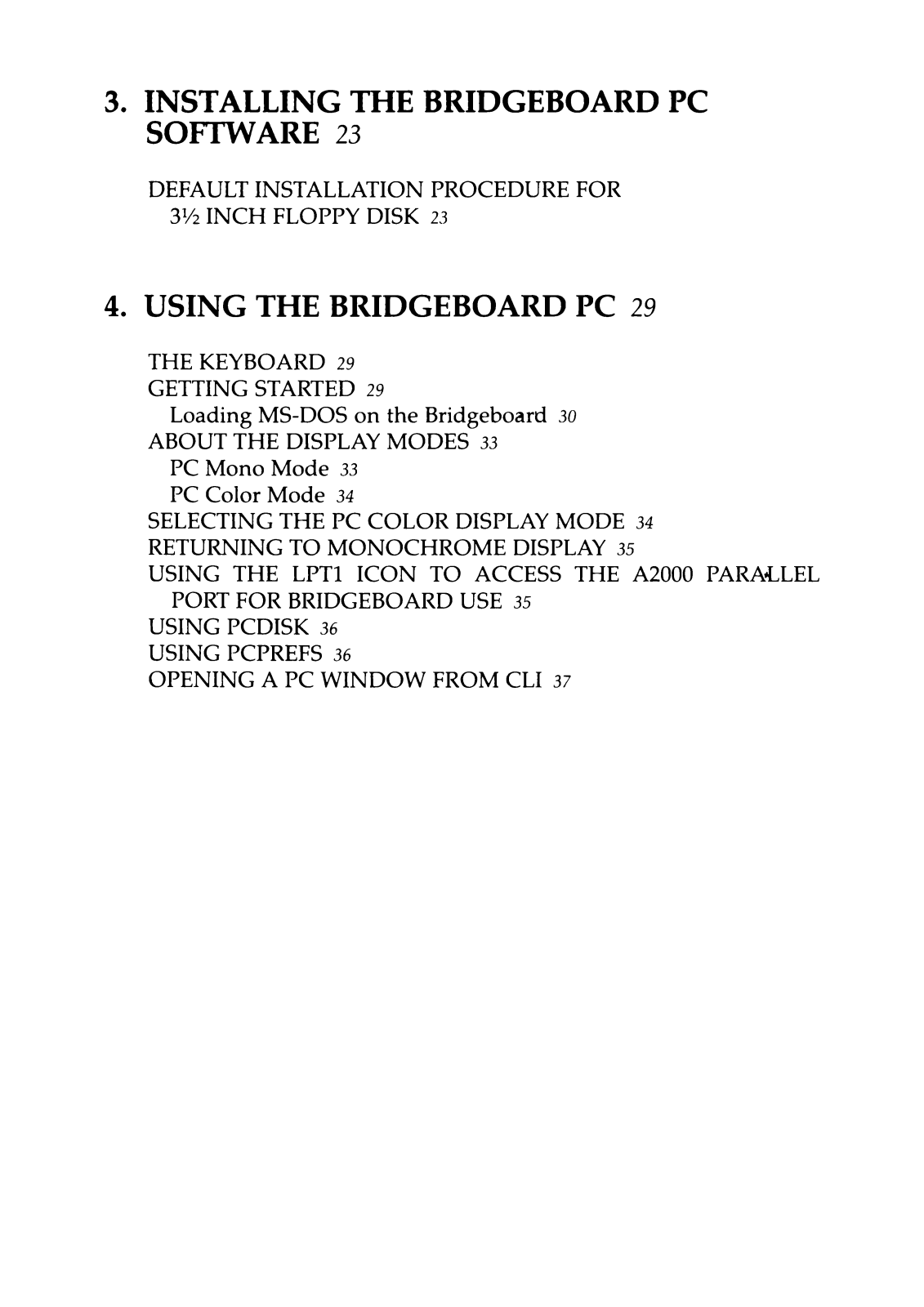

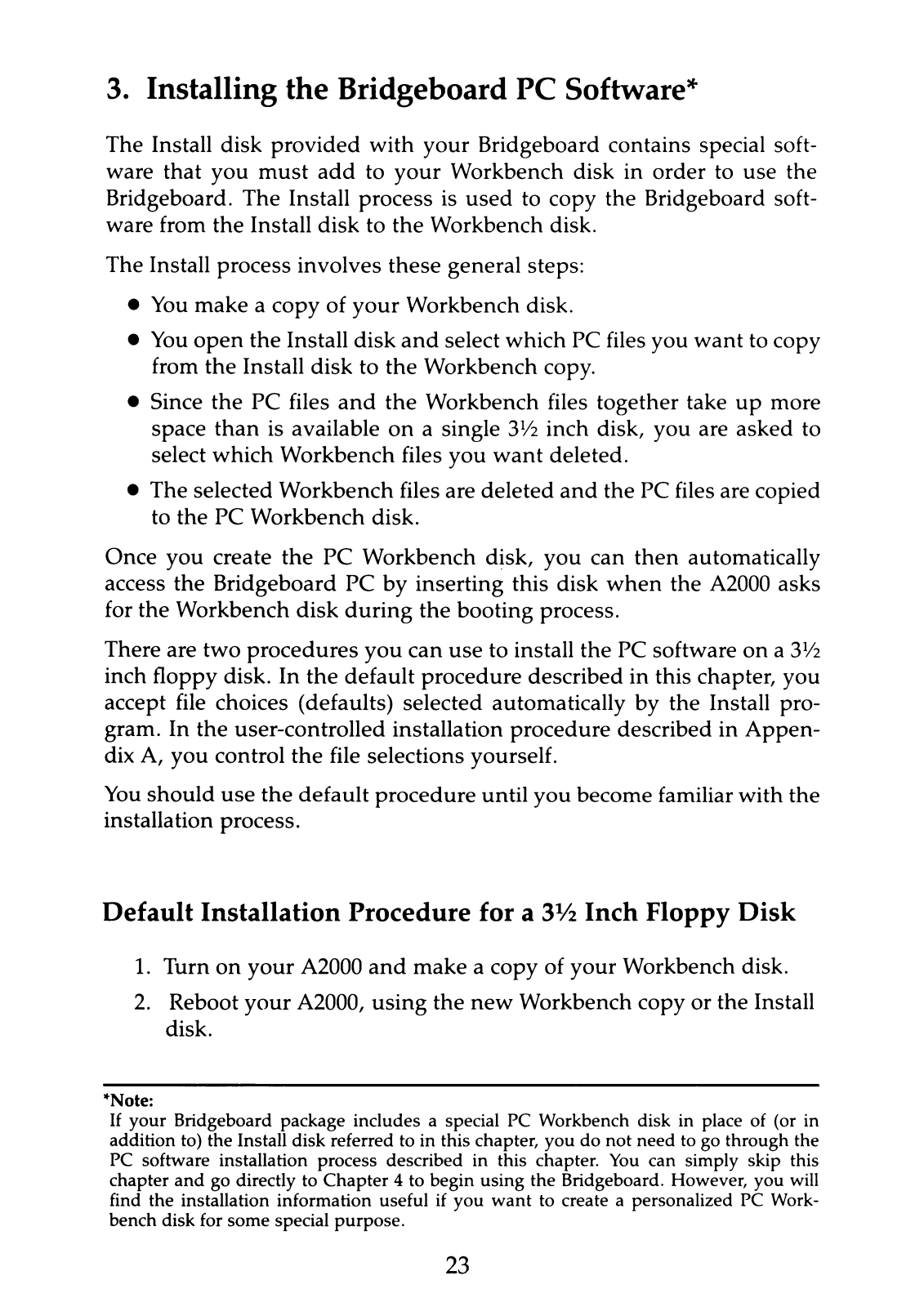

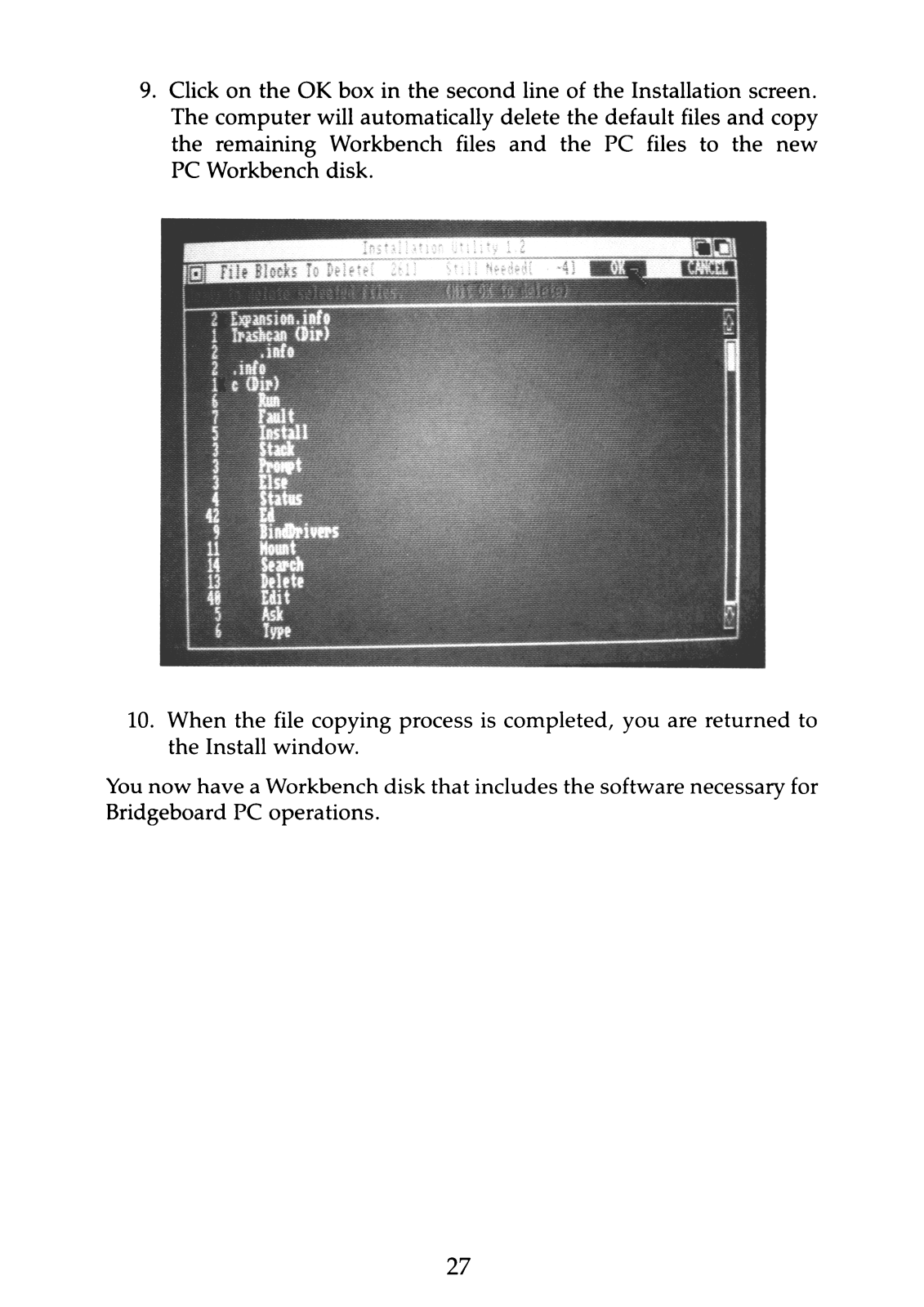

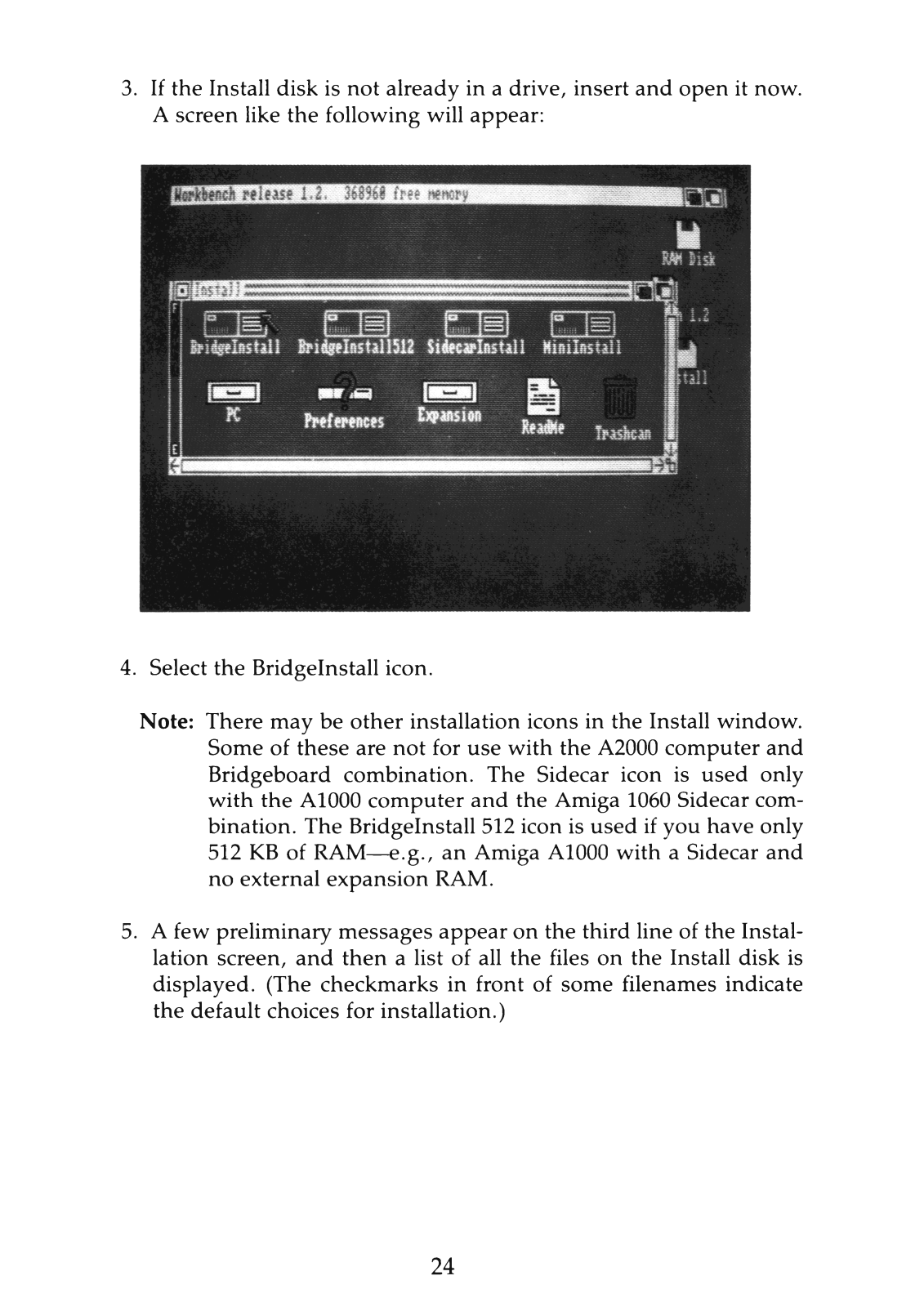

3. INSTALLING THE BRIDGEBOARD PC SOFTWARE 23
DEFAULT INSTALLATION PROCEDURE FOR
3>/2 INCH FLOPPY DISK 23

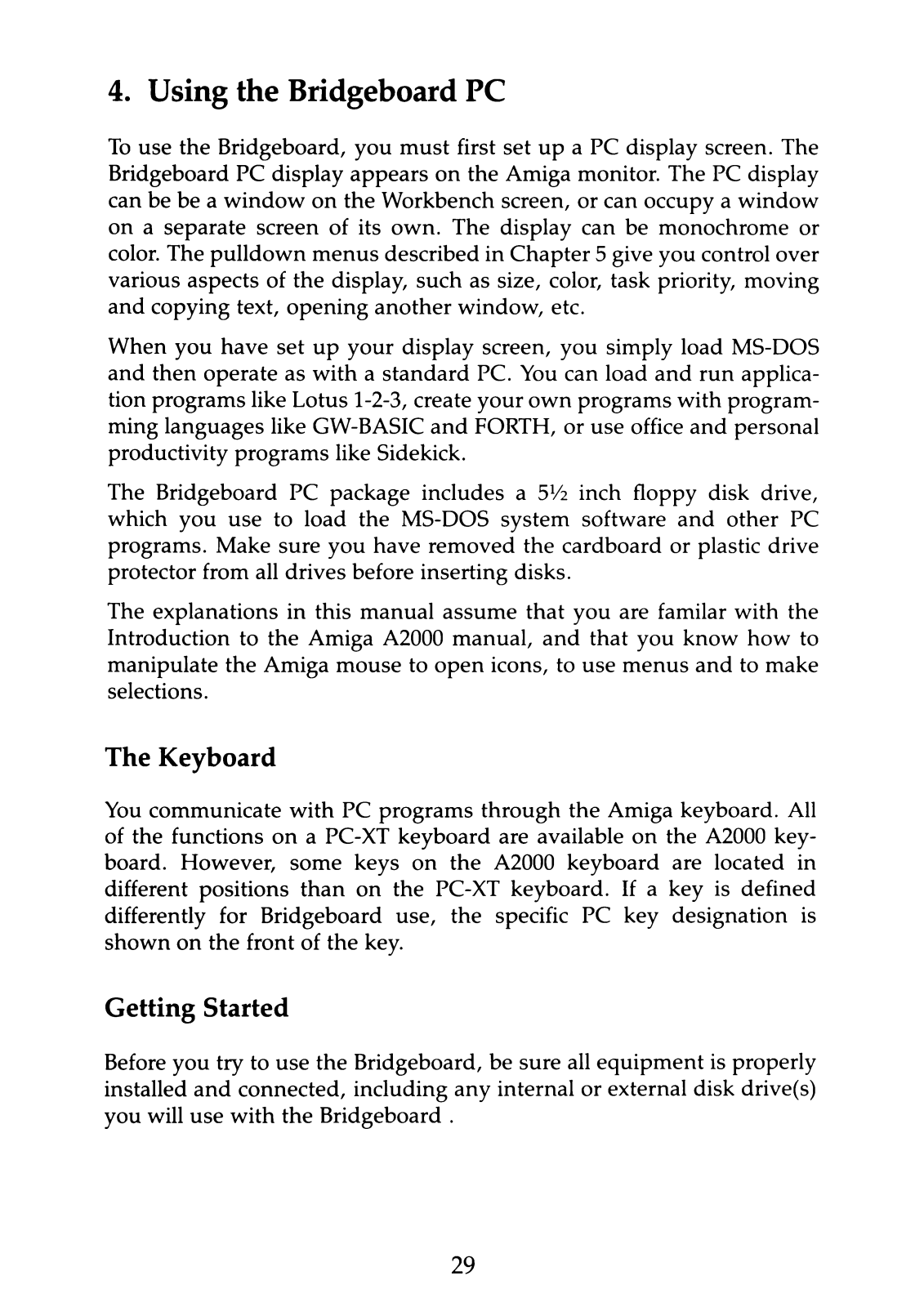

4. USING THE BRIDGEBOARD PC 29
THE KEYBOARD 29
GETTING STARTED 29

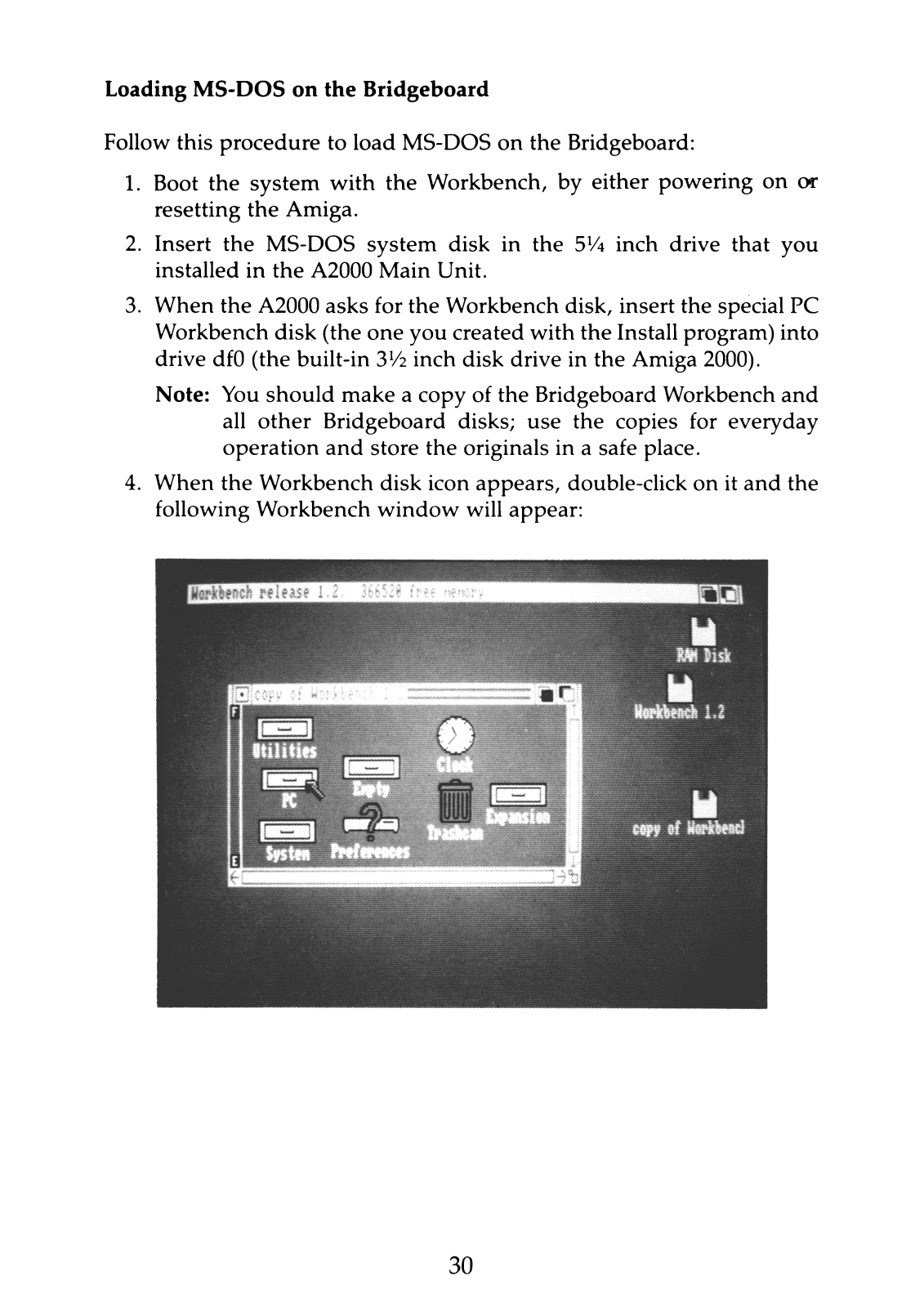

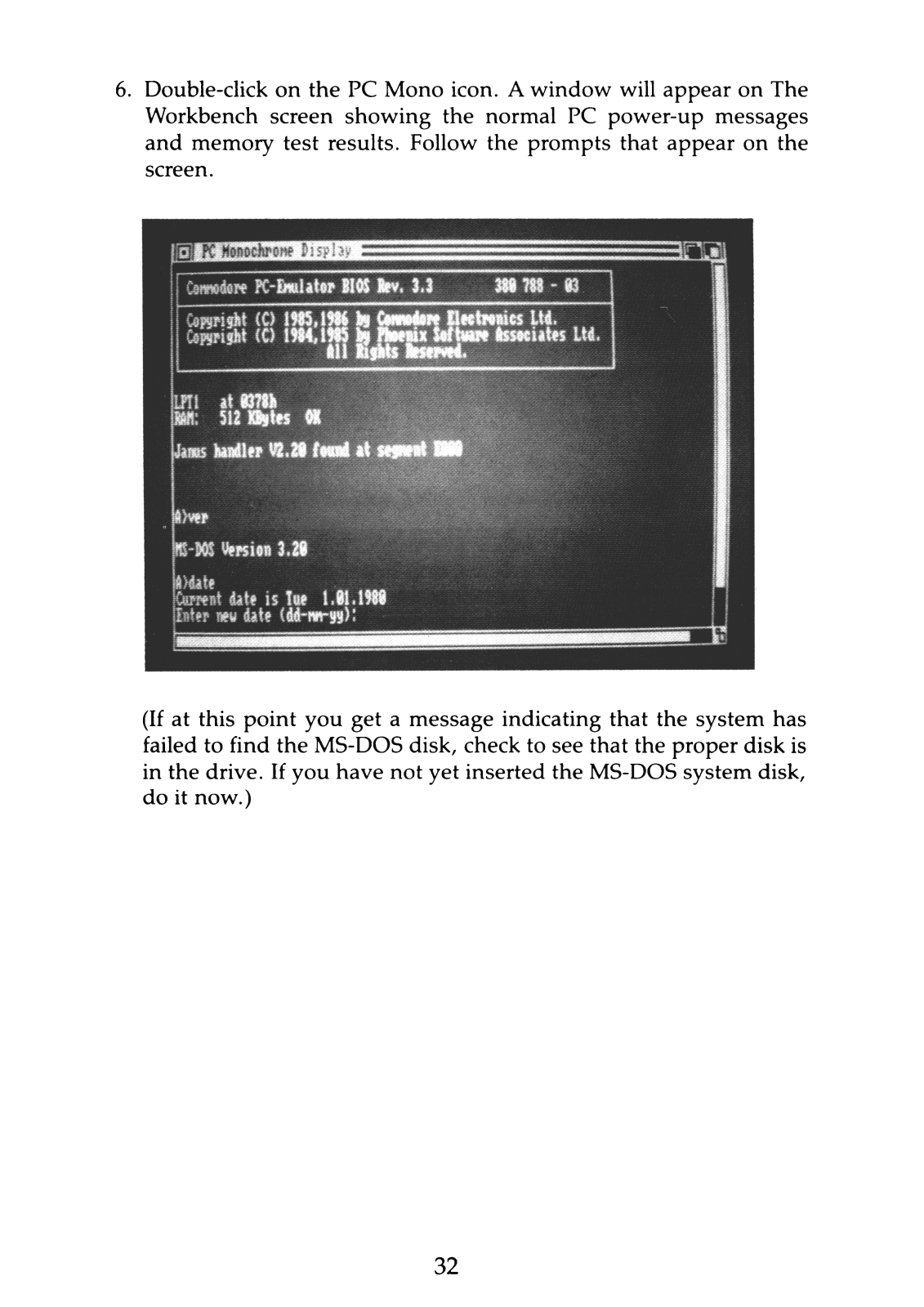

Loading MS-DOS on the Bridgeboard 30

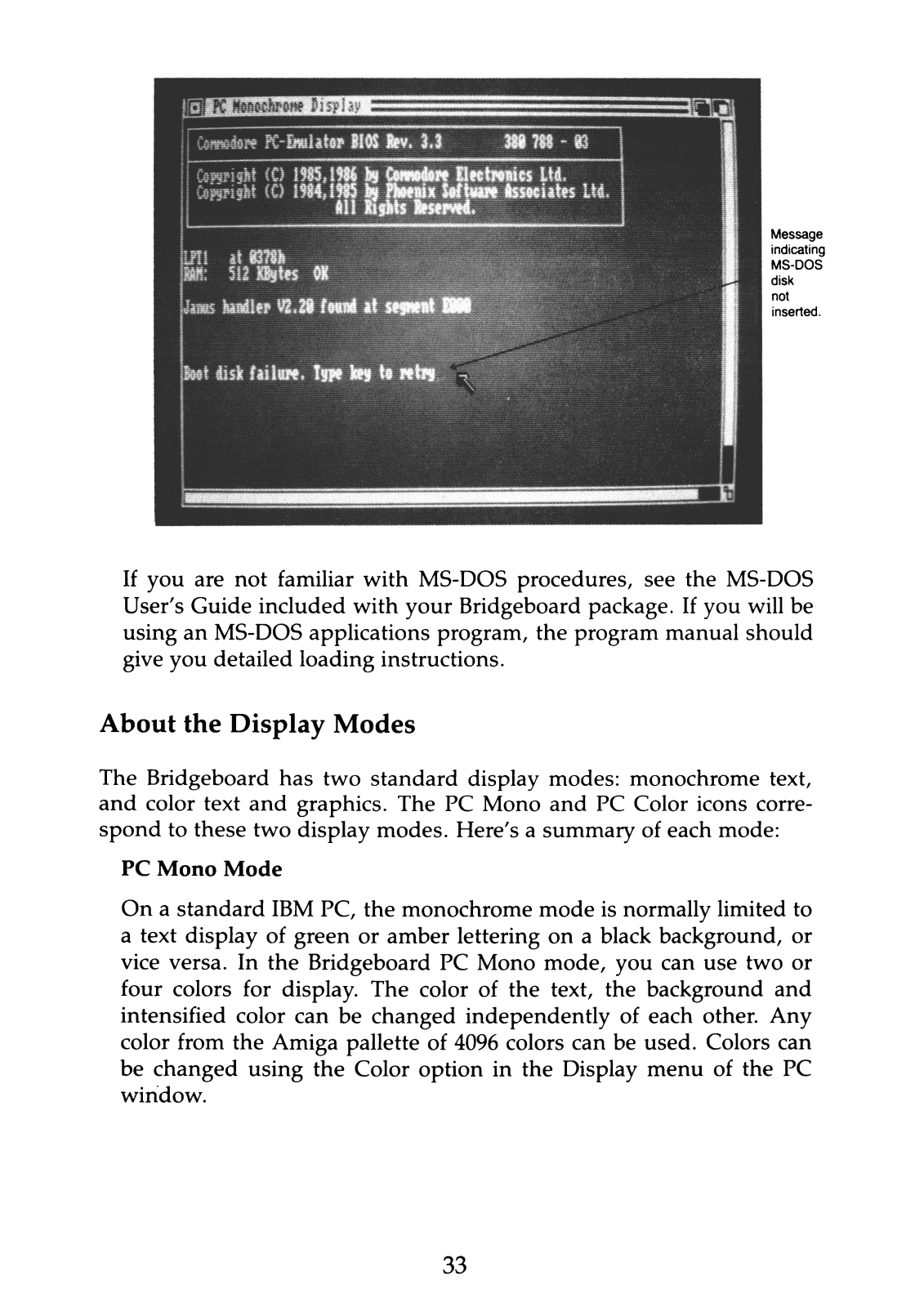

ABOUT THE DISPLAY MODES 33
PC Mono Mode 33

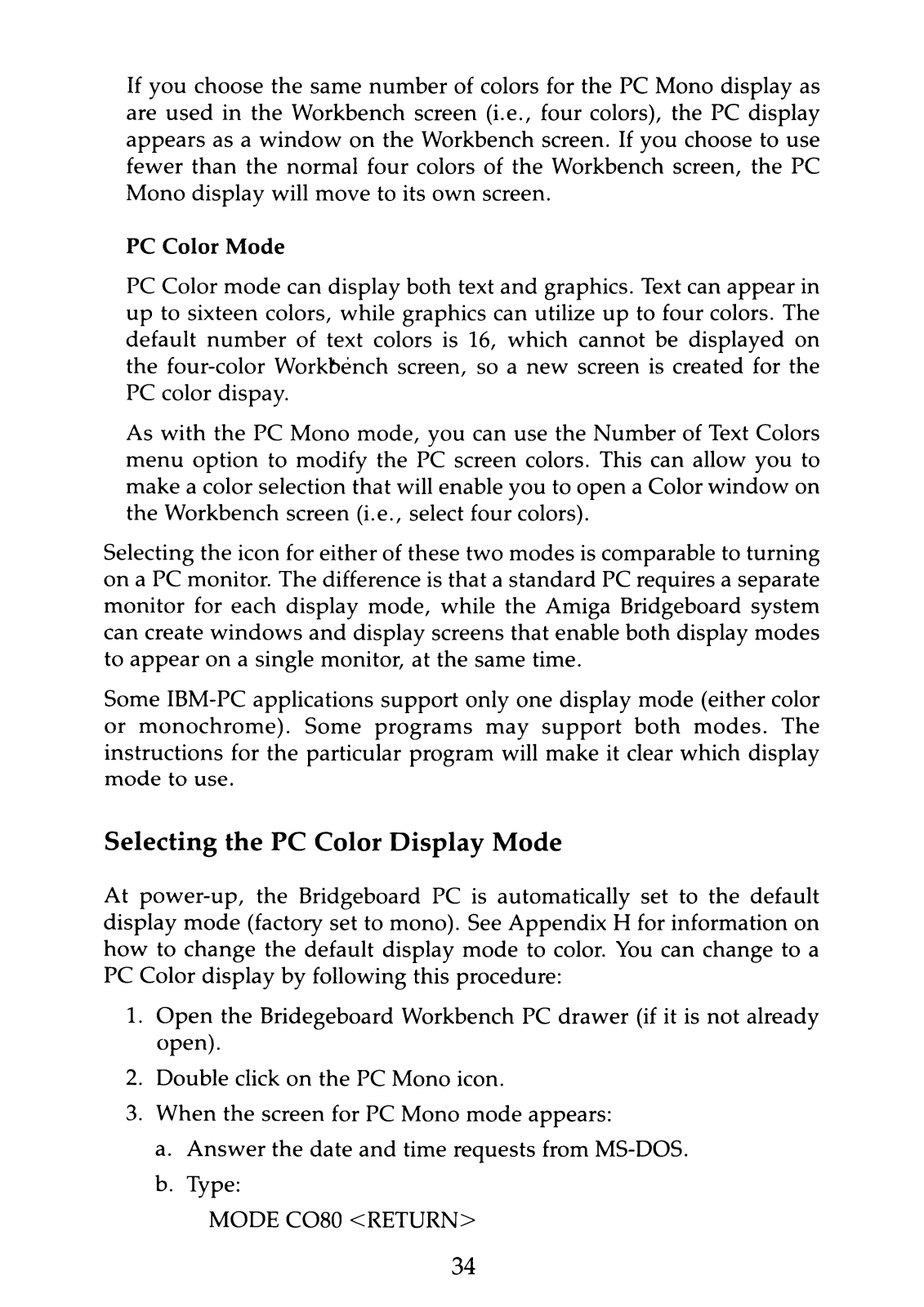

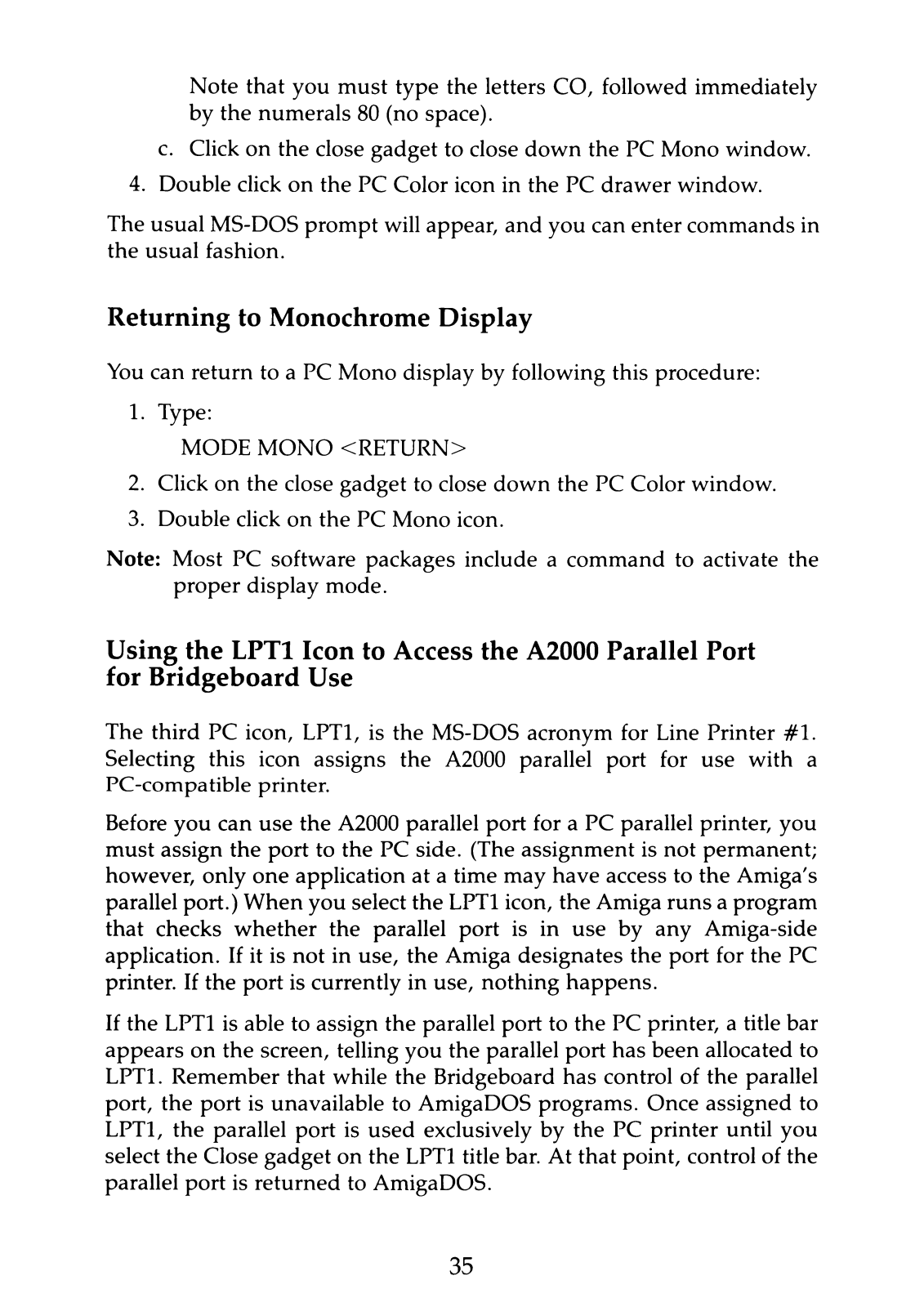

PC Color Mode 34 SELECTING THE PC COLOR DISPLAY MODE 34 RETURNING TO MONOCHROME DISPLAY 35 USING THE LPT1 ICON TO ACCESS THE A2000 PARALLEL

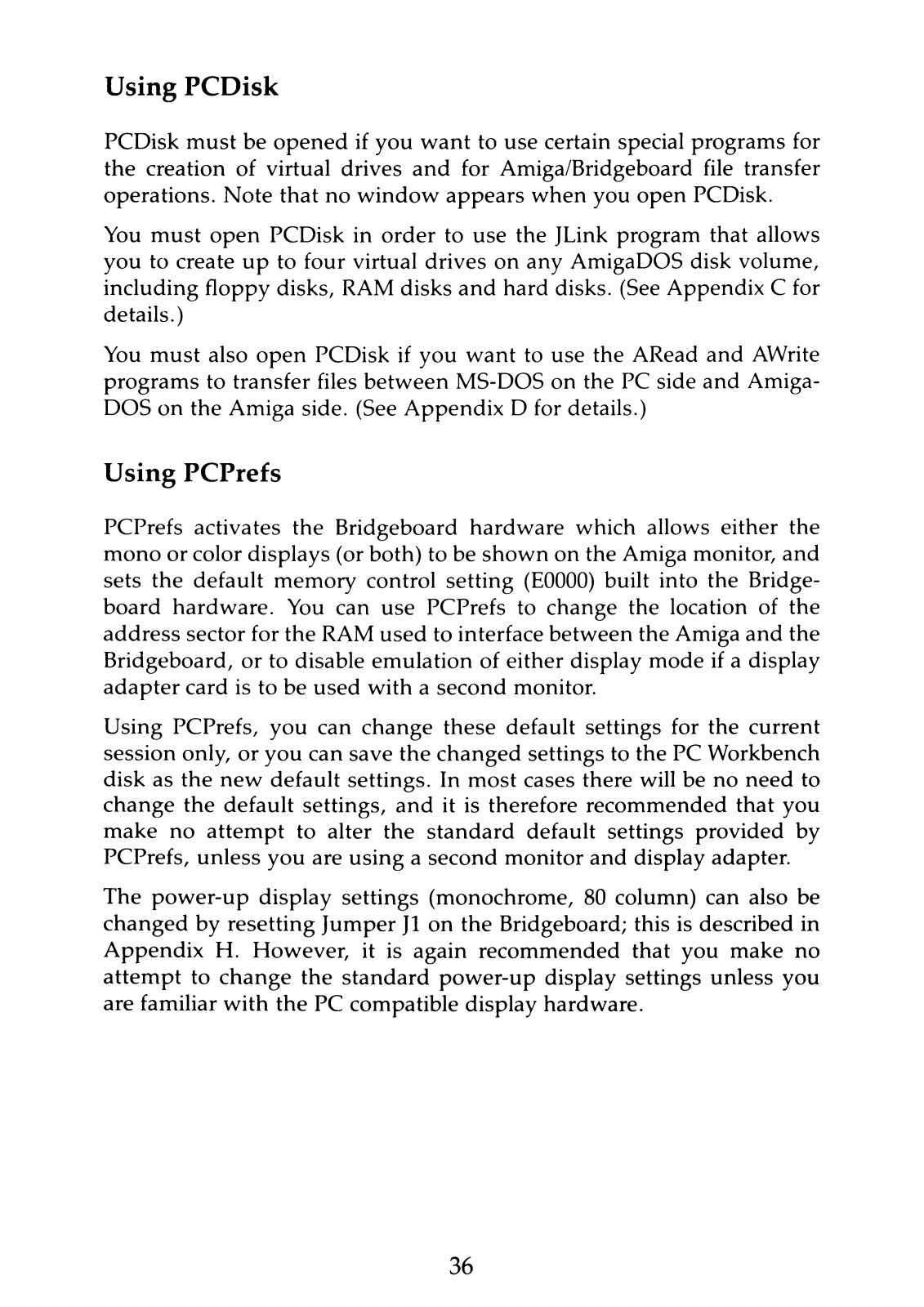

PORT FOR BRIDGEBOARD USE 35 USING PCDISK 36 USING PCPREFS 36 OPENING A PC WINDOW FROM CLI 37
Page 7

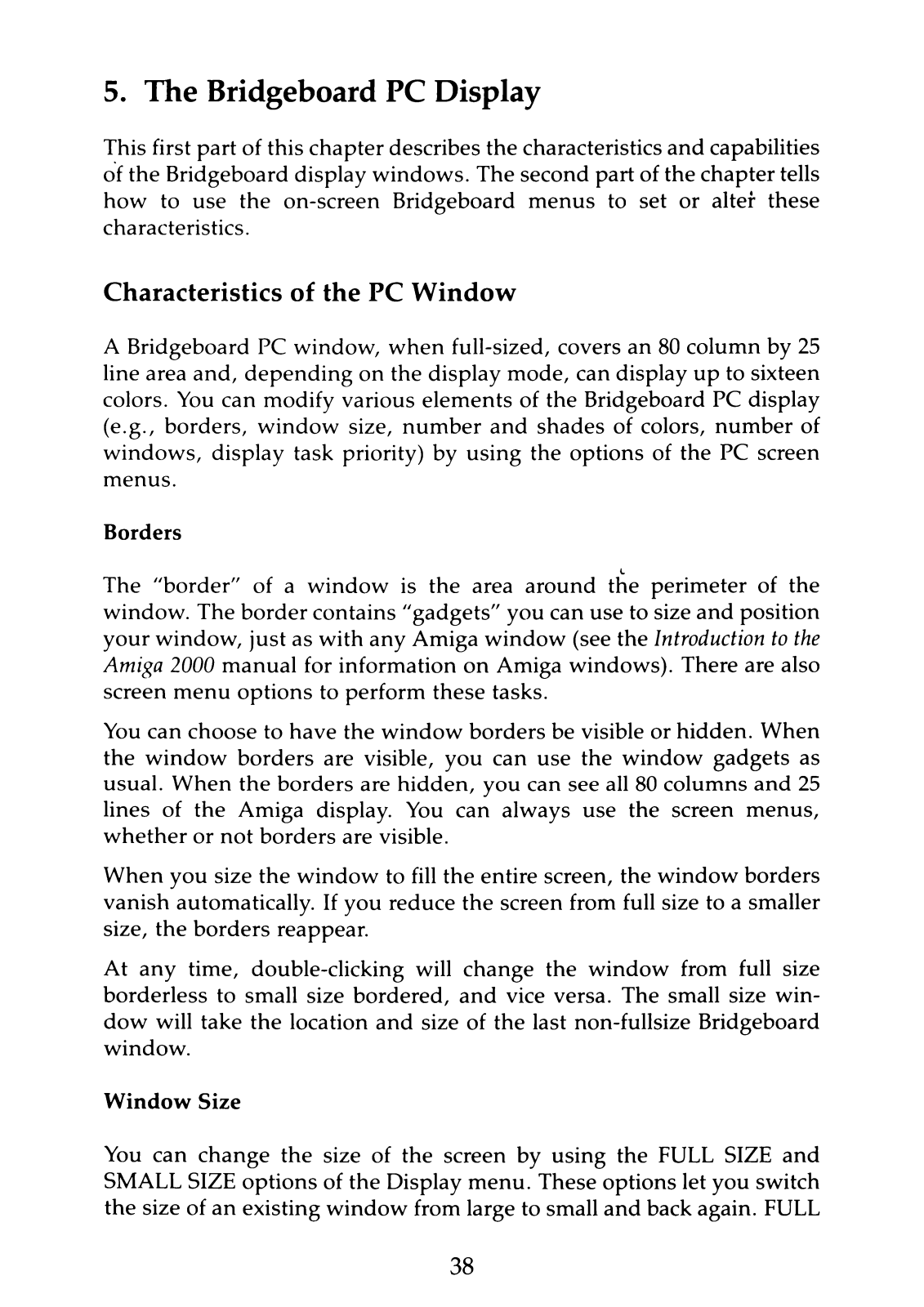

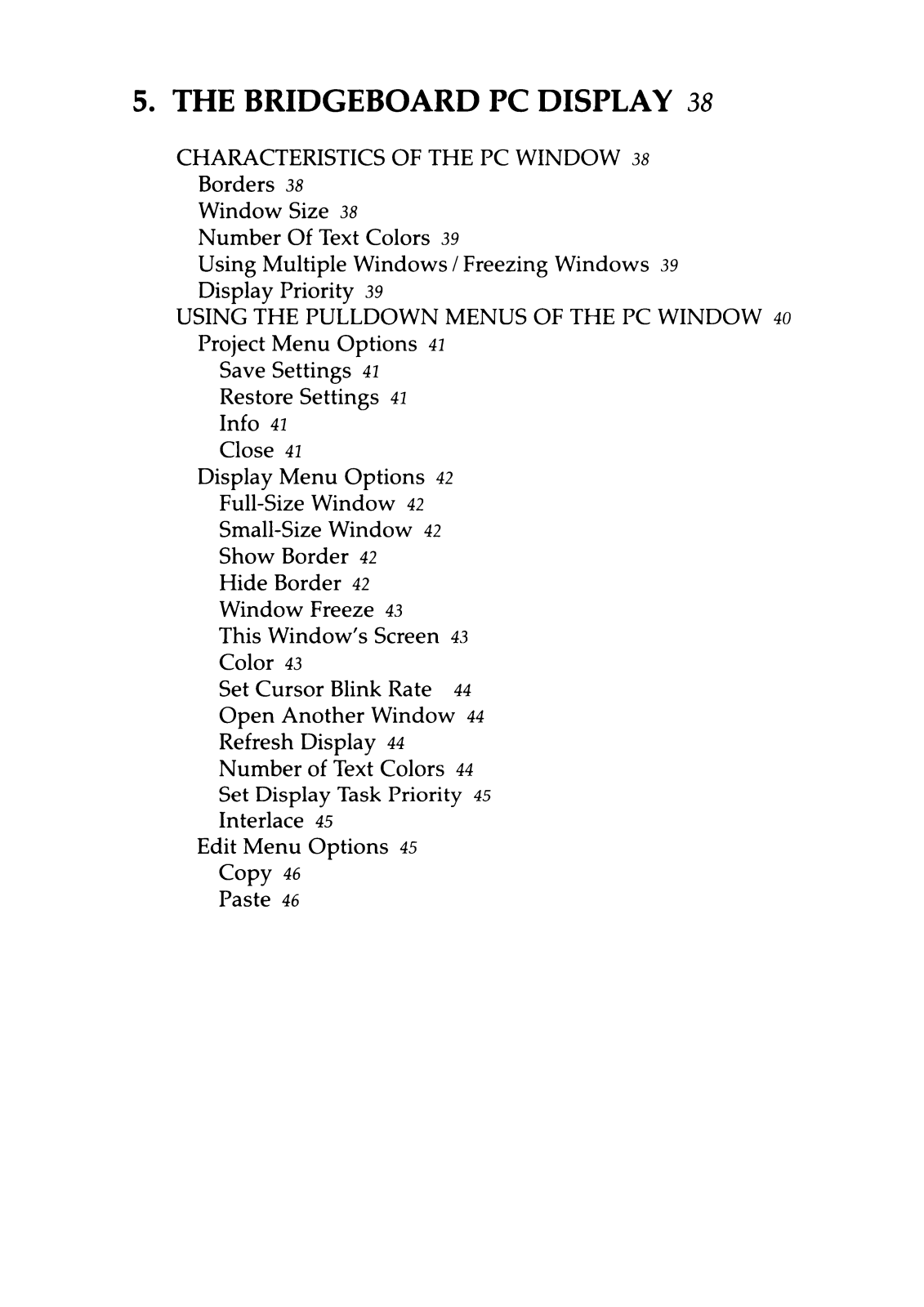

5. THE BRIDGEBOARD PC DISPLAY 38
CHARACTERISTICS OF THE PC WINDOW 38

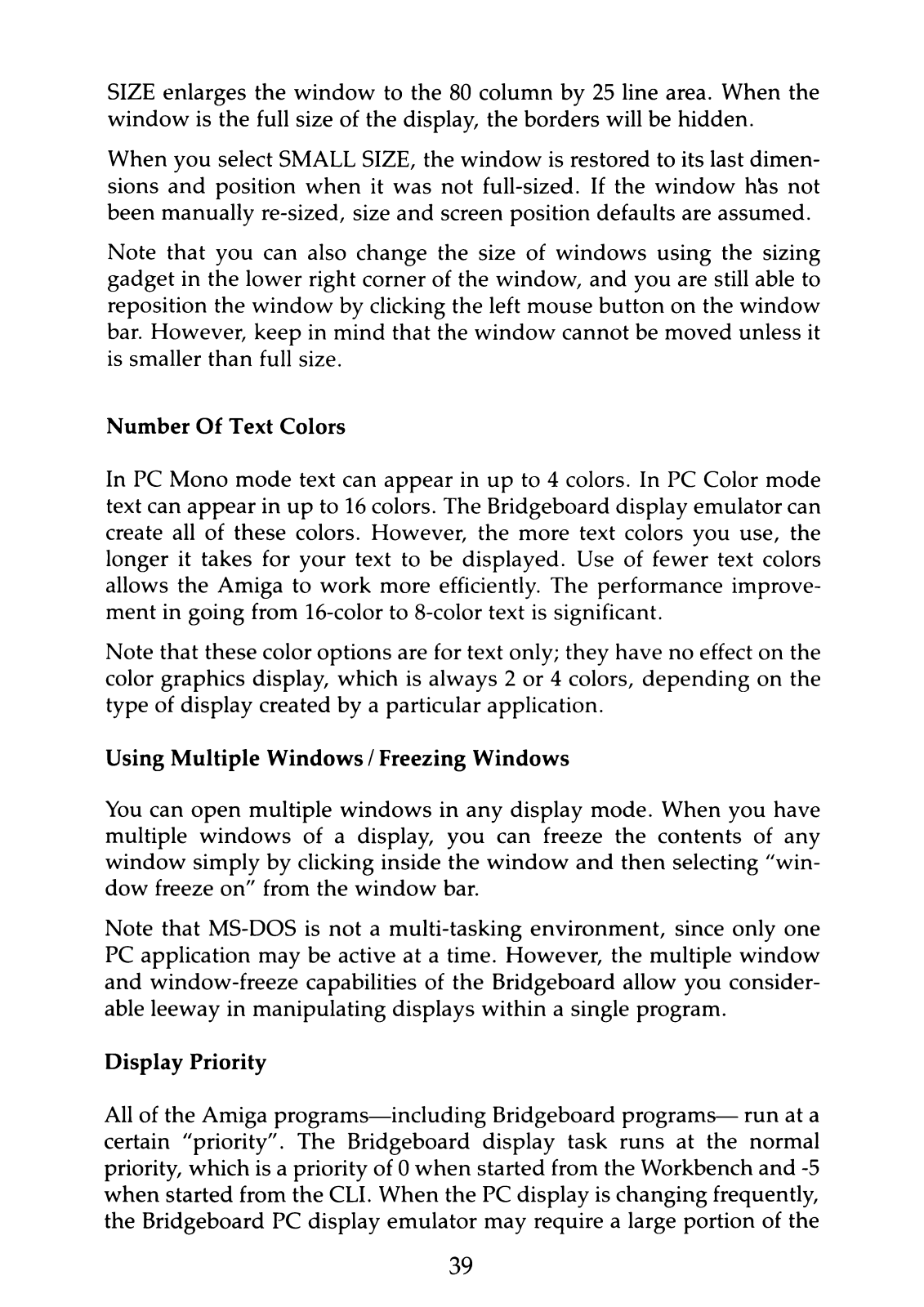

Borders 38 Window Size 38 Number Of Text Colors 39 Using Multiple Windows / Freezing Windows 39 Display Priority 39

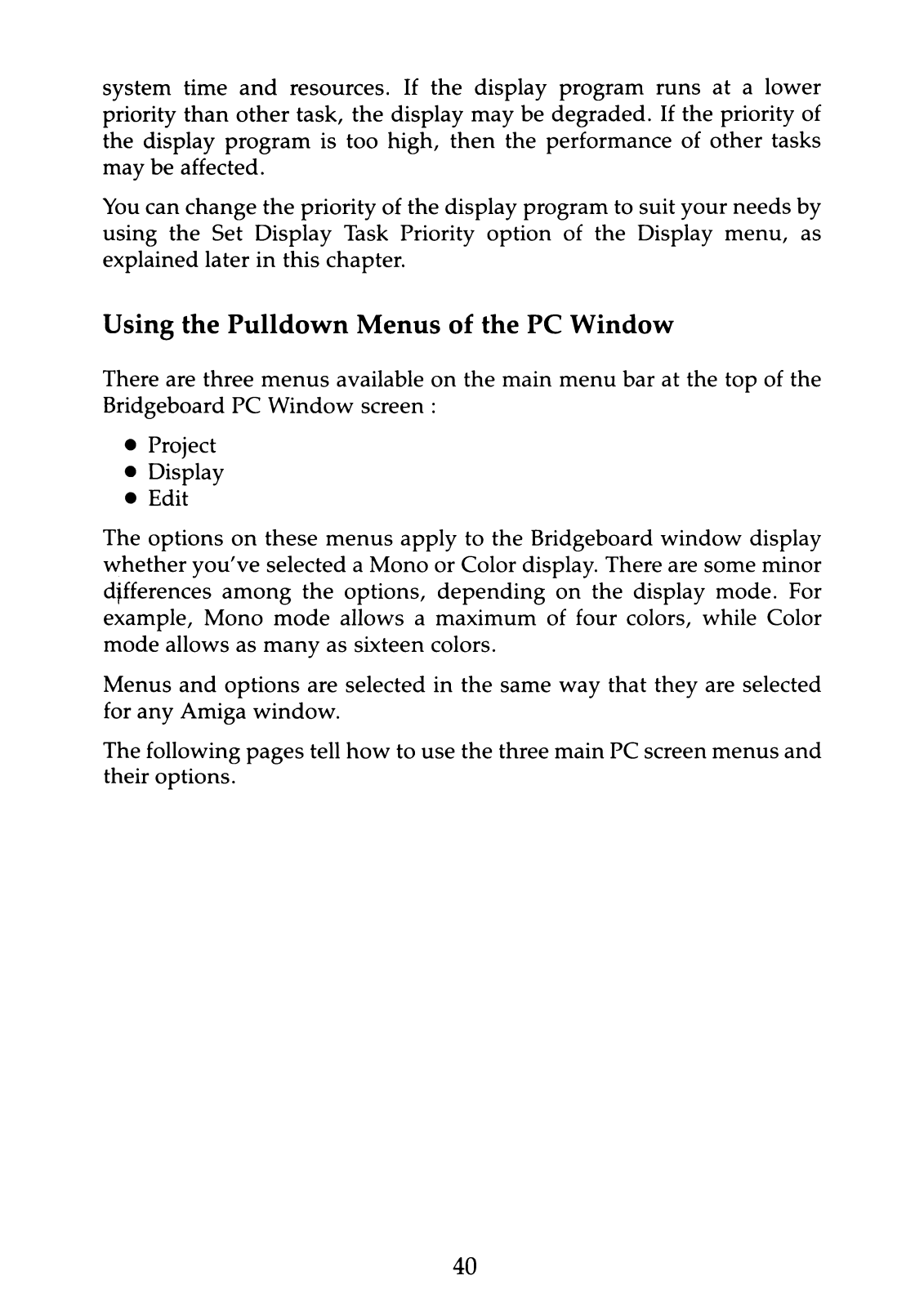

USING THE PULLDOWN MENUS OF THE PC WINDOW 40

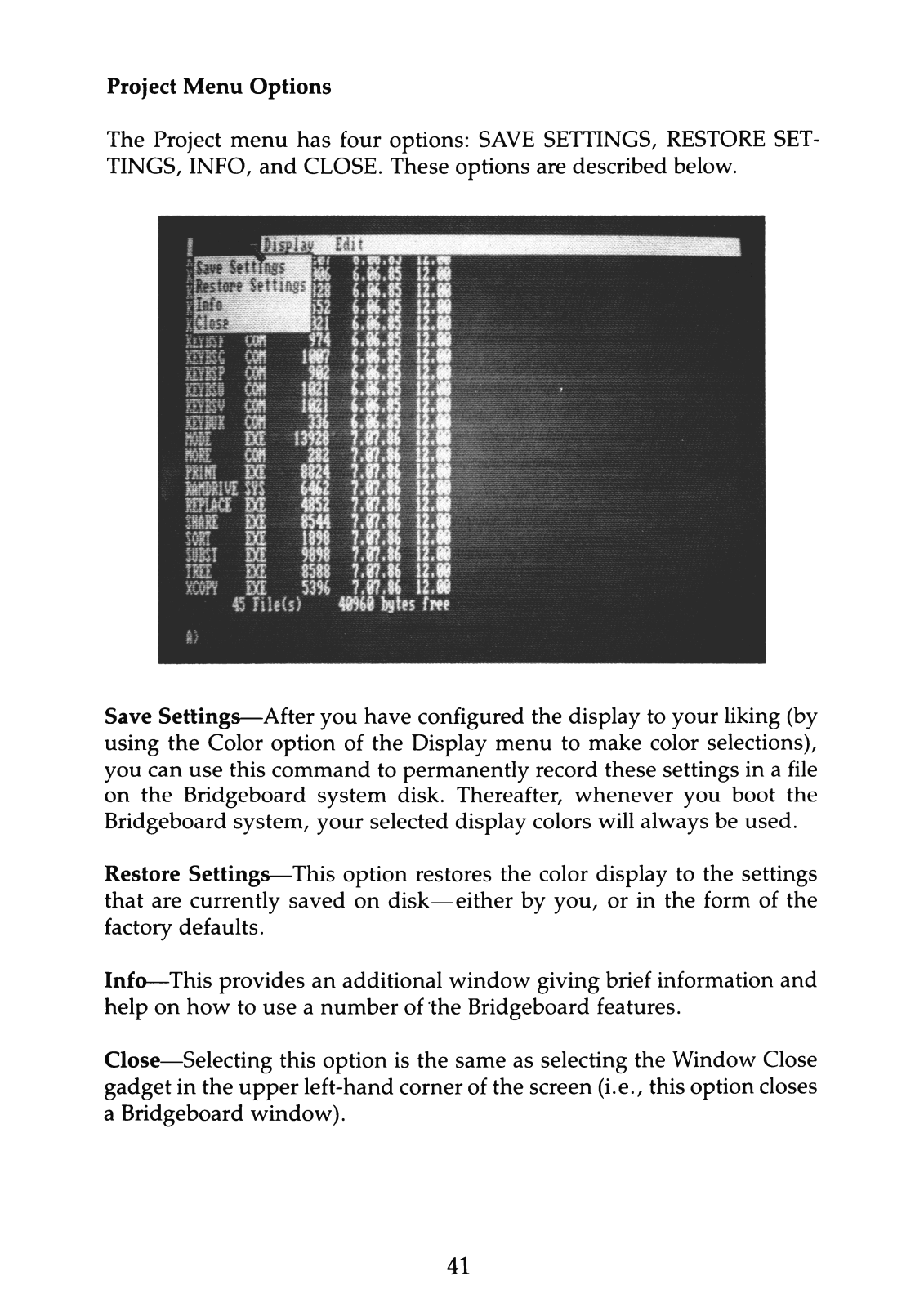

Project Menu Options 41
Save Settings 41 Restore Settings 41 Info 41 Close 41

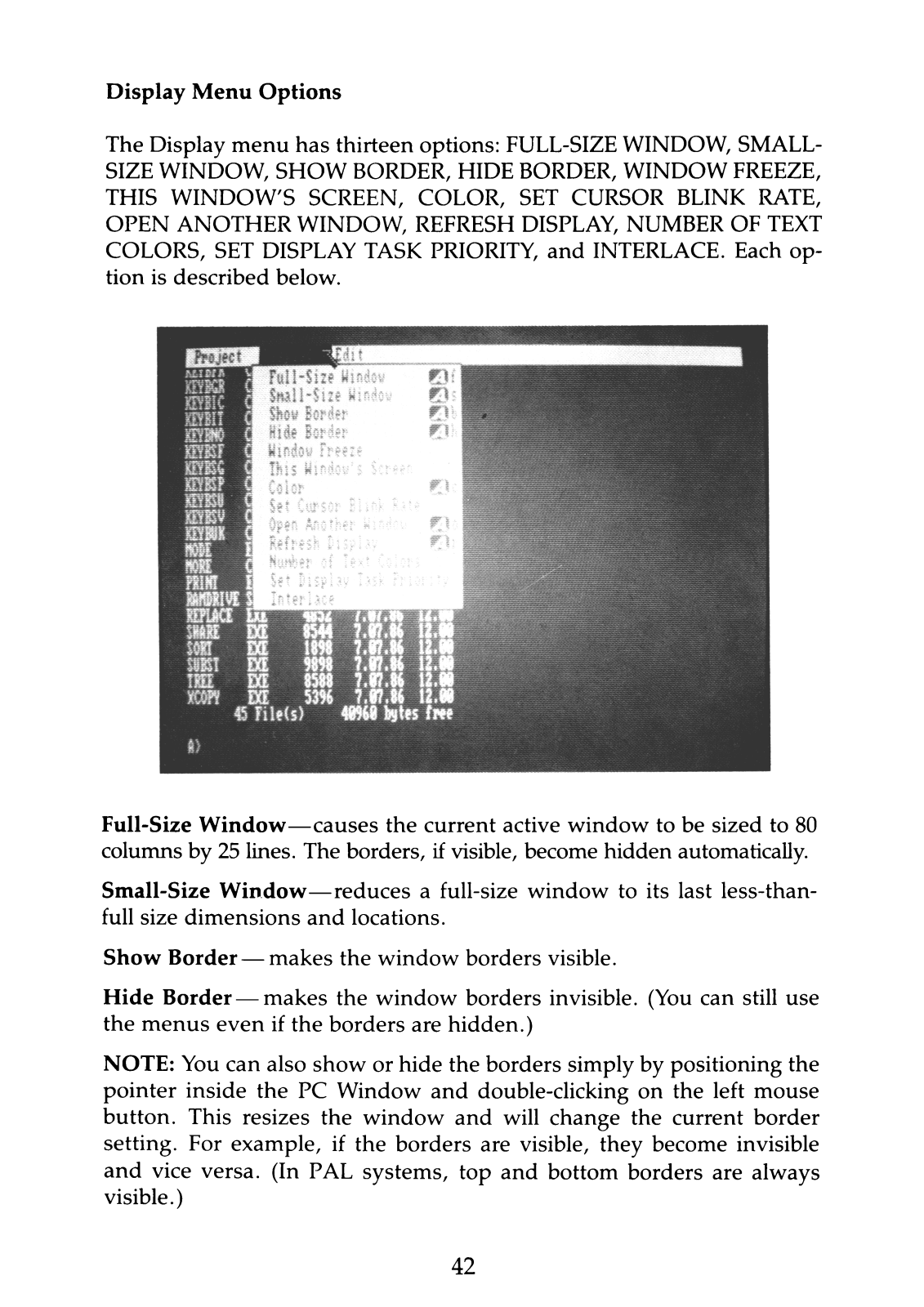

Display Menu Options 42
Full-Size Window 42 Small-Size Window 42 Show Border 42 Hide Border 42 Window Freeze 43 This Window's Screen 43 Color 43 Set Cursor Blink Rate 44 Open Another Window 44 Refresh Display 44 Number of Text Colors 44 Set Display Task Priority 45 Interlace 45

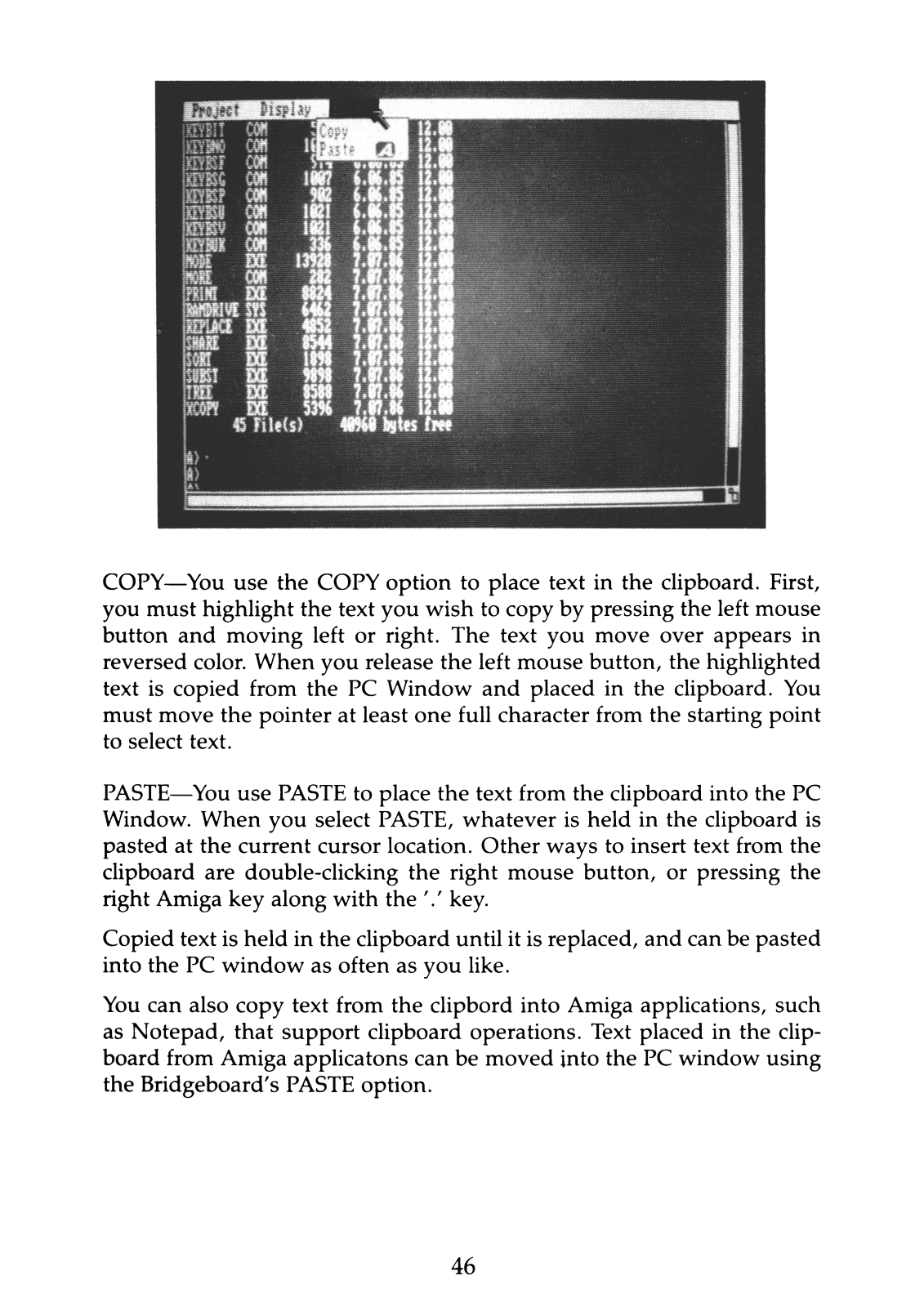

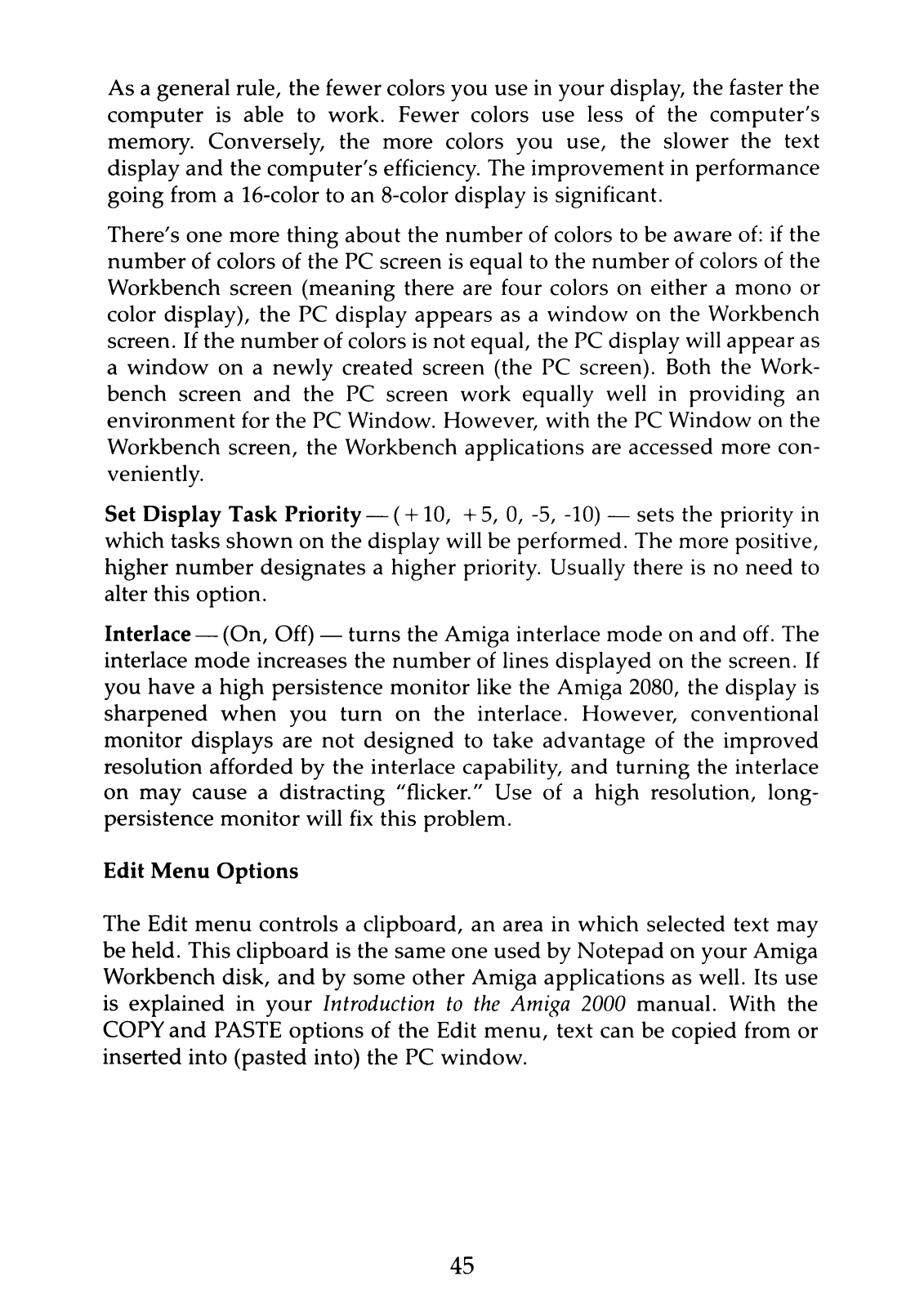

Edit Menu Options 45
Copy 46 Paste 46
Page 8

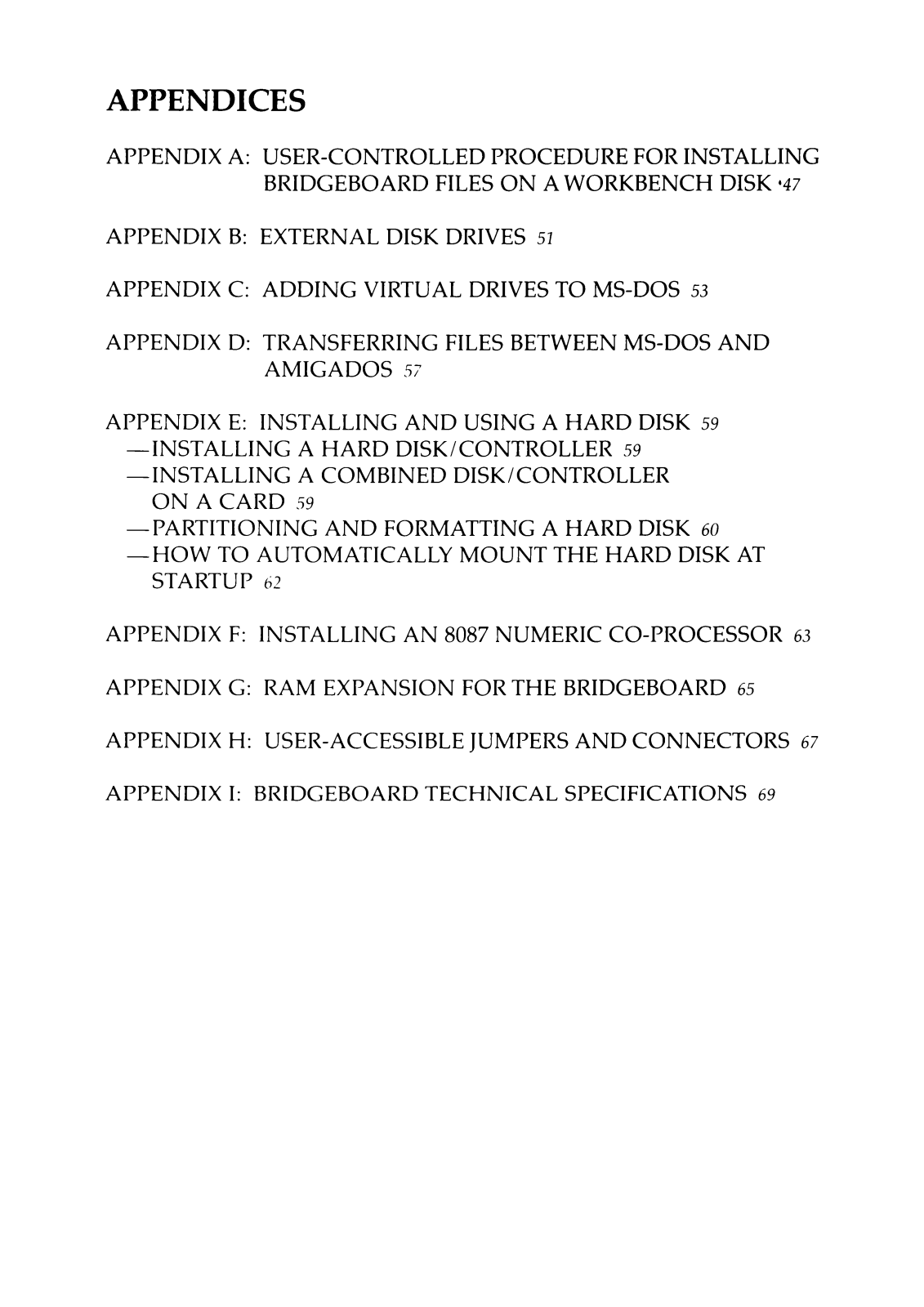

APPENDICES

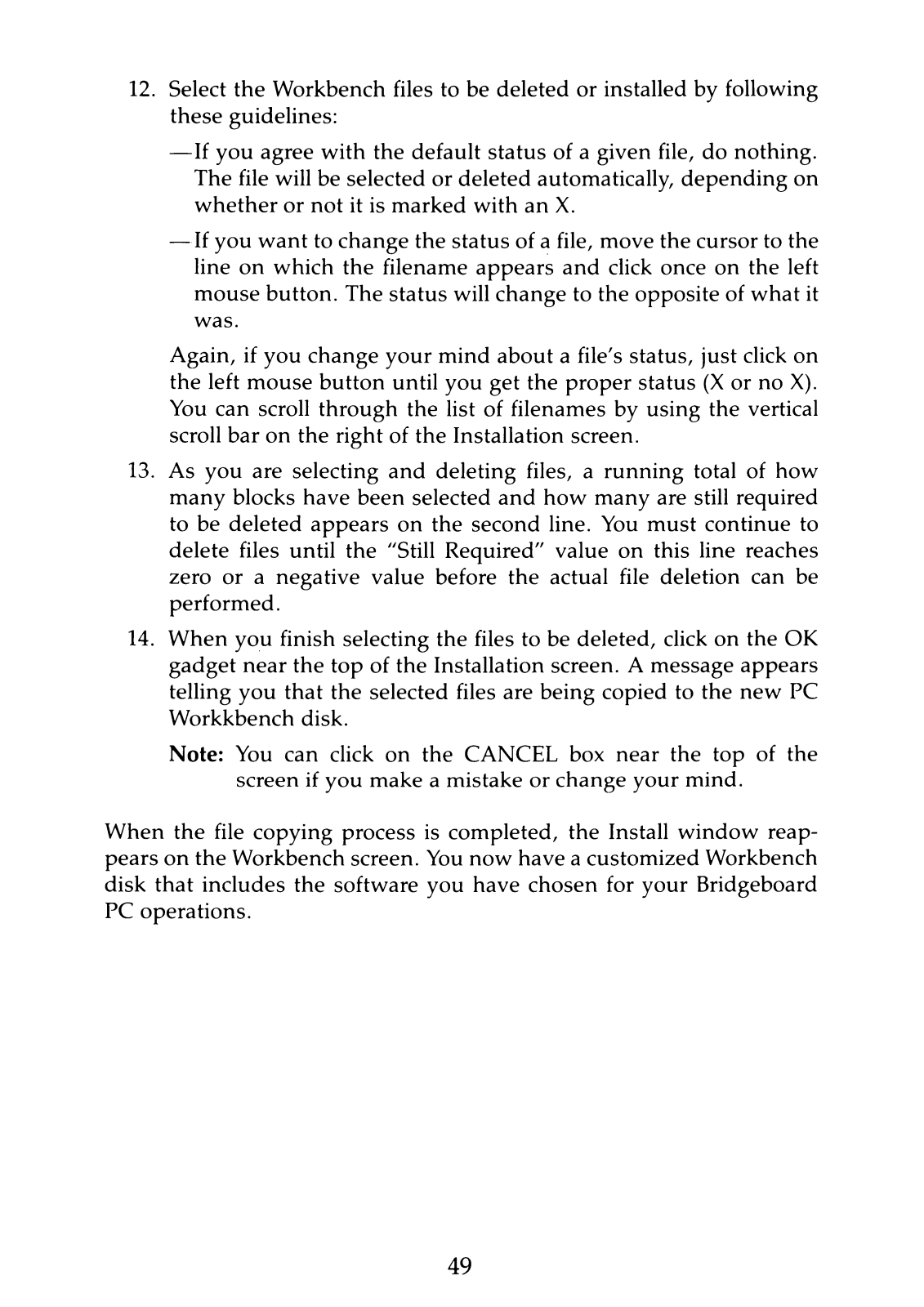

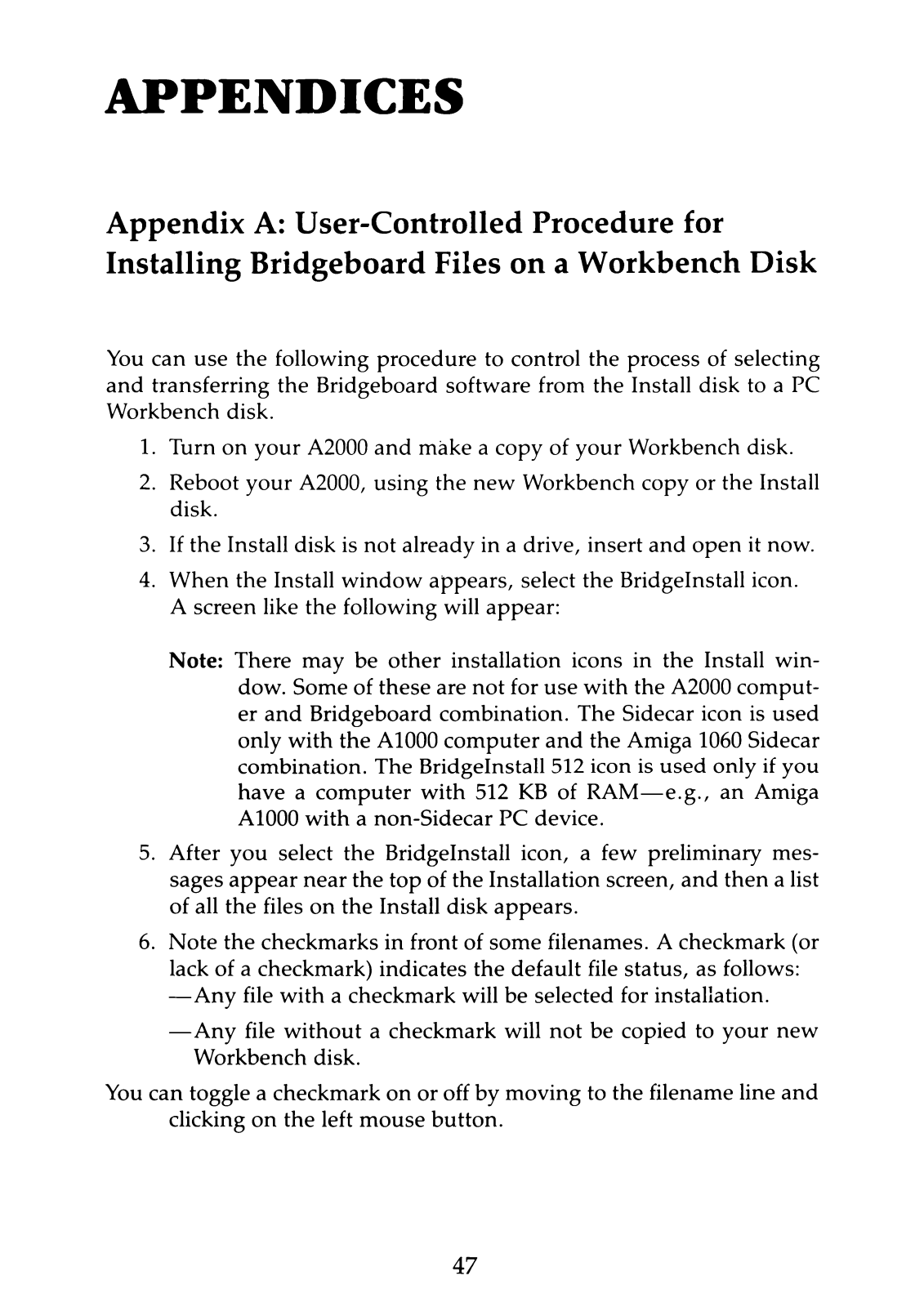

APPENDIX A: USER-CONTROLLED PROCEDURE FOR INSTALLING
BRIDGEBOARD FILES ON A WORKBENCH DISK 47

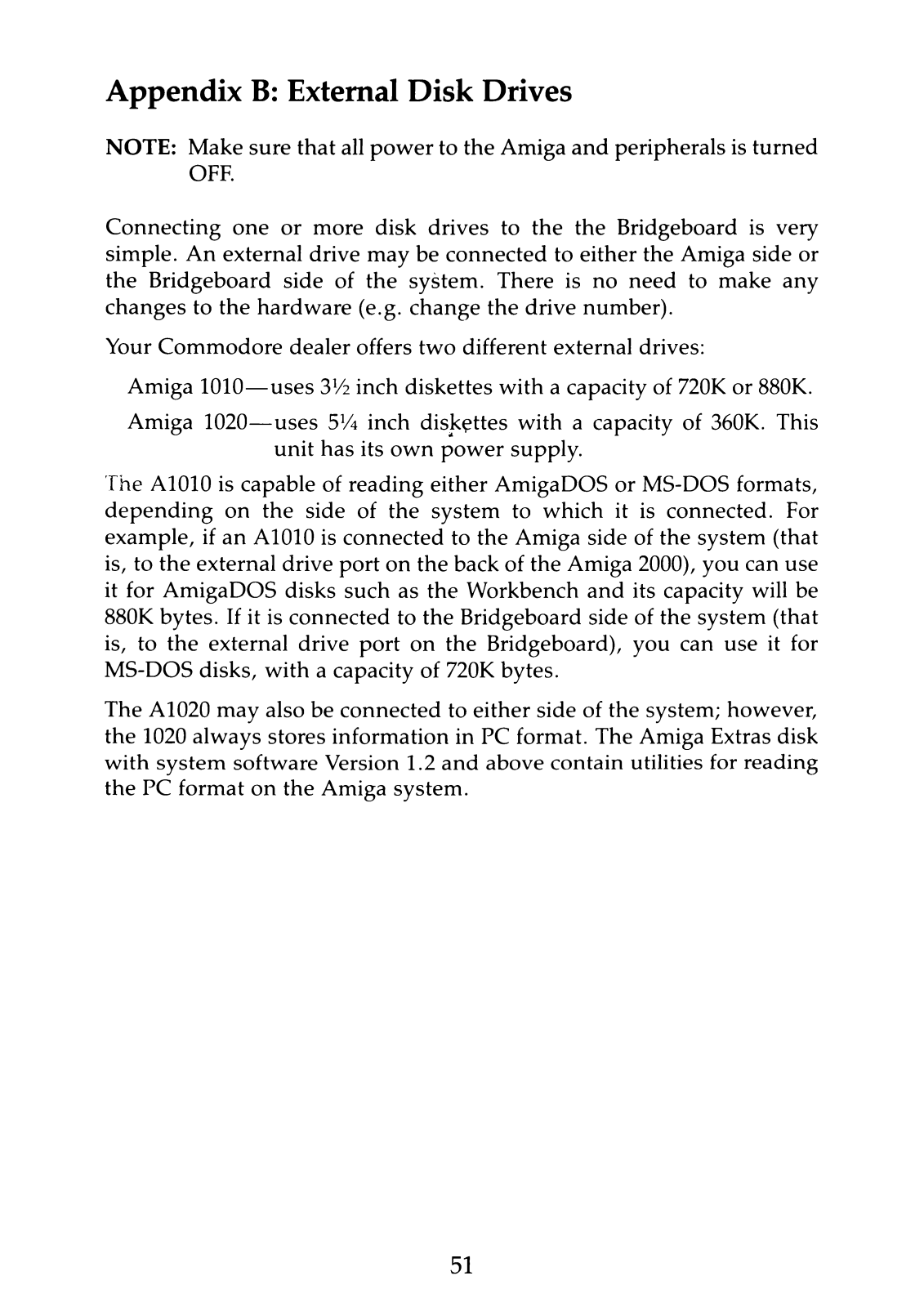

APPENDIX B: EXTERNAL DISK DRIVES 52

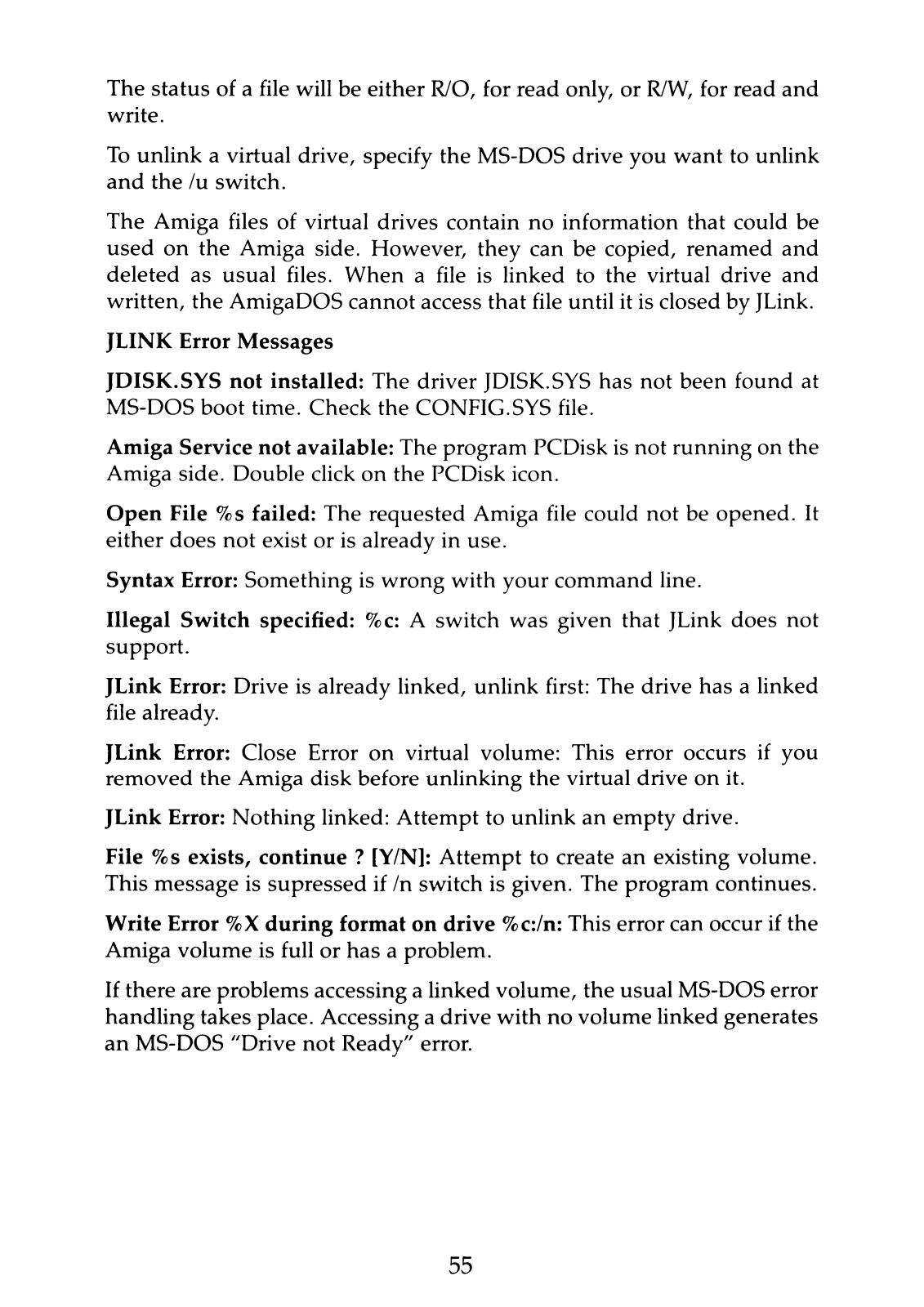

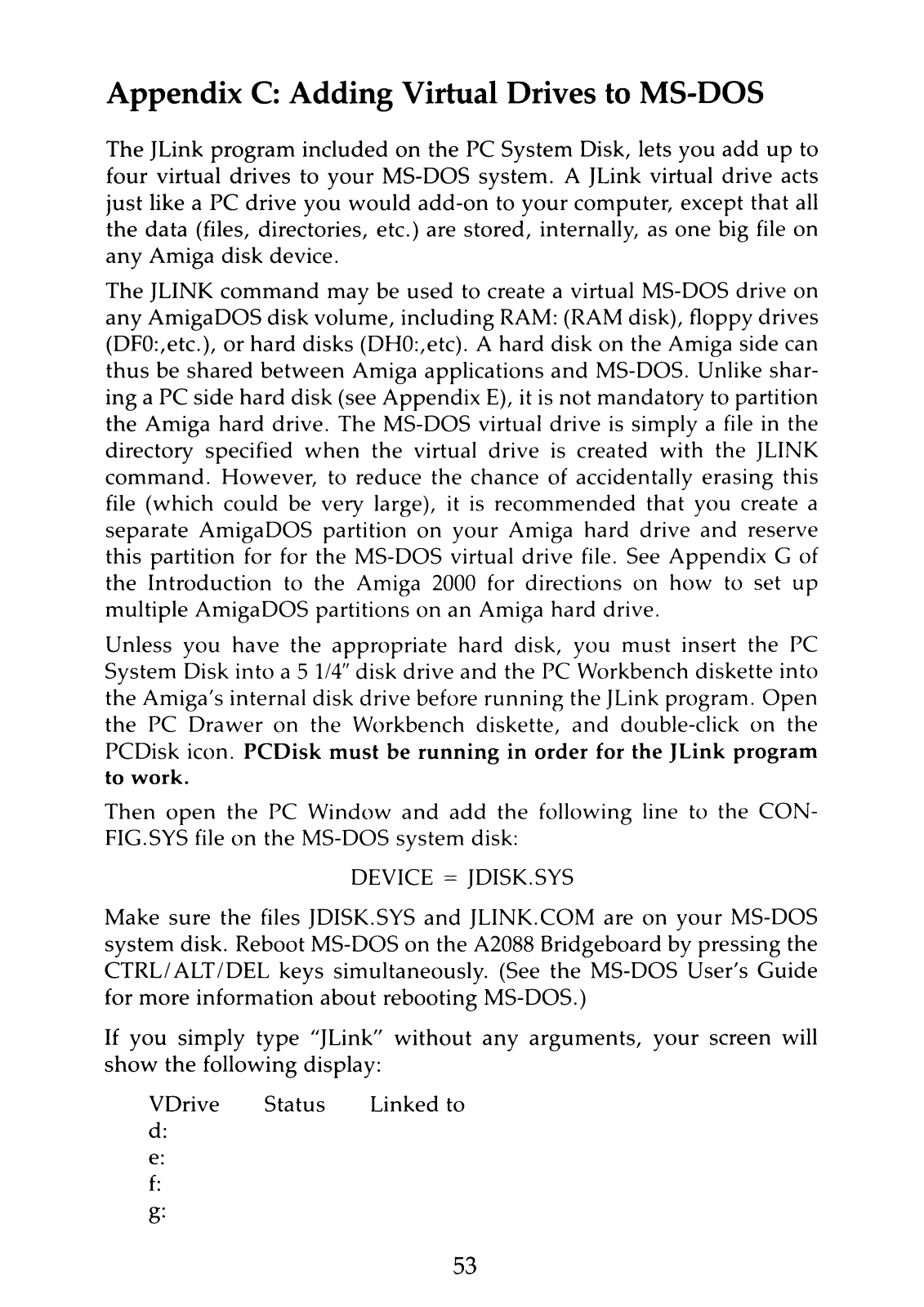

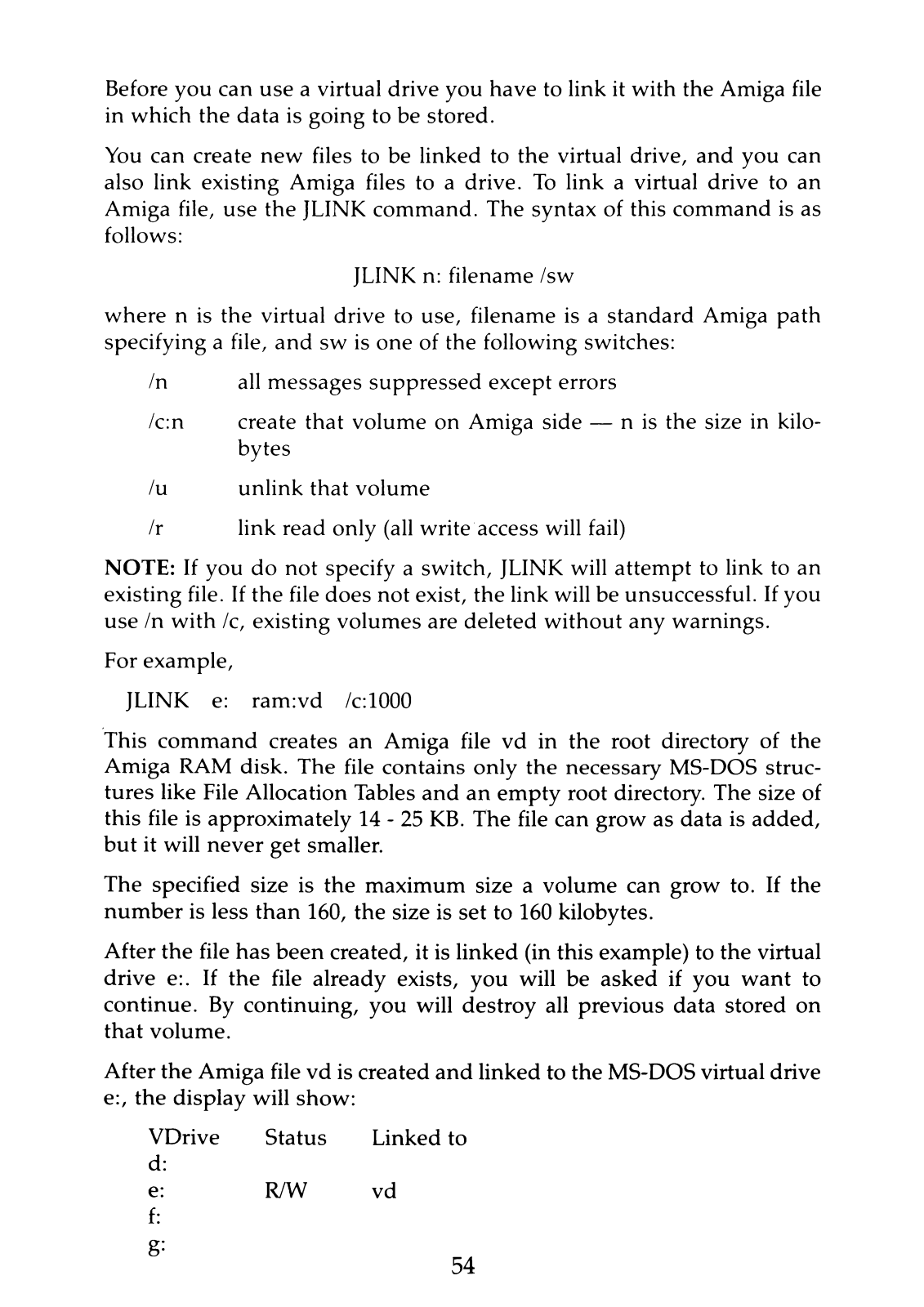

APPENDIX C: ADDING VIRTUAL DRIVES TO MS-DOS 53

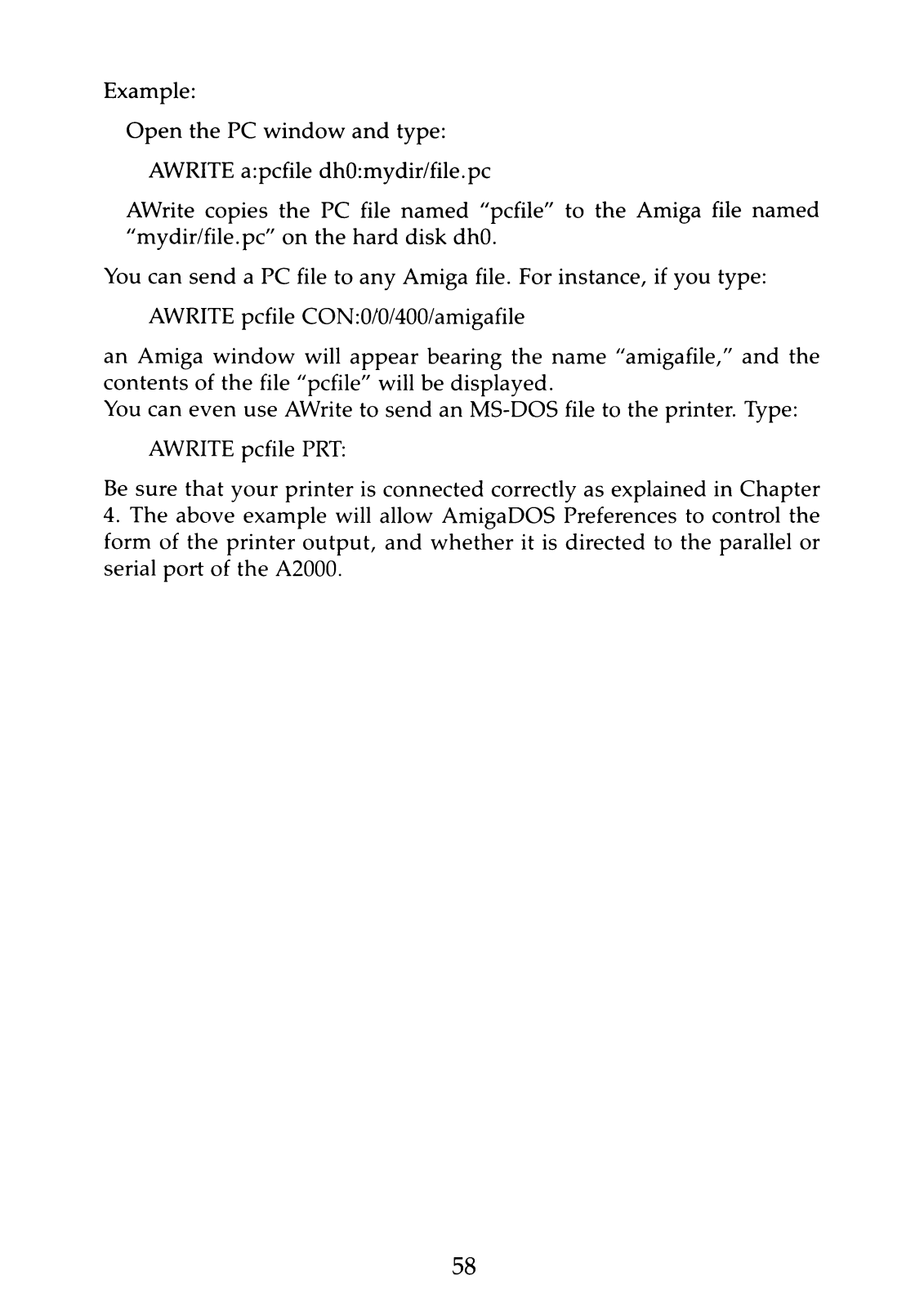

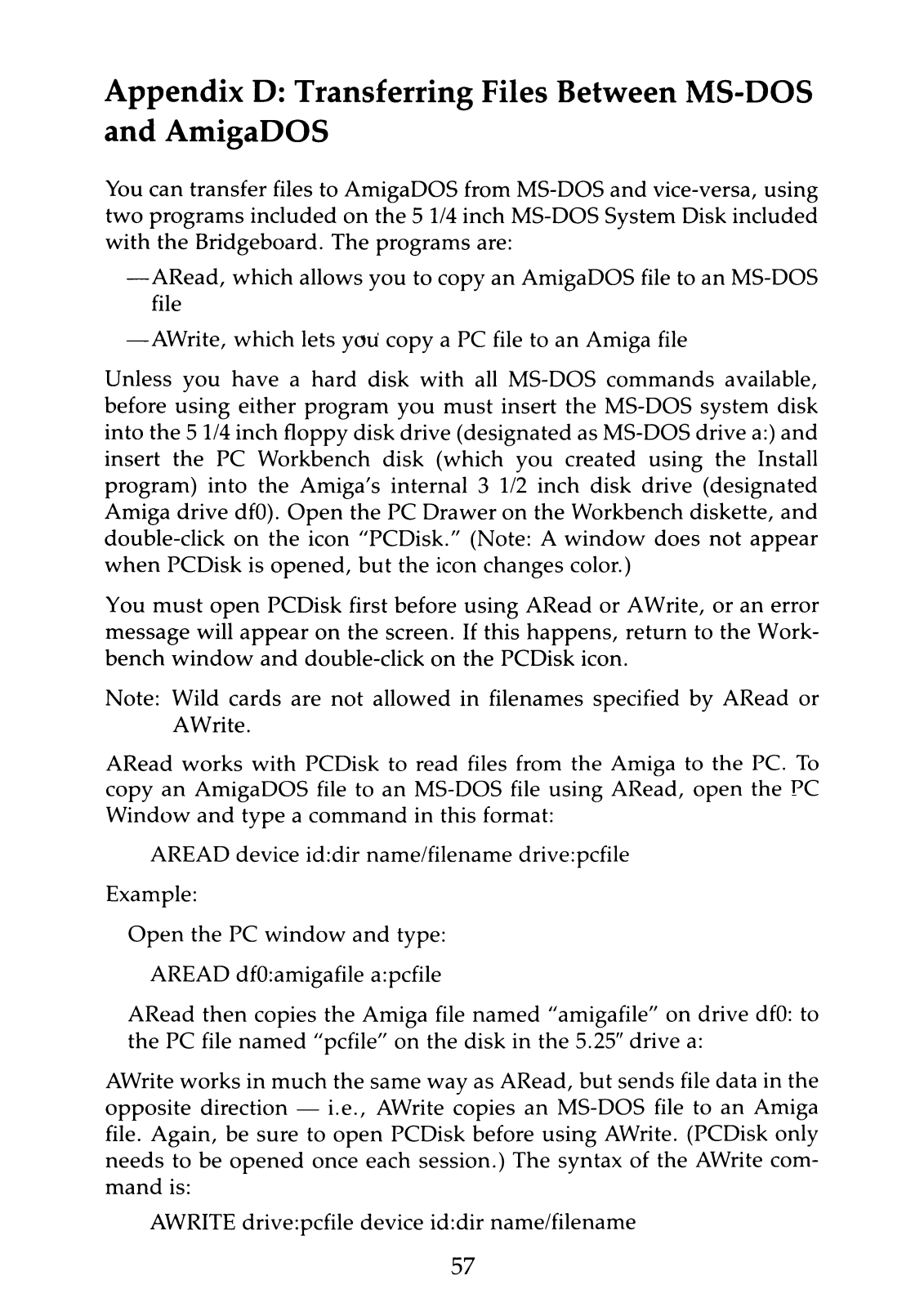

APPENDIX D: TRANSFERRING FILES BETWEEN MS-DOS AND
AMIGADOS 57

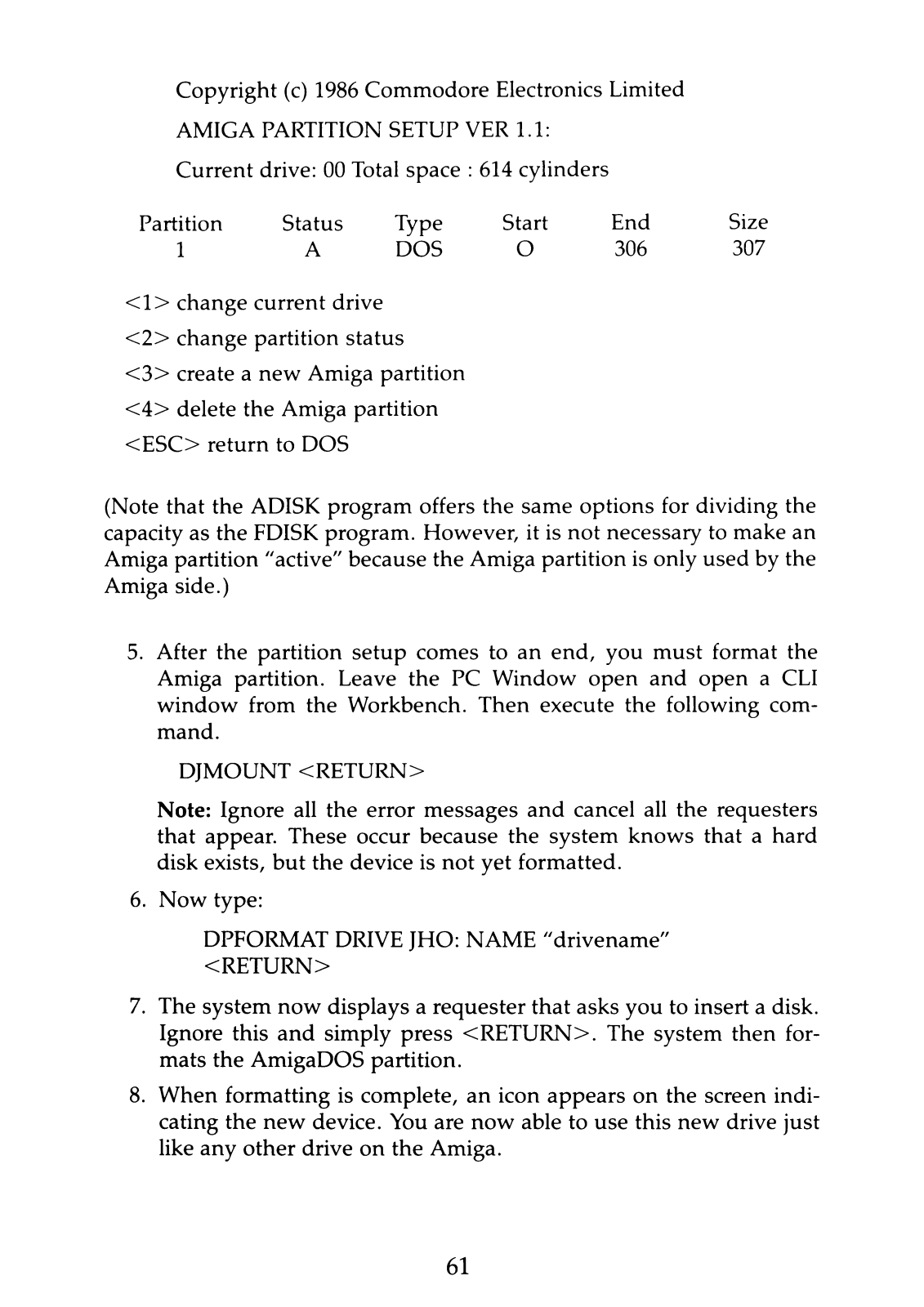

APPENDIX E: INSTALLING AND USING A HARD DISK 59
INSTALLING A HARD DISK/CONTROLLER 59 INSTALLING A COMBINED DISK/CONTROLLER

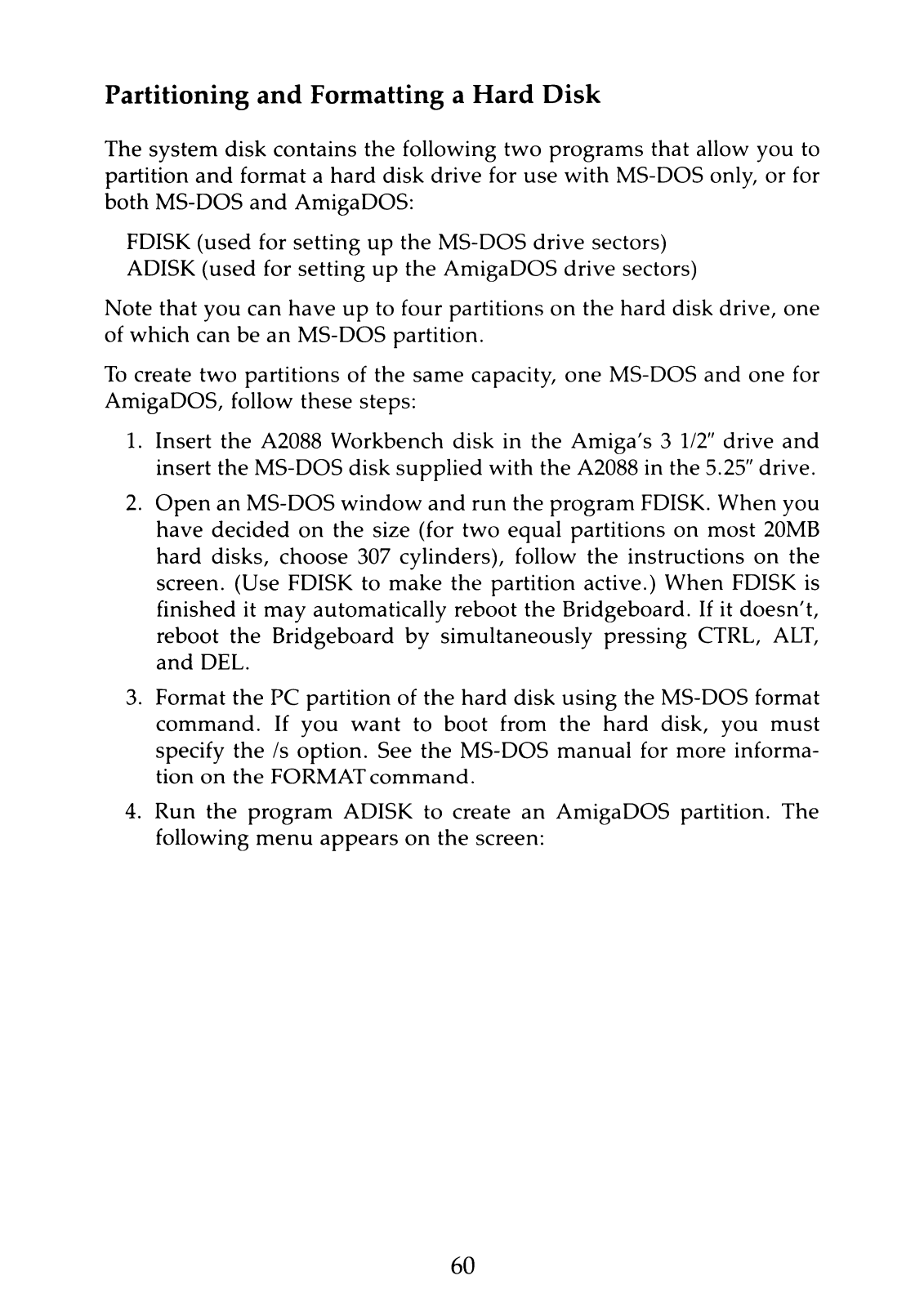

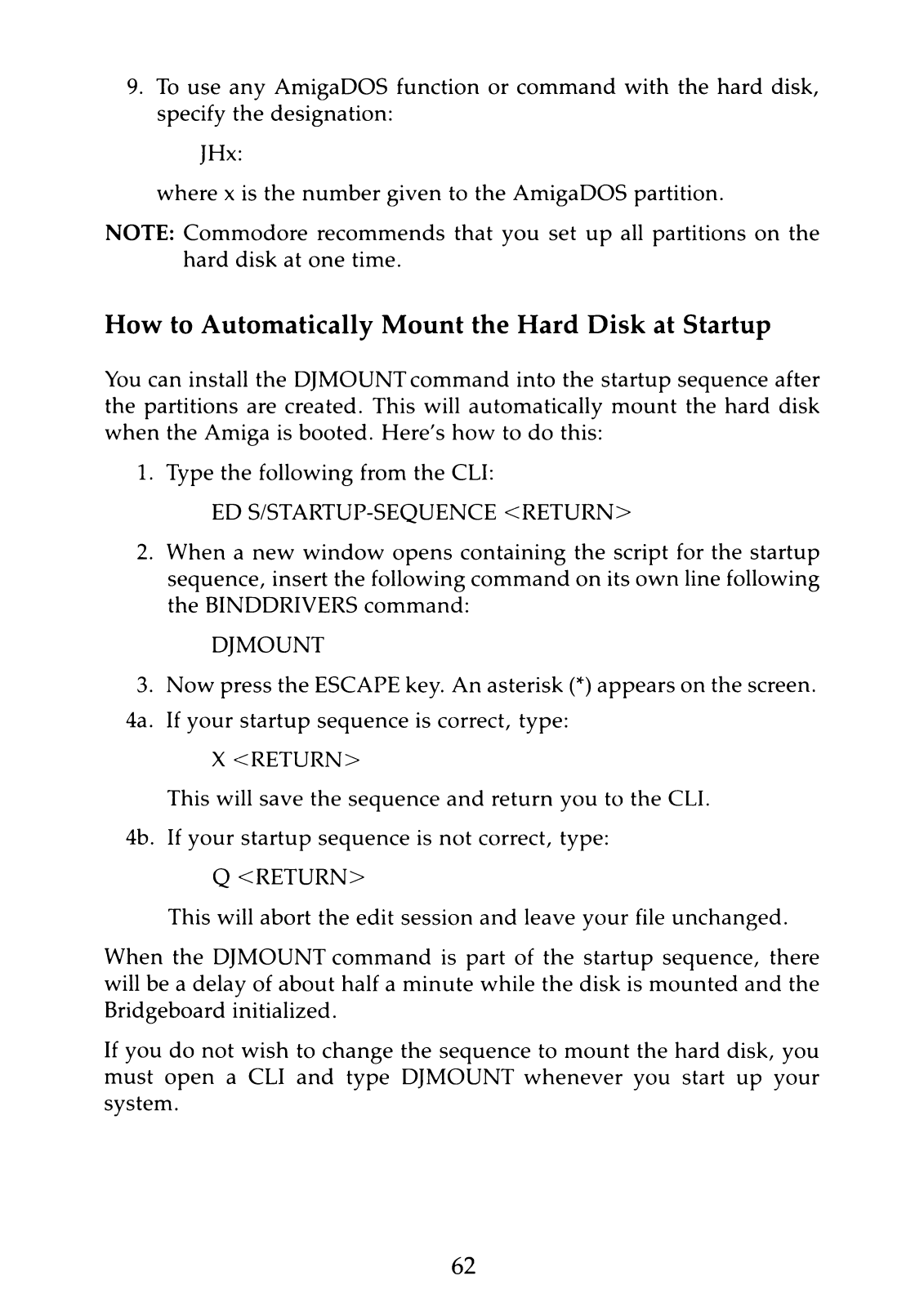

ON A CARD 59 PARTITIONING AND FORMATTING A HARD DISK 60 HOW TO AUTOMATICALLY MOUNT THE HARD DISK AT
STARTUP 62

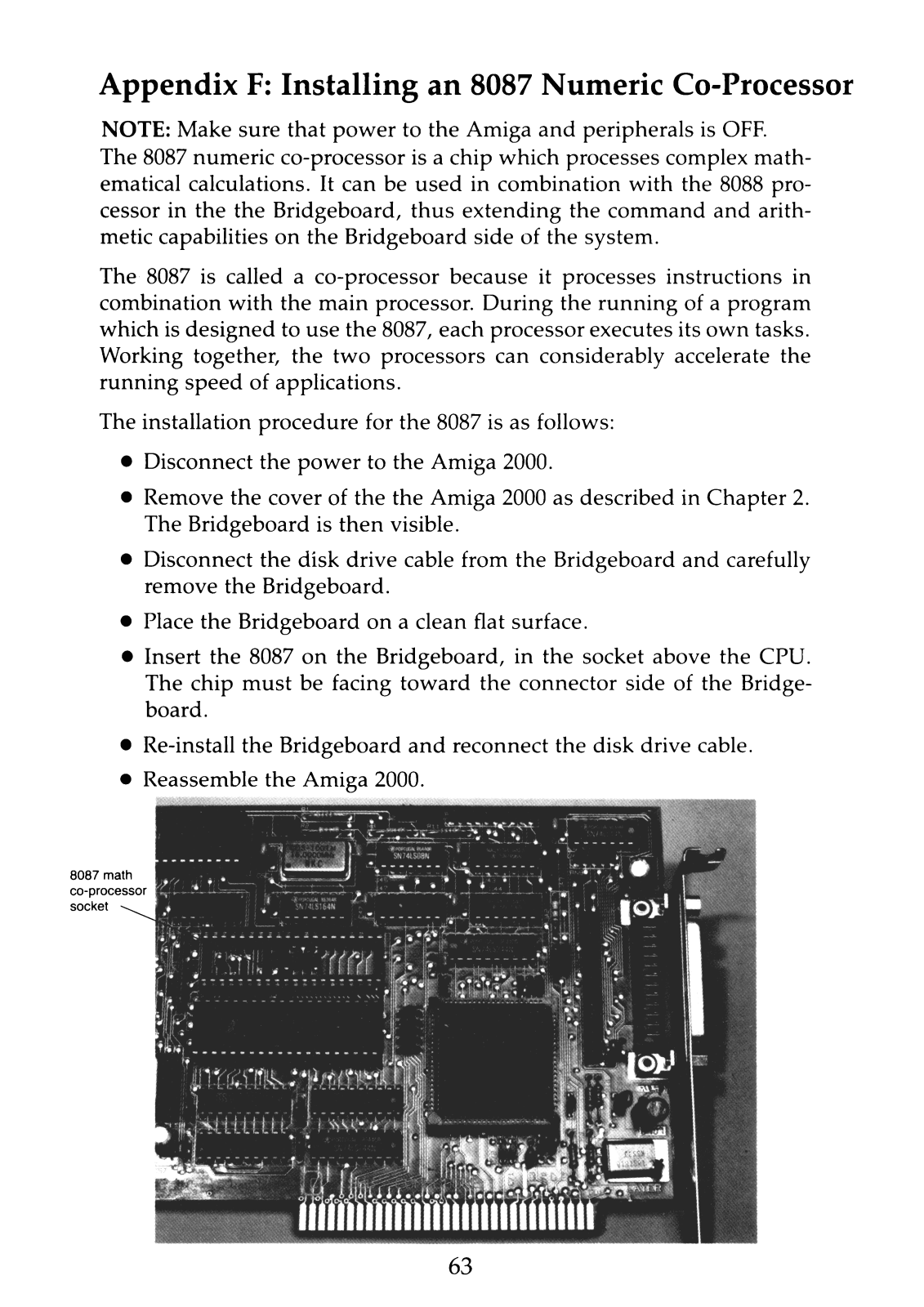

APPENDIX F: INSTALLING AN 8087 NUMERIC CO-PROCESSOR 63

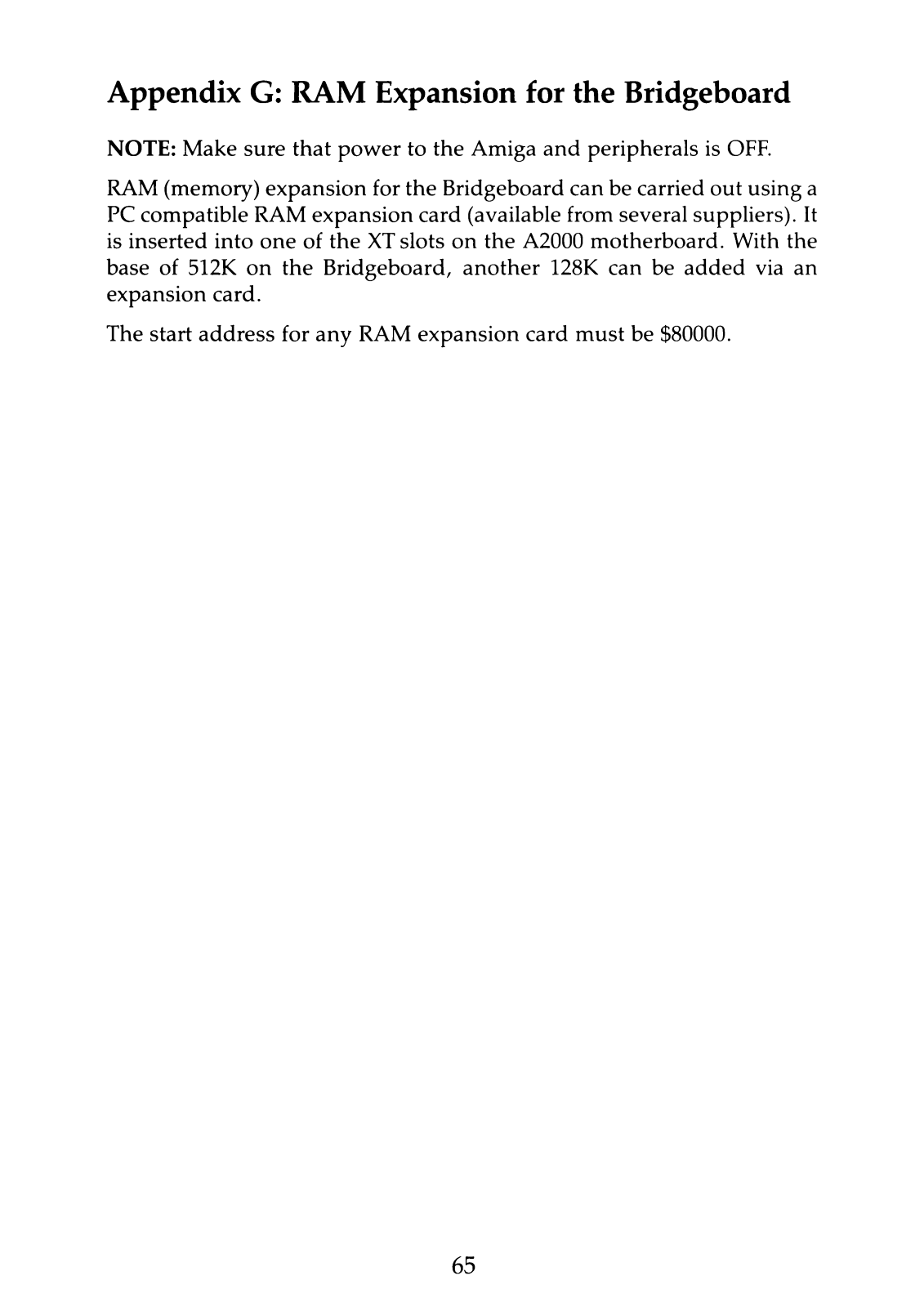

APPENDIX G: RAM EXPANSION FOR THE BRIDGEBOARD 65

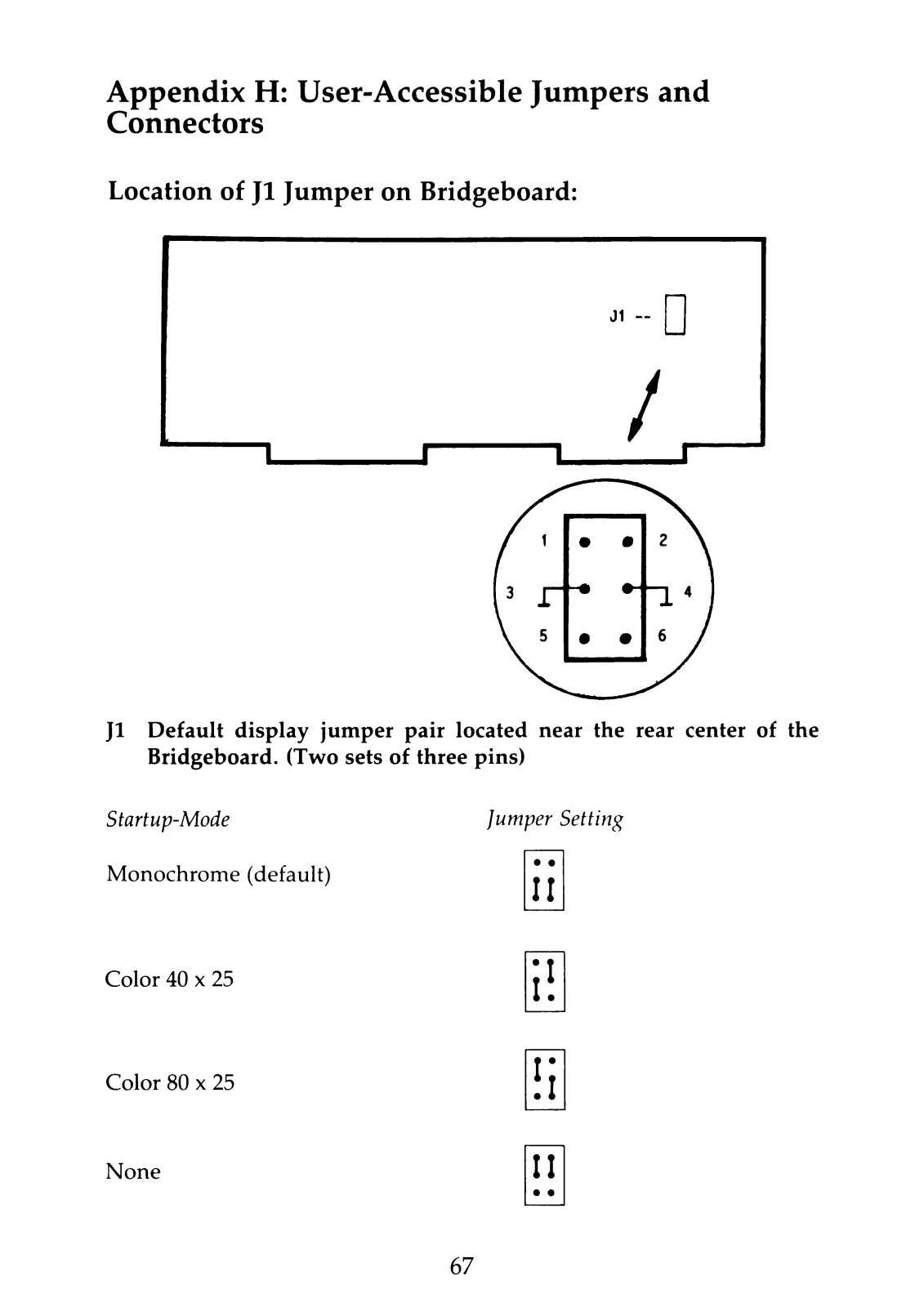

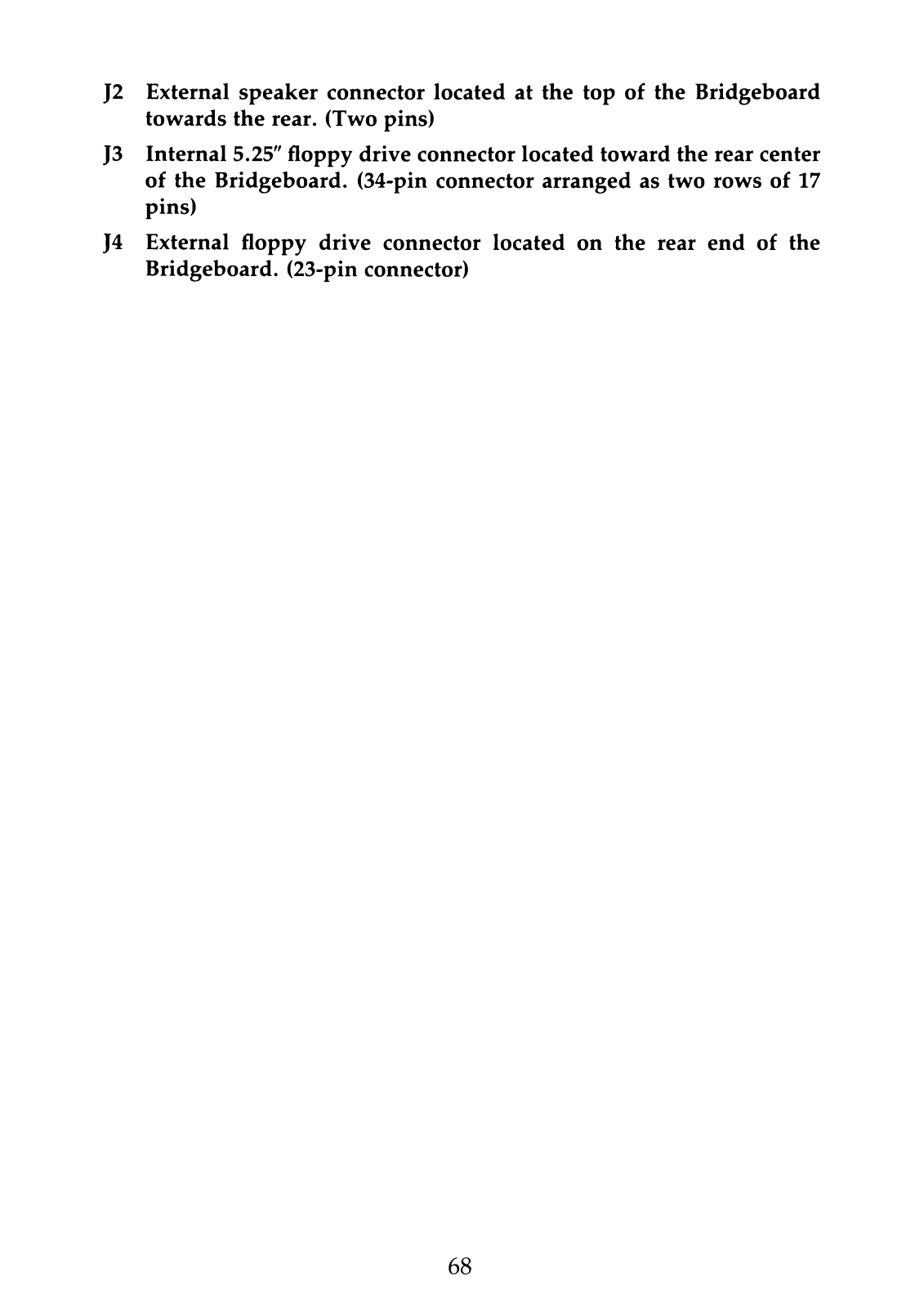

APPENDIX H: USER-ACCESSIBLE JUMPERS AND CONNECTORS 67

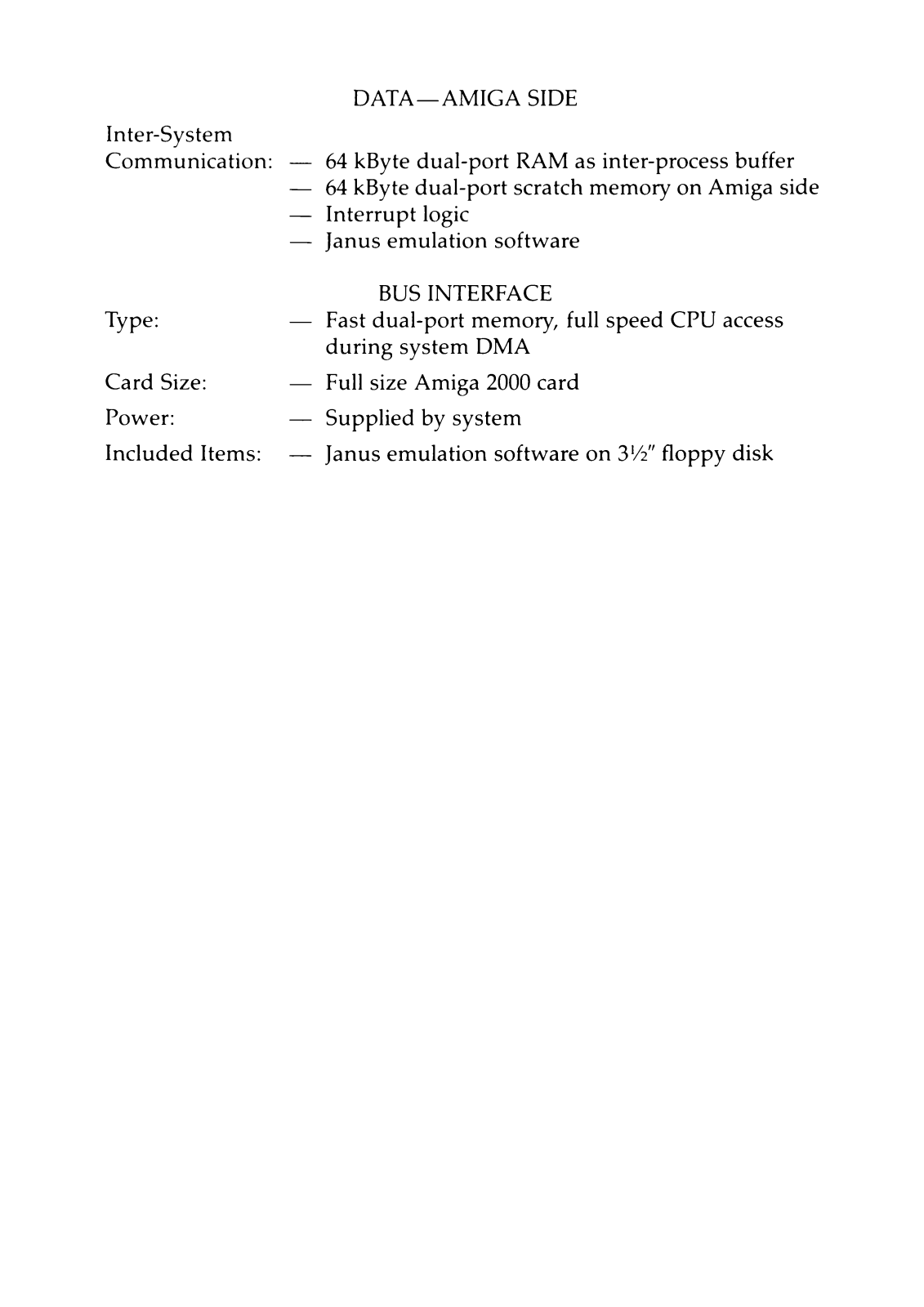

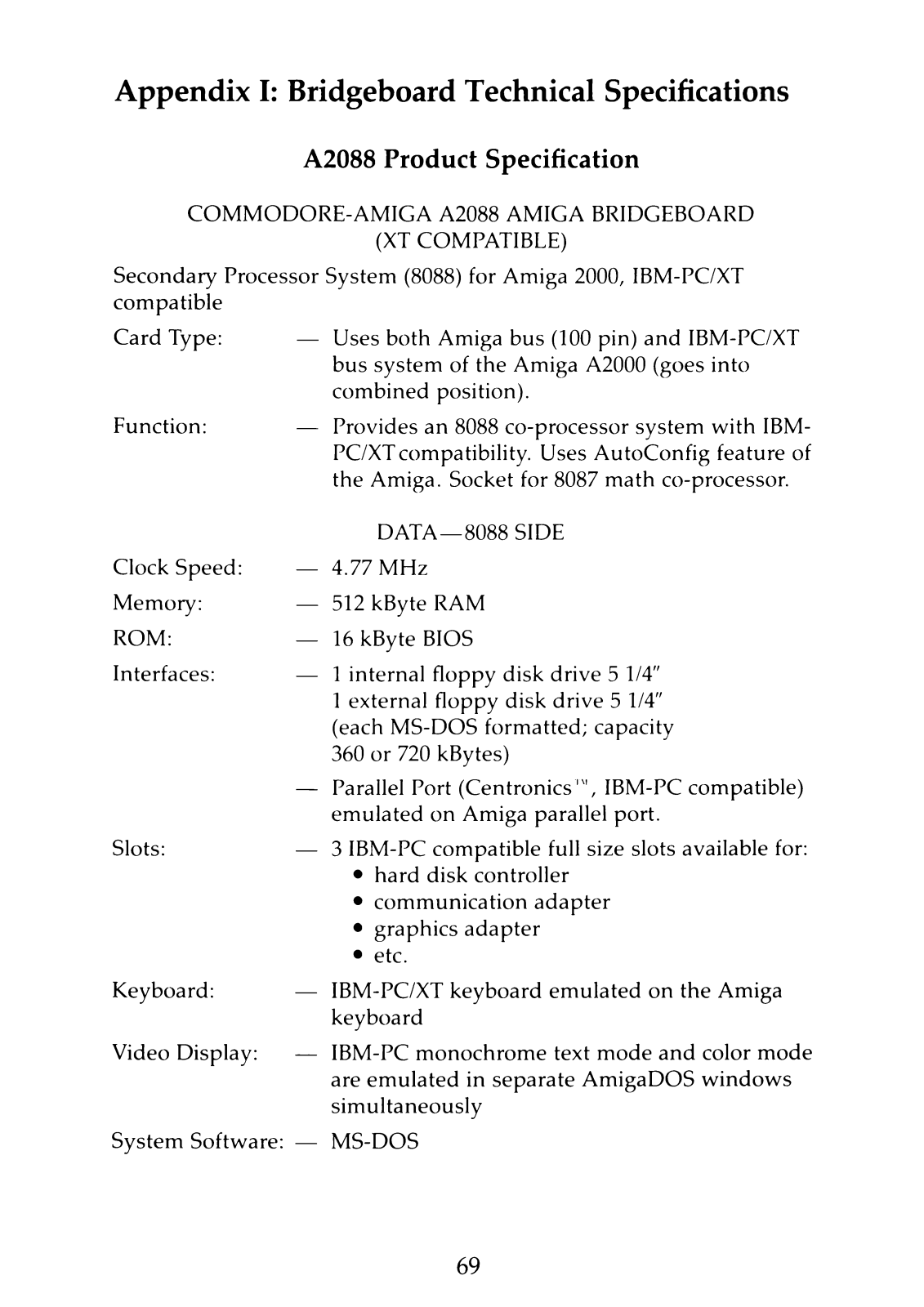

APPENDIX I: BRIDGEBOARD TECHNICAL SPECIFICATIONS 69
Page 9

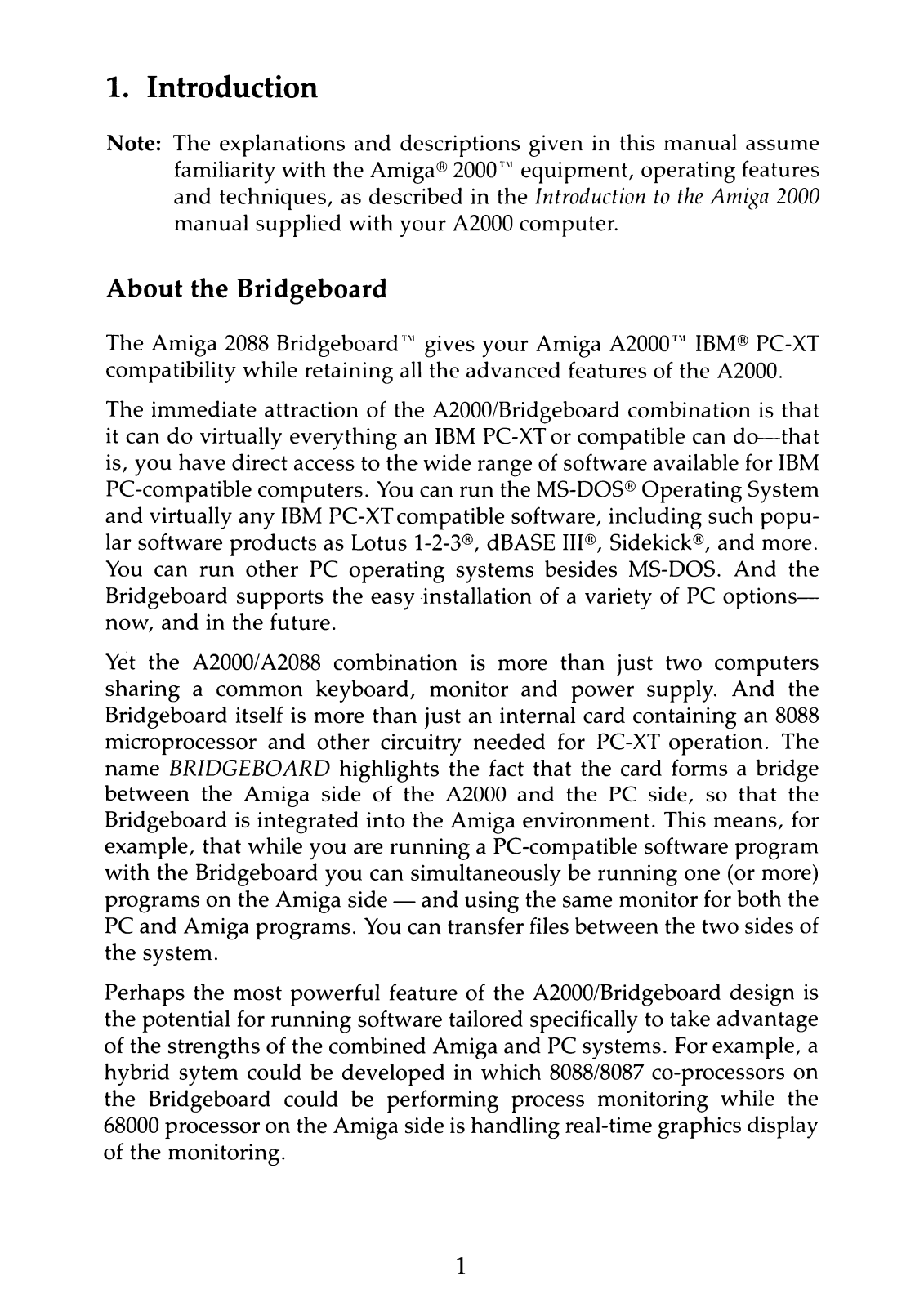

1. Introduction
Note: The explanations and descriptions given in this manual assume
familiarity with the Amiga® 2000 equipment, operating features and techniques, as described in the Introduction to the Amiga 2000 manual supplied with your A2000 computer.
About the Bridgeboard
The Amiga 2088 Bridgeboard gives your Amiga A2000 IBM® PC-XT compatibility while retaining all the advanced features of the A2000.
The immediate attraction of the A2000/Bridgeboard combination is that it can do virtually everything an IBM PC-XT or compatible can dothat is, you have direct access to the wide range of software available for IBM PC-compatible computers. You can run the MS-DOS® Operating System and virtually any IBM PC-XT compatible software, including such popu lar software products as Lotus 1-2-3®, dBASE III®, Sidekick®, and more. You can run other PC operating systems besides MS-DOS. And the Bridgeboard supports the easy installation of a variety of PC options— now, and in the future.
Yet the A2000/A2088 combination is more than just two computers sharing a common keyboard, monitor and power supply. And the Bridgeboard itself is more than just an internal card containing an 8088 microprocessor and other circuitry needed for PC-XT operation. The name BRIDGEBOARD highlights the fact that the card forms a bridge between the Amiga side of the A2000 and the PC side, so that the Bridgeboard is integrated into the Amiga environment. This means, for example, that while you are running a PC-compatible software program with the Bridgeboard you can simultaneously be running one (or more) programs on the Amiga side and using the same monitor for both the PC and Amiga programs. You can transfer files between the two sides of the system.
Perhaps the most powerful feature of the A2000/Bridgeboard design is the potential for running software tailored specifically to take advantage of the strengths of the combined Amiga and PC systems. For example, a hybrid sytem could be developed in which 8088/8087 co-processors on the Bridgeboard could be performing process monitoring while the 68000 processor on the Amiga side is handling real-time graphics display of the monitoring.
1
Page 10

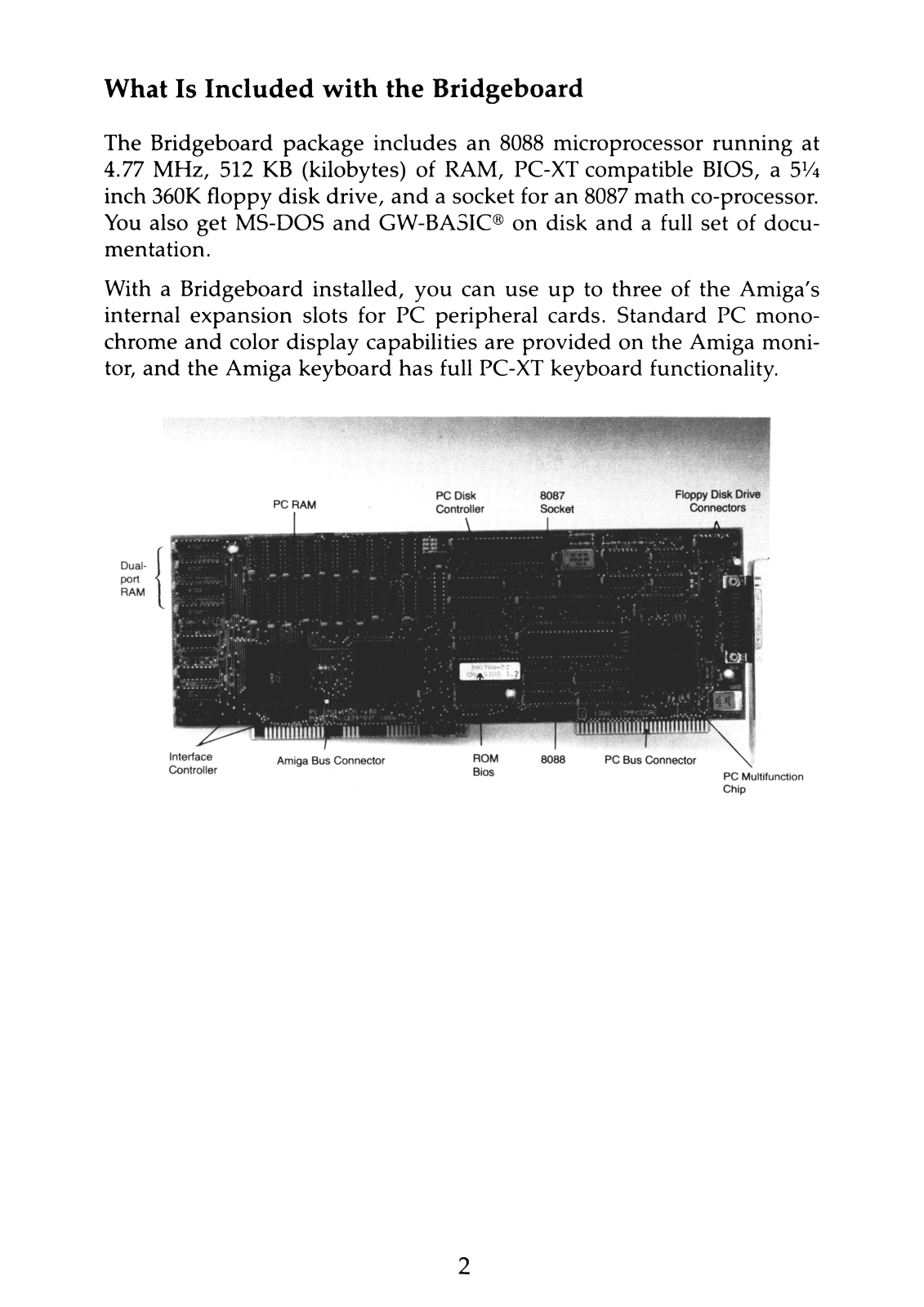

What Is Included with the Bridgeboard
The Bridgeboard package includes an 8088 microprocessor running at
4.77 MHz, 512 KB (kilobytes) of RAM, PC-XT compatible BIOS, a 5V4 inch 360K floppy disk drive, and a socket for an 8087 math co-processor. You also get MS-DOS and GW-BA3IC® on disk and a full set of docu mentation.
With a Bridgeboard installed, you can use up to three of the Amiga's internal expansion slots for PC peripheral cards. Standard PC mono chrome and color display capabilities are provided on the Amiga moni tor, and the Amiga keyboard has full PC-XT keyboard functionality.
PC RAM
Dual port RAM
Interface Amiga Bus Connector ROM 8088 PC Bus Connector Controller Bios
PC Disk Controller
8087 Socket
Floppy Disk Drive
Connectors
PC Multifunction Chip
2
Page 11

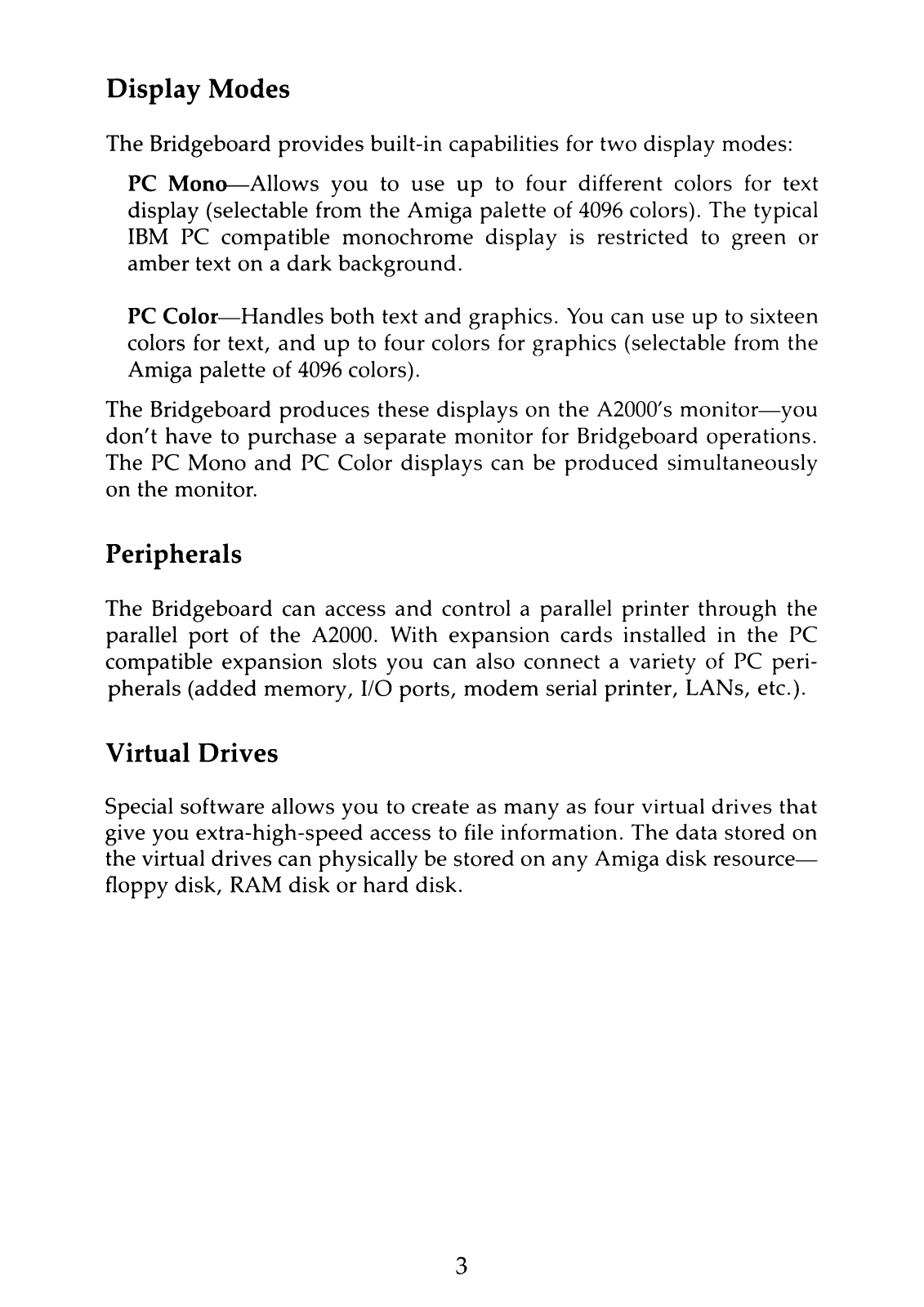

Display Modes
The Bridgeboard provides built-in capabilities for two display modes:
PC MonoAllows you to use up to four different colors for text display (selectable from the Amiga palette of 4096 colors). The typical IBM PC compatible monochrome display is restricted to green or
amber text on a dark background.
PC ColorHandles both text and graphics. You can use up to sixteen colors for text, and up to four colors for graphics (selectable from the Amiga palette of 4096 colors).
The Bridgeboard produces these displays on the A2000's monitor—you don't have to purchase a separate monitor for Bridgeboard operations. The PC Mono and PC Color displays can be produced simultaneously on the monitor.
Peripherals
The Bridgeboard can access and control a parallel printer through the parallel port of the A2000. With expansion cards installed in the PC compatible expansion slots you can also connect a variety of PC peri
pherals (added memory, I/O ports, modem serial printer, LANs, etc.).
Virtual Drives
Special software allows you to create as many as four virtual drives that give you extra-high-speed access to file information. The data stored on the virtual drives can physically be stored on any Amiga disk resource floppy disk, RAM disk or hard disk.
3
Page 12

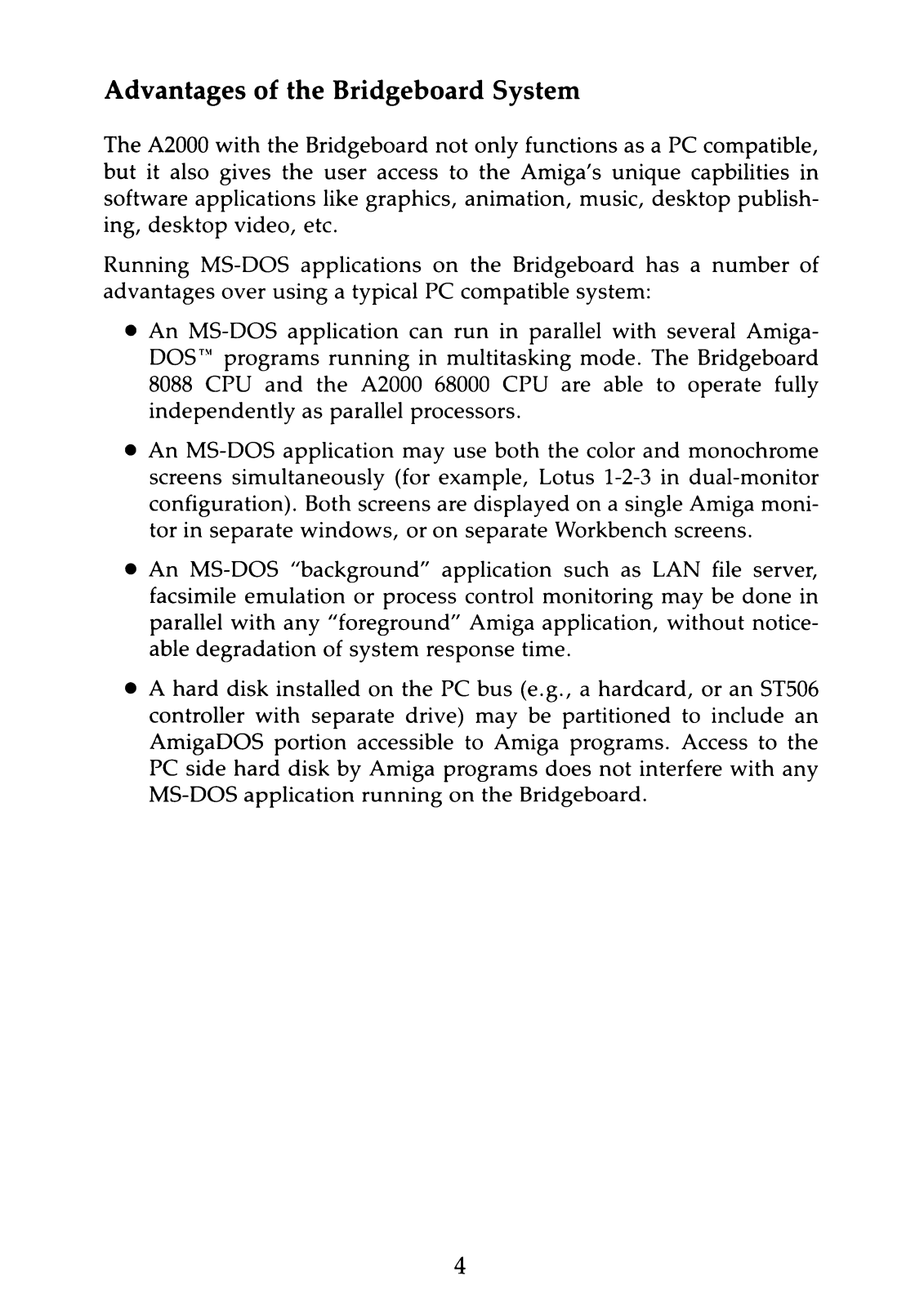

Advantages of the Bridgeboard System
The A2000 with the Bridgeboard not only functions as a PC compatible, but it also gives the user access to the Amiga's unique capbilities in software applications like graphics, animation, music, desktop publish ing, desktop video, etc.
Running MS-DOS applications on the Bridgeboard has a number of advantages over using a typical PC compatible system:
An MS-DOS application can run in parallel with several Amiga- DOS programs running in multitasking mode. The Bridgeboard 8088 CPU and the A2000 68000 CPU are able to operate fully independently as parallel processors.
An MS-DOS application may use both the color and monochrome screens simultaneously (for example, Lotus 1-2-3 in dual-monitor configuration). Both screens are displayed on a single Amiga moni tor in separate windows, or on separate Workbench screens.
An MS-DOS "background" application such as LAN file server, facsimile emulation or process control monitoring may be done in parallel with any "foreground" Amiga application, without notice able degradation of system response time.
A hard disk installed on the PC bus (e.g., a hardcard, or an ST506 controller with separate drive) may be partitioned to include an AmigaDOS portion accessible to Amiga programs. Access to the PC side hard disk by Amiga programs does not interfere with any MS-DOS application running on the Bridgeboard.
4
Page 13

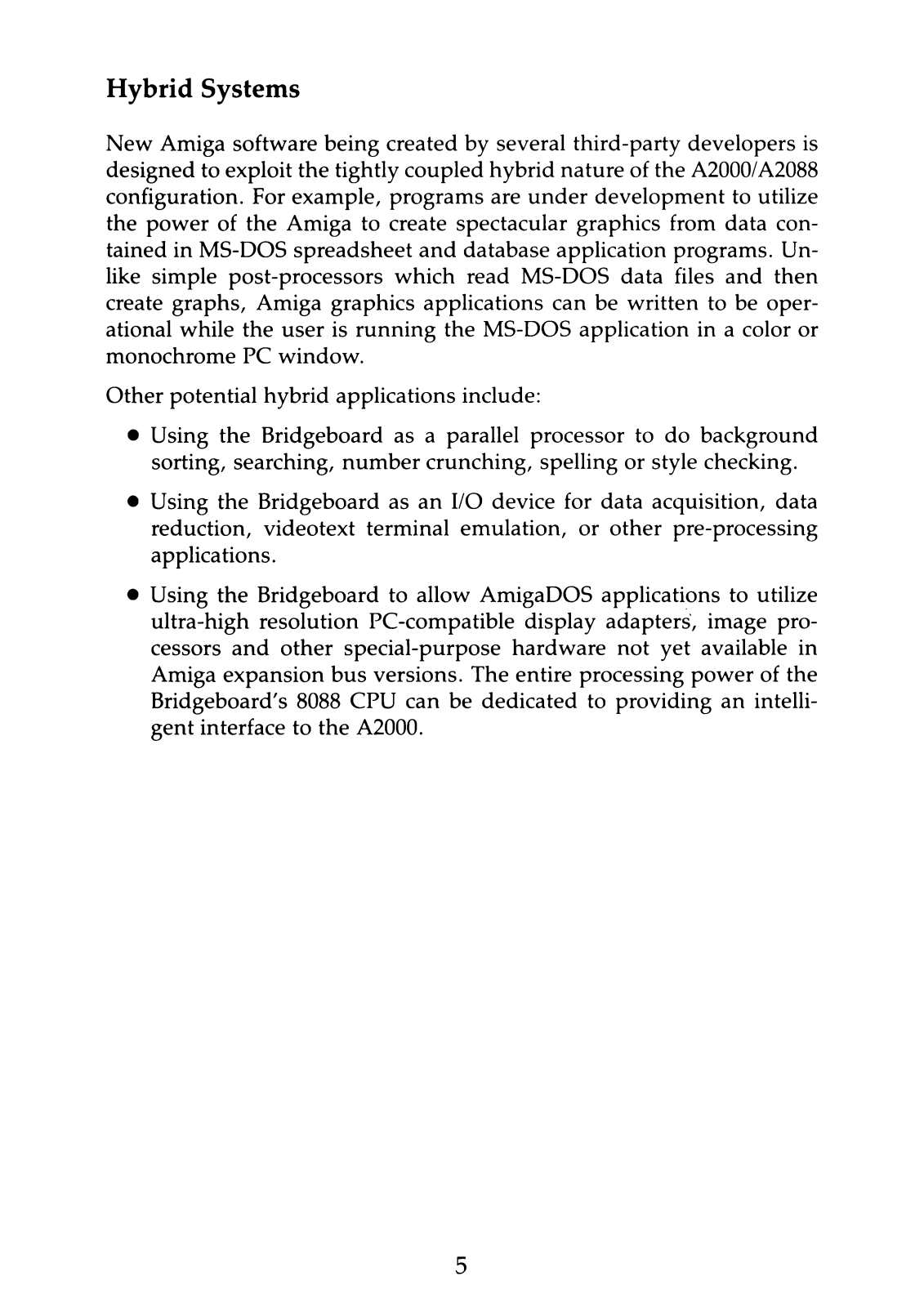

Hybrid Systems
New Amiga software being created by several third-party developers is
designed to exploit the tightly coupled hybrid nature of the A2000/A2088
configuration. For example, programs are under development to utilize
the power of the Amiga to create spectacular graphics from data con
tained in MS-DOS spreadsheet and database application programs. Un like simple post-processors which read MS-DOS data files and then create graphs, Amiga graphics applications can be written to be oper ational while the user is running the MS-DOS application in a color or monochrome PC window.
Other potential hybrid applications include:
Using the Bridgeboard as a parallel processor to do background sorting, searching, number crunching, spelling or style checking.
Using the Bridgeboard as an I/O device for data acquisition, data reduction, videotext terminal emulation, or other pre-processing applications.
Using the Bridgeboard to allow AmigaDOS applications to utilize ultra-high resolution PC-compatible display adapters, image pro cessors and other special-purpose hardware not yet available in Amiga expansion bus versions. The entire processing power of the Bridgeboard's 8088 CPU can be dedicated to providing an intelli gent interface to the A2000.
5
Page 14

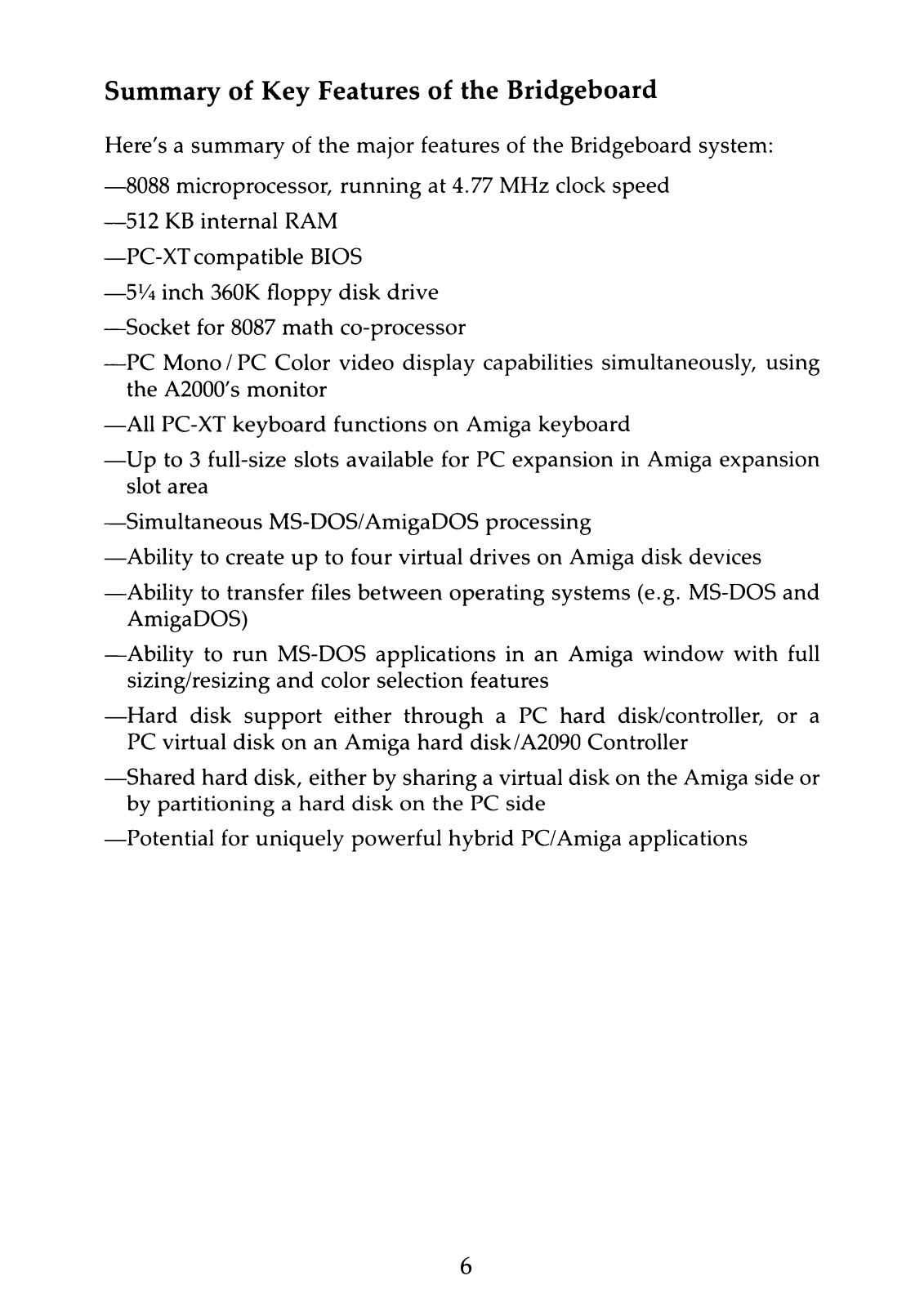

Summary of Key Features of the Bridgeboard
Here's a summary of the major features of the Bridgeboard system: —8088 microprocessor, running at 4.77 MHz clock speed
512 KB internal RAM PC-XT compatible BIOS 5lA inch 360K floppy disk drive Socket for 8087 math co-processor PC Mono / PC Color video display capabilities simultaneously, using
the A2000's monitor All PC-XT keyboard functions on Amiga keyboard Up to 3 full-size slots available for PC expansion in Amiga expansion
slot area Simultaneous MS-DOS/AmigaDOS processing Ability to create up to four virtual drives on Amiga disk devices Ability to transfer files between operating systems (e.g. MS-DOS and
AmigaDOS) Ability to run MS-DOS applications in an Amiga window with full
sizing/resizing and color selection features Hard disk support either through a PC hard disk/controller, or a
PC virtual disk on an Amiga hard disk/A2090 Controller Shared hard disk, either by sharing a virtual disk on the Amiga side or
by partitioning a hard disk on the PC side Potential for uniquely powerful hybrid PC/Amiga applications
6
Page 15

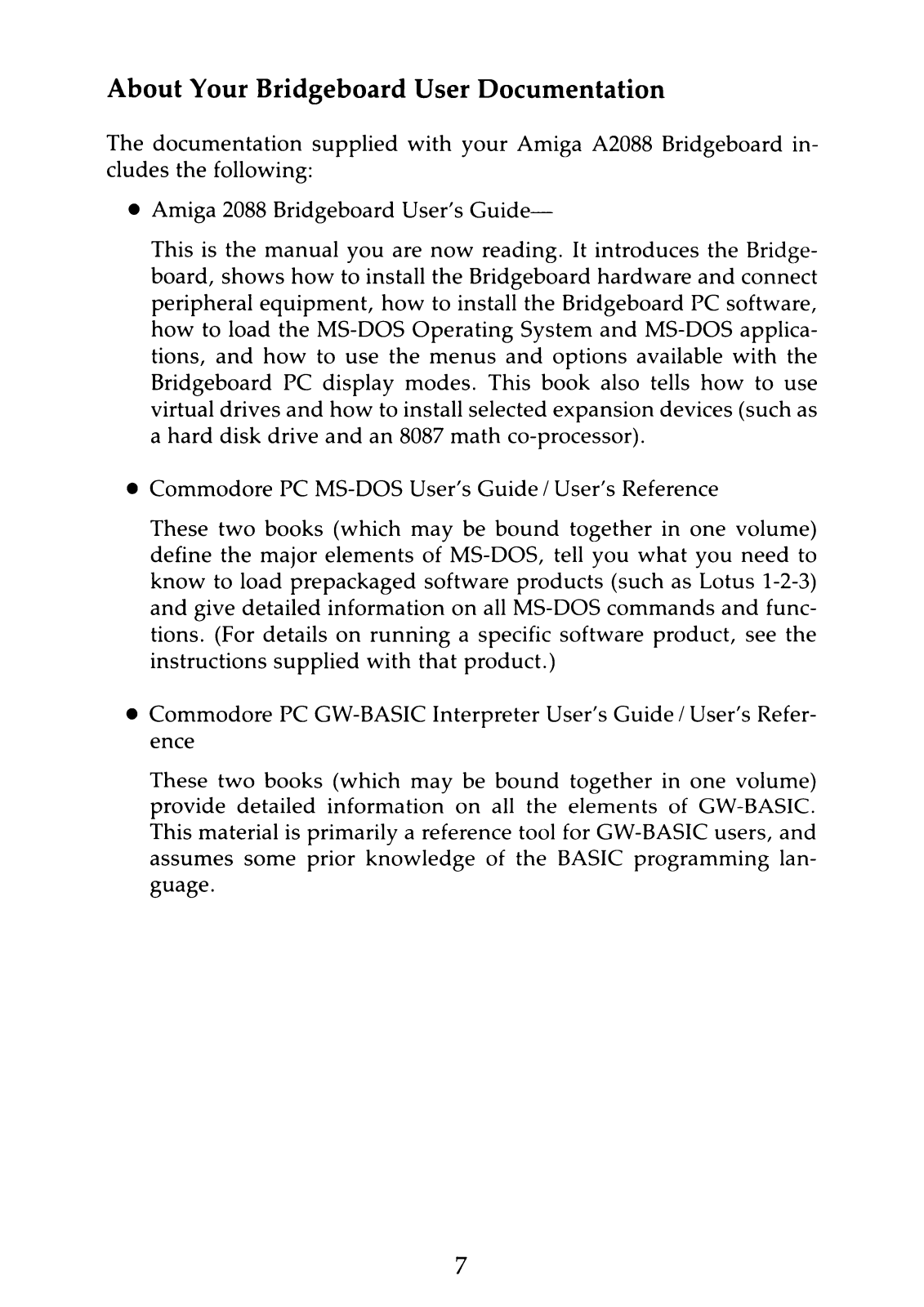

About Your Bridgeboard User Documentation
The documentation supplied with your Amiga A2088 Bridgeboard in cludes the following:
Amiga 2088 Bridgeboard User's Guide— This is the manual you are now reading. It introduces the Bridge-
board, shows how to install the Bridgeboard hardware and connect peripheral equipment, how to install the Bridgeboard PC software, how to load the MS-DOS Operating System and MS-DOS applica tions, and how to use the menus and options available with the Bridgeboard PC display modes. This book also tells how to use virtual drives and how to install selected expansion devices (such as a hard disk drive and an 8087 math co-processor).
Commodore PC MS-DOS User's Guide/User's Reference These two books (which may be bound together in one volume)
define the major elements of MS-DOS, tell you what you need to know to load prepackaged software products (such as Lotus 1-2-3)
and give detailed information on all MS-DOS commands and func
tions. (For details on running a specific software product, see the instructions supplied with that product.)
Commodore PC GW-BASIC Interpreter User's Guide / User's Refer ence
These two books (which may be bound together in one volume) provide detailed information on all the elements of GW-BASIC. This material is primarily a reference tool for GW-BASIC users, and assumes some prior knowledge of the BASIC programming lan guage.
7
Page 16
Page 17

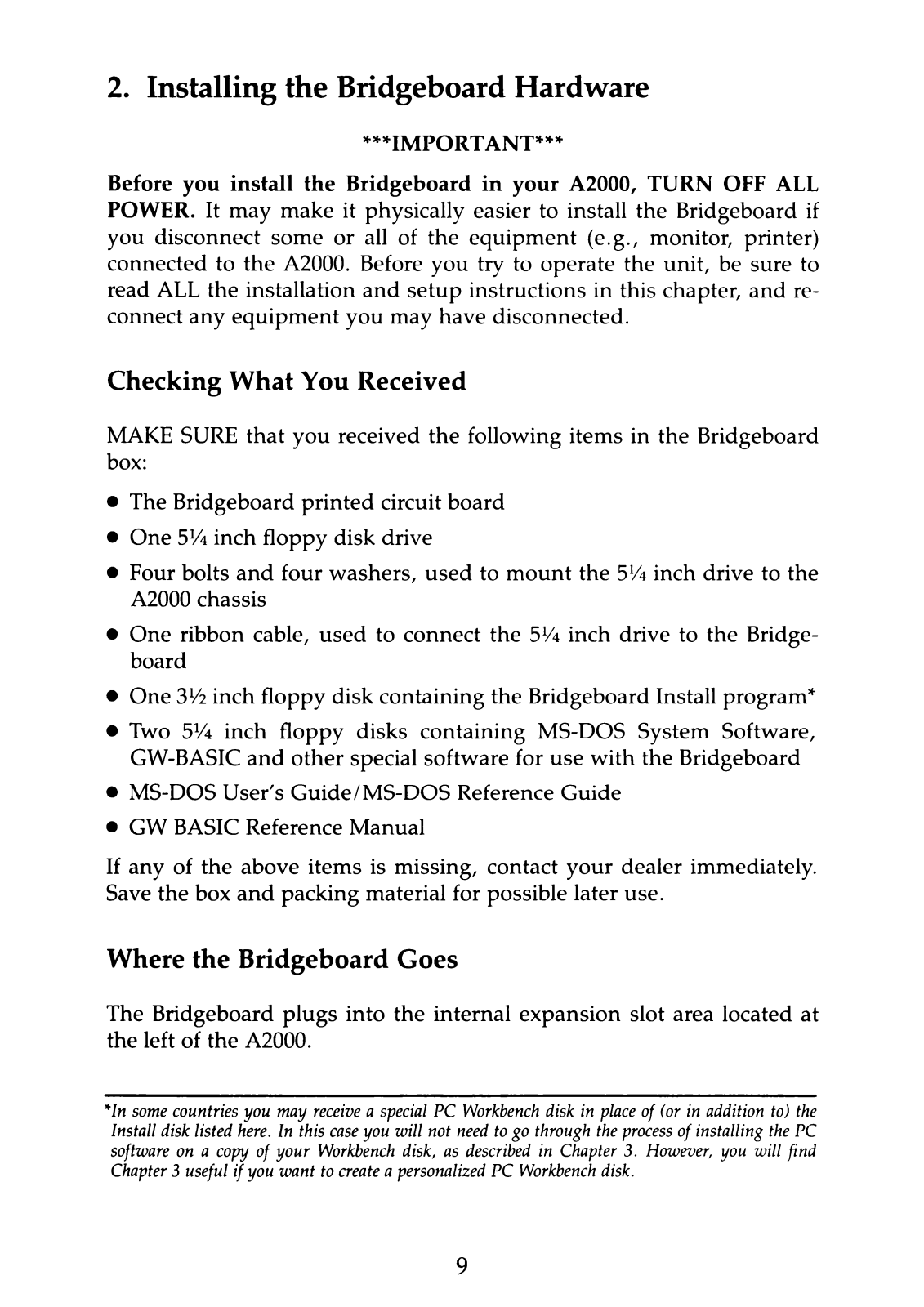

2. Installing the Bridgeboard Hardware
***IMPORTANT***
Before you install the Bridgeboard in your A2000, TURN OFF ALL POWER. It may make it physically easier to install the Bridgeboard if
you disconnect some or all of the equipment (e.g., monitor, printer) connected to the A2000. Before you try to operate the unit, be sure to read ALL the installation and setup instructions in this chapter, and re connect any equipment you may have disconnected.
Checking What You Received
MAKE SURE that you received the following items in the Bridgeboard box:
The Bridgeboard printed circuit board
One 5Va inch floppy disk drive
Four bolts and four washers, used to mount the 5!4 inch drive to the A2000 chassis
One ribbon cable, used to connect the 5lA inch drive to the Bridge- board
One 3V2 inch floppy disk containing the Bridgeboard Install program*
Two 5lA inch floppy disks containing MS-DOS System Software, GW-BASIC and other special software for use with the Bridgeboard
MS-DOS User's Guide/MS-DOS Reference Guide
GW BASIC Reference Manual
If any of the above items is missing, contact your dealer immediately. Save the box and packing material for possible later use.
Where the Bridgeboard Goes
The Bridgeboard plugs into the internal expansion slot area located at the left of the A2000.
*In some countries you may receive a special PC Workbench disk in place of (or in addition to) the
Install disk listed here. In this case you will not need to go through the process of installing the PC software on a copy of your Workbench disk, as described in Chapter 3. However, you will find Chapter 3 useful if you want to create a personalized PC Workbench disk.
9
Page 18

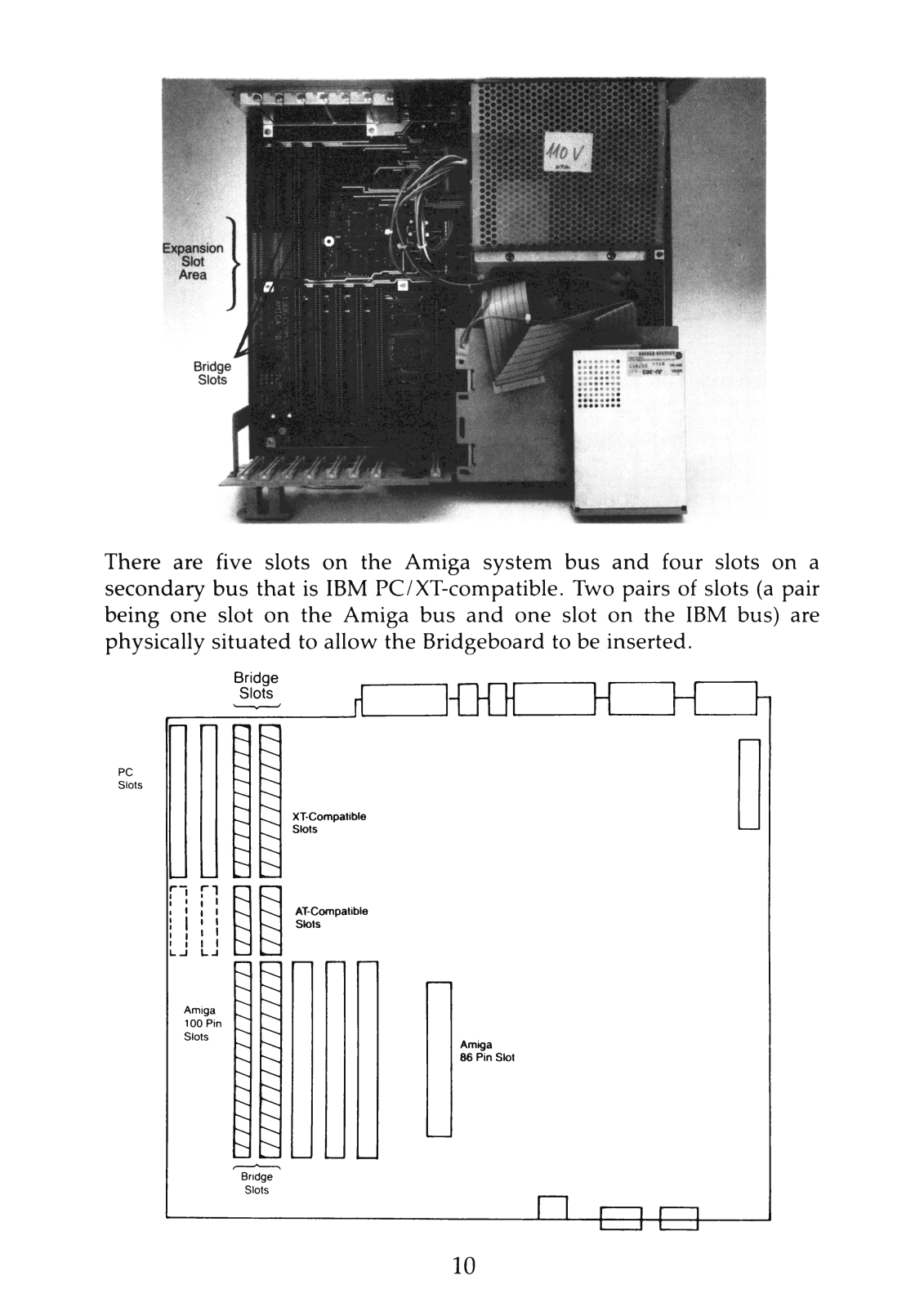

There are five slots on the Amiga system bus and four slots on a secondary bus that is IBM PC/XT-compatible. Two pairs of slots (a pair being one slot on the Amiga bus and one slot on the IBM bus) are physically situated to allow the Bridgeboard to be inserted.
PC Slots
Bridge
Slots
n
10
Page 19

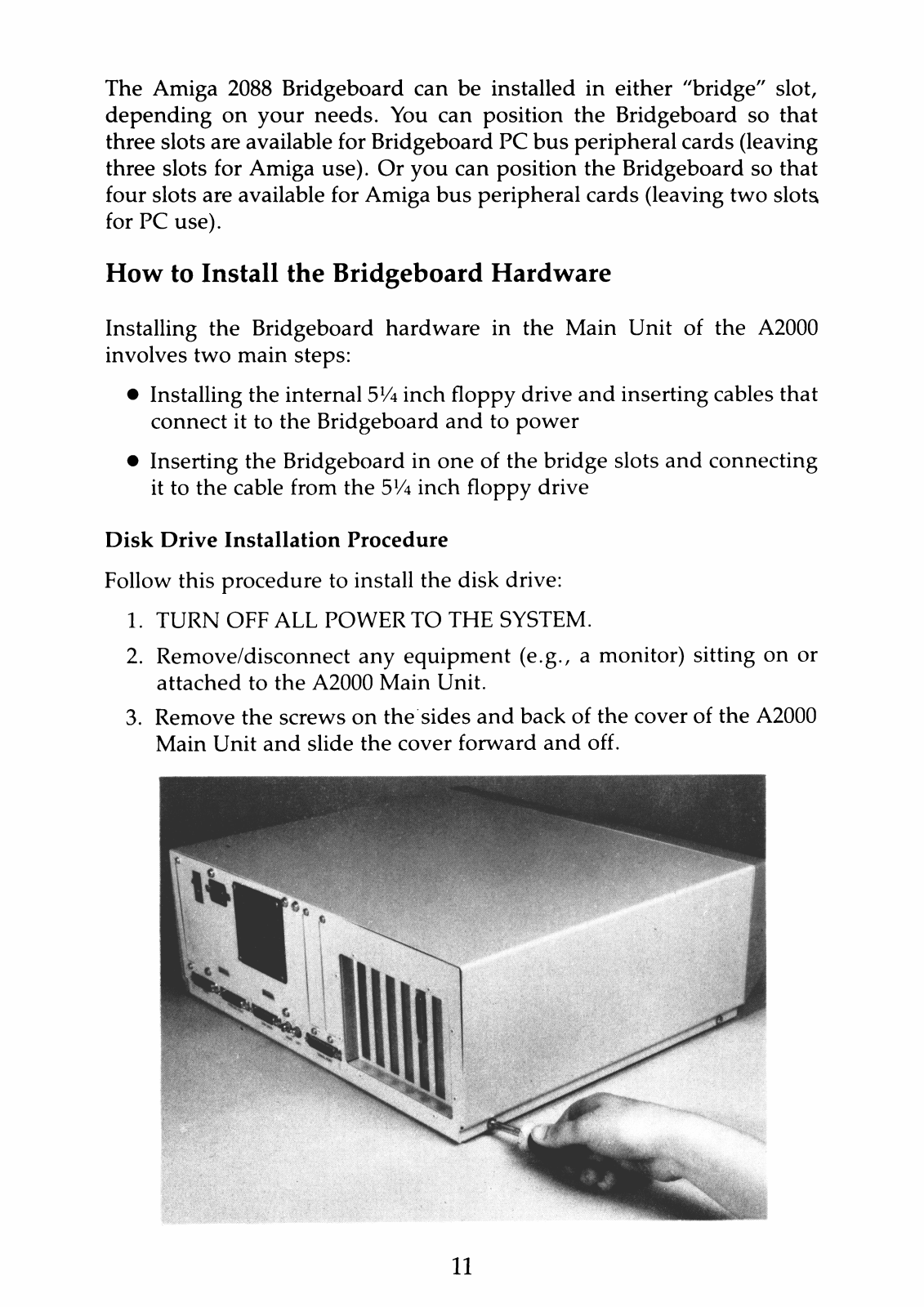

The Amiga 2088 Bridgeboard can be installed in either "bridge" slot, depending on your needs. You can position the Bridgeboard so that three slots are available for Bridgeboard PC bus peripheral cards (leaving three slots for Amiga use). Or you can position the Bridgeboard so that four slots are available for Amiga bus peripheral cards (leaving two slots for PC use).
How to Install the Bridgeboard Hardware
Installing the Bridgeboard hardware in the Main Unit of the A2000 involves two main steps:
Installing the internal 5lA inch floppy drive and inserting cables that connect it to the Bridgeboard and to power
Inserting the Bridgeboard in one of the bridge slots and connecting it to the cable from the 5lA inch floppy drive
Disk Drive Installation Procedure
Follow this procedure to install the disk drive:
1. TURN OFF ALL POWER TO THE SYSTEM.
2. Remove/disconnect any equipment (e.g., a monitor) sitting on or
attached to the A2000 Main Unit.
3. Remove the screws on the sides and back of the cover of the A2000 Main Unit and slide the cover forward and off.
11
Page 20

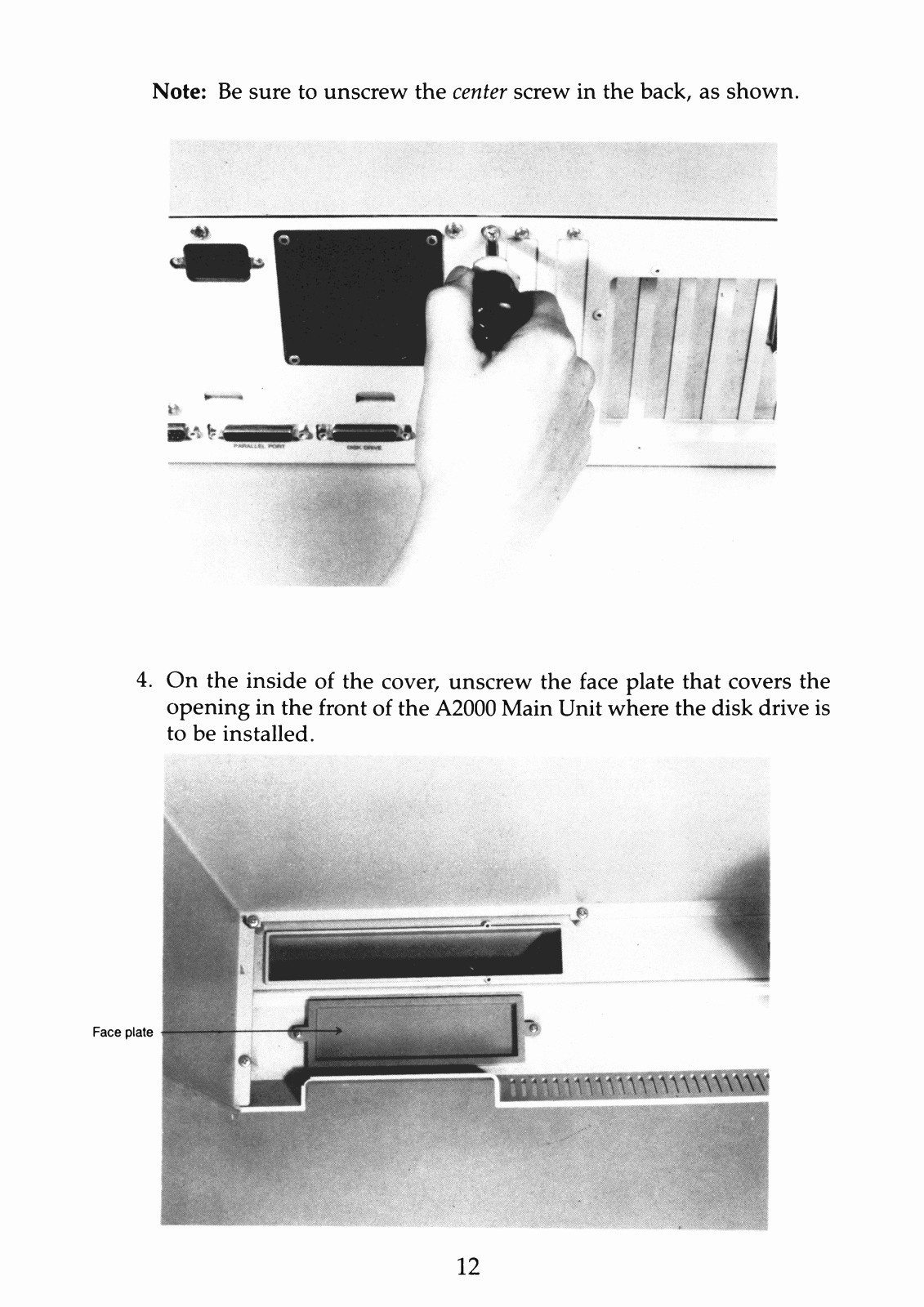

Note: Be sure to unscrew the center screw in the back, as shown.
4. On the inside of the cover, unscrew the face plate that covers the opening in the front of the A2000 Main Unit where the disk drive is to be installed.
Face plate
12
Page 21

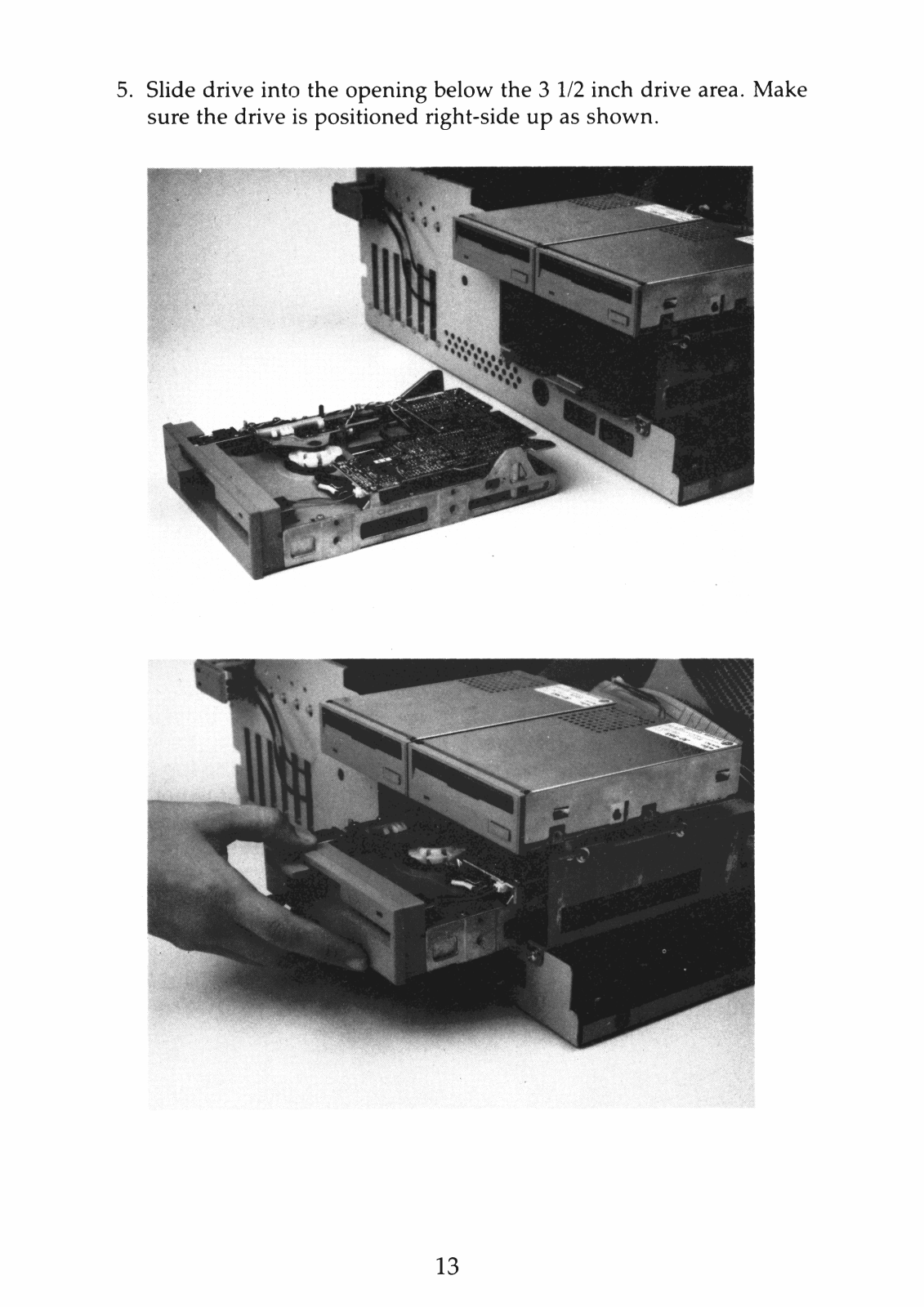

5. Slide drive into the opening below the 3 1/2 inch drive area. Make sure the drive is positioned right-side up as shown.
13
Page 22

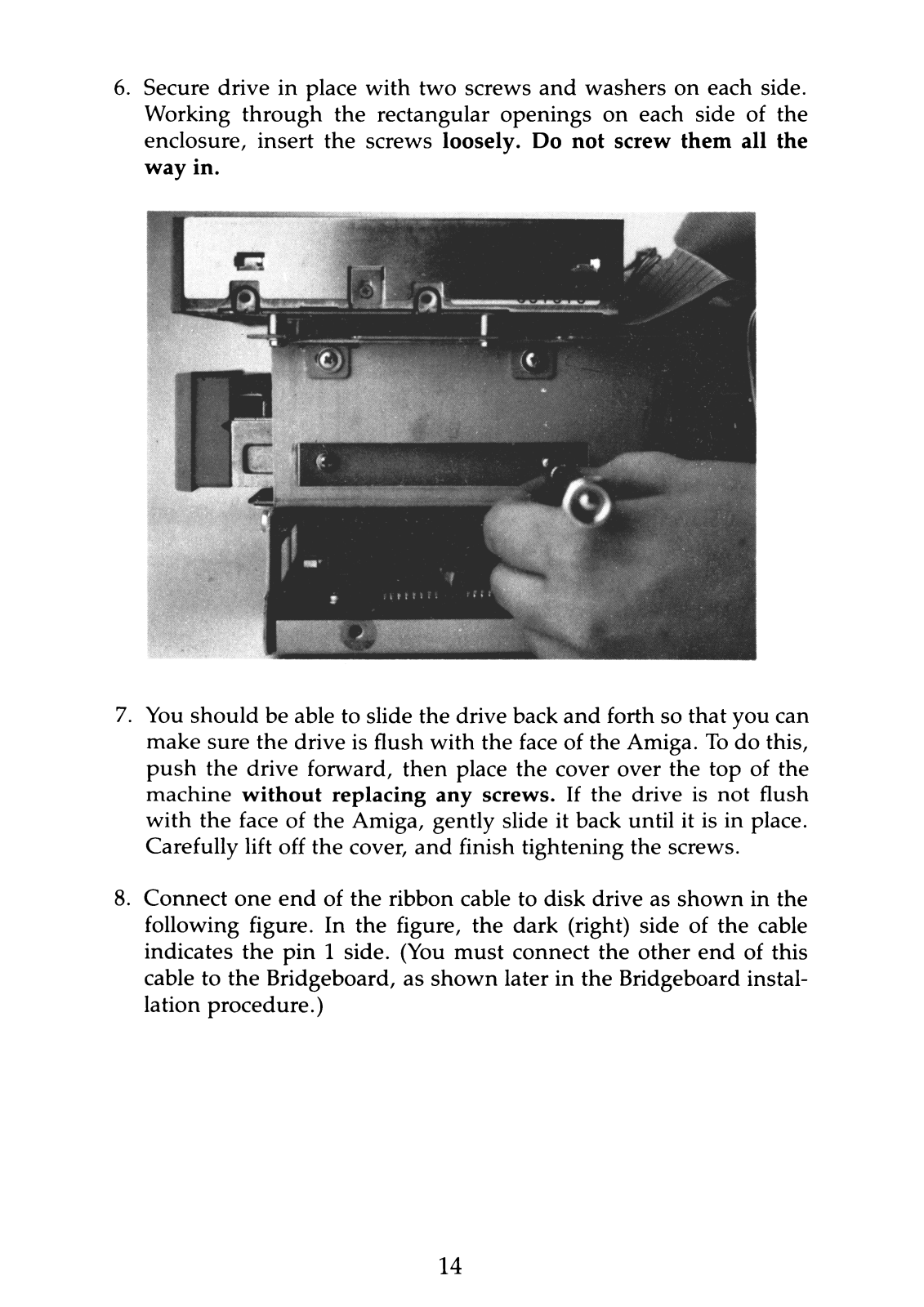

6. Secure drive in place with two screws and washers on each side. Working through the rectangular openings on each side of the enclosure, insert the screws loosely. Do not screw them all the way in.
7. You should be able to slide the drive back and forth so that you can make sure the drive is flush with the face of the Amiga. To do this, push the drive forward, then place the cover over the top of the machine without replacing any screws. If the drive is not flush
with the face of the Amiga, gently slide it back until it is in place. Carefully lift off the cover, and finish tightening the screws.
8. Connect one end of the ribbon cable to disk drive as shown in the following figure. In the figure, the dark (right) side of the cable indicates the pin 1 side. (You must connect the other end of this cable to the Bridgeboard, as shown later in the Bridgeboard instal lation procedure.)
14
Page 23

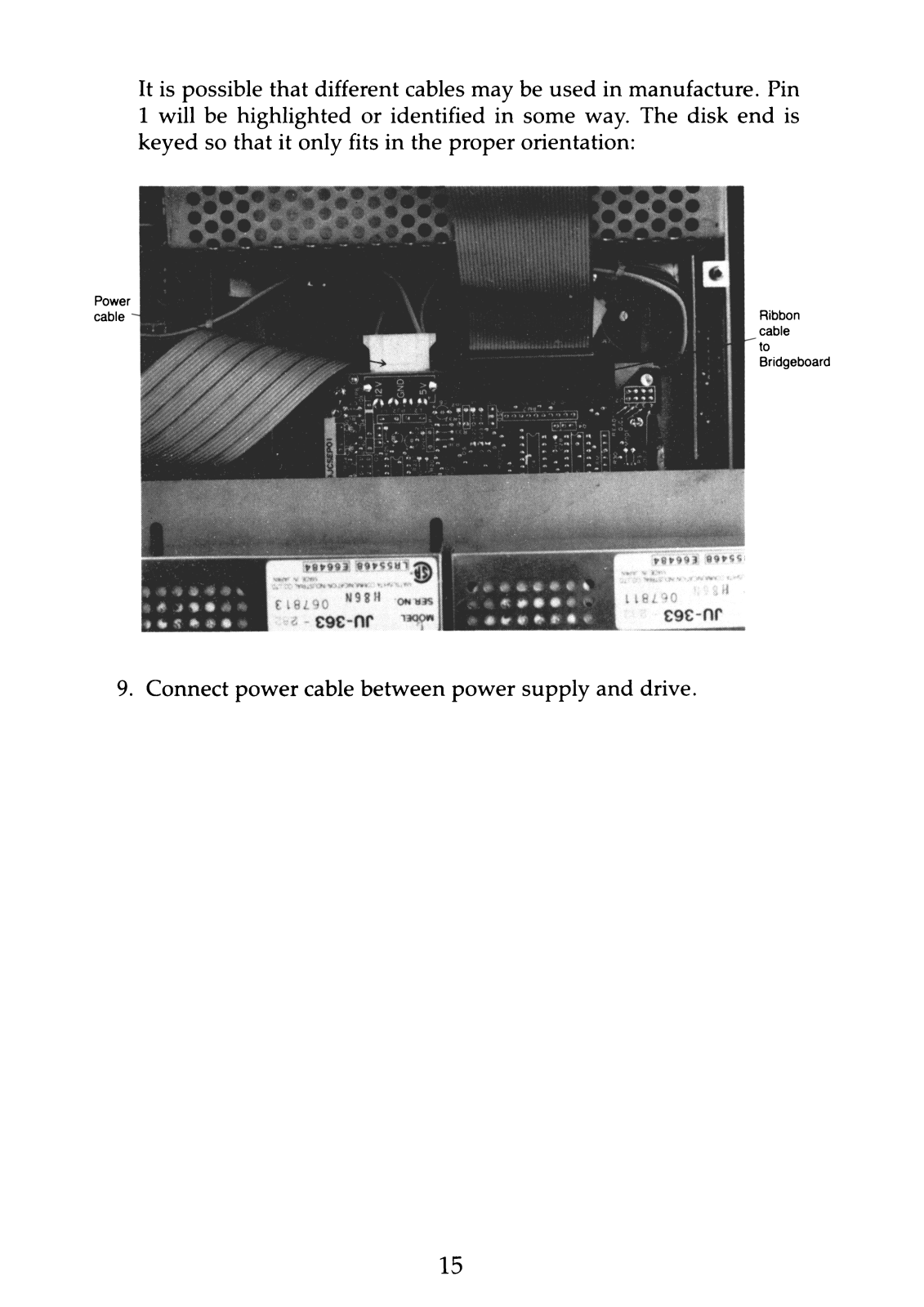

It is possible that different cables may be used in manufacture. Pin 1 will be highlighted or identified in some way. The disk end is keyed so that it only fits in the proper orientation:
Power
cable
9. Connect power cable between power supply and drive.
Ribbon cable to Bridgeboard
15
Page 24

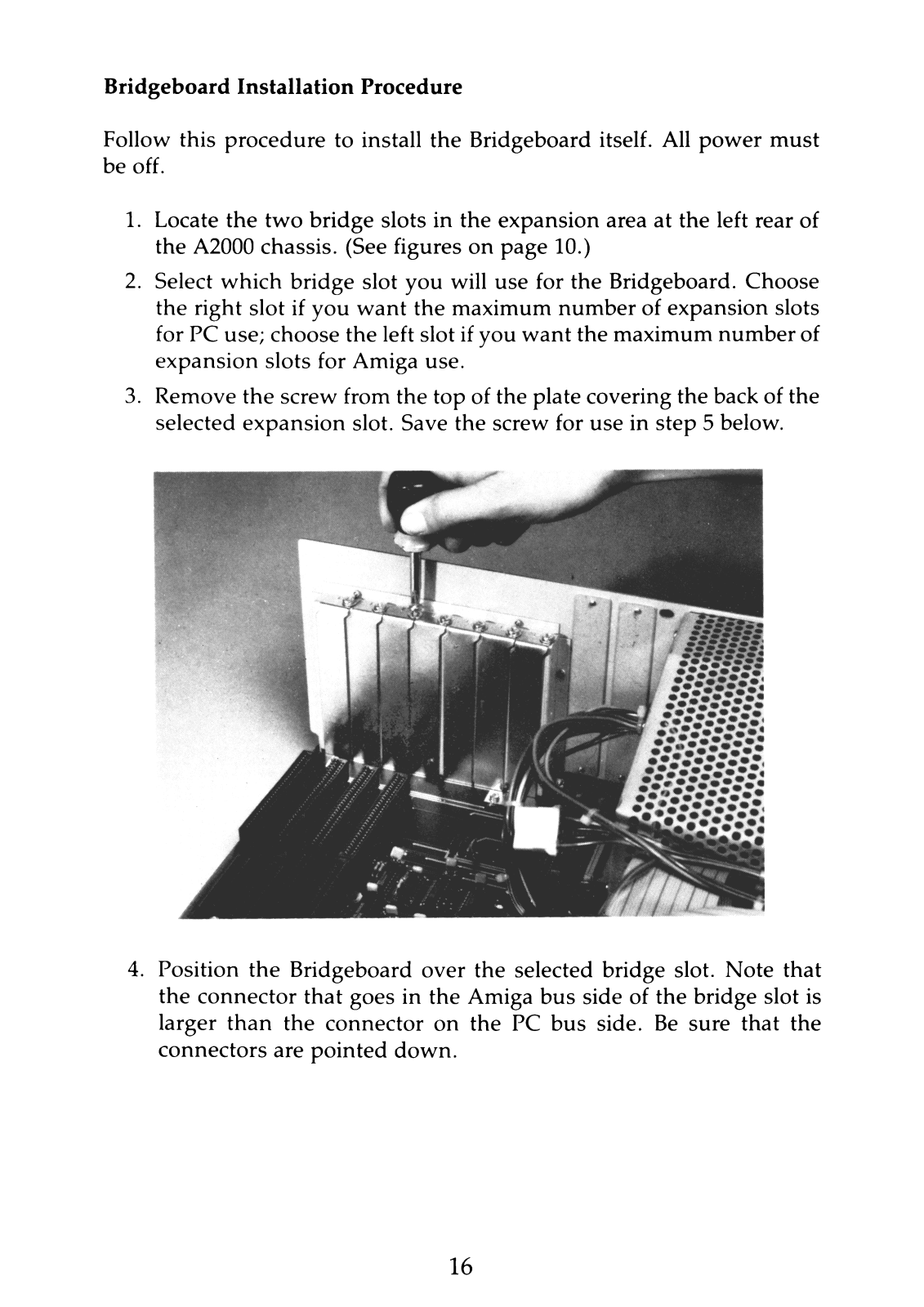

Bridgeboard Installation Procedure
Follow this procedure to install the Bridgeboard itself. All power must
be off.
1. Locate the two bridge slots in the expansion area at the left rear of the A2000 chassis. (See figures on page 10.)
2. Select which bridge slot you will use for the Bridgeboard. Choose the right slot if you want the maximum number of expansion slots for PC use; choose the left slot if you want the maximum number of expansion slots for Amiga use.
3. Remove the screw from the top of the plate covering the back of the selected expansion slot. Save the screw for use in step 5 below.
4. Position the Bridgeboard over the selected bridge slot. Note that the connector that goes in the Amiga bus side of the bridge slot is larger than the connector on the PC bus side. Be sure that the connectors are pointed down.
16
Page 25

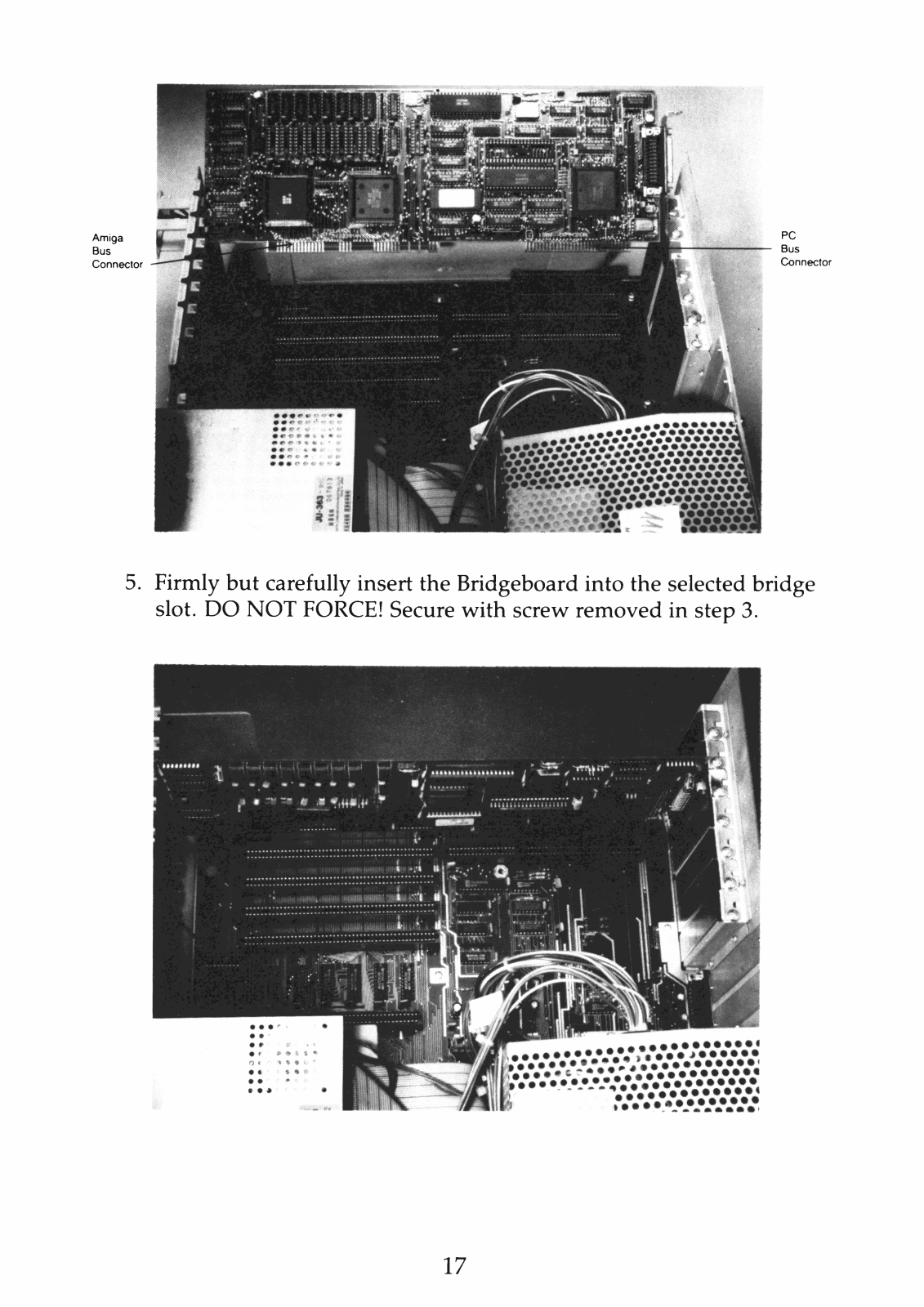

Amiga Bus Connector
5. Firmly but carefully insert the Bridgeboard into the selected bridge slot. DO NOT FORCE! Secure with screw removed in step 3.
PC Bus Connector
17
Page 26

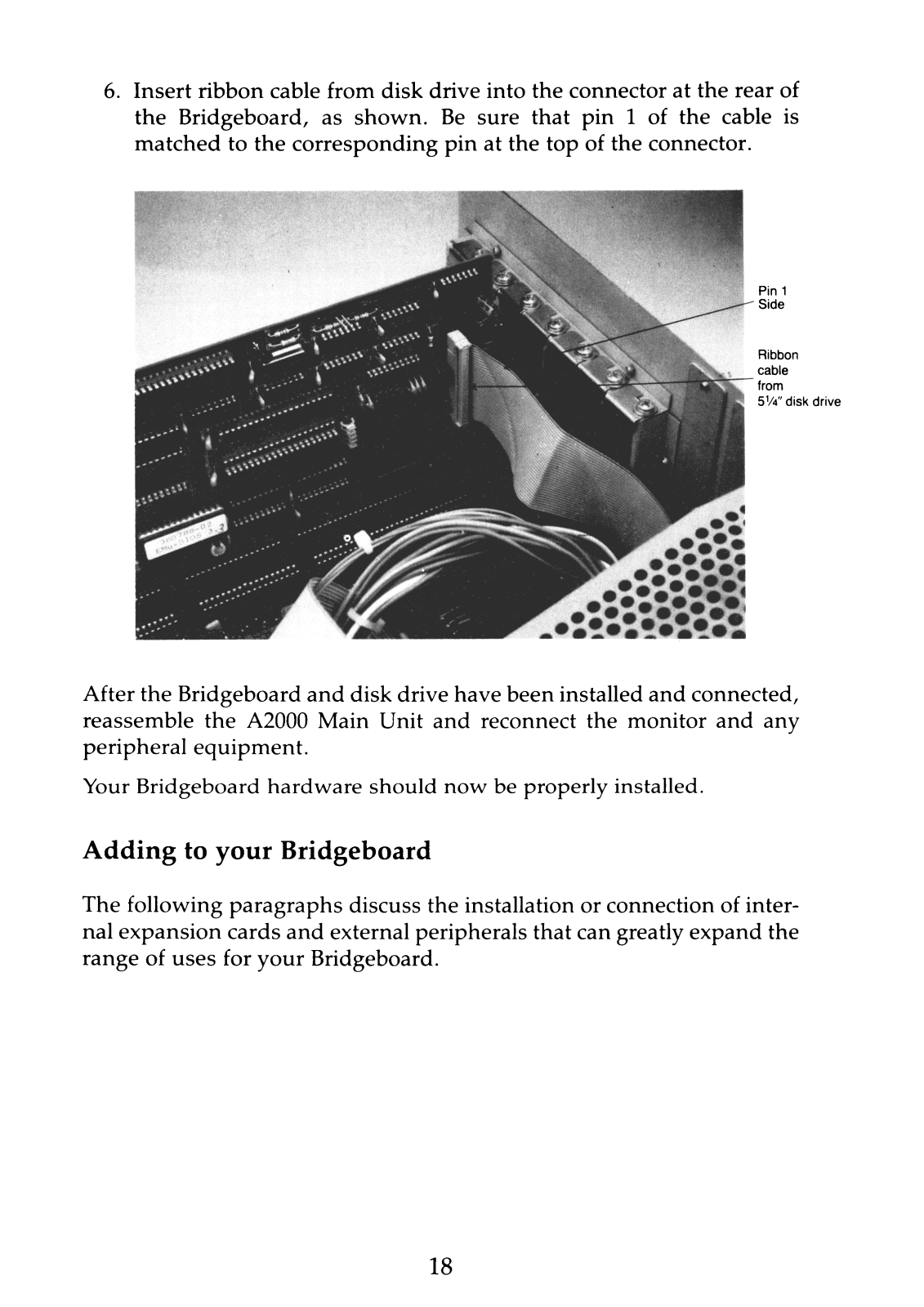

6. Insert ribbon cable from disk drive into the connector at the rear of the Bridgeboard, as shown. Be sure that pin 1 of the cable is matched to the corresponding pin at the top of the connector.
Pin 1 Side
Ribbon
cable
from 51/4" disk drive
After the Bridgeboard and disk drive have been installed and connected, reassemble the A2000 Main Unit and reconnect the monitor and any peripheral equipment.
Your Bridgeboard hardware should now be properly installed.
Adding to your Bridgeboard
The following paragraphs discuss the installation or connection of inter nal expansion cards and external peripherals that can greatly expand the range of uses for your Bridgeboard.
18
Page 27

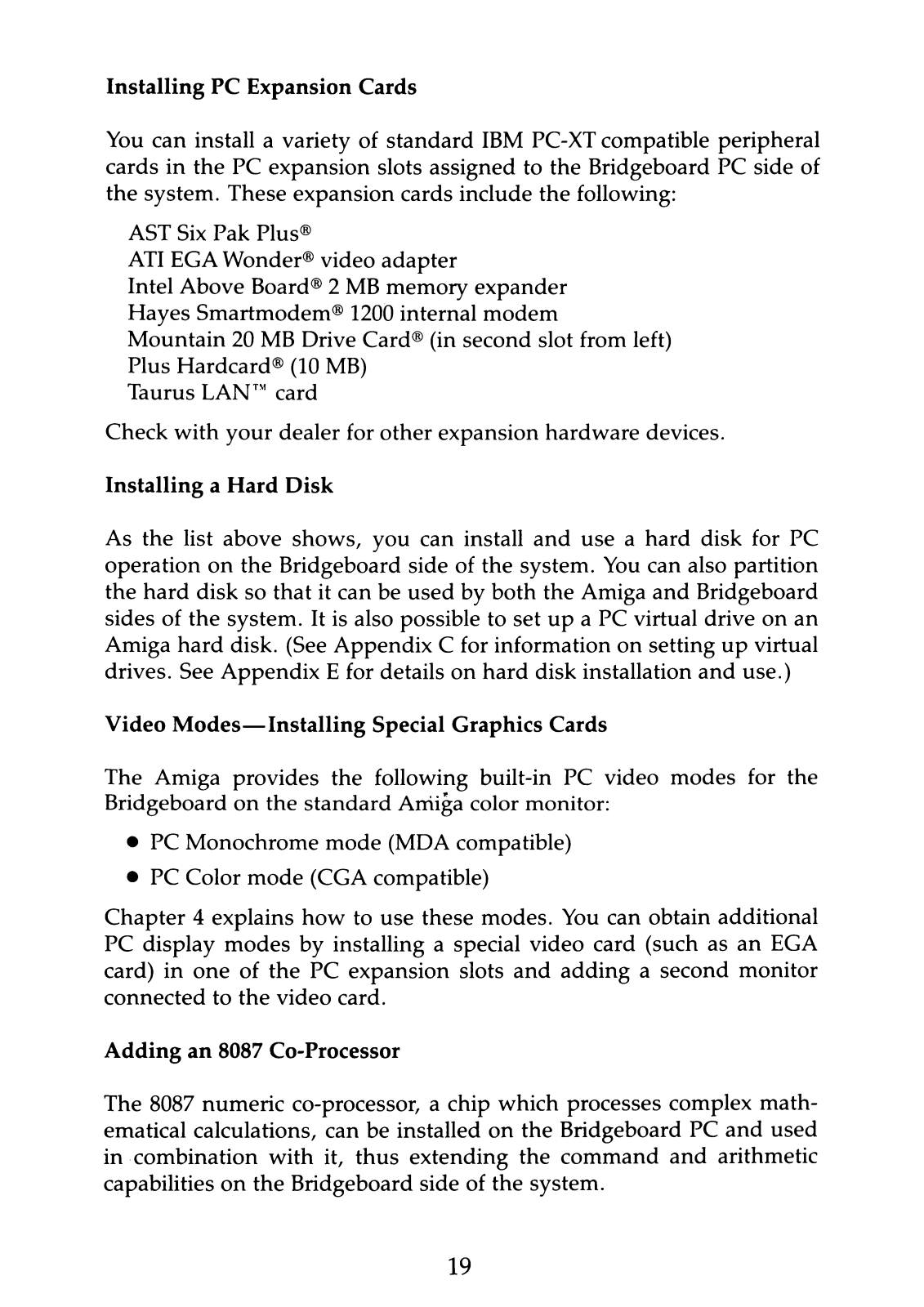

Installing PC Expansion Cards
You can install a variety of standard IBM PC-XT compatible peripheral cards in the PC expansion slots assigned to the Bridgeboard PC side of the system. These expansion cards include the following:
AST Six Pak Plus® ATI EGA Wonder® video adapter Intel Above Board® 2 MB memory expander Hayes Smartmodem® 1200 internal modem Mountain 20 MB Drive Card® (in second slot from left) Plus Hardcard® (10 MB) Taurus LAN card
Check with your dealer for other expansion hardware devices.
Installing a Hard Disk
As the list above shows, you can install and use a hard disk for PC operation on the Bridgeboard side of the system. You can also partition the hard disk so that it can be used by both the Amiga and Bridgeboard sides of the system. It is also possible to set up a PC virtual drive on an Amiga hard disk. (See Appendix C for information on setting up virtual drives. See Appendix E for details on hard disk installation and use.)
Video Modes Installing Special Graphics Cards
The Amiga provides the following built-in PC video modes for the Bridgeboard on the standard Amiga color monitor:
PC Monochrome mode (MDA compatible)
PC Color mode (CGA compatible)
Chapter 4 explains how to use these modes. You can obtain additional
PC display modes by installing a special video card (such as an EGA card) in one of the PC expansion slots and adding a second monitor connected to the video card.
Adding an 8087 Co-Processor
The 8087 numeric co-processor, a chip which processes complex math ematical calculations, can be installed on the Bridgeboard PC and used in combination with it, thus extending the command and arithmetic capabilities on the Bridgeboard side of the system.
19
Page 28

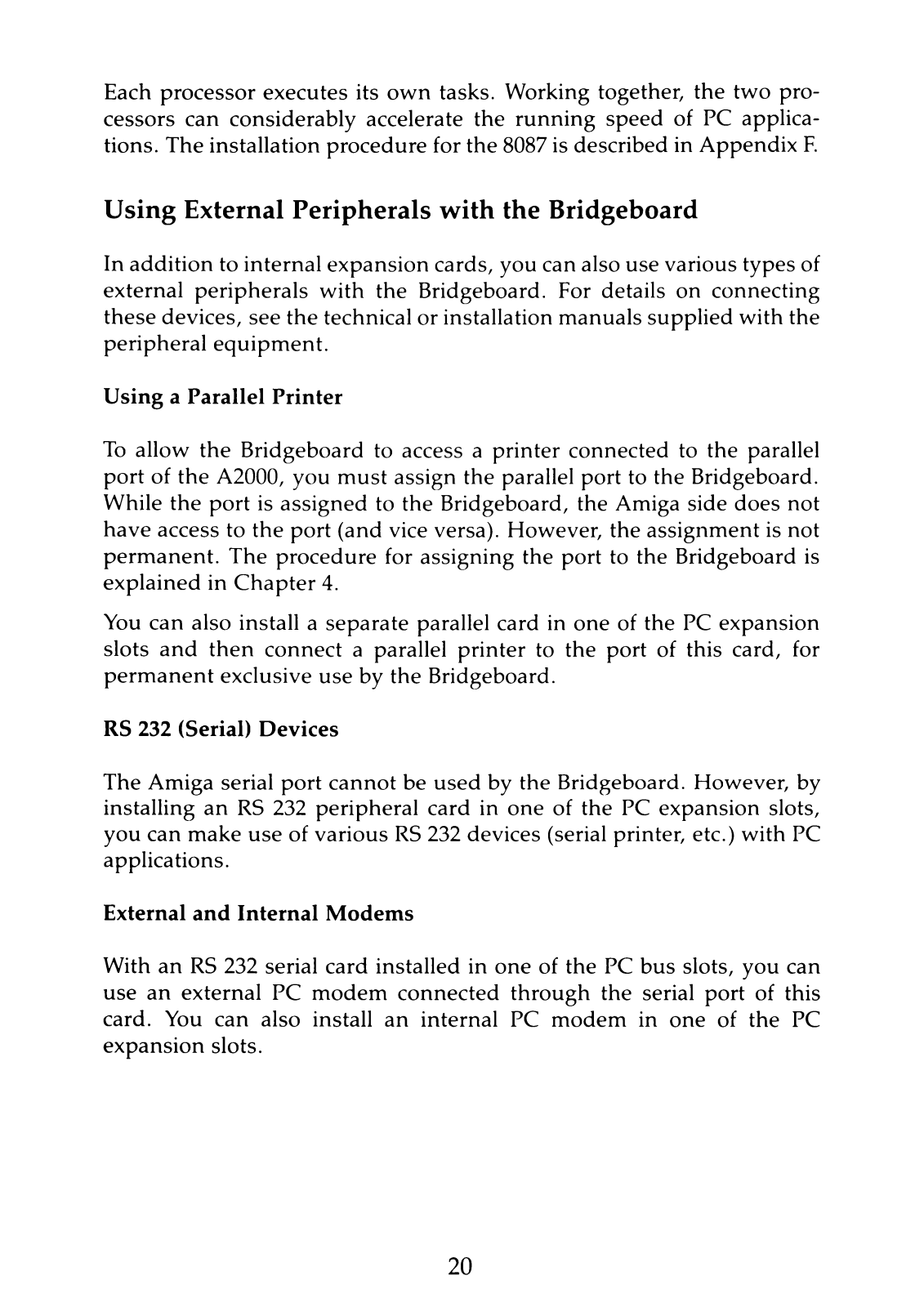

Each processor executes its own tasks. Working together, the two pro cessors can considerably accelerate the running speed of PC applica tions. The installation procedure for the 8087 is described in Appendix F.
Using External Peripherals with the Bridgeboard
In addition to internal expansion cards, you can also use various types of external peripherals with the Bridgeboard. For details on connecting these devices, see the technical or installation manuals supplied with the peripheral equipment.
Using a Parallel Printer
To allow the Bridgeboard to access a printer connected to the parallel port of the A2000, you must assign the parallel port to the Bridgeboard. While the port is assigned to the Bridgeboard, the Amiga side does not have access to the port (and vice versa). However, the assignment is not permanent. The procedure for assigning the port to the Bridgeboard is explained in Chapter 4.
You can also install a separate parallel card in one of the PC expansion slots and then connect a parallel printer to the port of this card, for permanent exclusive use by the Bridgeboard.
RS 232 (Serial) Devices
The Amiga serial port cannot be used by the Bridgeboard. However, by installing an RS 232 peripheral card in one of the PC expansion slots, you can make use of various RS 232 devices (serial printer, etc.) with PC applications.
External and Internal Modems
With an RS 232 serial card installed in one of the PC bus slots, you can use an external PC modem connected through the serial port of this card. You can also install an internal PC modem in one of the PC expansion slots.
20
Page 29

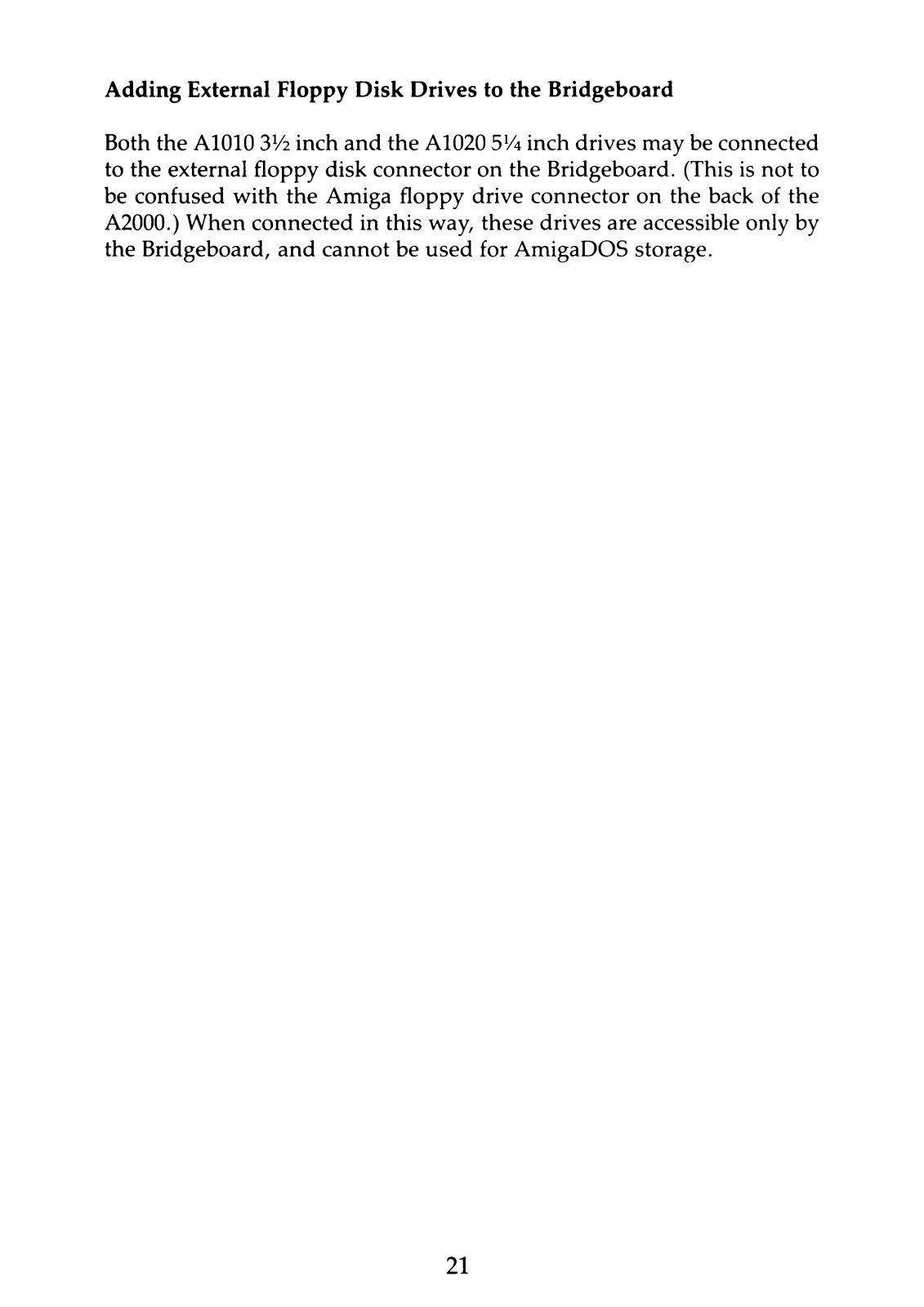

Adding External Floppy Disk Drives to the Bridgeboard
Both the A1010 3 V2 inch and the A1020 5lA inch drives may be connected
to the external floppy disk connector on the Bridgeboard. (This is not to be confused with the Amiga floppy drive connector on the back of the
A2000.) When connected in this way, these drives are accessible only by
the Bridgeboard, and cannot be used for AmigaDOS storage.
21
Page 30
Page 31
3. Installing the Bridgeboard PC Software*
The Install disk provided with your Bridgeboard contains special soft
ware that you must add to your Workbench disk in order to use the
Bridgeboard. The Install process is used to copy the Bridgeboard soft
ware from the Install disk to the Workbench disk.
The Install process involves these general steps:
You make a copy of your Workbench disk.
You open the Install disk and select which PC files you want to copy from the Install disk to the Workbench copy.
Since the PC files and the Workbench files together take up more
space than is available on a single 3 V2 inch disk, you are asked to select which Workbench files you want deleted.
The selected Workbench files are deleted and the PC files are copied
to the PC Workbench disk.
Once you create the PC Workbench disk, you can then automatically access the Bridgeboard PC by inserting this disk when the A2000 asks for the Workbench disk during the booting process.
There are two procedures you can use to install the PC software on a 3 V2 inch floppy disk. In the default procedure described in this chapter, you accept file choices (defaults) selected automatically by the Install pro gram. In the user-controlled installation procedure described in Appen dix A, you control the file selections yourself.
You should use the default procedure until you become familiar with the installation process.
Default Installation Procedure for a 3V2 Inch Floppy Disk
1. Turn on your A2000 and make a copy of your Workbench disk.
2. Reboot your A2000, using the new Workbench copy or the Install disk.
Note:
If your Bridgeboard package includes a special PC Workbench disk in place of (or in addition to) the Install disk referred to in this chapter, you do not need to go through the PC software installation process described in this chapter. You can simply skip this chapter and go directly to Chapter 4 to begin using the Bridgeboard. However, you will find the installation information useful if you want to create a personalized PC Work
bench disk for some special purpose.
23
Page 32
3. If the Install disk is not already in a drive, insert and open it now. A screen like the following will appear:
4. Select the Bridgelnstall icon.
Note: There may be other installation icons in the Install window.
Some of these are not for use with the A2000 computer and Bridgeboard combination. The Sidecar icon is used only with the A1000 computer and the Amiga 1060 Sidecar com bination. The Bridgelnstall 512 icon is used if you have only 512 KB of RAMe.g., an Amiga A1000 with a Sidecar and no external expansion RAM.
5. A few preliminary messages appear on the third line of the Instal lation screen, and then a list of all the files on the Install disk is displayed. (The checkmarks in front of some filenames indicate the default choices for installation.)
24
Page 33

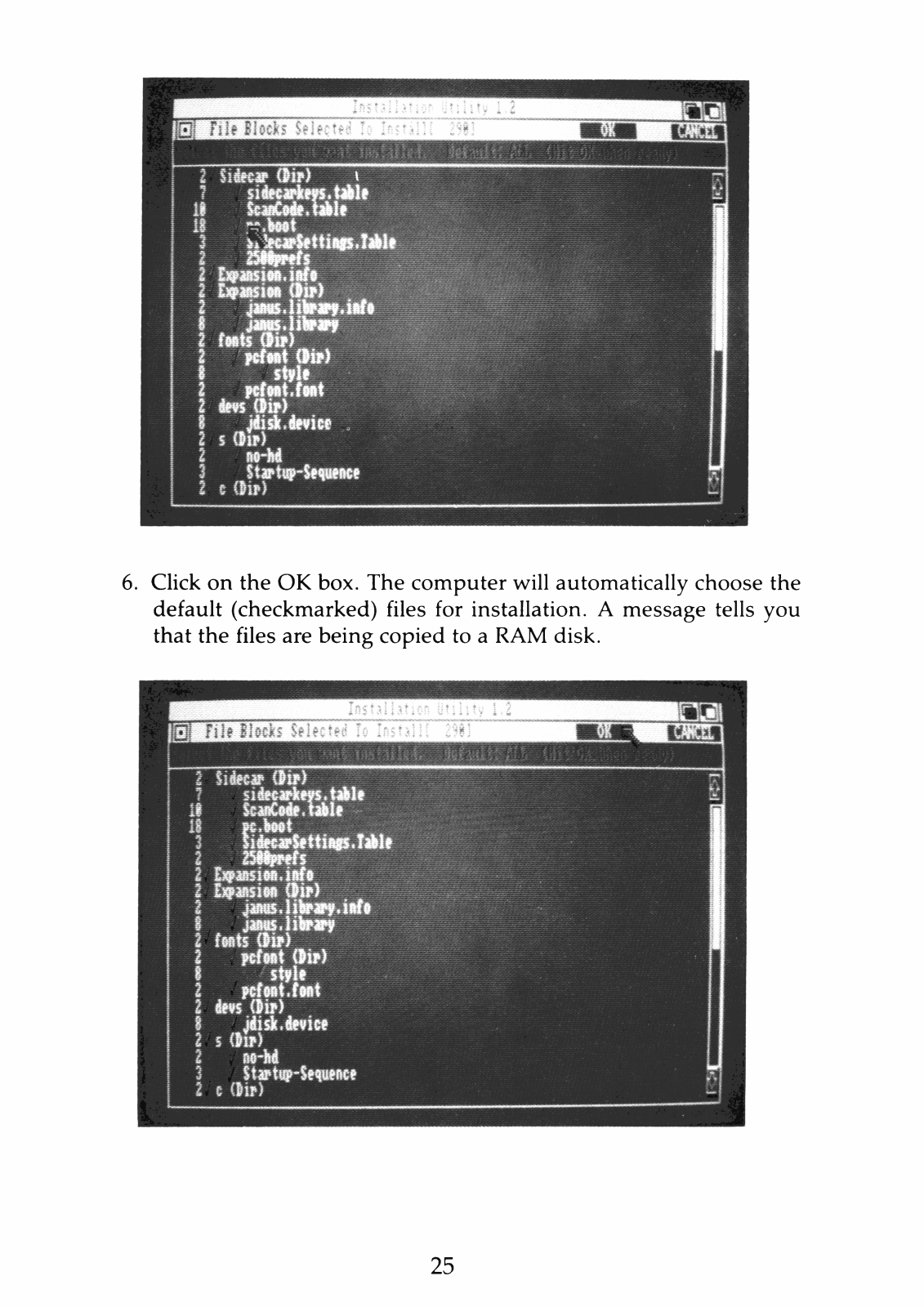

6. Click on the OK box. The computer will automatically choose the default (checkmarked) files for installation. A message tells you that the files are being copied to a RAM disk.
Sidecar- ( to )
siiesarktts*table
Sc a n C «*.l*li
jQi^prfis
Mansion, iafe Expafisiitt d ir)
j w . l i l r a f .i i i f i
jaaas.library
feats d ir)
pefeai dir)
style
pcfeat,feat
ten d ir)
tfisk.dwiee
s (to)
w-M
Startup-Sequence
e Clip)
a
25
Page 34

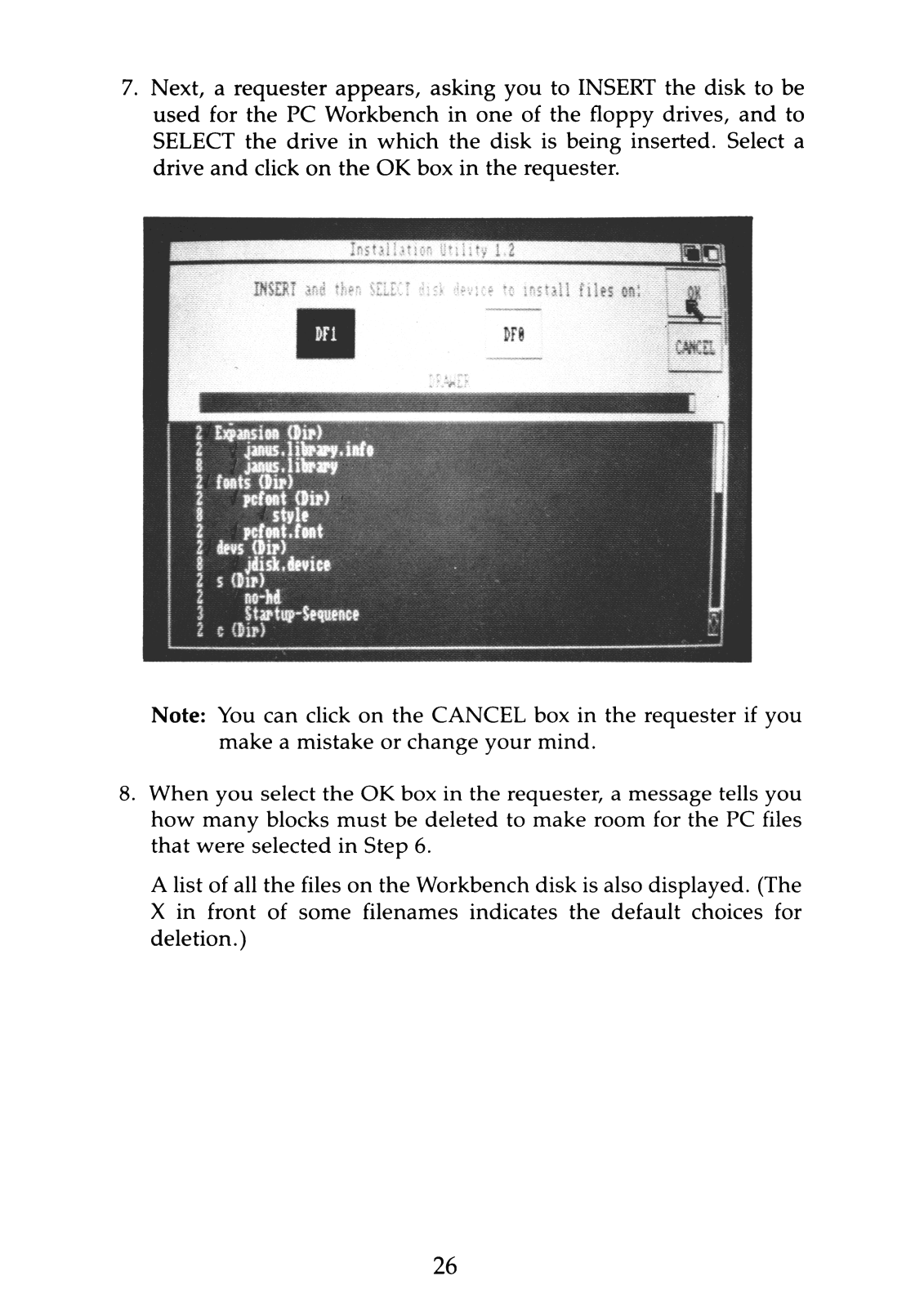

7. Next, a requester appears, asking you to INSERT the disk to be used for the PC Workbench in one of the floppy drives, and to SELECT the drive in which the disk is being inserted. Select a drive and click on the OK box in the requester.
Note: You can click on the CANCEL box in the requester if you
make a mistake or change your mind.
8. When you select the OK box in the requester, a message tells you how many blocks must be deleted to make room for the PC files that were selected in Step 6.
A list of all the files on the Workbench disk is also displayed. (The X in front of some filenames indicates the default choices for deletion.)
26
Page 35
9. Click on the OK box in the second line of the Installation screen. The computer will automatically delete the default files and copy
the remaining Workbench files and the PC files to the new PC Workbench disk.
10. When the file copying process is completed, you are returned to the Install window.
You now have a Workbench disk that includes the software necessary for Bridgeboard PC operations.
27
Page 36
Page 37
4. Using the Bridgeboard PC
To use the Bridgeboard, you must first set up a PC display screen. The Bridgeboard PC display appears on the Amiga monitor. The PC display can be be a window on the Workbench screen, or can occupy a window on a separate screen of its own. The display can be monochrome or color. The pulldown menus described in Chapter 5 give you control over various aspects of the display, such as size, color, task priority, moving and copying text, opening another window, etc.
When you have set up your display screen, you simply load MS-DOS and then operate as with a standard PC. You can load and run applica tion programs like Lotus 1-2-3, create your own programs with program ming languages like GW-BASIC and FORTH, or use office and personal productivity programs like Sidekick.
The Bridgeboard PC package includes a 5Vi inch floppy disk drive, which you use to load the MS-DOS system software and other PC
programs. Make sure you have removed the cardboard or plastic drive protector from all drives before inserting disks.
The explanations in this manual assume that you are familar with the Introduction to the Amiga A2000 manual, and that you know how to manipulate the Amiga mouse to open icons, to use menus and to make
selections.
The Keyboard
You communicate with PC programs through the Amiga keyboard. All of the functions on a PC-XT keyboard are available on the A2000 key
board. However, some keys on the A2000 keyboard are located in
different positions than on the PC-XT keyboard. If a key is defined differently for Bridgeboard use, the specific PC key designation is shown on the front of the key.
Getting Started
Before you try to use the Bridgeboard, be sure all equipment is properly installed and connected, including any internal or external disk drive(s)
you will use with the Bridgeboard .
29
Page 38
Loading MS-DOS on the Bridgeboard
Follow this procedure to load MS-DOS on the Bridgeboard:
1. Boot the system with the Workbench, by either powering on or resetting the Amiga.
2. Insert the MS-DOS system disk in the 5lA inch drive that you installed in the A2000 Main Unit.
3. When the A2000 asks for the Workbench disk, insert the special PC Workbench disk (the one you created with the Install program) into drive dfO (the built-in 3V2 inch disk drive in the Amiga 2000).
Note: You should make a copy of the Bridgeboard Workbench and
all other Bridgeboard disks; use the copies for everyday operation and store the originals in a safe place.
4. When the Workbench disk icon appears, double-click on it and the following Workbench window will appear:
30
Page 39

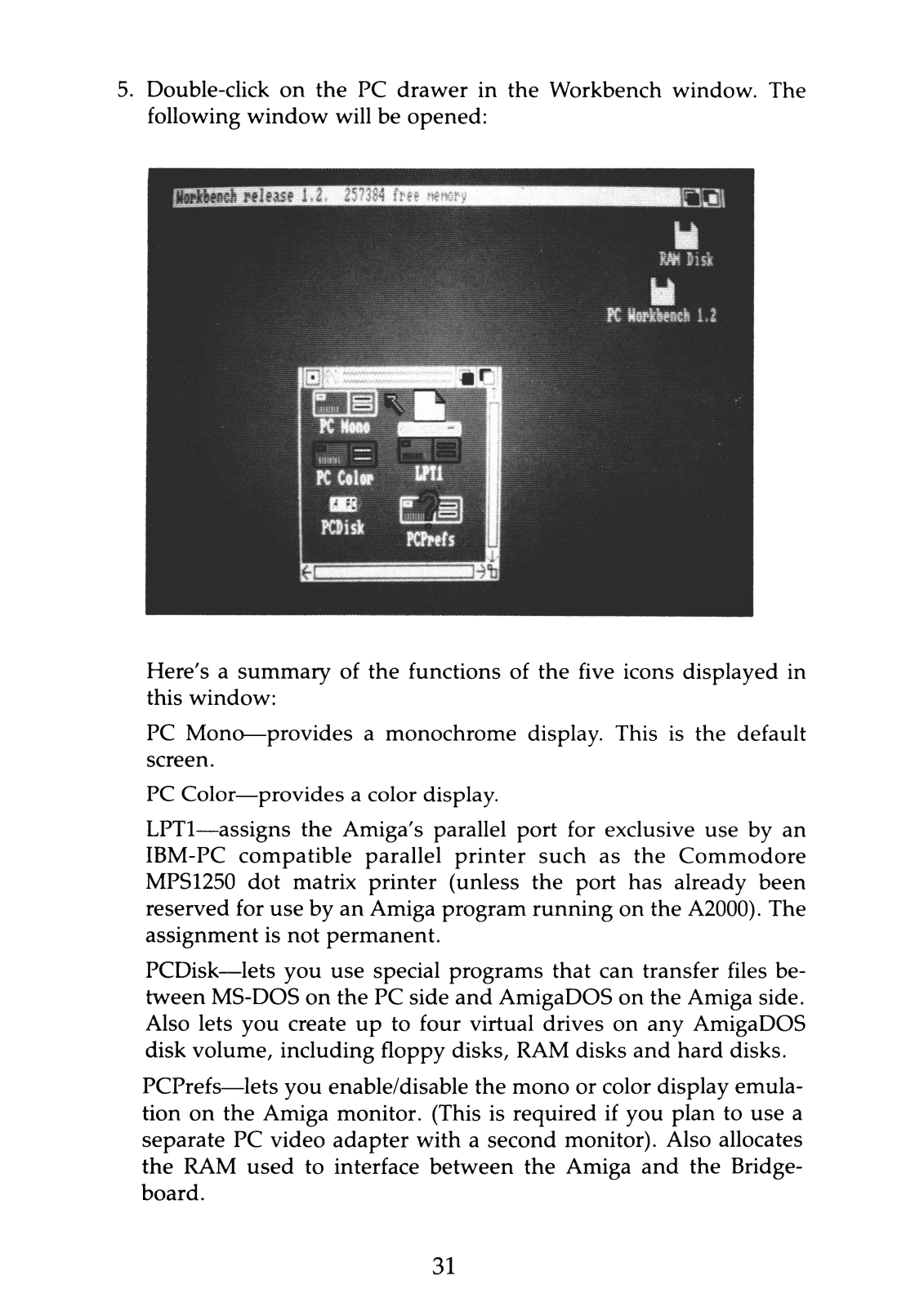

5. Double-click on the PC drawer in the Workbench window. The following window will be opened:
Here's a summary of the functions of the five icons displayed in this window:
PC Monoprovides a monochrome display. This is the default screen.
PC Color—provides a color display. LPT1assigns the Amiga's parallel port for exclusive use by an
IBM-PC compatible parallel printer such as the Commodore
MPS1250 dot matrix printer (unless the port has already been
reserved for use by an Amiga program running on the A2000). The assignment is not permanent.
PCDisklets you use special programs that can transfer files be tween MS-DOS on the PC side and AmigaDOS on the Amiga side. Also lets you create up to four virtual drives on any AmigaDOS disk volume, including floppy disks, RAM disks and hard disks.
PCPrefs—lets you enable/disable the mono or color display emula tion on the Amiga monitor. (This is required if you plan to use a separate PC video adapter with a second monitor). Also allocates the RAM used to interface between the Amiga and the Bridge- board.
31
Page 40
6. Double-click on the PC Mono icon. A window will appear on The
Workbench screen showing the normal PC power-up messages and memory test results. Follow the prompts that appear on the screen.
(If at this point you get a message indicating that the system has failed to find the MS-DOS disk, check to see that the proper disk is in the drive. If you have not yet inserted the MS-DOS system disk, do it now.)
32
Page 41
dm.
iM te » & ~ ta la i» BIOS In , 3.3
U K : 511 fflstM fl*
kms kailtt V2.M fm i *1
I -- - y.yssgg
M iisk fti lm , I p k s k i ft ii*
If you are not familiar with MS-DOS procedures, see the MS-DOS User's Guide included with your Bridgeboard package. If you will be using an MS-DOS applications program, the program manual should give you detailed loading instructions.
About the Display Modes
Message indicating MS-DOS disk not inserted.
The Bridgeboard has two standard display modes: monochrome text, and color text and graphics. The PC Mono and PC Color icons corre spond to these two display modes. Here's a summary of each mode:
PC Mono Mode
On a standard IBM PC, the monochrome mode is normally limited to a text display of green or amber lettering on a black background, or vice versa. In the Bridgeboard PC Mono mode, you can use two or four colors for display. The color of the text, the background and intensified color can be changed independently of each other. Any color from the Amiga pallette of 4096 colors can be used. Colors can be changed using the Color option in the Display menu of the PC window.
33
Page 42
If you choose the same number of colors for the PC Mono display as are used in the Workbench screen (i.e., four colors), the PC display
appears as a window on the Workbench screen. If you choose to use
fewer than the normal four colors of the Workbench screen, the PC
Mono display will move to its own screen.
PC Color Mode
PC Color mode can display both text and graphics. Text can appear in up to sixteen colors, while graphics can utilize up to four colors. The default number of text colors is 16, which cannot be displayed on the four-color Workbench screen, so a new screen is created for the PC color dispay.
As with the PC Mono mode, you can use the Number of Text Colors menu option to modify the PC screen colors. This can allow you to make a color selection that will enable you to open a Color window on the Workbench screen (i.e., select four colors).
Selecting the icon for either of these two modes is comparable to turning on a PC monitor. The difference is that a standard PC requires a separate monitor for each display mode, while the Amiga Bridgeboard system can create windows and display screens that enable both display modes to appear on a single monitor, at the same time.
Some IBM-PC applications support only one display mode (either color or monochrome). Some programs may support both modes. The instructions for the particular program will make it clear which display mode to use.
Selecting the PC Color Display Mode
At power-up, the Bridgeboard PC is automatically set to the default display mode (factory set to mono). See Appendix H for information on how to change the default display mode to color. You can change to a PC Color display by following this procedure:
1. Open the Bridegeboard Workbench PC drawer (if it is not already open).
2. Double click on the PC Mono icon.
3. When the screen for PC Mono mode appears: a. Answer the date and time requests from MS-DOS. b. Type:
MODE CO80 < RETURN>
34
Page 43
Note that you must type the letters CO, followed immediately by the numerals 80 (no space).
c. Click on the close gadget to close down the PC Mono window.
4. Double click on the PC Color icon in the PC drawer window.
The usual MS-DOS prompt will appear, and you can enter commands in the usual fashion.
Returning to Monochrome Display
You can return to a PC Mono display by following this procedure:
1. Type: MODE MONO < RETURN>
2. Click on the close gadget to close down the PC Color window.
3. Double click on the PC Mono icon.
Note: Most PC software packages include a command to activate the
proper display mode.
Using the LPT1 Icon to Access the A2000 Parallel Port for Bridgeboard Use
The third PC icon, LPT1, is the MS-DOS acronym for Line Printer #1. Selecting this icon assigns the A2000 parallel port for use with a PC-compatible printer.
Before you can use the A2000 parallel port for a PC parallel printer, you must assign the port to the PC side. (The assignment is not permanent; however, only one application at a time may have access to the Amiga's parallel port.) When you select the LPT1 icon, the Amiga runs a program that checks whether the parallel port is in use by any Amiga-side application. If it is not in use, the Amiga designates the port for the PC printer. If the port is currently in use, nothing happens.
If the LPT1 is able to assign the parallel port to the PC printer, a title bar appears on the screen, telling you the parallel port has been allocated to LPT1. Remember that while the Bridgeboard has control of the parallel port, the port is unavailable to AmigaDOS programs. Once assigned to LPT1, the parallel port is used exclusively by the PC printer until you select the Close gadget on the LPT1 title bar. At that point, control of the parallel port is returned to AmigaDOS.
35
Page 44
Using PCDisk
PCDisk must be opened if you want to use certain special programs for the creation of virtual drives and for Amiga/Bridgeboard file transfer operations. Note that no window appears when you open PCDisk.
You must open PCDisk in order to use the JLink program that allows you to create up to four virtual drives on any AmigaDOS disk volume, including floppy disks, RAM disks and hard disks. (See Appendix C for details.)
You must also open PCDisk if you want to use the ARead and AWrite programs to transfer files between MS-DOS on the PC side and Amiga DOS on the Amiga side. (See Appendix D for details.)
Using PCPrefs
PCPrefs activates the Bridgeboard hardware which allows either the mono or color displays (or both) to be shown on the Amiga monitor, and sets the default memory control setting (E0000) built into the Bridge- board hardware. You can use PCPrefs to change the location of the address sector for the RAM used to interface between the Amiga and the Bridgeboard, or to disable emulation of either display mode if a display adapter card is to be used with a second monitor.
Using PCPrefs, you can change these default settings for the current session only, or you can save the changed settings to the PC Workbench disk as the new default settings. In most cases there will be no need to change the default settings, and it is therefore recommended that you make no attempt to alter the standard default settings provided by PCPrefs, unless you are using a second monitor and display adapter.
The power-up display settings (monochrome, 80 column) can also be changed by resetting Jumper J1 on the Bridgeboard; this is described in Appendix H. However, it is again recommended that you make no attempt to change the standard power-up display settings unless you are familiar with the PC compatible display hardware.
36
Page 45

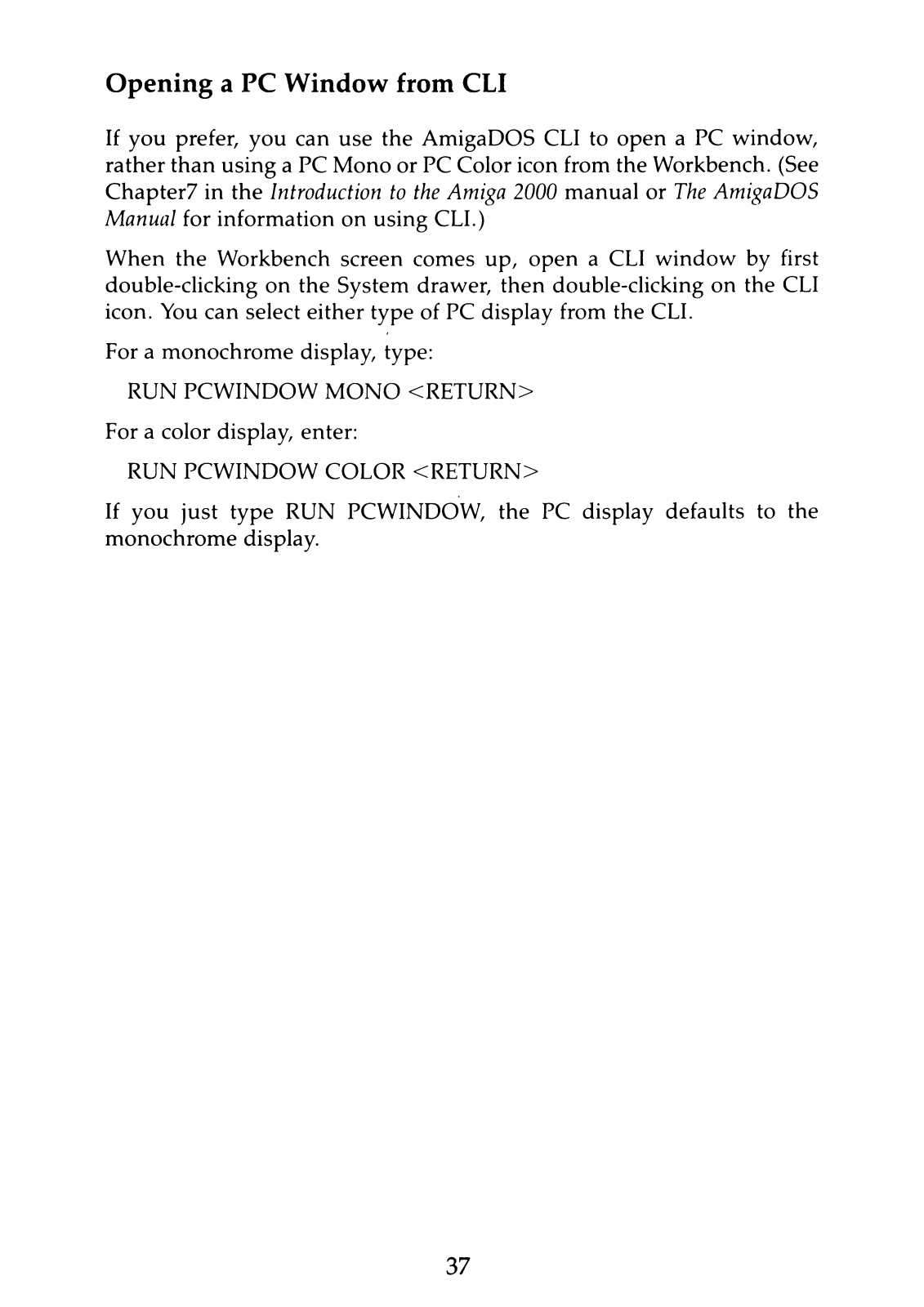

Opening a PC Window from CLI
If you prefer, you can use the AmigaDOS CLI to open a PC window,
rather than using a PC Mono or PC Color icon from the Workbench. (See
Chapter7 in the
Manual for information on using CLI.)
When the Workbench screen comes up, open a CLI window by first
double-clicking on the System drawer, then double-clicking on the CLI
icon. You can select either type of PC display from the CLI.
For a monochrome display, type:
RUN PCWINDOW MONO < RETURN>
For a color display, enter:
RUN PCWINDOW COLOR < RETURN >
If you just type RUN PCWINDOW, the PC display defaults to the
monochrome display.
Introduction to the Amiga 2000 manual or The AmigaDOS
37
Page 46
5. The Bridgeboard PC Display
This first part of this chapter describes the characteristics and capabilities of the Bridgeboard display windows. The second part of the chapter tells how to use the on-screen Bridgeboard menus to set or alter these characteristics.
Characteristics of the PC Window
A Bridgeboard PC window, when full-sized, covers an 80 column by 25 line area and, depending on the display mode, can display up to sixteen colors. You can modify various elements of the Bridgeboard PC display (e.g., borders, window size, number and shades of colors, number of windows, display task priority) by using the options of the PC screen menus.
Borders
The "border" of a window is the area around the perimeter of the window. The border contains "gadgets" you can use to size and position your window, just as with any Amiga window (see the Introduction to the Amiga 2000 manual for information on Amiga windows). There are also screen menu options to perform these tasks.
You can choose to have the window borders be visible or hidden. When the window borders are visible, you can use the window gadgets as usual. When the borders are hidden, you can see all 80 columns and 25 lines of the Amiga display. You can always use the screen menus, whether or not borders are visible.
When you size the window to fill the entire screen, the window borders vanish automatically. If you reduce the screen from full size to a smaller size, the borders reappear.
At any time, double-clicking will change the window from full size borderless to small size bordered, and vice versa. The small size win dow will take the location and size of the last non-fullsize Bridgeboard window.
Window Size
You can change the size of the screen by using the FULL SIZE and SMALL SIZE options of the Display menu. These options let you switch
the size of an existing window from large to small and back again. FULL
38
Page 47
SIZE enlarges the window to the 80 column by 25 line area. When the window is the full size of the display, the borders will be hidden.
When you select SMALL SIZE, the window is restored to its last dimen
sions and position when it was not full-sized. If the window h&s not
been manually re-sized, size and screen position defaults are assumed. Note that you can also change the size of windows using the sizing
gadget in the lower right corner of the window, and you are still able to reposition the window by clicking the left mouse button on the window bar. However, keep in mind that the window cannot be moved unless it is smaller than full size.
Number Of Text Colors
In PC Mono mode text can appear in up to 4 colors. In PC Color mode
text can appear in up to 16 colors. The Bridgeboard display emulator can create all of these colors. However, the more text colors you use, the longer it takes for your text to be displayed. Use of fewer text colors allows the Amiga to work more efficiently. The performance improve ment in going from 16-color to 8-color text is significant.
Note that these color options are for text only; they have no effect on the color graphics display, which is always 2 or 4 colors, depending on the type of display created by a particular application.
Using Multiple Windows / Freezing Windows
You can open multiple windows in any display mode. When you have multiple windows of a display, you can freeze the contents of any window simply by clicking inside the window and then selecting "win dow freeze on" from the window bar.
Note that MS-DOS is not a multi-tasking environment, since only one PC application may be active at a time. However, the multiple window and window-freeze capabilities of the Bridgeboard allow you consider able leeway in manipulating displays within a single program.
Display Priority
All of the Amiga programs—including Bridgeboard programs— run at a certain "priority". The Bridgeboard display task runs at the normal priority, which is a priority of 0 when started from the Workbench and -5 when started from the CLI. When the PC display is changing frequently, the Bridgeboard PC display emulator may require a large portion of the
39
Page 48
system time and resources. If the display program runs at a lower priority than other task, the display may be degraded. If the priority of the display program is too high, then the performance of other tasks may be affected.
You can change the priority of the display program to suit your needs by using the Set Display Task Priority option of the Display menu, as explained later in this chapter.
Using the Pulldown Menus of the PC Window
There are three menus available on the main menu bar at the top of the Bridgeboard PC Window screen :
Project
Display
Edit
The options on these menus apply to the Bridgeboard window display whether you've selected a Mono or Color display. There are some minor differences among the options, depending on the display mode. For example, Mono mode allows a maximum of four colors, while Color mode allows as many as sixteen colors.
Menus and options are selected in the same way that they are selected for any Amiga window.
The following pages tell how to use the three main PC screen menus and their options.
40
Page 49
Project Menu Options
The Project menu has four options: SAVE SETTINGS, RESTORE SET
TINGS, INFO, and CLOSE. These options are described below.
Save SettingsAfter you have configured the display to your liking (by
using the Color option of the Display menu to make color selections), you can use this command to permanently record these settings in a file
on the Bridgeboard system disk. Thereafter, whenever you boot the Bridgeboard system, your selected display colors will always be used.
Restore SettingsThis option restores the color display to the settings that are currently saved on disk—either by you, or in the form of the factory defaults.
InfoThis provides an additional window giving brief information and
help on how to use a number of the Bridgeboard features.
CloseSelecting this option is the same as selecting the Window Close
gadget in the upper left-hand corner of the screen (i.e., this option closes a Bridgeboard window).
41
Page 50
Display Menu Options
The Display menu has thirteen options: FULL-SIZE WINDOW, SMALL- SIZE WINDOW, SHOW BORDER, HIDE BORDER, WINDOW FREEZE, THIS WINDOW'S SCREEN, COLOR, SET CURSOR BLINK RATE, OPEN ANOTHER WINDOW, REFRESH DISPLAY, NUMBER OF TEXT COLORS, SET DISPLAY TASK PRIORITY, and INTERLACE. Each op tion is described below.
Full-Size Windowcauses the current active window to be sized to 80 columns by 25 lines. The borders, if visible, become hidden automatically.
Small-Size Windowreduces a full-size window to its last less-than- full size dimensions and locations.
Show Border makes the window borders visible. Hide Border makes the window borders invisible. (You can still use
the menus even if the borders are hidden.) NOTE: You can also show or hide the borders simply by positioning the
pointer inside the PC Window and double-clicking on the left mouse button. This resizes the window and will change the current border setting. For example, if the borders are visible, they become invisible and vice versa. (In PAL systems, top and bottom borders are always visible.)
42
Page 51

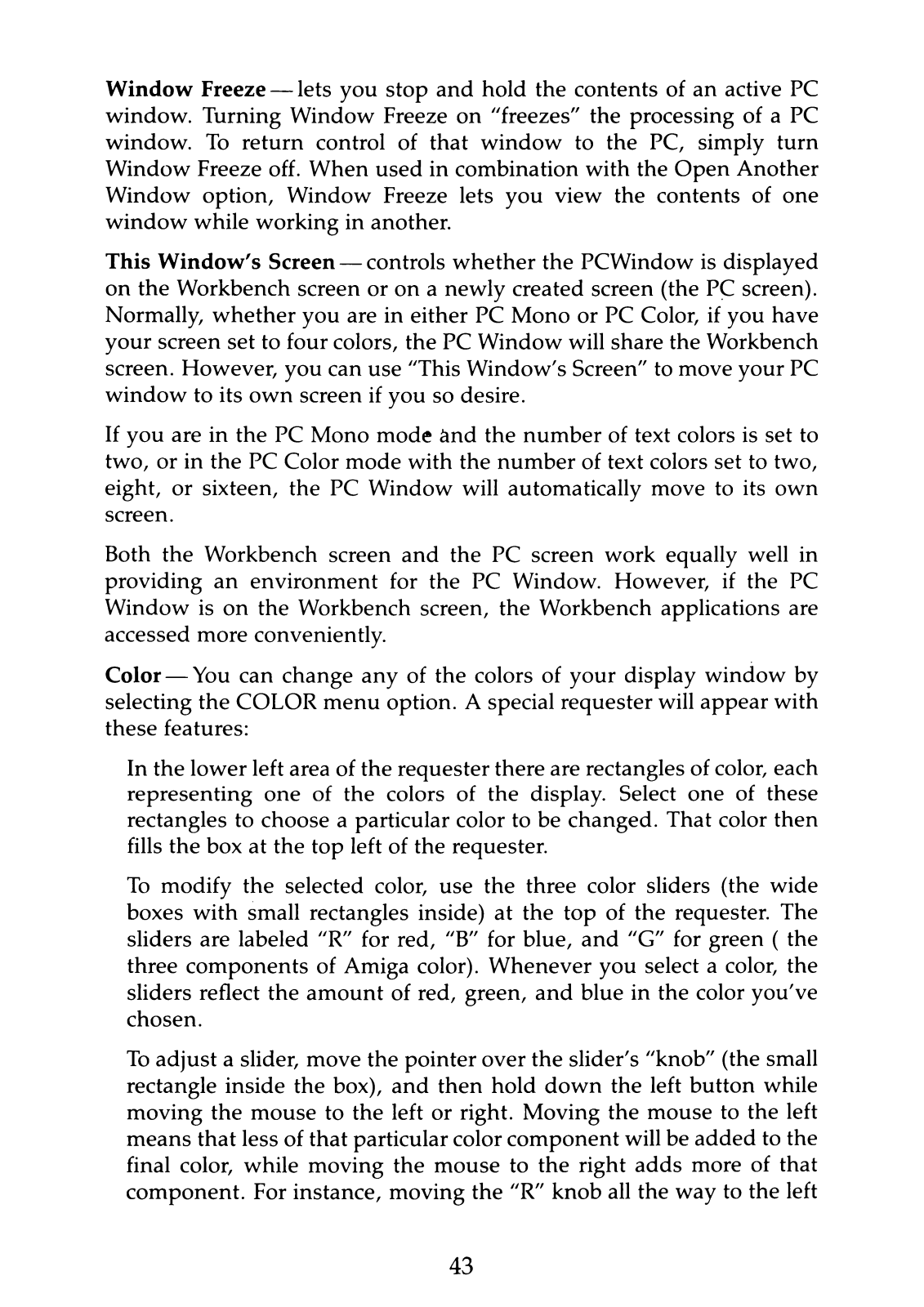

Window Freeze lets you stop and hold the contents of an active PC window. Turning Window Freeze on "freezes" the processing of a PC window. To return control of that window to the PC, simply turn Window Freeze off. When used in combination with the Open Another Window option, Window Freeze lets you view the contents of one window while working in another.
This Window's Screen controls whether the PCWindow is displayed on the Workbench screen or on a newly created screen (the PC screen). Normally, whether you are in either PC Mono or PC Color, if you have your screen set to four colors, the PC Window will share the Workbench screen. However, you can use "This Window's Screen" to move your PC window to its own screen if you so desire.
If you are in the PC Mono mode &nd the number of text colors is set to two, or in the PC Color mode with the number of text colors set to two, eight, or sixteen, the PC Window will automatically move to its own screen.
Both the Workbench screen and the PC screen work equally well in providing an environment for the PC Window. However, if the PC Window is on the Workbench screen, the Workbench applications are accessed more conveniently.
Color You can change any of the colors of your display window by selecting the COLOR menu option. A special requester will appear with these features:
In the lower left area of the requester there are rectangles of color, each representing one of the colors of the display. Select one of these rectangles to choose a particular color to be changed. That color then fills the box at the top left of the requester.
To modify the selected color, use the three color sliders (the wide boxes with small rectangles inside) at the top of the requester. The sliders are labeled "R" for red, "B" for blue, and "G" for green ( the three components of Amiga color). Whenever you select a color, the sliders reflect the amount of red, green, and blue in the color you've chosen.
To adjust a slider, move the pointer over the slider's "knob" (the small rectangle inside the box), and then hold down the left button while moving the mouse to the left or right. Moving the mouse to the left means that less of that particular color component will be added to the final color, while moving the mouse to the right adds more of that
component. For instance, moving the "R" knob all the way to the left
43
Page 52

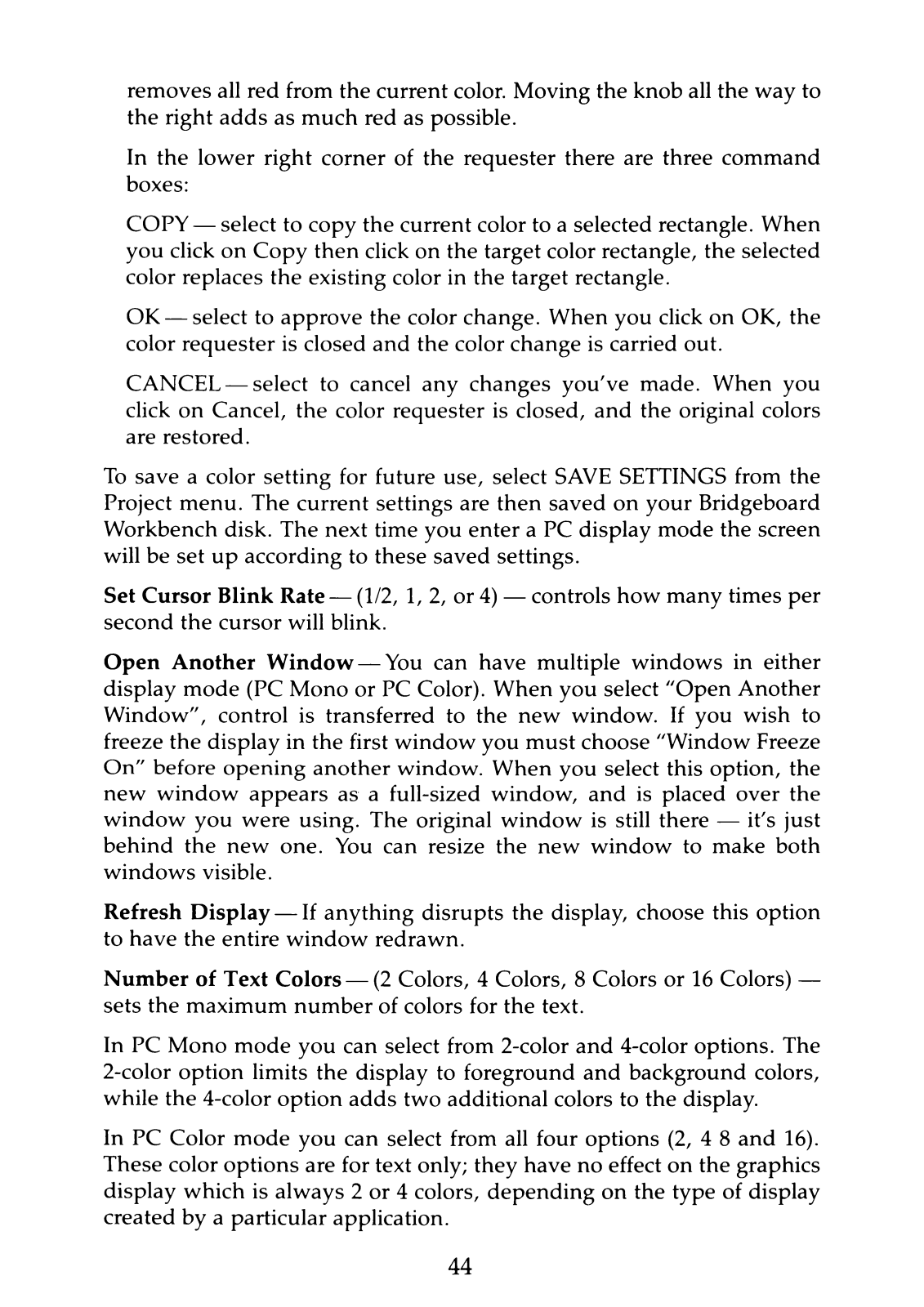

removes all red from the current color. Moving the knob all the way to the right adds as much red as possible.
In the lower right corner of the requester there are three command
boxes:
COPY select to copy the current color to a selected rectangle. When you click on Copy then click on the target color rectangle, the selected color replaces the existing color in the target rectangle.
OK select to approve the color change. When you click on OK, the color requester is closed and the color change is carried out.
CANCEL select to cancel any changes you've made. When you click on Cancel, the color requester is closed, and the original colors are restored.
To save a color setting for future use, select SAVE SETTINGS from the Project menu. The current settings are then saved on your Bridgeboard Workbench disk. The next time you enter a PC display mode the screen will be set up according to these saved settings.
Set Cursor Blink Rate (1/2, 1, 2, or 4) controls how many times per second the cursor will blink.
Open Another Window You can have multiple windows in either display mode (PC Mono or PC Color). When you select "Open Another Window", control is transferred to the new window. If you wish to freeze the display in the first window you must choose "Window Freeze On" before opening another window. When you select this option, the new window appears as a full-sized window, and is placed over the window you were using. The original window is still there it's just behind the new one. You can resize the new window to make both windows visible.
Refresh Display If anything disrupts the display, choose this option to have the entire window redrawn.
Number of Text Colors (2 Colors, 4 Colors, 8 Colors or 16 Colors) sets the maximum number of colors for the text.
In PC Mono mode you can select from 2-color and 4-color options. The 2-color option limits the display to foreground and background colors, while the 4-color option adds two additional colors to the display.
In PC Color mode you can select from all four options (2, 4 8 and 16). These color options are for text only; they have no effect on the graphics display which is always 2 or 4 colors, depending on the type of display created by a particular application.
44
Page 53
As a general rule, the fewer colors you use in your display, the faster the computer is able to work. Fewer colors use less of the computer's memory. Conversely, the more colors you use, the slower the text display and the computer's efficiency. The improvement in performance going from a 16-color to an 8-color display is significant.
There's one more thing about the number of colors to be aware of: if the number of colors of the PC screen is equal to the number of colors of the Workbench screen (meaning there are four colors on either a mono or color display), the PC display appears as a window on the Workbench screen. If the number of colors is not equal, the PC display will appear as a window on a newly created screen (the PC screen). Both the Work bench screen and the PC screen work equally well in providing an environment for the PC Window. However, with the PC Window on the Workbench screen, the Workbench applications are accessed more con veniently.
Set Display Task Priority (+10, + 5, 0, -5, -10) sets the priority in which tasks shown on the display will be performed. The more positive, higher number designates a higher priority. Usually there is no need to alter this option.
Interlace (On, Off) turns the Amiga interlace mode on and off. The interlace mode increases the number of lines displayed on the screen. If
you have a high persistence monitor like the Amiga 2080, the display is
sharpened when you turn on the interlace. However, conventional monitor displays are not designed to take advantage of the improved resolution afforded by the interlace capability, and turning the interlace on may cause a distracting "flicker." Use of a high resolution, long- persistence monitor will fix this problem.
Edit Menu Options
The Edit menu controls a clipboard, an area in which selected text may be held. This clipboard is the same one used by Notepad on your Amiga Workbench disk, and by some other Amiga applications as well. Its use is explained in your Introduction to the Amiga 2000 manual. With the COPY and PASTE options of the Edit menu, text can be copied from or inserted into (pasted into) the PC window.
45
Page 54
COPY—You use the COPY option to place text in the clipboard. First, you must highlight the text you wish to copy by pressing the left mouse button and moving left or right. The text you move over appears in reversed color. When you release the left mouse button, the highlighted text is copied from the PC Window and placed in the clipboard. You must move the pointer at least one full character from the starting point to select text.
PASTEYou use PASTE to place the text from the clipboard into the PC Window. When you select PASTE, whatever is held in the clipboard is pasted at the current cursor location. Other ways to insert text from the clipboard are double-clicking the right mouse button, or pressing the right Amiga key along with the V key.
Copied text is held in the clipboard until it is replaced, and can be pasted into the PC window as often as you like.
You can also copy text from the clipbord into Amiga applications, such as Notepad, that support clipboard operations. Text placed in the clip board from Amiga applicatons can be moved into the PC window using the Bridgeboard's PASTE option.
46
Page 55
APPENDICES
Appendix A: User-Controlled Procedure for Installing Bridgeboard Files on a Workbench Disk
You can use the following procedure to control the process of selecting and transferring the Bridgeboard software from the Install disk to a PC Workbench disk.
1. Turn on your A2000 and make a copy of your Workbench disk.
2. Reboot your A2000, using the new Workbench copy or the Install disk.
3. If the Install disk is not already in a drive, insert and open it now.
4. When the Install window appears, select the Bridgelnstall icon. A screen like the following will appear:
Note: There may be other installation icons in the Install win
dow. Some of these are not for use with the A2000 comput er and Bridgeboard combination. The Sidecar icon is used only with the A1000 computer and the Amiga 1060 Sidecar combination. The Bridgelnstall 512 icon is used only if you have a computer with 512 KB of RAM— e.g., an Amiga A1000 with a non-Sidecar PC device.
5. After you select the Bridgelnstall icon, a few preliminary mes sages appear near the top of the Installation screen, and then a list of all the files on the Install disk appears.
6. Note the checkmarks in front of some filenames. A checkmark (or lack of a checkmark) indicates the default file status, as follows: Any file with a checkmark will be selected for installation.
Any file without a checkmark will not be copied to your new
Workbench disk.
You can toggle a checkmark on or off by moving to the filename line and
clicking on the left mouse button.
47
Page 56

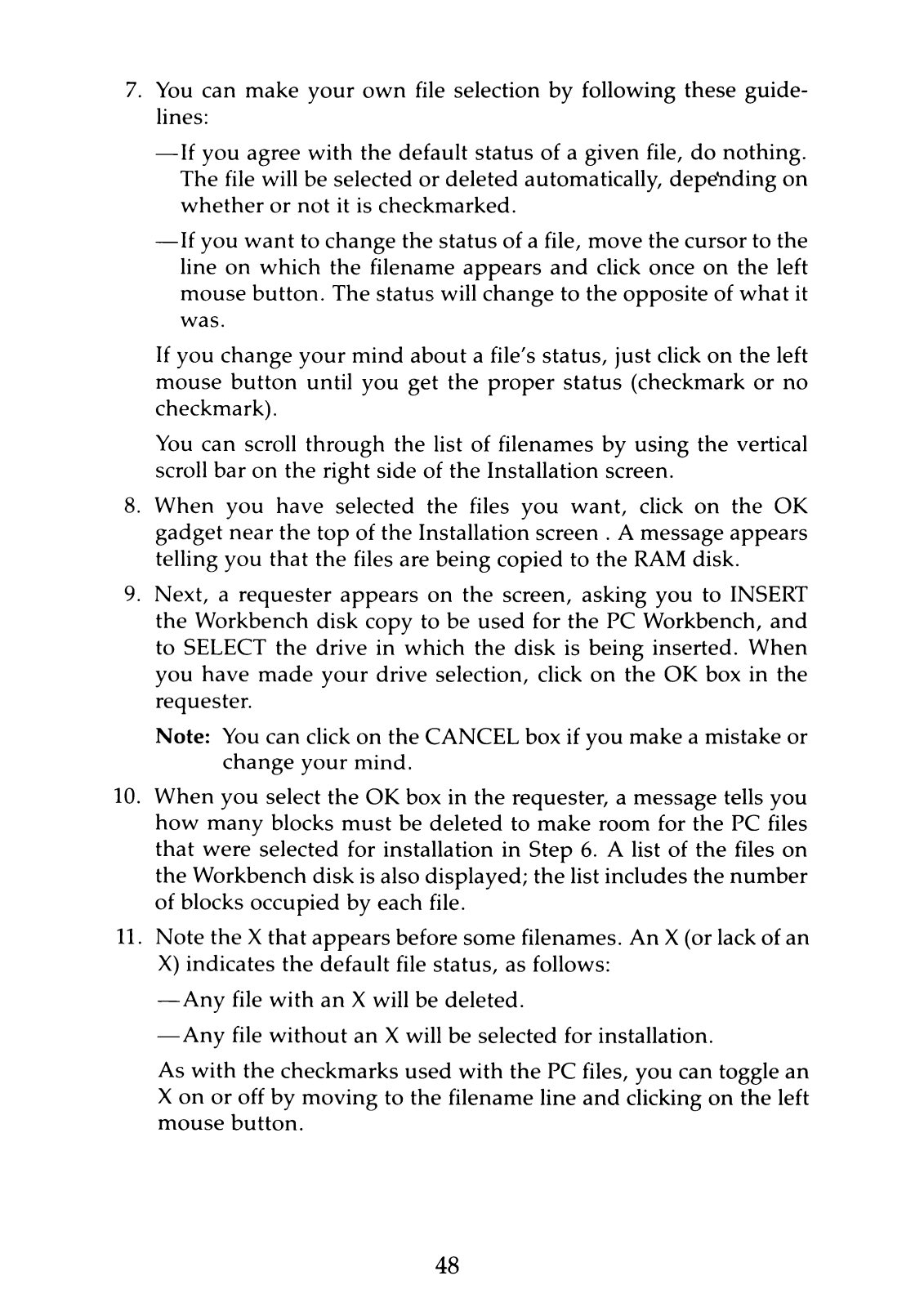

7. You can make your own file selection by following these guide lines:
If you agree with the default status of a given file, do nothing.
The file will be selected or deleted automatically, depending on whether or not it is checkmarked.
If you want to change the status of a file, move the cursor to the
line on which the filename appears and click once on the left mouse button. The status will change to the opposite of what it was.
If you change your mind about a file's status, just click on the left mouse button until you get the proper status (checkmark or no checkmark).
You can scroll through the list of filenames by using the vertical scroll bar on the right side of the Installation screen.
8. When you have selected the files you want, click on the OK gadget near the top of the Installation screen . A message appears telling you that the files are being copied to the RAM disk.
9. Next, a requester appears on the screen, asking you to INSERT the Workbench disk copy to be used for the PC Workbench, and to SELECT the drive in which the disk is being inserted. When you have made your drive selection, click on the OK box in the requester.
Note: You can click on the CANCEL box if you make a mistake or
change your mind.
10. When you select the OK box in the requester, a message tells you how many blocks must be deleted to make room for the PC files that were selected for installation in Step 6. A list of the files on the Workbench disk is also displayed; the list includes the number of blocks occupied by each file.
11. Note the X that appears before some filenames. An X (or lack of an X) indicates the default file status, as follows:
Any file with an X will be deleted. Any file without an X will be selected for installation. As with the checkmarks used with the PC files, you can toggle an
X on or off by moving to the filename line and clicking on the left mouse button.
48
Page 57
12. Select the Workbench files to be deleted or installed by following these guidelines:
If you agree with the default status of a given file, do nothing.
The file will be selected or deleted automatically, depending on whether or not it is marked with an X.
If you want to change the status of a file, move the cursor to the
line on which the filename appears and click once on the left mouse button. The status will change to the opposite of what it was.
Again, if you change your mind about a file's status, just click on the left mouse button until you get the proper status (X or no X). You can scroll through the list of filenames by using the vertical scroll bar on the right of the Installation screen.
13. As you are selecting and deleting files, a running total of how many blocks have been selected and how many are still required to be deleted appears on the second line. You must continue to delete files until the "Still Required" value on this line reaches zero or a negative value before the actual file deletion can be performed.
14. When you finish selecting the files to be deleted, click on the OK gadget near the top of the Installation screen. A message appears telling you that the selected files are being copied to the new PC Workkbench disk.
Note: You can click on the CANCEL box near the top of the
screen if you make a mistake or change your mind.
When the file copying process is completed, the Install window reap pears on the Workbench screen. You now have a customized Workbench disk that includes the software you have chosen for your Bridgeboard PC operations.
49
Page 58
Page 59
Appendix B: External Disk Drives
NOTE: Make sure that all power to the Amiga and peripherals is turned
OFF.
Connecting one or more disk drives to the the Bridgeboard is very simple. An external drive may be connected to either the Amiga side or the Bridgeboard side of the system. There is no need to make any changes to the hardware (e.g. change the drive number).
Your Commodore dealer offers two different external drives:
Amiga 1010 uses 3V2 inch diskettes with a capacity of 720K or 880K. Amiga 1020— uses 5V4 inch diskettes with a capacity of 360K. This
unit has its own power supply.
The A1010 is capable of reading either AmigaDOS or MS-DOS formats, depending on the side of the system to which it is connected. For example, if an A1010 is connected to the Amiga side of the system (that is, to the external drive port on the back of the Amiga 2000), you can use it for AmigaDOS disks such as the Workbench and its capacity will be 880K bytes. If it is connected to the Bridgeboard side of the system (that is, to the external drive port on the Bridgeboard), you can use it for MS-DOS disks, with a capacity of 720K bytes.
The A1020 may also be connected to either side of the system; however, the 1020 always stores information in PC format. The Amiga Extras disk with system software Version 1.2 and above contain utilities for reading the PC format on the Amiga system.
51
Page 60
Page 61
Appendix C: Adding Virtual Drives to MS-DOS
The JLink program included on the PC System Disk, lets you add up to
four virtual drives to your MS-DOS system. A JLink virtual drive acts
just like a PC drive you would add-on to your computer, except that all
the data (files, directories, etc.) are stored, internally, as one big file on
any Amiga disk device. The JLINK command may be used to create a virtual MS-DOS drive on
any AmigaDOS disk volume, including RAM: (RAM disk), floppy drives
(DF0:,etc.), or hard disks (DH0:,etc). A hard disk on the Amiga side can thus be shared between Amiga applications and MS-DOS. Unlike shar ing a PC side hard disk (see Appendix E), it is not mandatory to partition the Amiga hard drive. The MS-DOS virtual drive is simply a file in the directory specified when the virtual drive is created with the JLINK command. However, to reduce the chance of accidentally erasing this file (which could be very large), it is recommended that you create a separate AmigaDOS partition on your Amiga hard drive and reserve this partition for for the MS-DOS virtual drive file. See Appendix G of the Introduction to the Amiga 2000 for directions on how to set up multiple AmigaDOS partitions on an Amiga hard drive.
Unless you have the appropriate hard disk, you must insert the PC System Disk into a 5 1/4" disk drive and the PC Workbench diskette into the Amiga's internal disk drive before running the JLink program. Open the PC Drawer on the Workbench diskette, and double-click on the PCDisk icon. PCDisk must be running in order for the JLink program
to work.
Then open the PC Window and add the following line to the CON FIG.SYS file on the MS-DOS system disk:
DEVICE = JDISK.SYS
Make sure the files JDISK.SYS and JLINK.COM are on your MS-DOS system disk. Reboot MS-DOS on the A2088 Bridgeboard by pressing the CTRL/ALT/DEL keys simultaneously. (See the MS-DOS User's Guide for more information about rebooting MS-DOS.)
If you simply type "JLink" without any arguments, your screen will show the following display:
VDrive Status Linked to d: e: f:
g:
53
Page 62
Before you can use a virtual drive you have to link it with the Amiga file in which the data is going to be stored.
You can create new files to be linked to the virtual drive, and you can also link existing Amiga files to a drive. To link a virtual drive to an Amiga file, use the JLINK command. The syntax of this command is as follows:
JLINK n: filename /sw
where n is the virtual drive to use, filename is a standard Amiga path specifying a file, and sw is one of the following switches:
/n all messages suppressed except errors /c:n create that volume on Amiga side n is the size in kilo
bytes /u unlink that volume /r link read only (all write access will fail)
NOTE: If you do not specify a switch, JLINK will attempt to link to an
existing file. If the file does not exist, the link will be unsuccessful. If you
use /n with /c, existing volumes are deleted without any warnings. For example,
JLINK e: ram:vd /c:1000
This command creates an Amiga file vd in the root directory of the Amiga RAM disk. The file contains only the necessary MS-DOS struc
tures like File Allocation Tables and an empty root directory. The size of this file is approximately 14 - 25 KB. The file can grow as data is added,
but it will never get smaller. The specified size is the maximum size a volume can grow to. If the
number is less than 160, the size is set to 160 kilobytes. After the file has been created, it is linked (in this example) to the virtual
drive e:. If the file already exists, you will be asked if you want to continue. By continuing, you will destroy all previous data stored on that volume.
After the Amiga file vd is created and linked to the MS-DOS virtual drive e:, the display will show:
VDrive Status Linked to d: e: R/W vd f:
g:
54
Page 63
The status of a file will be either R/O, for read only, or R/W, for read and write.
To unlink a virtual drive, specify the MS-DOS drive you want to unlink and the /u switch.
The Amiga files of virtual drives contain no information that could be used on the Amiga side. However, they can be copied, renamed and deleted as usual files. When a file is linked to the virtual drive and written, the AmigaDOS cannot access that file until it is closed by JLink.
JLINK Error Messages JDISK.SYS not installed: The driver JDISK.SYS has not been found at
MS-DOS boot time. Check the CONFIG.SYS file. Amiga Service not available: The program PCDisk is not running on the
Amiga side. Double click on the PCDisk icon. Open File %s failed: The requested Amiga file could not be opened. It
either does not exist or is already in use.
Syntax Error: Something is wrong with your command line. Illegal Switch specified: %c: A switch was given that JLink does not
support.
JLink Error: Drive is already linked, unlink first: The drive has a linked file already.
JLink Error: Close Error on virtual volume: This error occurs if you removed the Amiga disk before unlinking the virtual drive on it.
JLink Error: Nothing linked: Attempt to unlink an empty drive. File %s exists, continue ? [Y/N]: Attempt to create an existing volume.
This message is supressed if In switch is given. The program continues. Write Error %X during format on drive %c:/n: This error can occur if the
Amiga volume is full or has a problem. If there are problems accessing a linked volume, the usual MS-DOS error
handling takes place. Accessing a drive with no volume linked generates an MS-DOS "Drive not Ready" error.
55
Page 64
Page 65
Appendix D: Transferring Files Between MS-DOS
and AmigaDOS
You can transfer files to AmigaDOS from MS-DOS and vice-versa, using two programs included on the 5 1/4 inch MS-DOS System Disk included with the Bridgeboard. The programs are:
ARead, which allows you to copy an AmigaDOS file to an MS-DOS
file
AWrite, which lets you copy a PC file to an Amiga file
Unless you have a hard disk with all MS-DOS commands available, before using either program you must insert the MS-DOS system disk into the 5 1/4 inch floppy disk drive (designated as MS-DOS drive a:) and insert the PC Workbench disk (which you created using the Install program) into the Amiga's internal 3 1/2 inch disk drive (designated Amiga drive dfO). Open the PC Drawer on the Workbench diskette, and double-click on the icon "PCDisk." (Note: A window does not appear when PCDisk is opened, but the icon changes color.)
You must open PCDisk first before using ARead or AWrite, or an error message will appear on the screen. If this happens, return to the Work bench window and double-click on the PCDisk icon.
Note: Wild cards are not allowed in filenames specified by ARead or
AWrite.
ARead works with PCDisk to read files from the Amiga to the PC. To copy an AmigaDOS file to an MS-DOS file using ARead, open the PC Window and type a command in this format:
AREAD device id:dir name/filename drive:pcfile
Example:
Open the PC window and type:
AREAD dfO:amigafile a:pcfile
ARead then copies the Amiga file named "amigafile" on drive dfO: to the PC file named "pcfile" on the disk in the 5.25" drive a:
AWrite works in much the same way as ARead, but sends file data in the opposite direction i.e., AWrite copies an MS-DOS file to an Amiga file. Again, be sure to open PCDisk before using AWrite. (PCDisk only needs to be opened once each session.) The syntax of the AWrite com mand is:
AWRITE drive:pcfile device id:dir name/filename
57
Page 66
Example:
Open the PC window and type:
AWRITE a:pcfile dhO:mydir/file.pc
AWrite copies the PC file named "pcfile" to the Amiga file named
"mydir/file.pc" on the hard disk dhO.
You can send a PC file to any Amiga file. For instance, if you type:
AWRITE pcfile CON:0/0/400/amigafile
an Amiga window will appear bearing the name "amigafile," and the contents of the file "pcfile" will be displayed. You can even use AWrite to send an MS-DOS file to the printer. Type:
AWRITE pcfile PRT:
Be sure that your printer is connected correctly as explained in Chapter
4. The above example will allow AmigaDOS Preferences to control the form of the printer output, and whether it is directed to the parallel or serial port of the A2000.
58
Page 67

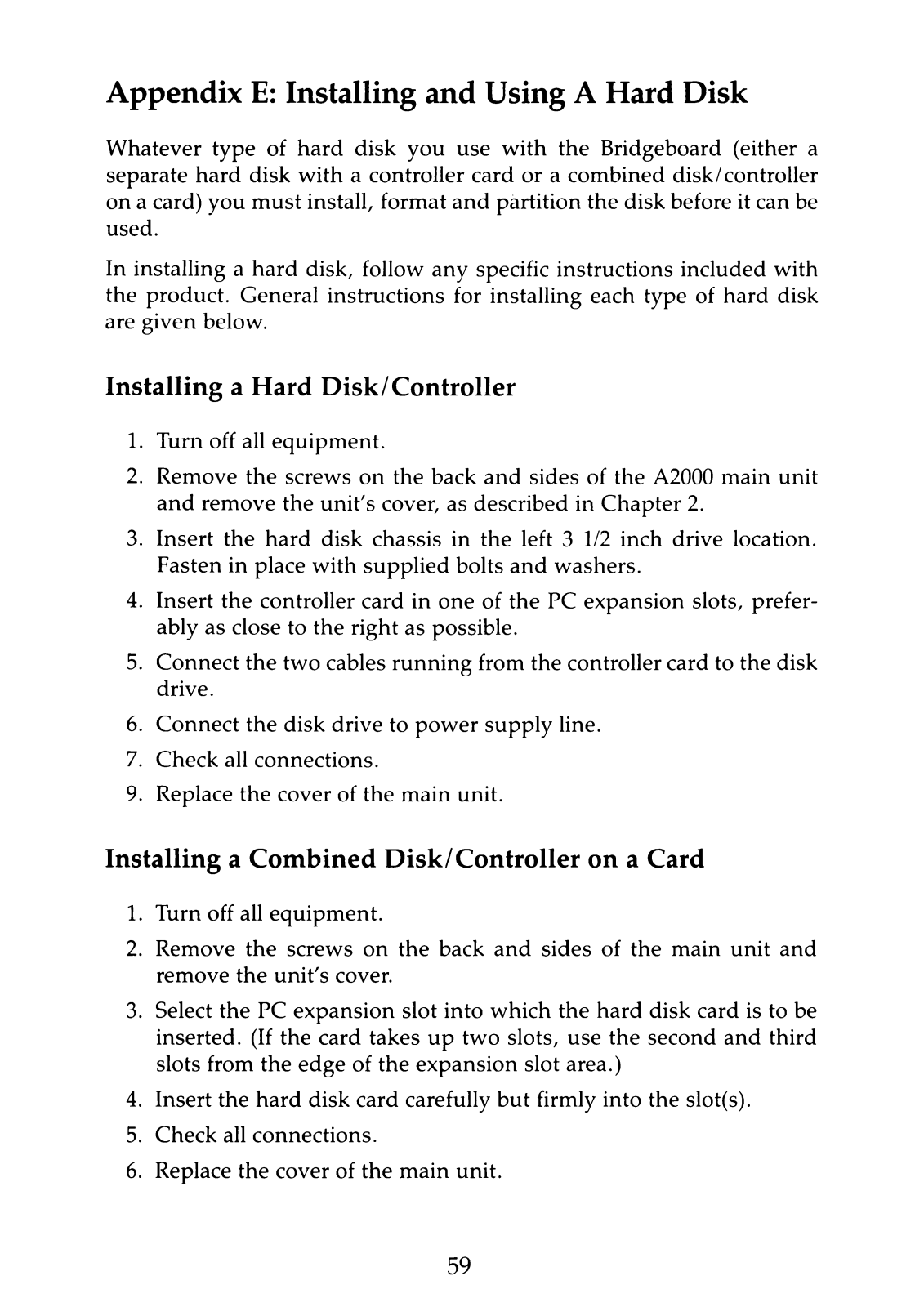

Appendix E: Installing and Using A Hard Disk
Whatever type of hard disk you use with the Bridgeboard (either a
separate hard disk with a controller card or a combined disk/controller on a card) you must install, format and partition the disk before it can be used.
In installing a hard disk, follow any specific instructions included with the product. General instructions for installing each type of hard disk are given below.
Installing a Hard Disk/Controller
1. Turn off all equipment.
2. Remove the screws on the back and sides of the A2000 main unit and remove the unit's cover, as described in Chapter 2.
3. Insert the hard disk chassis in the left 3 1/2 inch drive location. Fasten in place with supplied bolts and washers.
4. Insert the controller card in one of the PC expansion slots, prefer ably as close to the right as possible.
5. Connect the two cables running from the controller card to the disk drive.
6. Connect the disk drive to power supply line.
7. Check all connections.
9. Replace the cover of the main unit.
Installing a Combined Disk/Controller on a Card
1. Turn off all equipment.
2. Remove the screws on the back and sides of the main unit and remove the unit's cover.
3. Select the PC expansion slot into which the hard disk card is to be inserted. (If the card takes up two slots, use the second and third slots from the edge of the expansion slot area.)
4. Insert the hard disk card carefully but firmly into the slot(s).
5. Check all connections.
6. Replace the cover of the main unit.
59
Page 68
Partitioning and Formatting a Hard Disk
The system disk contains the following two programs that allow you to partition and format a hard disk drive for use with MS-DOS only, or for both MS-DOS and AmigaDOS:
FDISK (used for setting up the MS-DOS drive sectors) ADISK (used for setting up the AmigaDOS drive sectors)
Note that you can have up to four partitions on the hard disk drive, one of which can be an MS-DOS partition.
To create two partitions of the same capacity, one MS-DOS and one for
AmigaDOS, follow these steps:
1. Insert the A2088 Workbench disk in the Amiga's 3 1/2" drive and insert the MS-DOS disk supplied with the A2088 in the 5.25" drive.
2. Open an MS-DOS window and run the program FDISK. When you have decided on the size (for two equal partitions on most 20MB hard disks, choose 307 cylinders), follow the instructions on the screen. (Use FDISK to make the partition active.) When FDISK is finished it may automatically reboot the Bridgeboard. If it doesn't, reboot the Bridgeboard by simultaneously pressing CTRL, ALT, and DEL.
3. Format the PC partition of the hard disk using the MS-DOS format
command. If you want to boot from the hard disk, you must specify the /s option. See the MS-DOS manual for more informa tion on the FORMAT command.
4. Run the program ADISK to create an AmigaDOS partition. The
following menu appears on the screen:
60
Page 69
Copyright (c) 1986 Commodore Electronics Limited AMIGA PARTITION SETUP VER 1.1: Current drive: 00 Total space : 614 cylinders
Partition Status Type Start End Size
1 A DOS O 306 307
<1> change current drive <2> change partition status <3> create a new Amiga partition <4> delete the Amiga partition <ESC> return to DOS
(Note that the ADISK program offers the same options for dividing the capacity as the FDISK program. However, it is not necessary to make an Amiga partition "active" because the Amiga partition is only used by the Amiga side.)
5. After the partition setup comes to an end, you must format the Amiga partition. Leave the PC Window open and open a CLI window from the Workbench. Then execute the following com mand.
DJMOUNT < RETURN >
Note: Ignore all the error messages and cancel all the requesters that appear. These occur because the system knows that a hard disk exists, but the device is not yet formatted.
6. Now type: DPFORMAT DRIVE JHO: NAME "drivename"
< RETURN >
7. The system now displays a requester that asks you to insert a disk.
Ignore this and simply press <RETURN>. The system then for mats the AmigaDOS partition.
8. When formatting is complete, an icon appears on the screen indi cating the new device. You are now able to use this new drive just like any other drive on the Amiga.
61
Page 70
9. To use any AmigaDOS function or command with the hard disk, specify the designation:
JHx:
where x is the number given to the AmigaDOS partition.
NOTE: Commodore recommends that you set up all partitions on the
hard disk at one time.
How to Automatically Mount the Hard Disk at Startup
You can install the DJMOUNT command into the startup sequence after the partitions are created. This will automatically mount the hard disk when the Amiga is booted. Here's how to do this:
1. Type the following from the CLI: ED S/STARTUP-SEQUENCE < RETURN>
2. When a new window opens containing the script for the startup sequence, insert the following command on its own line following the BINDDRIVERS command:
DJMOUNT
3. Now press the ESCAPE key. An asterisk (*) appears on the screen.
4a. If your startup sequence is correct, type:
X < RETURN >
This will save the sequence and return you to the CLI.
4b. If your startup sequence is not correct, type:
Q < RETURN>
This will abort the edit session and leave your file unchanged.
When the DJMOUNT command is part of the startup sequence, there will be a delay of about half a minute while the disk is mounted and the
Bridgeboard initialized. If you do not wish to change the sequence to mount the hard disk, you
must open a CLI and type DJMOUNT whenever you start up your system.
62
Page 71
Appendix F: Installing an 8087 Numeric Co-Processor
NOTE: Make sure that power to the Amiga and peripherals is OFF. The 8087 numeric co-processor is a chip which processes complex math ematical calculations. It can be used in combination with the 8088 pro cessor in the the Bridgeboard, thus extending the command and arith metic capabilities on the Bridgeboard side of the system.
The 8087 is called a co-processor because it processes instructions in combination with the main processor. During the running of a program which is designed to use the 8087, each processor executes its own tasks. Working together, the two processors can considerably accelerate the running speed of applications.
The installation procedure for the 8087 is as follows:
Disconnect the power to the Amiga 2000.
Remove the cover of the the Amiga 2000 as described in Chapter 2. The Bridgeboard is then visible.
Disconnect the disk drive cable from the Bridgeboard and carefully remove the Bridgeboard.
Place the Bridgeboard on a clean flat surface.
Insert the 8087 on the Bridgeboard, in the socket above the CPU. The chip must be facing toward the connector side of the Bridge- board.
Re-install the Bridgeboard and reconnect the disk drive cable.
Reassemble the Amiga 2000.
63
Page 72
Page 73
Appendix G: RAM Expansion for the Bridgeboard
NOTE: Make sure that power to the Amiga and peripherals is OFF. RAM (memory) expansion for the Bridgeboard can be carried out using a
PC compatible RAM expansion card (available from several suppliers). It is inserted into one of the XT slots on the A2000 motherboard. With the base of 512K on the Bridgeboard, another 128K can be added via an expansion card.
The start address for any RAM expansion card must be $80000.
65
Page 74
Page 75
Appendix H: User-Accessible Jumpers and Connectors
J1 Default display jumper pair located near the rear center of the
Bridgeboard. (Two sets of three pins)
Startup-Mode Jumper Setting
Monochrome (default) ! I
Color 40 x 25
Color 80 x 25
None
67
i! !i
ii
Page 76
J2 External speaker connector located at the top of the Bridgeboard
towards the rear. (Two pins)
J3 Internal 5.25" floppy drive connector located toward the rear center
of the Bridgeboard. (34-pin connector arranged as two rows of 17 pins)
J4 External floppy drive connector located on the rear end of the
Bridgeboard. (23-pin connector)
68
Page 77
Appendix I: Bridgeboard Technical Specifications
A2088 Product Specification
COMMODORE-AMIGA A2088 AMIGA BRIDGEBOARD
(XT COMPATIBLE)
Secondary Processor System (8088) for Amiga 2000, IBM-PC/XT compatible
Card Type:
Function:
Clock Speed: Memory: ROM: Interfaces:
Slots: 3 IBM-PC compatible full size slots available for:
Keyboard: IBM-PC/XT keyboard emulated on the Amiga
Video Display: IBM-PC monochrome text mode and color mode
System Software:
Uses both Amiga bus (100 pin) and IBM-PC/XT
bus system of the Amiga A2000 (goes into combined position).
Provides an 8088 co-processor system with IBM-
PC/XTcompatibility. Uses AutoConfig feature of the Amiga. Socket for 8087 math co-processor.
DATA8088 SIDE 4.77 MHz 512 kByte RAM 16 kByte BIOS 1 internal floppy disk drive 5 1/4"
1 external floppy disk drive 5 1/4" (each MS-DOS formatted; capacity 360 or 720 kBytes)
Parallel Port (Centronics1'1, IBM-PC compatible)
emulated on Amiga parallel port.
hard disk controller
communication adapter
graphics adapter
etc.
keyboard
are emulated in separate AmigaDOS windows simultaneously
MS-DOS
69
Page 78
Inter-System
Communication:
Type:
Card Size: Power: Included Items:
DATAAMIGA SIDE
64 kByte dual-port RAM as inter-process buffer 64 kByte dual-port scratch memory on Amiga side Interrupt logic Janus emulation software
BUS INTERFACE
Fast dual-port memory, full speed CPU access during system DMA
Full size Amiga 2000 card Supplied by system Janus emulation software on 3Vi floppy disk
Page 79
Page 80
Page 81
Page 82
Page 83
Page 84
Commodore
Page 85
This was brought to you
from the archives of
http://retro-commodore.eu
Loading...
