Amiga 2010 a

C* Commodore' r

___

_ 1

31/2" floppy disk drive

installation guide

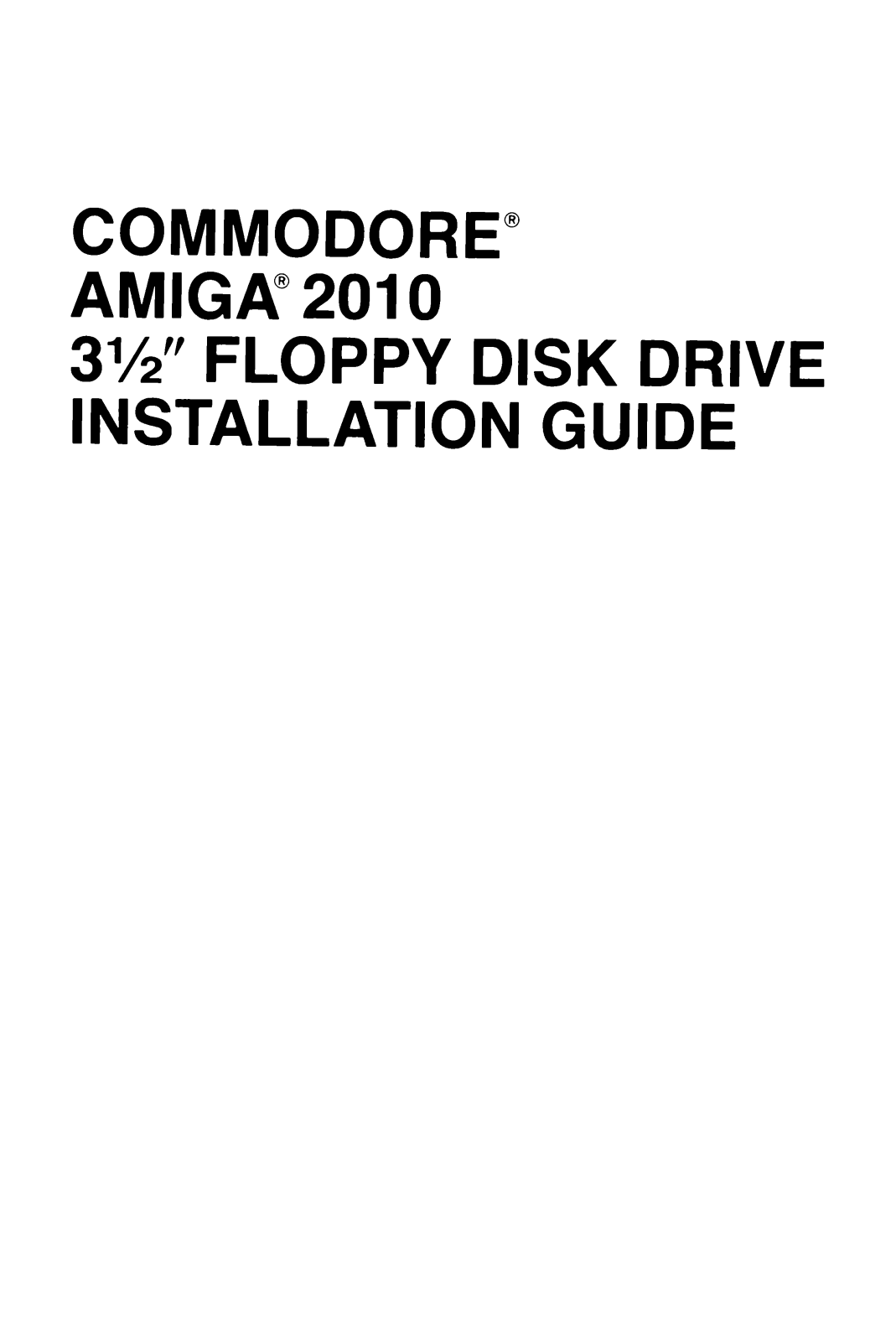

COMMODORE

AMIGA® 2010
31/2" FLOPPY DISK DRIVE

INSTALLATION GUIDE

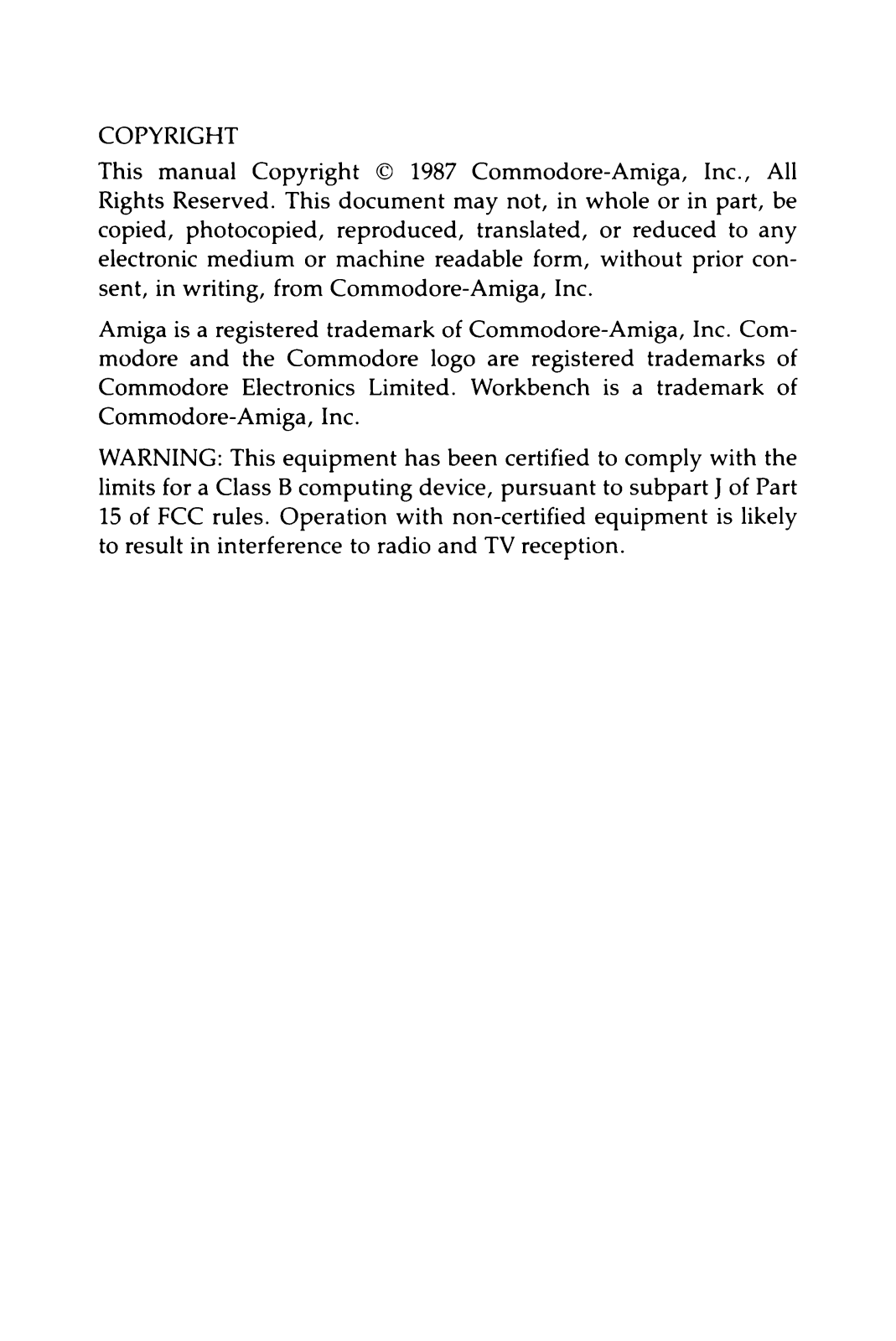

COPYRIGHT
This manual Copyright © 1987 Commodore-Amiga, Inc., All

Rights Reserved. This document may not, in whole or in part, be
copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine readable form, without prior con
sent, in writing, from Commodore-Amiga, Inc.

Amiga is a registered trademark of Commodore-Amiga, Inc. Com
modore and the Commodore logo are registered trademarks of
Commodore Electronics Limited. Workbench is a trademark of
Commodore-Amiga, Inc.

WARNING: This equipment has been certified to comply with the
limits for a Class B computing device, pursuant to subpart J of Part
15 of FCC rules. Operation with non-certified equipment is likely
to result in interference to radio and TV reception.

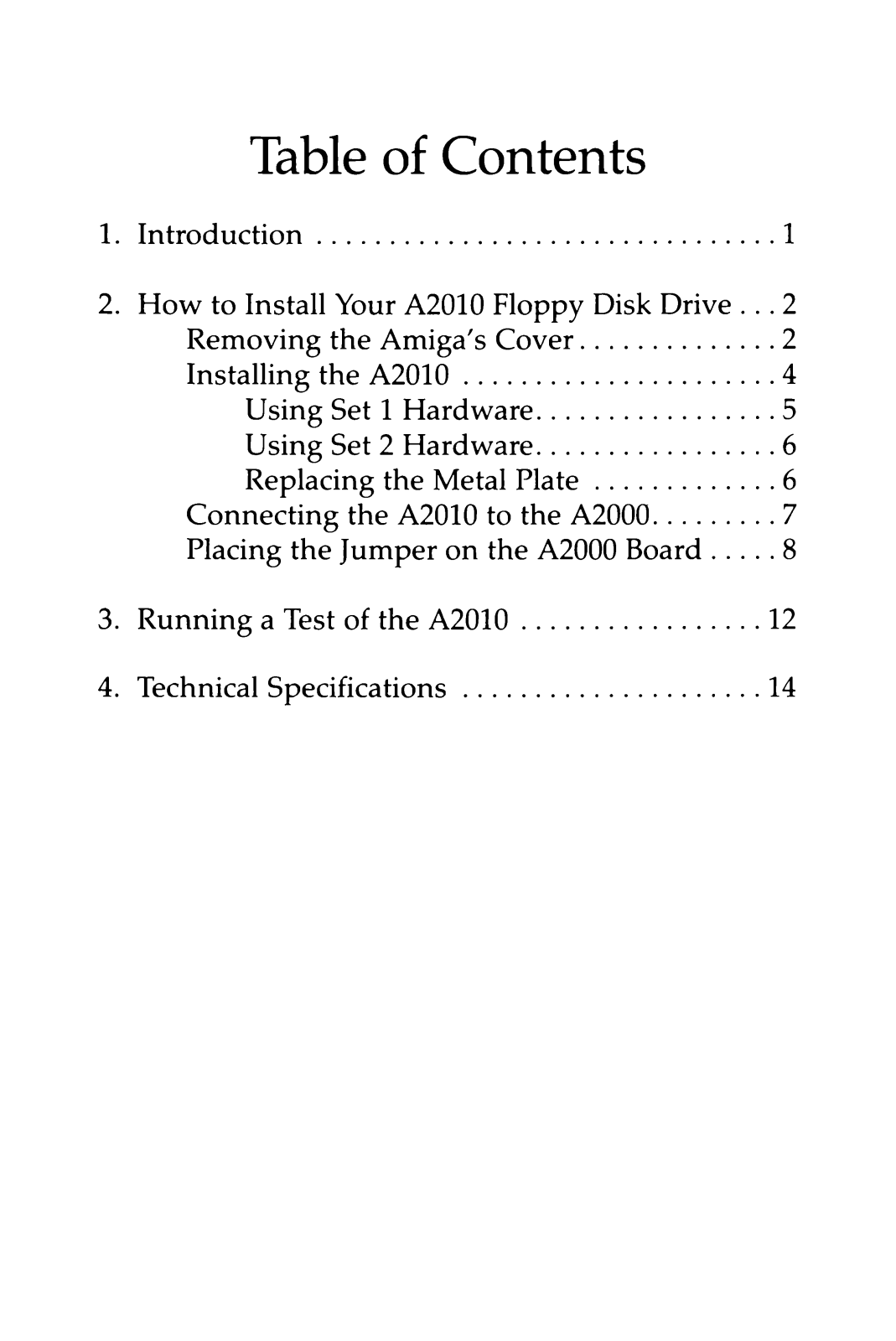

Table of Contents

1. Introduction

...............................................................

1

2. How to Install Your A2010 Floppy Disk Drive ... 2
Removing the Amiga's Cover

...........................

2

Installing the A2010

...........................................

4

Using Set 1 Hardware

.................................

5

Using Set 2 Hardware

.................................

6

Replacing the Metal Plate

.........................

6

Connecting the A2010 to the A2000

.................

7

Placing the Jumper on the A2000 Board

.........

8

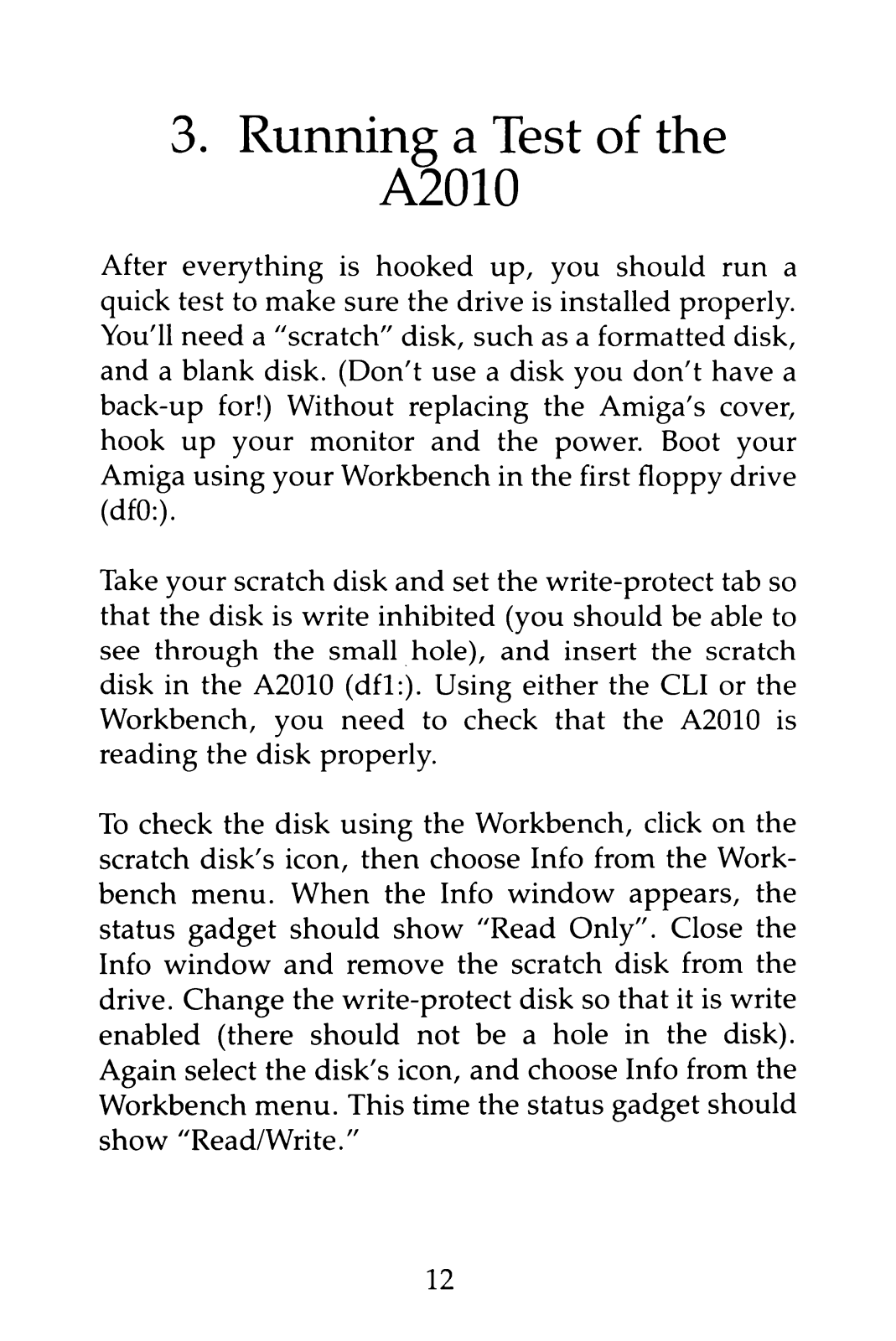

3. Running a Test of the A2010

.................................

12

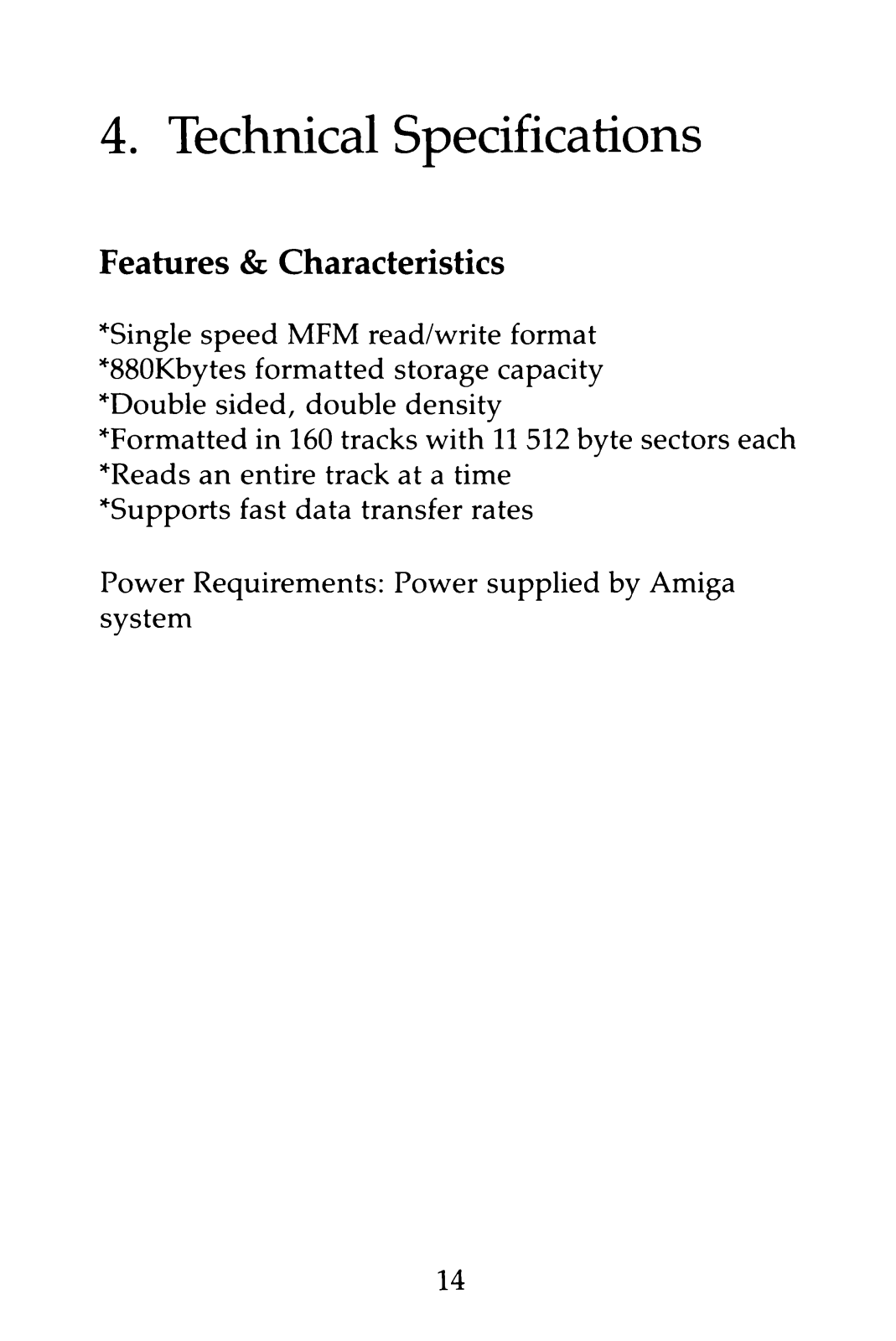

4. Technical Specifications

.........................................

14

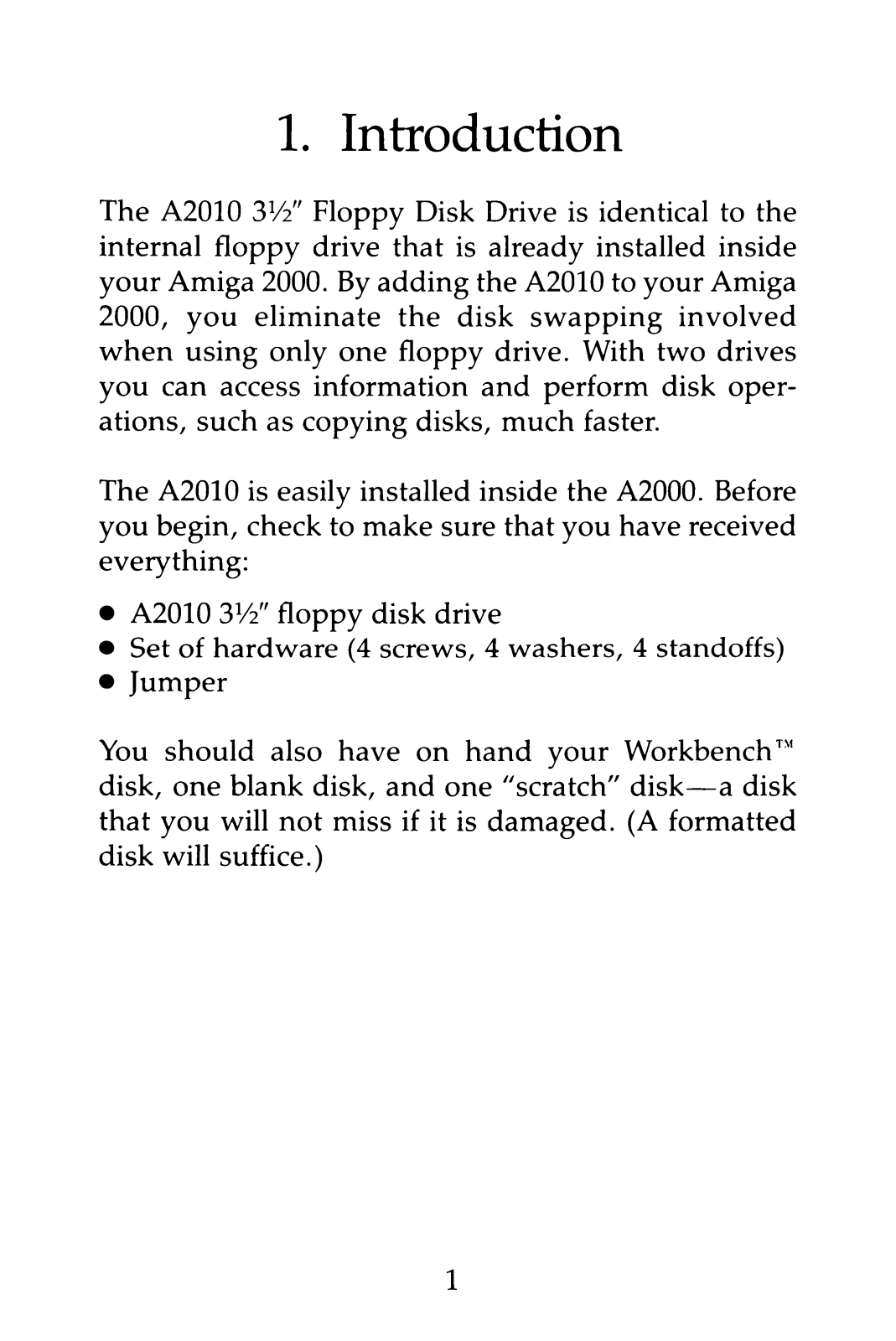

1. Introduction

The A2010 3V2" Floppy Disk Drive is identical to the
internal floppy drive that is already installed inside
your Amiga 2000. By adding the A2010 to your Amiga
2000, you eliminate the disk swapping involved
when using only one floppy drive. With two drives
you can access information and perform disk oper
ations, such as copying disks, much faster.

The A2010 is easily installed inside the A2000. Before
you begin, check to make sure that you have received
everything:

• A2010 3V2" floppy disk drive

• Set of hardware (4 screws, 4 washers, 4 standoffs)

• Jumper

You should also have on hand your Workbench™
disk, one blank disk, and one "scratch" disk—a disk
that you will not miss if it is damaged. (A formatted
disk will suffice.)

1

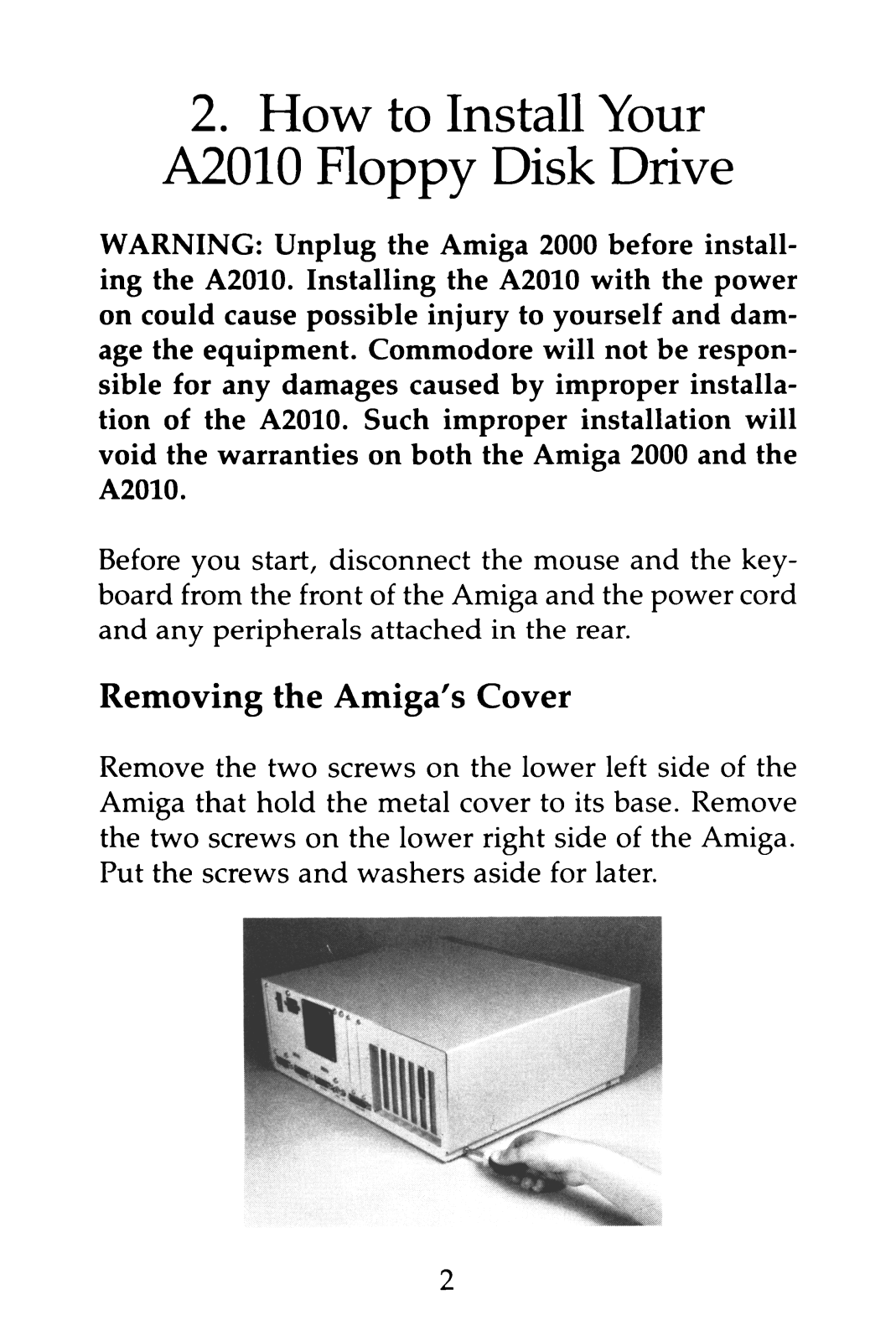

2. How to Install Your

A2010 Floppy Disk Drive

WARNING: Unplug the Amiga 2000 before install
ing the A2010. Installing the A2010 with the power
on could cause possible injury to yourself and dam
age the equipment. Commodore will not be respon
sible for any damages caused by improper installa
tion of the A2010. Such improper installation will
void the warranties on both the Amiga 2000 and the
A2010.

Before you start, disconnect the mouse and the key
board from the front of the Amiga and the power cord
and any peripherals attached in the rear.

Removing the Amiga's Cover

Remove the two screws on the lower left side of the
Amiga that hold the metal cover to its base. Remove
the two screws on the lower right side of the Amiga.
Put the screws and washers aside for later.

2

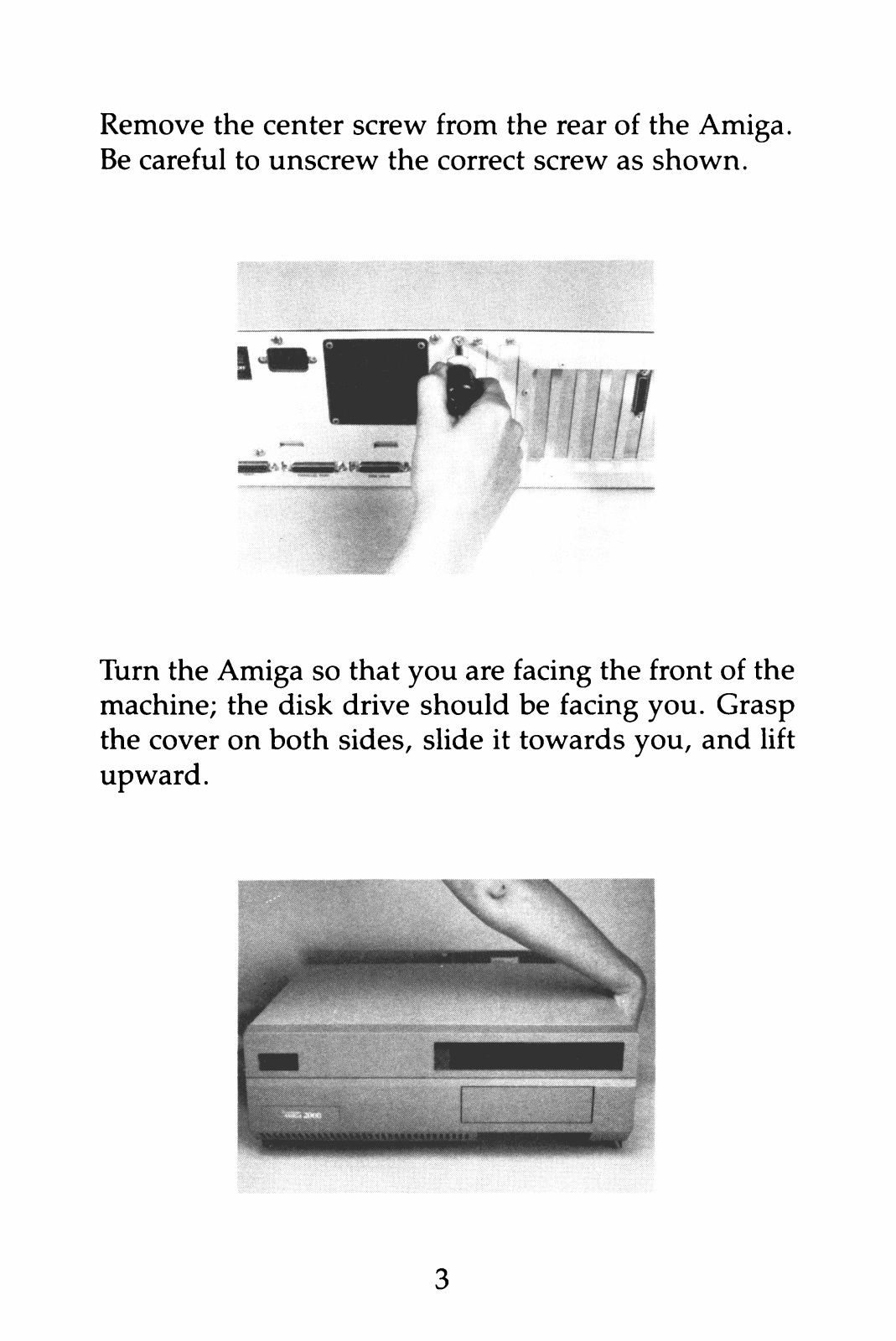

Remove the center screw from the rear of the Amiga.
Be careful to unscrew the correct screw as shown.

Turn the Amiga so that you are facing the front of the
machine; the disk drive should be facing you. Grasp
the cover on both sides, slide it towards you, and lift
upward.

3

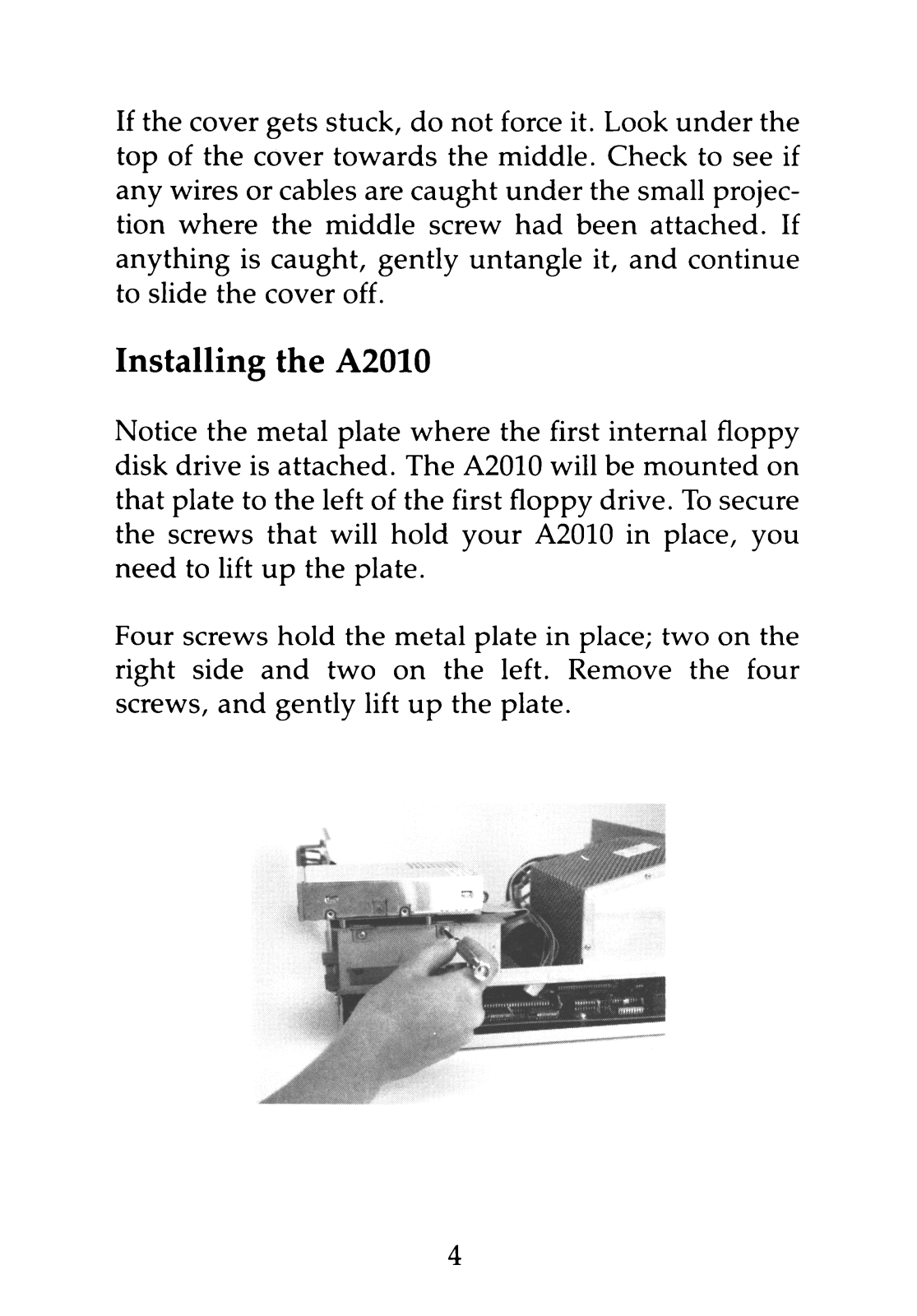

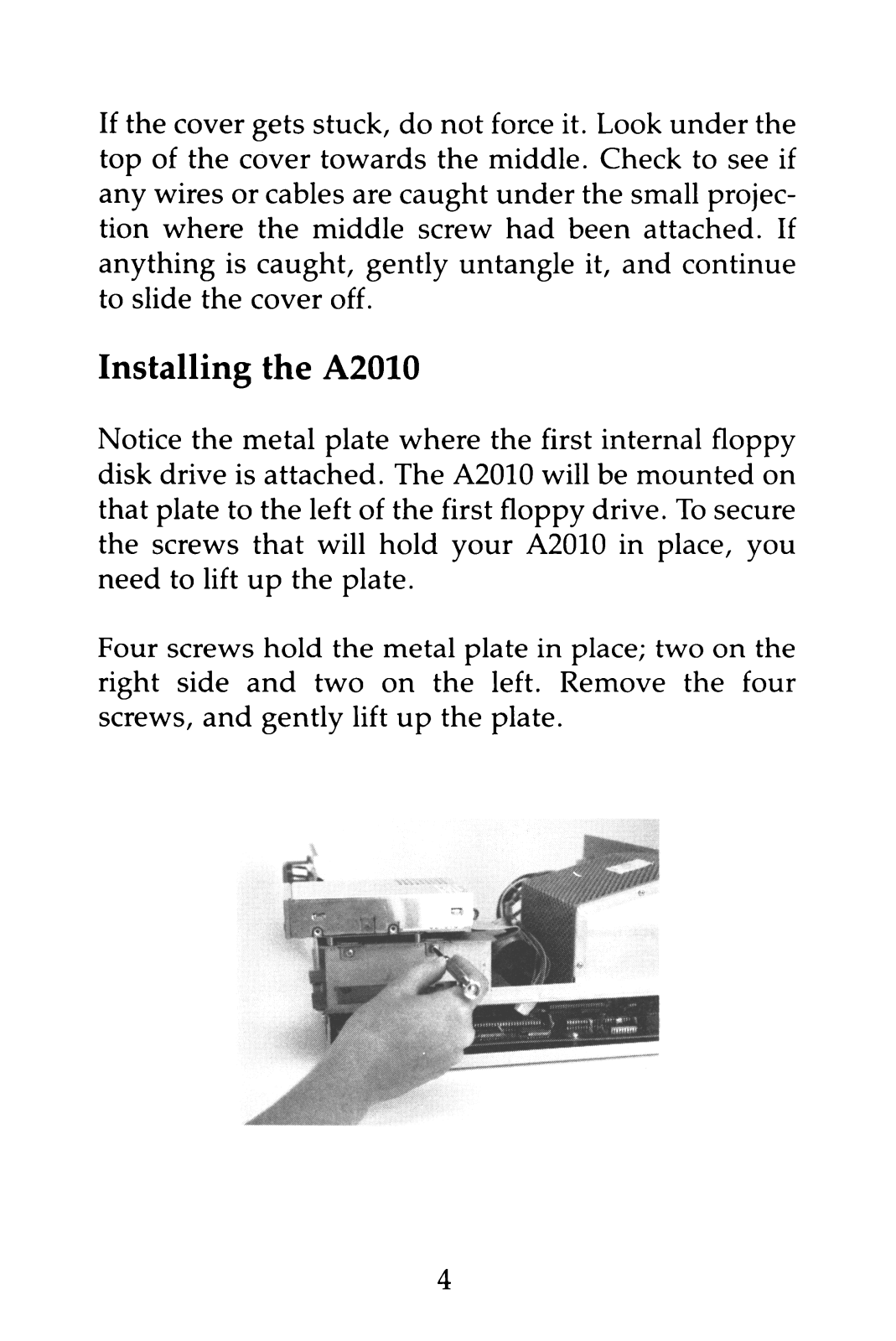

If the cover gets stuck, do not force it. Look under the
top of the cover towards the middle. Check to see if
any wires or cables are caught under the small projec
tion where the middle screw had been attached. If
anything is caught, gently untangle it, and continue
to slide the cover off.

Installing the A2010

Notice the metal plate where the first internal floppy
disk drive is attached. The A2010 will be mounted on
that plate to the left of the first floppy drive. To secure
the screws that will hold your A2010 in place, you
need to lift up the plate.

Four screws hold the metal plate in place; two on the
right side and two on the left. Remove the four
screws, and gently lift up the plate.

4

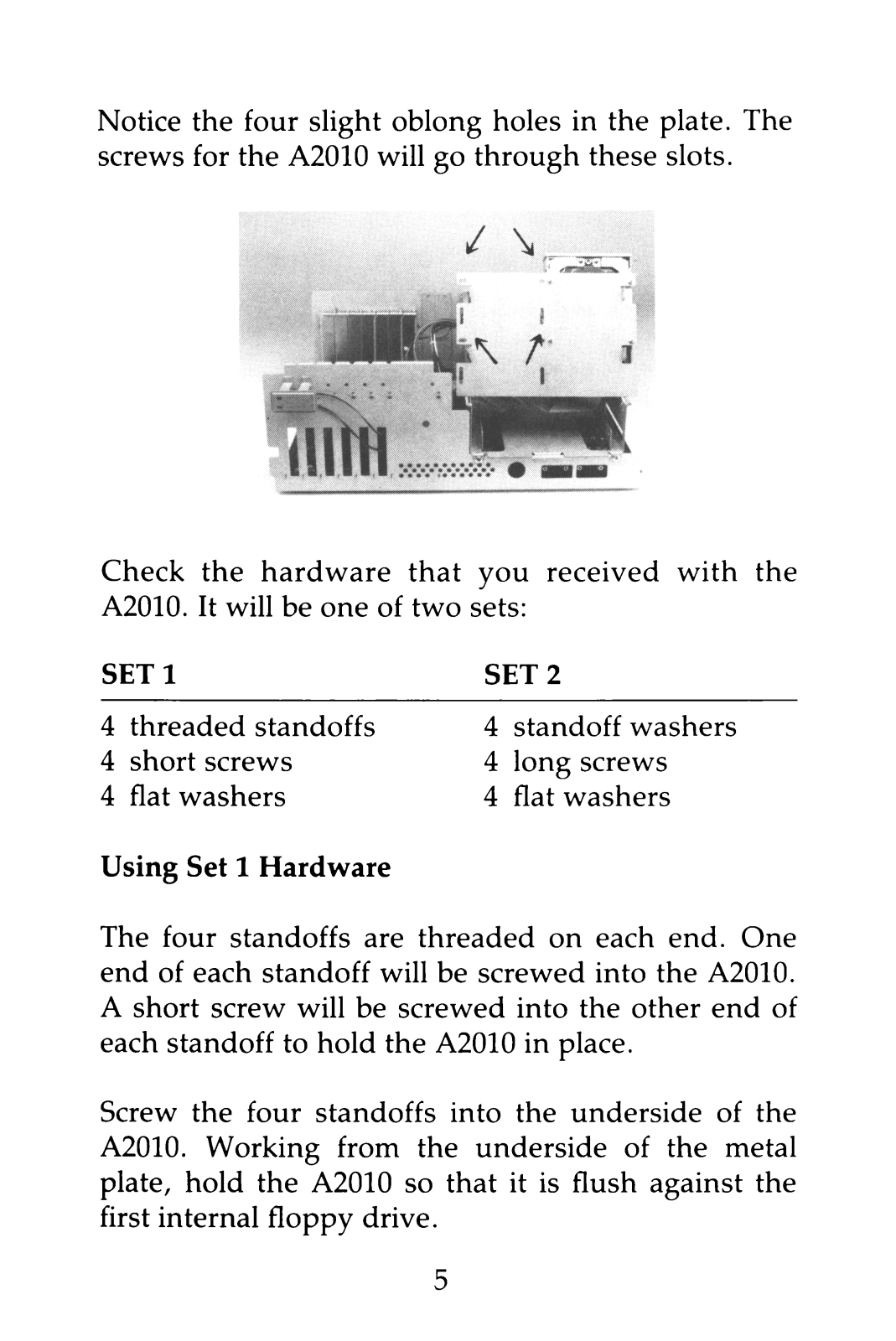

Notice the four slight oblong holes in the plate. The
screws for the A2010 will go through these slots.

Check the hardware that you received with the
A2010. It will be one of two sets:

SET 1 SET 2

4 threaded standoffs 4 standoff washers
4 short screws 4 long screws
4 flat washers 4 flat washers

Using Set 1 Hardware

The four standoffs are threaded on each end. One
end of each standoff will be screwed into the A2010.
A short screw will be screwed into the other end of
each standoff to hold the A2010 in place.

Screw the four standoffs into the underside of the
A2010. Working from the underside of the metal
plate, hold the A2010 so that it is flush against the
first internal floppy drive.

5

Put a flat washer over one of the short screws and
insert the screw through the metal plate and into the
standoff. Hand tighten the screw. Repeat this process
with the other three holes. When you have all four
screws in correctly and you are sure the A2010 is
flush against the other drive, tighten the screws.

Using Set 2 Hardware

Working from the underside of the plate, put a flat
washer over one of the long screws and insert it
through a hole in the plate. (We suggest starting with
the rear hole immediately next to the first floppy disk
drive.) Place a standoff washer on top of the screw.
Holding the A2010 so that it is flush against the first
floppy drive, place the A2010 on top of the standoff
and hand tighten the screw.

(Repeat this procedure using the front hole immedi
ately next to the first disk drive. Then move to the
other rear hole, and finish with the remaining front
hole.)

When you are sure that the screws are in correctly
and that the A2010 is flush against the other drive,
tighten all four screws.

Replacing the Metal Plate

After the A2010 is mounted, put the metal plate back
in place, insert the screws, and hand tighten. You
should have some leeway to slide the plate back and

6

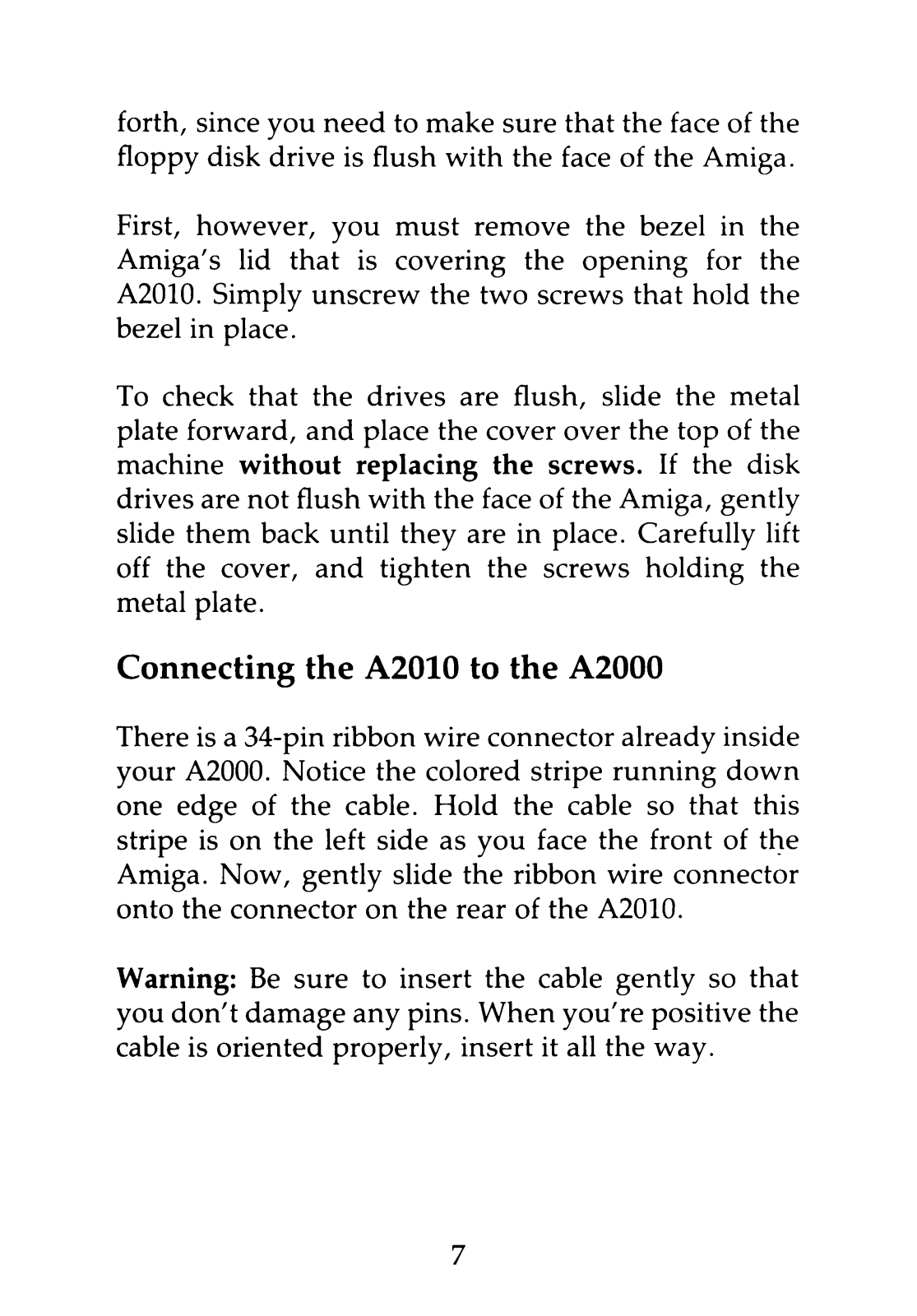

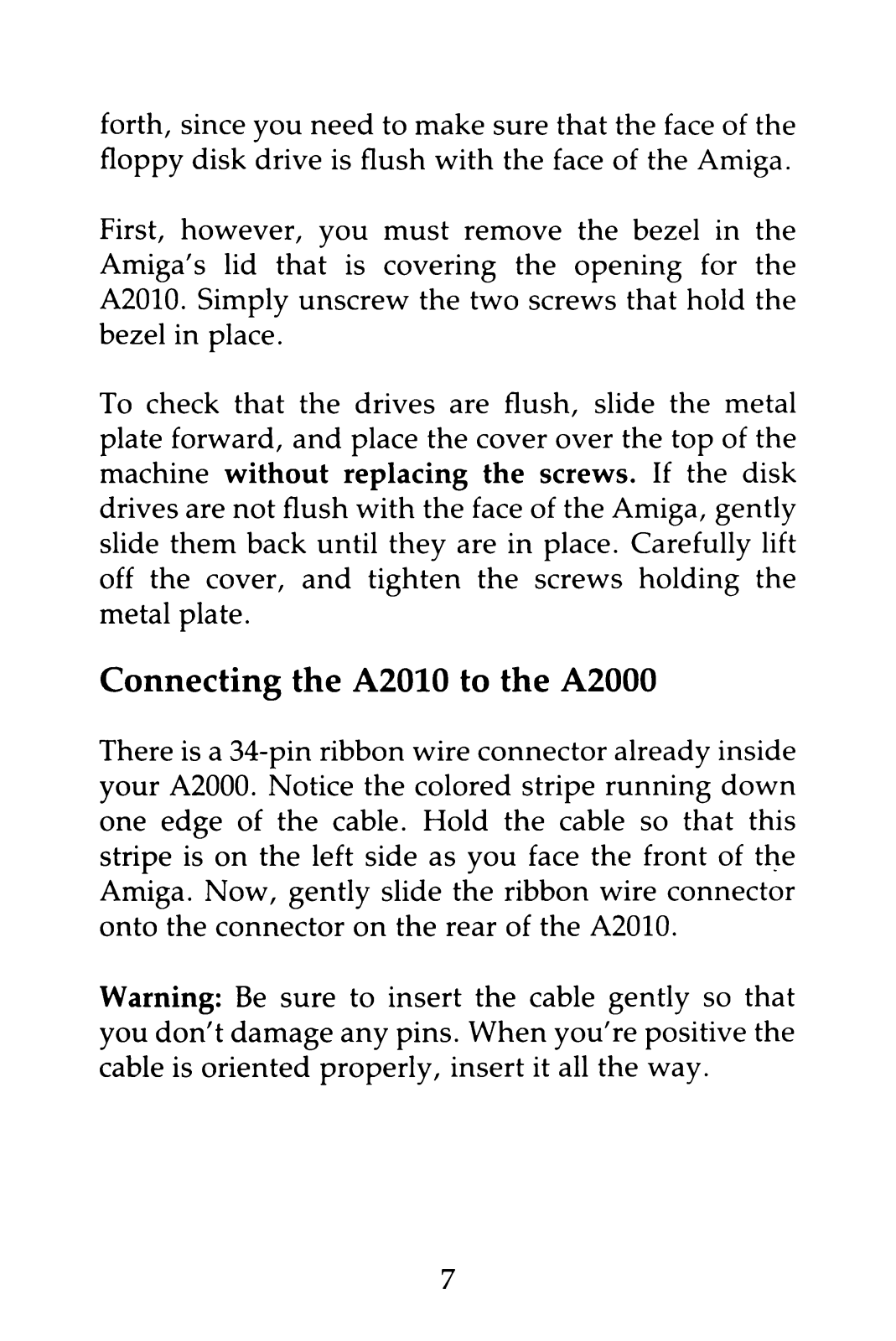

forth, since you need to make sure that the face of the
floppy disk drive is flush with the face of the Amiga.

First, however, you must remove the bezel in the
Amiga's lid that is covering the opening for the
A2010. Simply unscrew the two screws that hold the
bezel in place.

To check that the drives are flush, slide the metal
plate forward, and place the cover over the top of the
machine without replacing the screws. If the disk
drives are not flush with the face of the Amiga, gently
slide them back until they are in place. Carefully lift
off the cover, and tighten the screws holding the
metal plate.

Connecting the A2010 to the A2000

There is a 34-pin ribbon wire connector already inside
your A2000. Notice the colored stripe running down
one edge of the cable. Hold the cable so that this
stripe is on the left side as you face the front of the
Amiga. Now, gently slide the ribbon wire connector
onto the connector on the rear of the A2010.

Warning: Be sure to insert the cable gently so that
you don't damage any pins. When you're positive the
cable is oriented properly, insert it all the way.

7

If the cover gets stuck, do not force it. Look under the
top of the cover towards the middle. Check to see if
any wires or cables are caught under the small projec
tion where the middle screw had been attached. If
anything is caught, gently untangle it, and continue
to slide the cover off.

Installing the A2010

Notice the metal plate where the first internal floppy
disk drive is attached. The A2010 will be mounted on
that plate to the left of the first floppy drive. To secure
the screws that will hold your A2010 in place, you
need to lift up the plate.

Four screws hold the metal plate in place; two on the
right side and two on the left. Remove the four
screws, and gently lift up the plate.

4

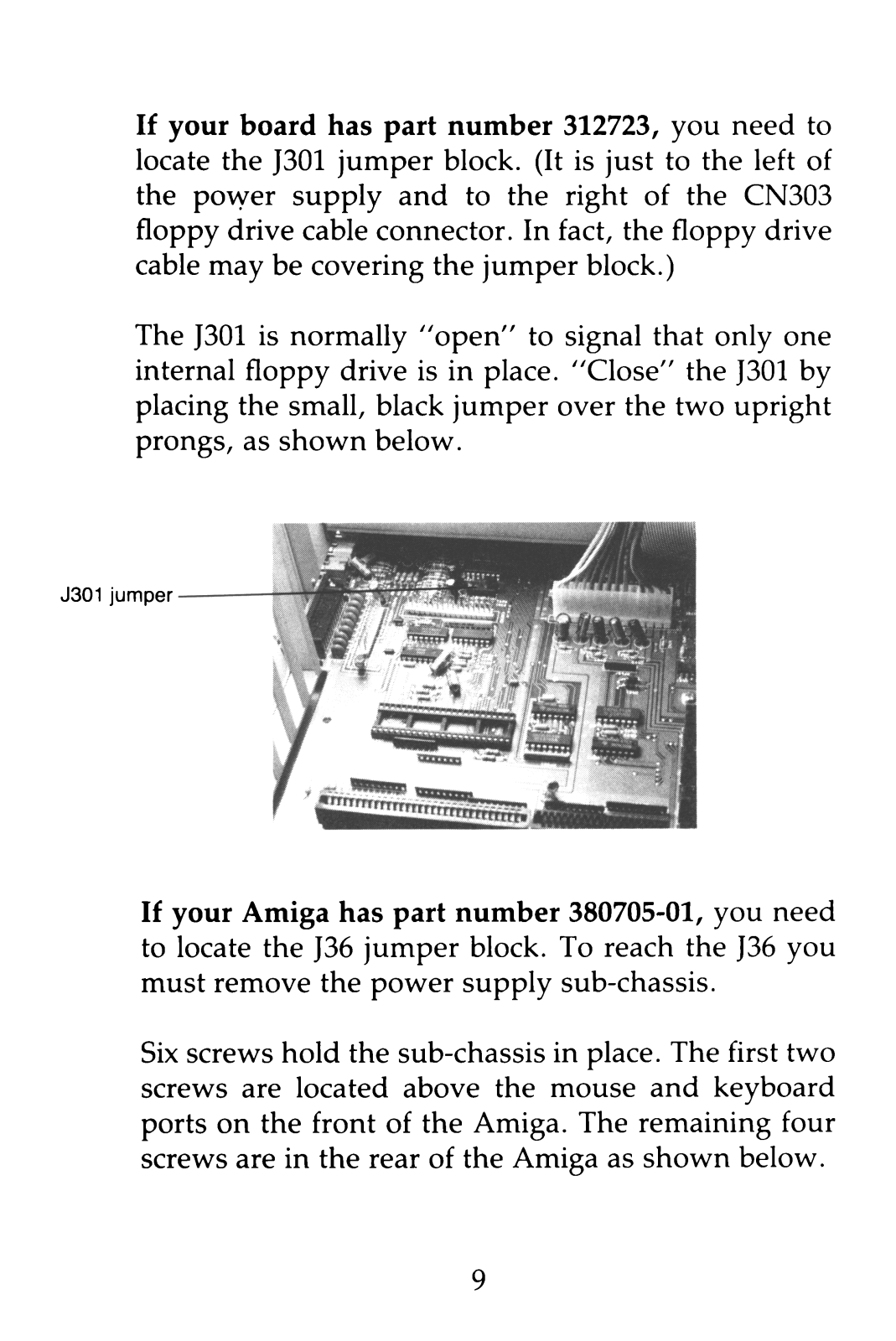

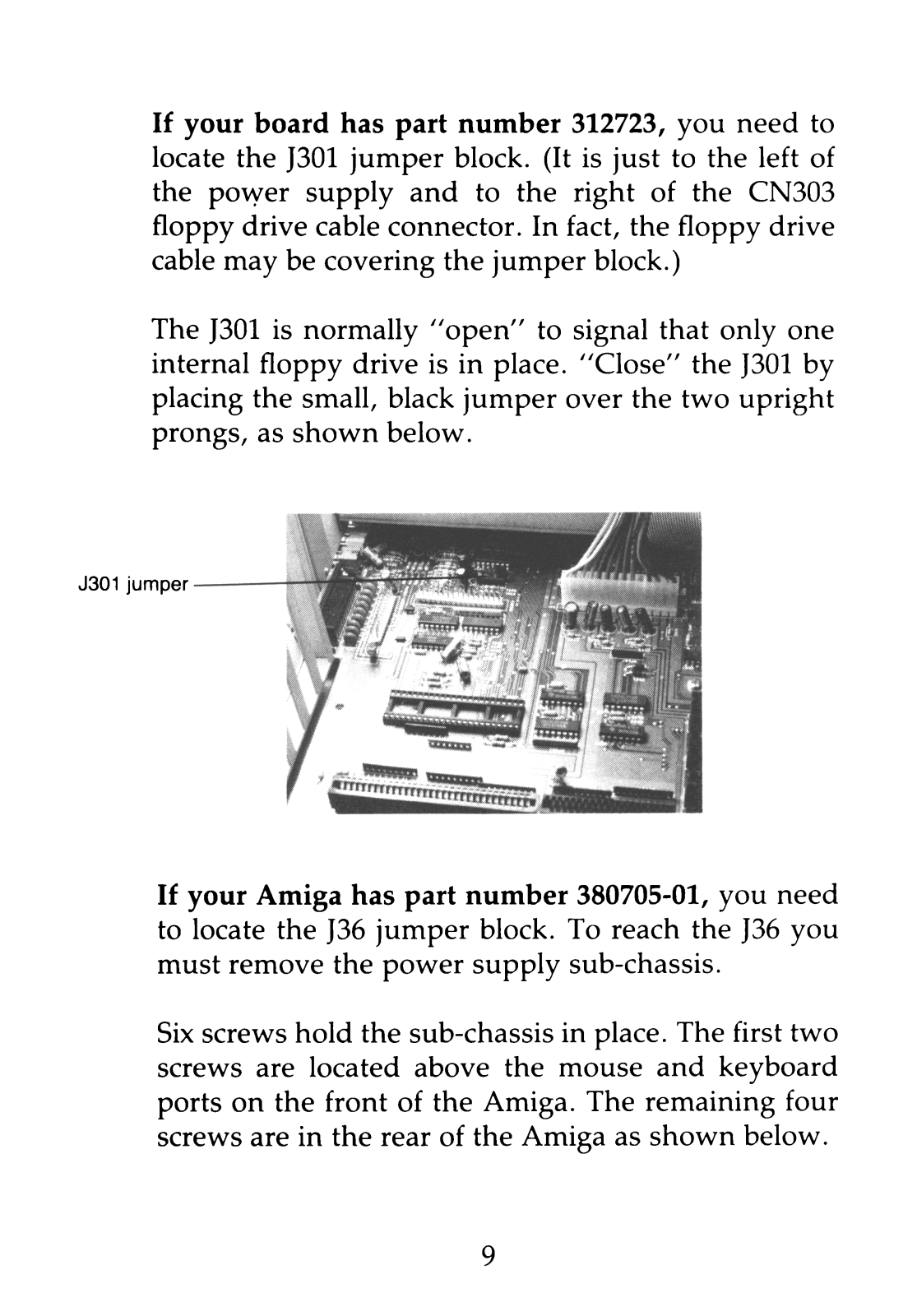

If your board has part number 312723, you need to
locate the J301 jumper block. (It is just to the left of
the power supply and to the right of the CN303
floppy drive cable connector. In fact, the floppy drive
cable may be covering the jumper block.)

The J301 is normally "open" to signal that only one
internal floppy drive is in place. "Close" the J301 by
placing the small, black jumper over the two upright
prongs, as shown below.

J301 jumper

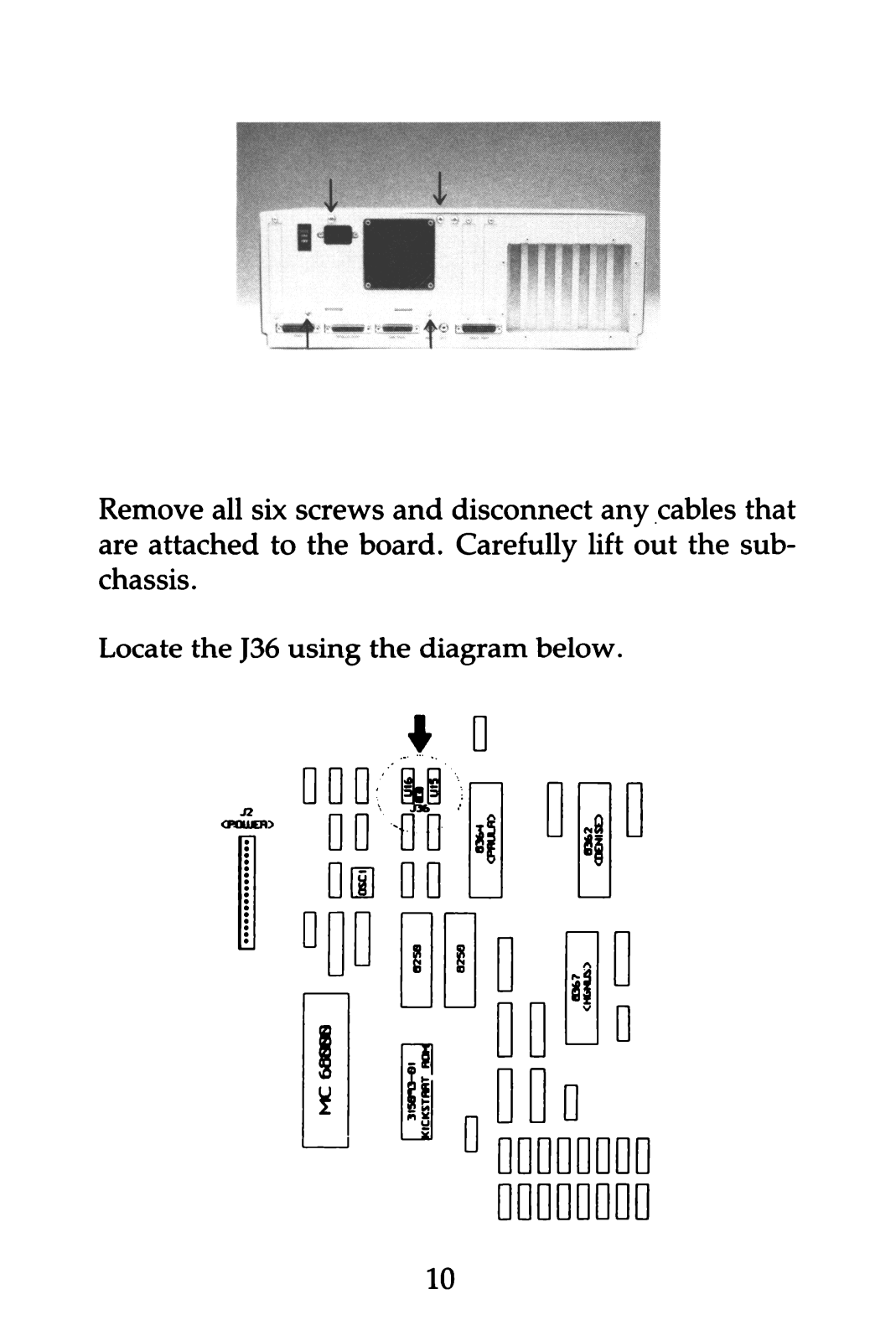

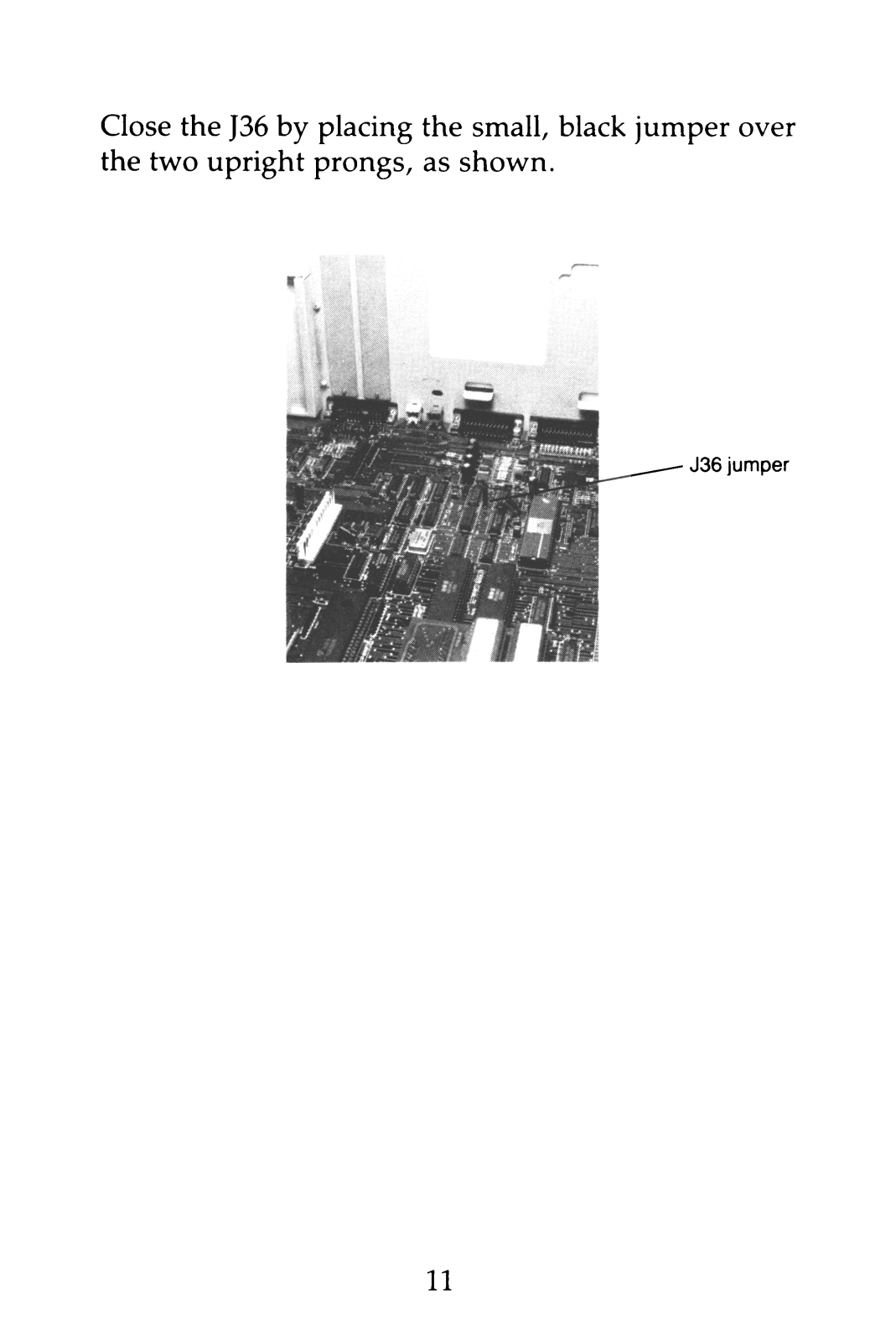

If your Amiga has part number 380705-01, you need
to locate the J36 jumper block. To reach the J36 you
must remove the power supply sub-chassis.

Six screws hold the sub-chassis in place. The first two
screws are located above the mouse and keyboard
ports on the front of the Amiga. The remaining four
screws are in the rear of the Amiga as shown below.

9

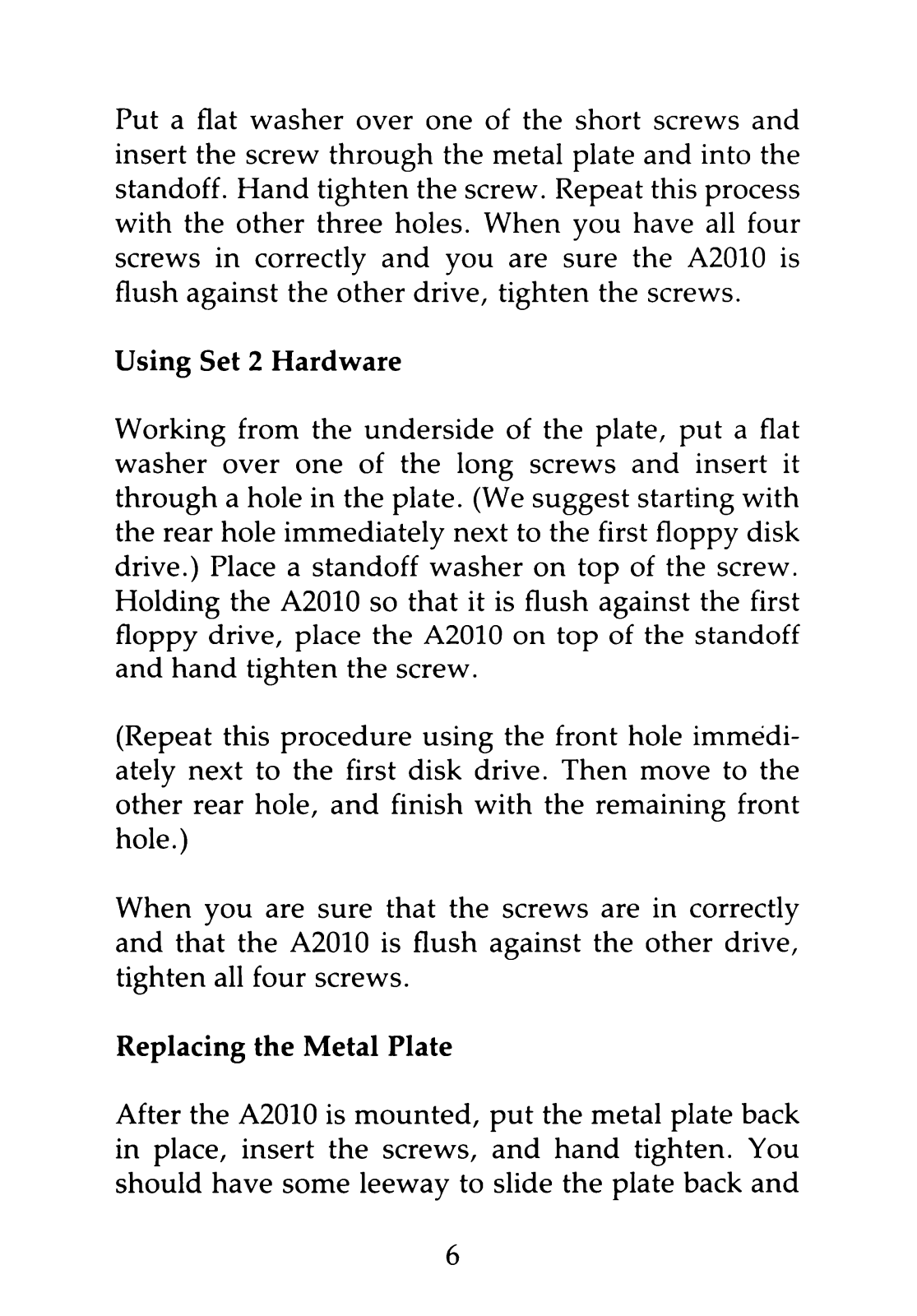

Put a flat washer over one of the short screws and
insert the screw through the metal plate and into the
standoff. Hand tighten the screw. Repeat this process
with the other three holes. When you have all four
screws in correctly and you are sure the A2010 is
flush against the other drive, tighten the screws.

Using Set 2 Hardware

Working from the underside of the plate, put a flat
washer over one of the long screws and insert it
through a hole in the plate. (We suggest starting with
the rear hole immediately next to the first floppy disk
drive.) Place a standoff washer on top of the screw.
Holding the A2010 so that it is flush against the first
floppy drive, place the A2010 on top of the standoff
and hand tighten the screw.

(Repeat this procedure using the front hole immedi
ately next to the first disk drive. Then move to the
other rear hole, and finish with the remaining front
hole.)

When you are sure that the screws are in correctly
and that the A2010 is flush against the other drive,
tighten all four screws.

Replacing the Metal Plate

After the A2010 is mounted, put the metal plate back
in place, insert the screws, and hand tighten. You
should have some leeway to slide the plate back and

6

forth, since you need to make sure that the face of the
floppy disk drive is flush with the face of the Amiga.

First, however, you must remove the bezel in the
Amiga's lid that is covering the opening for the
A2010. Simply unscrew the two screws that hold the
bezel in place.

To check that the drives are flush, slide the metal
plate forward, and place the cover over the top of the
machine without replacing the screws. If the disk
drives are not flush with the face of the Amiga, gently
slide them back until they are in place. Carefully lift
off the cover, and tighten the screws holding the
metal plate.

Connecting the A2010 to the A2000

There is a 34-pin ribbon wire connector already inside
your A2000. Notice the colored stripe running down
one edge of the cable. Hold the cable so that this
stripe is on the left side as you face the front of the
Amiga. Now, gently slide the ribbon wire connector
onto the connector on the rear of the A2010.

Warning: Be sure to insert the cable gently so that
you don't damage any pins. When you're positive the
cable is oriented properly, insert it all the way.

7

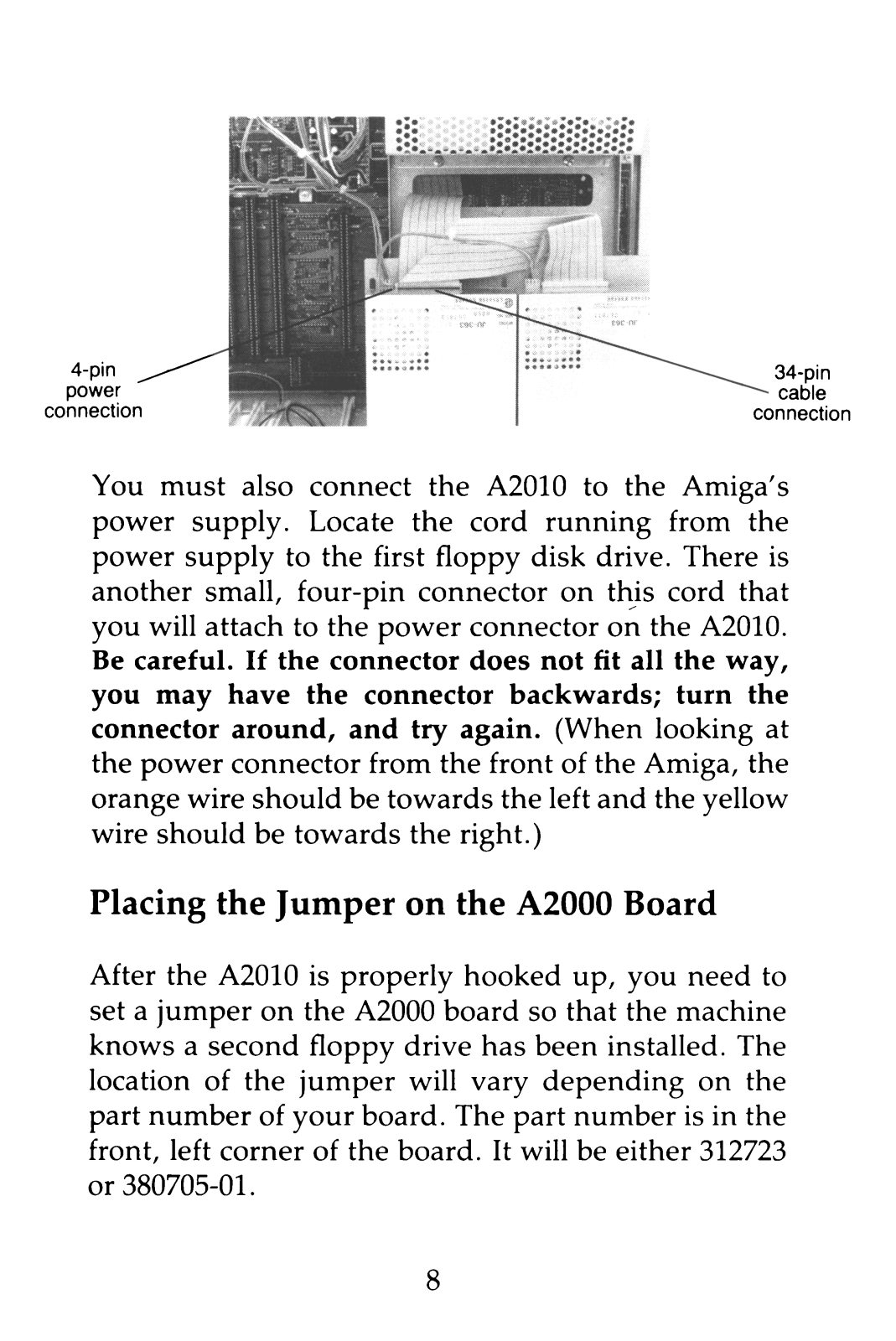

4-pin

power

connectior

34-pin

"" cable

connection

You must also connect the A2010 to the Amiga's
power supply. Locate the cord running from the
power supply to the first floppy disk drive. There is
another small, four-pin connector on this cord that
you will attach to the power connector on the A2010.

Be careful. If the connector does not fit all the way,
you may have the connector backwards; turn the
connector around, and try again. (When looking at

the power connector from the front of the Amiga, the
orange wire should be towards the left and the yellow
wire should be towards the right.)

Placing the Jumper on the A2000 Board

After the A2010 is properly hooked up, you need to
set a jumper on the A2000 board so that the machine
knows a second floppy drive has been installed. The
location of the jumper will vary depending on the
part number of your board. The part number is in the
front, left corner of the board. It will be either 312723
or 380705-01.

8

If your board has part number 312723, you need to
locate the J301 jumper block. (It is just to the left of
the power supply and to the right of the CN303
floppy drive cable connector. In fact, the floppy drive
cable may be covering the jumper block.)

The J301 is normally "open" to signal that only one
internal floppy drive is in place. "Close" the J301 by
placing the small, black jumper over the two upright
prongs, as shown below.

J301 jumper

If your Amiga has part number 380705-01, you need
to locate the J36 jumper block. To reach the J36 you
must remove the power supply sub-chassis.

Six screws hold the sub-chassis in place. The first two
screws are located above the mouse and keyboard
ports on the front of the Amiga. The remaining four
screws are in the rear of the Amiga as shown below.

9

Remove all six screws and disconnect any cables that
are attached to the board. Carefully lift out the sub
chassis.

Locate the J36 using the diagram below.

4 0

0D0:

00

-00

Oil 00 U

D*§D

o

□i

0

D

00

DDo

oooooooo
oooooooo

10

Close the J36 by placing the small, black jumper over

the two upright prongs, as shown.

J36 jumper

11

3. Running a Test of the

A2010

After everything is hooked up, you should run a

quick test to make sure the drive is installed properly.

You'll need a "scratch" disk, such as a formatted disk,

and a blank disk. (Don't use a disk you don't have a
back-up for!) Without replacing the Amiga's cover,

hook up your monitor and the power. Boot your
Amiga using your Workbench in the first floppy drive

(dfO:).
Take your scratch disk and set the write-protect tab so

that the disk is write inhibited (you should be able to
see through the small hole), and insert the scratch
disk in the A2010 (dfl:). Using either the CLI or the
Workbench, you need to check that the A2010 is
reading the disk properly.

To check the disk using the Workbench, click on the
scratch disk's icon, then choose Info from the Work
bench menu. When the Info window appears, the
status gadget should show "Read Only". Close the
Info window and remove the scratch disk from the
drive. Change the write-protect disk so that it is write
enabled (there should not be a hole in the disk).
Again select the disk's icon, and choose Info from the
Workbench menu. This time the status gadget should
show "Read/Write."

12

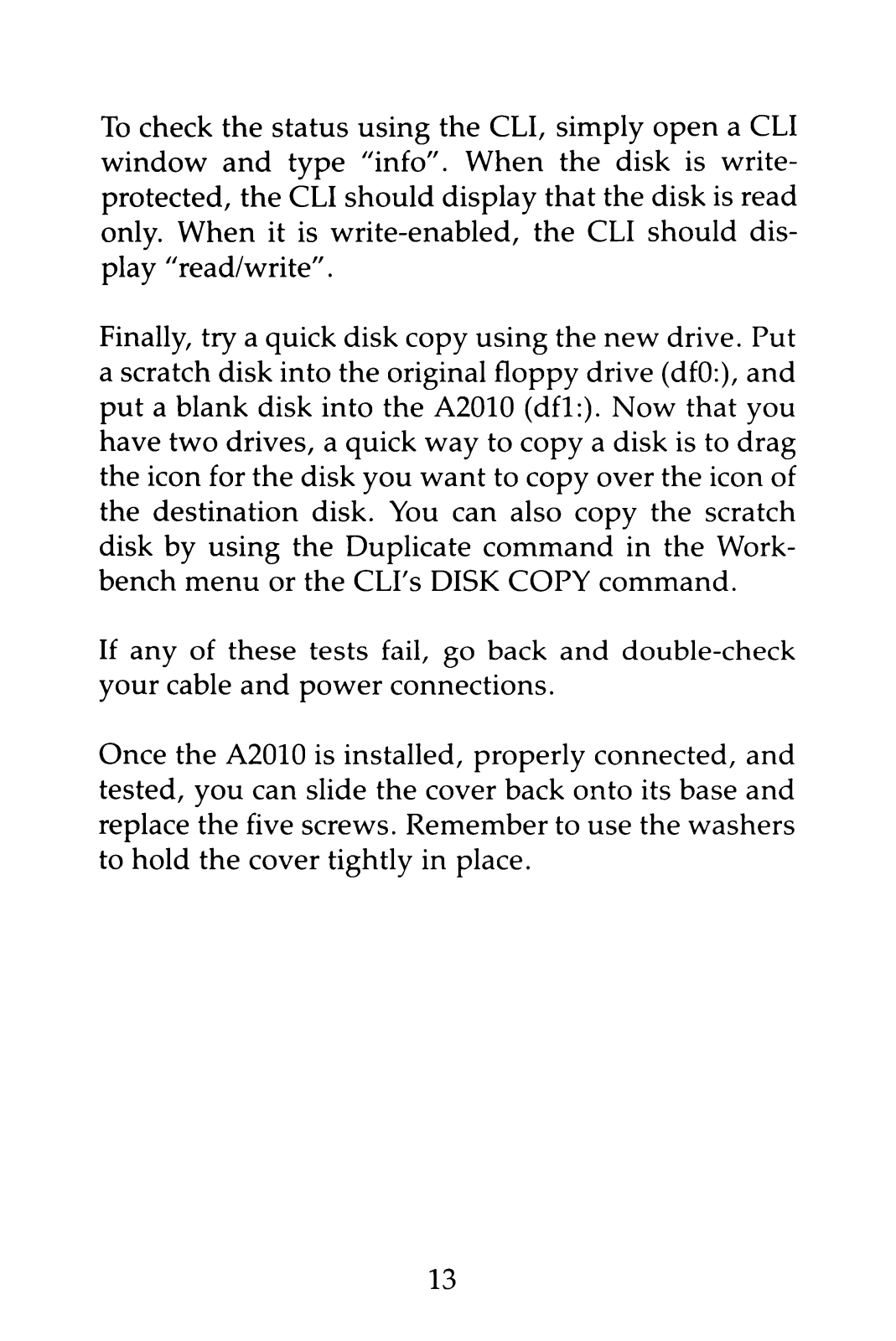

To check the status using the CLI, simply open a CLI

window and type "info". When the disk is write-

protected, the CLI should display that the disk is read

only. When it is write-enabled, the CLI should dis

play "read/write".
Finally, try a quick disk copy using the new drive. Put

a scratch disk into the original floppy drive (dfO:), and
put a blank disk into the A2010 (dfl:). Now that you
have two drives, a quick way to copy a disk is to drag
the icon for the disk you want to copy over the icon of
the destination disk. You can also copy the scratch
disk by using the Duplicate command in the Work
bench menu or the CLI's DISK COPY command.

If any of these tests fail, go back and double-check
your cable and power connections.

Once the A2010 is installed, properly connected, and
tested, you can slide the cover back onto its base and
replace the five screws. Remember to use the washers
to hold the cover tightly in place.

13

4. Technical Specifications

Features & Characteristics

^Single speed MFM read/write format
*880Kbytes formatted storage capacity
*Double sided, double density
^Formatted in 160 tracks with 11 512 byte sectors each
*Reads an entire track at a time
^Supports fast data transfer rates

Power Requirements: Power supplied by Amiga

system

14

'H—I

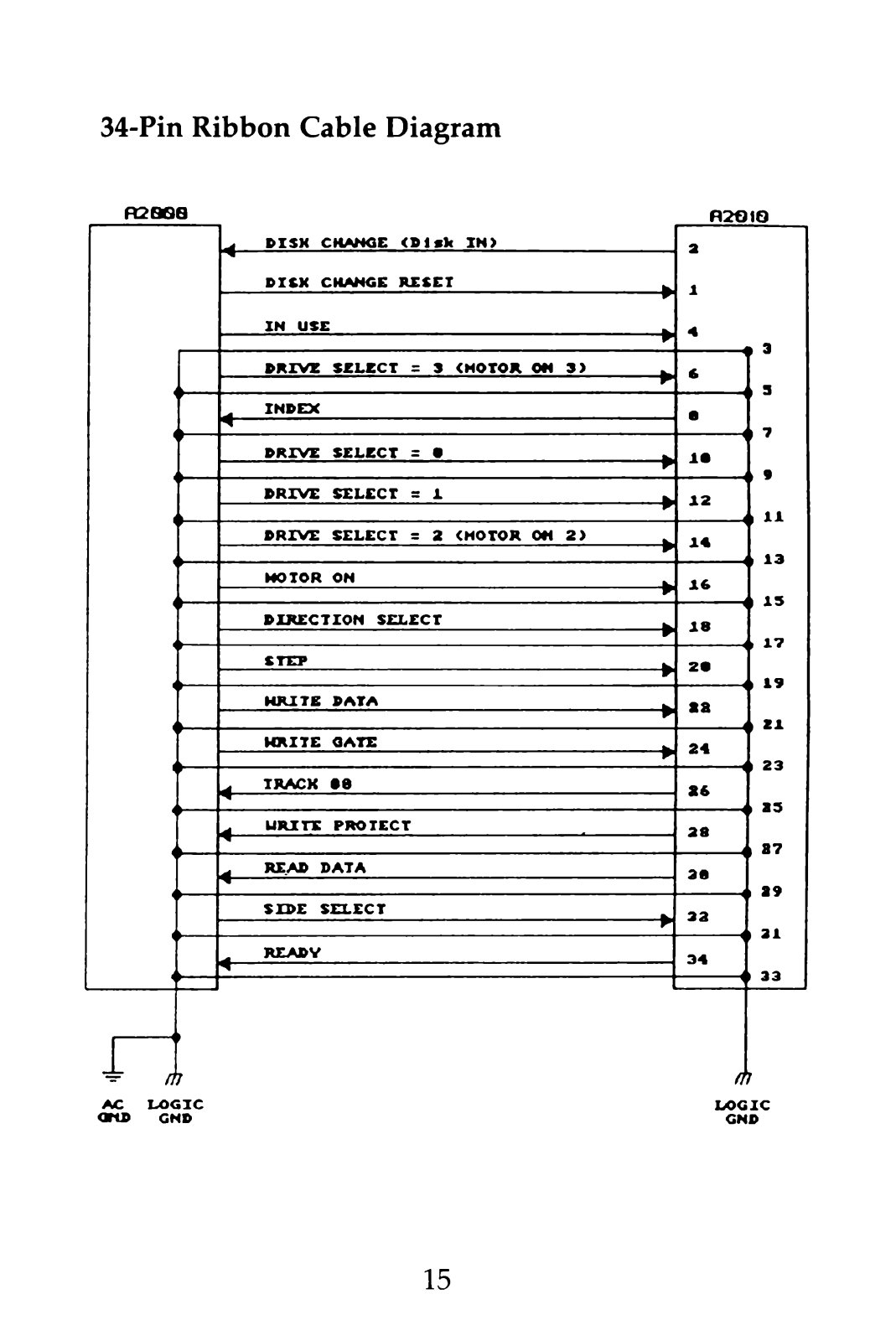

34-Pin Ribbon Cable Diagram

R2BG0

** ------------------------------------------------------------------------------------------------------

D IC K C HANGE R E S E T

1

4

IN U S E

P

D R IV E SE L E C T = 3 <HO TOA ON 3 )

6

W

IN D E X

0

D R IV E SE L E C T - •

1 0

W

D R IV E S E LE C T = 1

1 2

------------------------------------------------------------------------------------------------------- P
D R IV E SE L E C T = 2 <HOTO R ON 2 )

1 4

P

MO TOR ON

1 6

P

D I R E C T IO N SE L E C T

1 8

P

ST E P ^

2 0

P

W R IT E DA T A

8 8

P

W R IT E GA TE

2 4

P

^ TR A C K 9 0

8 6

^ U R I T E PR O T E C T

2 8

^ R EAD D A TA

2 0

S I D E SE L E C T

3 2

P

READ Y

3 4

02010

7

9

11

13

15

17

19

21

23

23

87

89

31

33

m

15

C1 Commodore*

AMIGA

Commodore Business Machines, Inc.

1200 Wilson Drive • West Chester, PA 19380

Commodore Business Machines, Inc.

3470 Pharmacy Avenue • Agincourt, Ontario M1W 3G3

380914-03

Printed in JAPAN

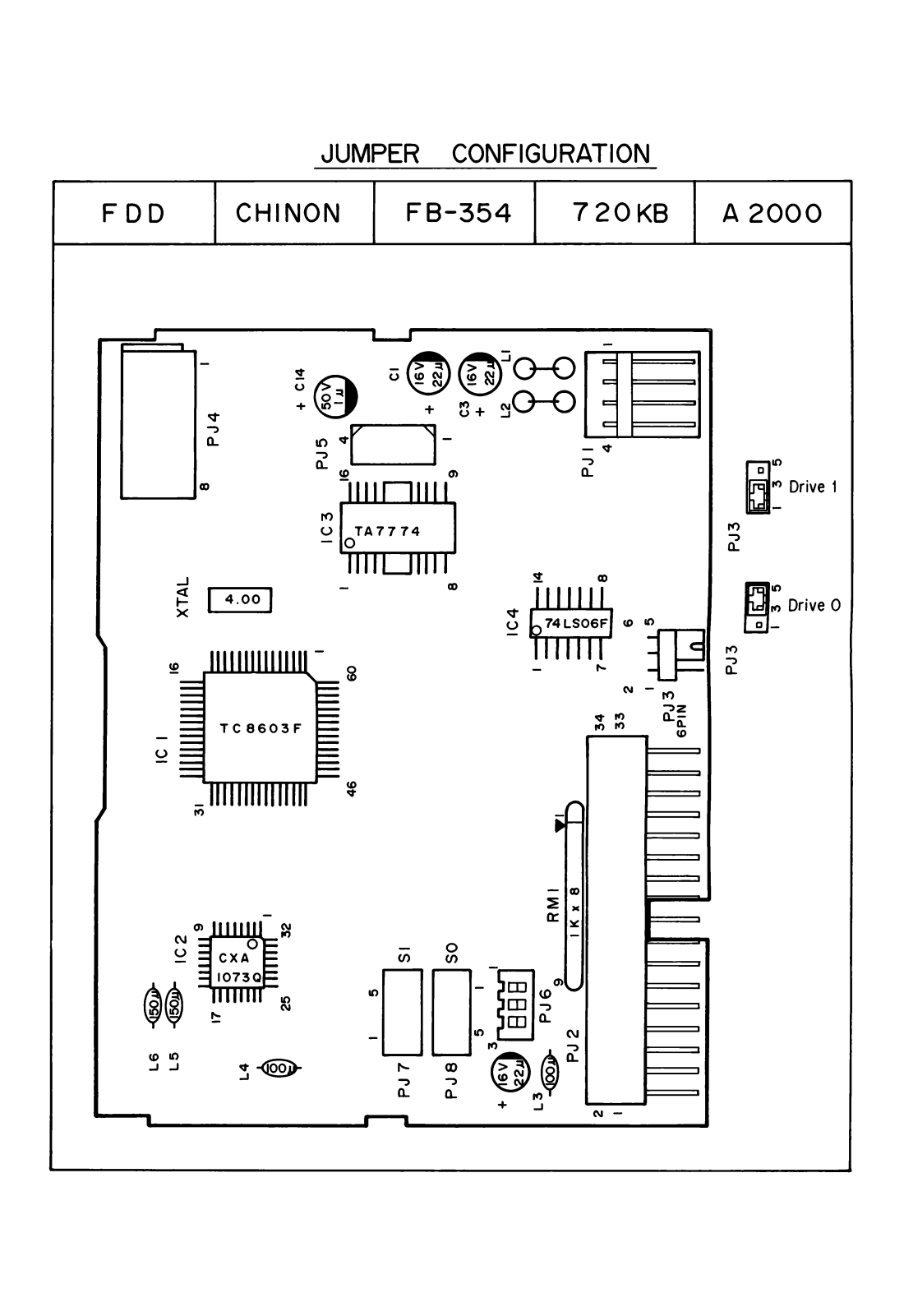

JUMPER CONFIGURATION

FD D CHINON F B -3 54 7 20 KB

A 200 0

in

•° Drive 1

ro

“3

Q-

Drive 0

ro

“3

Q.

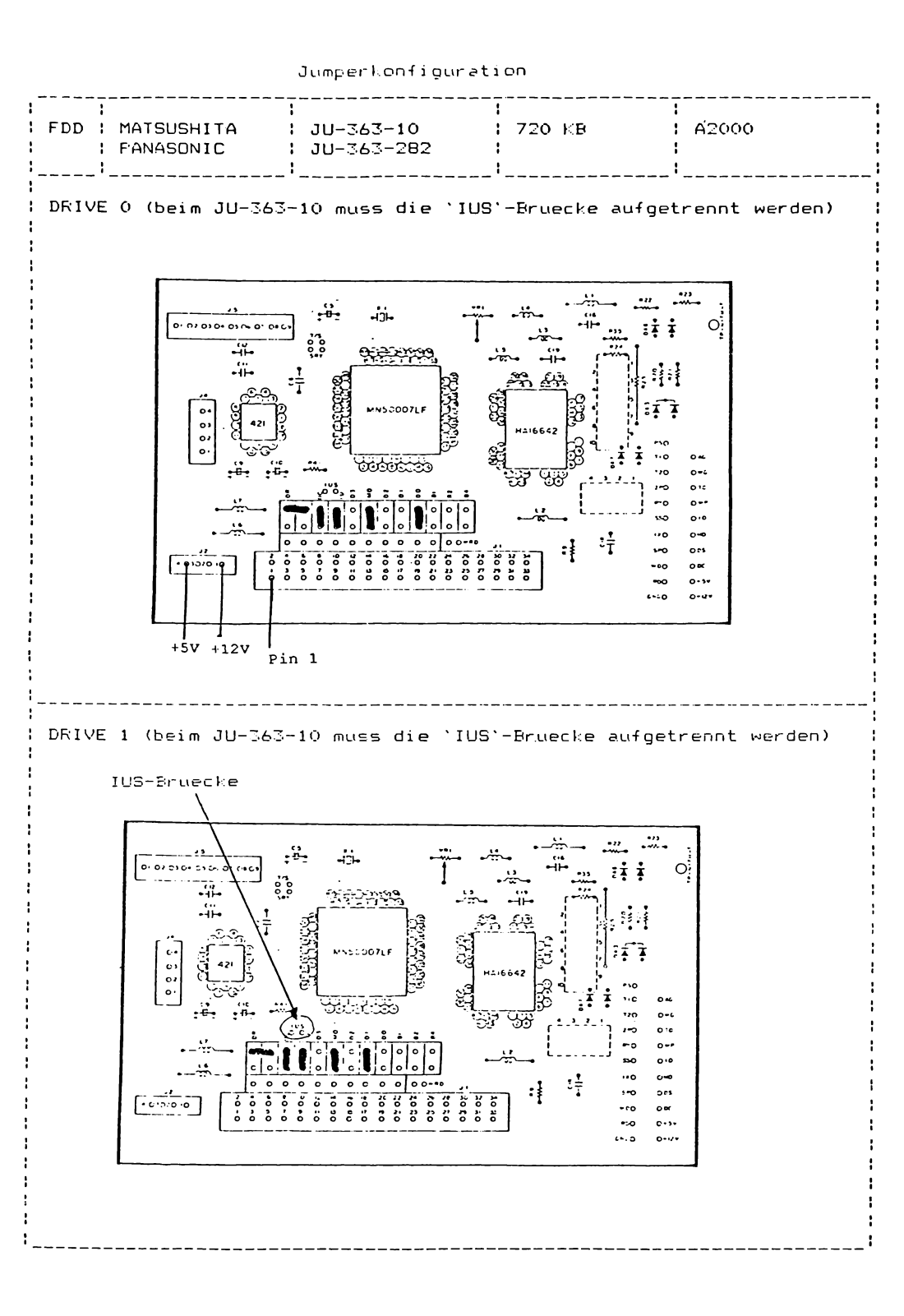

J Limper l-.on-f i a nr at i on

FD D :

MA T S US H IT A

1
1

! J U- 363-

-10

1
1

: 7 2 0 KB

1

•

: A 2 00 0

1
1

1
1

PA N A S O N I C

! JU-36 3-

1
1

-28 2

t
1

1

t
1

1
1

DR I V E

0 (beim J U -

36 3-1 0 mu s s

di e

' IUS *- Br u e c ke au-fgetrenn t we rd en )

DRIVE 1 (beim JU-36'

10 mu ss die I US '-Br.uec ke au-f ge tre nnt werden)

I U S - B r u e ck e

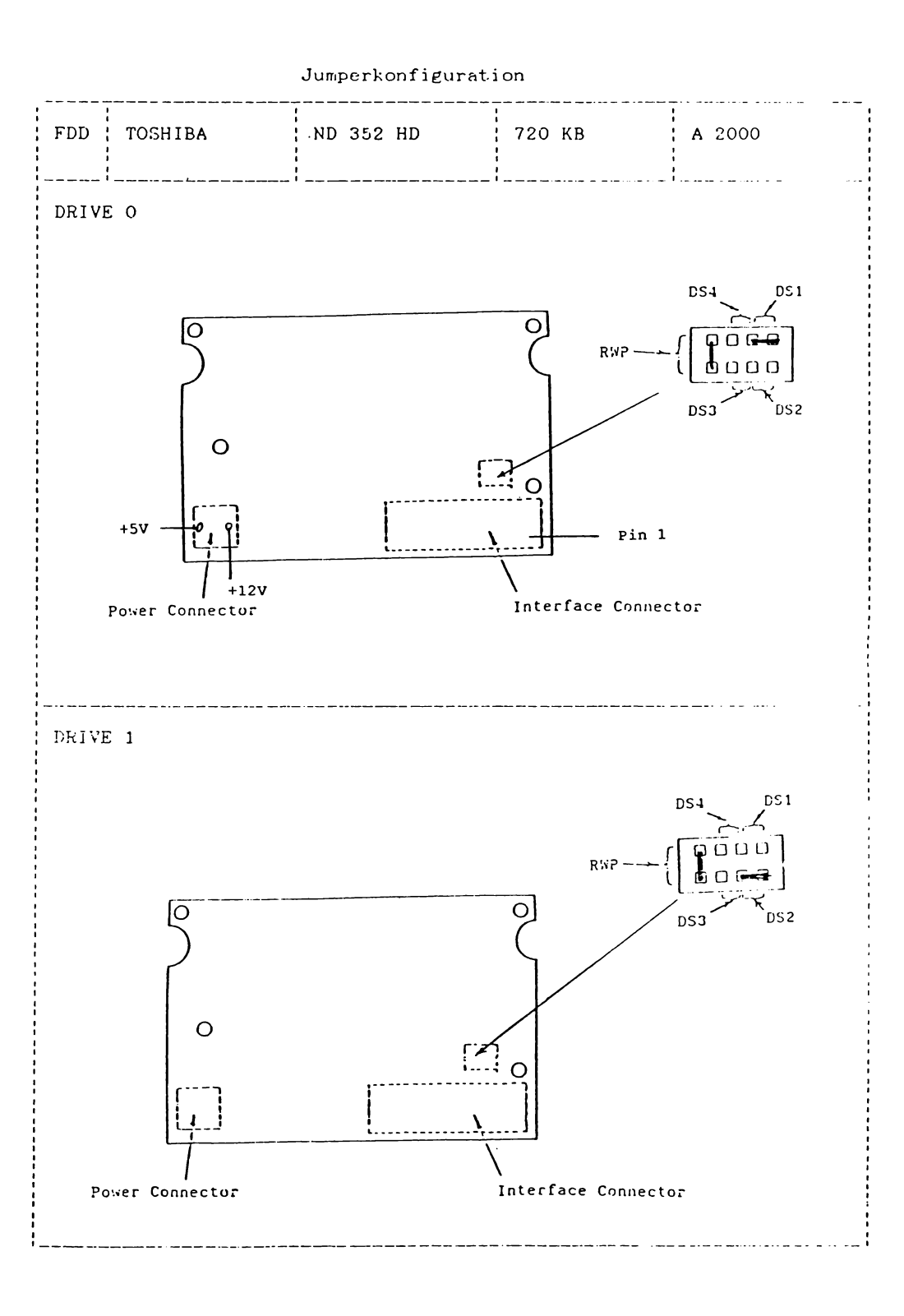

Ju m pe rko nf i gurat-i on

FDD

TOSHIBA

• ND 352 HD

720 KB

A 2000

DRIVE 0

DS4 DS1

DRIVE 1

DS4 DS1

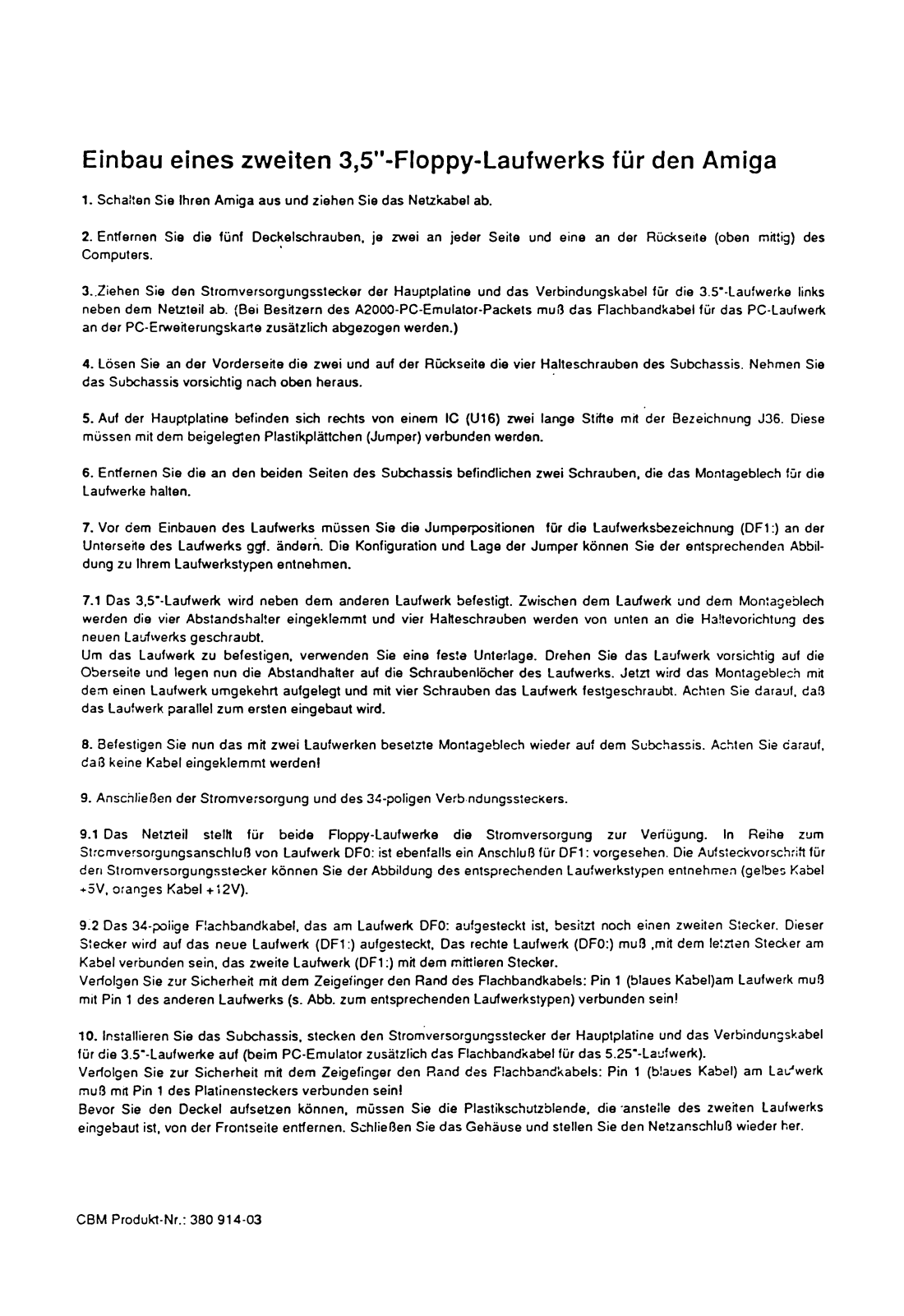

Einbau eines zweiten 3,5"-Floppy-Laufwerks fur den Amiga

1. Schaiten Sie Ihren Amiga aus und ziehen Sie das Netzkabel ab.

2. Entfernen Sie die funf Deckelschrauben. je zwei an jeder Seite und eine an der Ruckseile (oben mittig) des
Computers.

3..Ziehen Sie den Stromversorgungsstecker der Hauptplatine und das Verbindungskabel fur die 3.5'-Laufwerke links
neben dem Netzteil ab. (Bei Besitzern des A2000-PC-Emulator-Packets mu3 das Flachbandkabel fur das PC-Laufwerk
an der PC-Erweiterungskarte zusatzlich abgezogen werden.)

4. Losen Sie an der Vorderseite die zwei und auf der Ruckseite die vier Halteschrauben des Subchassis. Nehmen Sie
das Subchassis vorsichtig nach oben heraus.

5. Auf der Hauptplatine befinden sich rechts von einem 1C (U16) zwei lange Stifte mit der Bezeichnung J36. Diese
mussen mit dem beigelegten Plastikplattchen (Jumper) verbunden werden.

6. Entfernen Sie die an den beiden Seiten des Subchassis befindlichen zwei Schrauben, die das Montageblech fur die
Laufwerke halten.

7. Vor dem Einbauen des Laufwerks mussen Sie die Jumperpositionen fur die Laufwerksbezeichnung (DF1:) an der
Unterse'ite des Laufwerks ggf. andern. Die Konfiguration und Lage der Jumper konnen Sie der entsprechenden Abbil-
dung zu Ihrem Laufwerkstypen entnehmen.

7.1 Das 3,5*-Laufwerk wird neben dem anderen Laufwerk befestigt. Zwischen dem Laufwerk und dem Montageblech
werden die vier Abstandshalter eingeklemmt und vier Halteschrauben werden von unten an die Haltevorichtu.ng des
neuen Laufwerks geschraubt.
Um das Laufwerk zu befestigen, verwenden Sie eine feste Unterlage. Drehen Sie das Laufwerk vorsichtig auf die
Oberseite und legen nun die Abstandhalter auf die Schraubenlocher des Laufwerks. Jetzt wird das Montageblech mit
dem einen Laufwerk umgekehrt aufgelegt und mit vier Schrauben das Laufwerk festgeschraubt. Achten Sie darauf, da3
das Laufwerk parallel zum ersten eingebaut wird.

8. Befestigen Sie nun das mit zwei Laufwerken besetzte Montageblech wieder auf dem Subchassis. Achten Sie c'arauf,
da3 keine Kabel eingeklemmt werdenl

9. AnschlieBen der Stromversorgung und des 34-poligen Verb ndungssteckers.

9.1 Das Netzteil stellt fur beide Floppy-Laufwerke die Stromversorgung zur Veriugung. In Reihe zum
StrcmversorgungsanschluB von Laufwerk DFO: ist ebenfalls ein AnschluB fur DF1: vorgesehen. Die Aufsteckvorschrift fur
deri Stromversorgungsstecker konnen Sie der Abbildung des entsprechenden Laufwerkstypen entnehmen (gelbes Kabel
+5V, oranges Kabel + 12V).

9.2 Das 34-poiige Flachbandkabel. das am Laufwerk DFO: aufgesteckt ist, besitzt noch einen zweiten Stecker. Dieser
Stecker wird auf das neue Laufwerk (DF1:) aufgesteckt. Das rechte Laufwerk (DFO:) muB ,mit dem letzten Stecker am
Kabel verbunden sein, das zweite Laufwerk (D Fl:) mit dem mittieren Stecker.
Verfolgen Sie zur Sicherheit mit dem Zeigefinger den Rand des Flachbandkabels: Pin 1 (blaues Kabel)am Laufwerk muB
mit Pin 1 des anderen Laufwerks (s. Abb. zum entsprechenden Laufwerkstypen) verbunden sein!

10. Installieren Sie das Subchassis, stecken den Stromversorgungsstecker der Hauptplatine und das Verbindungskabel

fur die 3.5’ -Laufwerke auf (beim PC-Emulator zusatzlich das Flachbandkabel fur das 5.25*-Laufwerk).

Verfolgen Sie zur Sicherheit mit dem Zeigefinger den Rand des Flachbandkabels: Pin 1 (blaues Kabel) am Lai/werk
muB mit Pin 1 des Platinensteckers verbunden sein!
Bevor Sie den Deckel aufsetzen konnen, mussen Sie die Plastikschutzblende, die anstelle des zweiten Laufwerks

eingebaut ist, von der Frontseite entfernen. SchlieBen Sie das Gehause und stellen Sie den NetzanschluB wieder her.

CBM Produkt-Nr.: 380 914-03

This was brought to you

from the archives of

http://retro-commodore.eu
