MX135-3Pi
User Manual
256 pgs4.15 Mb0

Ametek MX30-3, MX60-3Pi, MX30-3Pi, MX60-3Pi-MB, MX90-3 User Manual

...
Download
MX Series
AC and DC Power Source
User Manual
Series I / Series II
7003-960 Rev AV www.programmablepower.com
User's Manual California Instruments - AC Power Source By AMETEK Programmable Power.
Models:
x MX30-1 x MX30-3 x MX30-3Pi x MX45-1 x MX45-3 x MX45-3Pi x MX60-3 x MX60-3Pi (-MB) x MX90-3 x MX90-3Pi (-MB) x MX135-3 x MX135-3Pi (-MB) x MX180-3 x MX180-3Pi (-MB) x MX225-3 x MX225-3Pi (-MB) x MX270-3 x MX270-3Pi (-MB)
Note: For MX15-1, MX15-1Pi, see user manual P/N 7005-960.
MX Series 2
About AMETEK
AMETEK Programmable Power, Inc., a Division of AMETEK, Inc., is a global leader in the design and manufacture of precision, programmable power supplies for R&D, test and measurement, process control, power bus simulation and power conditioning applications across diverse industrial segments. From bench top supplies to rack-mounted industrial power subsystems, AMETEK Programmable Power is the proud manufacturer of Elgar, Sorensen, California Instruments and Power Ten brand power supplies.
AMETEK, Inc. is a leading global manufacturer of electronic instruments and electromechanical devices with annualized sales of $2.5 billion. The Company has over 11,000 colleagues working at more than 80 manufacturing facilities and more than 80 sales and service centers in the United States and around the world.
Trademarks
AMETEK is a registered trademark of AMETEK, Inc. California Instruments is a trademark owned by AMETEK, Inc. Other trademarks, registered trademarks, and product names are the property of their respective owners and are used herein for identification purposes only.
Notice of Copyright
MX Series User Manual
© 2003-2014 AMETEK Programmable Power, Inc. All rights reserved.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, AMETEK PROGRAMMABLE POWER, INC. (“AMETEK”):
(a) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR
OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.
(b) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE
USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S
RISK, AND
(c) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS
HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED. APPROVED AMETEK CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION, WHICH IS POSTED AT WWW.PROGRAMMABLEPOWER.COM.
Date and Revision
Sep 2014 Revision AV
Part Number
7003-960
Contact Information
Telephone: 800 733 5427 (toll free in North America) 858 450 0085 (direct)
Fax: 858 458 0267 Email: sales.ppd@ametek.com service.ppd@ametek.com Web: www.programmablepower.com
MX Series 3
WARNING
Hazardous voltages may be present when covers are removed. Qualified personnel must use extreme caution when servicing this equ Circuit boards, test points, and output voltages also may be floating above (below) chassis ground.
WARNING
The equipment used contains ESD sensitive parts. When installing equipment, follow ESD Safety Procedures. Electrostatic discharges might cause damage to the equipment.
Important Safety Instructions
Before applying power to the system, verify that your product is configured properly for your particular application.
ipment.
Only qualified personnel who deal with attendant hazards in power supplies, are allowed to perform installation
and servicing. Ensure that the AC power line ground is connected properly to the Power Rack input connector or chassis.
Similarly, other power ground lines including those to application and maintenance equipment must be grounded
properly for both personnel and equipment safety. Always ensure that facility AC input power is de-energized prior to connecting or disconnecting any cable. In normal operation, the operator does not have access to hazardous voltages within the chassis. However,
depending on the user’s application configuration, HIGH VOLTAGES HAZARDOUS TO HUMAN SAFETY may be normally generated on the output terminals. The customer/user must ensure that the output power lines are labeled properly as to the safety hazards and that any inadvertent contact with hazardous voltages is eliminated.
Guard against risks of electrical shock during open cover checks by not touching any portion of the electrical circuits. Even when power is off, capacitors may retain an electrical charge. Use safety glasses during open cover checks to avoid personal injury by any sudden component failure.
Neither AMETEK Programmable Power Inc., San Diego, California, USA, nor any of the subsidiary sales organizations can accept any responsibility for personnel, material or inconsequential injury, loss or damage that results from improper use of the equipment and accessories.
SAFETY SYMBOLS
MX Series 4
Product Family: MX Series AC Power Source
Warranty Period: 1 Year
WARRANTY TERMS
AMETEK Programmable Power, Inc. (“AMETEK”), provides this written warranty covering the Product stated
above, and if the Buyer discovers and notifies AMETEK in writing of any defect in material or workmanship within the applicable warranty period stated above, then AMETEK may, at its option: repair or replace the Product; or issue a credit note for the defective Product; or provide the Buyer with replacement parts for the Product.
The Buyer will, at its expense, return the defective Product or parts thereof to AMETEK in accordance with the return procedure specified below. AMETEK will, at its expense, deliver the repaired or replaced Product or parts to the Buyer. Any warranty of AMETEK will not apply if the Buyer is in default under the Purchase Order Agreement or where the Product or any part thereof:
x is damaged by misuse, accident, negligence or failure to maintain the same as specified or
required by AMETEK;
x is damaged by modifications, alterations or attachments thereto which are n ot auth orized by
AMETEK;
x is installed or operated contrary to the instructions of AMETEK; x is opened, modified or disassembled in any way without AMETEK’s cons ent; or x is used in combination with items, articles or materials not authorized by AMETEK.
The Buyer may not assert any claim that the Products are not in conformity with any warranty until the Buyer has made all payments to AMETEK provided for in the Purchase Order Agreement.
PRODUCT RETURN PROCEDURE
Request a Return Material Authorization (RMA) number from the repair facility (must be done in the
country in which it was purchased):
x In the USA, contact the AMETEK Repair Department prior to the return of the product to
AMETEK for repair: Telephone: 800-733-5427, ext. 2295 or ext. 2463 (toll free North America)
858-450-0085, ext. 2295 or ext. 2463 (direct)
x Outside the United States, contact the nearest Authorized Service Center (ASC). A full listing
can be found either through your local distributor or our website, www.programmablepower.com, by clicking Suppo rt and goin g to th e Serv ice Centers tab.
When requesting an RMA, have the following information ready:
x Model number x Serial number x Description of the problem
NOTE: Unauthorized returns will not be accepted and will be returned at the shipper’s expense.
NOTE: A returned product found upon inspection by AMETEK, to be in specification is subject to an
evaluation fee and applicable freight charges.
MX Series 5
Table of Contents
Introduction ................................................................................................................................... 11
1.
1.1 General Description ........................................................................................................................ 11
1.2 Manual organization and format ...................................................................................................... 11
1.3 Different Model Series ..................................................................................................................... 12
2. Specifications ................................................................................................................................ 13
2.1 Electrical ......................................................................................................................................... 13
2.2 Mechanical ...................................................................................................................................... 23
2.3 Environmental ................................................................................................................................. 24
2.4 Regulatory ....................................................................................................................................... 24
2.5 Front Panel Controls ....................................................................................................................... 24
2.6 Special Features and Options ......................................................................................................... 25
2.7 Supplemental Specifications ........................................................................................................... 34
3. Unpacking and Installation ............................................................................................................ 40
3.1 Unpacking ....................................................................................................................................... 40
3.2 Power Requirements ....................................................................................................................... 40
3.3 Mechanical Installation .................................................................................................................... 41
3.4 AC Input Connections and Wiring ................................................................................................... 41
3.5 AC On/Off Circuit Breaker on MX Series front panel. ..................................................................... 44
3.6 Output Connections ........................................................................................................................ 46
3.7 Connectors - Rear Panel ................................................................................................................. 60
3.8 Multiple Cabinet System Configurations (incl. –MB) ....................................................................... 68
3.9 Multiple Cabinet Power Up/Down Procedures ................................................................................ 70
3.10 Clock and Lock Configurations ....................................................................................................... 71
3.11 Basic Initial Functional Test ............................................................................................................ 74
3.12 Remote Inhibit / Remote Shutdown ................................................................................................ 76
3.13 Junction Box Accessory .................................................................................................................. 77
3.14 Output Filter Box Accessory ............................................................................................................ 78
3.15 Fuse Box Accessory ....................................................................................................................... 79
4. Front Panel Operation .................................................................................................................. 80
4.1 Tour of the Front Panel ................................................................................................................... 80
4.2 Menu Structure ................................................................................................................................ 87
4.3 Output Programming ..................................................................................................................... 125
4.4 Waveform Management [3Pi Controller only] ............................................................................... 127
4.5 Standard Measurements ............................................................................................................... 132
4.6 Advanced Measurements [3Pi Controller only] ............................................................................. 134
4.7 Transient Programming ................................................................................................................. 143
5. Principle of Operation ................................................................................................................. 150
5.1 General ......................................................................................................................................... 150
5.2 Overall Description ........................................................................................................................ 150
5.3 Controller Assembly ...................................................................................................................... 152
5.4 System Interface Board ................................................................................................................. 156
5.5 Current / Voltage Sensor Board .................................................................................................... 156
5.6 Low Voltage Power Supply ........................................................................................................... 156
5.7 Power Module ............................................................................................................................... 157
6. Calibration ................................................................................................................................... 162
6.1 Recommended Calibration Equipment ......................................................................................... 162
6.2 Front Panel Calibration Screens ................................................................................................... 163
6.3 Routine Measurement Calibration ................................................................................................. 166
6.4 Routine Output Calibration ............................................................................................................ 170
6.5 Non-Routine Calibration ................................................................................................................ 178
7. Service ........................................................................................................................................ 183
MX Series 6
7.1 Cleaning ........................................................................................................................................ 183
7.2 General ......................................................................................................................................... 183
7.3 Basic operation ............................................................................................................................. 183
7.4 Advanced Troubleshooting. .......................................................................................................... 185
7.5 Factory Assistance ........................................................................................................................ 187
7.6 Fuses ............................................................................................................................................ 188
7.7 Firmware Updates ......................................................................................................................... 189
8. Top Assembly Replaceable Parts ............................................................................................... 192
9. Options ....................................................................................................................................... 195
9.1 Introduction ................................................................................................................................... 195
9.2 Option -HV: Additional AC Voltage Range .................................................................................... 196
9.3 Option –160: RTCA/DO-160 Tests ................................................................................................ 197
9.4 Option –411: IEC 61000-4-11 Voltage Dips and Interruptions ...................................................... 211
9.5 Option –413: IEC 61000-4-13 Interharmonics Test ...................................................................... 219
9.6 Option –704: MilStd704 Tests ....................................................................................................... 230
9.7 Option –ABD: Airbus ABD0100.1.8 Test ....................................................................................... 242
9.8 Option –AMD: Airbus AMD24C Test ............................................................................................. 242
9.9 Option –787: Boeing B787-0147 Test .......................................................................................... 242
9.10 Option –WHM: Watt Hour Measurement ...................................................................................... 243
9.11 Option –SNK: Current Sink ........................................................................................................... 245
9.12 Option - EXTD: External drive …………………………………………………………………….248
Error Messages .......................................................................................................................... 249
10.
Index .................................................................................................................................................. 254
MX Series 7
List of Figures
Figure 2-1: MX30-3 Voltage / Current Rating Chart for 150/300 V AC Ranges. ..................................................................... 17
Figure 2-2: MX45-3 Voltage / Current Rating Chart for 150/300 V AC Ranges – Max Rating. ................................................. 17
Figure 2-3: Voltage / Current Rating Chart for 150/300 V AC Ranges – Derated. ................................................................... 18
Figure 2-4: MX30-3 Voltage / Current Rating Chart for 200/400 V DC Ranges ....................................................................... 19
Figure 2-5: MX45-3 Voltage / Current Rating Chart for 200/400 V DC Ranges – Max. Rating ................................................ 19
Figure 2-6: Voltage / Current Rating Chart for 200/400 V DC Ranges – Derated .................................................................... 20
Figure 2-7: MX30-3 Voltage / Current Rating Chart, -HV Option ............................................................................................ 29
Figure 2-8: MX45-3 Voltage / Current Rating Chart, -HV Option – Max. Rating. ..................................................................... 29
Figure 2-9: Voltage / Current Rating Chart, -HV Option – Derated. ......................................................................................... 29

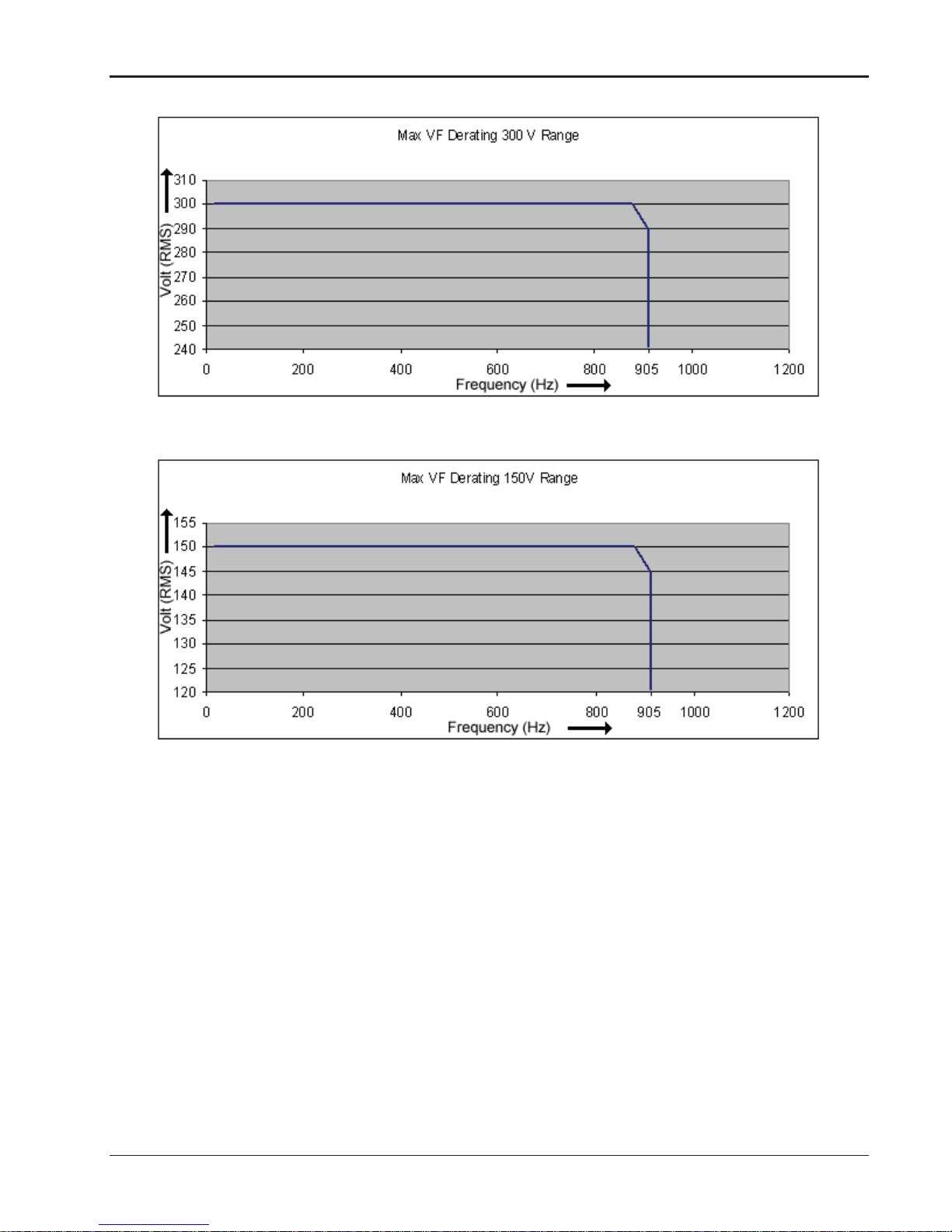

Figure 2-10: -HF Option Voltage Frequency Rating 300V range ............................................................................................. 31
Figure 2-11: -HF Option Voltage Frequency Rating 150V range ............................................................................................. 31
Figure 2-12: MX output filter option schematic ........................................................................................................................ 36
Figure 2-13: MX45 Output Noise 10 KHz – 1 MHz .................................................................................................................. 37
Figure 2-14: MX45 Output Noise 10 KHz - 1 MHz with optional Filter ..................................................................................... 38
Figure 3-1: The MX45 Power Source ...................................................................................................................................... 40
Figure 3-2: Location of AC Input Fuse Block and Chassis Ground Connection - Front View, Access Panel Removed .......... 42
Figure 3-3: MX Series AC Input Connection Diagram (Rear view) .......................................................................................... 43
Figure 3-4: Rear Panel ........................................................................................................................................................... 45
Figure 3-5: External sense cable shield connection to chassis ground ................................................................................... 46
Figure 3-6: Location of Output Terminals (Front view) ............................................................................................................ 49
Figure 3-7: MX30-1 / MX45-1 Output Wiring (Rear view) ........................................................................................................ 50
Figure 3-8: MX30-3 / MX45-3 Output Wiring (Rear view) ........................................................................................................ 51
Figure 3-9:MX60, MX60-MB, MX90 or MX90-MB Output Wiring (Rear view) .......................................................................... 52
Figure 3-10: Two MX's in Clock and Lock mode Output Wiring (Rear view)............................................................................ 53
Figure 3-11: MX135 or MX135-MB Output Wiring (Rear view) ................................................................................................ 55
Figure 3-12: Three MX's in Clock and Lock mode - Output Wiring (Rear view) ....................................................................... 56
Figure 3-13: MX180, MX225 or MX270 Output Wiring (Rear view) ........................................................................................ 58
Figure 3-14: Ship kit Terminal Block dimensions .................................................................................................................... 59
Figure 3-15: RS232C Cable for PC Connection wiring diagram – MX without USB. ............................................................... 64
Figure 3-16: USB Connector pin orientation. .......................................................................................................................... 65
Figure 3-17: Emergency Switch (ES Option) shut off inter connect on -MB systems. ............................................................. 67
Figure 3-18: Multi-Cabinet DIP Switch Location and Setting ................................................................................................... 69
Figure 3-19: Functional Test Setup. ........................................................................................................................................ 75
Figure 3-20: 7003-416-1 Output Junction Box ........................................................................................................................ 77
Figure 3-21: 7003-424-1 Output noise filter box. ..................................................................................................................... 78
Figure 3-22: 7003-426-1 Output Fuse Box .............................................................................................................................. 79
Figure 4-1: Shuttle Knob ......................................................................................................................................................... 82
Figure 4-2: FUNCTION Keypad ............................................................................................................................................. 83
Figure 4-3: Entering Values from the Decimal Keypad ........................................................................................................... 85
Figure 4-4: Cursor UP Key Movement .................................................................................................................................... 85
Figure 4-5: Cursor DOWN key Movement .............................................................................................................................. 86
Figure 4-6: Main Menu 1 Screen............................................................................................................................................. 86
Figure 4-7: Menu 1 through 3 ................................................................................................................................................. 87
Figure 4-8: PROGRAM Menu ................................................................................................................................................. 91
Figure 4-9: MEASUREMENTS Screen, Single Phase and Three Phase Modes ..................................................................... 93
Figure 4-10: HARMONICS/TRACE ANALYSIS Screen .......................................................................................................... 95
Figure 4-11: TRANSIENTS Menu ........................................................................................................................................... 98
Figure 4-12: VOLTAGE SURGE/SAG SETUP Screen ........................................................................................................... 99
Figure 4-13: VOLTAGE SWEEP/STEP SETUP Screen ....................................................................................................... 101
Figure 4-14: FREQUENCY SWEEP/STEP SETUP Screen .................................................................................................. 103
Figure 4-15 VOLTAGE/FREQUENCY SWEEP/STEP SETUP Screen ................................................................................ 104
Figure 4-16:START/VIEW TRANSIENT SEQUENCE Screen .............................................................................................. 105
Figure 4-17: WAVEFORMS Menu ........................................................................................................................................ 106
Figure 4-18: APPLICATIONS Menus .................................................................................................................................... 109
Figure 4-19: SETUP REGISTERS Menu .............................................................................................................................. 110
Figure 4-20: UTILITY Menus ................................................................................................................................................ 111
Figure 4-21: GPIB/RS232 SETUP Menu .............................................................................................................................. 114
Figure 4-22: VOLTAGE/CURRENT CONTROL SETUP Menu ............................................................................................. 115
Figure 4-23: INITIAL SETUP Menus ..................................................................................................................................... 116
Figure 4-24: LIMIT SETUP Menu ......................................................................................................................................... 118
Figure 4-25: CONFIGURATION SETUP Menus ................................................................................................................... 119
Figure 4-26: OUTPUT IMPEDANCE Menu ........................................................................................................................... 122
Figure 4-27: MEASUREMENT CAL FACTORS Menu (Series I only) ................................................................................... 123
Figure 4-28: MEASUREMENT CAL FACTORS Menu (Series II only) .................................................................................. 123
Figure 4-29: OUTPUT CAL FACTORS Menu (Series I only) ................................................................................................ 124
Figure 4-30: OUTPUT CAL FACTORS Menu (Series II only) ............................................................................................... 124
Figure 4-31: Selecting a Waveform ...................................................................................................................................... 127
MX Series 8
Figure 4-32: Selecting Waveforms for Single Phase or All Phases ....................................................................................... 127
Figure 4-33: Custom Waveform Creation with GUI Program ................................................................................................ 128
Figure 4-34: Waveform Crest Factor Affects Max. rms Voltage ............................................................................................ 130
Figure 4-35: Waveform Frequency Domain View Mode ........................................................................................................ 131
Figure 4-36: Scrolling Through Tabular FFT Data ................................................................................................................. 135
Figure 4-37: Scrolling through bar chart FFT Data ................................................................................................................ 135
Figure 4-38: Scrolling Through Acquired Waveform Data ..................................................................................................... 137
Figure 4-39: SET VOLT Trigger Source Acquisition.............................................................................................................. 139
Figure 4-40: Positive Trigger Delay (Post Trigger Data) ........................................................................................................ 141
Figure 4-41: Negative Trigger Delay (Pre-Trigger Data) ........................................................................................................ 142
Figure 4-42: Pulse Transients ............................................................................................................................................... 144
Figure 4-43: List Transients .................................................................................................................................................. 145
Figure 4-44: Switching Waveforms in a Transient List .......................................................................................................... 148
Figure 4-45: START/VIEW TRANSIENT SEQUENCE Menu ................................................................................................ 149
Figure 5-1: MX Series Functional Block Diagram.................................................................................................................. 150
Figure 5-2: MX Series Detailed Block Diagram ..................................................................................................................... 154
Figure 5-3: Power Module Detailed Block Diagram ............................................................................................................... 155
Figure 5-4: Power Module Layout ......................................................................................................................................... 157
Figure 5-5: Amplifier Board Layout ....................................................................................................................................... 159
Figure 6-1: Calibration Setup MX45-1 (Rear view) ................................................................................................................ 164
Figure 6-2: Calibration Setup MX30-3Pi, MX45-3Pi or MX30-3, MX45-3 (Rear view) ............................................................ 165
Figure 6-3: Current Measurement Calibration Setup (Rear view) .......................................................................................... 166
Figure 6-4: DC offset AC filter ............................................................................................................................................... 170
Figure 6-5: -413 Option Aux Generator Adjustments ............................................................................................................ 176
Figure 9-1: Application Menu ................................................................................................................................................ 198
Figure 9-2: DO160 Main Menu.............................................................................................................................................. 199
Figure 9-3: Normal State ...................................................................................................................................................... 199
Figure 9-4: Voltage Modulation ............................................................................................................................................. 201
Figure 9-5: Frequency Modulation ........................................................................................................................................ 202
Figure 9-6: Power Interrupt ................................................................................................................................................... 203
Figure 9-7: Power Interrupt for Group 2 and 3 ...................................................................................................................... 204
Figure 9-8: Emergency Screen ............................................................................................................................................. 205
Figure 9-9: Abnormal Screen ................................................................................................................................................ 206
Figure 9-10: DO-160 DC Main Menu .................................................................................................................................... 208
Figure 9-11: Normal State .................................................................................................................................................... 208
Figure 9-12: Abnormal State ................................................................................................................................................. 209
Figure 9-13: Application Menu .............................................................................................................................................. 213
Figure 9-14: IEC1000-4-11 Menu ......................................................................................................................................... 213
Figure 9-15: IEC Dips and Interrupts .................................................................................................................................... 214
Figure 9-16: Voltage Variation Screen .................................................................................................................................. 216
Figure 9-17: EN 61000-4-11 Voltage Variation specification- Edition 1.0 .............................................................................. 217
Figure 9-18: EN 61000-4-11 Voltage Variation specification- Edition 2.0 .............................................................................. 217
Figure 9-19: IEC 61000-4-11 GUI screen. ............................................................................................................................ 218
Figure 9-20: Application Setup Menus .................................................................................................................................. 220
Figure 9-21: IEC1000-4-13 Menu ......................................................................................................................................... 220
Figure 9-22: IEC 1000-4-13 FCURVE ................................................................................................................................... 222
Figure 9-23: IEC 1000-4-13 OSWING .................................................................................................................................. 222
Figure 9-24: IEC 1000-4-13 SWEEP .................................................................................................................................... 223
Figure 9-25: IEC 1000-4-13 Harmonics ................................................................................................................................ 223
Figure 9-26: IEC 1000-4-13 INTERHARMONICS ................................................................................................................. 224
Figure 9-27: IEC 61000-4-13 Meister Curve ......................................................................................................................... 224
Figure 9-28: IEC 61000-4-13 Test Flowchart Class 1 and 2.................................................................................................. 226
Figure 9-29:IEC 61000-4-13 Test Flowchart Class 3 ............................................................................................................ 227
Figure 9-30: MENU 2 SCREEN ............................................................................................................................................ 229
Figure 9-31: INTERHARMONICS SCREEN ......................................................................................................................... 229
Figure 9-32: Application Menu .............................................................................................................................................. 232
Figure 9-33: MIL704 Menu .................................................................................................................................................... 233
Figure 9-34: Steady State Menu ........................................................................................................................................... 233
Figure 9-35: Transient Menu ................................................................................................................................................. 235
Figure 9-36: Emergency Menu ............................................................................................................................................. 236
Figure 9-37: Abnormal Screen .............................................................................................................................................. 237
Figure 9-38: MIL704 DC Menu.............................................................................................................................................. 238
Figure 9-39: Steady State DC ............................................................................................................................................... 238
Figure 9-40: Transient Menu ................................................................................................................................................. 239
Figure 9-41: Abnormal Test Screen ...................................................................................................................................... 240
Figure 9-42: Emergency Test ............................................................................................................................................... 241
Figure 9-43: Application Screen ............................................................................................................................................ 243
Figure 9-44: Watt-Hour Meter Screen ................................................................................................................................... 243
Figure 9-45: WH-Meter Screen with Function Active ............................................................................................................ 243
Figure 9-46: REGENERATE CONTROL screen ................................................................................................................... 246
MX Series 9
List of Tables
Table 3-1: Suggested Input Wiring Sizes for each MX Cabinet * ............................................................................................ 44
Table 3-2: Suggested Output Wiring Sizes * ........................................................................................................................... 47
Table 3-3: Output Terminal connections. ................................................................................................................................ 48
Table 3-4: System Interface Connectors................................................................................................................................. 61
Table 3-5: Analog Interface Connector ................................................................................................................................... 61
Table 3-6: BNC Connectors .................................................................................................................................................... 62
Table 3-7: BNC Connectors .................................................................................................................................................... 62
Table 3-8: External Sense Connector ..................................................................................................................................... 62
Table 3-9: RS232 Connector pin out – MX with RS232 and USB. .......................................................................................... 63
Table 3-10: RS232C Connector pin out – MX with RS232 but no USB ................................................................................... 63
Table 3-11: USB Connector pin out. ....................................................................................................................................... 65
Table 3-12: RJ45 LAN Connector pin out. .............................................................................................................................. 66
Table 3-13: Clock and Lock Configuration settings ................................................................................................................. 71
Table 3-14: Clock and Lock Initialization settings ................................................................................................................... 72
Table 3-15: Remote Inhibit Mode Settings .............................................................................................................................. 76
Table 6-1: Calibration Load Values ....................................................................................................................................... 167
Table 6-2: Measurement Calibration Table ........................................................................................................................... 169
Table 6-3: Output Calibration Table – MX Series I ................................................................................................................ 177
Table 6-4: Output Calibration Table – MX Series II ............................................................................................................... 177
Table 6-5: Current Limit Calibration ...................................................................................................................................... 180
Table 6-6: Programmable Z adjustment pots ........................................................................................................................ 182
Table 6-7: Formulas to calculate R and L ............................................................................................................................. 182
Table 7-1: Basic Symptoms .................................................................................................................................................. 183
Table 7-2: MX Fuse Ratings ................................................................................................................................................. 188
Table 7-3: Flash Down load Messages ................................................................................................................................. 191
Table 8-1: Replaceable Parts ............................................................................................................................................... 193
Table 8-2: Fuses .................................................................................................................................................................. 194
Table 9-1: Normal Voltage and Frequency Minimum ........................................................................................................... 200
Table 9-2: Normal Voltage and Frequency Maximum ........................................................................................................... 200
Table 9-3: Normal Voltage Unbalance .................................................................................................................................. 200
Table 9-4: Normal VoltageSurge Sequence .......................................................................................................................... 204
Table 9-5: Normal Frequency Transient Sequence ............................................................................................................... 205
Table 9-6: Normal Frequency Variation Sequence ............................................................................................................... 205
Table 9-7: Emergency Voltage and Frequency Minimum...................................................................................................... 206
Table 9-8: Emergency Voltage and Frequency Maximum ..................................................................................................... 206
Table 9-9: Emergency Voltage Unbalance............................................................................................................................ 206
Table 9-10: Abnormal Voltage Minimum ............................................................................................................................... 207
Table 9-11: Abnormal Voltage Maximum .............................................................................................................................. 207
Table 9-12: Abnormal Frequency Transient .......................................................................................................................... 207
Table 9-13: Normal Voltage Minimum .................................................................................................................................. 208
Table 9-14: Normal Voltage Maximum .................................................................................................................................. 209
Table 9-15: Voltage Surge .................................................................................................................................................... 209
Table 9-16: Abnormal Voltage Surge .................................................................................................................................... 210
Table 9-17: Phase mapping .................................................................................................................................................. 212
Table 9-18: IEC 61000-3-34 Table C.2 ................................................................................................................................. 212
Table 9-19: Dips and Interruptions Tests Performed During RUN ALL ................................................................................ 214
Table 9-20: Voltage Variations Test Performed During RUN ALL ......................................................................................... 216
Table 10-1: Error Messages ................................................................................................................................................. 253
MX Series 10
1. Introduction
This instruction manual contains information on the installation, operation, calibration and maintenance of all power systems that use the MX Series power sources with the programmable controller.
1.1 General Description
The MX Series AC and DC power source systems are high efficiency, floor standing AC and DC power sources that provide a precise output with low distortion. Available voltage ranges are 150 Vac, 300 Vac and 400 Vac in AC mode and 200 Vdc and 400 Vdc in DC mode. The MX30-3Pi and MX45­3Pi can operate in either single or three-phase mode. The MX30 and MX45 is also available in just single or three-phase mode. All other models always operate in three-phase mode.
Models with a -1 or -3 designation provide full front panel operation but do not include certain features such as arbitrary waveform generation unless added as an option at the time of order. Models with the Pi controller offer several additional standard features, including the RS232C, USB, LAN (option) and IEEE-488 interfaces, arbitrary waveform generation, dual voltage ranges and additional measurement functions.
The MX Series units are contained in a compact floor standing enclosure on casters. This allows the units to be moved around more easily.
Read the installation instructions carefully before attempting to install and operate the MX Series power systems.
1.2 Manual organization and format
All user documentation for California Instruments power sources is provided on CDROM in electronic format. (Adobe Portable Document Format) The required Adobe PDF viewer is supplied on the same CDROM. This manual may be printed for personal use if a hardcopy is desired. To request a hardcopy from AMETEK Programmable Power, contact customer service at
service@programmablepowwer.com
This manual contains sections on installation, normal use, maintenance and calibration. If the MX system is equipped with a GPIB, RS232C, USB or LAN interface, refer to the MX Programming manual for information on using the remote control interfaces and command syntax. The programming manual is provided on the same CDROM as this user manual.
. There will be an additional charge for printed manuals.
MX Series 11
1.3 Different Model Series
There are two versions of the MX Series product, Series I and Series II. This user manual covers both MX model series with top level assembly part numbers 7003-400 (Series I) and 7003-422 (Series II). The difference between the Series I and the Series II is the controller used. The Series II uses a newer controller design but retains backward compatibility with the Series I products. The part number is shown on the model / serial number tag on the back of the MX series. All Series II will have a firmware revision of 4.0 or higher. The firmware revision is displayed briefly at power up on the LCD display and can also be queried over the bus by using the *IDN? command.
Differences between the two model series are restricted to:
x Reduced number of measurement calibration coefficients on Series II.
x Increased measurement sampling rate on Series II.
x Maximum DC offset range in AC+DC mode is 250Vdc on Series I, 220Vdc on Series II
Where relevant, differences are highlighted throughout the user manual.
MX Series 12
Parameter
MX30
MX45
MX60
MX90
MX135
Line Voltage:
wire + ground
208 VLL r10%
Line VA:
37 KVA
53 KVA
74 KVA
106 KVA
159 KVA
Line Current:
116 A
@
105 A
@
@
@
175 A
@
@
@
@
Each MX30
chassis
requires its
own AC service.
Total Line
currents are
2 x MX30
Each MX45
hassis
requires its
own AC service.
Total Line
currents are
2 x MX45
Each MX45
chassis
requires its
own AC service.
Total Line
currents are
3 x MX45
Line
47-63 Hz
Efficiency:
85 % (typical) depending on line and load
Power Factor:
0.95 (typical) / 0.99 at full power.
Inrush Current:
230 Apk @ 208 V
Each MX30
chassis
requires its
own AC service.
al Peak
currents are
2 x MX30
Each MX45
chassis
requires its
own AC service.
Total Peak
currents are
2 x MX45
Each MX45
chassis
requires its
own AC service.
Total Peak
currents are
3 x MX45
Hold-Up Time:
> 10 ms
Isolation
2200 VAC input to output
1350 VAC input to chassis
2. Specifications
Specifications shown are valid over an ambient temperature range of 25 r 5q C and apply after a 30 minute warm-up time. Unless otherwise noted, all specifications are per phase for sine wave output into a resistive load. For three phase configurations or mode of operation, all specifications are for Line to Neutral (L-N) and phase angle specifications are valid under balanced load conditions only.
Note: Specifications for input and output current and power on MX180, MX225 and MX270 configurations are 4, 5 and 6 times those of MX45-3 and are not separately listed.
2.1 Electrical
2.1.1 Input
(3 phase, 3
(PE))
Frequency:
RMS
187 V
LL
RMS
207 V
LL
60 A
50 A
RMS
360 V
RMS
432 V
LL
LL
220Apk @ 230 V
132Apk @ 400 V
110Apk @ 480 VLL
187 V
157 A
207 V
90 A
360 V
75 A
432 V
RMS
RMS
RMS
RMS
LL
LL
LL
LL
LL
LL
LL
230 VLL r10%
400 VLL r10%
480 V
LL
r10%
c
Tot
Voltage:
MX Series 13
Output Parameter
MX30
MX45
MX60
MX90
MX135
Modes
Std Controller
AC, DC
Pi Controller
AC, DC, AC+DC
Voltage:
Ranges (L-N):
AC Mode
Low: 0 - 150 V / High: 0 - 300 V
DC Mode
Low: 0 - 200 V / High: 0 - 400 V
AC+DC Mode
AC: Low: 0 - 150 V / High: 0 - 300 V DC Offset: Low Vrange: 0
Note:
On MX units with standard controller, only one voltage range is available unless the
Resolution:
AC Mode
0.1 V
DC Mode
0.1 V
AC+DC Mode
AC: 0.1 V DC Offset:
Series I
Series II
Accuracy:
± 0.3 V AC mode ± 1 V DC mode
Distortion THD1:
MX units shipped before 2009 < 1 % @ 16 < 2 % @ 66 < 3 % @ > 500 Hz
MX units shipped as of 2009 < 0.5 % @ 16 < 1.00 % @ 66 < 1.
Load Regulation:
0.25 % FS @ DC - 100 Hz
0.5 % FS @ > 100 Hz
Line Regulation:
0.1% for 10% input line change
DC Offset Voltage:
< 20 mV
2.1.2 Output
Note: All specifications are for AC and DC unless otherwise indicated.
- 150 V
High Vrange: 0 - 220 V (Series II) / High; 0 – 250 V (Series I).
(Resistive full load)
-R range change option is installed.
0.01 V < 2.5 V
0.1 V 2.5 - 25 V 1 V > 25 V
0.01 V
- 66 Hz
- 500 Hz
- 66 Hz
- 500 Hz
50 % @ > 500 Hz
1
The distortion specification for the MX Series is valid for pure (inductance < 12 uH) resistive load conditions and using a
30 KHz LP filter on distortion meter.
MX Series 14
Output Parameter
MX30
MX45
MX60
MX90
MX135
Output Noise: (20 kHz to 1 MHz)
< 2 V
low V Range
Output Coupling
DC coupled
XV Voltage range output, which is AC coupled.
Power (total power for all phases, either range, at full scale voltage, maximum ambient T = 35° C)
AC Mode
30 KVA
45 KVA
60 KVA
90 KVA
135 KVA
DC Mode
20 KW
30 KW
40 KW
60 KW
90 KW
AC+DC Mode
The maximum power and current in the AC+DC mode is equal to that in the DC mode
Current
Note: Current, maximum amps indicated per phase available between 50 and 100 % of voltage
scale voltage is 35° C.
Operation at higher currents but constant power is possible from 80% of Voltage range
nt) declining to 100% of maximum current at 100 % of voltage range
for short periods of time or at reduced ambient temperatures. (< 15 mins @ 30° C). See
AC Mode
MX30-1 V Lo: 200 A V Hi: 100 A
MX30
3, per phase V Lo: 66.7 A V Hi: 33.3 A
MX45-1 V Lo: 300 A V Hi: 150 A
MX45
3, per phase V Lo: 100 A V Hi: 50 A
MX60
3, per phase V Lo: 133 A V Hi: 66.7 A
MX90
3, per phase V Lo: 200 A V Hi: 100 A
MX135
3, per phase V Lo: 300 A V Hi: 150 A
DC Mode AC+DC Mode
MX30-1 V Lo: 100 A V Hi: 50 A
MX30-3, per phase V Lo: 33.3 A V Hi: 16.7 A
MX45-1 V Lo: 150 A V Hi: 75 A
MX45-3, per phase V Lo: 50 A V Hi: 25 A
MX60-3, per phase V Lo: 66.7 A V Hi: 33.3 A
MX90-3, per phase V Lo: 100 A V Hi: 50 A
MX135-3, per phase V Lo: 150 A V Hi: 75 A
Note: Current derates linearly from 50% of voltage range to 20% of specified current at 5% of
Current Limit mode
Programmable, CC or CV mode
Repetitive Peak Current
Note: Maximum Peak Current shown. Value shown reflects absolute peak current protection level. This level may not be reached under all load conditions. Depending on load conditions, peak current may max out at lower levels due to amplifier output impedance. Note: As of firmware revision 4.52, a repetitive peak current limit function is provided which will generate a fault and shut
off the power supply if the peak current drawn by the load exceeds the maximum level for more than 30 seconds. During this time, the amplifier will limit the peak current at a somewhat level above the maximum level but it is not allowable to run in this m startup/inrush load conditions.
AC Mode
MX30-1 / MX30-3Pi 1Phs / MX45 V Lo: 900 A V Hi: 450 A
MX30
-3
/ MX45-3Pi, per phase
MX60 phase
MX135
3, per
phase
RMS
< 3 V
Except on optional -HV or -
range. Maximum ambient temperate for full power operation at full-
Constant Power Mode:
(125% of max. curre
Figure 2-3 and Figure 2-4. (Requires firmware revision 0.27 or higher.) For MX30-3Pi model, constant power mode is supported at max ambient temperature.
high V Range
RMS
-
-
-
voltage range
ode indefinitely. This should provide sufficient time to ride through any
-1 / MX45-3Pi 1Phs
MX Series 15
-3 / MX30-3Pi / MX45
-3 / MX90-3, per
-
-
-
Output Parameter
MX30
MX45
MX60
MX90
MX135
V Lo: 300 A V Hi:
V Lo: 600 A V Hi: 300 A
V Lo: 900 A V Hi: 450 A
Frequency
Range:
Standard: 16 Hz - 819.0 Hz (for –HV option range, 45 Hz – 819.0 Hz)
-LF option:
-HF opt
Resolution:
0.01 Hz from 16.00 to 81.91 Hz
0.1 Hz
Accuracy:
± 0.01 %
±0.15 % for
Phase (3 phase mode)
Range:
Phase B/C relative to phase A
0.0 to 360.0°
Resolution:
0.1°
Accuracy:
16 Hz - 100 Hz: < 1.5° 100 Hz > 500 Hz:
±0.15 % for
Ext. Sync Mode (not available with -FC option)
Input:
Isolated TTL input for external frequency control. Requires 5V at 5 mA for logic hi
Accuracy:
Ext. Sync to phase A with fixed Ext. Sync Frequency input: 16 Hz 100 Hz > 500 Hz: ±0.15 % for –FC option
Programmable Output Impedance (available on MX30-3Pi and MX45-3Pi in three phase mode only)
Range:
R: 1 – 200 mOhm L: 15
N/A
N/A
N/A
Resolution:
R: 1 mOhm L: 1 uH
N/A
N/A
N/A
Accuracy:
10 % FS
N/A
N/A
N/A
150 A
16 Hz - 500.0 Hz
ion: 16 Hz – 905 Hz
from 82.0 to 819.0 Hz
–FC option
- 500 Hz: < 2° < 4°
–FC option
gh.
- 100 Hz: < 2°
- 500 Hz: < 3° < 4°
– 200 uH
Note: Output specifications apply below the Current / Voltage rating lines shown in the V/I
rating chart below.
MX Series 16
Current
(RMS)
Voltage (RMS)
75 300
100
60
80
40
20
50 A
150
Low V Range
High V Range
100 A
7.5
15
Figure 2-1: MX30-3 Voltage / Current Rating Chart for 150/300 V AC Ranges.
Figure 2-2: MX45-3 Voltage / Current Rating Chart for 150/300 V AC Ranges – Max Rating.
MX Series 17
Figure 2-3: Voltage / Current Rating Chart for 150/300 V AC Ranges – Derated.
MX Series 18
Current
(DC)
Voltage (DC)
100 400
50
30
40
20
10
25 A
200
Low V Range
High V Range
50 A
20
40
Figure 2-4: MX30-3 Voltage / Current Rating Chart for 200/400 V DC Ranges
Figure 2-5: MX45-3 Voltage / Current Rating Chart for 200/400 V DC Ranges – Max. Rating
MX Series 19
Parameter
Range
Accuracy (rr)
Resolution
Frequency
16.00 - 820.0 Hz
0.01% + 0.01 Hz
0.01 to 81.91 Hz
0.1 to 500 Hz
0
0.05V + 0.02%, <100 Hz
0.1V + 0.02%, 100
0.01 Volt
0
0.15A + 0.02%, <100 Hz
0.3A + 0.02%, 100
0.01 Amp
0
0.15A + 0.02%, <100 Hz
0.3A + 0.02%, 100
0.01 Amp
0
30 VA + 0.1%, <100 Hz 60 VA + 0.1%, 100
10 VA
0
30 W + 0.1%, 60 W + 0.1%, 100
10 W
Power Factor (>0.2kVA)
0.00 - 1.00
0.01, <100 Hz
0.02, 100-820 Hz
0.01
ent range. Current and Power range and accuracy
3Pi in single-
Note: Power factor accuracy applies for PF > 0.5 and VA > 50 % of max.
Current
(DC)
Voltage (DC)
60
50
40
30
20
10
0
20 40 100 150 200 300 400
62.5 A
31 A
25 A
Full Po w e r
Full Po w e r
Figure 2-6: Voltage / Current Rating Chart for 200/400 V DC Ranges – Derated
2.1.3 AC Measurements
Measurement specifications apply to MX30-3 / MX30-3Pi / MX45-3 or MX45-3Pi in three-phase mode. See notes for other models and configurations.
RMS Voltage
RMS Current
Peak Current
VA Power
Real Power
Note: Accuracy specifications are valid above 100 counts. For current and power measurements, specifications apply from 2% to 100% of measurem specifications are times three for MX45-1, MX60, MX90 and MX135 or MX30-3Pi / MX45­phase mode.
- 400 Volts
- 150 Amps
- 400 Amps
- 15 KVA
- 15 KW
-820 Hz
-820 Hz
-820 Hz
-820 Hz
<100 Hz
-820 Hz
MX Series 20
Parameter
Range
Accuracy (rr)
Resolution
0
0.5 Volts
0.1 Volt
0
0.5 Amps
0.01 Amp
0
30 W
10 W
resolution specifications are times three for MX30-1, MX45-1, MX60, MX90 and MX135 or MX30-3Pi /
Parameter
Range
Accuracy (
r
)
Resolution
Frequency fundamental
16.00
0.03% + 0.03 Hz
0.01 Hz
3Pi in 3
phase mode, MX60,
MX90, MX135:
Series I
Series II
32.00 Hz – 6.67 KHz
32.00 Hz
0.03% + 0.03 Hz
0.01 Hz
3Pi in 1
phase mode:
Series I
Series II
32.00 Hz
32.00 Hz
0.03% + 0.03 Hz
0
0.0
2° typ.
0.5°
Fundamental
0.75V
0.01V
Harmonic 2
0.75V + 0.3% + 0.3%/kHz
0.01V
Fundamental
0.5A 0.1A
Harmonic 2
0.15A + 0.3% + 0.3%/kHz
0.1A
Parameter
Specification
External Modulation:
0 to 10%
Synchronization
Isolated TTL input for external frequency control. Requires 5V at 5 mA for logic high.
Trigger Input:
External trigger source input. Requires TTL level input signal. Triggers on negative edge. Response
Trigger Output:
Programmable through transient list system. 400 Ps pulse for voltage or frequency change. Isolated TTL output. Output reverts to Function strobe
2.1.4 DC Measurements
Voltage
Current
Power
Note: Accuracy specifications are valid above 100 counts. For current and power measurements, specifications apply from 2% to 100% of measurement range. Current and Power accuracy and
- 400 Volts
- 400 Amps
- 10 kW
2.1.5 Harmonic Measurements (Pi controller)
Harmonic measurement specifications apply to MX30-3, MX45-3, MX30-3Pi and MX45-3Pi in three­phase mode. See notes for other models and configurations.
Frequency harmonics
MX45-3, MX45-
MX45-1, MX45-
Phase
Voltage
Current
Note: For current measurements, specifications apply from 2% to 100% of measurement range. Current range and accuracy specifications are times three for MX30-1, MX45-1, MX60, MX90 and MX135 or MX30-3Pi / MX45-3Pi in single-phase mode.
- 820 Hz
– 16 KHz
- 19.2 KHz – 48 KHz
- 360.0°
- 50
- 50
r
.01 Hz
2.1.6 System Specification
Input:
time 80 - 100 Ps.
MX Series 21
Parameter
Specification
when not uses as Trig Out. This function is mutually exclusive with the Function Strobe output.
Function Strobe:
Active for any voltage or frequency program change. 400 Ps pulse for voltage or frequency change. Isolated TTL output. This function is mutually exclusive with th Output is programmed as part of list system.
Output Status:
Monitors status of output relay. Isolated TTL output. High if output relay is closed, low if output rela
Non volatile memory
Series I: 8 complete instrument setups and transient lists, 32 events per list.
Series II: 16 complete instrument setups and transient lists, 100 events per list.
Waveforms
Sine (Models with Standard controller)
Si
Transients
Voltage: drop, step, sag, surge, sweep
Frequency: step, sag, surge, sweep
Voltage and Frequency: step, sweep
IEEE-488 Interface:
SH1, AH1, T6, L3, SR1, RL2, DC1, DT1 Syntax: IEEE 488.2 and SCPI Response time is 10 ms (typical)
RS232C Interface:
Bi-directional serial interface 9 pin D Handshake: Data bits: Stop bits: Baud rate: Syntax: IEEE 488.2
Note
USB Interface:
Standard USB 1.1 peripheral. Data transfer rate: 460,800 bps Syntax: IEEE 488.2 and SCPI.
Note:
urce from a single PC is not recommended, as communication may not be reliable. Use GPIB interface for multiple power source control.
LAN Interface:
Option –LAN. When the LAN interface is installed, the RS232 interface is disabled.
RJ45 Connec Data transfer rate: 460,800 bps Protocol: TCP/IP. Syntax: IEEE 488.2 and SCP
Note
Current Limit Modes:
Two selectable modes of operation:
1.
2.
e Trigger Output. Same output is used for Trigger Output if Trigger
y is open.
storage:
ne, square, clipped, user defined (Models with Pi controller)
-shell connector CTS, RTS
7, 8
1,2
9600 to 115,200 bps
and SCPI.
: Disconnect any USB connection when using the RS232 interface.
Use of the USB port to control more than one power so
tor, 10BaseT, 100BaseT or 1000BaseT,
: Disconnect any USB connection when using the LAN interface.
Constant current mode (voltage folds back with automatic recovery)
Constant voltage mode with trip-off (Relays open).
MX Series 22
Input Over current:
In-line fast acting fuses. Check fuse rating in Service and Maintenance section. Ratings will
Circuit breaker for LV supply.
Input Over voltage:
Automatic shutdown.
Input Over voltage
Surge protection to withstand EN50082-1 (IEC 801-4, 5) levels.
Output Over current:
Adjustable level constant current mode with programmable set point.
Output Short Circuit:
Peak and RMS current limit.
Over temperature:
Automatic shutdown.
Parameter
Specification
Dimensions:
Height: 50.0” 1270 mm
Width:
Depth:
Unit Weight:
Net: 1150 lbs / 522 Kg approximately
Shipping:
Material:
Steel chassis with aluminum panels and covers.
Finish:
Light textured painted external surfaces.
Panels semi
Cooling:
Fan cooled with air intake on the front and exhaust to the rear. Fans: Air displacement
Internal Construction:
Modular sub assemblies.
Rear Panel
(See section 3 for description of connections)
2.1.7 Unit Protection
depend on AC input configuration settings.
Transients:
2.2 Mechanical
(for each MX chassis)
(for each MX chassis)
Connections:
28.75” 731 mm
34.5” 876 mm
1231 lbs / 560 Kg approximately
-gloss polyurethane color no. 26440 (medium gray)
6 x 225CFM.
22 Cu Ft/sec. Max.
x Cable entry and strain relieve for AC input wiring
x Cable entry and strain relieve for output wiring
x External sense terminal block (Remote voltage sense)
x System interface (2x)
x Clock and Lock BNC's (requires -LKM or -LKS options)
x RS232, USB, GPIB, LAN (option)
x Trigger In BNC
x Trigger Out BNC
x Function Strobe BNC
x Output Status
MX Series 23
Parameter
Specification
Operating Temp:
0° to +35q C. (Except in CP mode).
+32° to +104° F.
Storage Temp:
-40° to +85 qC.
-40° to +185° F.
Altitude:
< 2000 meters
Relative Humidity:
0-95 % RAH, non-condensing maximum for temperatures up to 31qC decreasing linearly to 50% at 40
Installation/Over voltage Pollution Degree:
2
Indoor Use Only
Vibration:
Designed to meet NSTA 1A transportation levels.
Shock:
Designed to meet NSTA 1A transportation levels.
Electromagnetic
and Immunity:
Designed to meet EN50081-2 and EN50082-2 European Emissions and
Immunity standards as required for the “CE” mark
Acoustic Noise:
65 dBA maximum at 0% to 50% load, 75 dBA maximum greater than 50% load to 100% load. Measured at one met
Safety:
Designed to EN 61010-1 European safety standards as required for the
“CE” mark.
Controls:
Shuttle knob:
Allows continuous change of all values including output calibration and range change.
Decimal keypad:
A conventional decimal keypad facilitates quick entry of numerical values such as voltage, current limit, etc. The large blue enter key will make the value you enter effective. Using the SET key allows the user to preset all parameter values and update them all at once by pressing the Enter key.
Up/down arrow keys:
A set of up and down arrow keys is used to move the cursor position in all menus. This allows quick selection of the desired function or parameter.
Function keys:
Measure key will display most measurement values. Program key will show all program parameters. Output on/off key for output relay control. Phase key will switch display to show program and measured values for each phase.
2.3 Environmental
qC.
Category:
2.4 Regulatory
Emissions
2.5 Front Panel Controls
,,
.
er.
MX Series 24
Displays:
LCD graphics display:
A large high contrast LCD display with backlight provides easy to read guidance through all setup operations. An adjustable viewing angle makes it easy to read from all practical locations.
Status indicators:
Large and bright status indicators inform the user of important power source conditions. The Remote lamp informs the user that the unit is under remote control. The Overload lamp indicates that excessive current is being drawn at the output. The Over temperature lamp illuminates when internal heat sink temperatures are too high. The Hi Range indicator is lit any time the unit is switched to the high voltage range. The Output On/Off indicator is on when the power source output relays are closed.
Controller Features
Mode:
Switches between 1 and 3 phase outputs. This mode is available on models MX30
Parallel Operation:
Up to three units can be paralleled in a three-phase configuration (with one master controller and one or two auxiliary units). (MX60, MX90 and MX135). Only the master unit requires a controller in this setup. The auxiliary units are controlled through the system interface.
Clock and Lock Mode:
LKS
Three units (all with controllers) can be connected in a three-phase configuration using CLOCK and LOCK connections. Each unit requires its own controller in this configuration. One unit acts as the master and provides the reference clock to the auxiliary units. Note: This option cannot
Controller:
Programmable controller front panel assembly.
Output Relay:
Standard output relay feature to isolate power source from the load.
Output On/Off:
The output relay can be used to quickly disconnect the load. A green status indicator displays the status of the output relay.
Firmware / Software Options
- 704
Mil Std 704D & E test firmware.
Mil Std 704A, B, C, & F test software (refer to Avionics Software Manual P Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
- 160
RTCA/DO-160D test firmware
RTCA/DO-160E test software (refer to Avionics Software Manual P/N 4994 Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
- 411
IEC 61000-4-11 test firmware (Pre-compliance)
- 413
IEC 61000-4-13 test firmware
-A350
Airbus A350 ABD0100.1.8.1 Test software (refer to Avionics Software Manual P/N 4994 Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
-ABD
Airbus A380 ABD0100.1.8 Test software (refer to Avionics Software Manual P/N 4994-971 for details)..
2.6 Special Features and Options
-3Pi and MX45-3Pi only.
(Option -LKM and ­required).
be combined with –HF option.
/N 4994-971 for details).
-971 for details)..
MX Series 25
-971 for details)..
Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
-AMD
Airbus AMD24C Test software (refer to Avionics Software Manual P/N 4994 Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
-B787
Boeing 787 Test software (refer to Avionics Software Manual P/N 4994­971 for details).. Note: Requires use of MXGui Windows application software provided on CD ROM CIC496.
-WHM
Watt Hour Measurements (Accuracy and Resolution. See Sec. 2.6.3.)
Output Voltage Range Options
- HV
Adds 400 V AC only output range.
- XV
Adds customer specified AC only output range. Contact factory for details.
Misc. Options
-ES
Emergency Shut off switch. This option key lock push button is installed on the front panel of the master MX if ordered with the MX system. When pushed in, the main AC contactor is opened disconnecting the AC input power to the MX input transformer. Note that the controller (and LCD display) will still be powered up but no power is available to the amplifiers and there will be no output power either. The controller runs off the LV supply, which must be turned off with the front panel breaker.
After the ES has been pushed, the provided key will be required to release it. Once the ES button has been re powered down using the front panel circuit breaker and turned back on to start up again.
Note:
controller and front panel controls, each of which having an ES emergency switch, to connect a BNC cable between the cabinets for the ES connection. For 3 or more cabinets with controller, this BNC can be daisy chained using BNC T connectors.
Note:
available from CI. If lost, the ES switch must be replaced. In that case, contact AMETEK Programmable Power customer service. (service@programmablepower.com
-HF
Increases maximum output frequency to 905 Hz. Note: This option cannot be combined with
-LAN
Adds Ethernet interface (RJ45 connector) for local area network connection..
-LF
Limits maximum output frequency to 500 Hz.
-LKM
Clock and Lock system, Master. (Not available with –HF option)
-LKS
Clock and Lock system, Auxiliary. (Not available with –HF option)
-MB
Multi-box Option. Provides additional controllers in Auxiliary units of multi
cabinet configurations (MX60, MX90, MX135) to allow individual
MX45 units to be used stand
-SNK
Current Sink Option. Allows application of regenerative loads that feed energy (current, power) back into the MX output stage. The
energy fed
back is returned to the AC line (utility) feeding the MX.
_FC
This option will step the frequency ≠0.15% of program frequency
-971 for details)..
For multibox MX Systems (MX90 and up with more than one
Do not misplace the 2 keys provided, as no duplicates are
MX Series 26
-
leased, the MX must be
).
–LKM or -LKS option.
-alone.
External Accessories (External to MX chassis)
7003-416-1
Input / Output wiring junction box. Connects two to six three-phase MX45 cabinet outputs, neutral and ground to a common output terminal block housed in a metal enclosure junction box. Can also be used to connect multiple MX chassis to common AC input service. See section
for
details.
7003-424-1
Output noise filter, 3 phase + neutral. May be used to reduce output
noise of MX30 or MX45 when testing EUT’s for conducted emissions.
This is an external filter that attenuates the 250 KHz ripple frequency on the MX output by > 20 dB. The filter is rated for 125A per phase and 800 Hz. Fo Connects to MX30 or MX45 three
7003-426-1
Output fuse box. Provides added protection for MX system configurations consisting of more than 2 MX cabinets. (MX135, MX180, MX225 and MX270).
Output Parameter
MX30
MX45
MX60
MX90
MX135
Modes
Pi Controller
AC
Voltage:
Ranges (L-N):
0 -400 V
Resolution:
0.1 V
Accuracy:
± 0.25% of Full Scale / ± 1.0 Vac rms
Output Coupling
AC coupled
Power (total power for all phases, either range, at full scale voltage)
AC Mode
30 KVA
45 KVA
60 KVA
90 KVA
135 KVA
Current
Note: Current, maximum amps per phase available between 50 and 100 % of voltage range.
MX30-1
76.5 A
MX30-3, per phase
25.5 A
MX45-1
112.5 A
MX45-3, per phase
37.5 A
MX60
3, per phase 50 A
MX90
3, per phase 75 A
MX135
3,
per phase
112.5 A
Peak Current
AC Mode
MX30-1
337.5 A
MX30-3, per phase
112.5 A
MX45-1
337.5 A
MX45-3, per phase
112.5 A
MX60
3, per phase 225 A
MX90
3, per phase 225 A
MX135
3,
per phase
337.5 A
Frequency:
Range:
45 Hz – 819 Hz with –LF option: 45 Hz – 500 Hz
3.13
r multi-box configurations, one filter is required per chassis.
-phase output terminal only.
2.6.1 -HV Option Specifications
The -HV option provides an AC only output range of 0 to 400 Vac L-N. Specifications unique to the ­HV option are shown in the table below.
MX Series 27
-
-
-
-
-
-
Output Parameter
MX30
MX45
MX60
MX90
MX135
with –HF option: 45 Hz – 905 Hz (see also –HF option specification.)
MX Series 28
Current
(RMS)
Voltage (RMS)
100 200 300 400
37.5
37.5 A
-HV Range
20
Note: Output specifications apply below the Current / Voltage rating lines shown in the V/I
rating chart below.
Figure 2-7: MX30-3 Voltage / Current Rating Chart, -HV Option
Figure 2-8: MX45-3 Voltage / Current Rating Chart, -HV Option – Max. Rating.
Figure 2-9: Voltage / Current Rating Chart, -HV Option – Derated.
MX Series 29
-HF Option:
Frequency
Range:
-HF option: 16 Hz - 905 Hz
Resolution:
0.01 Hz < from 16.00 to 81.92 Hz
0.1 Hz 1 Hz
Accuracy:
± 0.01 %
±0.15 % for
Phase
Accuracy:
16 - 100 Hz: < 1.5° 100 500 81
Voltage
High Voltage Range
Maximum voltage at 905 Hz is 290 Vrms Maximum frequency at 300 Vrms is 875 Hz See
Low Voltage Range
Maximum voltage at 905 Hz is 145 Vrms Maximum frequency See
-HV Voltage Range
Maximum voltage at 905 Hz is 386 Vrms Maximum frequency at 400 Vrms is 875 Hz .
Note: If the voltage or frequency settings shown here are exceeded for any length of time (> 1 sec), the MX may shut down generating an over temperature fault to protect itself.
2.6.2 -XV Option Specifications
Consult factory for -XV option specifications.
2.6.3 -HF Option Specifications
The -HF option extends the maximum available output frequency from 819 Hz to 905 Hz. Some restrictions are in effect at this increased output frequency level.
All other specifications of the MX45 system remain unchanged if this option is installed except as noted in the table below.
> from 82.0 to 819.2 Hz
> from 820 to 905 Hz
–FC option
- 500 Hz: < 2° – 819 Hz: < 4°
9 – 905 Hz: < 5°
Figure 2-10
at 150 Vrms is 875 Hz
Figure 2-11.
MX Series 30
Figure 2-10: -HF Option Voltage Frequency Rating 300V range
Figure 2-11: -HF Option Voltage Frequency Rating 150V range
MX Series 31
2.6.4 -LF Option Specifications
The -LF option limits the maximum available output frequency to 500 Hz. All other specifications of the MX45 system remain unchanged if this option is installed.
2.6.5 WHM Option Specifications
Watt-hour measurement mode:
Accuracy:
0-6.000KW 0.01KWH + 0.1% <100 Hz
0.02KWH +0.1% 100-819 Hz
>6.000KW Times three of the above specification
Resolution:
0.001 KWH
MX Series 32
-SNK Option:
Frequency
Range:
-HF option: 16 Hz - 500 Hz
Resolution:
0.01 Hz < from 16.00 to 81.92 Hz
0.1 Hz
Accuracy:
± 0.01 %
±0.15 % for
Phase
Accuracy:
16 - 100 Hz: < 1.5° 100
Voltage
Distortion THD1:
< 1 % @ 16 - 66 Hz < 2 % @ 66
Power
Capability
Full power can be returned into MX as long as current does not exceed maximum current limit setting CONTROL screen for protection settings in REGEN mode.
Without –SNK option
MX units without the SNK will generate an warning message (Error 31) if more than 20% of available power (per phase) is regenerated by the load. It will shut off (Error 32) if the negative power reaches 30% of available power.
Programmable Output Impedance (available on MX15-1Pi, MX30-30Pi and MX45-3Pi only)
Auto-disabled
Programmable impedance is turned off as soon as a regenerative load is dete again. This is required as programmable impedance is based on delivering current which is not the case when driving a regenerative load.
Measurements
Power
Regenerated power is displayed with a negative sign to indicate direction of power flow.
2.6.6 SNK Option Specifications
The –SNK or current sink option enables the MX power source to sink current from the unit under test. This mode of operation is particularly useful when testing grid-tied products that feed energy back onto the grid. The ability of the MX to simulate the grid provides unique opportunities to test the EUT for compatibility to commonly occurring line anomalies like voltage and/or frequency fluctuations. Examples of these types of EUT are inverters (PV Solar, Wind) hybrid drive systems, regenerative breaks.
The SNK option requires special amplifiers that have a different control loop from the standard MX amplifiers. Consequently, the upper frequency limit of an MX configured with the –SNK option is 500Hz as opposed to the standard 819Hz. Also, the voltage distortion levels are slightly higher than on MX units without this option.
> from 82.0 to 500.0 Hz
–FC option
- 500 Hz: < 2°
(Resistive full load)
cted. Once turned off, it will remain off until programmed by user
- 500 Hz
for selected range. See REGENERATE
All other specifications of the MX system remain unchanged if this option is installed.
1
The distortion specification for the MX Series is valid for pure (inductance < 12 uH) resistive load conditions and using a
30 KHz LP filter on distortion meter.
MX Series 33
Output Parameter
MX30
MX45
MX60
MX90
MX135
Voltage:
Slew rate:
> 0.5 V/micro sec
Stability:
0.25 % over 24 hour period at constant line, load and temperature.
Settling time:
< 0.5 msec
Frequency:
Temperature
r 5ppm per degree C
Stability:
r 15 ppm per year
Current:
Constant Power
Operation at higher currents but constant power is possible from 80% of Voltage range (125% of max. current) declining to 100% of maximum current at 100 % of voltage range for short periods of time or at reduced ambient temperatures. (< 15 mins @ 30° C)
Note:
Acoustic Noise:
Measured at a distance of one meter. (3 ft.)
Front
63 dBA at no load to 68 dBA at full load.
Back
65 dBA at no load to 72 dBA at full load
2.7 Supplemental Specifications
Supplemental specifications are not warranted and generally reflect typical performance characteristics. These characteristics have been checked on a type test basis only and are not verified on each unit shipped. They are provided for reference only.
2.7.1 Output
coefficient:
Mode:
2.7.2 Acoustic Noise Levels
. See Figure 2-3 and Figure 2-4.
This mode requires firmware revision 0.27 or higher.
MX Series 34
MX Filter Specifications (Model 7003
Type
Low Pass Filter
Three phase WYE, four wire. (A, B, C and Neutral)
Capability
Frequency range
DC, 16 Hz - 800 Hz
Max Voltage
250 Vrms Line to Neutral / 440 Vrms L-L
Phase Current
125 Arms per phase maximum.
Impedance
Voltage drop at 800 Hz, 125 A is less than 1 Vrms.
Performance
Attenuation
20 dBuV at 250 KHz.
Physical
Enclosures type
Cooper B-Line P/N 16126 SC NK
Dimensions (W x D x H)
Unit: 16” x 12” x 6” / 406 mm x 305 mm x 152 mm Shipping: 30” x 25” x 11” / 760 mm x 635 mm x 280 mm
Weight
Net: 28 lbs / 12.7 Kg Shipping:
Operating Temp:
0° to +40q C. / +32° to +104° F.
2.7.3 Output Noise Spectrum
The MX series is a switching power supply and as such will have a certain amount of switching noise at its output. While the overall RMS noise is specified, the specific noise spectrum will differ slightly from unit to unit. The information provided in this section is for reference only.
The output noise can be reduced by using one or more external filters. A suitable filter is the P/N 7003-424-1 (Figure 2-12) available as an option. Attenuation at the 250 kHz ripple frequency is 20 dBuV. The output voltage drop at 800 Hz full load is less than 1Vrms.
Typical output noise spectrum for a standard MX45-3Pi in three phase mode operating at 400 Hz is shown in Figure 2-13 for phase A and Neutral. The same output with the use of the optional filter is shown in Figure 2-14. For connection information, refer to section 3.14.
-424-1)
MX Series 35
40 lbs / 18.2 Kg
Figure 2-12: MX output filter option schematic
MX Series 36
Figure 2-13: MX45 Output Noise 10 KHz – 1 MHz
User Manual – Rev AV AMETEK Programmable Power
MX Series 37
User Manual – Rev AV AMETEK Programmable Power
Figure 2-14: MX45 Output Noise 10 KHz - 1 MHz with optional Filter
MX Series 38
User Manual – Rev AV AMETEK Programmable Power
MX Series 39
User Manual – Rev AV AMETEK Programmable Power
3. Unpacking and Installation
3.1 Unpacking
Inspect the unit for any possible shipping damage immediately upon receipt. If damage is evident, notify the carrier. DO NOT return an instrument to the factory without prior approval. Do not destroy the packing container until the unit has been inspected for damage in shipment. If possible, retain the container (wooden crate) in the event the system ever has to be returned to the factory for either repair or upgrades
WARNING: This power source weighs approximately 1150 lbs / 522 Kg. Obtain
adequate help when moving the unit. Make sure the location (floor) in which the MX Series unit(s) will be installed can support the weight of the unit(s).
3.2 Power Requirements
The MX Series power Source has been designed to operate from a three-phase, three wire (Wye or Delta) AC input line. A protective earth connection is required as well. (PE).
Available three-phase input settings are 208 V (option -400), or 480 V
(option -480).
LL
(option -208), 230 V
LL
(option -230), 400 V
LL
LL
Figure 3-1: The MX45 Power Source
CAUTION: Do not connect 400 or 480V into a unit set for 208 or 230V unit, the result
could be a severely damaged unit. Always check the input rating on the model number tag before connecting AC input power. Consult factory if input settings have to be changed.
MX Series 40
User Manual – Rev AV AMETEK Programmable Power
3.3 Mechanical Installation
The MX's are completely self-contained power sources. They are to be used free standing on a solid surface. The units are fan cooled, drawing air in from the front and exhausting at the rear.
The front and back of each unit must be kept clear of obstruction and a 6” clearance must be
maintained to the rear. Special consideration of overall airflow characteristics and the resultant internal heat rise must be considered at all times to avoid self heating and over temperature problems.
3.4 AC Input Connections and Wiring
Three-phase Delta or Y AC input voltage of sufficient amperage (consult AC input specifications for maximum AC current per phase) is required to power the MX Series.
Note: AC power should be routed through a properly sized and rated three-phase
PROTECTIVE CIRCUIT BREAKER or similar branch circuit protection device with disconnect capability. This will protect building wiring and other circuits from possible damage or shutdown in case of a system problem. It will also facilitate removing AC input power to the MX system in case of service or reconfiguration requirements.
Note: AC input wiring and connections must conform to local electrical safety codes
that apply. Always consult a qualified electrician prior to installation of any MX System.
AC input connections are to be made directly to the input fuse block. The input fuse block is located on the lower left hand corner of the front of the MX chassis. To access the input fuse connection block, the protective front cover needs to be removed first.
CAUTION: Always disconnect any input power completely when removing
any protective cover and allow the internal capacitors to fully discharge (minimum of 15 mins) before removing any cover.) See Figure 3-2 for details.
No wiring for AC input connections is provided with the MX Series and must be provided by the end user or installer. Input wiring should be entered through the right hand side (when facing the back of the MX cabinet, see Figure 3-4) wire access opening located at the rear bottom of the MX chassis. A wire channel (marked as [2] in figure below) is provided below the input transformer to allow the input wiring to be routed to the front of the unit where the connections are to be made.
WARNING: The power source's input connection wiring gage (size)
must be sized for the maximum input current rating to ensure user safety and avoid possible power source damage, regardless of the actual output load.
MX Series 41
User Manual – Rev AV AMETEK Programmable Power
Figure 3-2: Location of AC Input Fuse Block and Chassis Ground Connection -
Front View, Access Panel Removed
Note: To comply with product safety requirements, EARTH GROUND must be connected
to the chassis of the AC power system using the ground stud located directly below the AC input fuse block. Use a Green/Yellow ground wire.
Note: DO NOT USE THE NEUTRAL CONNECTION OF A 3 PHASE Y AC POWER
CONNECTION IN PLACE OF A TRUE EARTH GROUND CONNECTION. AC power system neutrals cannot be used for protective earth ground.
The mains source must have a current rating equal to or greater than the input fuses and the input wiring must be sized to satisfy the applicable electrical codes. The front cover must be re­installed prior to use and the strain relief provisions located at the rear bottom of the unit must be used to maintain protection against hazardous conditions.
MX Series 42
User Manual – Rev AV AMETEK Programmable Power
3ø
AC Line
Input
PROTECTIVE
GROUND
EXTERNAL
CIRCUIT
BREAKER
AC MAINS
3 PHASE
MX Series 43
Figure 3-3: MX Series AC Input Connection Diagram (Rear view)
User Manual – Rev AV AMETEK Programmable Power
Nominal Line
Load Current
ne
Wire Gauge (US)
480 V
75 A
RMS
6 AWG
26.24
13.3
400 V
90 A
RMS
4 AWG
41.74
21.1
230 V
157 A
RMS
2 AWG
66.36
33.6
208 V
175 A
RMS
1 AWG
83.69
42.4
The input power cables and protective circuit breaker used must be large enough to handle the input current and input voltage of the power source and must conform to local electrical codes. Consult a qualified electrician prior to installation. Table 3-1 shows the size of the cables that may be used per MX cabinet. Note that wires must be sized to accommodate the worst-case maximum current that may occur under low line conditions. Local electrical codes may also require different wire types and sizes. These ratings should also be used when selecting a circuit breaker or equivalent disconnect device.
Cable lengths must not exceed twenty-five (25) feet. For lengths greater than 25 feet, calculate the voltage drop from the following formula:
2 X DISTANCE X CABLE RESISTANCE PER FT. X CURRENT = VOLT DROP
Table 3-1: Suggested Input Wiring Sizes for each MX Cabinet *
Voltage
@ low li
Circular Mils
(Kcmils)
Metric (mm2)
* Using high temperature rated wire. Always consult the National Electrical Code and/or local code regulations for proper rating and size of wire cabling prior to installation.
CAUTION: Capacitors in the power source may hold a hazardous electrical charge
even if the power source has been disconnected from the mains supply. Allow capacitors to discharge to a safe voltage before touching exposed pins of mains supply connectors. Power modules need at least 15 Minutes to discharge to safe levels before they can be removed.
3.5 AC On/Off Circuit Breaker on MX Series front panel.
It is important to understand the purpose and operation of the On/Off circuit breaker of the MX Series located on the lower left side of the front panel. This is a 2A rated breaker that is used to engage and protect the LV Power supply of the MX chassis only. The LV Power supply provides DC bias power to the entire MX system. The AC input power is routed through a set of three AC line fuses (F1, F2 and F3) located in the lower left bottom corner of the MX. (See Figure 3-2 for fuse locations). These fuses protect the three MX amplifiers and the AC input transformer from excessive input currents. The AC input power is connected to the input transformer through a large three-pole contactor. Removing AC power to the LV Power Supply by opening the front panel circuit breaker (moving the lever to the down (OFF) position) will cause this contactor to loose its coil voltage and will result in it opening and disconnecting the input transformer and amplifier from AC mains input.
Note: If any MX system failure has occurred on any part of the MX system, AC input
power must be removed immediately and not restored until the system has been inspected by a qualifier service technician. Always turn off the On/Off Circuit breaker before re-applying AC input power.
MX Series 44
User Manual – Rev AV AMETEK Programmable Power
CAUTION: The AC input fuses can only be checked is the MX unit is completely
de-energized and disconnected from any AC power input.
Note: Under no circumstances should AC input power be applied if one or more of the
AC input line fuses have failed and opened up.
MX Series 45
Figure 3-4: Rear Panel
User Manual – Rev AV AMETEK Programmable Power
3.6 Output Connections
3.6.1 Output Wiring
The output terminal blocks, TB1A and TB1B are located at the front of the unit behind the bottom access panel. See Figure 3-2 for details.
Three phase output line connections are made to terminal block TB1A. The phase outputs are labeled A, B and C. The neutral connection (if needed) can be made on terminal block TB1B. If the model used is an MX30-1, MX30-3Pi, MX45-1 or MX45-3Pi with single-phase capability, the single phase A output connection is available on TB1B as well. Note that the neutral for either single or three-phase mode is always located on TB1B. The neutral connection is always required for single-phase output mode on an MX30-3Pi or MX45-3Pi and may be used if needed for the EUT for all three-phase output modes.
The external sense inputs allow the power system output voltages to be monitored directly at the load and must be connected at TB2 when the sense is programmed for external. The external sense input does not have to be connected when Internal Sense is programmed. The external sense wires are to be connected to TB2 on the rear panel and should be run using a twisted shielded cable. See Figure 3-4 for location of TB2 and Figure 3-5 for shield connection detail.
Note: For External Sense connection, a shielded cable MUST be used with the shield
connected to chassis ground at the Ext. Sense connector. (See Figure 3-5).
External sense is recommended for multi-cabinet systems is the output wiring from the cabinets to the common output terminal block supplied is not of equal length.
Figure 3-5: External sense cable shield connection to chassis ground
Note: The output of the power source is isolated from the input line and floating with
respect to chassis ground. If needed, either side (HI or LO) may be grounded.
If the EUT changes frequently, you may want to consider using some quick disconnect scheme external to the MX so it will not be necessary to power down the MX and remove the front covers. This can take the form of a panel-mounted socket (1 or 3 phase) of sufficient current and voltage rating. (Not supplied with MX)
MX Series 46
User Manual – Rev AV AMETEK Programmable Power
Wire Gauge (US)
Circular Mils
Metric (mm2)
65 AMPS
6 AWG
26.24
13.3
130 AMPS
4 AWG
41.74
21.1
260 AMPS
1/0 AWG
105.6
53.5
400 AMPS
2/0 AWG
133.1
67.4
The output power cables must be large enough to prevent a total voltage drop exceeding 1% of the rated output voltage between the power source and the load. Table 3-2 shows the size of the cables that may be used. Note that wires must be sized to accommodate the maximum current that is available. This may be a function of the voltage range and phase mode on some MX models. If the MX has more than one output voltage range, size the wires for the lowest available voltage range as the currents will be highest in that range.
Cable lengths must not exceed twenty-five (25) feet. For lengths greater than 25 feet, calculate the voltage drop from the following formula:
2 X DISTANCE X CABLE RESISTANCE PER FT. X CURRENT = VOLT DROP
Table 3-2: Suggested Output Wiring Sizes *
Load Current
(kcmils)
Note: Use high temperature rated wire. Always consult the National Electrical Code
and/or local code regulations for proper rating and size of wire cabling prior to installation.
MX Series 47
User Manual – Rev AV AMETEK Programmable Power
Connector
Terminal
Mode
Output
TB1A
1
3 Phase
Phase A
2
3 Phase
Phase B 3
3 Phase
Phase C
TB1B
1
1 Phase
Phase A 2
1 and 3 Phase
Neutral
Output Terminal Blocks
The MX30-3, MX30-3Pi, MX45-3 and MX45-3Pi have two output terminal blocks, TB1A and TB1B. The MX45-1 only has one output terminal block, TB1B. The terminal blocks are large enough to accommodate the recommended wire gauge sizes shown in Table 3-2. The terminal blocks are located in the lower right corner on the front of the unit. The front panel needs to be removed to access these terminal blocks.
CAUTION: REMOVE ALL INPUT POWER TO THE MX BEFORE REMOVING
THE FRONT PANEL.
The correct standard size Allen wrenches for connecting output wiring to TB1A and/or TB1B are supplied with each MX in the ship kit. Look for a brown envelope. If the correct tools cannot be found, contact AMETEK Programmable Power customer service at
service@programmablepower.com
.
Terminal block TB1B always provides the output neutral connection, regardless of the phase mode (1 or 3 phase output mode).
In single-phase mode, phase A output is provided through terminal 1 of TB1B.
In three-phase mode, phase A, B and C outputs are provided trough terminals 1, 2 and 3 of TB1A respectively.
Table 3-3: Output Terminal connections.
MX Series 48
User Manual – Rev AV AMETEK Programmable Power
Figure 3-6: Location of Output Terminals (Front view)
3.6 .2 MX45-1, MX30-1, MX30-3Pi and MX45-3Pi 1 ø mode Output Wiring Diagram
Figure 3-7 shows the required output connections for a MX30-1, MX45-1, MX30-3Pi or MX45-3Pi in single-phase mode output configuration (rear-view perspective). See section 3.6.3 for the MX30-3Pi or MX45-3Pi in three-phase mode.
Always disconnect all input power from the MX before removing the front panel cover that provides access to the input and output terminal connections. Route the wires from the back of the MX to the front in the provided cable guides.
MX Series 49
User Manual – Rev AV AMETEK Programmable Power
MX Series 50
Figure 3-7: MX30-1 / MX45-1 Output Wiring (Rear view)
User Manual – Rev AV AMETEK Programmable Power
3.6 .3 MX30-3, MX45-3, MX30-3Pi and MX45-3Pi 3ø mode Output Wiring Diagram
Figure 3-8 shows the required output connections for a MX30-3, MX45-3 three phase or an MX30-3Pi and MX45-3Pi in three-phase mode output configuration (rear-view perspective). See section 3.6.2 for the MX30-3Pi or MX45-3Pi in single-phase mode.
Always disconnect all input power from the MX before removing the front panel cover that provides access to the input and output terminal connections. Route the wires from the back of the MX to the front in the provided cable guides.
MX Series 51
Figure 3-8: MX30-3 / MX45-3 Output Wiring (Rear view)
MX90 and MX135 systems are shipped with external output terminal blocks that enable the output wiring from two or three chassis to be
combined, providing a single point of connection to the EUT. These blocks are not enclosed however.
output terminal connections. Route the wires from the back of the MX30 or MX45 chassis to the front in the provided cable guides. MX60,
Figure 3-9 shows the required output connections for a MX60-3 or MX90-3 three phase output configuration (rear-view perspective).
Always disconnect all input power from the MX60 or MX90 before removing the front panel cover that provides access to the input and
User Manual – Rev AV AMETEK Programmable Power
3.6.4 MX60 or MX90 Output Wiring Diagram
Figure 3-9:MX60, MX60-MB, MX90 or MX90-MB Output Wiring (Rear view)
MX Series 52
User Manual – Rev AV AMETEK Programmable Power
Figure 3-10: Two MX's in Clock and Lock mode Output Wiring (Rear view)
MX Series 53
Figure 3-11 shows the required output connections for a MX135-3Pi or MX135-3Pi-MB three phase output configuration (rear-view
perspective). Always disconnect all input power from the MX135 before removing the front panel cover that provides access to the input
and output terminal connections. Route the wires from the back of the MX45 chassis to the front in the provided cable guides. Note that
the master is shown in the center in this drawing. MX60, MX90 and MX135 systems are shipped with external output terminal blocks that
enable the output wiring from two or three chassis to be combined, providing a single point of connection to the EUT. These blocks are not
enclosed however.
User Manual – Rev AV AMETEK Programmable Power
3.6.5 MX135 Output Wiring Diagram
MX Series 54
User Manual – Rev AV AMETEK Programmable Power
Figure 3-11: MX135 or MX135-MB Output Wiring (Rear view)
MX Series 55
User Manual – Rev AV AMETEK Programmable Power
Figure 3-12: Three MX's in Clock and Lock mode - Output Wiring (Rear view)
MX Series 56
Figure 3-11 shows the required output connections for a MX180-3Pi through MX270-3Pi three phase output configuration (rear-view
complete MX270-3Pi configuration is shown.
Always disconnect all input power from the MX180, MX225 or MX270 before removing the front panel cover that provides access to the
perspective). For MX180, only 4 cabinets are used and for MX225 only 5 but otherwise the wiring diagrams are the same so only the
input and output terminal connections. Route the wires from the back of the MX45 chassis to the front in the provided cable guides.
For any of these system configurations, it is recommended to use the optional wiring junction box (P/N 7003-416-1). See section 3.13 for
details. All output wires must be of equal length so it is advisable to place the master unit at or near the physical center of the set of units.
User Manual – Rev AV AMETEK Programmable Power
3.6.6 MX180, MX225, and MX270 Output Wiring Diagram
MX Series 57
User Manual – Rev AV AMETEK Programmable Power
Figure 3-13: MX180, MX225 or MX270 Output Wiring (Rear view)
MX Series 58
User Manual – Rev AV AMETEK Programmable Power
3.6.7 Multi-Chassis Output Connections
If two or more MX chassis are used to form a single power system, the outputs of all chassis need to be combined (paralleled by phase). This can be done directly at the EUT if convenient or using the provided heavy-duty terminal blocks. Two blocks are provided with multi-chassis MX systems, one 2-position block and one 3-position block. These blocks allow up to four wires to be combined into one larger wire gauge size wire. The outputs of the 2 or 3 MX chassis are connected on one side of these blocks (Phase A,B and C into the 3 position terminal and the neutral into the 2 position terminal.). The EUT can be connected to the other side. Note that the wire size to the EUT should be sized up to accommodate the double or triple currents per phase.
The dimensions of the supplied terminal blocks are shown in Figure 3-14.
Note that even if the EUT is a three-phase delta input, the output neutrals of the MX chassis' must be connected together for the system to work correctly.
MX Series 59
Figure 3-14: Ship kit Terminal Block dimensions
User Manual – Rev AV AMETEK Programmable Power
Description
OUTP:
N/C
N/C
N/C
COM:
OT:
N/C
CLB:
CSA:
CSC:
FLT A:
FLT C:
XFMR:
PARALLEL:
INPUT ON:
A ERR LO:
B ERR HI:
N/C
C ERR LO:
3.7 Connectors - Rear Panel
A number of connectors are located along the top rear covers. These connectors are in a recessed area to protect them from shipment damage.
3.7.1 System Interface
WARNING: The system interface connectors are for use with AMETEK Programmable
Power supplied cables, and only between California Instruments equipment.
The Clock and Lock BNC connectors located on the rear panel are used to synchronize and control the phase shift between the three outputs when 3 units are operating as a three-phase clock and lock system. This mode of operation requires the -LKM (on Master unit) and -LKS (on Auxiliary units) options. See paragraph 3.10 for more information on this mode of operation.
A set of two identical System Interface connectors, P8 and P9 is located on the rear panel of each MX chassis. The system interface is used to connect the multiple MX30 or MX45 power sources in a Master/Auxiliary configuration to create MX60, MX90 or MX135 models. In these configurations, only the Master MX30 or MX45 power source has a built-in controller and front panel.
The same connector is also used to control the optional OMNI-3-75 Reference Impedance.
P8 / P9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Over temperature. Indicates over temperature condition.
Current Limit B. Programmed current limit reference for phase B
Current Sum Phase A
Output ON. Controls state of output relay
Common. Signal return.
Current Sum Phase C
Amplifier Fault Phase A
Amplifier Fault Phase C
Optional voltage range select. (-HV or -XV option)
Parallel operation control.
Input power status
Error Signal Phase A, low
Error Signal Phase B, high
Error Signal Phase C, Low
MX Series 60
User Manual – Rev AV AMETEK Programmable Power
Description
300 VRNG:
COM:
/REM OFF:
COM:
FLK/BYP:
/OVL:
CLA:
CLC:
CSB:
N/C
FLT B:
N/C
DC:
INP OFF:
A ERR HI:
N/C
B ERR LO:
C ERR HI:
Description
RPV HI.
RPV Lo.
EXT SYNC HI
EXT SYNC Lo
RI:
RI:
P8 / P9
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
300 V AC Range Select
Common. Signal return.
Remote Off Control not
Common. Signal return
Flicker / Bypass OMNI control
Overload not
Current Limit A. Programmed current limit reference for phase A
Current Limit C. Programmed current limit reference for phase C
Current Sum Phase B.
Amplifier Fault Phase B
DC mode control
Input power control
Error Signal Phase A, high
Error Signal Phase B, low
Error Signal Phase C, high
3.7.2 Analog Input Connector
Input screw-terminal strip. Functions are called out on rear panel decal. Table shows connections from left to right when standing at the rear of the MX cabinet.
Pin
1
2
3
4
5
6
INPUT: Remote Inhibit. (See paragraph 3.12.)
INPUT: return.
Table 3-4: System Interface Connectors
INPUT: Analog input for External Modulation
INPUT: return.
INPUT: Analog input for external sync mode.
INPUT: return.
Table 3-5: Analog Interface Connector
MX Series 61
User Manual – Rev AV AMETEK Programmable Power
Description
Trigger Input (TTL input)
Trigger Output (TTL output) (Same signal connection as Function Strobe. Some units
may not have this output connected. If you don’t
get an output trigger on this BNC, use
the Function Strobe BNC instead.)
Function Strobe (TTL output) (Same signal connection as Trigger Output)
Clock (TTL output on Master / TTL input on Auxiliary)
Lock (TTL output on Master / TTL input on Auxil
Emergency Shut off inter connect. Installed only on
Description
Phase A sense
Phase B sense
Phase C sense
Neutral sense
3.7.3 BNC Connectors
BNC connectors. Functions are called out on rear panel decal. Table shows connections from left to right when standing at the rear of the MX cabinet.
Table 3-6: BNC Connectors
BNC
1
2
3
4
5
6
3.7.4 External Sense Connector
Pin
1
2
3
4
iary)
–MB systems with –ES Option.
Table 3-7: BNC Connectors
Table 3-8: External Sense Connector
MX Series 62
User Manual – Rev AV AMETEK Programmable Power
Name
Direction
N/C
TxD Output
RxD Input
N/C
Common
Common
N/C
CTS Input
RTS Output
N/C
Name
Direction
N/C
RxD, Receive data
Output
TxD. Transmit data
Input
DTR, Data Terminal Ready
DTR
Common
Common
N/C N/C
RTS, Request to Send
Output
N/C N/C
N/C N/C
3.7.5 RS232C Serial Interface Connector
An RS232 serial interface connector is located on the rear panel on all models. Note that two versions of the RS232 exist on the MX model series depending on the age of the unit. Older models can be identified by the fact that they will not have a USB interface.
Pin
1
2
3
4
5
6
7
8
9
Pin
1
2
3
4
5
6
7
8
9
Table 3-9: RS232 Connector pin out – MX with RS232 and USB.
, Data Terminal Ready
Table 3-10: RS232C Connector pin out – MX with RS232 but no USB
On MX models without a USB interface, a special RS232 cable is required to connect to a PC. With these MX models, a special 13 foot / 4 meter long cable is supplied in the MX Series ship­kit. The wiring diagram for this cable is shown below in case a longer cable has to be constructed. Alternatively, a generic straight thru DB9 male to DB9 female cable can be used to extend the supplied cable.
MX models that have both RS232 and USB interface use a more common straight through DB9 male to DB9 female serial cable, which is supplied in the MX ship kit for these models.
MX Series 63
User Manual – Rev AV AMETEK Programmable Power
DB-9 PC
Pin
1 2 3 4 5 6 7 8 9
Figure 3-15: RS232C Cable for PC Connection wiring diagram – MX without USB.
DB-9 AC Source
Pin
Direction
1
output
2
input
3
output
4
output
5
-
6
input
7
-
8
-
9
output
Description reserved Receive data(RxD) Transmit dat a (TxD) Dat a Terminal Ready (DTR) Signal Ground Data Set Ready (DSR) no connect no connect reserved
MX Series 64
User Manual – Rev AV AMETEK Programmable Power
Pin
Name
Description
1
VBUS
+5 VDC 2 D-
Data - 3 D+
Data +
4
GND
Ground
3.7.6 USB Interface
A standard USB Series B device connector is located on the rear panel for remote control. A standard USB cable between the AC Source and a PC or USB Hub may be used.
Note: Use of the USB port to control more than one power source from a single PC is
not recommended, as communication may not be reliable. Use GPIB interface for multiple power source control.
Figure 3-16: USB Connector pin orientation.
Table 3-11: USB Connector pin out.
MX Series 65
User Manual – Rev AV AMETEK Programmable Power
Pin
Ethernet TPE 10BaseT/100BastT/1000BaseT
EIA/TIA 568A
EIA/TIA 568B Crossover
1
Transmit/Receive Data 0 +
White with green stripe
White with orange stripe
2
Transmit/Receive Data 0 -
Green with white stripe or solid green
Orange with white stripe or solid orange
3
Transmit/Receive Data 1 +
White with orange stripe
White with green stripe
4
Transmit/Receive Data 2 +
Blue with white stripe or solid blue
Blue with white stripe or solid blue
5
Transmit/Receive Data 2 -
White with blue stripe
White with blue stripe
6
Transmit/Receive Data 1 -
Orange with white stripe or solid orange
Green with white stripe or solid
7
Transmit/Receive Data 3 +
White with brown stripe or solid brown
White with brown stripe or solid brown
8
Transmit/Receive Data 3 -
Brown with white stripe or solid brown.
Brown with white stripe or solid brown
3.7.7 LAN Interface – RJ45
An optional RJ45 Ethernet 10BaseT connector is located on the rear panel for remote control. A standard RJ45 UTP patch cord between the AC Source and a network Hub may be used to connect the AC source to a LAN. For direct connection to a PC LAN card, a crossover RJ45 cable is required. Consult your network administrator for directions on connecting the AC source to any corporate LAN.
If the –LAN Ethernet interface option is present, the MAC Address (Media Access Control) of the Ethernet port is printed on the serial tag of the power source. The serial tag is located on the rear panel of the unit.
For information on how to set up a network connection or a direct PC connection using the LAN interface, refer to the MX Series Programming Manual P/N 7003-961 distributed in Adobe PDF format on CD ROM CIC496.
LAN
Table 3-12: RJ45 LAN Connector pin out.
MX Series 66
User Manual – Rev AV AMETEK Programmable Power
3.7.8 ES Option - Emergency Switch Interconnect for –MB systems – BNC
An optional BNC connector is located on the rear panel for connecting multiple chassis, each having a controller and an emergency shut off switch (-ES option). This connection is required to create an OR-ed operation of more than one –ES switch.
This connector is only present on MX-MB systems with the –ES option. If present, a suitable BNC cable should be used to connect the emergency shut off signal between chassis. This connector is labeled as follows:
"Caution: BNC cable must be connected for system Emergency Shut-Down"
See figure below for an illustration of a MX90-MB-ES interconnect.
Figure 3-17: Emergency Switch (ES Option) shut off inter connect on -MB systems.
MX Series 67
User Manual – Rev AV AMETEK Programmable Power
3.8 Multiple Cabinet System Configurations (incl. –MB)
Multi-cabinet MX models consist of two or three autonomous or Auxiliary MX45-3Pi units. Auxiliary units do not have their own controller and are identified easily by their blank front panel (except for status indicator LEDs). Master units each have their own controller but can be configured as auxiliary units by disconnecting the ribbon cable marked J17 between the controller and the system interface board (P/N 7003-700-1 or P/N 7003-715-1). This disables the controller and allows the MX45 to operate as an Auxiliary unit. (Requires removal of the top cover). See section 4.2.11.5 for information on setting the SYSTEM field in the configuration menu when changing configurations on MX systems with the –MB (Multi-box) option.
When used as a multi-cabinet system for higher power applications, the controllers in the unit(s) acting as the auxiliary to the master are either disabled or not present. For normal system configurations such as MX90-3Pi, the auxiliary unit will not have a controller or front panel and will have been factory configured for auxiliary operation.
For –MB systems such as MX90-3Pi-MB, the controller in the auxiliary unit must be disabled using S1. The SYSTEM field in the master unit controllers CONFIGURATION SETUP 3 screen must be set to the correct system configuration setting as well. The SYSTEM field for the controller in the auxiliary unit must be set to AUX if it is used as an auxiliary unit. See section
4.2.11.5.
Note: New SYSTEM field configuration settings do not take effect until power is cycled.
In addition to disabling the controller if present (as described above), the DIP switch (S1) located on the GPIB / RS232C / IO assembly in the auxiliary cabinets. (Requires removal of the top cover). The correct switch settings are shown below. (shown set for Master cabinet). Note that all units must be powered down before reconfiguring. Also, the output wiring must be changed to accommodate the new configuration.
Note: If the units being re-configured for multi-cabinet operation were not factory
configured this way, it may be necessary to balance the amplifiers by adjusting their gain. Refer to section 6.4 for details on Amplifier balancing.
When used as a multi-cabinet system, the system interface cables must be connected between the master and the auxiliary cabinets.
Note: If the –MB system has the –ES emergency shut off switch option, it is required to
connect the ES BNC’s between master chassis. See section 3.7.8.
MX Series 68
User Manual – Rev AV AMETEK Programmable Power
MODE
MAST ER
AU X
SINGLE-CAB MU LTI -C AB
1 2 3 4
S1
Top View from back of MX
Interface Board
Detail view DIP S1
chassis
Figure 3-18: Multi-Cabinet DIP Switch Location and Setting
MX Series 69
User Manual – Rev AV AMETEK Programmable Power
3.9 Multiple Cabinet Power Up/Down Procedures
For all multi-cabinet MX Series configurations (MX60, MX90, MX135, MX180, MX225 and MX270), the following Power Up (Turn on) and Power Down (Turn off) procedures should be observed.
3.9.1 Power Up Procedure
Follow these steps:
1. Turn on each of the Auxiliary units using the front panel circuit breaker, one at a time. The exact order for turning on the auxiliary units is not important. Note that the bias supplies of each of the auxiliary cabinets will power up but not the actual amplifiers. This is because the auxiliary units are waiting for the turn on signal from the master unit.
2. Once all auxiliary units are on, turn on the MASTER unit LAST using the front panel circuit breaker. The master unit will go through an initialization process and power up itself plus the auxiliary units.
3. Allow 20 to 30 seconds for the turn on sequence to complete before attempting to communicate with the system.
3.9.2 Power Down Procedure
The power-down / shutdown sequence for the system is the reverse of the power-up / turn-on sequence. This means the MASTER unit is turned off FIRST. Once the MASTER shuts down, all auxiliary units’ main AC input power contactors will open up automatically. They still need to be turned off individually using the front panel circuit breaker. This will shut down their bias supplies as well.
Follow these steps:
1. Disconnect the EUT by opening the MX output relay. Use the Output On/Off button on the master unit front panel or send the “OUTPUT 0” command over the bus to do so.
2. Turn off the MASTER unit FIRST using the front panel circuit breaker. The master unit will disengage the main AC power input contactors of all auxiliary units at this time.
3. Next, turn off each of the Auxiliary units using the front panel circuit breaker, one at a time. The exact order for turning off the auxiliary units is not important.
MX Series 70
User Manual – Rev AV AMETEK Programmable Power
CONFIGURATION 2 Field
Parameter
Description
CLK/LOC
N/A
Stand alone MX or MX-LKM clock and lock master. Frequency mode is set to either INT (internal = default) or SYNC (external sync).
ON
Auxiliary MX. Frequency mode selection is
INT (internal = for stand alone use) or EXT (external for Clock and Lock mode operation.)
3.10 Clock and Lock Configurations
The MX Series may optionally be equipped for clock and lock mode of operation. This mode is a special form of Master/Auxiliary, which requires each chassis to have its controller. As such, it is possible to create 2, 3, 6 or 9 phase power systems using 2 to 3 MX chassis. For most 2 or 3 phase configurations, the normal multi-box mode of operation as described in section 3.8 is recommended as it provides a single controller (and GPIB/RS232 control interface).
In a clock and lock configuration, each unit has its own front panel controls (as well as individual GPIB and RS232C interfaces) for operating the supply but the output frequency of the auxiliary unit(s) (-LKS option) is synchronized (locked) tot he Master MX unit (-LKM).
This mode of operation requires that one MX has the -LKM (Lock Master) option and one or two MX units have the -LKS (Lock auxiliary) option.
3.10.1 Clock/Lock Configuration Settings
Clock and lock configuration. settings for -LKM and -LKS equipped MX's are set at the factory at the time of shipment and cannot be changed. To check the configuration settings for an MX, select the UTILITY2, CONFIGURATION screen. In the configuration screen, the CLK/LOC entry determines if the unit is a Master or Auxiliary as follows:
Table 3-13: Clock and Lock Configuration settings
Note that the actual mode of operation of a Clock/Lock MX-LKM auxiliary unit is determined by the Clock mode set in the PROGRAM2 screen. For clock and lock mode of operation, the master is set to INT and the Auxiliary to EXT.
MX Series 71
User Manual – Rev AV AMETEK Programmable Power
INITIAL SETUP 3 Field
Parameter
Description
CLK/LOC
STAND
Normal stand alone mode of operation. For standard MX power source with
no clock and
lock mode of operation.
MASTER
For master (-LKM) power source in clock and lock mode of operation.
AUX
For auxiliary (-LKS) power source in clock and lock mode of operation. Powers up with clock mode set to external.
3.10.2 Clock/Lock Initialization Settings
The mode of operation of the MX-LKS auxiliary unit is determined by the Clock mode set in the PROGRAM2 screen. Since most clock and lock systems are permanently used in this configuration, the clock mode can be set to EXT (External) at power on by using the INITIAL SETUP3 screen.
Available initial settings and their relationship to the Clock and Lock mode of operation are shown in the table below.
Table 3-14: Clock and Lock Initialization settings
3.10.3 Clock/Lock and External Sync Mode
Note that an MX-LKM auxiliary unit is factory configured to operate in Clock and Lock mode when EXT clock mode is selected in the PROGRAM2 screen. This means that a MX-LKS cannot be used in normal external sync mode. However, the MX-LKM master unit can be operated in external sync mode. Note: External sync mode is not available with the FC
option.
Furthermore, since the MX-LKM master unit is factory set for Master mode of operation, it in turn cannot be used as an Auxiliary source in a clock and lock configuration.
3.10.4 Remote Programming of Clock and Lock systems
Since clock and lock systems have multiple autonomous controllers that are synchronized in frequency, remote programming of these systems requires that the application program deals with all MX controllers. This often precludes the use of RS232C as generally not enough serial ports are available. The use of GPIB instead also offers the advantage of using the Group Execute Trigger (GET) capability to effect output changes on all phases (MX's) simultaneously which is otherwise difficult to do.
To set up a GPIB remote controlled clock and lock systems, the GPIB addresses for the individual MX's must be set to different address values in the UTILITY1, GPIB/RS232 SETUP screen.
MX Series 72
User Manual – Rev AV AMETEK Programmable Power
Note: This mode of operation is not supported by the MXGUI Windows software
supplied with each MX unit.
MX Series 73
User Manual – Rev AV AMETEK Programmable Power
3.11 Basic Initial Functional Test
CAUTION: Work carefully when performing these tests; hazardous voltages
are present on the input and output during this test.
Refer to Figure 3-19 for the required functional test set up. Proceed as follows to perform a basic function check of the power system:
1. Verify the correct AC line input rating on the nameplate of the MX unit(s) and make sure the correct three-phase line voltage is wired to the input of the MX before applying input power.
2. Connect a suitable resistive or other type load to the output of the MX. The load resistance value will depend on the voltage range you plan to check. Make sure the power resistor has sufficient power dissipation capability - up to 15 KW for full load test on one phase of MX45-3 or 10 KW for full load test on one phase of M30-3Pi - and that the load used does not exceed the maximum power rating of the MX. For three phase configurations, this test can be performed on one phase at a time if needed.
3. Connect an oscilloscope and DMM / voltmeter to the AC source output. Set both for AC mode.
4. If the correct voltage is present, turn on the MX unit(s) by closing the On/Off circuit breaker on the front panel. For multi-cabinet systems, turn on the auxiliary unit first and wait for them to cycle on, then turn on the master unit.
5. If the MX has more than one available output voltage range, go to the PROGRAM 1 screen and select the desired voltage range. The output mode can be set from the PROGRAM 2 screen (use the MORE soft key or press the PROGR function key again). Select AC mode.
6. Set the output voltage to 0 volt and close the output relay with the OUTPUT ON/OFF button. There should be little or no output although the DMM may show a noise level, especially if the DMM is in auto ranging mode.
7. Move the cursor to the VOLTAGE field in the PROGRAM 1 screen and either use the keyboard to program a small voltage (20 VAC) or slew the voltage up slowly with the knob. Observe the DMM reading. The reading should track the programmed voltage.
8. Also monitor the scope. The output should be a sinusoidal voltage waveform.
9. If the output tracks, increase the voltage till you reach 80 % of the voltage range or more. Check the output voltage reading and waveform.
10. Select the MEASUREMENT 1 screen by pressing the MEAS button. The output voltage, current and power will be displayed. For three phase configurations, use the PHASE button to select the øABC display mode. This will show the voltage, current and power for all three phases. If all phases are loaded equally, the same current and power should be visible for all three unless the voltages are not programmed to the same level. If only one phase is loaded, current and power will only be shown for the loaded phase.
MX Series 74
User Manual – Rev AV AMETEK Programmable Power
AC Line
Power
Resistor
15 kW
DMM
Scope
3ø
Input
Connect
A, B or C
(Rear view)
In the unlikely event the power source does not pass the functional test, refer to the calibration procedure in Section 6 or call California Instrument’s customer satisfaction department for further assistance.
MX Series 75
Figure 3-19: Functional Test Setup.
User Manual – Rev AV AMETEK Programmable Power
MODE
OPERATION
LATCHING
A TTL low at the RI input latches the output in the protection shutdown state. This state can only be cleared by sending a OUTPut:PROTection:CLEar command over the bus.
LIVE
The output state follows the state of the RI input. A TTL low or contact closure at the RI input turns the output off; a TTL high or open contact turns the output on. This mode is equivalent to using the Output On/Off button on the front panel. Default mode. Units are shipped in this mode.
OFF The instrument ignores the RI input.
3.12 Remote Inhibit / Remote Shutdown
It may be necessary to provide a remote shutdown of the AC or DC output of the MX. The external remote inhibit input may be used for this purpose (RI). This input is also referred to as remote shutdown.
The default mode of operation for the RI input is a contact closure between pins 5 and 6 (return) of the rear panel screw-terminal strip. This will open the output relay of the MX.
If the firmware revision of the MX is 0.28 or higher, it is possible to reverse the polarity of the RI input. This requires the use of the following bus command:
OUTPut:RI[:LEVel] HIGH /* Sets RI polarity to active high.
OUTPut:RI[:LEVel] LOW /* Sets RI polarity to active low (Factory default)
The remote control interface must be used to change this setting. Once set, the polarity setting remains in effect. On units with firmware rev 0.27 or lower, this input level mode selection is not available.
MX Series I
When set to HIGH, an active low TTL level or a contact closure is required to enable the output relay of the MX. Opening the contact or removing the low input signal will cause the output relay to open.
MX Series II
The way the MX responds to a remote inhibit event can be programmed over the remote control interface using the OUTP:RI:MODE command. See 7003-961 programming manual for details on changing modes. The mode set is retained at power off and recalled at power up so stays in effect till changed again over the bus.
The following modes are supported.
Table 3-15: Remote Inhibit Mode Settings
NOTE: When using the Remote Inhibit input, it will be necessary to disconnect any RI
connection to the MX master unit when turning on the MX master unit. During initialization, the RI connection must be OPEN
or initialization will be halted with
the message WARING FOR AUXILIARY displayed on the LCD screen.
MX Series 76
User Manual – Rev AV AMETEK Programmable Power
W x L x H Chassis
12.125 “ x 16.125” x 4.125”
308 x 410 x 105 mm
Feet height:
0.875
22 mm
Strain relief hole size:
1.5” diameter
38 mm diameter
3.13 Junction Box Accessory
An optional wiring junction box (P/N 7003-416-1) is available which may be used to connect the outputs of 2 to 6 MX cabinets together. The junction box also has a protective ground connection, which MUST be connected to a suitable protective earth ground.
Each junction box has four sets of terminals for phase A, phase B, phase C and Neutral. Each terminal is lined up with a strain relief on each side. The outputs from the MX45 cabinets connect
to the “MX SYSTEM OUTPUT” side of these terminal blocks. The load can be connected to the “LOAD”. Note that the wiring is not supplied with the system and must be provided by the end
user. The wire gauge of the load connection must be sized to handle the maximum current in the low voltage range of operation.
The “MX SYSTEM OUTPUT” side of the terminal block will accept up to 8 wires. If the external
sense connection is made at the junction box, one of these can be used to connect the sense wiring.
Note: Do not swap output load wires or sense wires between phases, as damage to the system will result.
The “LOAD” side will accept 2 wires. The wire size range shown in Figure 3-20 refers to mechanical compatibility of terminal block only. This information does not reflect required wire size. The wire sizes accepted by the terminal blocks of the junction box on each side are shown in Figure 3-20.
Dimensions 7003-416-1:
MX Series 77
Figure 3-20: 7003-416-1 Output Junction Box
User Manual – Rev AV AMETEK Programmable Power
W x L x H Chassis
12.125 “ x 16.125” x 4.125”
308 x 410 x 105 mm
Feet height:
0.875
22 mm
Strain relief hole size:
1.5” diameter
38 mm diameter
3.14 Output Filter Box Accessory
An optional output filter box (P/N 7003-424-1) is available which may be used reduce the amount of ripple and noise present at the output of the MX30/45-3Pi.
The filter must be connected between the three-phase output of the MX30/45 and the unit under test. To access the connection terminal blocks, the top cover of the filter case must be removed.
Note: Make sure all power is off when connecting the filter accessory.
The output of the MX30/45 is connected to the input side of the filter. Use terminal blocks TB1A (phases A and B) and TB1B (phase C and neutral) as indicated in Figure 3-21. The load can be connected to the load side of the filter box using terminal blocks TB2A and TB2B. Do not swap phases through the filter.
To compensate for voltage drop across the filter, the external sense connections can be made at the load (load side of the filter).
Note: The filter box chassis must be connected to earth ground.
It is not recommended to use the ground connection on the MX30//45 itself for this purpose but rather a ground point at the AC service to the MX30/45.
Dimensions 7003-424-1:
MX Series 78
Figure 3-21: 7003-424-1 Output noise filter box.
User Manual – Rev AV AMETEK Programmable Power
W x L x H Chassis
12.125 “ x 16.125” x 4.125”
308 x 410 x 105 mm
Feet height:
0.875
22 mm
Strain relief hole size:
1.5” diameter
38 mm diameter
3.15 Fuse Box Accessory
An Output Fuse Box (P/N 7003-426-1) is provided with MX systems consisting of more than 2 cabinets. This fuse box provides protection against excessive current circulating between amplifiers in different chassis in case of a system malfunction.
Each fuse is capable of sustaining up to 125 Arms of AC current, which is the maximum available current per MX amplifier.
Each fuse box has 9 sets of 3 fuses for phase A, phase B and phase C. Each fuse terminal is lined up with a strain relief on each side of the box. The outputs from the MX45 cabinets connect
to the “MX 45 SOURCE” side of fuse box. The outputs of the fuse box (marked “JUNCTION BOX” are normally routed to the 7003-416-1 Junction box (marked “MX SYSTEM OUTPUT”)
where the outputs of the various cabinets are combined for each phase. The load can then be connected to the “LOAD” side of the junction box.
Note: The Fuse box enclosure must be connected to Earth ground using the provided
ground stud.
Dimensions 7003-426-1:
MX Series 79
Figure 3-22: 7003-426-1 Output Fuse Box
User Manual – Rev AV AMETEK Programmable Power
4. Front Panel Operation
4.1 Tour of the Front Panel
The MX Series with type P or type Pi have identical front panels although some of the keys found on the front panel are only used by MX models with the 3Pi controller. If your unit is a P type
controller, these keys will act as don’t cares. This chapter provides information on operating the
MX with either controller type.
Before operating the AC source using the front panel, it helps to understand the operation of the front panel controls. Specifically, the operation of the knob, keyboard and the menu layout are covered in the next few paragraphs.
4.1.1 Front Panel Controls and Indicators
The front panel can be divided in a small number of functional areas:
x Mains circuit breaker
x Status Indicator lights
x Shuttle knob
x LCD display
x FUNCTION keypad
x DATA ENTRY keypad
4.1.2 System On/Off Circuit Breaker
The circuit breaker located on the bottom left side of the front panel disconnects the low voltage supply of the MX Source from the three phase Line input. This will remove power from the mains AC input contactor and thus remove input power from the MX Series power source. As such, the circuit breaker acts as an indirect power on/off switch for the MX Series unit. Note however than AC input power remains applied to the primary side of the input transformer.
When the input current rating of the MX Series AC power source is exceeded, the protective fuses (F1 through F3) will blow. In this case, power to the low voltage supply may still remain through the front panel circuit breaker. In this case, the on/off circuit breaker should be opened (power off) first followed by a complete disconnect of all ac input power through an installed main circuit breaker.
Note that in MX60, MX90 and MX135 systems, each unit has its own on/off circuit breaker and set of line input fuses.
MX Series 80
User Manual – Rev AV AMETEK Programmable Power
4.1.3 Status Indicator Lights
Four LED status indicators are located directly above the mains circuit breaker. These LED’s correspond to the following conditions:
REMOTE The REMOTE LED indicates that the unit is in remote control
mode. If the IEEE-488 interface is used, this indicator will be lit whenever the REM line (REMOTE ENABLE) line is asserted by the IEEE controller. If the RS232, USB or LAN interface is used, the REMOTE state can be enabled by the controller using the SYST:REM command. Any time the REMOTE LED is lit, the front panel of the MX Series unit is disabled. There is no LOCAL button that allows the user to regain control of the front panel. This prevents accidental change of settings in ATE applications.
OVERLOAD The OVERLOAD LED indicates an output overload condition.
This condition can be controlled by setting the current limit value in the PROGRAM menu. Removing the load using the OUTPUT ON/OFF button will recover from an overload condition.
OVER TEMPERATURE The OVER TEMPERATURE LED indicates an overheating
problem inside the unit. This is an abnormal condition, which will cause the unit to shut off. Check the air openings to make sure they are not blocked.
HI RANGE The HI RANGE LED is on when the high voltage output range
has been selected.
MX Series 81
User Manual – Rev AV AMETEK Programmable Power
4.1.4 The Shuttle Knob
Counter Clock wise
Clock
wise
INCRDECR
Figure 4-1: Shuttle Knob
The shuttle knob is located to the right of the LCD screen and is used to change setup parameters. Note that it cannot be used to move the cursor position between menu fields. Use the UP and DOWN arrow keys in the FUNCTION keypad for this.
The shuttle knob can operate in one of two distinct modes of operation:
MODE DESCRIPTION
IMMEDIATE mode Any time the ENTER key is pressed, the MX Series returns to its
normal mode of operation. In this mode, changes made with the shuttle knob or the data entry keypad will take immediate effect. The IMMEDIATE mode is useful for slewing output values such as voltage and frequency and observing the effect on the load.
SET mode When the SET key located in the FUNCTION keypad is
pressed, changes made with the shuttle to any output parameter will not take effect until the ENTER key is pressed. In this mode, any changes made to a setup menu will be blinking to indicate the pending change condition. This mode allows changes to be made to all output parameters and executing them all at once by pressing the ENTER key.
MX Series 82
User Manual – Rev AV AMETEK Programmable Power
MENU PROG WAVE MEAS
OUTPUT
ON/OFF
PHASE
SET
+/-
FUNCTION
4.1.5 FUNCTION Keypad
The function keypad provides access to all menus and measurement screens. The following keys are located in the FUNCTION keypad:
Figure 4-2: FUNCTION Keypad
KEY DESCRIPTION
MENU The top level menu is accessed by pressing the MENU key.
Three shortcut keys are used to provide direct access to the PROGRAM, WAVEFORM, and MEASUREMENT screens as these are among the most frequently used screens. Thus, instead of going through the main menu to reach the PROGRAM, WAVEFORM, and MEASUREMENT screens, they can be accessed directly by pressing the PROG, WAVE, and MEAS keys respectively. A map of the Main menus is provided on the next few pages. There are three top level menus in the MX Series.
PROG The PROG key is a shortcut to access the PROGRAM menu
directly. The PROGRAM menu is one of the most frequently used menus. Thus, instead of going through the main menu to reach the PROGRAM menu, it can be accessed directly by pressing the PROG key.
WAVE The WAVE key is a shortcut to access the WAVEFORM screen
directly. The WAVEFORM screen is used to select a user defined arbitrary waveform. (3Pi controller only)
MEAS The MEAS key is a shortcut to access the MEASUREMENT
screen directly. The MEASUREMENT screen is one of the most frequently used screens. Thus, instead of going through the main menu to reach the MEASUREMENT screen, it can be accessed directly by pressing the MEAS key.
MX Series 83
User Manual – Rev AV AMETEK Programmable Power
OUTPUT ON/OFF The OUTPUT ON/OFF key toggles the output relay on or off.
The state of the output relay is reflected by the green LED located directly to the left of the OUTPUT ON/OFF key. If the green LED is lit, the output relay is enabled (closed) and the programmed output voltage is present at the output terminals. If the green LED is off, the output relay is open and both the HIGH and LO terminal of the output terminal block are disconnected from the power source. In this mode, the output is floating. The ON/OFF button provides a convenient way to disconnect the load without having to remove any wires.
PHASE The PHASE key is used to select the phase on a MX30-3Pi or
MX45-3Pi model. Pressing the PHASE key will toggle phase A, B, C or ABC. Some screens may not support the ABC or show all phase information in which case this mode is skipped. (3Pi controller only)
SET The SET key is used to select the mode of operation of the
shuttle. Refer to section 4.1.1 for details on its operation and the use of the SET key.
+/- The +/- key can be used to toggle the sign for those parameters
for which it is relevant. This is typically the output voltage when in DC mode of operation. For fields that have only two possible values such as the voltage range field, the +/- key can be used to toggle between these two values.
MX Series 84
User Manual – Rev AV AMETEK Programmable Power
7
ENTRY
E N T E R
89
456
123
.0
4.1.6 DECIMAL KEYPAD
The decimal keypad may be used to enter any numeric parameter required in any of the menu fields. Several fields accept input from either the keypad or the knob. Data entered from the keypad is normally accepted once the ENTER key is pressed unless the front panel mode is in the SET mode. The following keys are available on the decimal keypad:
CURSOR UP The UP key moves the cursor position upwards one position to
CURSOR DOWN The DOWN key moves the cursor position downwards one
MX Series 85
Figure 4-3: Entering Values from the Decimal Keypad
the previous available cursor position. If the present cursor position is at the top of the right hand column, the cursor is moved to the bottom position of the left hand column. If the present cursor is at the top of the left hand column, the cursor is moved to the bottom of the right hand column. Figure 4-4 depicts the cursor movement through a two column menu.
Figure 4-4: Cursor UP Key Movement
position to the next available cursor position. If the present cursor position is at the bottom of the left hand column, the cursor is moved to the top position of the right hand column. If the present cursor is at the bottom of the right hand column, the cursor is moved to the top of the left hand column. Figure 4-5 depicts the cursor movement through a two-column menu.
User Manual – Rev AV AMETEK Programmable Power
Figure 4-5: Cursor DOWN key Movement
The decimal keypad can be used at any time in lieu of the shuttle knob to change output parameters. Direct data entry is often faster to effect large changes in values than using the shuttle knob. Note that pressing the ENTER key while in SET mode of operation will cause the AC source to revert back to IMMEDIATE mode. Thus, to change all parameters in SET mode, enter a value for each field and then proceed to the next field without pressing the ENTER key.
0 through 9. The numeric keys provide all decimal number for entry of
parameters.
DECIMAL POINT The decimal point key is used to enter fractional parts of values
for fields that have a resolution less than 1. The amount of resolution for each menu field is normally visible on the LCD. If more digits are entered after the decimal point than can be accepted by a field, the value is automatically rounded to the available resolution when the ENTER key is pressed.
BACKSPACE The BACKSPACE (m) key can be used to erase one digit at a
4.1.7 LCD Display
The LCD display of the MX Series power source provides information on instrument settings and also guides the user through the various menus. To ease reading of the displayed information, most screens are widely spaced. A sample of the main menu 1 screen that appears when the MX Series source is powered up is shown in Figure 4-6. Due to the amount of space available on each screen, some menus have been split into parts. The MORE selection located at the bottom right hand side provides access to menu choices at the same level that did not fit on a single
screen. Thus, to access MENU 2, the cursor should be placed on the ‘MORE’ selection followed by pressing the ‘ENTER’ key. Alternatively, the MENU key may be pressed to move to the
MENU 2 screen.
The present cursor position is always shown with a inverse bar. The cursor is located on the ‘MORE’ selection in Figure 4-6. Pressing ENTER would cause MENU 2 to be displayed.
The cursor position can be moved by using the UP and DOWN keys located in the DECIMAL keypad.
time if you make a data entry error.
MX Series 86
Figure 4-6: Main Menu 1 Screen
User Manual – Rev AV AMETEK Programmable Power
4.2 Menu Structure
The next few pages show a map of the available menus in the MX Series. There are three main level (level 1) menus from which all other menus can be reached. Frequently used (level 2) menus have a short cut key that provides direct access. Examples of such menus are Program, Measurements, and Waveform. In any case, there are never more than three levels of menus although some menus may be spread across more than one screen.
4.2.1 MAIN Menus
Figure 4-7: Menu 1 through 3
The top-level menu is split in three parts, MENU 1 through MENU 3 to allow spacing between menu entries. MENU 2 and 3 can be reached from MENU 1 by selecting the MORE entry or by pressing the MENU key repeatedly, which will toggle from MENU 1 to 2 to 3 and back to 1. The division of menu choices between the two screens is graphically illustrated in 4.2.2 by the boxes in level 1. Each box represents one screen. Subsequent screens can be reached using the MORE entry.
MX Series 87
User Manual – Rev AV AMETEK Programmable Power
The following top-level menu choices can be accessed from the MENU key:
Entry Description
MENU 1
PROGRAM The PROGRAM menu allows output parameters the be
changed.
MEASUREMENTS The MEASUREMENTS screens are not menus in that no user
entries are required.
TRANSIENTS The TRANSIENTS menu allows output transients to be
programmed.
WAVEFORMS The WAVEFORMS menu allows different waveforms to be
selected from the waveform library.
MORE The MORE selection causes the second part of the MENU
screen to be displayed. (MENU 2)
MENU 2
ADVANCED MEAS. The ADVANCED MEAS. screens are for display only. No user
entries are required.
APPLICATIONS The APPLICATIONS menu provides access to the optional
firmware application programs that may be installed in the MX Series AC source.
SETUP REGISTERS The SETUP REGISTERS menu allows complete instrument
settings and transient list programs to be saved to nonvolatile memory.
MORE The MORE selection causes the third part of the MENU screen
to be displayed. (MENU 3)
MENU 3
UTILITY The UTILITY menu provides access to less commonly used
setup screens such as those for the GPIB and RS232C (also applies to USB and LAN) interface settings, initial startup values, etc.
OUTPUT IMPEDANCE The OUTPUT IMPEDANCE menu provides control of the AC
source output impedance. (MX30-3Pi or MX45-3Pi model only)
MEASUREMENT CAL The MEASUREMENT CAL menu allows for calibration of the
AC source measurement system.
OUTPUT CAL The OUTPUT CAL menu allows for calibration of the AC source
output.
Following the Menu overview pages is a detailed description of each menu and sub menu.
MX Series 88
User Manual – Rev AV AMETEK Programmable Power
level 1
level 2 level 3
MENU 1
PROGRAM PROGRAM1
VOLTAGE
FREQ
VOLT RANGE
CURR LIMIT
MORE
PROGRAM2
PHASE
CLOCK MODE
VOLT MODE
DC OFFSET
START ø
MEASUREMENTS
MEASUREMENTS1
VOLTAGE
CURRENT
FREQ
POWER
MORE
MEASUREMENTS 2
VA POWER
PEAK CURR
POWER FACT
CREST FACT
PEAK CURR RESET
MEASUREMENTS 3
VOLT THD
CURR THD
INST PK CURR
PHASE
HARMONICS/TRACE
ANALYSIS
FUNCTION
VIEW
DATA MODE
SCALE
TRIG MODE
TRIG SOURCE
TRIG PHASE
TRIG DELAY
START
TRANSIENTS
VOLT SURGE/SAG
START ø
VOLT SWEEP/STEP
START ø
GO TO VOLT
FREQ SWEEP/STEP
DURATION
END VOLT
DUR SCALE
VOLT/FREQ SW EEP/STEP
DURATION
END FREQ
DUR SCALE
DURATION
START/VIEW SEQUENCE
START
END VOLT
END DELAY
DURATION
END VOLT
PREVIOUS SCREEN
PAUSE
END FREQ
FUNCTION
END DELAY
END DELAY
REPEAT #0
END DELAY
REPEAT
FUNCTION
FUNCTION
CLEAR SEQ
FUNCTION
EVENT#
REPEAT
REPEAT
REPEAT
PREVIOUS SCREEN
EVENT#
EVENT#
#1
SEQUENCE#
PREVIOUS SCREEN
PREV. SCREEN
#2
PREVIOUS SCREEN
..
#98
#99
PREVIOUS SCREEN
WAVEFORMS
CLIP LEVEL
GROUP
MODE
SINE
SQUARE
CLIPPED
USER WAVE
..
..
MORE
USER WAVE
4.2.2 Overview of Menu 1
MX Series 89
User Manual – Rev AV AMETEK Programmable Power
level 1
level 2 level 3
MENU 2
ADVANCE
HARMONICS/TRACE
MEAS. ANALYSIS
FUNCTION
VIEW
DATA MODE
SCALE
TRIG MODE
TRIG SOURCE
TRIG PHASE
TRIG DELAY
START
APPLICATIONS
APPLICATIONS SETUP 1
MIL-STD 704
STEADY STATE
OMNI OPTION
MODE
TRANSIENTS
RTCA-DO160D
NORMAL STATE
PREVIOUS SCREEN
ABNORMAL
IEC 1000-4-11
IEC 1000-4-11 TESTS
EMERGENCY
EMERGENCY
APPLICATIONS SETUP 2
DIPS AND INTER.
ABNORMAL
ALL MIL704 TESTS
IEC 1000-4-13
IEC 1000-4-13 TESTS
VOLT VARIATIONS
PREVIOUS SCREEN
PREVIOUS SCREEN
WH METER
STATE
PREVIOUS SCREEN
Series II SNK only
WATT-HOUR METER
REGENERATE
RUN REGEN CONTROL
START
CLASS
STATE
ETIME
SETUP
SAVE REGISTER #
GROUP
UNDER VOLT
WATT HR
REGISTERS
VIEW/EDIT REG #
DWELL
OVER VOLT
POWER
RECALL REGISTER #
LEVEL
dFREQ
PK CURR
MORE
PREVIOUS SCREEN
FRANGE
DELAY
STEP
IHFREQ
RESONANT
MENU 3
UTILITY UTILITY 1
GPIB/RS232 SETUP
GPIB ADDRESS
VOLT/CURR CONTROL
VOLT ALC
RS232 BAUDRATE
PREVIOUS SCREEN
OL MODE
RS232 DATA
INITIAL SETUP
VOLTAGE
TRIP DELAY
RS232 PARITY
LIMIT SETUP
VOLTAGE
CUR LIMIT
VOLT SENSE
RS232 STOPBITS
MORE
CUR LIMIT
PREV. SCREEN
NO. OUTPUT
PREVIOUS SCREEN
UTILITY 2
FREQ LO
FREQ
PREV. SCREEN
CONFIGURATION
CONFIG SETUP 1
FREQ HI
PHASE
LANETWORK SETUP
NO. OUTPUT
PHASE C
MORE HH:MM:SS
ELAPSED TIME
ADVANCE
PREVIOUS SCREEN
VOLT RANGE
TEMPERATURE
VIEWING ANGLE
DO160
VOLT MODE
PREVIOUS SCREEN
MIL704
OL MODE
CONFIG SETUP 2
OUTPUT RELAY
IEC 4-11
MORE
IEC 4-13
VOLT SENSE
CLOCK/LOCK
WAVE GROUP
WH METER
CLOCK MODE
OUTPUT
RESISTIVE
CONFIG SETUP 31
NO. OUTPUT
IMPEDANCE
INDUCTIVE
MS704
VOLT ALC
SET MINIMUM
ABD PREVIOUS SCREEN
LF
SYSTEM
CONFIG SETUP 4
Series II only
MB
MANUAL
OPTn
LAN
CONFIG SETUP 5 SNK FC
Series II only
Series I only
MEASUREMENT
VOLT FS
VOLT FS
CAL
CURR FS
VOLT 0
PREVIOUS SCREEN
VOLT FS HT
VOLT FS 0
CURR FS
4.2.3 Overview of Menu 2 and 3
1
CONFIGURATION SETUP 3 menu available on Series II models only.
MX Series 90
User Manual – Rev AV AMETEK Programmable Power
CURR 0
CURR FS HT
CURR 0 HT
PREVIOUS SCREEN
Series II only
Series I only
OUTPUT CAL
VOLT FS
VOLT FS
VOLT ZERO
V HI-FREQ
PHASE OFST
VOLT ZERO
IHARM FS
PHASE OFST
IMP. REAL FS
IMP. REAL FS
IMP. REACT FS
IMP. REACT FS
IMP. REAL MIN
IMP. REAL MIN
IMP. REACT MIN
IMP. REACT MIN
PREVIOUS SCREEN
PREVIOUS SCREEN
4.2.4 PROGRAM Menu
Figure 4-8: PROGRAM Menu
The PROGRAM menu is shown in Figure 4-8. It can be reached in one of two ways:
1. by selecting the PROGRAM entry in the MENU screen and pressing the ENTER key
2. by pressing the PROG key in the FUNCTION keypad
The PROGRAM menu is used to change output parameters. The most commonly used parameters are all located in PROGRAM 1. The PREVIOUS SCREEN entry, when selected, will return the user to the most recently selected menu. This is normally the MENU screen unless the PROGRAM menu was selected using the PROG key on the FUNCTION keypad. Less frequently used parameters are located in PROGRAM 2, which can be reached from the PROGRAM 1 screen using the MORE selection, or by pressing the PROGRAM key twice.
The following choices are available in the PROGRAM menus:
Entry Description
PROGRAM 1
VOLTAGE Programs the output voltage in Vrms while in AC mode or
absolute voltage when in DC mode. In DC mode, negative values can be entered.
FREQ Programs the output frequency when in AC mode. If the unit is
in DC mode, the value for FREQ will be set to DC and cannot be changed until AC mode is selected. When in AC mode, the frequency can be changed from 16 Hz to 500 Hz. Values entered that fall outside this range will generate a -200 RANGE ERROR and will not be accepted.
VOLT RANGE Selects 150V, 300V or optional 400V range in AC mode and
200V or 400V range in DC mode. The actual range values may be different depending on the configuration. The value of this field can only be changed with the shuttle or the +/- key.
MX Series 91
User Manual – Rev AV AMETEK Programmable Power
CURR LIMIT Sets the current limit value for the current detection system.
When the load current value exceeds the set current limit, a fault condition is generated. The actual response of the AC Source to a current limit fault is determined by the protection mode selected in the CONFIGURATION menu. (CC = Constant Current, CV = Constant Voltage).
PROGRAM 2
PHASE Selects the phase angle between the external clock and the
output of the AC source. If the clock source is internal, this parameter has no effect.
CLOCK MODE Selects internal or external clock source. The MX Series
controller uses an open-air crystal time base with an accuracy of 100 ppm. To improve output frequency stability and accuracy, an external clock generator may be used.
VOLT MODE The MX Series offers three output modes, AC, DC and AC+DC.
The VOLT MODE field can be used to toggle between these three output modes. Both the Knob and the +/- key may be used to toggle through these three selections. In DC mode, no frequency selection is possible and all maximum current and power ratings are divided by two.
DC OFFSET When the AC+DC mode is selected, the VOLTAGE field in the
PROGRAM 1 screen is used to set the AC portion of the output voltage. The DC OFFSET field in the PROGRAM 2 screen can be used to set the DC offset level. Either the knob or the decimal keypad may be used to set the DC offset level.
START ø Selects the start phase angle for output changes made to either
voltage or frequency. This allows changing the output at a specific phase angle. The output on key also uses this phase angle setting to program the output voltage up to the set level after the output relay is closed. The default value for this field is RANDOM.
MX Series 92
User Manual – Rev AV AMETEK Programmable Power
4.2.5 MEASUREMENTS Screens
The MX Series uses a DSP based data acquisition system to provide extensive information regarding the output of the Source. This data acquisition system digitizes the voltage and current waveforms and calculates several parameters from this digitized data. The result of these calculations is displayed in a series of measurement data screens. The actual digitized waveforms can also be displayed by selecting the Harmonics/Trace Analysis screen. A total of four measurement screens are used to display all this information (3Pi controller only).
Figure 4-9: MEASUREMENTS Screen, Single Phase and Three Phase Modes
The first three Measurement screens available on the MX Series are not menus in that no changes can be made anywhere. Instead, these three screens provide load parameter readouts. The fourth measurement screen provides access to the advanced measurements and does offer several user accessible fields (Pi controller only). The measurement screens can be reached by successively pressing the MEAS key, which will toggle to all four available screens.
In three-phase mode, measurements are available for each phase individually. To select the desired phase, use the PHASE key to toggle through phase A, B, C, or ABC. The ABC mode displays the data for all three phases simultaneously.
The following parameters are available in the first three measurement screens:
Entry Description
MEASUREMENT 1
VOLTAGE When in AC or AC+DC mode, this value is the true rms output
voltage measured at the voltage sense lines. In DC only mode, the voltage is the DC voltage including polarity.
CURRENT When in AC or AC+DC mode, this value is the true rms output
current drawn by the load. In DC only mode, the current is the DC current including polarity
FREQ When in AC or AC+DC mode, the output frequency is measured
at the sense lines. When in DC only mode, this value always reads “DC”.
POWER In both AC and DC mode, this value is the real rms. power
consumed by the load.
MEASUREMENT 2
VA POWER In AC or AC+DC mode, this value is the apparent rms. power
consumed by the load. In DC mode, this value is always the same as the POWER readout.
MX Series 93
User Manual – Rev AV AMETEK Programmable Power
PEAK CURR This readout reflects the peak current value detected at the
output. To measure inrush current for a unit under test, open the output relay and reset the peak current value using the PEAK CURR RESET entry. Then program the output voltage and frequency and turn on the output relay. The peak current measurement will continuously track the maximum current value detected until reset.
POWER FACTOR This readout shows the power factor of the load.
CREST FACTOR This readout displays the ratio between peak current and rms
current.
MEASUREMENT 3 [3Pi controller only]
VOLT THD This readout displays the total voltage distortion for the selected
phase. The distortion calculation is based on the H2 through H50 with the fundamental voltage (H1) in the denominator. Note that other common definitions of THD use the RMS value of the voltage as the denominator. This may result in different readings between instruments depending on the implementation chosen. The mode used by the power source is selectable over the bus.
CURR THD This readout displays the total current distortion for the selected
phase. The distortion calculation is based on the H2 through H50 with the fundamental current (H1) in the denominator. Note that other common definitions of THD use the RMS value of the current as the denominator. This may result in different readings between instruments depending on the implementation chosen. The mode used by the power source is selectable over the bus.
INST PK CURR This readout reflects the instantaneous peak current value
detected at the output. This value is updated continuously and does not require a reset operation like the PEAK CURR readout. The instantaneous peak current does not use a track and hold mechanism like the PEAK CURR measurement in the MEASUREMENT 2 screen. Instead, it tracks the peak current on a cycle-by-cycle basis. The INST PK CURR typically tracks the rms current and the crest factor.
Update Program Functions from Measurement Screen
The Shuttle can be used to update program parameters such as voltage, frequency or current from the measurement screen. This can be achieved with the following sequence:
1. Select the program 1 screen using the PROG key.
2. Use the up and down key to select the desired function to update. (Selects parameter that will be changed by the shuttle once in the MEAS1 screen)
3. Select the measurement 1 screen by pressing the MEAS key.
4. The pointer symbol (X) points to the programmed parameter (V, F or CL) that will be affected by turning the shuttle.
MX Series 94
User Manual – Rev AV AMETEK Programmable Power
TABLE mode:
Displays the first 50 harmonics in a tabular text format.
BAR mode:
Displays the first 50 harmonics in a graphical bar chart display.
TRACE mode:
Displays the selected Function in a time domain (waveform) graphical display.
HARMONICS/TRACE ANALYSIS Screen [3Pi controller only]
The fourth measurement screen is dedicated to the advanced measurements available on the MX Series with 3Pi controller only. This screen is not available on the P controllers. The Harmonics/Trace Analysis measurement screen is a true menu screen offering several user accessible fields. These fields are used to select the desired acquisition trigger and display mode. The actual data is displayed whenever the ENTER key is pressed while the cursor is on the VIEW or START field. The following fields are available on this menu:
Figure 4-10: HARMONICS/TRACE ANALYSIS Screen
Entry Description
FUNCTION Selects Voltage, Current or Both parameters for display.
VIEW Available display modes are TABLE, BAR and TRACE.
MX Series 95
User Manual – Rev AV AMETEK Programmable Power
DATA MODE Selects absolute or relative harmonics display for TABLE and
BAR view modes. In relative mode, all harmonics are shown in a percentage of the fundamental, which is normalized at 100 %. In absolute mode, the harmonic amplitudes are shown in absolute volts or amperes.
This mode does not apply to the TRACE view display mode and
is ignored when this mode is selected.
SCALE Sets the horizontal time axis for the TRACE view display mode.
The field range is: Series I: 4 ms to 104 ms in single-phase mode (MX30-3Pi or MX45-3Pi only) or 12 ms to 312 ms in three phase mode. Series II: 4 ms to 42 ms in single-phase mode (MX30-3Pi or MX45-3Pi only) or 12 ms to 128 ms in three phase mode.
This parameter is ignored when the TABLE or BAR view display
mode is selected.
TRIG MODE This field sets the trigger mode for the acquisition. Available
options are SINGLE (single shot acquisition) or CONT (continuous acquisition). In SINGLE shot mode, the acquisition is triggered once each time the START field is selected and the ENTER key is pressed. The selected trigger source is used to determine the trigger point. Once the acquisition has been triggered, the data are displayed and do not change until the next acquisition is triggered. This mode is most appropriate for single shot events such as start up currents.
In the CONT mode, acquisitions occur repeatedly and the data
is updated on screen after each trigger occurs. This provides a continuous update of the data and is most appropriate for repetitive signals.
TRIG SOURCE The trigger source selects the event that will trigger a
measurement acquisition. Available options for this field are IMM (immediate), PHASE A or SET VOLT. The IMM trigger source causes the acquisition to trigger immediately when the ENTER key is pressed on the START field. Essentially, this is an asynchronous trigger event. The acquisition will always be triggered in this mode and data is available immediately.
The PHASE A source will cause the acquisition to trigger on the
occurrence of a set phase angle for the voltage on phase A. The trigger source is always phase A when in this mode, regardless of the phase selection shown in the top right corner of the display. When the acquisition is started, the acquisition system waits for the specified phase angle to occur before triggering the acquisition. This mode allows exact positioning of the acquisition data window with respect to the voltage waveform.
The SET VOLT mode causes the acquisition to trigger at the
specified voltage. This mode also programs the selected phase or all three phases when the measurement is started from the START field. As such, this trigger source selection also programs the output voltage to the selected rms level.
TRIG PHASE / SET VOLT This field changes purpose, depending on the trigger source
MX Series 96
selected immediately above it. If the trigger source equals IMM or PHASE A, this field can be used to program the trigger phase
User Manual – Rev AV AMETEK Programmable Power
angle (TRIG PHASE). In IMM mode, the value of this field is ignored.
If the trigger source is set to SET VOLT, this field can be used
to specify the rms voltage to program the output to and trigger the measurement on. The voltage value set here should not exceed the maximum voltage range selected or the rms capability for the wave shape selected on the phase or phases programmed.
TRIG DELAY The trigger delay field allows the trigger point to be positioned
anywhere in the acquisition window. A negative value will provide pre-trigger information on data leading up to the trigger event. The pre-trigger delay cannot exceed the length of the acquisition buffer. See paragraph 4.6.3.3 for details. A positive trigger delay positions the data window after the trigger event. Positive trigger delays can exceed the length of the acquisition buffer in which case the trigger event itself will not be in the buffer any more. The maximum value of the trigger delay is 1000 ms. The default trigger delay value is 0.0 ms, which puts the trigger event at the beginning of the acquisition window.
START The START field is used to start a new acquisition run. To start
an acquisition, place the cursor on the START field and press the ENTER key. Once the ENTER key is pressed, the display toggles to the data display mode selected in the VIEW field as soon as the selected trigger event occurs. To return to the HARMONICS/TRACE ANALYSIS menu, press the ENTER key while in the data display mode.
To change display modes without triggering a new acquisition,
make the desired changes in the menu and move the cursor to the VIEW field. Once on the VIEW field, press the ENTER key. This will not trigger a new acquisition, which means the original data is retained.
MX Series 97
User Manual – Rev AV AMETEK Programmable Power
4.2.6 TRANSIENTS Menu
Figure 4-11: TRANSIENTS Menu
The transient menu provides access to the transient list data. Available list length is:
Series I: Both P and Pi controllers; 32 data points. This is represented by 32 transient
step numbers from 0 through 31.
Series II: Both P and Pi controllers; 100 data points. This is represented by 100 transient
step numbers from 0 through 99.
From the Transient menu, the desired transient step type can be selected. Based on the user’s
choice, the relevant transient type sub menu will be shown. The START/EDIT SEQUENCE sub menu allows the user to review and change any transient step or execute the transient list. When executing a transient list, transient steps are executed in a ascending numerical order. Steps that are not defined are skipped.
The following entries can be found in the TRANSIENTS menu:
Entry Description
VOLT SURGE/SAG Voltage surges and sags are temporary changes in amplitude.
The output voltage will change from its present value to a user specified value for a specified duration. (Sag if the value is lower, surge if the value is higher.) After this period has expired, the output voltage returns to a user specified end value. This value may or may not be the same as the value present prior to the start of the sag or surge.
VOLT SWEEP/STEP Voltage sweeps cause the output voltage to change from the
present value to a user specified end value at a specified rate of change. A voltage step on the other hand is an instantaneous change in output voltage. The new value will be held for the duration period specified by the user. The final output voltage value of a sweep and a step transient step should be different than the value at the start of the transient step or no change in output value will occur.
FREQ SWEEP/STEP This transient type is similar to a voltage sweep/step except it
affects the frequency. Refer to the previous paragraph.
VOLT/FREQ SWEEP/STEP This transient type combines the previous two types into a single
step. The effect is that of changing the output voltage and frequency simultaneously.
Note: While this transient is programmed as a single transient
MX Series 98
step, two list entries are required to store this information. As such, every VOLT/FREQ SWEEP/STEP used will consume two list entries at a time.
User Manual – Rev AV AMETEK Programmable Power
START/VIEW SEQUENCE This entry allows the user to switch to the transient execution
menu. This menu provides a list of all available transient list steps and their sequence numbers. From this menu, transient list execution can be started.
The same menu can be used to view or edit any available
transient list step or erase a step using the backspace key.
4.2.6.1 VOLT SURGE/SAG sub menu
Figure 4-12: VOLTAGE SURGE/SAG SETUP Screen
The Voltage surge and sag screen shown in Figure 4-12 can be reached from the transient screen as follows:
1. Scroll to the VOLT SURGE/SAG entry using the up and down cursor keys.
2. Press the ENTER key to bring up the VOLT SURGE/SAG screen.
The VOLT SURGE/SAG screen has several data fields. All data fields that are blank to the right of the equal sign must be filled or an error message will occur when trying to leave this screen. The EVENT # is the last data field to be filled. Entering the event data field will cause the display to return to the TRANSIENT screen where a new selection can be made.
The VOLT/SURGE/SAG screen has the following fields: START ø This field will show the start phase angle of the voltage transient
in degrees. Only one start phase angle per transient sequence is allowed. The start phase angle must be in the first transient event in the list. The start phase angle is not valid for DC transients. If no start phase angle is required, this field can be set to RANDOM by pressing the BACKSPACE (<-) key on the decimal keypad.
GO TO VOLT This field will set the voltage level during the transient duration in
volts
DUR SCALE Duration scale default is time in seconds. Use the Shuttle knob
to select CYCLES if desired. Note that durations expressed in cycles may cause rounding errors if the period of the selected frequency setting is not an integer number of mss. Thus, for 50 Hz applications, no rounding errors occur but for 60 Hz, the
16.66¯ ms period will cause a rounding error when converted. The Duration scale selection affects both the DURATION and END DELAY parameters.
DURATION Duration is the time the output voltage level will dwell at the GO
TO VOLT level. The DUR SCALE defines the time scale of this parameter in CYCLES or SECONDS
END VOLT This is the output voltage level at the end of the transient
MX Series 99
EVENT and after a time specified by the DURATION
User Manual – Rev AV AMETEK Programmable Power
END DELAY This is the time delay the voltage level will stay at the END
VOLT level before it proceeds with the next transient event or completes the transient.
FUNCTION [3Pi controller only] This field can be used to select the wave
shape to be used during this step of the transient sequence. Each step can use a different wave shape from the available library of 50 user-defined waveforms or the three standard waveforms. The output wave shape changes upon entry into each step and remains in effect for the duration of the step. The default wave shape is always the SINE (sine wave).
REPEAT This is the number of times the SURGE/SAG transient event will
repeat before it will proceed to the next event or exit the transient program. Note that the number of times the transient event is generated is equal to the REPEAT + 1. Leave this value at zero if only one execution of this event in the list is required.
EVENT # This must be the last item in the transient edit screen. All data
fields must be entered before inserting the EVENT #. The EVENT # takes a value from 1 to 99. The EVENT # defines the order of execution of the transient events in a multiple event transient. It is a good practice to enter spaced EVENT #’s to allow insertion of an EVENT later if needed. (For example, space them by 5.) Entry of a sequence EVENT # number will cause the display to return to the TRANSIENT screen.
MX Series 100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
