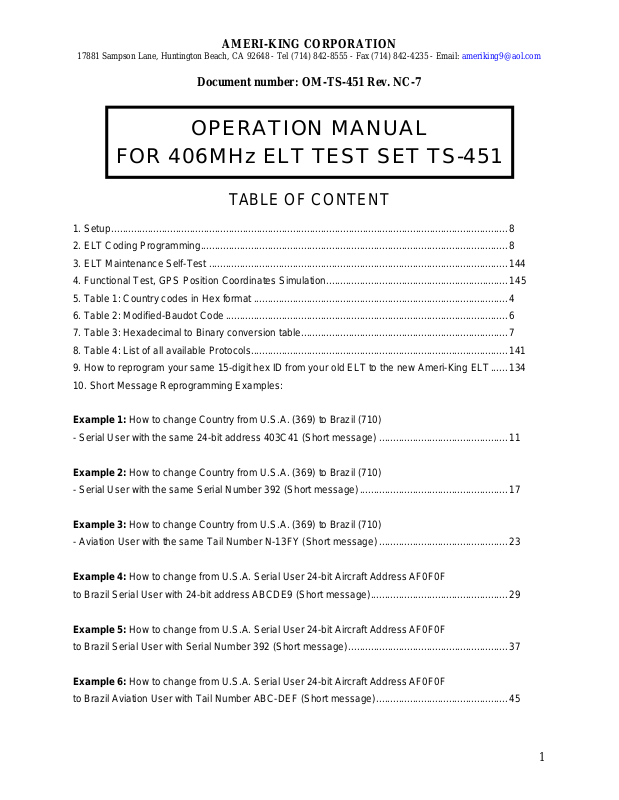

Ameri-King TS-451 User Manual

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Document number: OM-TS-451 Rev. NC-7

OPERATION MANUAL

FOR 406MHz ELT TEST SET TS-451

TABLE OF CONTENT

1. Setup..............................................................................................................................................8

2. ELT Coding Programming..............................................................................................................8

3. ELT Maintenance Self-Test ...........................................................................................................144

4. Functional Test, GPS Position Coordinates Simulation.................................................................145

5. Table 1: Country codes in Hex format ...........................................................................................4

6. Table 2: Modified-Baudot Code.....................................................................................................6

7. Table 3: Hexadecimal to Binary conversion table..........................................................................7

8. Table 4: List of all available Protocols............................................................................................141

9. How to reprogram your same 15-digit hex ID from your old ELT to the new Ameri-King ELT......134

10. Short Message Reprogramming Examples:

Example 1: How to change Country from U.S.A. (369) to Brazil (710)

- Serial User with the same 24-bit address 403C41 (Short message) ..............................................11

Example 2: How to change Country from U.S.A. (369) to Brazil (710)

- Serial User with the same Serial Number 392 (Short message).....................................................17

Example 3: How to change Country from U.S.A. (369) to Brazil (710)

- Aviation User with the same Tail Number N-13FY (Short message) ..............................................23

Example 4: How to change from U.S.A. Serial User 24-bit Aircraft Address AF0F0F

to Brazil Serial User with 24-bit address ABCDE9 (Short message)................................................. 29

Example 5: How to change from U.S.A. Serial User 24-bit Aircraft Address AF0F0F

to Brazil Serial User with Serial Number 392 (Short message).........................................................37

Example 6: How to change from U.S.A. Serial User 24-bit Aircraft Address AF0F0F

to Brazil Aviation User with Tail Number ABC-DEF (Short message)...............................................45

1

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Example 7: How to change from U.S.A. Serial User Serial Number 392

to Brazil Serial User Serial Number 656 (Short message) ................................................................52

Example 8: How to change from U.S.A. Serial User Serial Number 392

to Brazil Serial User 24-bit address AF0F0F (Short message)..........................................................59

Example 9: How to change from U.S.A. Serial User Serial Number 392

to Brazil Aviation User Tail Number ABC-DEF (Short message) ...................................................... 66

Example 10: How to change from U.S.A. Aviation User Tail Number ABC-DEF

to Brazil Aviation User Tail Number GFED-CB (Short message)......................................................73

Example 11: How to change from U.S.A. Aviation User Tail Number ABC-DEF

to Brazil Serial User 24-bit address AF0F0F (Short message)..........................................................80

Example 12: How to change from U.S.A. Aviation User Tail Number ABC-DEF

to Brazil Serial User Serial Number 392 (Short message) ................................................................87

11. Long Message Reprogramming Examples:

Example 13: How to change Country from U.S.A. (369) to Brazil (710)

- Standard Location with the same 24-bit address AF0F0F (Long message)...................................94

Example 14: How to change Country from U.S.A. (369) to Brazil (710)

- Standard Location with the same Serial Number 392 (Long message)..........................................100

Example 15: How to change Country from U.S.A. Standard Location with 24-bit address AF0F0F

to Brazil Standard Location with 24-bit address ABCDE9 (Long Message)......................................106

Example 16: How to change Country from U.S.A. Standard Location with 24-bit address AF0F0F

to Brazil Standard Location with Serial Number 392 (Long Message).............................................. 113

Example 17: How to change Country from U.S.A. Standard Location with Serial Number 392

to Brazil Standard Location with Serial Number 656 (Long Message).............................................. 120

Example 18: How to change Country from U.S.A. Standard Location with Serial Number 392

to Brazil Standard Location with 24-bit address ABCDE9 (Long Message)......................................127

2

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

This page is intentionally left blank

3

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Country

Australia 503 0101 1111 0111 5F7 1001 1111 0111 9F7
Belgium 205 0100 1100 1101 4CD 1000 1100 1101 8CD
Brazil 710 0110 1100 0110 6C6 1010 1100 0110 AC6
Canada 316 0101 0011 1100 53C 1001 0011 1100 93C
Chile 725 0110 1101 0101 6D5 1010 1101 0101 AD5
China 412 0101 1001 1100 59C 1001 1001 1100 99C
Czech Republic 270 0101 0000 1110 50E 1001 0000 1110 90E
Cyprus 209 0100 1101 0001 4D1 1000 1101 0001 8D1
France 228 0100 1110 0100 4E4 1000 1110 0100 8E4
Germany 218 0100 1101 1010 4DA 1000 1101 1010 8DA
Hungary 243 0100 1111 0011 4F3 1000 1111 0011 8F3
Japan 432 0101 1011 0000 5B0 1001 1011 0000 9B0
Tanzania 674 0110 1010 0010 6A2 1010 1010 0010 AA2
Mexico 345 0101 0101 1001 559 1001 0101 1001 949
Netherlands, the 246 0100 1111 0110 4F6 1000 1111 0110 8F6
New Zealand 512 0110 0000 0000 600 1010 0000 0000 A00
Russia 273 0101 0001 0001 511 1001 0001 0001 911
Slovenia 278 0101 0001 0110 516 1001 0001 0110 916
South Africa 601 0110 0101 1001 659 1010 0101 1001 A59
Spain 225 0100 1110 0001 4E1 1000 1110 0001 8E1
Turkey 271 0101 0000 1111 50F 1001 0000 1111 90F
UK 235 0100 1110 1011 4EB 1000 1110 1011 8EB
U.S.A. 369 0101 0111 0001 571 1001 0111 0001 971
Vanuatu 576 0110 0100 0000 640 1010 0100 0000 A40
Venezuela 775 0111 0000 0111 707 1011 0000 0111 B07

Country code

in Decimal number

Country code

in Binary format

(Serial User)

Country code

in Hex format

(Serial User)

Country code

in Binary format

(Location Protocol)

Country code

in Hex format

(Location Protocol)

TABLE 1: Country codes in Hex Format

4

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

This page is intentionally left blank

5

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

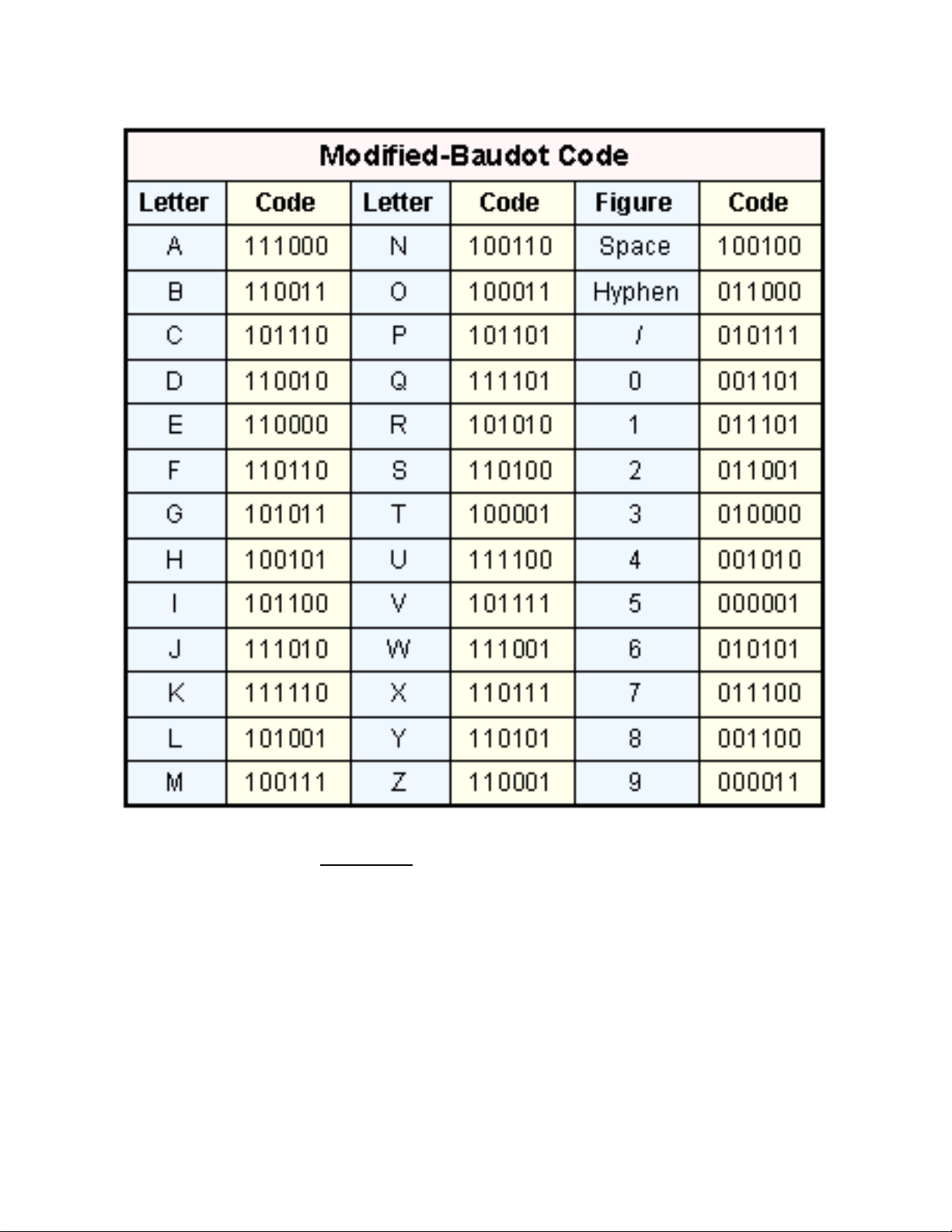

TABLE 2: Modified-Baudot Code

6

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000

9 1001
A 1010
B 1011
C 1100
D 1101
E 1110

F 1111

TABLE 3: Hexadecimal to Binary conversion table

7

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

ELT CODING PROGRAMMING, ID READER AND MAINTENANCE TEST

Important Note: These tests should be performed only within an RF Screen Room or
Facility providing shielding of RF Emissions.

1. Setup

Use provided cable to connect the ELT (RJ-12 port) to the mini PC (USB port)

2. ELT Coding Programming

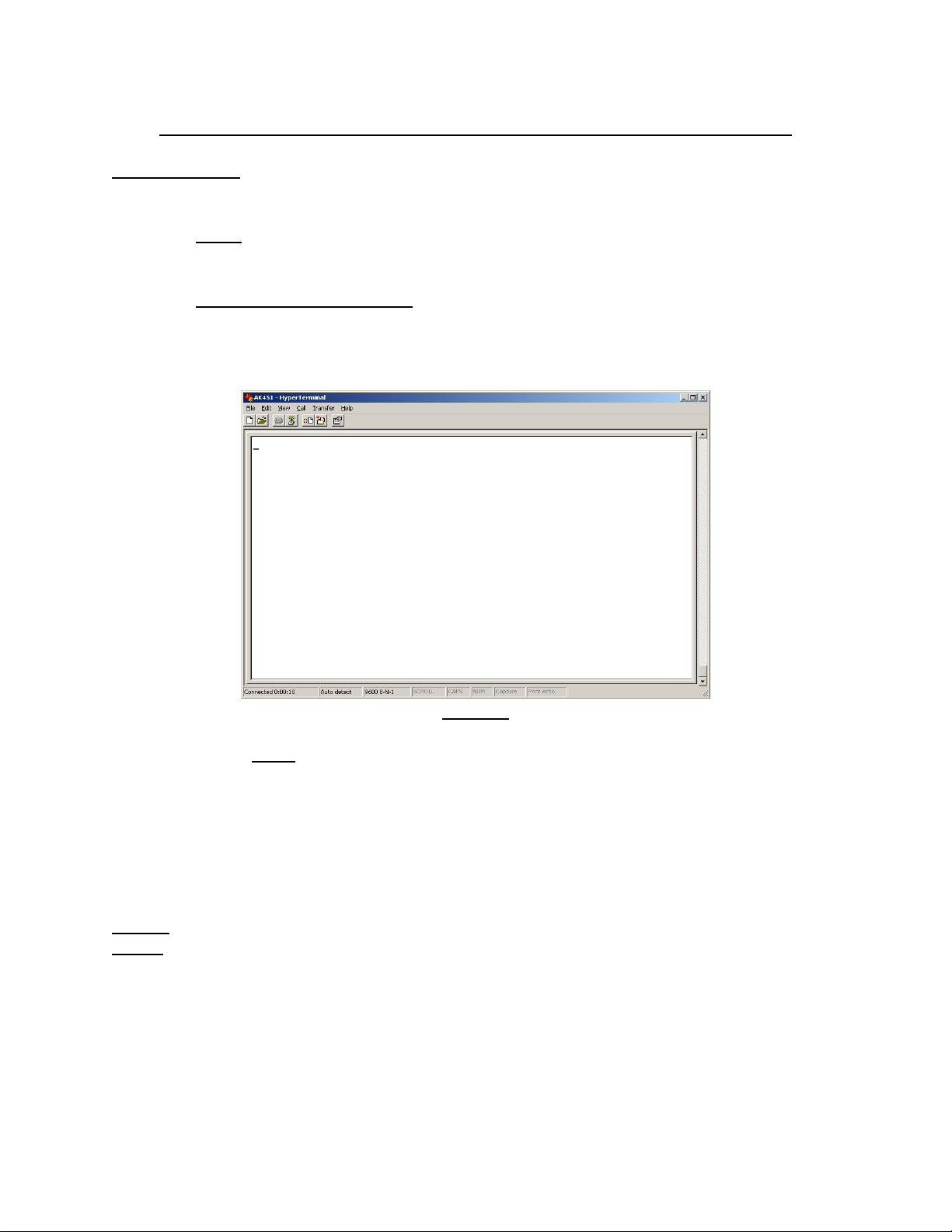

2.1 Double-Click “AK451” Icon to run the program. The programming window

appears as below:

Figure 1

Note: If you don’t see the window above, you may try the other USB port.

2.2 Set the ELT main switch to “ARM” position.

2.3 Verify the LED ‘ON’ light illuminates for 4 seconds.

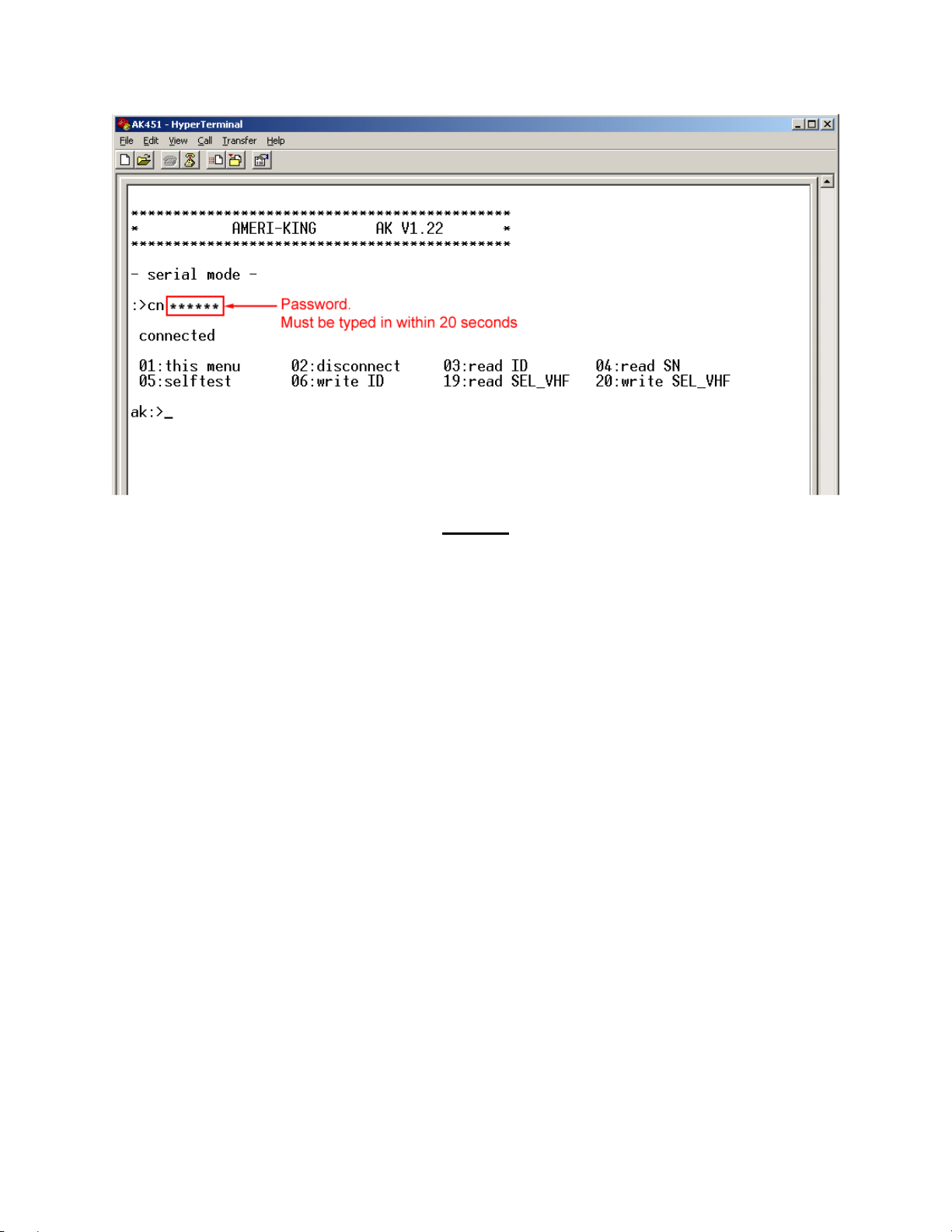

2.4 At the “:>_” prompt, type: cn Password command then press “Enter” to go to

main menu. Must type this command within next 20 seconds after the command
prompt appears.

Note 1: Please contact Ameri-King for Password, via Email or fax or call.
Note 2

: If there is no programming command input in this time window, the ELT will enter the

Self-Test mode, and you cannot program the ELT. In this case, set the ELT switch to “OFF”
position and start again from step 2.2.

8

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Figure 2

2.5 To program ELT: Use command “ 06 “

Important Instructions: Please provide the following information via Email or fax

or call Ameri-King, in order to obtain 22 Hex Digit ID:

• Country

• Protocol required (See Table 4 for List of all available Protocols)

• 24 Bit aircraft address, if applicable

Ameri-King shall then provide 22 Hex Digit ID (Short Message) or 30 Hex Digit ID (Long

Message) accordingly.

• The “06” command syntax :

06 –s (-1/-22/-30) 123456789ABCDEF (0..F)

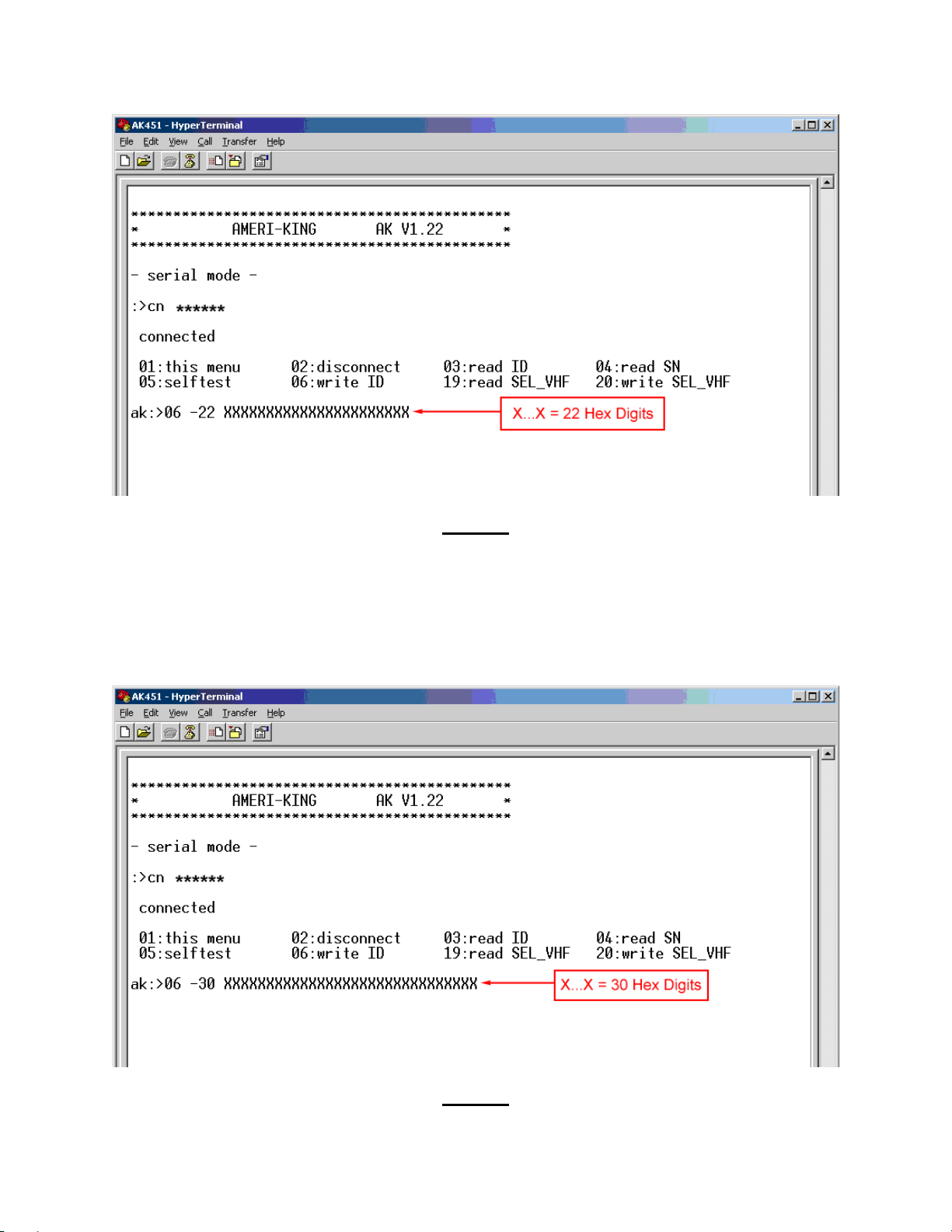

• To program 22 Hex Digits ID to the ELT: (Short Messages)

At the command prompt type:

06 -22 XXXXXXXXXXXXXXXXXXXXXX
(Where X..X = 22 HEX Digits ID.) (See Figure 3)

9

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Figure 3

• To program 30 Hex ID to the ELT: (Long Messages)
At the command prompt type:

06 -30 XXXXXXXXXXXXXXXXXXXXXX

(Where X..X = 30 HEX Digits ID.) (See Figure 4)

Figure 4

10

AMERI-KING CORPORATION

17881 Sampson Lane, Huntington Beach, CA 92648 - Tel [phone] - Fax [phone] - Email: [email protected]

Example 1: How to change Country from U.S.A. (369) to Brazil (710) - Serial
User with the same 24-bit address 403C41 (Short message):

Sample hex code for U.S.A.: 5716E8078820166B65FCD0

571 = U.S.A. country code in hex format
B65FCD = bits 85 to 108. When country code is changed, this 6-digit hex must also be adjusted

to make sure that Encoded BCH1 and Calculated BCH1 are ALWAYS identical.

Our goal is to convert the above hex code to Brazil, Serial User with 24-bit address 403C41.

Step 1:

To change to your desired country, replace 571 with your desired country code from TABLE 1
on page 4, under “Country Code in Hex format (Serial User).”

For example: 4CD for Belgium, 4E4 for France, 571 for U.S.A.

If your desired country is not included in the table, you have to convert your desired country
code to hex format yourself.

Step a: Convert your desired country code (in this example 710) from decimal format to
binary format:

Use the included conversion tool “451 OM-TS-451 Decimal and Binary Conversion
Tool.mht” or go to http://acc6.its.brooklyn.cuny.edu/~gurwitz/core5/nav2tool.html
(Internet browser is required) to convert your desired country code (in decimal format) to
binary format

NOTE: You must click on “Try it again!” button before every new conversion.

Below are step-by-step instructions on how to convert your desired country code from
decimal format to binary format:

11
