GENERAL DESCRIPTION:
Heavy duty, push action pump. 3-1/4" (83mm) spout. Solid
brass spout and escutcheon protected against corrosion.
Soap refilled from above.

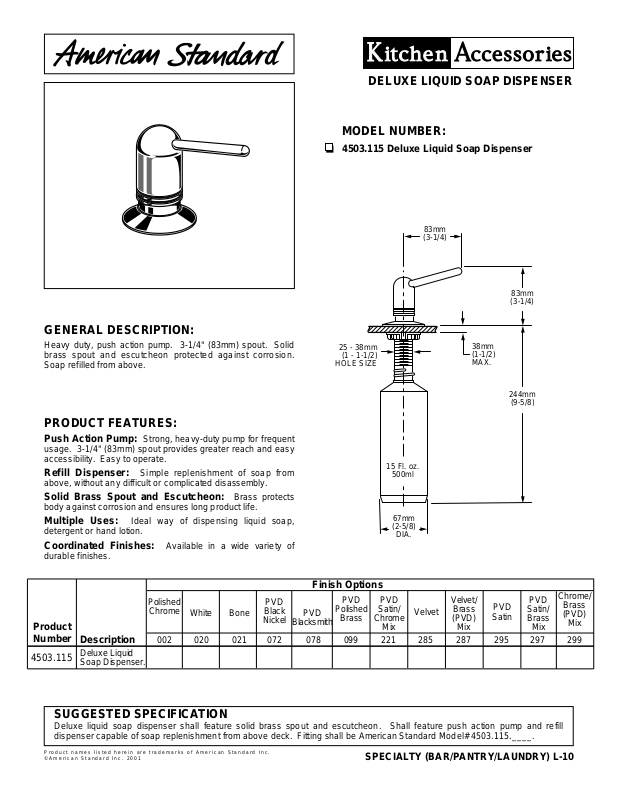

DELUXE LIQUID SOAP DISPENSER
MODEL NUMBER:
4503.115 Deluxe Liquid Soap Dispenser
83mm
(3-1/4)
25 - 38mm
(1 - 1-1/2)
HOLE SIZE
38mm
(1-1/2)
MAX.
83mm
(3-1/4)
PRODUCT FEATURES:
Push Action Pump: Strong, heavy-duty pump for frequent
usage. 3-1/4" (83mm) spout provides greater reach and easy
accessibility. Easy to operate.
Refill Dispenser: Simple replenishment of soap from
above, without any difficult or complicated disassembly.
Solid Brass Spout and Escutcheon: Brass protects
body against corrosion and ensures long product life.
Multiple Uses: Ideal way of dispensing liquid soap,
detergent or hand lotion.
Coordinated Finishes: Available in a wide variety of
durable finishes.
Product
Number
4503.115
Description
Deluxe Liquid
Soap Dispenser.
Polished
Chrome
002
White
020
Bone
021
Black
Nickel
PVD
072
Finish Options
PVD
Blacksmith
078
PVD
Polished
Brass
099
15 Fl. oz.
500ml
67mm
(2-5/8)
DIA.
PVD
Satin/
Chrome
Mix
221
Velvet
285
Velvet/
Brass
(PVD)
Mix
287
PVD
Satin
295
244mm
(9-5/8)
Satin/
Brass
PVD
Mix
297
Chrome/
Brass
(PVD)
Mix
299
SUGGESTED SPECIFICATION
Deluxe liquid soap dispenser shall feature solid brass spout and escutcheon. Shall feature push action pump and refill
dispenser capable of soap replenishment from above deck. Fitting shall be American Standard Model# 4503.115.____.
Product names listed herein are trademarks of American Standard Inc.
©American Standard Inc. 2001
SPECIALTY (BAR/PANTRY/LAUNDRY) L-10
