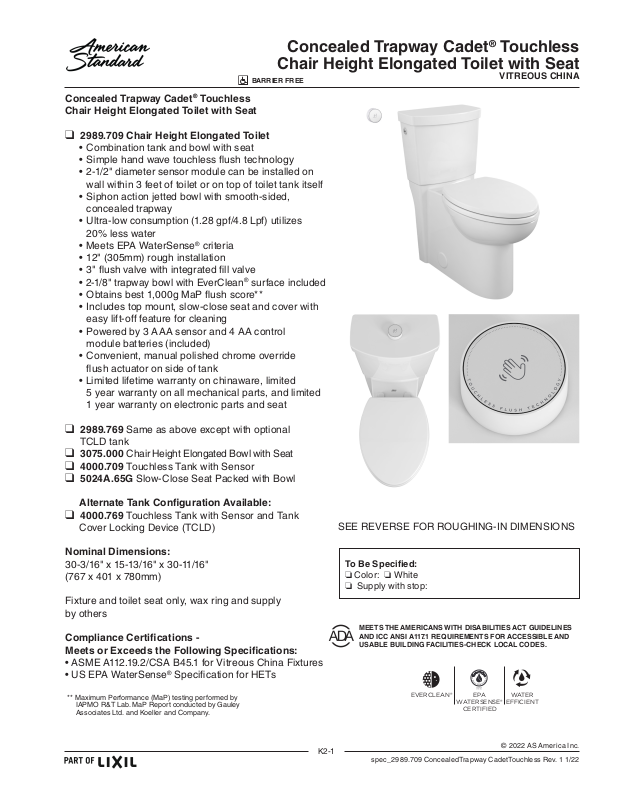

Concealed Trapway Cadet® Touchless
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
BARRIER FREE
Chair Height Elongated Toilet with Seat
Concealed Trapway Cadet® Touchl ess
Chair Height Elongated Toilet with Seat

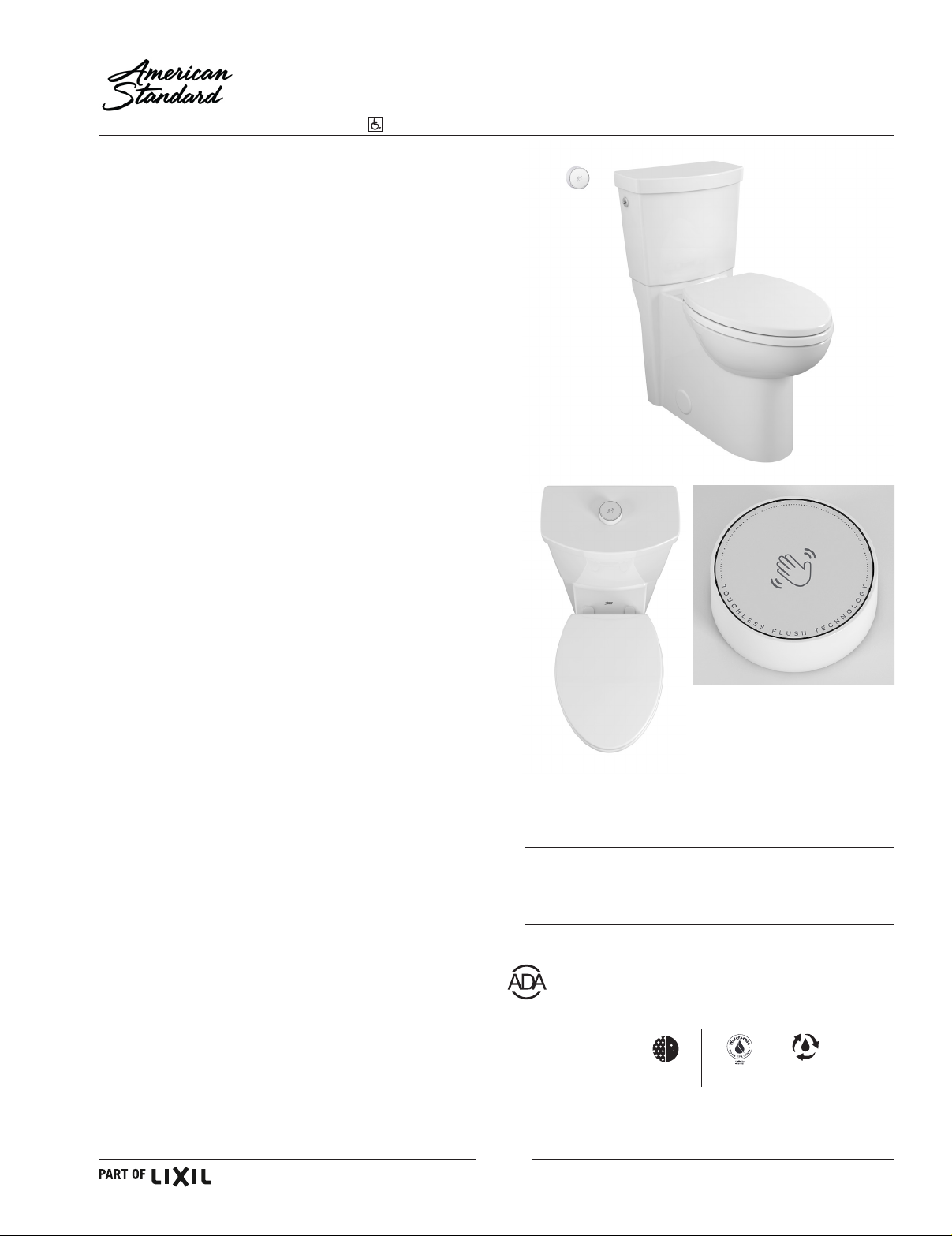

❑ 2989.709 Chair Height Elongated Toilet
• Combination tank and bowl with seat
• Simple hand wave touchless ush technology
• 2-1/2" diameter sensor module can be installed on
wall within 3 feet of toilet or on top of toilet tank itself
• Siphon action jetted bowl with smooth-sided,
concealed trapway
• Ultra-low consumption (1.28 gpf/4.8 Lpf) utilizes
20% less water
• Meets EPA WaterSense® criteria
• 12" (305mm) rough installation
• 3" ush valve with integrated ll valve
•
2-1/8" trapway bowl with EverClean® surface included
• Obtains best 1,000g MaP ush score**
• Includes top mount, slow-close seat and cover with
easy lift-off feature for cleaning
• Powered by 3 AAA sensor and 4 AA control
module batteries (included)
• Convenient, manual polished chrome override
ush actuator on side of tank
• Limited lifetime warranty on chinaware, limited
5 year warranty on all mechanical parts, and limited
1 year warranty on electronic parts and seat
VITREOUS CHINA
❑ 2989.769 Same as above except with optional
TCLD tank
❑ 3075.000 Chair Height Elongated Bowl with Seat
❑ 4000.709 Touchless Tank with Sensor
❑ 5024A.65G Slow-Close Seat Packed with Bowl
Alternate Tank Conguration Available:
❑ 4000.769 Touchless Tank with Sensor and Tank
Cover Locking Device (TCLD)
Nominal Dimensions:
30-3/16" x 15-13/16" x 30-11/16"
(767 x 401 x 780mm)
Fixture and toilet seat only, wax ring and supply
by others
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1 for Vitreous China Fixtures
• US EPA WaterSense® Specication for HETs
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Gauley
Associates Ltd. and Koeller and Company.
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Supply with stop:
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
EVERCLEAN® EPA
WATERSENSE®
CERTIFIED
WATER
EFFICIENT
K2-1
© 2022 AS America Inc.
spec_2989.709 ConcealedTrapway CadetTouchless Rev. 1 1/22
Page 2

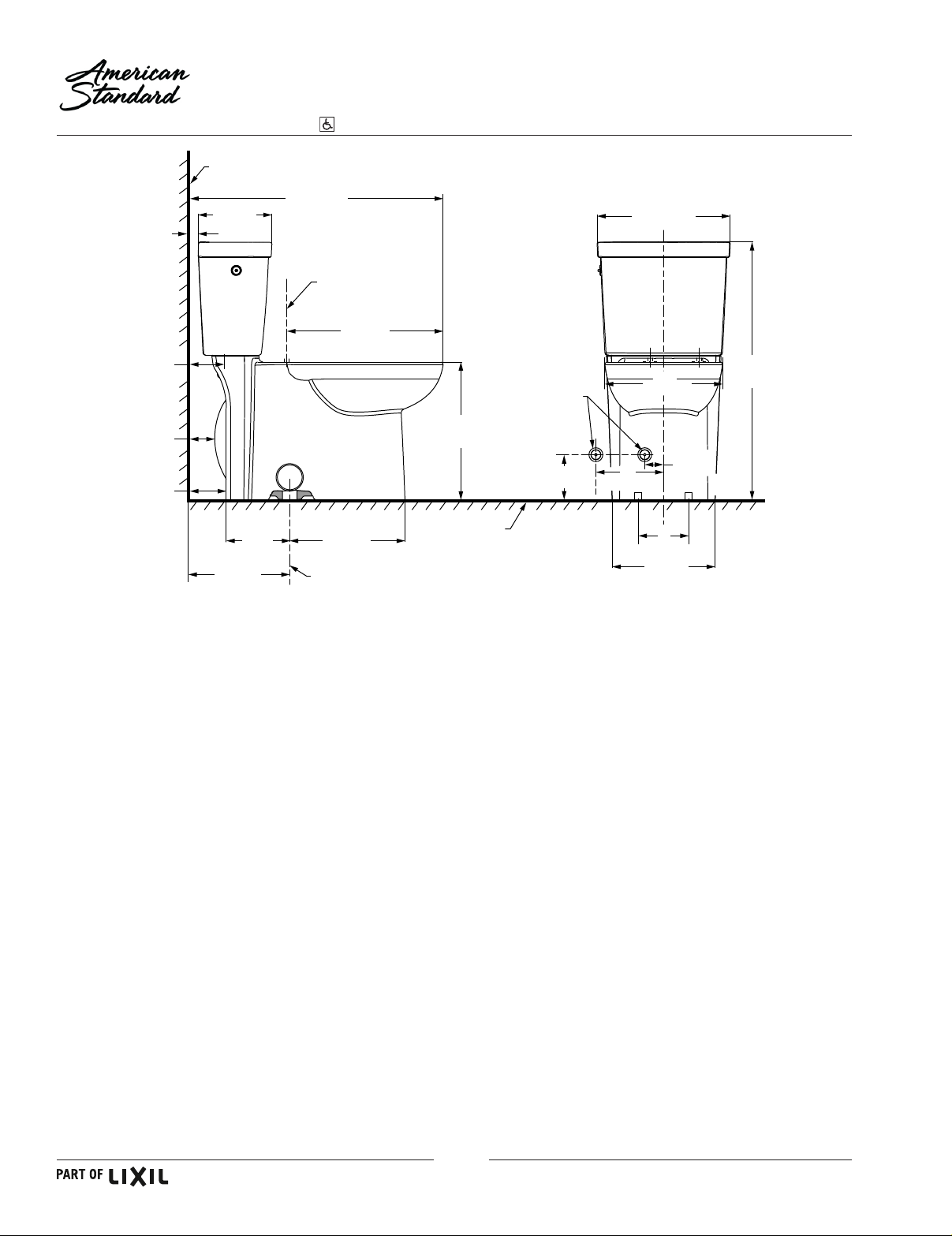

BARRIER FREE
1-1/8"
(29mm)
FINISHED WALL
8-3/4"
(222mm)
30-3/16"
(767mm)
C/L OF SEAT POST
HOLES 5-1/2" (140mm)
CENTERS
18-7/16"
(469mm)
Concealed Trapway Cadet® Touchless
Chair Height Elongated Toilet with Seat
VITREOUS CHINA
15-13/16"
(401mm)
4-1/4"
(108mm)
3-1/8"
(79mm)
4-5/8"
(114mm)
7-3/8"
(191mm)
12"
(305mm)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
13-11/16"
(347mm)
C/L OF OUTLET
16-1/2"
(419mm)
FINISHED
FLOOR
SUPPLY AS
REQUIRED
(position 1 or
position 2)
*5-1/2"
(140mm)
(204mm)
*8"
14"
(355mm)
*2-1/4"
(57mm)
6"
(152mm)
9-5/8"
(309mm)
30-11/16"
(780mm)
