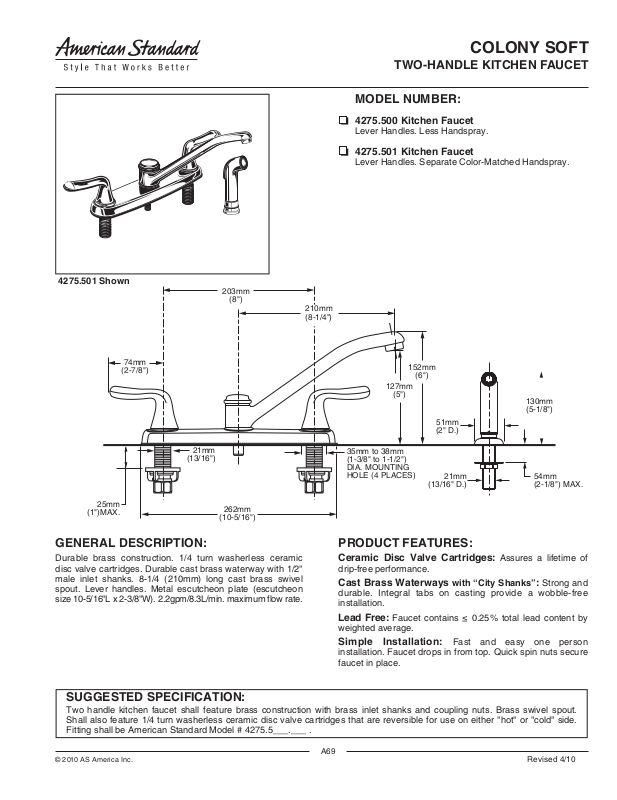

Page 1
COLONY SOFT
4275.501 Shown
MODEL NUMBER:
4275.500 Kitchen Faucet
Lever Handles. Less Handspray.
4275.501 Kitchen Faucet
Lever Handles. Separate Color-Matched Handspray.
PRODUCT FEATURES:
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Cast Brass Waterways with “City Shanks”: Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Simple Installation: Fast and easy one person
installation. Faucet drops in from top. Quick spin nuts secure
faucet in place.
GENERAL DESCRIPTION:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges. Durable cast brass waterway with 1/2"
male inlet shanks. 8-1/4 (210mm) long cast brass swivel
spout. Lever handles. Metal escutcheon plate (escutcheon
size 10-5/16"L x 2-3/8"W). 2.2gpm/8.3L/min. maximum flow rate.
SUGGESTED SPECIFICATION:
Two handle kitchen faucet shall feature brass construction with brass inlet shanks and coupling nuts. Brass swivel spout.
Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use on either "hot" or "cold" side.
Fitting shall be American Standard Model # 4275.5___.___ .
203mm
(8")
262mm
(10-5/16")
127mm
(5")
152mm
(6")
35mm to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLE (4 PLACES)
21mm
(13/16")
25mm
(1")MAX.
74mm
(2-7/8")
210mm
(8-1/4")
54mm
(2-1/8") MAX.
21mm
(13/16" D.)
51mm
(2" D.)
130mm
(5-1/8")
TWO-HANDLE KITCHEN FAUCET
© 2010 AS America I nc.
A69
Revised 4/10
Page 2
COLONY SOFT
4275.500
Product
Number
Description
Finish Options
4275.501
PVD
Satin
Nickel
295
Polished
Chrome
002
Kitchen faucet. Lever handles. Less Handspray.
Kitchen faucet. Lever handles. Separate Color-Matched Handspray.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
FLOW RATE*
GALLONS PER MINUTE
I N L E T P R E SS U R E ( P S I)
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
2.5
3.0
10080604020
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
ANSI A117.1
TWO-HANDLE KITCHEN FAUCET
© 2010 AS America I nc.
A70
Revised 4/10
