Page 1
M918504-0070A
M908423-0070A
ACRYLIC HANDLE
M916803-YYY0A
METAL LEVER HANDLE
M918075-0070A
HANDLE SCREW
M961643-YYY0A
ESCUTCHEON KIT
SCREW

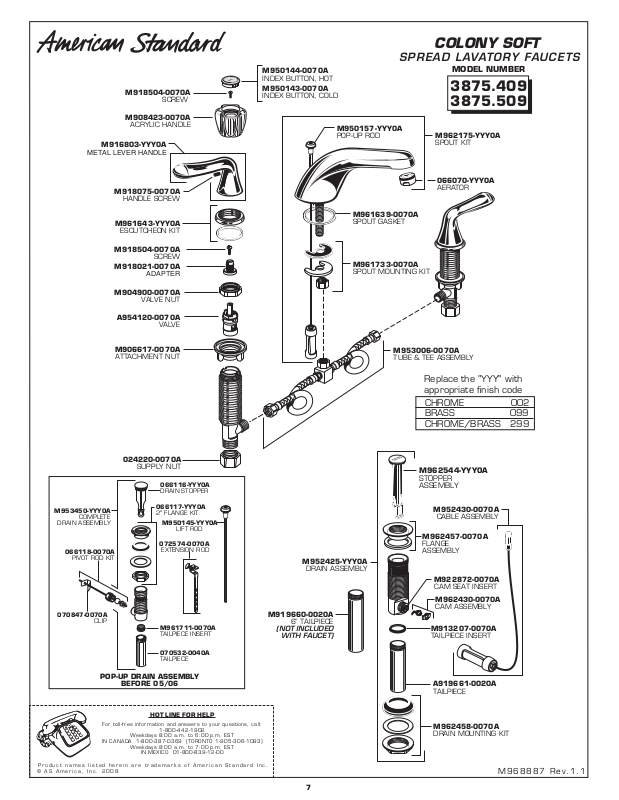

COLONY SOFT
SPREAD LAVATORY FAUCETS
M950144-0070A
H
INDEX BUTTON, HOT
M950143-0070A
INDEX BUTTON, COLD
M950157-YYY0A
POP-UP ROD
M961639-0070A
SPOUT GASKET
M962175-YYY0A
SPOUT KIT
066070-YYY0A
AERATOR
MODEL NUMBER
3875.409
3875.509
M953450-YYY0A
COMPLETE
DRAIN ASSEMBLY
066118-0070A
PIVOT ROD KIT
070847-0070A
CLIP
M918504-0070A
M918021-0070A
M904900-0070A
A954120-0070A
M906617-0070A
ATTACHMENT NUT
024220-0070A
SCREW
ADAPTER
VALVE NUT
VALV E
SUPPLY NUT
066116-YYY0A
DRAIN STOPPER
066117-YYY0A
2" FLANGE KIT
M950145-YYY0A
072574-0070A
EXTENSION ROD
M961711-0070A
TAILPIECE INSERT
070532-0040A
TAILPIECE
LIFT ROD
M952425-YYY0A
DRAIN ASSEMBLY
M919660-0020A
6” TAILPIECE
(NOT INCLUDED
WITH FAUCET)
M961733-0070A
SPOUT MOUNTING KIT
M953006-0070A
TUBE & TEE ASSEMBLY
M962544-YYY0A
STOPPER
ASSEMBLY
Replace the "YYY" with
appropriate finish code
CHROME 002
BRASS 099
CHROME/BRASS 299
M952430-0070A
CABLE ASSEMBLY
M962457-0070A
FLANGE
ASSEMBLY
M922872-0070A
CAM SEAT INSERT
M962430-0070A
CAM ASSEMBLY
M913207-0070A
TAILPIECE INSERT
POP-UP DRAIN ASSEMBLY
BEFORE 05/06
For toll-free information and answers to your questions, call:
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Product names listed herein are trademarks of American Standard Inc.
© AS America, Inc. 2008
HOT LINE FOR HELP
1-800-442-1902
Weekdays 8:00 a.m. to 6:00 p.m. EST
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-12-00
A919661-0020A
TAILPIECE
M962458-0070A
DRAIN MOUNTING KIT
M968887 Rev.1.1
7
