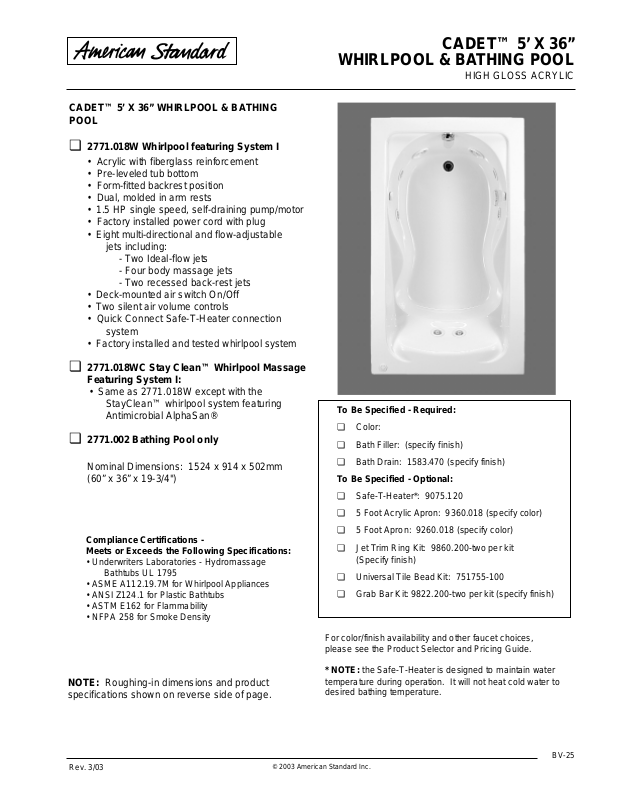

Page 1
CADET™ 5’ X 36”
WHIRLPOOL & BATHING POOL
HIGH GLOSS ACRYLIC
CADET™ 5’ X 36” WHIRLPOOL & BATHING
POOL
❏ 2771.018W Whirlpool featuring System I
• Acrylic with fiberglass reinforcement
• Pre-leveled tub bottom
• Form-fitted backrest position
• Dual, molded in arm rests
• 1.5 HP single speed, self-draining pump/motor
• Factory installed power cord with plug
• Eight multi-directional and flow-adjustable
jets including:
- Two Ideal-flow jets
- Four body massage jets
- Two recessed back-rest jets
• Deck-mounted air switch On/Off
• Two silent air volume controls
• Quick Connect Safe-T-Heater connection
system
• Factory installed and tested whirlpool system
❏ 2771.018WC Stay Clean™ Whirlpool Massage
Featuring System I:
• Same as 2771.018W except with the
StayClean™ whirlpool system featuring
Antimicrobial AlphaSan®
❏ 2771.002 Bathing Pool only
Nominal Dimensions: 1524 x 914 x 502mm
(60” x 36” x 19-3/4")
© 2003 American Standard Inc.
BV-25
NOTE: Roughing-in dimensions and product
specifications shown on reverse side of page.
Rev. 3/03
Compliance Certifications Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified - Required:
❏ Color:
❏ Bath Filler: (specify finish)
❏ Bath Drain: 1583.470 (specify finish)
To Be Specified - Optional:
❏ Safe-T-Heater*: 9075.120
❏ 5 Foot Acrylic Apron: 9360.018 (specify color)
❏ 5 Foot Apron: 9260.018 (specify color)
❏ Jet Trim Ring Kit: 9860.200-two per kit
(Specify finish)
❏ Universal Tile Bead Kit: 751755-100
❏ Grab Bar Kit: 9822.200-two per kit (specify finish)
For color/finish availability and other faucet choices,
please see the Product Selector and Pricing Guide.
* NOTE: the Safe-T-Heater is designed to maintain water
temperature during operation. It will not heat cold water to
desired bathing temperature.
Page 2
CADET™ 5’ X 36”
WHIRLPOOL & BATHING POOL
HIGH GLOSS ACRYLIC
© 2003 American Standard Inc.
F
8
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA
TYPE INSTALLATION. SUMP OF BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT
REQUIRED. ENCLOSING MATERIAL BY OTHERS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL
INFORMATION.
OPTIONAL 3 WALL TILING BEAD. KIT AND APRON No. 9260.018 or 9360.018 AVAILABLE AND MUST BE
ORDERED SEPARATELY.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT:
Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI
Standard Z124.1
These measurements are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided leaflet.
■
235 mm
(9-1/4)
SEE FITTING
SPECS FOR
DIMENSIONS
914 mm
(36)
SUPPLIES
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
1651 & 1981mm
FINISHED
WALL
457 mm
(18)
C/L OF
(65 & 78)
19 mm
(3/4)
305 mm
(12)
57 mm
(2-1/4)
C/L OF
OVERFLOW
76 mm
(3)
ROUGH
FLOOR
INTEGRAL
SUPPORT
1524 mm
RECOMMENDED FITTING LOCATION
64 X 330mm (2-1/2 x 13")
INSTALLATIONS ONLY
229 mm
(9)
CUTOUT IN FLOOR
FOR DRAIN
(8) JETS
C/L OF DRAIN
305 mm
38 mm
(12)
502 mm
(19-3/4)
FEET
(1-1/2)
102 mm
1-1/2 N.P.T.M.
THREADS
1-1/2 O.D.TAILPIECE
PROVIDE ACCESS TO PUMP FOR
SERVICING ON ALL INSTALLATIONS
(60)
FOR PIER OR ISLAND
PUMP
(2) AIR VALVES
ALT. FITTING
LOCATION #1
C/L OF
SHOWER ARM
C/L OF
VALVES
C/L OF
SPOUT
SAFE-T-HEATER
REMOVABLE
(4)
BLANK
70 mm
(2-3/4)
117 mm
(4-5/8)
OUTLINE OF CUTOUT
1486 mm x 876 mm
(58-1/2 X 34-1/2)
■ LEVELING
STRINGER
NOT FOR
SUPPORT
464 mm
(18-1/4)
ON/OFF
SWITCH
235 mm
(9-1/4)
FINISHED
SEE FITTING
SPECS FOR
DIMENSIONS
ALT. FITTING
LOCATION #2
64 x 330mm
(2-1/2 x 13")
914 mm
(36)
457 mm
(18)
C/L OF
SUPPLIES
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
1651 & 1981mm
(65 & 78)
WALL
19 mm
(3/4)
305 mm
(12)
57 mm
(2-1/4)
C/L OF DRAIN
C/L OF
OVERFLOW
67 mm
(2-5/8)
502 mm
(19-3/4)
ROUGH
FLOOR
INTEGRAL
SUPPORT
1524 mm
RECOMMENDED FITTING LOCATION
229 mm
(9)
CUTOUT IN FLOOR
FOR DRAIN
38 mm
(1-1/2)
FEET
1-1/2 O.D.TAILPIECE
(60)
64 X 330mm (2-1/2 x 13")
FOR PIER OR ISLAND
INSTALLATIONS ONLY
305 mm
(12)
102 mm
(4)
1-1/2 N.P.T.M.
THREADS
ALT. FITTING
LOCATION #1
C/L OF
SHOWER ARM
■ LEVELING STRINGER
NOT FOR SUPPORT
C/L OF
VALVES
70 mm
(2-3/4)
C/L OF
SPOUT
117 mm
(4-5/8)
OUTLINE O
1486 mm x
(58-1/2 X 34
464 mm
(18-1/4)
GENERAL SPECIFICATIONS FOR 2771 WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
MIN. OPERATING GAL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
60 x 36 x 19-3/4 In.(1524 x 914 x 502mm)
95 Lbs. (43 Kg.)
587 Lbs. (267 Kg.)
59 Gal. (224 L.)
48 Gal. (182 L.)
40 x 22 In. (1016 x 559mm)
52 x 29 In. (1321 x 737mm)
13-1/4 In. (337mm)
39 Lbs./Sq. Ft. (188 Kgs/Sq. m.)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
1.6 HP, 9.7 AMPS, 120V.SYSTEM I PUMP
GENERAL SPECIFICATIONS FOR 2771 BATHING POOL
INSTALLED SIZE
(1524mm x 914 mm x 502mm)
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
40 x 22 In. (1016mm x 559mm)
52 x 29 In. (1321mm x 737mm)
WATER DEPTH TO OVERFLOW
FLOOR LOADING
23.8
44.5
(PROJECTED AREA)
PTS.
CUBE (FT3)
37 LBS./Sq. Ft. (180 Kgs/Sq. m.)
60 x 36 x 19-3/4 In.
70 Lbs. (32 Kg.)
562 Lbs. (255 Kg)
59 Gal. (224 L.)
13-1/4 In. (337mm)
23.8
44.5
