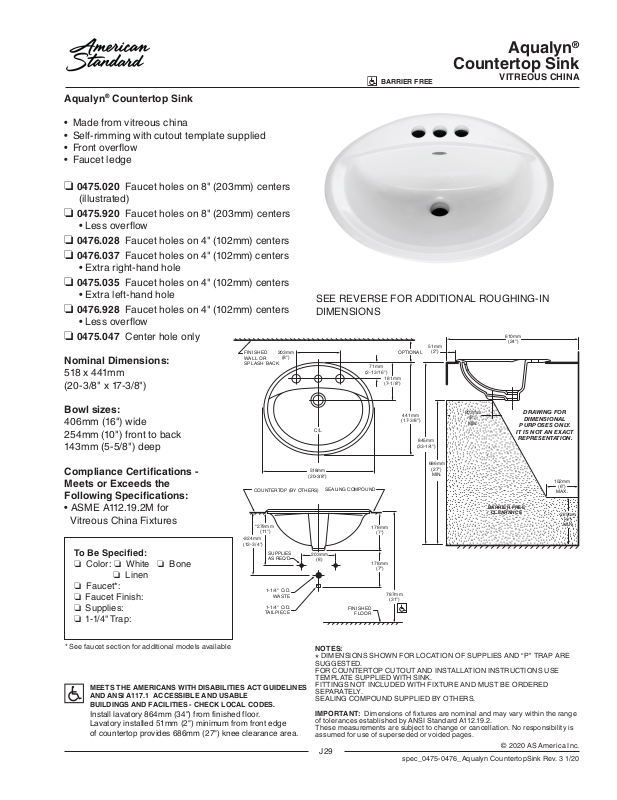

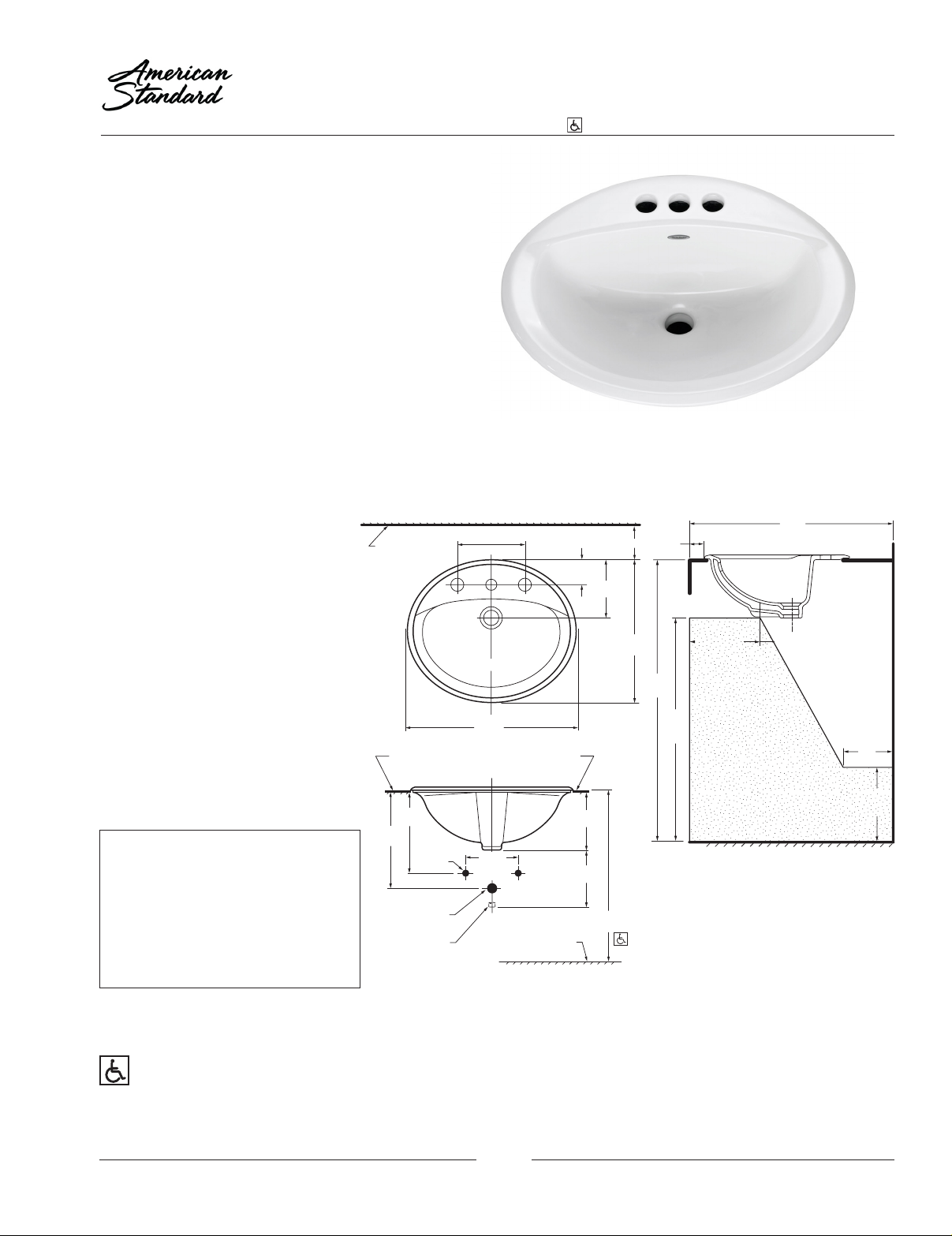

American Standard ASD1634 Specifications

Aqualyn® Countertop Sink

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

• Made from vitreous china

• Self-rimming with cutout template supplied

• Front overow

• Faucet ledge

❏ 0475.020 Faucet holes on 8" (203mm) centers

(illustrated)

❏ 0475.920 Faucet holes on 8" (203mm) centers

• Less overow

❏ 0476.028 Faucet holes on 4" (102mm) centers
❏ 0476.037 Faucet holes on 4" (102mm) centers

• Extra right-hand hole

❏ 0475.035 Faucet holes on 4" (102mm) centers

• Extra left-hand hole

❏ 0476.928 Faucet holes on 4" (102mm) centers

• Less overow

❏ 0475.047 Center hole only

Nominal Dimensions:

518 x 441mm
(20-3/8" x 17-3/8")

FINISHED
WALL OR
SPLASH BACK

203mm

(8")

Aqualyn

Countertop Sink

BARRIER FREE

Shown with 4801.862 Amarilis/Heritage faucet

with Triune cross handles (not included)

SEE REVERSE FOR ADDITIONAL ROUGHING-IN
DIMENSIONS

51mm

(2")

71mm

(2-13/16")

181mm
(7-1/8")

OPTIONAL

VITREOUS CHINA

610mm

(24")

®

Bowl sizes:

406mm (16") wide
254mm (10") front to back
143mm (5-5/8") deep

Compliance Certications ­Meets or Exceeds the
Following Specications:

• ASME A112.19.2M for
Vitreous China Fixtures

To Be Specied:

❏ Color: ❏ White ❏ Bone
❏ Linen

❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:

* See faucet section for additional models available

AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.

Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.

COUNTERTOP (BY OTHERS)

*

279mm

(11")

324mm

*
(12-3/4")

SUPPLIES
AS REQ'D.

1-1/4" O.D.

WASTE

1-1/4" O.D.

TAILPIECE

441mm

178mm

(7")

178mm

(7")

(17-3/8")

845mm

(33-1/4")

686mm

(27")
MIN.

787mm

(31")

spec_0475-0476_Aqualyn CountertopSink Rev. 3 1/20

C/L

518mm

(20-3/8")

SEALING COMPOUND

203mm

(8)

FINISHED

FLOOR

NOTES:

DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAP ARE

*

SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPAR AT E LY.
SEALING COMPOUND SUPPLIED BY OTHERS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.

J29

203mm

(8")

MIN.

BARRIER FREE

CLEARANCE

DRAWING FOR

DIMENSIONAL

PURPOSES ONLY.

IT IS NOT AN EXACT

REPRESENTATION.

152mm

MAX.

© 2020 AS America Inc.

(6")

229mm

MIN.

(9")

Countertop Sink

*

610mm

*

610mm

610mm

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

BARRIER FREE

Aqualyn

VITREOUS CHINA

®

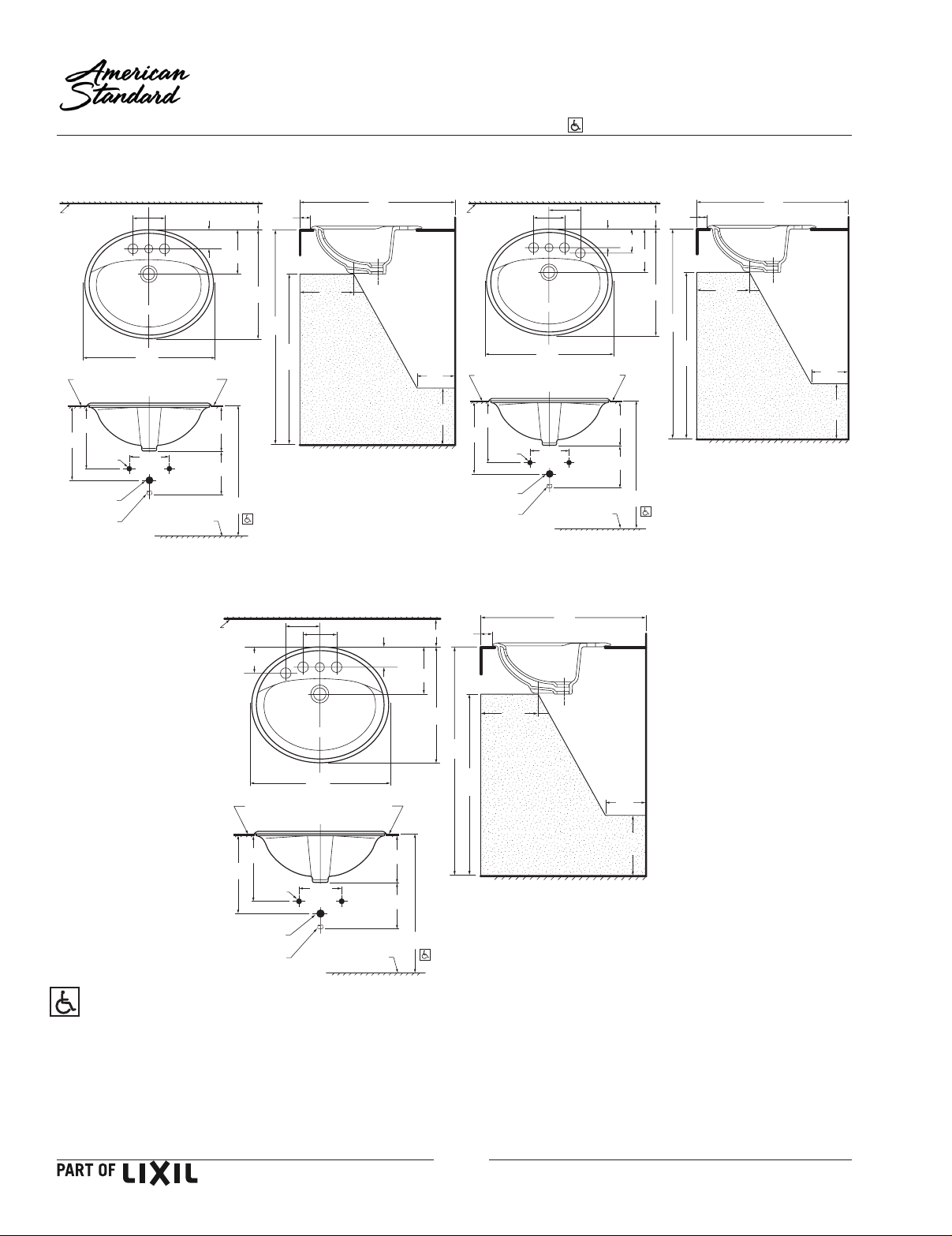

0476.028 Faucet holes on 4" (102mm) centers

(31")

OPTIONAL

441mm

(17-3/8")

845mm

(33-1/4")

51mm

(2")

686mm

(27")
MIN.

FINISHED
WALL OR
SPLASH BACK

COUNTERTOP

(BY OTHERS)

*

279mm

(11")

324mm

(12-3/4")

SUPPLIES
AS REQ'D.

1-1/4" O.D.

WASTE

1-1/4" O.D.

TAILPIECE

102mm

(4")

C/L

518mm

(20-3/8")

SEALING COMPOUND

203mm

(8")

(2-13/16")

FINISHED

FLOOR

71mm

178mm

(7")

178mm

(7")

181mm
(7-1/8")

787mm

0475.035 Faucet holes on 4" (102mm) centers

114mm

FINISHED

(4-1/2")

WALL OR
SPLASH BACK

79mm

(3-1/8")

203mm

(8")

MIN.

BARRIER FREE

CLEARANCE

102mm

(4")

(24")

DRAWING FOR
DIMENSIONAL

PURPOSES ONLY.

IT IS NOT AN EXACT

REPRESENTATION.

152mm

(6")

MAX.

229mm

(9")

MIN.

324mm

(12-3/4")

• Extra left-hand hole

51mm

(2")

OPTIONAL

71mm

(2-13/16")

181mm
(7-1/8")

0476.037 Faucet holes on 4" (102mm) centers

• Extra right-hand hole

FINISHED
WALL OR
SPLASH BACK

COUNTERTOP

(BY OTHERS)

*

279mm

(11")

SUPPLIES
AS REQ'D.

1-1/4" O.D.

WASTE

1-1/4" O.D.
TAILPIECE

102mm

(4")

C/L

518mm

(20-3/8")

SEALING COMPOUND

203mm

(8")

(24")

114mm

(4-1/2")

FINISHED

FLOOR

71mm

(2-13/16")

178mm

(7")

178mm

(7")

79mm

(3-1/8")

787mm

(31")

181mm
(7-1/8")

OPTIONAL

441mm
(17-3/8")

845mm

(33-1/4")

51mm

(2")

686mm

(27")
MIN.

203mm

(8")
MIN.

(24")

BARRIER FREE

CLEARANCE

DRAWING FOR
DIMENSIONAL

PURPOSES ONLY.

IT IS NOT AN EXACT

REPRESENTATION.

152mm

(6")

MAX.

229mm

(9")

MIN.

COUNTERTOP

(BY OTHERS)

*

279mm

(11")

324mm

*
(12-3/4")

SUPPLIES
AS REQ'D.

1-1/4" O.D.

WASTE

1-1/4" O.D.

TAILPIECE

AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.

Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.

© 2010 AS America Inc.

C/L

518mm

(20-3/8")

SEALING COMPOUND

203mm

(8")

FINISHED

FLOOR

178mm

(7")

178mm

(7")

DRAWING FOR
DIMENSIONAL

PURPOSES ONLY.

IT IS NOT AN EXACT

REPRESENTATION.

152mm

(6")

MAX.

BARRIER FREE

CLEARANCE

229mm

(9")

MIN.

© 2020 AS America Inc.

spec_0475-0476_Aqualyn CountertopSink Rev. 3 1/20

686mm

(27")
MIN.

203mm

(8")

MIN.

441mm

(17-3/8")

845mm

(33-1/4")

787mm

(31")

NOTES:

DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAP ARE

*

SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPAR AT E LY.
SEALING COMPOUND SUPPLIED BY OTHERS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.

J30
