Page 1
2-1/2"
(64 mm)
3/8"
(10 mm)
OPTIONAL
ESCUTCHEON
PLATE
6-5/16"
(161 mm)
MOUNTING
SURFACE

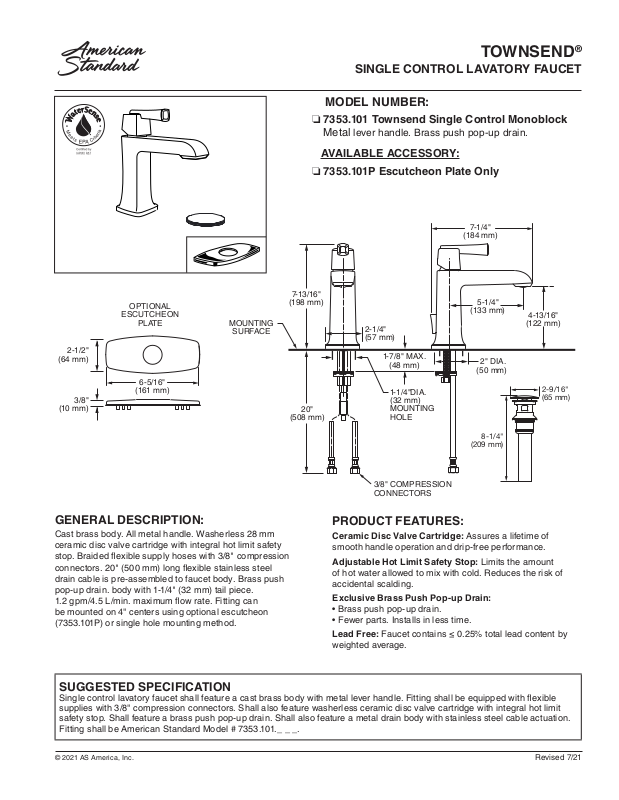

TOWNSEND
SINGLE CONTROL LAVATORY FAUCET
MODEL NUMBER:
❏ 7353.101 Townsend Single Control Monoblock
Metal lever handle. Brass push pop-up drain.
AVAILABLE ACCESSORY:
❏ 7353.101P Escutcheon Plate Only
7-1/4"
(184 mm)
7-13/16"
(198 mm)
20"
(508 mm)
2-1/4"
(57 mm)
1-7/8" MAX.
(48 mm)
1-1/4"DIA.
(32 mm)
MOUNTING
HOLE
5-1/4"
(133 mm)
2" DIA.
(50 mm)
4-13/16"
(122 mm)
2-9/16"
(65 mm)
®
8-1/4"
(209 mm)
3/8" COMPRESSION
CONNECTORS
GENERAL DESCRIPTION:
Cast brass body. All metal handle. Washerless 28 mm
ceramic disc valve cartridge with integral hot limit safety
stop. Braided exible supply hoses with 3/8" compression
connectors. 20" (500 mm) long exible stainless steel
drain cable is pre-assembled to faucet body. Brass push
pop-up drain. body with 1-1/4" (32 mm) tail piece.
1.2 gpm/4.5 L/min. maximum ow rate. Fitting can
be mounted on 4" centers using optional escutcheon
(7353.101P) or single hole mounting method.
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Adjustable Hot Limit Safety Stop: Limits the amount
of hot water allowed to mix with cold. Reduces the risk of
accidental scalding.
Exclusive Brass Push Pop-up Drain:
• Brass push pop-up drain.
• Fewer parts. Installs in less time.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Single control lavatory faucet shall feature a cast brass body with metal lever handle. Fitting shall be equipped with exible
supplies with 3/8" compression connectors. Shall also feature washerless ceramic disc valve cartridge with integral hot limit
safety stop. Shall feature a brass push pop-up drain. Shall also feature a metal drain body with stainless steel cable actuation.
Fitting shall be American Standard Model # 7353.101._ _ _.
© 2021 AS America, Inc.
Revised 7/21
Page 2
TOWNSEND
SINGLE CONTROL LAVATORY FAUCET
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
NSF 61/Section 9 and Annex G
CSA B125.1
Product
Number Description
735 3.101
Townsend Single Control Monoblock.
Brass push pop-up drain.
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 013 278 295
PVD
Polished
Nickel
Legacy
Bronze
806040200
PVD
Brushed
Nickel
735 3.101P
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Optional Escutcheon Plate Only (For mounting on 4" centers)
© 2021 AS America, Inc.
Revised 7/21
