Page 1
2-3/16"
(56 mm)
OPTIONAL
ESCUTCHEON
PLATE
6-3/16"
(157 mm)
3/8"
(9 mm)
1-1/4"DIA.
(32 mm)

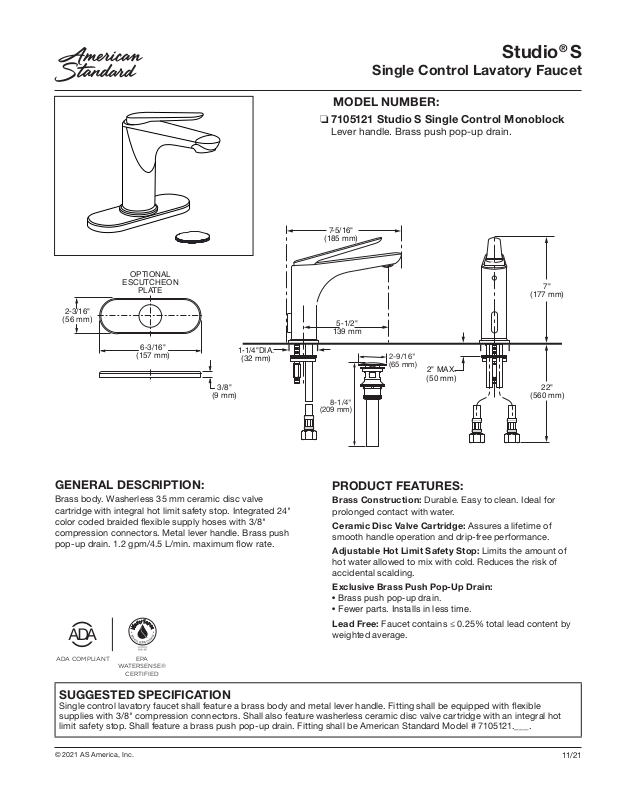

Studio® S
Single Control Lavatory Faucet
MODEL NUMBER:
❏ 7105121 Studio S Single Control Monoblock
Lever handle. Brass push pop-up drain.
7-5/16"
(185 mm)
7"
(177 mm)
5-1/2"
139 mm
2-9/16"
8-1/4"
(209 mm)
(65 mm)
2" MAX.
(50 mm)
22"
(560 mm)
GENERAL DESCRIPTION:
Brass body. Washerless 35 mm ceramic disc valve
cartridge with integral hot limit safety stop. Integrated 24"
color coded braided exible supply hoses with 3/8"
compression connectors. Metal lever handle. Brass push
pop-up drain. 1.2 gpm/4.5 L/min. maximum ow rate.
PRODUCT FEATURES:
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Adjustable Hot Limit Safety Stop: Limits the amount of
hot water allowed to mix with cold. Reduces the risk of
accidental scalding.
Exclusive Brass Push Pop-Up Drain:
• Brass push pop-up drain.
• Fewer parts. Installs in less time.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
ADA COMPLIANT EPA
WATERSENSE®
CERTIFIED
SUGGESTED SPECIFICATION
Single control lavatory faucet shall feature a brass body and metal lever handle. Fitting shall be equipped with exible
supplies with 3/8" compression connectors. Shall also feature washerless ceramic disc valve cartridge with an integral hot
limit safety stop. Shall feature a brass push pop-up drain. Fitting shall be American Standard Model # 7105121.___.
© 2021 AS America, Inc.
11/ 21
Page 2
Studio® S
Single Control Lavatory Faucet
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125 .1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 295 243
PVD
Brushed
Nickel
806040200
Matte
Black
7105121
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Studio S Single Control Monoblock. Brass push pop-up drain.
© 2021 AS America, Inc.
11/ 21
