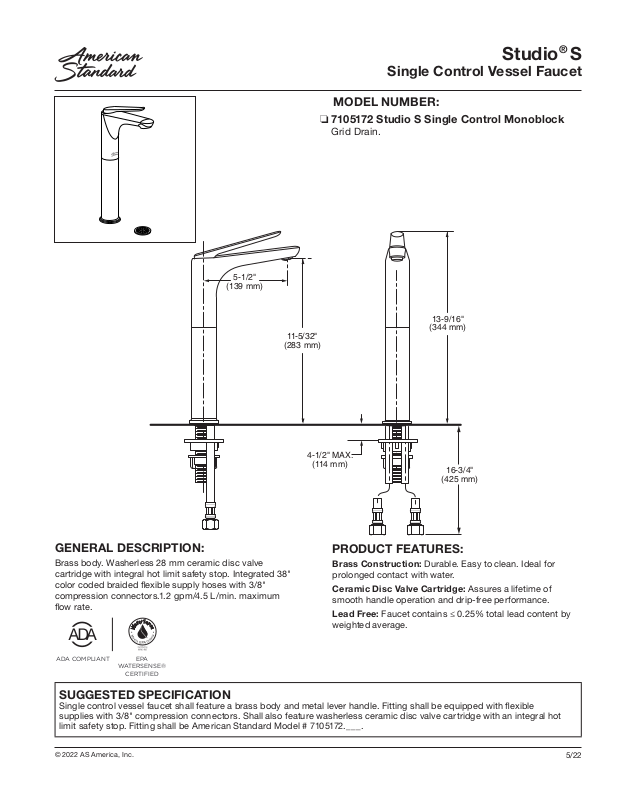

Page 1
5-1/2"
(139 mm)
Studio® S
Single Control Vessel Faucet
MODEL NUMBER:
❏ 7105172 Studio S Single Control Monoblock
Grid Drain.
13-9/16"
(344 mm)
11-5/32"
(283 mm)
4-1/2" MAX.
GENERAL DESCRIPTION:
Brass body. Washerless 28 mm ceramic disc valve
cartridge with integral hot limit safety stop. Integrated 38"
color coded braided exible supply hoses with 3/8"
compression connectors.1.2 gpm/4.5 L/min. maximum
ow rate.
ADA COMPLIANT EPA
WATERSENSE®
CERTIFIED
(114 mm)
PRODUCT FEATURES:
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
16-3/4"
(425 mm)
SUGGESTED SPECIFICATION
Single control vessel faucet shall feature a brass body and metal lever handle. Fitting shall be equipped with exible
supplies with 3/8" compression connectors. Shall also feature washerless ceramic disc valve cartridge with an integral hot
limit safety stop. Fitting shall be American Standard Model # 7105172.___.
© 2022 AS America, Inc.
5/22
Page 2
Studio® S
Single Control Vessel Faucet
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASM E A112 .18 .1
CSA B125 .1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 295 243
PVD
Brushed
Nickel
806040200
Matte
Black
7105172
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Studio S Single Control Monoblock faucet with grid drain.
© 2022 AS America, Inc.
5/22
