8-11/16"
(220 mm)

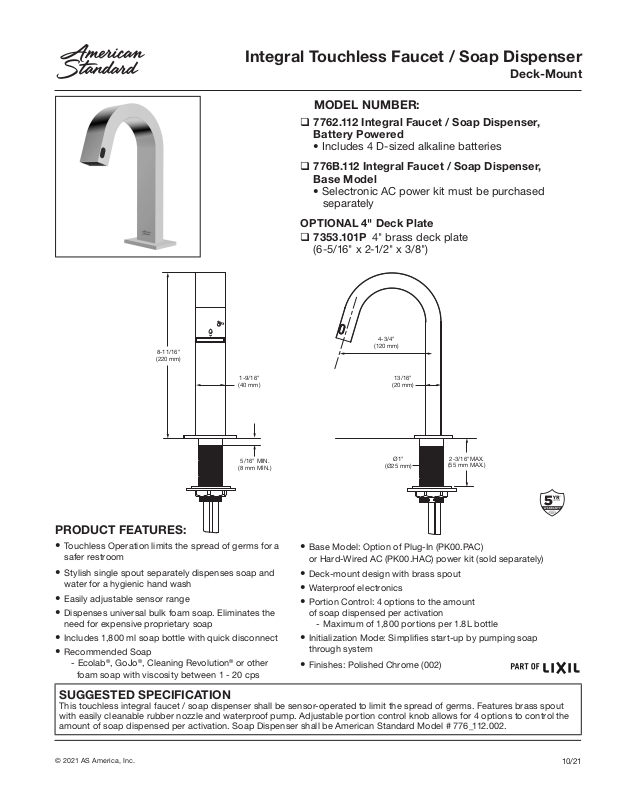

Integral Touchless Faucet / Soap Dispenser
Deck-Mount
MODEL NUMBER:
7762 .112 Integral Faucet / Soap Dispenser,
Battery Powered
• Includes 4 D-sized alkaline batteries
776B .112 Integral Faucet / Soap Dispenser,
Base Model
• Selectronic AC power kit must be purchased
separately
OPTIONAL 4" Deck Plate
7353.101P 4" brass deck plate
(6 - 5/16" x 2-1/ 2 " x 3/8")
4-3/4"
(120 mm)
1-9/16"
(40 mm)
5/16" MIN.
(8 mm MIN.)
PRODUCT FEATURES:
• Touchless Operation limits the spread of germs for a
safer restroom
• Stylish single spout separately dispenses soap and
water for a hygienic hand wash
• Easily adjustable sensor range
• Dispenses universal bulk foam soap. Eliminates the
need for expensive proprietary soap
• Includes 1,800 ml soap bottle with quick disconnect
• Recommended Soap
- Ecolab®, GoJo®, Cleaning Revolution® or other
foam soap with viscosity between 1 - 20 cps
13/16"
(20 mm)
Ø1"
(Ø25 mm)
2-3/16"MAX.
(55 mm MAX.)
• Base Model: Option of Plug-In (PK00.PAC)
or Hard-Wired AC (PK00.HAC) power kit (sold separately)
• Deck-mount design with brass spout
• Waterproof electronics
• Portion Control: 4 options to the amount
of soap dispensed per activation
- Maximum of 1,800 portions per 1.8L bottle
• Initialization Mode: Simplies start-up by pumping soap
through system
• Finishes: Polished Chrome (002)
SUGGESTED SPECIFICATION
This touchless integral faucet / soap dispenser shall be sensor-operated to limit the spread of germs. Features brass spout
with easily cleanable rubber nozzle and waterproof pump. Adjustable portion control knob allows for 4 options to control the
amount of soap dispensed per activation. Soap Dispenser shall be American Standard Model # 776_112.002.
© 2021 AS America, Inc.
10/21
