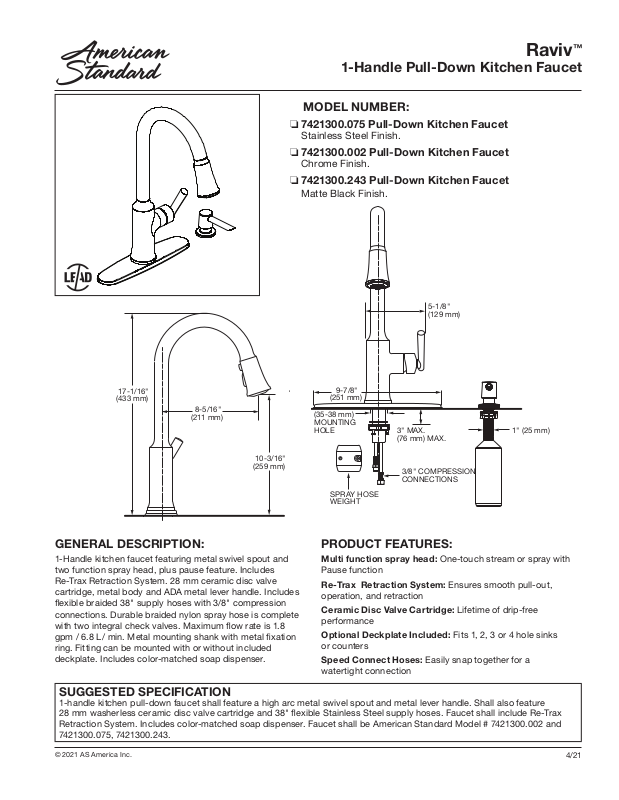

Page 1
1-Handle Pull-Down Kitchen Faucet
3/8" COMPRESSION
CONNECTIONS
SPRAY HOSE
WEIGHT
3" MAX.
(76 mm) MAX.
5-1/8"
(129 mm)
9-7/8"
(251 mm)
1" (25 mm)
(35-38 mm)
MOUNTING
HOLE
MODEL NUMBER:
❏ 742130 0.075 Pull-Down Kitchen Faucet
Stainless Steel Finish.
❏ 7421300.002 Pull-Down Kitchen Faucet
Chrome Finish.
❏ 7421300.243 Pull-Down Kitchen Faucet
Matte Black Finish.
5-1/8"
(129 mm)
Raviv
™
17-1/16"
(433 mm)
8-5/16"
(211 mm)
10-3/16"
(259 mm)
GENERAL DESCRIPTION:
1-Handle kitchen faucet featuring metal swivel spout and
two function spray head, plus pause feature. Includes
Re-Trax Retraction System. 28 mm ceramic disc valve
cartridge, metal body and ADA metal lever handle. Includes
exible braided 38" supply hoses with 3/8" compression
connections. Durable braided nylon spray hose is complete
with two integral check valves. Maximum ow rate is 1.8
gpm / 6.8 L/ min. Metal mounting shank with metal xation
ring. Fitting can be mounted with or without included
deckplate. Includes color-matched soap dispenser.
SUGGESTED SPECIFICATION
1-handle kitchen pull-down faucet shall feature a high arc metal swivel spout and metal lever handle. Shall also feature
9-7/8"
(251 mm)
(35-38 mm)
MOUNTING
HOLE
SPRAY HOSE
WEIGHT
3" MAX.
(76 mm) MAX.
3/8" COMPRESSION
CONNECTIONS
1" (25 mm)
PRODUCT FEATURES:
Multi function spray head: One-touch stream or spray with
Pause function
Re-Trax Retraction System: Ensures smooth pull-out,
operation, and retraction
Ceramic Disc Valve Cartridge: Lifetime of drip-free
performance
Optional Deckplate Included: Fits 1, 2, 3 or 4 hole sinks
or counters
Speed Connect Hoses: Easily snap together for a
watertight connection
28 mm washerless ceramic disc valve cartridge and 38" exible Stainless Steel supply hoses. Faucet shall include Re-Trax
Retraction System. Includes color-matched soap dispenser. Faucet shall be American Standard Model # 7421300.002 and
7421300.075, 7421300. 243.
© 2021 AS America Inc.
4/21
Page 2
Raviv
™
1-Handle Pull-Down Kitchen Faucet
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125 .1
NSF 61/Section 9
NSF 372
Product
Number Description
7421300.002
742130 0 . 0 75
Pull-Down Kitchen Faucet featuring Re-Trax™ technology. Includes color-matched soap dispenser and
deckplate (installation is optional). Chrome nish
Pull-Down Kitchen Faucet featuring Re-Trax™ technology. Includes color-matched soap dispenser and
deckplate (installation is optional). Stainless Steel nish
FLOW RATE*
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
1.8 gpm/6.8 L/min. FLOW RATE
10080604020
742130 0 . 24 3
Meets the American Disabilities Act Guidelines
ANSI A117.1 Requirements for the
physically challenged.
Pull-Down Kitchen Faucet featuring Re-Trax™ technology. Includes color-matched soap dispenser and
deckplate (installation is optional). Matte Black nish
© 2021 AS America Inc.
4/21
