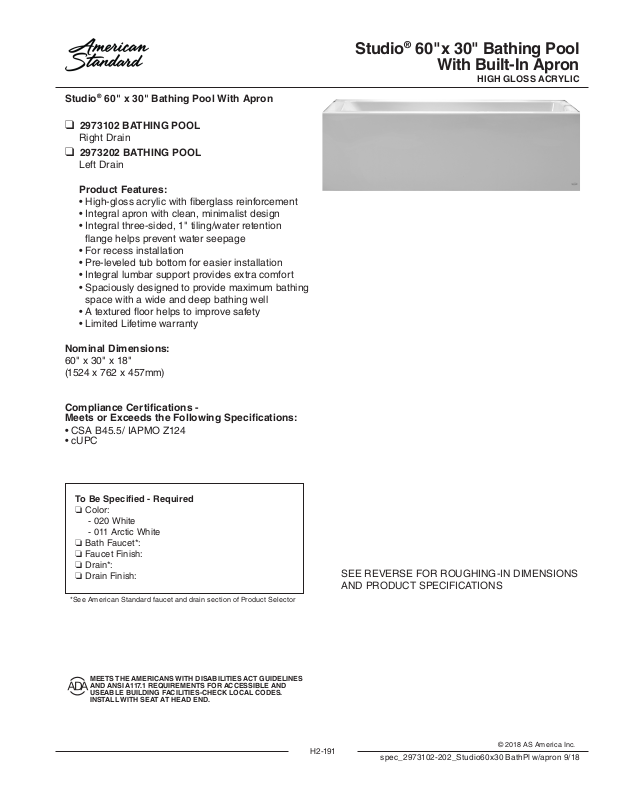

Page 1

Studio® 60" x 30" Bathing Pool With Apron

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

❑ 2973102 BATHING POOL

Right Drain

❑ 2973202 BATHING POOL

Left Drain

Product Features:

• High-gloss acrylic with berglass reinforcement

• Integral apron with clean, minimalist design

• Integral three-sided, 1" tiling/water retention

ange helps prevent water seepage

• For recess installation

• Pre-leveled tub bottom for easier installation

• Integral lumbar support provides extra comfort

• Spaciously designed to provide maximum bathing space with a wide and deep bathing well

• A textured oor helps to improve safety

• Limited Lifetime warranty

Studio® 60" x 30" Bathing Pool

With Built-In Apron

HIGH GLOSS ACRYLIC

Nominal Dimensions:

60" x 30" x 18" (1524 x 762 x 457mm)

Compliance Certications Meets or Exceeds the Following Specications:

• CSA B45.5/ IAPMO Z124

• cUPC

To Be Specied - Required

❏ Color:

- 020 White

- 011 Arctic White

❏ Bath Faucet*: ❏ Faucet Finish: ❏ Drain*: ❏ Drain Finish:

* See American Standard faucet and drain section of Product Selector

SEE REVERSE FOR ROUGHING-IN DIMENSIONS AND PRODUCT SPECIFICATIONS

AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USEABLE BUILDING FACILITIES-CHECK LOCAL CODES. INSTALL WITH SEAT AT HEAD END.

H2 -191

spec_2973102-202_Studio60x30 BathPl w/apron 9/18

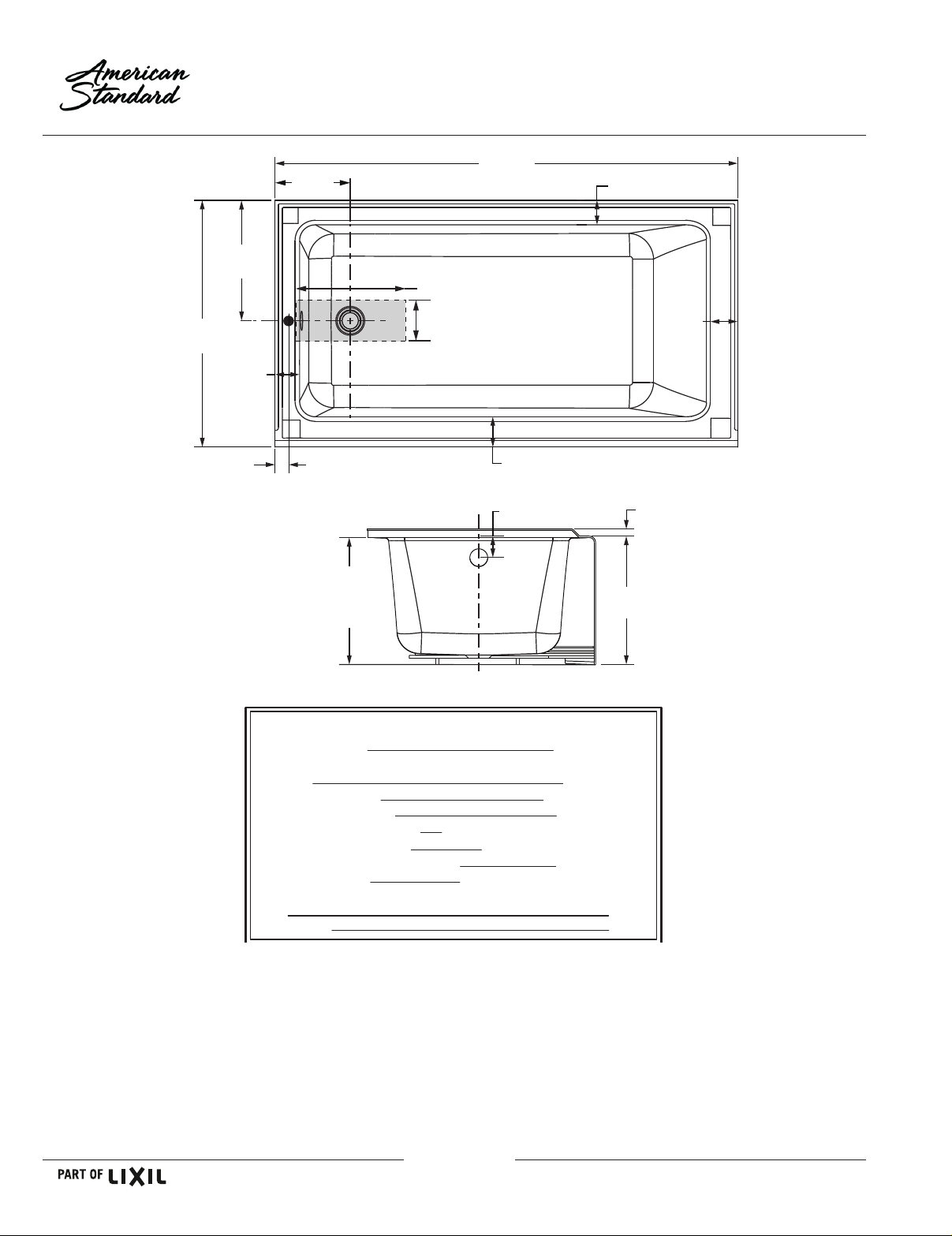

Page 2

14-5/8"

(371mm)

30"

(762mm)

3-3/16"

(81mm)

9-3/4"

(248mm)

2" (51mm)

C/L OF DRAIN

12-3/4" (324mm)

9" (229mm)

Studio® 60" x 30" Bathing Pool

With Built-In Apron

HIGH GLOSS ACRYLIC

60"

(1524mm)

3-15/16" (100mm)

3" (76mm)

3-3/16"

(81mm)

1" (25mm)

4-1/16"

(103mm)

17-3/4"

(451mm)

STRINGER

HEIGHT

GENERAL SPECIFICATIONS FOR 2973102/202 TUB

INSTALLED SIZE

WEIGHT WEIGHT w/WATER GAL. TO OVERFLOW BATHING WELL AT SUMP BATHING WELL AT RIM WATER DEPTH TO OVERFLOW FLOOR LOADING (PROJECTED AREA) PTS.

CUBE (FT

NOTES:

BATH TO BE INSTALLED ABOVE FLOOR LINE AS A RECESS INSTALLATION.

REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH TUB FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

MOUNTING HOLES DRILLED BY INSTALLER.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard CSA B45.5-11/IAPMO Z124-2011. These measurements are subject to change or cancellation. No responsibilit y is assumed for use of superseded or voided pages.

)

20-1/2 x 44.5 In. (521 x 1130mm)

23 x 53 In.(584 x 1346mm)

37 Lbs./Sq.Ft. (179 Kgs/Sq.m)

H2 -192

60 x 30 x 18 In.

(1524 x 762 x 457mm)

56 Lbs. (25 Kg)

457 Lbs.(208 Kg)

48 Gal. (181 L)

12 In. (305mm)

spec_2973102-202_Studio60x30 BathPl w/apron 9/18

18"

(457mm)

10.18

25.12
