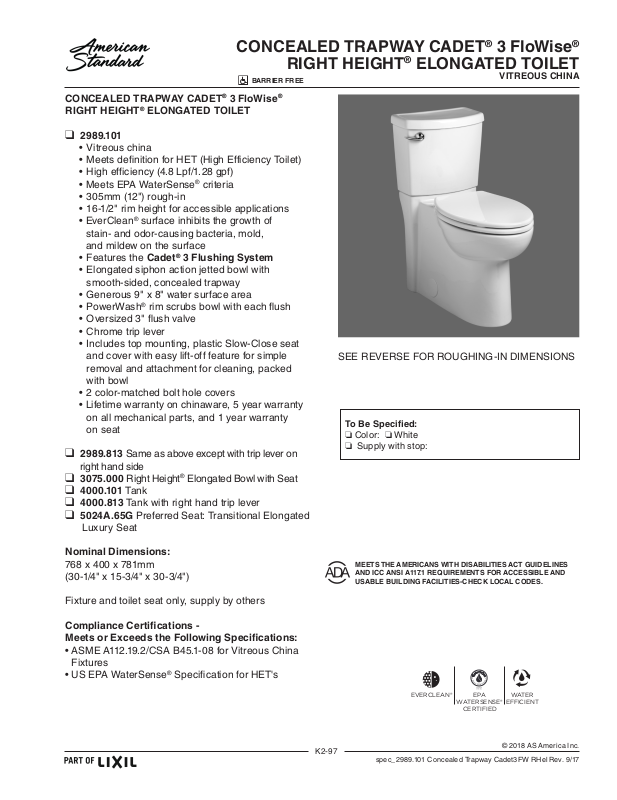

CONCEALED TRAPWAY CADET® 3 FloWise
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
BARRIER FREE
RIGHT HEIGHT® ELONGATED TOILET
CONCEALED TRAPWAY CADET® 3 FloWise®
RIGHT HEIGHT® ELONGATED TOILET
❑ 2989.101
• Vitreous china
• Meets denition for HET (High Efficiency Toilet)
• High efficiency (4.8 Lpf/1.28 gpf)
• Meets EPA WaterSense® criteria
• 305mm (12") rough-in
• 16-1/2" rim height for accessible applications
• EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Features the Cadet® 3 Flushing System
• Elongated siphon action jetted bowl with
smooth-sided, concealed trapway
• Generous 9" x 8" water surface area
• PowerWash® rim scrubs bowl with each ush
• Oversized 3" ush valve
• Chrome trip lever
• Includes top mounting, plastic Slow-Close seat
and cover with easy lift-off feature for simple
removal and attachment for cleaning, packed
with bowl
• 2 color-matched bolt hole covers
• Lifetime warranty on chinaware, 5 year warranty
on all mechanical parts, and 1 year warranty
on seat
❑ 2989.813 Same as above except with trip lever on
right hand side
❑ 3075.000 Right Height
❑ 4000.101 Tank
❑ 4000.813 Tank with right hand trip lever
❑ 5024A.65G Preferred Seat: Transitional Elongated
Luxury Seat
®
Elongated Bowl with Seat
®
VITREOUS CHINA
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Supply with stop:
Nominal Dimensions:
768 x 400 x 781mm
(30-1/4" x 15-3/4" x 30-3/4")
Fixture and toilet seat only, supply by others
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1-08 for Vitreous China
Fixtures
• US EPA WaterSense® Specication for HET's
K2-97
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
EVERCLEAN® EPA
spec_2989.101 Concealed Trapway Cadet3FW RHel Rev. 9/17
WATERSENSE®
CERTIFIED
WATER
EFFICIENT
© 2018 AS America Inc.

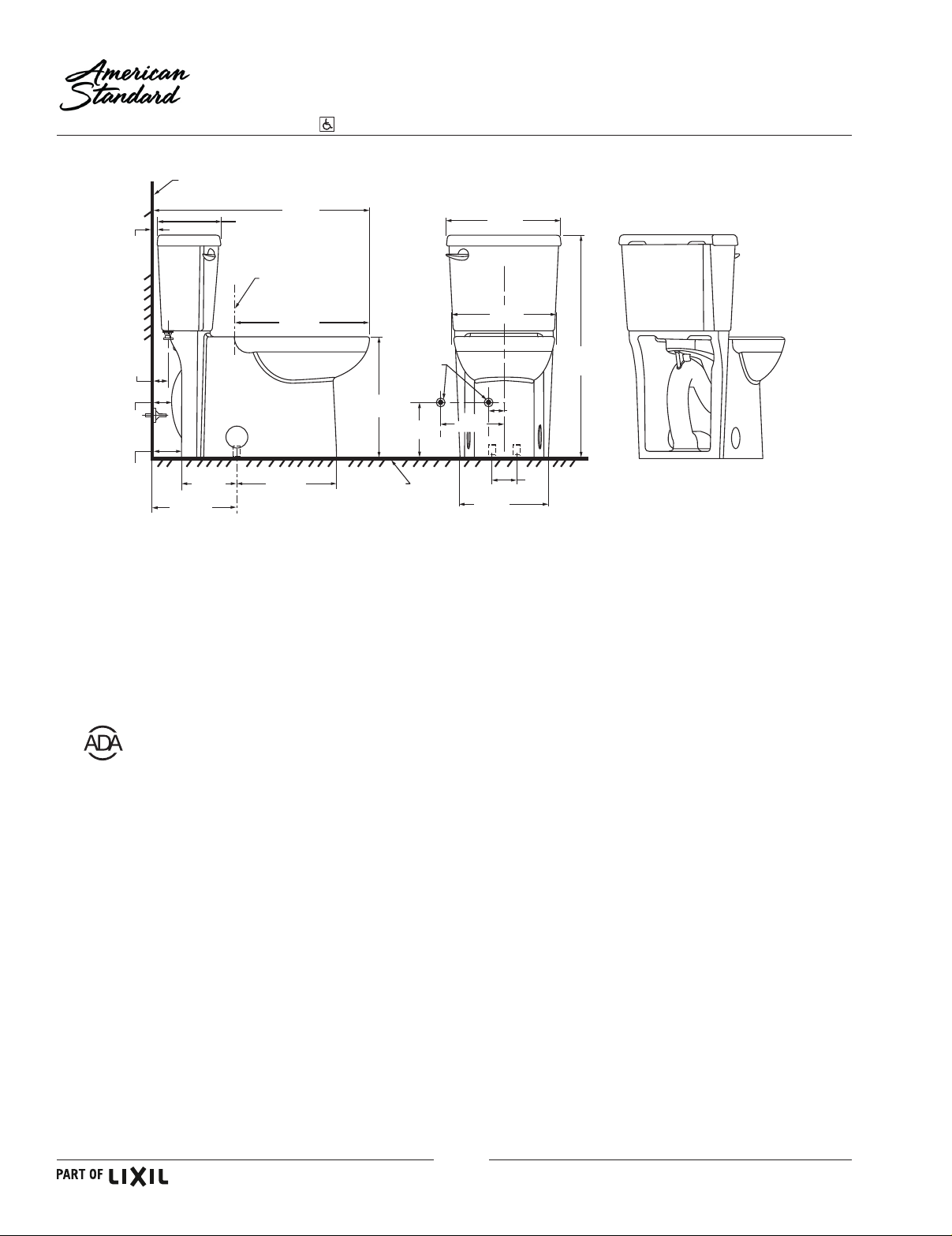

Page 2
BARRIER FREE
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
1-1/8"
2-5/8"
3-1/8"
(81mm)
(29mm)
(67mm)
FINISHED
WALL
8-3/4"
(221mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
CONCEALED TRAPWAY CADET® 3 FloWise
RIGHT HEIGHT® ELONGATED TOILET
VITREOUS CHINA
30-1/4"
(768mm)
18-1/2"
(470mm)
16-1/2"
(419mm)
SUPPLY
AS
REQUIRED
(position 1 or
position 2)
5-1/2"
(140mm)
8"
(204mm)
15-3/4"
(399mm)
14"
(356mm)
2-1/4"
(57mm)
30-3/4"
(781mm)
®
4-1/2"
(114mm)
IMPORTANT: Water supply on the wall is required at 2-1/4" or 8" from centerline of the toilet (see rough-in).
First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.
The second suggested position is next to the toilet. Between these two positions, the space for the supply
between wall and toilet is limited to 4-1/2". In this case, check your supply and hose dimensions.
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
(191mm)
12"
(305mm)
7-1/2"
13-11/16"
(347mm)
FINISHED
FLOOR
12-3/16"
(309mm)
6"
(152mm)
BACK VIEW
(for reference)
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
K2-98
© 2018 AS America Inc.
spec_2989.101 Concealed Trapway Cadet3FW RHel Rev. 9/17
