KITCHEN ACCESSORIES

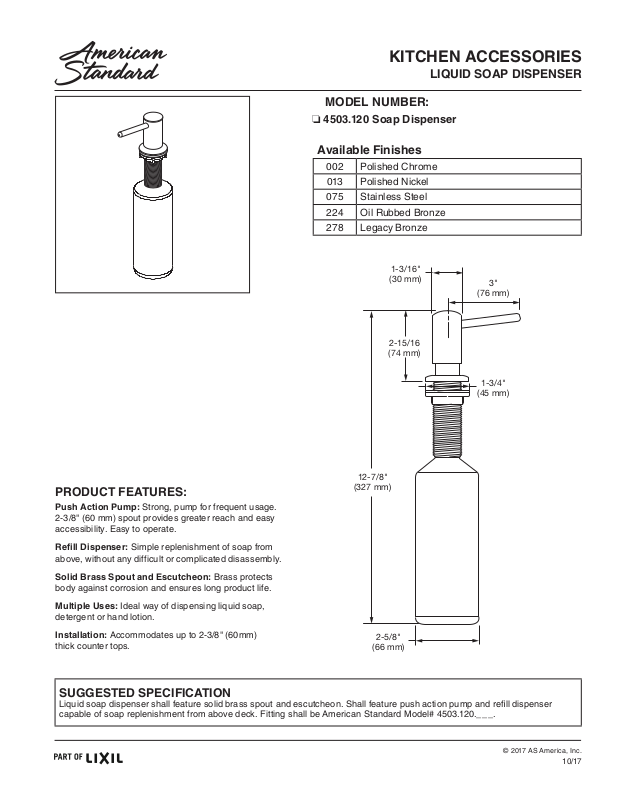

LIQUID SOAP DISPENSER
MODEL NUMBER:
❏ 4503.120 Soap Dispenser
Available Finishes
002 Polished Chrome
013 Polished Nickel
075 Stainless Steel
224 Oil Rubbed Bronze
278 Legacy Bronze
1-3/16"
(30 mm)
2-15/16
(74 mm)
3"
(76 mm)
PRODUCT FEATURES:
Push Action Pump: Strong, pump for frequent usage.
2-3/8" (60 mm) spout provides greater reach and easy
accessibility. Easy to operate.
Rell Dispenser: Simple replenishment of soap from
above, without any difficult or complicated disassembly.
Solid Brass Spout and Escutcheon: Brass protects
body against corrosion and ensures long product life.
Multiple Uses: Ideal way of dispensing liquid soap,
detergent or hand lotion.
Installation: Accommodates up to 2-3/8" (60mm)
thick counter tops.
1-3/4"
(45 mm)
12-7/8"
(327 mm)
2-5/8"
(66 mm)
SUGGESTED SPECIFICATION
Liquid soap dispenser shall feature solid brass spout and escutcheon. Shall feature push action pump and rell dispenser
capable of soap replenishment from above deck. Fitting shall be American Standard Model# 4503.120.___.
© 2017 AS America, Inc.
10/17
