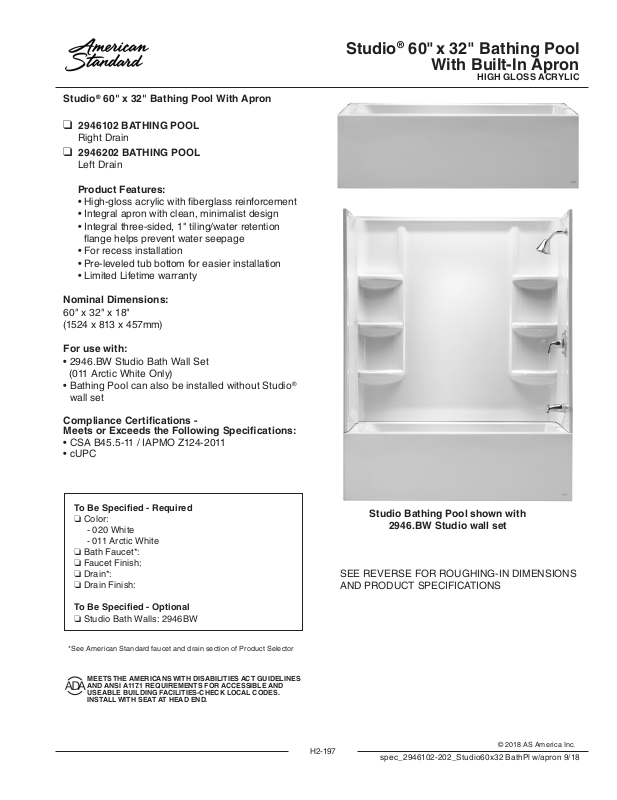

Page 1
Studio® 60" x 32" Bathing Pool With Apron
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
❑ 2946102 BATHING POOL
Right Drain
❑ 2946202 BATHING POOL
Left Drain
Product Features:
• High-gloss acrylic with berglass reinforcement
• Integral apron with clean, minimalist design
• Integral three-sided, 1" tiling/water retention
ange helps prevent water seepage
• For recess installation
• Pre-leveled tub bottom for easier installation
• Limited Lifetime warranty
Nominal Dimensions:
60" x 32" x 18"
(1524 x 813 x 457mm)
Studio® 60" x 32" Bathing Pool
With Built-In Apron
HIGH GLOSS ACRYLIC
For use with:
• 2946.BW Studio Bath Wall Set
(011 Arctic White Only)
• Bathing Pool can also be installed without Studio®
wall set
Compliance Certications Meets or Exceeds the Following Specications:
• CSA B45.5-11 / IAPMO Z124-2011
• cUPC
To Be Specied - Required
❏ Color:
- 020 White
- 011 Arctic White
❏ Bath Faucet*:
❏ Faucet Finish:
❏ Drain*:
❏ Drain Finish:
To Be Specied - Optional
❏ Studio Bath Walls: 2946BW

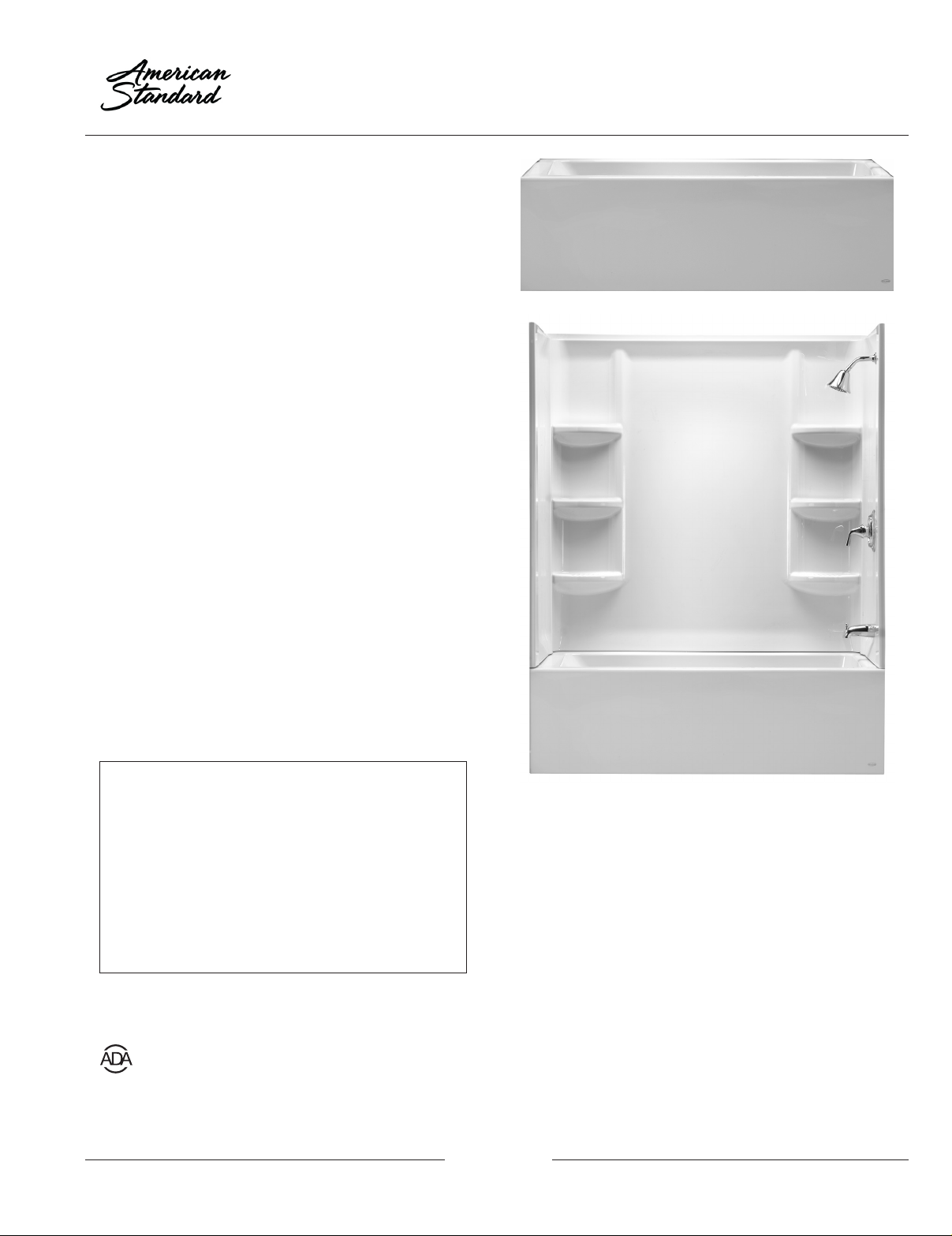

Studio Bathing Pool shown with
2946.BW Studio wall set

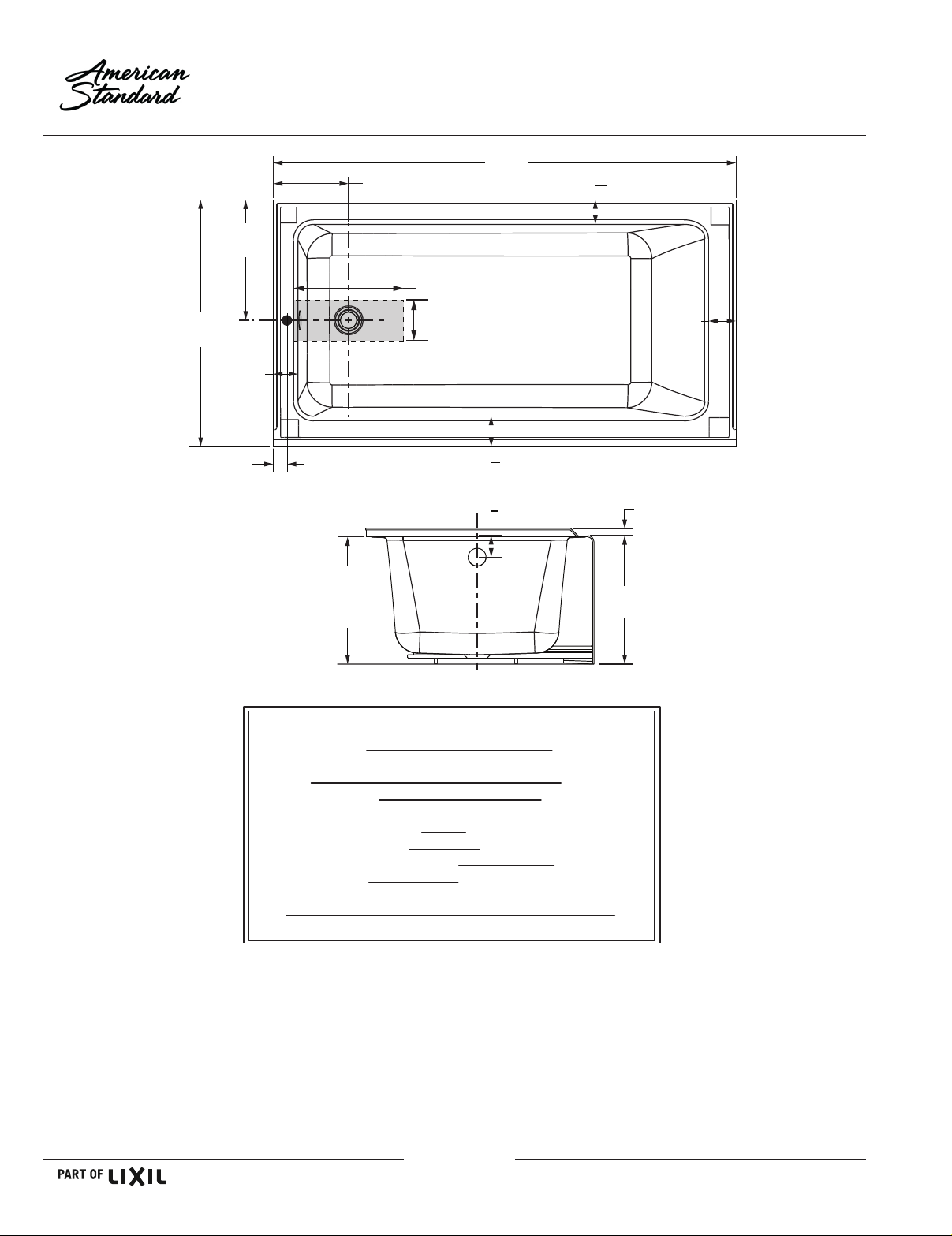

SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
* See American Standard faucet and drain section of Product Selector
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.
INSTALL WITH SEAT AT HEAD END.
H2 -197
© 2018 AS America Inc.
spec_2946102-202_Studio60x32 BathPl w/apron 9/18
Page 2
15-5/8"
(397mm)
32"
(813mm)
3-3/16"
(81mm)
2" (51mm)
C/L OF DRAIN
9-3/4"
(248mm)
12-3/4"
(324mm)
9"
(229mm)
Studio® 60" x 32" Bathing Pool
With Built-In Apron
HIGH GLOSS ACRYLIC
60"
(1524mm)
3-15/16"
(100mm)
3"
(76mm)
3-3/16"
(81mm)
1"
(25mm)
4-1/16"
(103mm)
17-3/4"
(451mm)
STRINGER
HEIGHT
GENERAL SPECIFICATIONS FOR 2946102/202 TUB
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
NOTES:
BATH TO BE INSTALLED ABOVE FLOOR LINE AS A RECESS INSTALLATION.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH TUB FOR ADDITIONAL INFORMATION.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
MOUNTING HOLES DRILLED BY INSTALLER.
IMPORTANT: Dimensions of xtures are nominal and may var y within the range of tolerances established by
ANSI Standard CSA B45.5-11/IAPMO Z124-2011. These measurements are subject to change or cancellation.
No responsibilit y is assumed for use of superseded or voided pages.
3
)
22 x 44.5 In. (559 x 1130mm)
25 X 53 In.(635 x 1346mm)
37 Lbs./Sq.Ft. (181 Kgs/Sq.m)
60 x 32 x 18 In.
(1524 x 813 x 457mm)
60 Lbs. (27 Kg)
493 Lbs.(224 Kg)
52 Gal. (197 L)
12 In. (305mm)
18"
(457mm)
27.5
28.9
H2 -198
© 2018 AS America Inc.
spec_2946102-202_Studio60x32 BathPl w/apron 9/18
