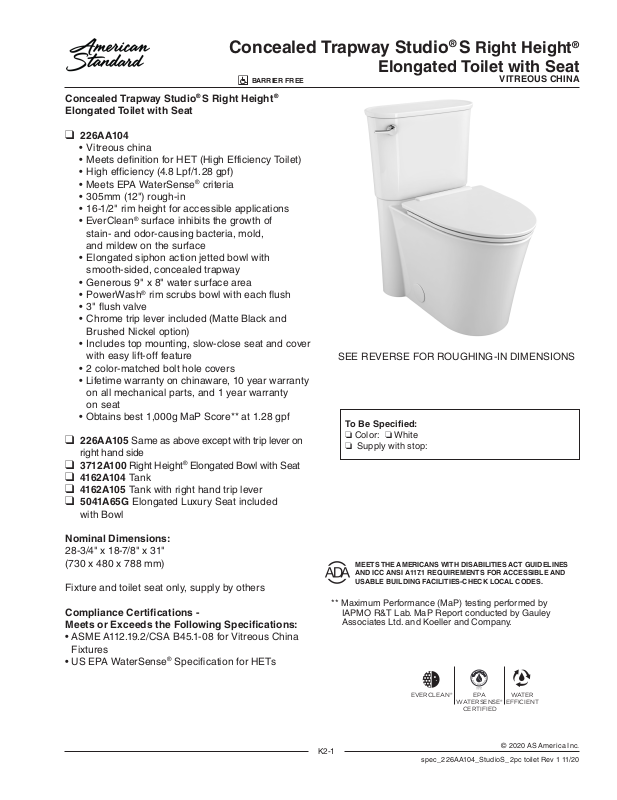

Concealed Trapway Studio® S Right Height
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
BARRIER FREE
Concealed Trapway Studio® S Right Height
Elongated Toilet with Seat
❑ 226AA104
• Vitreous china
• Meets denition for HET (High Efficiency Toilet)
• High efficiency (4.8 Lpf/1.28 gpf)
• Meets EPA WaterSense® criteria
• 305mm (12") rough-in
• 16-1/2" rim height for accessible applications
• EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Elongated siphon action jetted bowl with
smooth-sided, concealed trapway
• Generous 9" x 8" water surface area
• PowerWash® rim scrubs bowl with each ush
• 3" ush valve
• Chrome trip lever included (Matte Black and
Brushed Nickel option)
• Includes top mounting, slow-close seat and cover
with easy lift-off feature
• 2 color-matched bolt hole covers
• Lifetime warranty on chinaware, 10 year warranty
on all mechanical parts, and 1 year warranty
on seat
• Obtains best 1,000g MaP Score** at 1.28 gpf
❑ 226AA105 Same as above except with trip lever on
right hand side
❑ 3712A100 Right Height
®
Elongated Bowl with Seat
❑ 4162A10 4 Ta n k
❑ 4162A10 5 Tank with right hand trip lever
❑ 50 41A65G Elongated Luxury Seat included
with Bowl
®
®
Elongated Toilet with Seat
VITREOUS CHINA
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Supply with stop:
Nominal Dimensions:
28-3/4" x 18-7/8" x 31"
(730 x 480 x 788 mm)
Fixture and toilet seat only, supply by others
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1-08 for Vitreous China
Fixtures
• US EPA WaterSense® Specication for HETs
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Gauley
Associates Ltd. and Koeller and Company.
K2-1
EVERCLEAN® EPA
spec_226A A104_StudioS_2pc toilet Rev 1 11/20
WATERSENSE®
CERTIFIED
WATER
EFFICIENT
© 2020 AS America Inc.
Page 2

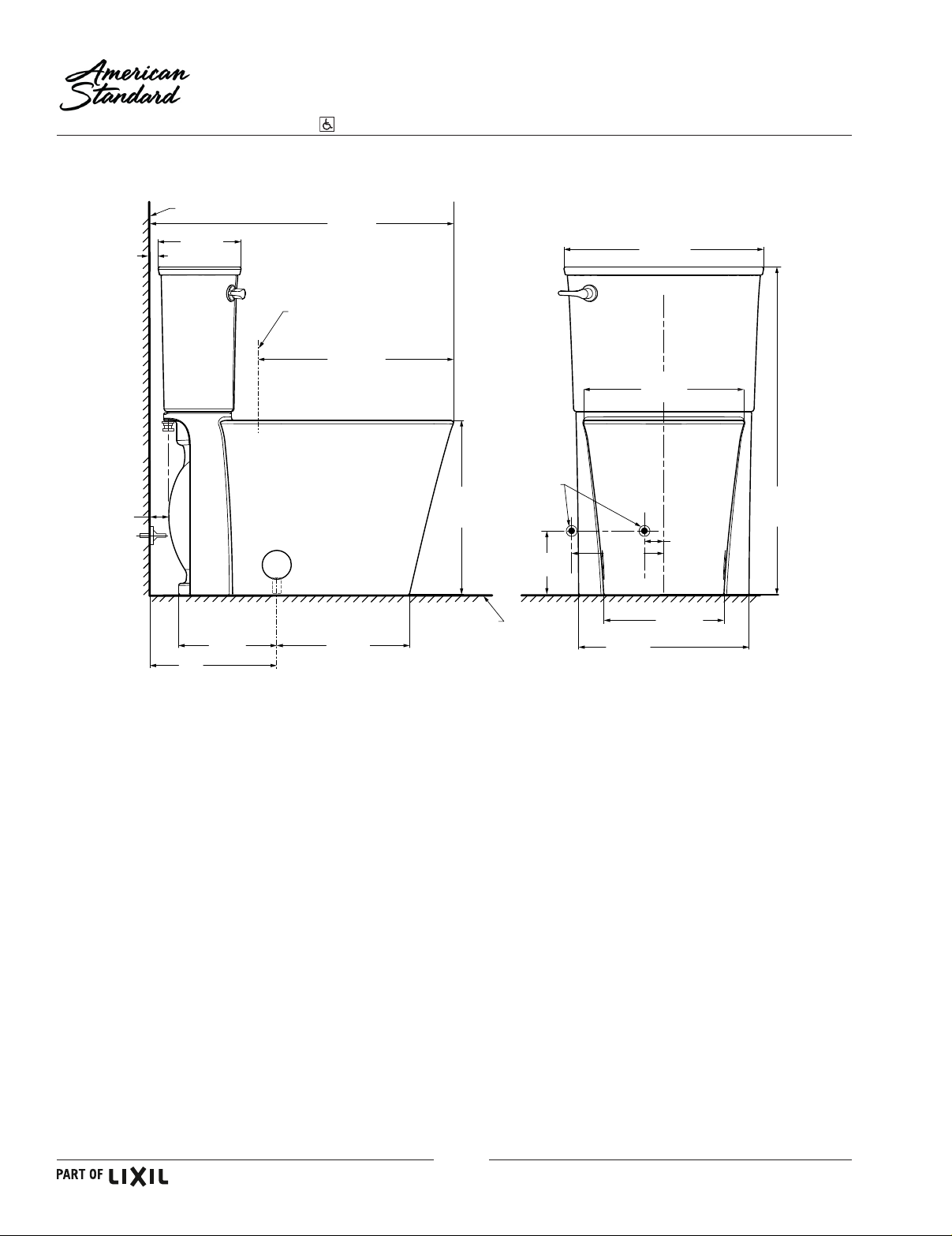

Concealed Trapway Studio® S Right Height
BARRIER FREE
Elongated Toilet with Seat
VITREOUS CHINA
®
3/4"
(18mm)
1-3/4"
(45mm)
FINISHED WALL
7-7/8"
(201mm)
9-1/4"
(236mm)
12"
(305mm)
28-3/4"
(730mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
18-1/2"
(470mm)
12-5/8"
(320mm)
16-1/2"
(419mm)
FINISHED
FLOOR
SUPPLY
AS
REQUIRED
(position 1 or
position 2)
5-1/2"
*
(140mm)
9"
*
(228mm)
16-1/8"
(410mm)
18-7/8"
(480mm)
14"
(357mm)
*
(57mm)
11-3/4"
(289mm)
2-1/4"
31"
(788mm)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of x tures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
K2-2
© 2020 AS America Inc.
spec_226A A104_StudioS_2pc toilet Rev 1 11/20
