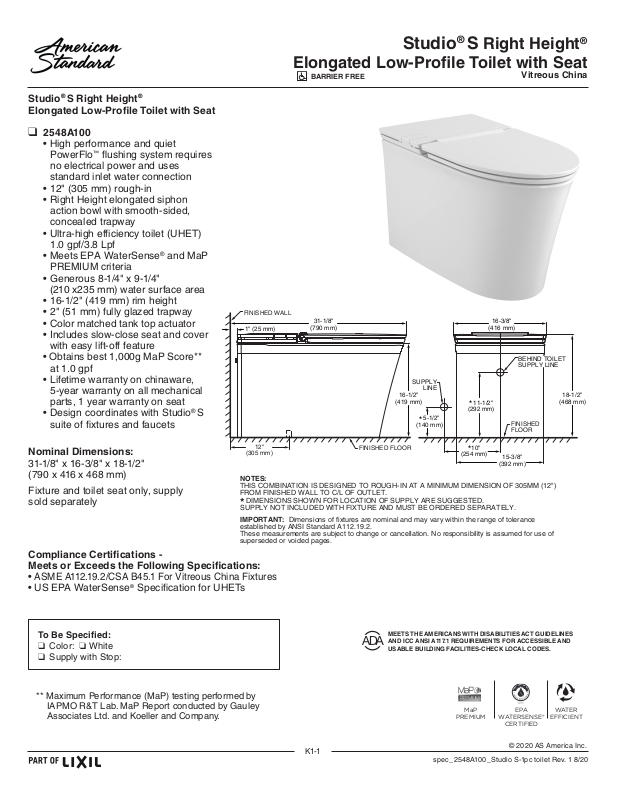

Studio® S Right Height
CT GUIDELINES
Elongated Low-Prole Toilet with Seat
BARRIER FREE
Vitreous China
®
Studio® S Right Height
®
Elongated Low-Prole Toilet with Seat
❑ 2548A100
• High performance and quiet
PowerFlo™ ushing system requires
no electrical power and uses
standard inlet water connection
• 12" (305 mm) rough-in
• Right Height elongated siphon
action bowl with smooth-sided,
concealed trapway
• Ultra-high efficiency toilet (UHET)
1.0 gpf/3.8 Lpf
• Meets EPA WaterSense® and MaP
PREMIUM criteria
• Generous 8-1/4" x 9-1/4"
(210 x235 mm) water surface area
• 16-1/2" (419 mm) rim height
• 2" (51 mm) fully glazed trapway
• Color matched tank top actuator
• Includes slow-close seat and cover
with easy lift-off feature
• Obtains best 1,000g MaP Score**
at 1.0 gpf
• Lifetime warranty on chinaware,
5-year warranty on all mechanical
parts, 1 year warranty on seat
• Design coordinates with Studio® S
suite of xtures and faucets
Nominal Dimensions:
31-1/8" x 16-3/8" x 18-1/2"
(790 x 416 x 468 mm)
Fixture and toilet seat only, supply
sold separately
Compliance Certications Meets or Exceeds the Following Specications:
•
ASME A112.19.2/CSA B45.1 For Vitreous China Fixtures
• US EPA WaterSense® Specication for UHETs
FINISHED WALL
1" (25 mm)
12"
(305 mm)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12")
FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerance
established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided pages.
31-1/8"
(790 mm)
16-1/2"
(419 mm)
FINISHED FLOOR
SUPPLY
LINE
5-1/2"
*
(140 mm)
11-1/2"
*
(292 mm)
10"
*
(254 mm)
16-3/8"
(416 mm)
15-3/8"
(392 mm)
BEHIND TOILET
SUPPLY LINE
FINISHED
FLOOR
18-1/2"
(468 mm)
To Be Specied:
❑ Color: ❏ White
❑ Supply with Stop:
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Gauley
Associates Ltd. and Koeller and Company.
K1-1
MEETS THE AMERICANS WITH DISABILITIES A
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
MaP
PREMIUM
spec_2548A100_Studio S-1pc toilet Rev. 1 8/20
EPA
WATERSENSE®
CERTIFIED
© 2020 AS America Inc.
WATER
EFFICIENT
