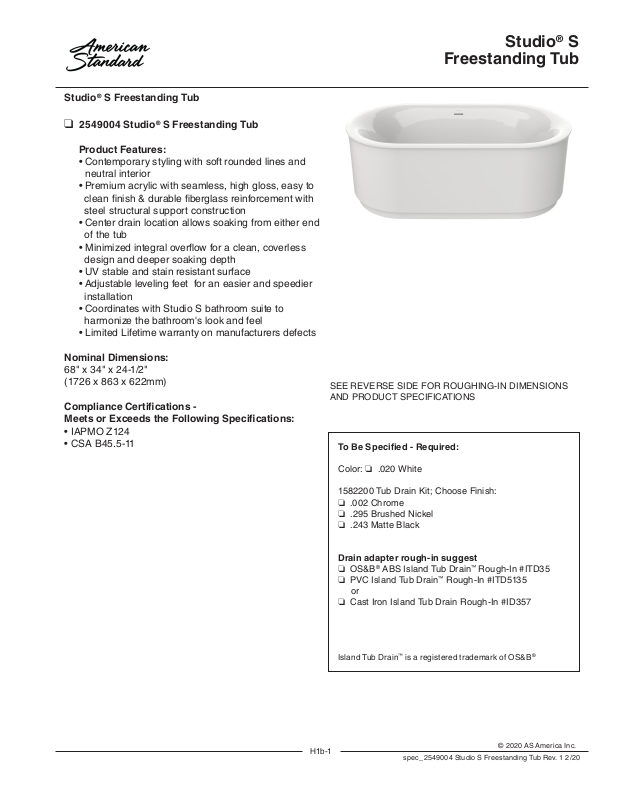

Studio® S Freestanding Tub
Studio® S
Freestanding Tub
❑ 2549004 Studio
®
S Freestanding Tub
Product Features:
• Contemporary styling with soft rounded lines and
neutral interior
• Premium acrylic with seamless, high gloss, easy to
clean nish & durable berglass reinforcement with
steel structural support construction
• Center drain location allows soaking from either end
of the tub
• Minimized integral overow for a clean, coverless
design and deeper soaking depth
• UV stable and stain resistant surface
• Adjustable leveling feet for an easier and speedier
installation
• Coordinates with Studio S bathroom suite to
harmonize the bathroom's look and feel
• Limited Lifetime warranty on manufacturers defects
Nominal Dimensions:
68" x 34" x 24-1/2"
(1726 x 863 x 622mm)
Compliance Certications Meets or Exceeds the Following Specications:
• IAPMO Z124
• CSA B45.5-11
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
To Be Specied - Required:
Color: ❏ .020 White
1582200 Tub Drain Kit; Choose Finish:
❏ .002 Chrome
❏ .295 Brushed Nickel
❏ .243 Matte Black
Drain adapter rough-in suggest
❏ OS&B® ABS Island Tub Drain™ Rough-In #ITD35
❏ PVC Island Tub Drain™ Rough-In #ITD5135
or
❏ Cast Iron Island Tub Drain Rough-In #ID357
Island Tub Drain™ is a registered trademark of OS&B
H1b -1
spec_25490 04 Studio S Freestanding Tub Rev. 1 2/20
®
© 2020 AS America Inc.
Page 2

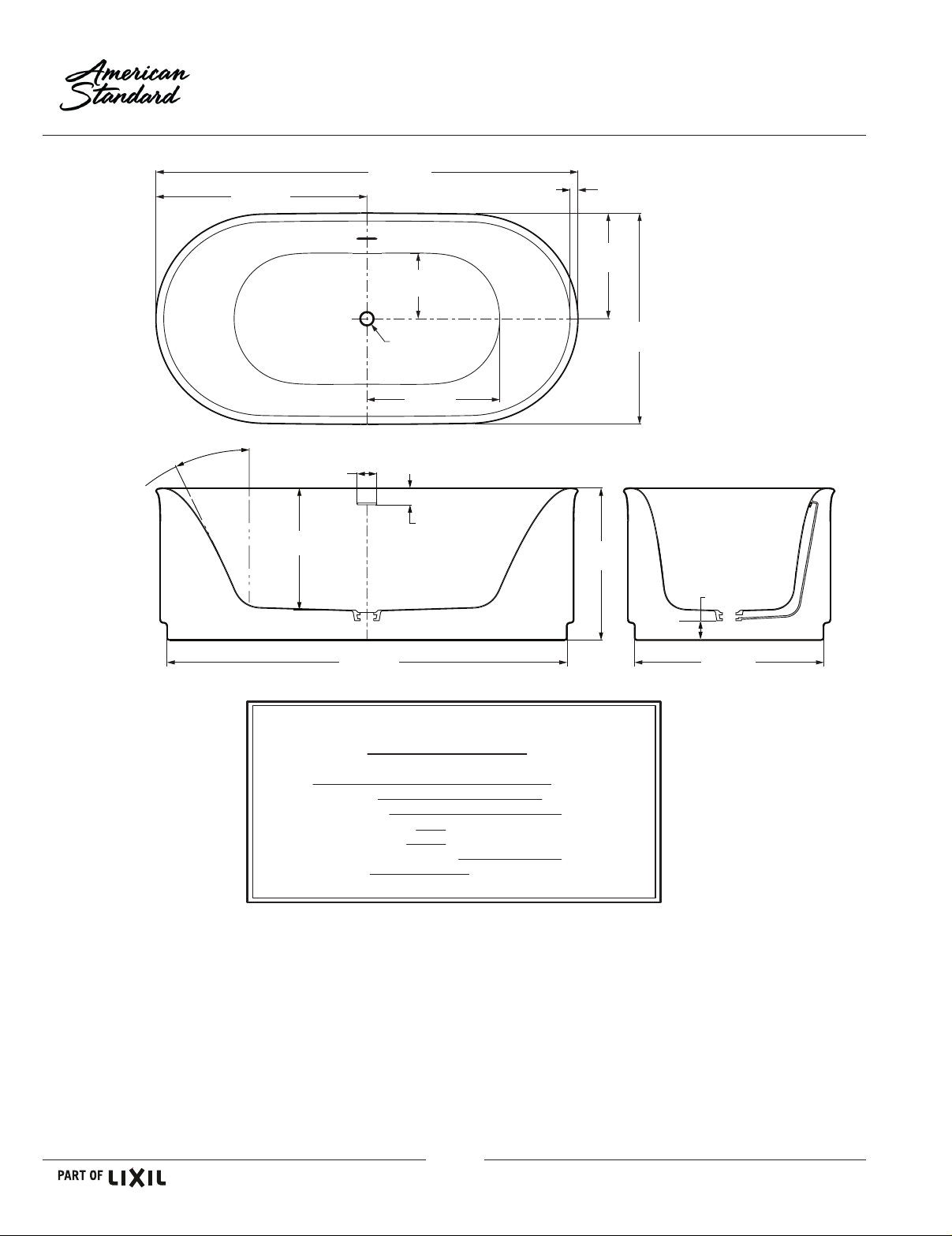

Studio® S
68"
LUMB
Freestanding Tub
26˚
AR
ANGLE
34"
(863mm)
19-11/16"
(500mm)
3-1/8"
(80mm)
(1726mm)
10-7/16"
(265mm)
Ø2-1/8"
(Ø55mm)
21-5/16"
(542mm)
1-1/4"
(32mm)
17"
(431mm)
34"
(863mm)
2-3/4"
(69mm)
24-1/2"
(622mm)
3-1/4"
(83mm)
64-1/2"
(1636mm)
GENERAL SPECIFICATIONS FOR
INSTALLED SIZE
2549 FREE STANDING BATH
68 x 34 x 24-1/2 in.
30-1/2"
(773mm)
(1726 x 863 x 622mm)
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
42-5/8 x 20-7/8 In. (1083 x 530mm)
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
65-1/2 x 31-1/2 In. (1662 x 799mm)
32 Lbs./Sq.Ft. (155 Kgs./Sq.m)
145 Lbs. (66 Kg.)
710 Lbs. (322 Kg.)
68 Gal. (257L)
17 In. (431mm)
(PROJECTED AREA)
NOTES:
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATHTUB FOR ADDITIONAL INFORMATION.
Fittings not included and must be ordered separately.
Provide suitable reinforcement for all supports.
Mounting holes drilled by installer.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
H1b- 2
© 2020 AS America Inc.
spec_25490 04 Studio S Freestanding Tub Rev. 1 2/20
