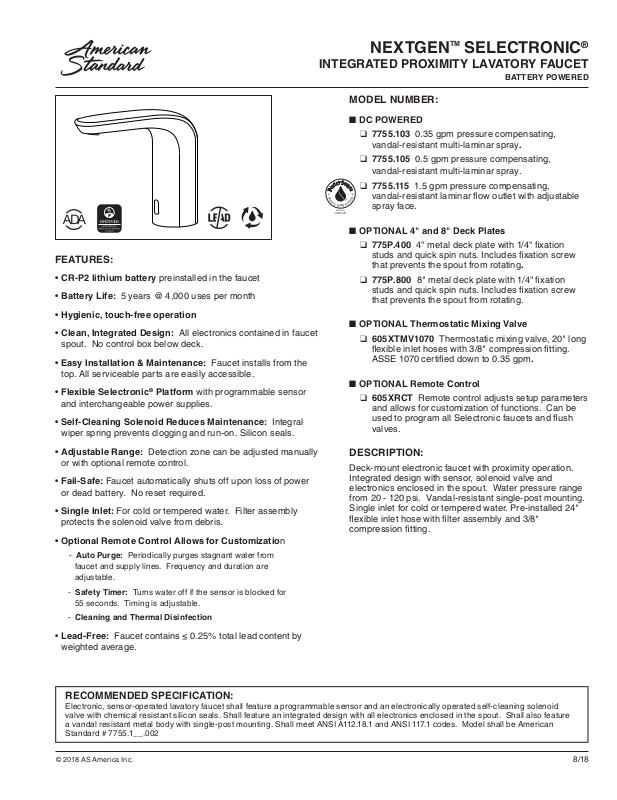

Page 1
FE ATURES:
• CR-P2 lithium battery preinstalled in the faucet
• Battery Life: 5 years @ 4,000 uses per month
• Hygienic, touch-free operation
• Clean, Integrated Design: All electronics contained in faucet
spout. No control box below deck.
• Easy Installation & Maintenance: Faucet installs from the
top. All serviceable parts are easily accessible.
• Flexible Selectronic® Platform with programmable sensor
and interchangeable power supplies.
• Self-Cleaning Solenoid Reduces Maintenance: Integral
wiper spring prevents clogging and run-on. Silicon seals.
NEXTGEN
TM
SELECTRONIC
INTEGRATED PROXIMITY LAVATORY FAUCET
BATTERY POWERED
MODEL NUMBER:
■ DC POWERED
❑ 7755.103 0.35 gpm pressure compensating,
vandal-resistant multi-laminar spray.
❑ 7755.105 0.5 gpm pressure compensating,
vandal-resistant multi-laminar spray.
❑ 7755.115 1.5 gpm pressure compensating,
vandal-resistant laminar ow outlet with adjustable
spray face.
■ OPTIONAL 4" and 8" Deck Plates
❑ 775P.400 4" metal deck plate with 1/4" xation
studs and quick spin nuts. Includes xation screw
that prevents the spout from rotating.
❑ 775P.800 8" metal deck plate with 1/4" xation
studs and quick spin nuts. Includes xation screw
that prevents the spout from rotating.
■ OPTIONAL Thermostatic Mixing Valve
❑ 605XTMV1070 Thermostatic mixing valve, 20" long
exible inlet hoses with 3/8" compression tting.
ASSE 1070 certied down to 0.35 gpm.
■ OPTIONAL Remote Control
❑ 605XRCT Remote control adjusts setup parameters
and allows for customization of functions. Can be
used to program all Selectronic faucets and ush
valves.
®
• Adjustable Range: Detection zone can be adjusted manually
or with optional remote control.
• Fail-Safe: Faucet automatically shuts off upon loss of power
or dead battery. No reset required.
• Single Inlet: For cold or tempered water. Filter assembly
protects the solenoid valve from debris.
• Optional Remote Control Allows for Customization
- Auto Purge: Periodically purges stagnant water from
faucet and supply lines. Frequency and duration are
adjustable.
- Safety Timer: Turns water off if the sensor is blocked for
55 seconds. Timing is adjustable.
- Cleaning and Thermal Disinfection
• Lead-Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
DESCRIPTION:
Deck-mount electronic faucet with proximity operation.
Integrated design with sensor, solenoid valve and
electronics enclosed in the spout. Water pressure range
from 20 - 120 psi. Vandal-resistant single-post mounting.
Single inlet for cold or tempered water. Pre-installed 24"
exible inlet hose with lter assembly and 3/8"
compression tting.
RECOMMENDED SPECIFICATION:
Electronic, sensor-operated lavatory faucet shall feature a programmable sensor and an electronically operated self-cleaning solenoid
valve with chemical resistant silicon seals. Shall feature an integrated design with all electronics enclosed in the spout. Shall also feature
a vandal resistant metal body with single-post mounting. Shall meet ANSI A112.18.1 and ANSI 117.1 codes. Model shall be American
Standard # 7755.1__.002
© 2018 AS America Inc.
8/18
Page 2
NEXTGEN
11 mm (7/16")
102 mm
(4")
64.5 mm
(2-1/2")
262 mm
(10-5/16")
165 mm
(6-1/2")
203 mm
(8")
11 mm (7/16")
64.5 mm
(2-1/2")
TM
SELECTRONIC
INTEGRATED PROXIMITY LAVATORY FAUCET
BATTERY POWERED
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
AS ME A112 .18.1
CSA B 125
NSF 372
NSF 61
MEETS THE AMERICAN DISABILITIES ACT GUIDELINES AND
AN S I A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
FINISHES:
Polished Chrome .002
Brushed Nickel .295
174 mm
(6-7/8")
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
20
INLET PRESSURE (PSI)
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
I NLET PRESSURE ( PSI)
FLOW RATE*
1.5 gpm
0.5 gpm
100806040
FLOW RATE*
0.35 gpm
80604020
© 2018 AS America Inc.
597 mm
(23-1/2")
125 mm
(4-15/16")
38 mm
(1-1/2")
146 mm
126 mm
3/8" COMPRESSION
(5-3/4")
(5")
CONNECTOR
48 mm
(1-7/8")
28 mm
(1-1/8")
8/18
