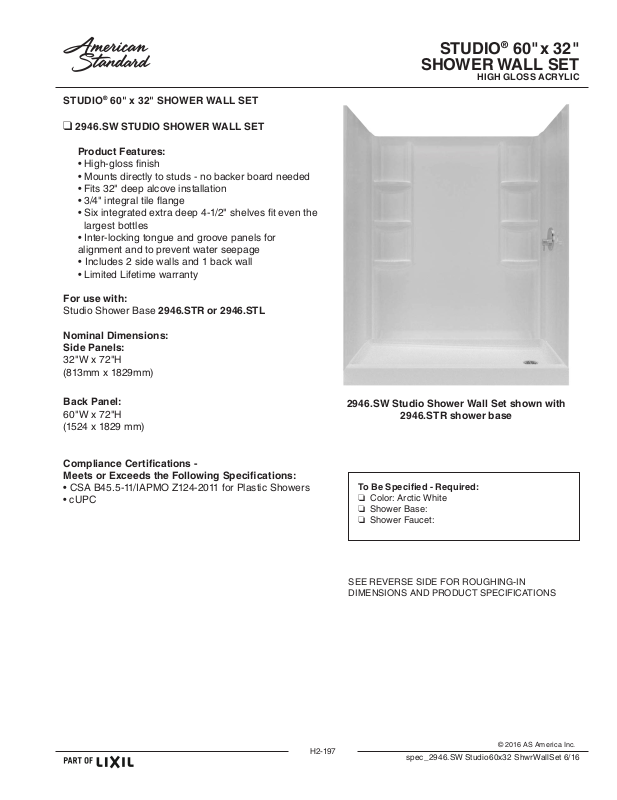

STUDIO® 60" x 32" SHOWER WALL SET
❑ 2946.SW STUDIO SHOWER WALL SET
Product Features:
• High-gloss nish
• Mounts directly to studs - no backer board needed
• Fits 32" deep alcove installation
• 3/4" integral tile ange
• Six integrated extra deep 4-1/2" shelves t even the
largest bottles
• Inter-locking tongue and groove panels for
alignment and to prevent water seepage
• Includes 2 side walls and 1 back wall
• Limited Lifetime warranty
For use with:
Studio Shower Base 2946.STR or 2946.STL
Nominal Dimensions:
Side Panels:
32"W x 72"H
(813mm x 1829mm)
STUDIO® 60" x 32"
SHOWER WALL SET
HIGH GLOSS ACRYLIC
Back Panel:
60"W x 72"H
(1524 x 1829 mm)
Compliance Certications Meets or Exceeds the Following Specications:
• CSA B45.5-11/IAPMO Z124-2011 for Plastic Showers
• cUPC

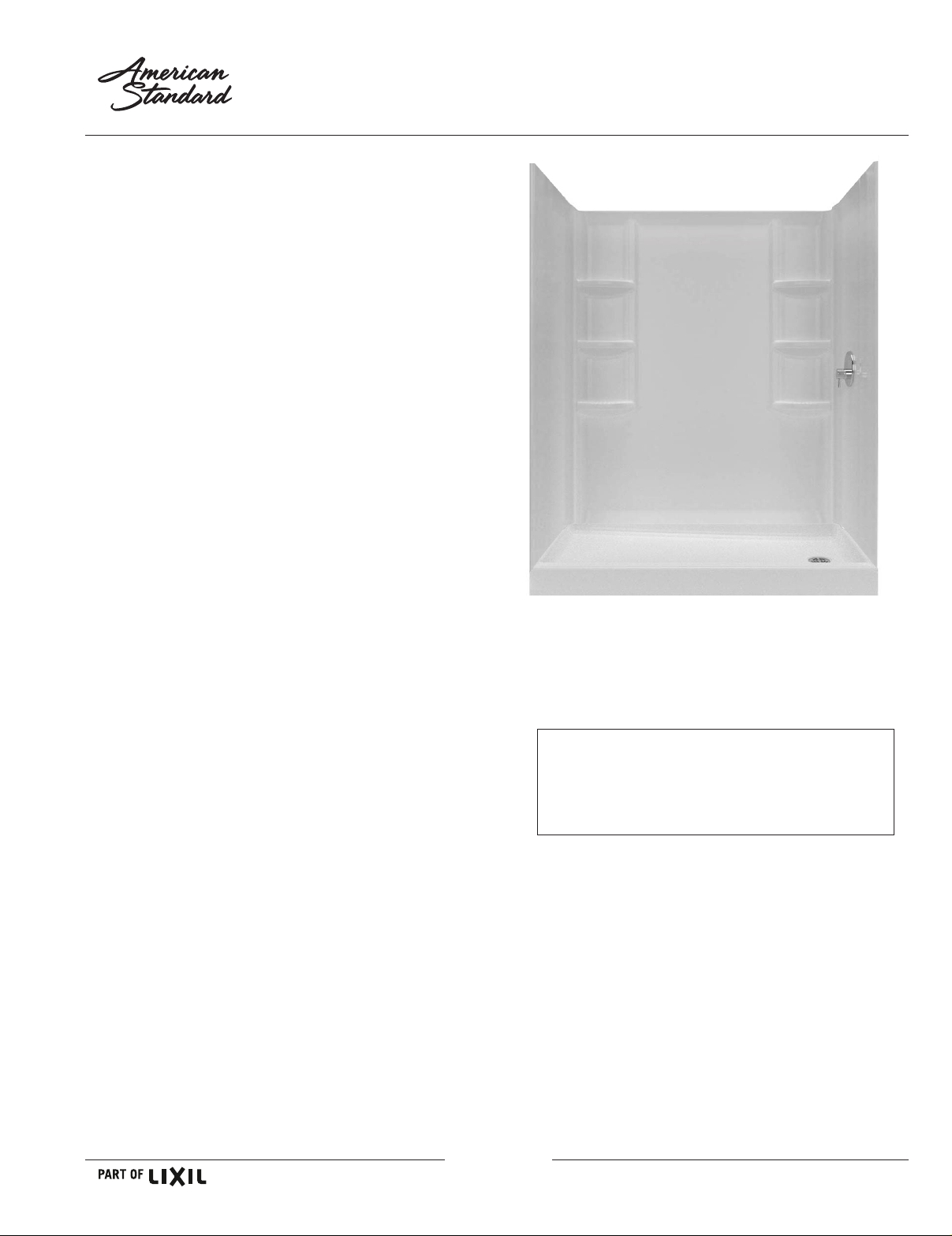

2946.SW Studio Shower Wall Set shown with
2946.STR shower base
To Be Specied - Required:
❏ Color: Arctic White
❏ Shower Base:
❏ Shower Faucet:
SEE REVERSE SIDE FOR ROUGHING-IN
DIMENSIONS AND PRODUCT SPECIFICATIONS
H2 -197
© 2016 AS America Inc.
spec_ 2946.SW Studio60x32 ShwrWallSet 6/16
Page 2

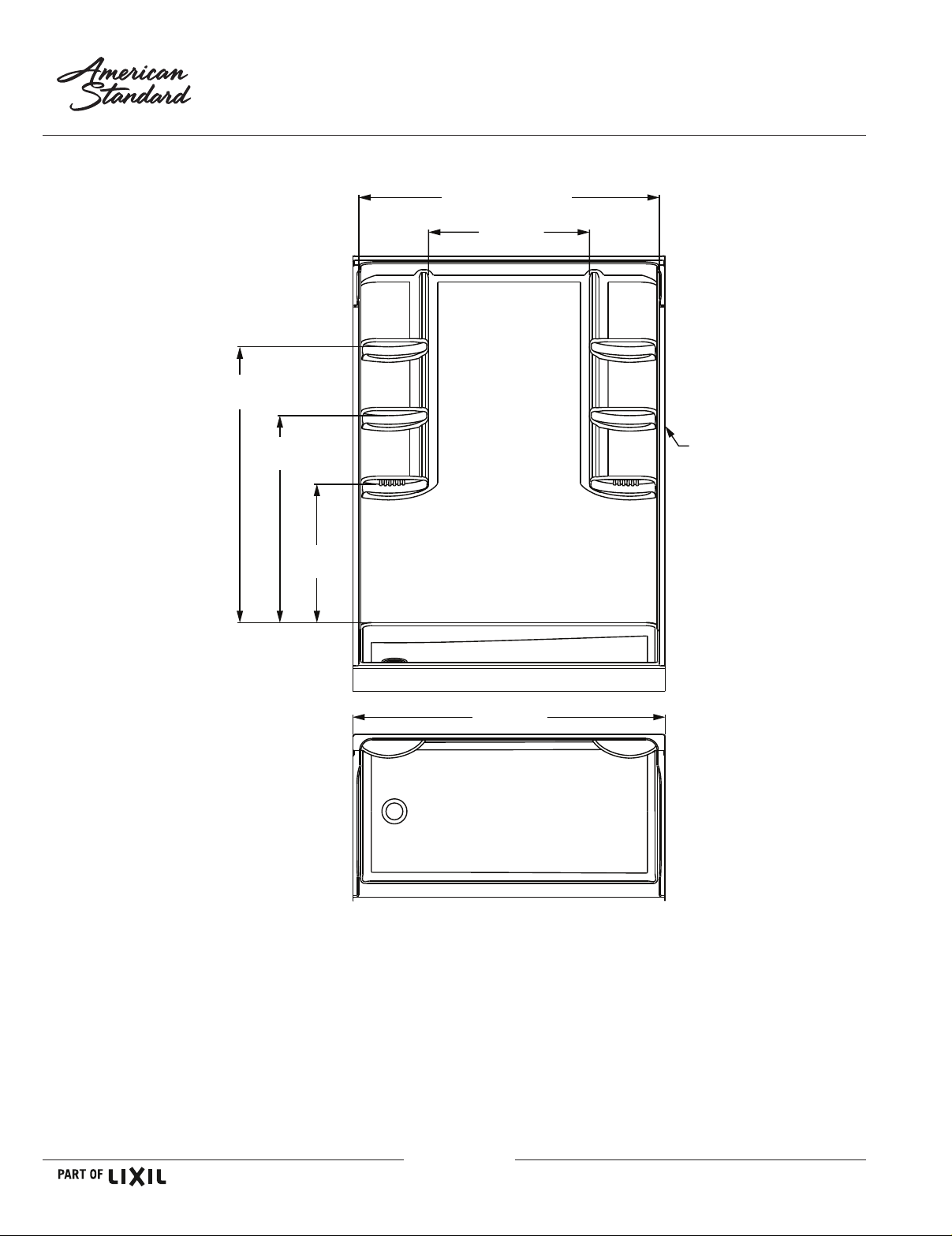

(1524mm)
42"
(1067mm)
28-1/4"
(718mm)
14-1/2"
(368mm)
57-3/4"
(1467mm)
DOOR OPENING
30-7/8"
(784mm)
56"
(1422mm)
STUDIO® 60" x 32"
SHOWER WALL SET
HIGH GLOSS ACRYLIC
57-3/4"
(1467mm)
DOOR OPENING
30-7/8"
(784mm)
42-1/4"
(1073mm)
28-1/2"
(724mm)
60"
(1524mm)
SIDE PANEL
Image shows 2946.202
NOTES:
REFER TO INSTALLATION INSTRUCT IONS SUPPLIED WITH SHOWER WALLS FOR ADDITI ONAL INFORMATION.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard CSA
B45.5 -11/IAPMO Z124-2011.
These measurements are subject to c hange or cancellation. No responsibility is assumed for use of superseded or voided pages.
H2 -198
spec_ 2946.SW Studio60x32 ShwrWallSet 6/16
© 2016 AS America Inc.
