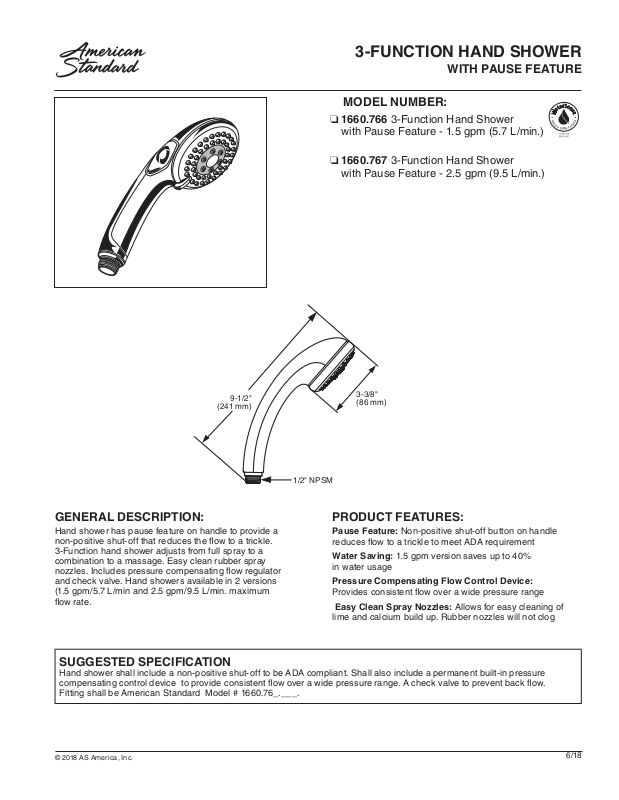

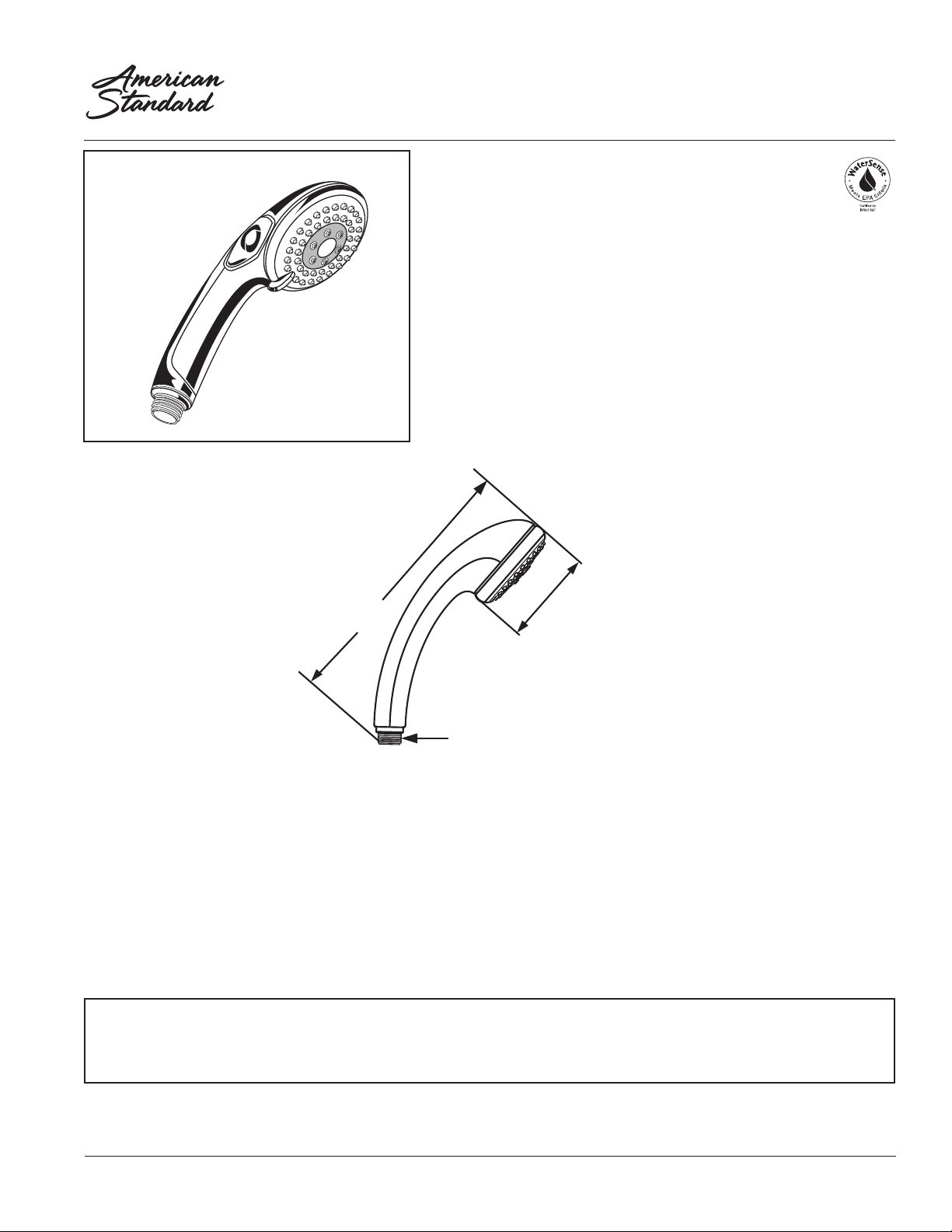

Page 1
3-FUNCTION HAND SHOWER
WITH PAUSE FEATURE
MODEL NUMBER:
❏ 1660.766 3-Function Hand Shower
with Pause Feature - 1.5 gpm (5.7 L/min.)
❏ 1660.767 3-Function Hand Shower
with Pause Feature - 2.5 gpm (9.5 L/min.)
9-1/2"
(241 mm)
1/2" NPSM
GENERAL DESCRIPTION:
Hand shower has pause feature on handle to provide a
non-positive shut-off that reduces the ow to a trickle.
3-Function hand shower adjusts from full spray to a
combination to a massage. Easy clean rubber spray
nozzles. Includes pressure compensating ow regulator
and check valve. Hand showers available in 2 versions
(1.5 gpm/5.7 L/min and 2.5 gpm/9.5 L/min. maximum
ow rate.
3-3/8"
(86 mm)
PRODUCT FEATURES:
Pause Feature: Non-positive shut-off button on handle
reduces ow to a trickle to meet ADA requirement
Water Saving: 1.5 gpm version saves up to 40%
in water usage
Pressure Compensating Flow Control Device:
Provides consistent ow over a wide pressure range
Easy Clean Spray Nozzles: Allows for easy cleaning of
lime and calcium build up. Rubber nozzles will not clog
SUGGESTED SPECIFICATION
Hand shower shall include a non-positive shut-off to be ADA compliant. Shall also include a permanent built-in pressure
compensating control device to provide consistent ow over a wide pressure range. A check valve to prevent back ow.
Fitting shall be American Standard Model # 1660.76_.__ _.
© 2018 AS America, Inc.
6/18

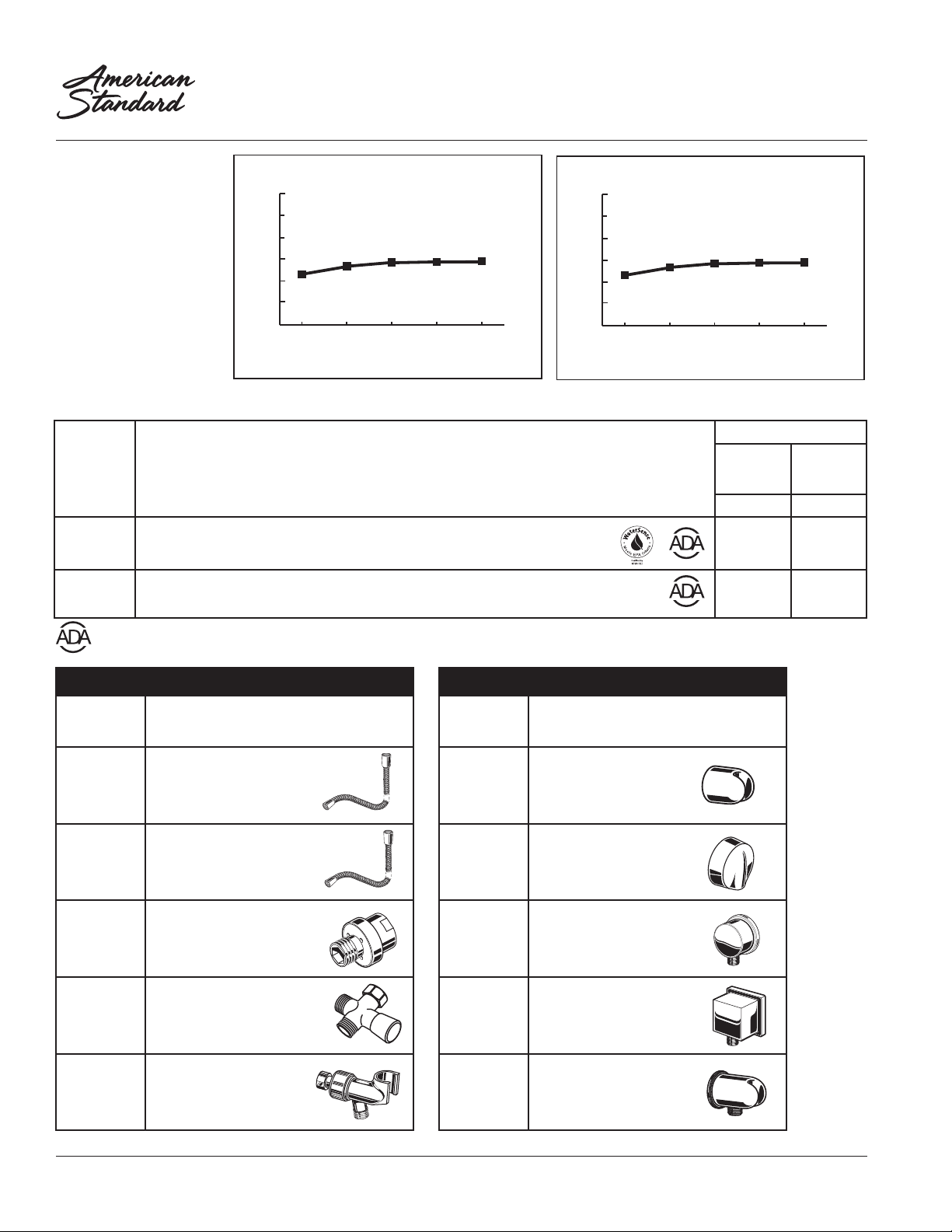

Page 2
3-FUNCTION HAND SHOWER
1660.766 - 1.5 gpm (5.7 L/min.)
FLOW RATE
GALLONS PER MINUTE
I N L E T PRESSURE ( PSI)
0
1
2
3
10080604020
WITH PAUSE FEATURE
CODES AND
STANDARDS
These products meet or
exceed the following
codes and standards:
AS ME A112.18.1
CSA B125.1
ANS I A117.1
3
2
1
GALLONS PER MINUTE
0
FLOW RATE
I N L E T PRESSURE ( PSI)
1660.766 - 1.5 gpm (5.7 L/min.)
Product
Number Description
1660.766 3-Function Hand Shower with Pause Feature, 1.5 gpm
1660.767 3-Function Hand Shower with Pause Feature, 2.5 gpm
FLOW RATE
3
2
1
GALLONS PER MINUTE
10080604020
0
I N L E T PRESSURE ( PSI)
10080604020
1660.767 - 2.5 gpm (9.5 L/min.)
Finish Options
Polished
Chrome
002 295
PVD
Satin
Nickel
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Hand Shower Accessories
Product
Number Description
8888.035
8888.053
1660.400
59" Metal Shower Hose
79" Metal Shower Hose
(Chrome Only)
Vacuum Breaker
1660.410
Shower Arm Diverter
Hand Shower Accessories
Product
Number Description
8888.036
8888.037
8888.068
8888.069
Fixed Wall Bracket
Wall Supply
Round Wall Supply
Square Wall Supply
8888.096
© 2018 AS America, Inc.
Shower Arm Bracket
8888.038
Wall Supply Bracket
6/18
