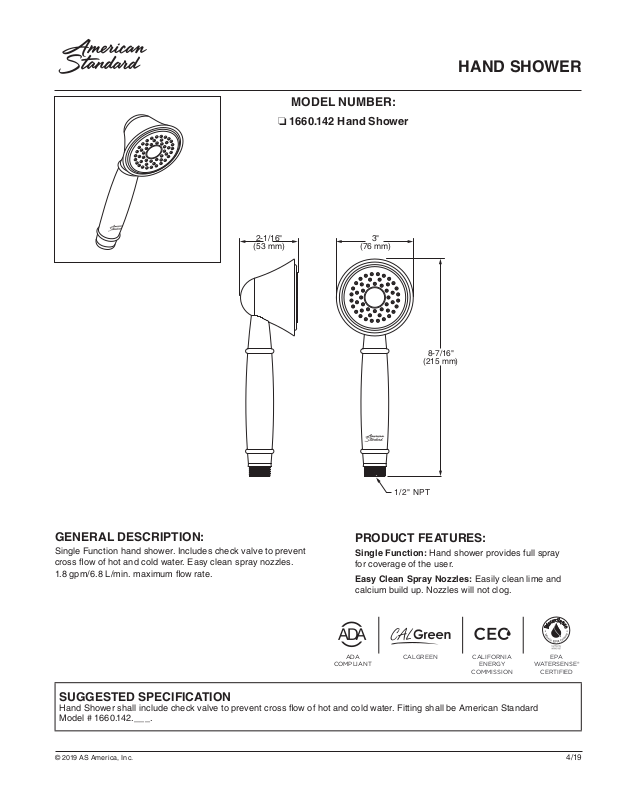

Page 1
MODEL NUMBER:
❏ 1660.142 Hand Shower
HAND SHOWER
2-1/16"
(53 mm)
3"
(76 mm)
8-7/16"
(215 mm)
1/2" NPT
GENERAL DESCRIPTION:
Single Function hand shower. Includes check valve to prevent
cross ow of hot and cold water. Easy clean spray nozzles.
1.8 gpm/6.8 L/min. maximum ow rate.
PRODUCT FEATURES:
Single Function: Hand shower provides full spray
for coverage of the user.
Easy Clean Spray Nozzles: Easily clean lime and
calcium build up. Nozzles will not clog.
COMPLIANT
CALGREENADA
CALIFORNIA
ENERGY
COMMISSION
SUGGESTED SPECIFICATION
Hand Shower shall include check valve to prevent cross ow of hot and cold water. Fitting shall be American Standard
Model # 1660.142.___.
© 2019 AS America, Inc.
EPA
WATERSENSE®
CERTIFIED
4/19
Page 2
HAND SHOWER
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B125.1
Product
Number Description
16 60.14 2
Ha nd S hower.
1.8
1.7
1.6
1.5
0
GALLONS PER MINUTE
INL ET PRESSURE ( PSI )
FLOW RATE
80604020
Finish Options
Polished
Nickel
013 278 295 002
Legacy
Bronze
Brushed
Nickel
Polished
Chrome
Hand Shower Accessories
Product
Number Description
8888.035
8888.053
1660.400
1660.410
8888.096
59" Metal Shower Hose
79" Metal Shower Hose
(Chrome Only)
Vacuum Breaker
Shower Arm Diverter
Shower Arm Bracket
Hand Shower Accessories
Product
Number Description
8888.036
8888.037
8888.068
8888.069
8888.038
Fixed Wall Bracket
Wall Supply
Round Wall Supply
Square Wall Supply
Wall Supply Bracket
© 2019 AS America, Inc.
4/19
