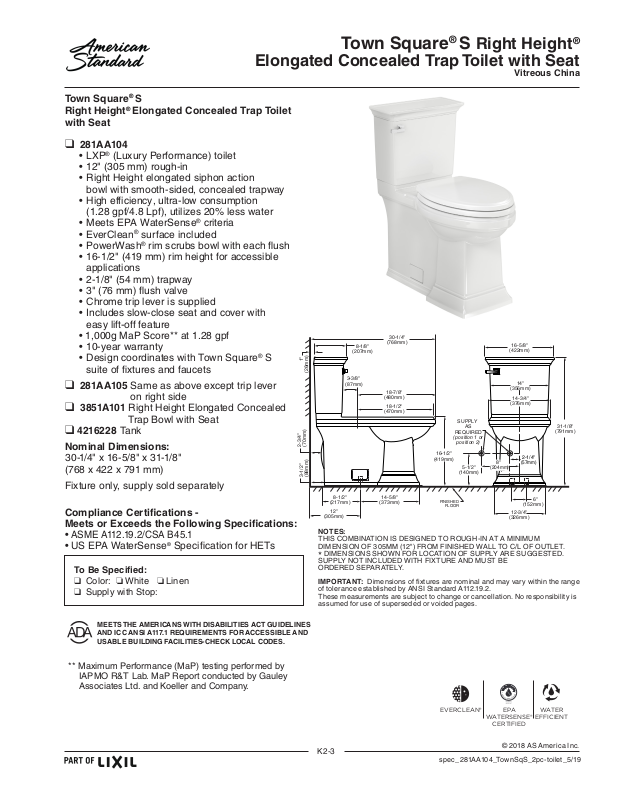

Page 1
Elongated Concealed Trap Toilet with Seat
30-1/4"
(326mm)
Tow n Squ a r e® S
Right Height® Elongated Concealed Trap Toilet
with Seat
❑ 281A A104
• LXP® (Luxury Performance) toilet
• 12" (305 mm) rough-in
• Right Height elongated siphon action
bowl with smooth-sided, concealed trapway
• High efficiency, ultra-low consumption
(1.28 gpf/4.8 Lpf), utilizes 20% less water
• Meets EPA WaterSense® criteria
• EverClean® surface included
• PowerWash® rim scrubs bowl with each ush
• 16-1/2" (419 mm) rim height for accessible
applications
• 2-1/8" (54 mm) trapway
• 3" (76 mm) ush valve
• Chrome trip lever is supplied
• Includes slow-close seat and cover with
easy lift-off feature
• 1,000g MaP Score** at 1.28 gpf
• 10-year warranty
• Design coordinates with Town Square® S
suite of xtures and faucets
❑ 281A A105 Same as above except trip lever
on right side
❑ 3851A101 Right Height Elongated Concealed
Trap Bowl with Seat
❑ 4216228 Tank
Nominal Dimensions:
30-1/4" x 16-5/8" x 31-1/8"
(768 x 422 x 791 mm)
Fixture only, supply sold separately
Compliance Certications Meets or Exceeds the Following Specications:
•
ASM E A112.19.2 /C SA B45 .1
• US EPA WaterSense® Specication for HETs
To Be Specied:
❑ Color: ❏ White ❏ Linen
❑ Supply with Stop:
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
Town Square® S Right Height
Vitreous China
8-1/8"
1"
(26mm)
2-3/4"
(70mm)
3-1/2"
(88mm)

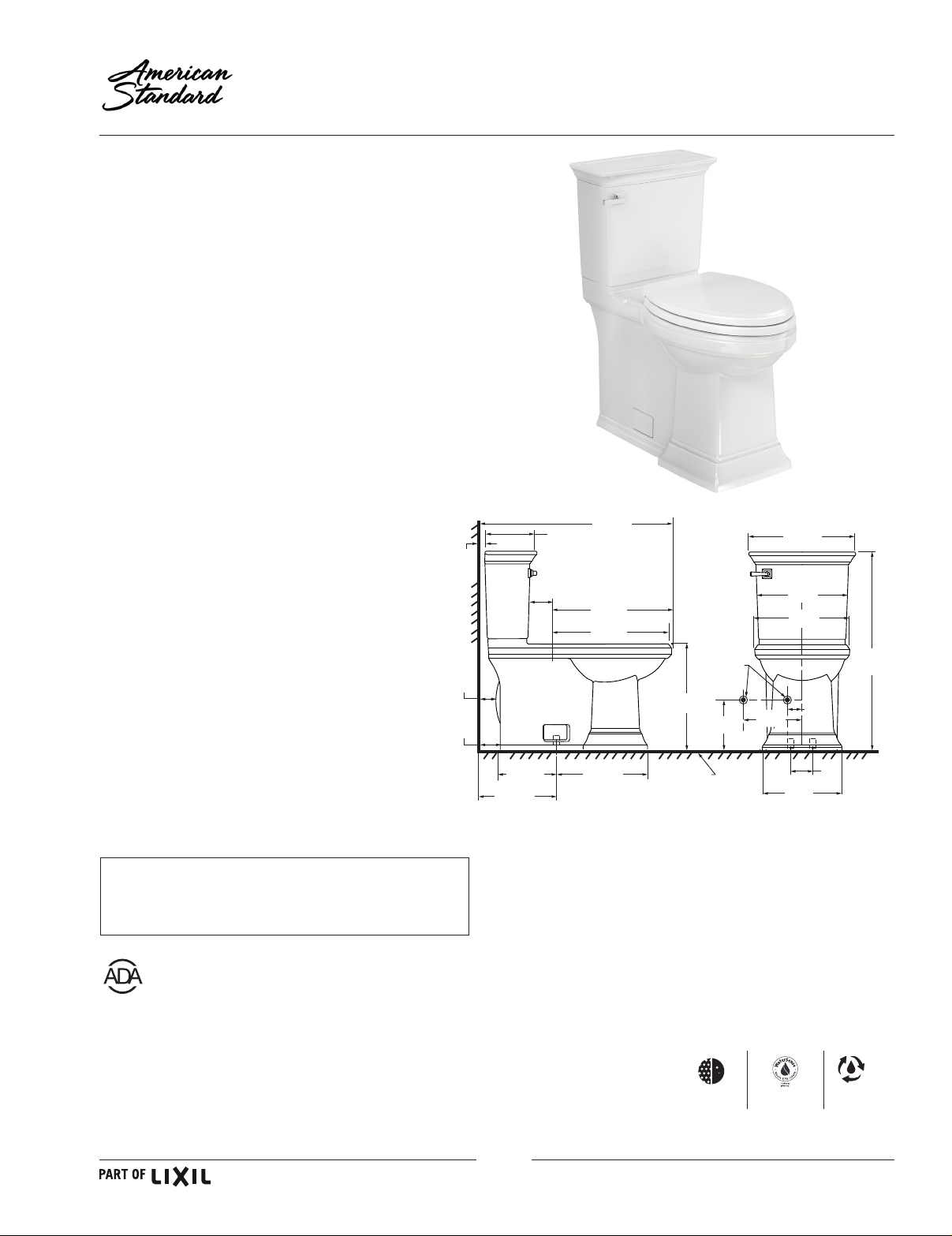

NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM
DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE
ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range
of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
(207mm)
3-3/8"
(87mm)
8-1/2"
(217mm)
12"
(305mm)
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
(768mm)
18-7/8"
(480mm)
18-1/2"
(470mm)
14-5/8"
(373mm)
16-1/2"
(419mm)
FINISHED
FLOOR
SUPPLY
AS
REQUIRED
(position 1 or
position 2)
5-1/2"
(140mm)
8"
(204mm)
16-5/8"
(422mm)
14"
(356mm)
14-3/4"
(376mm)
2-1/4"
(57mm)
(57mm)
12-3/4"
2-1/4"
6"
(152mm)
31-1/8"
(791mm)
®
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Gauley
Associates Ltd. and Koeller and Company.
K2-3
EVERCLEAN® EPA
spec_281AA104_TownSqS_2pc-toilet_5/19
WATERSENSE®
CERTIFIED
© 2018 AS America Inc.
WATER
EFFICIENT
