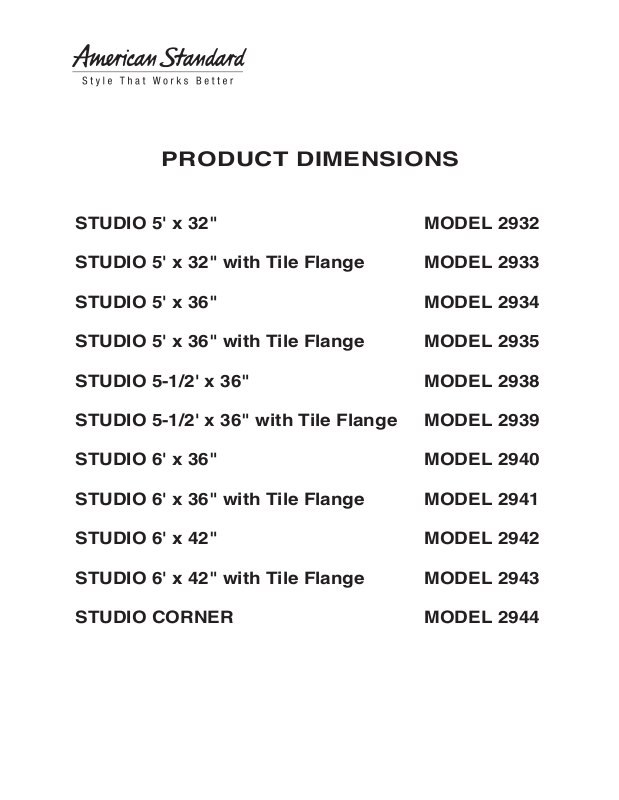

American Standard ASD11249 Specifications

PRODUCT DIMENSIONS

STUDIO 5' x 32" MODEL 2932

STUDIO 5' x 32" with Tile Flange MODEL 2933

STUDIO 5' x 36" MODEL 2934

STUDIO 5' x 36" with Tile Flange MODEL 2935

STUDIO 5-1/2' x 36" MODEL 2938

STUDIO 5-1/2' x 36" with Tile Flange MODEL 2939

STUDIO 6' x 36" MODEL 2940

STUDIO 6' x 36" with Tile Flange MODEL 2941

STUDIO 6' x 42" MODEL 2942

STUDIO 6' x 42" with Tile Flange MODEL 2943

STUDIO CORNER MODEL 2944

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

GENERAL SPECIFICATIONS FOR STUDIO 5' X 32" WHIRLPOOLS AND BATH TUBS

Description

2932

Studio

5' x 32"

2932

Studio

5' x 32"

2932

Studio

5' x 32"

2933

Studio

5' x 32"

w/Tile Flange

Deck

Trim

Option

Zero (5/8")

2"

4"

N/A

Dimensions

L-W-H

L 59-1/2" (1511mm) W 31-1/2" (800mm) H 22-1/2" (572mm)

L 59-3/4" (1518mm) W 31-3/4" (806mm) H 22-1/2" (572mm)

L 60" (1524mm) W 32" (813mm) H 22-1/2" (572mm)

L 60" (1524mm) W 31-7/8" (810mm) H 22-1/2" (572mm)

Drain /

Overflow

A 17-3/4" (451mm) B 10-3/4" (273mm)

A 17-3/4" (451mm) B 10-7/8" (276mm)

A 17-3/4 (451mm) B 11" (279mm)

A 17-3/4" (451mm) B 11" (279mm)

Height to

Underside

of Deck: C

C 21-7/8" (556mm)

C 20-1/2" (521mm)

18-1/2" (470mm)

C 20-1/2" (521mm)

Cut Out

Pier

G x F

58" (1473mm) x 30" (762mm)

58-1/4" (1480mm) x 30-1/4" (768mm)

58-1/2" (1486mm) x 30-1/2" (775mm)

N/A

Rough-In

Recess

E x D

59-11/16" (1516mm) x 30" (762mm)

59-15/16" (1522mm) x 30-1/4" (768mm)

60-3/16" (1529mm) x 30-1/2" (775mm)

60-3/16" (1529mm) x 30-3/8" (772mm)

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

581 lb. (264 kg)/ 44 lb./sq.ft. (213 kg/sq.m)

581 lb. (264 kg)/ 44 lb./sq.ft. (213 kg/sq.m))

DRAIN / OVERFLOW

B

Product

Weight

90 lb. (198 kg.)

Gallon to Overflow

59 gal. (224 l.)

Whirlpool Operating

Volume

54 gal. (205 l.)

TABLE 2

OVERFLOW

C/L DRAIN

9" x 15"

(229 x 305mm)

DRAIN ASS’Y

FLOOR CUTOUT

ROUGH-IN REFERENCES

MODEL SERIES 2932 & 2933

60" NOMINAL

(1524mm)

OUTLINE OF

CUTOUT

32" NOMINAL

(813mm)

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

GENERAL SPECIFICATIONS FOR STUDIO 5' X 36" WHIRLPOOLS AND BATH TUBS

Description

2934

Studio

5' x 36"

2934

Studio

5' x 36"

2934

Studio

5' x 36"

2935

Studio

5' x 36"

w/Tile Flange

Deck

Trim

Option

Zero (5/8")

2"

4"

N/A

Dimensions

L-W-H

L 59-1/2" (1511mm) W 35-1/2" (902mm) H 22-1/2" (572mm)

L 59-3/4" (1518mm) W 35-3/4" (908mm) H 22-1/2" (572mm)

L 60" (1524mm) W 36" (914mm) H 22-1/2" (572mm)

L 60" (1524mm) W 35-7/8" (911mm) H 22-1/2" (572mm)

Drain /

Overflow

A 17-3/4" (451mm) B 10-3/4" (273mm)

A 17-3/4" (451mm) B 10-7/8" (276mm)

A 17-3/4" (451mm) B 11" (279mm)

Height to Underside of Deck: C

C 21-7/8" (556mm)

C 20-1/2" (521mm)

18-1/2" (470mm)

C 20-1/2" (521mm)

Cut Out

Pier

G x F

58" (1473mm) x 34" (864mm)

58-1/4" (1480mm) x 34-1/4" (870mm)

58-1/2" (1486mm) x 34-1/2" (876mm)

N/A

Rough-In

Recess

E x D

59-11/16" (1516mm) x 34" (864mm)

59-15/16" (1522mm) x 34-1/4" (870mm)

60-3/16" (1529mm) x 34-1/2" (876mm)

60-3/16" (1529mm) x 34-3/8" (873mm)

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

686 lb. (311 kg)/ 46 lb./sq.ft. (223 kg/sq.m)

DRAIN / OVERFLOW

B

Product

Weight

95 lb. (209 kg.)

Gallon to Overflow

71 gal. (269 l.)

Whirlpool Operating

Volume

64 gal. (243 l.)

TABLE 3

OVERFLOW

C/L DRAIN

9" x 15"

(229 x 305mm)

DRAIN ASS’Y

FLOOR CUTOUT

ROUGH-IN REFERENCES

MODEL SERIES 2934 & 2935

60" NOMINAL

(1524mm)

OUTLINE OF

CUTOUT

36" NOMINAL

(914mm)

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

B

GENERAL SPECIFICATIONS FOR STUDIO 5-1/2' X 36" WHIRLPOOLS AND BATH TUBS

Description

2938

Studio

5-1/2' x 36"

2938

Studio

5-1/2' x 36"

2938

Studio

5-1/2' x 36"

2939

Studio

5-1/2' x 36"

w/Tile Flange

Deck

Trim

Option

Zero (5/8")

2"

4"

N/A

Dimensions

L-W-H

L 65-1/2" (1664mm) W 35-1/2" (902mm) H 22-1/2" (572mm)

L 65-3/4" (1670mm) W 35-3/4" (908mm) H 22-1/2" (572mm)

L 66" (1676mm) W 36" (914mm) H 22-1/2" (572mm)

L 66" (1676mm) W 35-7/8" (911mm) H 22-1/2" (572mm)

Drain /

Overflow

A 17-3/4" (451mm) B 10-3/4" (273mm)

A 17-3/4" (451mm) B 10-7/8" (276mm)

A 17-3/4" (451mm) B 11" (279mm)

Height to

Underside of Deck: C

C 21-7/8" (556mm)

C 20-1/2" (521mm)

18-1/2" (470mm)

C 20-1/2" (521mm)

Cut Out

Pier

G x F

64" (1626mm) x 34" (864mm)

64-1/4" (1632mm) x 34-1/4" (870mm)

64-1/2" (1638mm) x 34-1/2" (876mm)

N/A

Rough-In

Recess

E x D

65-11/16" (1668mm) x 34" (864mm)

65-15/16" (1675mm) x 34-1/4" (870mm)

66-3/16" (1681mm) x 34-1/2" (876mm)

66-3/16" (1681mm) x 34-3/8" (873mm)

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

766 lb. (348 kg)/ 46 lb./sq.ft. (227 kg/sq.m)

DRAIN / OVERFLOW

Product

Weight

100 lb. (220 kg.)

Gallon to Overflow

80 gal. (303 l.)

Whirlpool Operating

Volume

73 gal. (277 l.)

TABLE 4

OVERFLOW

C/L DRAIN

9" x 15"

(229 x 305mm)

DRAIN ASS’Y

FLOOR CUTOUT

ROUGH-IN REFERENCES

MODEL SERIES 2938 & 2939

66" NOMINAL

(1524mm)

OUTLINE OF

CUTOUT

36" NOMINAL

(914mm)

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

GENERAL SPECIFICATIONS FOR STUDIO 6' X 36" WHIRLPOOLS AND BATH TUBS

Description

2940

Studio

6' x 36"

2940

Studio

6' x 36"

2940

Studio

6' x 36"

2941

Studio

6' x 36"

w/Tile Flange

Deck

Trim

Option

Zero (5/8")

2"

4"

N/A

Dimensions

L-W-H

L 71-1/2" (1816mm) W 35-1/2" (902mm) H 22-1/2" (572mm)

L 71-3/4" (1822mm) W 35-3/4" (908mm) H 22-1/2" (572mm)

L 72" (1829mm) W 36" (914mm) H 22-1/2" (572mm)

L 72" (1829mm) W 35-7/8" (911mm) H 22-1/2" (572mm)

Drain /

Overflow

A 17-3/4" (451mm) B 10-3/4" (273mm)

A 17-3/4" (451mm) B 10-7/8" (276mm)

A 17-3/4" (451mm) B 11" (279mm)

Height to Underside of Deck: C

C 21-7/8" (556mm)

C 20-1/2" (521mm)

18-1/2" (470mm)

C 20-1/2" (521mm)

Cut Out

Pier

G x F

70" (1778mm) x 34" (864mm)

70-1/4" (1784mm) x 34-1/4" (870mm)

70-1/2" (1791mm) x 34-1/2" (876mm)

N/A

Rough-In

Recess

E x D

71-11/16" (1821mm) x 34" (864mm)

71-15/16" (1827mm) x 34-1/4" (870mm)

72-3/16" (1833mm) x 34-1/2" (876mm)

72-3/16" (1833mm) x 34-3/8" (873mm)

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

846 lb. (384 kg)/ 47 lb./sq.ft. (230 kg/sq.m)

DRAIN / OVERFLOW

B

Product

Weight

105 lb. (231 kg.)

Gallon to Overflow

89 gal. (337 l.)

Whirlpool

Operating

Volume

81 gal. (307 l.)

TABLE 5

OVERFLOW

C/L DRAIN

9" x 15"

(229 x 305mm)

DRAIN ASS’Y

FLOOR CUTOUT

ROUGH-IN REFERENCES

MODEL SERIES 2940 & 2941

72" NOMINAL

(1524mm)

OUTLINE OF

CUTOUT

36" NOMINAL

(813mm)

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

GENERAL SPECIFICATIONS FOR STUDIO 6' X 42" WHIRLPOOLS AND BATH TUBS

Description

2942

Studio

6' x 42"

2942

Studio

6' x 42"

2942

Studio

6' x 42"

2943

Studio

6' x 42"

w/Tile Flange

Deck

Trim

Option

Zero (5/8")

2"

4"

N/A

Dimensions

L-W-H

L 71-1/2" (1816mm) W 41-1/2" (1054mm) H 22-1/2" (572mm)

L 71-3/4" (1822mm) W 41-3/4" (1060mm) H 22-1/2" (572mm)

L 72" (1829mm) W 42" (1067mm) H 22-1/2" (572mm)

L 72" (1829mm) W 41-7/8" (1063mm) H 22-1/2" (572mm)

Drain /

Overflow

A 17-3/4" (451mm) B 10-3/4" (273mm)

A 17-3/4" (451mm) B 10-7/8" (276mm)

A 17-3/4" (451mm) B 11" (279mm)

Height to Underside of Deck: C

C 21-7/8" (556mm)

C 20-1/2" (521mm)

18-1/2" (470mm)

C 20-1/2" (521mm)

Cut Out

Pier

G x F

70" (1778mm) x 40" (1016mm)

70-1/4" (1784mm) x 40-1/4" (1022mm)

70-1/2" (1791mm) x 40-1/2" (1029mm)

N/A

Rough-In

Recess

E x D

71-11/16" (1821mm) x 40" (1016mm)

71-15/16" (1827mm) x 40-1/4" (1022mm)

72-3/16" (1833mm) x 40-1/2" (1029mm)

72-3/16" (1833mm) x 40-3/8" (1026mm)

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

943 lb. (428 kg)/ 45 lb./sq.ft. (219 kg/sq.m)

DRAIN / OVERFLOW

B

Product

Weight

110 lb. (242 kg.)

Gallon to Overflow

100 gal. (379 l.)

Whirlpool

Operating

Volume

91 gal. (345 l.)

TABLE 6

OUTLINE OF

CUTOUT

ROUGH-IN REFERENCES

MODEL SERIES 2942 & 2943

C/L DRAIN

OVERFLOW

72" NOMINAL

(1524mm)

9" x 15" (229 x 305mm) DRAIN ASS’Y FLOOR CUTOUT

36" NOMINAL

(813mm)

SPECIFICATIONS:

L

W

J

SIDE VIEW

H

END VIEW

C

A

B

GENERAL SPECIFICATIONS FOR STUDIO CORNER WHIRLPOOLS AND BATH TUBS

Description

2944

Studio

Corner

2944

Studio

Corner

Deck

Trim

L 83-15/16" (2132mm)

Zero

W 61-3/8" (1559mm)

(5/8")

H 21-1/2" (546mm)

L 84-1/4" (2139mm)

2"

W 31-13/16" (808mm) H 21-1/2" (546mm)

Dimensions

L-W-H

Drain /

Overflow

A 15" (381mm) B 13-1/2" (343mm)

A 15" (381mm) B 13-5/8" (346mm)

Height to Underside of Deck: C

C 20-7/8" (530mm)

C 19-1/2" (495mm)

Cut Out

Pier

G x F

Rough-In

Recess

E x D

N/A

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Loading

988 lb. (448 kg)/ 27 lb./sq.ft. (133 kg/sq.m)

ROUGH-IN REFERENCES

MODEL SERIES 2944

DRAIN / OVERFLOW

Product

Weight

130 lb. (59 kg.)

Gallon to Overflow

103 gal. (390 l.)

Whirlpool Operating

Volume

65 gal. (246 l.)

TABLE 7

61-3/4" NOMINAL

(1568mm)

OUTLINE

OF CUTOUT

9" x 18"

(229 x 457mm)

FLOOR CUTOUT

84" NOMINAL

(2134mm)

45-5/8"L

(1159mm)

59-3/4" NOMINAL

(1518mm)

2X 27/12"

(699mm)

PUMP/BLOWER END NOTE: PUMP EXTENDS APPROXIMATELY 1-1/4" BEYOND TUB DECK
