American Standard 2732L, 2425L - V, 2422L - V, 2908L, 2771L - V User Manual

INSTALLATION & OPERATION GUIDE FOR

EVERCLEAN

™

/ EVOLUTION

™

WHIRLPOOLS AND BATHTUBS

MODEL 2422L / V 5' x 32"

MODEL 6060L / V CORNER

MODEL 2771L / V 5' x 36"

MODEL 2645L / V OVAL

MODEL 7236L / V 6' x 36"

MODEL 2425L / V - LHO 5' x 32" IA-LHO

MODEL 2425L / V - RHO 5' x 32" IA-RHO

MODEL 2908L REMINISCENCE

MODEL 2711L ELLISSE

MODEL 2773L CADET 6' x 36"

MODEL 2774L CADET 6' x 42"

MODEL 2775L CADET CORNER

MODEL 2732L 5' x 32"

THANK YOU...

for selecting an American Standard bath. Your new bath is shipped to you after careful inspection. The
whirlpool version is completely assembled with pump, motor, and system piping. All you need to finish the
whirlpool installation are your selected fittings and electrical connections.

To insure maximum performance and pleasure from this product, please follow the instructions and cautions.

FOR AFTER-SALES SERVICE CALL 1 [phone] WEEKDAYS.

© AS Americas Inc. 2010
All product names listed herein are trademarks
of AS Americas Inc. unless otherwise noted.

1

753737-100 Rev. E

TABLE OF CONTENTS:

Safety Instructions...............................................................................Page 3

General Information.............................................................................Page 4

Optional Components..........................................................................Page 4

Specifications......................................................................................Page 5

Roughing-in Reference.....................................................................Page 6-9

Framing and Support Instructions.....................................................Page 10

Mounting Instructions.........................................................................Page 11

Electrical Connections.......................................................................Page 12

6060L/V Corner EZ-Install Heater.....................................................Page 13

Operation.....................................................................................Page 14-15

Drain Connection and System Test...................................................Page 16

Care and Cleaning.............................................................................Page 16

Warranty............................................................................................Page 17

753737-100 Rev. E

2

IMPORTANT SAFETY

INSTRUCTIONS

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, ELECTRIC SHOCK

OR INJURY TO PERSONS

READ AND FOLLOW ALL INSTRUCTIONS!

!

WARNING: Risk of personal injury. Do not permit children to use this unit without adult supervision.

!

WARNING: Risk of personal injury. Do not operate this unit without the guard over the suction fitting.

!

WARNING: Risk of electric shock. Do not permit electrical appliances (hair dryer, telephone, radio, etc.) within

60 inches (1524mm) of this unit.

!

WARNING: Risk of hyperthermia and possible drowning. People using medications and/or having adverse

medical history should consult a physician before using this product.

!

WARNING: Risk of personal injury. Do not overfill unit before entering. Entering tub when filled more than 2/3

can cause overflow and slippery conditions. Exercise caution when entering and exiting.

!

WARNING: No Food or Alcoholic Beverages. Use of your bathtub immediately after meals is not

recommended. Avoid alcohol consumption before or during bathing. Alcoholic beverages can cause drowsiness or
hyperthermia resulting in loss of consciousness or even drowning.

!

WARNING: Pregnancy. If you are or think you may be pregnant, consult your physician before using the bathtub.

Never drop or insert any object into any opening.

Use this unit only for its intended use as described in this manual. Do not use any attachments not recommended by
American Standard.

The unit must be connected only to a supply circuit that is properly protected by a ground-fault circuit-interrupter
(GFCI). Such a GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI,
push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI
fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the bathtub without the test button
being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this hydromassage
bathtub. Disconnect the hydromassage bathtub and have the problem corrected by a licensed electrician before using.

A pressure wire connector is provided on the exterior of the motor unit to permit connection of a no. 8 AWG solid
copper bonding conductor between this unit and all other electrical equipment and exposed metal in the vicinity, as
needed to comply with local requirements. To reduce the risk of an electric shock, connect this connector the
grounding terminal of your electric service or supply panel with a conductor equivalent in size to the circuit conductors
supplying this unit.

SAVE THESE INSTRUCTIONS

3

753737-100 Rev. E

General Installation Information

Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your
vendor immediately. After inspection and during installation, protect the bath from construction damage. Before

installation, and before enclosing with wallboard, tile, etc., the bath must be filled with water and operated to
check for leaks that may have resulted from shipping damage or mishandling ! Do not make modifications to

the whirlpool system or remove pump from factory mounting. This could adversely affect the safety and performance
of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump, motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others.

For electrical requirements, refer to section titled “Whirlpool Electrical Installation Instructions”.

Check for availability of optional American Standard wall tiling bead (required for recess installation).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.

!

WARNING: Do not lift whirlpool by the piping harness at any time.

List of Required Tools and Supplies:

Tools

• Level

• Tape Measure

• Pipe Wrench

• Slip Joint Pliers

• Screw Driver

• Standard Woodworking Tools

• Personal Safety Equipment

• Caulking Gun

Supplies

• Nails

• Putty

• Caulking (waterproof)

• 1 x 4 Stringers

• Drop Cloth

• Cement, Plaster, Grout

LIST OF OPTIONAL COMPONENTS (NOT INCLUDED):

Required Components

(Not Included)

Description

Everclean™/Evolution™ Corner

™

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

Everclean

/Evolution™ 5' x 32"

™

/Evolution™ 5' x 36"

™

/Evolution™ 6' x 36"

™

/Evolution™ 5' x 32" IA

™

/Evolution™ Oval

™

Reminiscence

™

Ellisse

™

Cadet 6' x 36"

™

Cadet 6' x 42"

™

Cadet Corner

™

5' x 32"

• For these components please see your Vendor.

* These models require American Standard Lifetime™ Drain 1599.205 or 1599.500

Model

Number

6060

2422

2771

7236

2425

2645

2908

2711

2773

2774

2775

2732

Drain

•

(White)

1599.500.020

1599.500.020*

1599.500.020*

1599.500.020*

1599.500.020*

1599.500.020

1599.500.020

1599.500.020

1599.500.020

1599.500.020

1599.500.020

1599.500.020

Drain

•

(Specify

Finish)

1583.470.XXX

1599.205.XXX*

1599.205.XXX*

1599.205.XXX*

1599.205.XXX*

1583.470.XXX

1583.470.XXX

1583.470.XXX

1583.470.XXX

1583.470.XXX

1583.470.XXX

1583.470.XXX

Optional Components

(Not Included)

E-Z

Install

Heater

INCLUDED

√

√

√

√

√

√

√

√

√

√

√

Apron

Kit

NOT

AVAILABLE

9261.019

9261.019

9271.019

INTEGRAL

9266.018

NOT

AVAILABLE

NOT

AVAILABLE

9272.018

9272.018

NOT

AVAILABLE

5FT-

APRON

Tile

Bead

Kit

√

√

√

√

N/A

√

N/A

√

√

√

√

√

753737-100 Rev. E

4

SPECIFICATIONS:

L

W

J

GENERAL SPECIFICATIONS FOR LIFETIME / EVOLUTION WHIRLPOOLS AND BATH TUBS

Description

6060L / V

Corner*

2422L / V

5' x 32"

2771L / V

5' x 36"

7236L / V

6' x 36"

2425L / V

5' x 32”

LHO /

RHO

2645L / V

Oval

2908L

Reminiscence

2711L

Ellisse

2773L

Cadet 6' x 36"

2774L

Cadet 6' x 42"

2775L

Cadet Corner

2732L

5' x 32"

SIDE VIEW

Dimensions

L-W-H

L 1949mm (76-3/4")
W 1661mm (65-3/8")
H 546mm (21-1/2")

L 1524mm (60")
W 813mm (32")
H 546mm (21-1/2")

L 1524mm (60")
W 914mm (36")
H 546mm (21-1/2")

L 1829mm (72")
W 914mm (36")
H 546mm (21-1/2")

L 1524mm (60")
W 813mm (32")
H 521mm (20-1/2")

L 1676mm (66")
W 914mm (36")
H 502mm (19-3/4")

L 1676mm (66")
W 914mm (36")
H 616mm (24-1/4")

L 1829mm (72")
W 1219mm (48")
H 546mm (21-1/2")

L 1829mm (72")
W 914mm (36")
H 502mm (19-3/4")

L 1829mm (72")
W 1067mm (42")
H 502mm (19-3/4")

L 2159mm (85")
W 1524mm (60")
H 502mm (19-3/4")

L 1524mm (60")
W 832mm (32-3/4")
H 502mm (19-3/4")

Drain /

Overflow

A 18"
(457mm)
B 13-3/4"
(349mm)

A 20-1/8"
(511mm)
B 11"
(279mm)

A 20-1/8"
(511mm)
B 11"
(279mm)

A 20-1/8"
(511mm)
B 11"
(279mm)

A 19-1/8"
(485mm)
B 10-1/2"
(266mm)

A 15-1/4"
(387mm)

B 8-1/4"
(209mm)

A 15-1/8"
(384mm)
B 13"
(330mm)

A 17-3/8"
(441mm)
B 12"
(305mm)

A 17"
(432mm)
B 12"
(305mm)

A 16-1/4"
(413mm)
B 12"
(305mm)

A 16-1/2"
(419mm)
B 11"
(279mm)

A 17-1/4"
(438mm)
B 8-1/2"
(216mm)

Height to

Underside

of Deck: C

C 19-1/2"
(495mm)

C 20"
(508mm)

C 20"
(508mm)

C 20"
(508mm)

C 20-1/4"
(515mm)

C 18-1/4"
(464mm)

C 18-1/4"
(464mm)

C 19-1/2"
(495mm)

C 18-1/4"
(464mm)

C 18-1/4"
(464mm)

C 18-1/4"
(464mm)

C 18-1/4"
(464mm)

H

Cut Out

Pier

G x F

Template

Provided

58-1/2"
(1485mm)
x 30-1/2"
(774mm)

58-1/2"
(1485mm)
x 34-1/2"
(876mm)

70-1/2"
(1790mm)
x 34-1/2"
(876mm)

N/A

64"
(1625mm)
x 34"
(863mm)

Template
Provided

70-1/2"
(1791mm)
x 46-1/2"
(1181mm)

70-1/2"
(1791mm)
x 34-1/4"
(870mm)

70-1/2"
(1791mm)
x 40-1/2"
(1029mm)

Template
Provided

58-1/2"
(1485mm)
x 31-1/4"
(794mm)

END VIEW

Rough-In

Recess

E x D

Template
751627-400

60-3/16"
(1528mm)
x 30-1/2"
(774mm)

60-3/16"
(1528mm)
x 34-1/2"
(876mm)

72-3/16"
(1833mm)
x 34-1/2"
(876mm)

60-3/16"
(1528mm)
x 30-1/2"
(774mm)

66-3/16"
(1681mm)
x 34-1/2"
(876mm)

Template
752540-400

72-3/16"
(1833mm)
x 48"
(1219mm)

72-3/16"
(1833mm)
x 36"
(914mm)

72-3/16"

(1833mm)
x 42"
(1067mm)

Template
752539-400

60-3/16"
(1529mm)
x 31-1/4"
(794mm)

Tub Edge to

Centerline

Overflow: J

5-5/8"

(130mm)

3-1/4"

(83mm)

3-1/4"

(83mm)

3-1/4"

(83mm)

2-7/8"

(73mm)

1-3/4"

(44mm)

6"

(152mm)

4"

(102mm)

2-1/4"

(57mm)

2-1/4"

(57mm)

11"

(279mm)

2-5/8"

(67mm)

C

Weight with

Water / Floor

Loading

824 lb. (374 kg)/
25 lb./sq.ft.
(117 kg/sq.m)

690 lb. (313 kg)/
53 lb./sq.ft.
(260 kg/sq.m)

800 lb. (363 kg)/
53 lb./sq.ft.
(260 kg/sq.m)

1031 lb. (467 kg)/
57 lb./sq.ft.
(280 kg/sq.m)

675 lb. (306 kg)/
54 lb./sq.ft.
(262 kg/sq.m)

580 lb. (263 kg)/
36 lb./pies
cuadrados
(175 kg/sq.m)

659 lb. (299 kg)/
40 lb./sq.ft.
(191 kg/sq.m)

965 lb. (434 kg)/
40 lb./sq.ft.
(195 kg/sq.m)

751 lb. (341 kg)/
40 lb./sq.ft.
(190 kg/sq.m)

821 lb. (372 kg)/
42 lb./sq.ft.
(203 kg/sq.m)

756 lb. (343 kg)/
34 lb./sq.ft.
(115 kg/sq.m)

524 lb. (237 kg)/
43 lb./sq.ft.
(213 kg/sq.m)

Product

Weight

108 lb.
(49 kg.)

74 lb.
(34 kg.)

75 lb.
(34 kg.)

106 lb.
(48 kg.)

92 lb.
(42 kg.)

96 lb.
(44 kg.)

95 lb.
(43 kg.)

148 lb.
(67 kg.)

101 lb.
(45 kg.)

137 lb.
(62 kg.)

130 lb.
(59 kg.)

65 lb.
(30 kg.)

A

B

Apron /

Mounting

N/A

Optional

Optional

Optional

Included

Optional

N/A

N/A

Optional

Optional

N/A

Optional

DRAIN / OVERFLOW

Heater Ready

for Field

Installation

Included

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Gallon to
Overflow

111 gal.

86 gal.
(325 l.)

74 gal.
(280 l.)

87 gal.
(329 l.)

(420 l.)

70 gal.
(265 l.)

58 gal.
(219 l.)

68 gal.
(257 l.)

95 gal.
(360 l.)

78 gal.
(296 l.)

82 gal.
(310 l.)

75 gal.
(284 l.)

55 gal.
(208 l.)

Whirlpool
Operating

Volume

TABLE 1

71 gal.
(269 l.)

33 gal.
(125 l.)

50 gal.
(189 l.)

53 gal.
(201 l.)

39 gal.
(148 l.)

42 gal.
(159 l.)

55 gal.
(208 l.)

74 gal.
(280 l.)

64 gal.
(243 l.)

66 gal.
(256 l.)

60 gal.
(272 l.)

47 gal.
(155 l.)

5

753737-100 Rev. E

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

ROUGHING-IN REFERENCES

5' x 32" (MODEL 2422L / V)

60"

(1524mm)

3"

(76mm)

(152mm)

CUT OUT IN FLOOR

FOR DRAIN

13-3/4"

(349mm)

6"

(197mm)

7-3/4"

11"

(279mm)

32"

(813mm)

3-1/4"

(83mm)

6' x 36" (MODEL 7236L / V)

72"

(1829mm)

7-3/4"

3"

(197mm)

(76mm)

CUT OUT IN FLOOR

FOR DRAIN

(349mm)

(152mm)

13-3/4"

6"

11"

(279mm)

3-1/4"
(83mm)

36"

(914mm)

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

5' x 36" (MODEL 2771L / V)

60"

(1524mm)

CUT OUT IN FLOOR

FOR DRAIN

(191mm)

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE
OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

(76mm)

(152mm)

7-1/2"

(349mm)

3"

6"

13-3/4"

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

11"

(279mm)

(914mm)

3-1/4"
(83mm)

36"

753737-100 Rev. E

6

18"

(457mm)

ROUGHING-IN REFERENCES

OVAL (MODEL 2645L / V)

66"

(1676mm)

11-1/4"

(286mm)

1-3/4"
(44mm)

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

(152mm)

CUT OUT IN FLOOR

FOR DRAIN

(76mm)

PROVIDE ACCESS

TO PUMP FOR

SERVICING ON ALL

INSTALLATIONS

6"

3"

5-3/8"

(137mm)

36"

(914mm)

8-1/4"
(210mm)

5' x 32" IA-RHO (MODEL 2425L/V-RHO) - shown
5' x 32" IA-LHO (MODEL 2425L/V-LHO)

60"

(1524mm)

3"

(76mm)

6"

(152mm)

CUT OUT IN FLOOR

FOR DRAIN

(191mm)

10-1/2"

(267mm)

7-1/2"

2-7/8"
(73mm)

16"

(406mm)

(813mm)

32"

15"

(381mm)

5-5/8"

(143mm)

CORNER (MODEL 6060L / V)

76-3/4"

(1949mm)

10"

(254mm)

7" (178mm)

CUT OUT
IN FLOOR FOR DRAIN

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE
OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

54-1/2"

(1384mm)

(178mm)

13-3/4" (349mm)

7"

3"

(76mm)

17-3/4"

(451mm)

65-3/8"

(1661mm)

PROVIDE ACCESS
TO PUMP FOR
SERVICING ON ALL
INSTALLATIONS

7

13-1/2"

(343mm)

753737-100 Rev. E

ROUGHING-IN REFERENCES

CADET CORNER (MODEL 2775L)

RECOMMENDED

FITTING

LOCATION

64 X 330mm

"

(2-1/2 X 13

)

1524 mm

OUTLINE OF
CUTOUT

1080 m m

(42 -1 /2

"

"

)

"

)

229 X 305mm

"

X 12")

(9
CUTOUT IN
FLOOR FOR
DRAIN

PUM P

305 mm

(12

1219 mm

(48

"

)

1076m m

"

(42 -3 /8

1524 mm

(60")

PROVIDE ACCESS TO

PUMP FOR

SERVICING ON ALL

INSTALLATIONS

"

)

)

ELLISSE (MODEL 2711L)

(36 -1 /2

927 mm

"

)

1829mm

(72

"

)

OUT LI NE OF CUTOU T
1791 X 1181
(70 -1 /2

"

X 46 -1/ 2")

229 mm x 35 6mm
(9

"

x 14") F LOO R

CUTO UT

102mm

(4

C/L OF
DRAIN

PUMP

"

)

)

"

(60

165mm
(6-1/2)

2159 mm

"

(85

C/L

)

)

1080 mm
(42 -1 /2

70m m REF.
(2- 3/ 4)

279mm
(11

C/L O F D RA IN OU TL ET

330mm

(13

"

)

914mm

(36")

457mm

(18)

INTEGRAL

FITTING

DECK

152mm

(6)

753737-100 Rev. E

REMINISCENCE (MODEL 2908L)

1676mm

(66")

229 x 30 5m m
(9 X 12)
FLO OR
CUTO UT

64m m REF.
(2- 1/ 2)

C/L O F D RA IN

OUT LE T

OUT LI NE OF

CUTO UT

RECOMMENDED

FITTING LOCATION

64 X 279mm (2-1/2" X 11")

PUM P

PROV IDE ACC ES S TO

PUM P FOR S ERVICE

ON A LL IN STALL ATION S

8

OPTIONAL DECK

FITTING AREA

DIMENSIONS OF FIXTURES ARE NOMINAL
AND MAY VARY WITHIN THE RANGE OF
TOLERANCES ESTABLISHED BY
ANSI STANDARDS Z124.1 AND A112.19.7.

PROVIDE ACCESS TO

PUMP FOR SERVICE

ON ALL INSTALLATIONS

229mm

1067mm

(42")

(9")

19mm

(3/4")

FINISHED

WALL

533mm

(21")

CADET 6' x 42" (MODEL 2774L)

305mm

(12")

RECOMMENDED FITTING LOCATION

229mm

(9")

CUTOUT IN FLOOR
FOR DRAIN

ROUGHING-IN REFERENCES

1829mm

(72")

64 X 330mm (2-1/2" x 13")

FOR PIER OR ISLAND
INSTALLATIONS ONLY

PUMP

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

57mm

(2-1/4")

C/L OF DRAIN

(8) JETS

(2) AIR VALVES

ALT. FITTING

LOCATION #1

908mm

(35-3/4")

5' x 32" (MODEL 2732L)

60"

(1524mm)

229mm

(9")

19mm

(3/4

FINISHED

WALL

454mm

(17-7/8

")

OUTLINE OF

CUTOUT

1791mm x 1029mm

(70-1/2" X 40-1/2")

305mm

(12

")

")

57mm

(2-1/4

C/L OF DRAIN

12"

(305mm)

CADET 6' x 36" (MODEL 2773L)

1829mm

(72

RECOMMENDED FITTING LOCATION

229mm

(9

")

CUTOUT IN FLOOR
FOR DRAIN

")

(8) JETS

")

64 X 330mm (2-1/2

FOR PIER OR ISLAND
INSTALLATIONS ONLY

(2) AIR VALVES

ALT. FITTING

LOCATION #1

PUMP

" x 13")

OUTLINE
OF CUTOUT
1791mm x 870mm

(70-1/2" X 34-1/4"

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

)

PROVIDE
ACCESS TO
PUMP FOR
SERVICING
ON ALL
INSTALLATIONS

3"

(76mm)

6"

(152mm)

CUT OUT IN FLOOR

FOR DRAIN

5-7/8"

(149mm)

(216mm)

9

8-1/2"

16-1/2"

(419mm)

32-3/4"

(832mm)

DIMENSIONS OF FIXTURES ARE NOMINAL
AND MAY VARY WITHIN THE RANGE OF
TOLERANCES ESTABLISHED BY
ANSI STANDARDS Z124.1 AND A112.19.7.

753737-100 Rev. E

INSTALLATION AND FRAMING INSTRUCTIONS

The variety of installations possible for this whirlpool may require framing procedures other than those shown. Locate studs as needed. Ensure
roughing-in dimensions are proper, plumb and square. Provisions must be made in all installations for an access opening for servicing the pump
and controls. It is strongly recommended that an additional opening be provided for access to the drain components. The apron should not be used
as the primary access opening.

1. Position the whirlpool into the installation opening and level the deck in both directions, shimming the integral support feet IF necessary.
Mark the final position of the underside of the deck by tracing a line on to the studs (see Figure 1).

2. Remove the whirlpool and attach a 1 x 4 stringer to the studs, with the top of the stringer touching the traced line.

!

The rim of the bath must not support weight.

3. Install drain components to the whirlpool following the drain installation instructions. Before
replacing your whirlpool for final installation, be certain that an opening has been provided in
the sub-floor for the drain. See the roughing-in drawing and Table 1 for suggested opening
size (shadowed) and location dimensions. The drain/overflow of the bath extends below the
bottom of the bath. Note that this requires a cutout in the floor.

The floor structure beneath the bath must be able to support a total weight of bath, water, and

!

bather. Refer to Table 1 under total weight for your model.

FIGURE 1

TYPICAL INSTALLATION

For Models:

This bath must be supported along its entire bottom. Use mortar as bedding

2425L/V-LHO and 2425L/V-RHO, 2732L;

material (do not use sand or foam). Apply enough mortar to support the complete
bottom of the bath. After the mortar has been poured, and before it sets, position
whirlpool or bath within recess until the rim is leveled against the leveling stringers (see
"Typical Recess Installation") shown below.

The rim of the bath must not support weight. Allow the mortar material to completely

!

harden before applying weight to the rim or bottom of the bath. Any finish material such
as tile or wall board must be self-supporting if it contacts the deck of the bath.

For Models:

2645L/V, 2771L/V, 2773L/V, 2774L/V, 2775L/V, 2422L/V,

2711L/V, 2908L/V, 6060L/V and 7236L/V;

Replace whirlpool and re-shim the integral support feet, shimming the entire length of the

support feet. Secure the shims using construction adhesive, silicone, mortar or
equivalent materials. While not a necessity, the use of a foundation base consisting of
cement, mortar, or grout will help provide a solid and secure installation.

The rim of the bath must not support weight. If foundation base is used, allow the

!

bedding material to completely harden before applying weight to the rim or bottom of
the bath. Any finish material such as tile or wall board must be self-supporting if it
contacts the deck of the bath.

TYPICAL RECESS INSTALLATION

AS DESIRED

C

TILE

WALLBOARD

TILE
BEAD
STRIP

ADHESIVE

LEVELING STRINGER

1 x 4 (not for support)

NOTE: Tile bead kit not included and
must be purchased separately.

TYPICAL PIER TYPE INSTALLATION

F

CUTOUT

CUTOUT

C

SEALANT

BATH

G

C

NOTE:
FRONT EDGE
OF BATH MUST
BE SUPPORTED
BY STUD WALL OR
AMERICAN STANDARD
APRON KIT

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

753737-100 Rev. E

D

W

E

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

(EXCEPT 2425 WHERE APRON IS PRIMARY ACCESS OPENING)

FOR E & D DIMENSIONS SEE TABLE 1 ON PAGE 5.

LEVELING
STRINGERS

ACCESS PANEL MUST BE LOCATED
ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON
PUMP/MOTOR END FOR SERVICE.

ACCESS PANELS NOT REQUIRED
FOR BATH TUBS .

24

(610 mm)

12

(305 mm)

12

AS DESIRED

MOUNTING
SURFACE

WATERPROOF
SEALANT

BATH

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

FOR G & F DIMENSIONS SEE TABLE 1 ON PAGE 5.

ACCESS PANEL MUST BE LOCATED
ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON PUMP/MOTOR
END FOR SERVICE.

ACCESS PANELS NOT REQUIRED
FOR BATH TUBS .

(610 mm)

(305 mm)

24

10

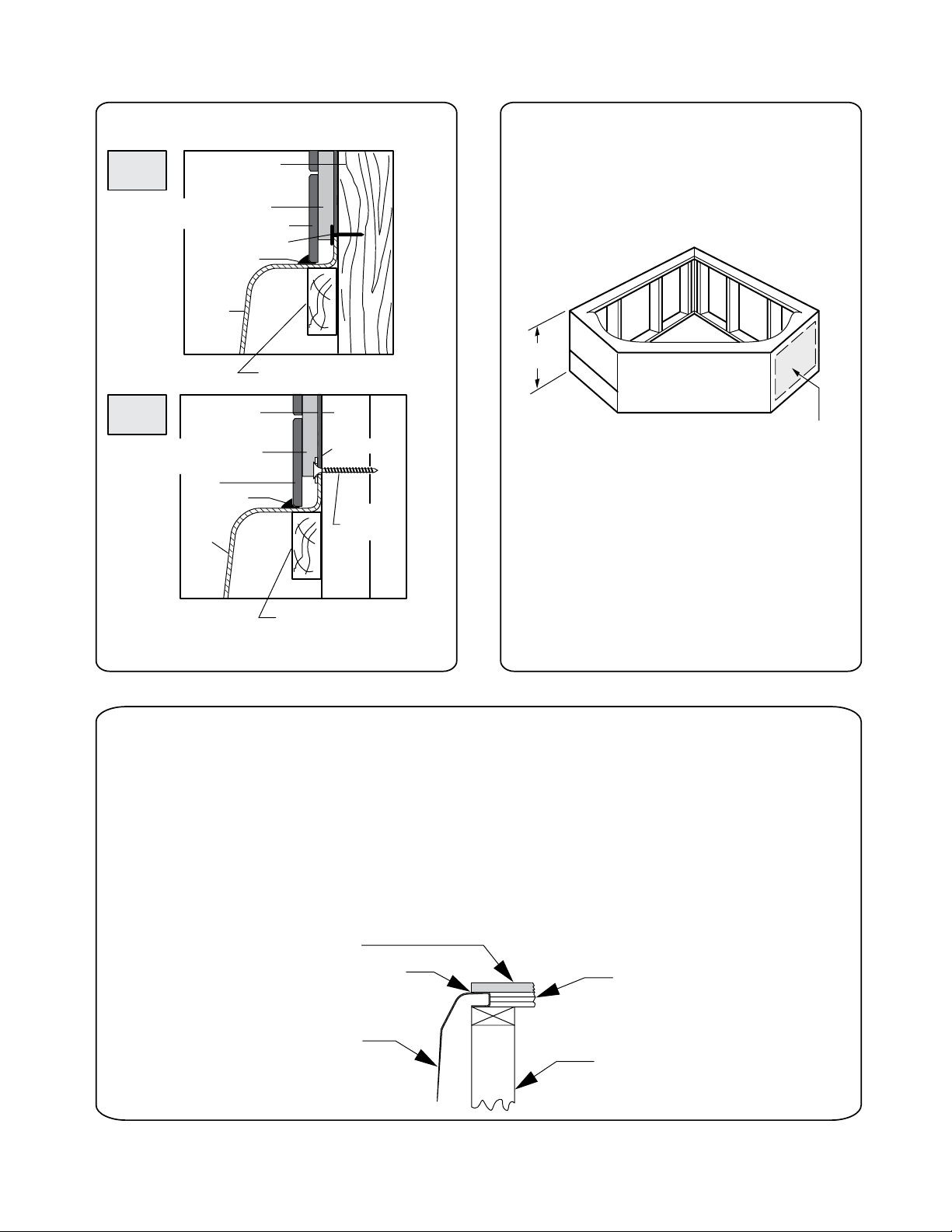

SUGGESTED WHIRLPOOL / BATH

TYPICAL FLANGE MOUNTING DETAIL

INSTALLATION METHOD

WOOD
STUDS

WATERPROOF DRYWALL
OR CEMENT BOARD

STUD

TILE

ROOFING NAIL

SEALANT

TUB

TYPICAL INSTALLATION -

CORNER

1 x 3 (25 x 76mm) WOOD
STRINGER FULL LENGTH

STEEL

STUDS

WATERPROOF DRYWALL
OR CEMENT BOARD

SECURE THE BATH TO THE STUDS AS SHOWN
FOR WOOD OR STEEL STUD CONSTRUCTION.

TILE

SEALANT

TUB

STEEL

STUD

WASHER

4" (102mm)
DRYWALL
SCREW

1 x 3 (25 x 76mm) WOOD
STRINGER FULL LENGTH

19-1/2

(495mm)

WHIRLPOOL

ACCESS PANEL

* SEE CUTOUT

TEMPLATE PROVIDED

UNLESS AN ACCESS OPENING OF AT LEAST

12" x 24" (305 x 610mm) IS PROVIDED,

WARRANTY SERVICE WILL NOT BE PERFORMED.

UNDER DECK MOUNTING INSTRUCTIONS

Please note that care must be taken to protect the surface of the tub during all aspects of the installation.
Do not drill or cut the bath deck with the tub directly beneath it as damage to the tub may result.

1. Install the tub per the installation instructions provided with the unit.

2. Prepare the bath deck support structure per the local codes. Note - the bath deck must be self supporting.

3. Cut bath deck to your specifications.

4. Place the bath deck in position and trace the opening on the tub with a soft pencil. Do not drill or cut the bath
deck with the tub directly beneath it as damage to the tub may result.

5. Remove the bath deck and apply a generous bead of waterproof sealant on the outer edge of the traced line.

6. Replace the bath deck and secure it into place.

7. Apply additional sealant along the tub and bath deck interface as necessary to ensure a watertight seal.

8. Remove excess sealant per the manufacturer's instructions.

Finished bath deck surface material must be

self-supporting and secured per local codes

Waterproof

Bathtub

Sealant

Bath deck support material

Tub support structure per installation
instructions provided with the tub

11

753737-100 Rev. E

All wiring must be performed by a licensed electrician in accordance with the national electrical code and all other applicable codes.

WHIRLPOOL ELECTRICAL INSTALLATION INSTRUCTIONS

WARNING: When using electrical products, basic precautions should always be observed, including the following:

!

1. DANGER: RISK OF ELECTRIC SHOCK! Connect only to a circuit protected by a ground-fault circuit interrupter.

2. Grounding is required. The unit should be installed by a licensed electrician and grounded.

3. Permit access for servicing motor as noted.

4. All building materials and wiring should be routed away from the pump body and heater (if equipped).

PLEASE SEE THE FOLLOWING TABLE FOR GFCI CIRCUIT REQUIREMENTS:

GFCI CIRCUIT REQUIREMENTS: FOR MODEL NUMBERS:

The whirlpool should be installed on a 120 vac,
GFCI circuit.

The circuit should be hard-wired from the electrical power supply panel. The
circuit must be a three (3) wire circuit from the electrical supply panel. A
grounded neutral wire and a third wire, earth ground, are essential.

15 amp dedicated

Optional heater requires a separate 15 amp maximum GFCI circuit.

The whirlpool should be installed on a 120 vac,
GFCI circuit.

The circuit should be hard-wired from the electrical power supply panel. The
circuit must be a three (3) wire circuit from the electrical supply panel. A
grounded neutral wire and a third wire, earth ground, are essential.

20 amp dedicated

Optional heater requires a separate 15 amp maximum GFCI circuit.

120 VAC

WH IT E

BL AC K

GND.

READ AND FOLLOW ALL INSTRUCTIONS

PUMP/MOTOR

ELECTRICAL DIAGRAM

2422, 2425, 2645, 2732

2771, 2908

ALL MODELS

6060, 2775, 2773, 2711,

2774, 7236

ALL MODELS

WI R E S EL EC T IO N G U ID E

753737-100 Rev. E

Ma x im u m di s ta n ce fr om

fu s eb o x to mo t or

50 'Wi r e L en gt h 10 0 '

15 0 ' 20 0 '

11 5 V P ow er Li n e

12Wi r e S iz e ( AW G ) 10 8 8

12

Th e s i ze s s ho w n o n th i s

ch a rt ar e r ec o mm e nd at i on s

fo r c o pp er co n du c to rs

on l y. A lw a ys fo l lo w

lo c al an d n at i on a l

el e ct r ic al co d es

For 6060L/V Corner Only

OPERATION

WARNING: Prior to operation, review the Important Safety Instructions
listed at the beginning of this instruction manual.

Once the heater is installed and the whirlpool pump is operating, the heater is
totally automatic. The heater will help maintain the temperature of the water in
the bath.

Pressure Switch

The heater is equipped with a preset pressure switch. The pump must be
running with water flowing in the whirlpool to allow the heater to turn on.

Indicator Light

This light turns on whenever the heater is operating.

High-Limit Switch

The heater includes an exclusive "Intelligent High-Limit". This safety circuit will not "false trip" from hot tap water. It will only turn the heater
off if the thermostat fails. If the high-limit trips frequently, call a service technician.
To manually reset the circuit in the event that the “High-Limit” switch has been activated, simply (1) Turn off the whirlpool pump. (2) Drain
water from the tub. (3) Remove power from heater by unplugging at receptacle or turning off circuit breaker. (4) The heater circuit will
automatically reset in less than 15 minutes. (5) Restore power to the heater. (6) Whirlpool bath is now ready to use.

HEATER “ON” LIGHT

FACTORY INSTALLED - NOT FOR RESA LE

HEATER P/N: 753174-100

Fig. 1

E-Z INSTALL

WHIRLPOOL

™

HEATER

Bonding Lug on
Heater Housing

ELECTRICAL CONNECTIONS

Install a separate 120VAC / 15AMP dedicated circuit with GFCI (Ground Fault Circuit Interrupter) protection.

At initial start-up with power ON, push the GFCI test button. The reset button should pop out. Push this button in to reset. If the GFCI fails to
operate in this manner, there is a ground fault or malfunction, indicating the possibility of electrical shock. Turn off the power and do not

use the bath until the source of the problem has been identified and corrected.

1. Route two separate branch circuits to the junction box near the whirlpool as shown in Figure 2. Each branch circuit MUST BE GFCI
PROTECTED and must use copper conductors only.

2. Ensure the heater and pump are properly GROUNDED and BONDED as required. Attach the 8 AWG solid copper conductor supplied with
the heater from the heater bonding lug to the motor frame bonding lug as shown in Figure 3. The conductor is secured to the lugs using set
screws. The motor frame shall have a second 8 AWG solid copper conductor connected from the frame bonding lug to the homes electrical
panel or approved local bonding point as shown in Figure 3.

SEPARATE

Fig. 2 Fig. 3

15 AMP GFCI OUTLET

12 0 V AC

WH ITE

BL ACK

GN D.

SEPARATE 15 AMP GFCI OUTLET

SEPARATE 20 AMP GFCI OUTLET

(for 2.1 H.P.R. PUMP ONLY)

12 0 V AC

WH ITE

BL ACK

GN D.

ELECTRICAL INSTALLATION

HEATER

PUMP/MOTOR

ELECTRICAL DIAGRAM

READ AND FOLLOW ALL INSTRUCTIONS

(PUMP/MOTOR)

SECOND
COPPER

CONDUCTOR

TO GROUND

(HEATER)

HEATER ON

LPOOL

WHIR

E-Z INSTALL

RUN 8 AWG SOLID COPPER
CONDUCTORS FROM
HEATER BONDING LUG TO
PUMP/MOTOR FRAME LUG
AND FROM PUMP/MOTOR
LUG TO APPROVED
GROUND AS SHOWN

™

HEATER

FIRST COPPER

CONDUCTOR

PUMP/MOTOR FRAME WITH
BONDING LUGS

13

753737-100 Rev. E

OPERATION:

NOTE: Each whirlpool is shipped from the factory with an air actuator on/off switch and pump with attached
power supply cord. OPERATING THE SYSTEM WITHOUT WATER (DRY RUNNING) WILL CAUSE PUMP
DAMAGE AND VOID THE WARRANTY. Always fill the whirlpool before operating the pump. The air switch is

mounted either on the deck or side wall of the tub.

1.

Fill the Whirlpool: Water level must be at least one inch (25mm) above the highest jet for proper operation.
(See diagram below.)

Do not fill whirlpool more than 2/3 full prior to the user completely immersing themselves into unit.

2.

3.

Start Whirlpool: Push on center of button. Button will depress and whirlpool will start.

Stop Whirlpool: Depress and release button and whirlpool will stop.

SAFE-T-HEATER

REMOVABLE BLANK

WATER LEVEL

6060L/V includes factory installed heater

*

*

AIR TUBING

AIR ACTUATOR SWITCH
(location varies with model)

OUTLET MUST BE
GFCI PROTECTED
(all heaters require separate GFCI)

4.

Air Volume Control Adjustments: Water turbulence is determined by the amount of air mixed with the

water. Rotate the air volume control counterclockwise for more turbulence--clockwise for less.

Air Volume Control Adjustments:

MORE AIR LESS AIR

753737-100 Rev. E

14

Adjustable Flow Clean Jet™: The water flow action may be adjusted from vigorous to soft by ro

tating the nozzle

counterclockwise for vigorous and clockwise for soft.

NOTE: You may balance the air volume control and nozzle adjustment for the most desirable condition.

Small Jet

Softer Massage

(counter-clockwise)

More Vigorous Massage

(clockwise)

Lifetime™ Drain Model 1599 (required on Models 7236L/V, 2422L/V,
2425L/V, 2771L/V)

Overflow:

Partially fill tub, then enter tub before completely filling to prevent overflow.

Tip Toe Drain:

Depress drain cap to open or close drain.

Access Panel (Model 2425L/V)

Remove access panel to service motor.

Large Jet

Softer Massage
(counter-clockwise)

More Vigorous Massage
(clockwise)

Tip Toe Drain

Overflow

Access Panel

15

753737-100 Rev. E

DRAIN CONNECTION AND SYSTEM TEST

Using recommended drain assembly, connect whirlpool drain to waste line in accordance with the drain assembly instructions.
Tighten all drain joints securely. Check the pump couplings and make sure they are hand-tight. Clean the whirlpool and fill with
water to a point 2" above the top of the highest jet. Recheck the pump couplings and make certain that they are not leaking.
(Although the pump couplings are factory tightened and inspected, some loosening may have occurred during transit.) Make sure
the whirlpool is connected to the electrical supply and turn the whirlpool on. Check for leaks around all piping connections while the
whirlpool is running.

POST INSTALLATION CLEAN-UP

Remove all construction debris from bath. Tile grout can be removed with a wooden popsicle stick or tongue depressor. Do not use
wire brushes or any other metal implement on bath surface.

Post installation clean-up generally can be completed using warm water and liquid dishwashing detergent. Stubborn dirt or stains
may be removed using granular Spic and Span® mixed with water.

Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

AFTERCARE and CLEANING

• The high gl oss su rfa ce is resistant to impact and chemi cal s a nd wil l r eta in its lasting luster with pr ope r c are an d

mainten anc e.

• Always f ill th e t ub wit h t emperate water. Excessively h ot wat er may ca use surface damage

• Remove b ath ma t a fte r u se and hang to dry. Allowing bat h m at to dry in th e tub may cause surface damag e.

• Clean af ter us e w ith a mil d liquid household detergent cle ane r. Do not us e Lestoil, Lysol Disinfectant (s pra y o r
concent rat e), or Ly sol Ba sin, Tub and Tile Cleaner, Wi nde x, Mr. Cl ean , D ow Disinfectant Bathroom Clea ner , o r

cleanin g p rod uct s i n a ero sol cans.

HARSH CHEMICALS SHOULD NEVER BE USED ON ACRYLIC SURFACES.

• Do not u se wir e b rus hes , k nives or sharp objects to rem ove st ain s, cig are tte tar deposits,or other sur fac e b lem ish es.

• Abrasive cl ean ers or po wde rs must not be used, since th ey wil l d ull th e s urface. If the glossy surface lo ose s

its she en, du lle d a rea s c an be restored by rubbing wit h a wh ite "a uto mot ive type" polishing compound and
waxing wit h a "l iqu id wax ."

• Do not w ax are as whe re you walk or stand.

• Do not a llo w n ail po lis h r emover, acetone, dry cleaning fl uid , p ain t r emo ver or other solvents to come in to

contact wi th the su rfa ce.

• Clean th e s urr oun din g s urf ace immediately after using c aus tic dr ain cl ean ers.

• Burning cig are tte s w ill da mage the surface.

• Should d ama ge to the fi xtu re occur, repairs can be made qu ick ly and ea sil y.

Your di str ibu tor or bu ild er can provide details.

• Do not p erm it dra in cle ane r to enter the circulation sy ste m.

CIRCULATION SYSTEM CLEANING-PURGING PROCEDURES

STEP 1. Once every month purge and clean the circulating system. Fill whirlpool with warm water and add two teaspoons

of dishwasher detergent and one-half cup of house hold bleach.

STEP 2. Activate whirlpool system in accordance with operating instructions or two minutes.

STEP 3. Drain and refill whirlpool with cool water and circulate for additional five minutes.

STEP 4. Drain whirlpool completely.

753737-100 Rev. E

16

AS AMERICA, INC. (AMERICAN STANDARD) LIMITED LIFETIME WARRANTY

FOR LIFETIME™ / EVOLUTION™ ACRYLIC WHIRLPOOLS

AS America (“American Standard”) warrants to the original consumer purchaser that it will, at its option, repair or replace this whirlpool or any
of its parts that are found by American Standard, in its sole judgment, to be defective under normal residential use and maintenance so long
as it is owned by the original consumer purchaser.

This warranty shall only become effective upon receipt by American Standard of a completely filled out Warranty Registration Card evidencing
proof of purchase.

THIS WARRANTY SHALL BE VOID IF THE ACCESS PANEL TO THE WHIRLPOOL IS COVERED IN ANY MANNER CONTRARY TO THE
INSTALLATION INSTRUCTIONS. In no event will American Standard be liable for the cost of repair or replacement of any installation
materials including but not limited to tiles, marble etc.

This limited warranty DOES NOT COVER the following:

1. Defects or damages arising from shipping, installation, alterations, accidents, abuse, misuse, lack of proper maintenance and cleaning as
directed in the owner’s manual and use of other than genuine American Standard replacement parts, in all cases whether caused by a
plumbing contractor, service company, the owner or any other person.

2. Deterioration through normal wear and tear and the expense of normal maintenance.

3. Commercial application.

4. Options and accessories. American Standard’s limited warranty on these items is one year for parts only and excludes labor. This one
year limited warranty covers accessories manufactured by American Standard (e.g. aprons, drains, grab bars, heaters, trim kits) against
defects of material or workmanship. Warranty coverage begins on the date the accessory was originally purchased by the owner.

5. Postage or shipping costs for returning products for repairs or replacement under this limited warranty and labor or other costs incurred in
connection with product removal or installation under this limited warranty.

6. ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, ALL OF WHICH ARE HEREBY EXPRESSLY DISCLAIMED, OR
THE EXTENSION BEYOND THE DURATION OF THIS LIMITED WARRANTY OF ANY IMPLIED WARRANTIES, INCLUDING THOSE OF
MERCHANTABILITY OR FITNESS FOR AN INTENDED PURPOSE. (Some jurisdictions do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you.)

7. Responsibility for compliance with local code requirements. (Since local code requirements vary greatly distributors, retailers, dealers,
installation contractors and users of plumbing products should determine whether there are any code restrictions on the install
specific product.)

This warranty gives you specific legal rights. You may have other legal rights that vary from state to state. For service under this warranty, you
should contact the following:

By Mail: American Standard Inc.

P.O. Box 6820
Piscataway, N.J. 08855
Attention: Customer Care Center

By Telephone:

1-800-442-1902

ation or use of a

AS AMERICA, INC. (AMERICAN STANDARD) ONE YEAR LIMITED WARRANTY

FOR E-Z INSTALL WHIRLPOOL HEATER

If inspection of this AS American, Inc. (“American Standard”) plumbing product, within one year after its initial purchase, confirms that it is
defective in materials or workmanship, American Standard will repair or, at its option, exchange the product for a similar model.

This warranty applies only to the original purchaser and installation of these products.

This limited warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser of this
product should check with a local building or plumbing contractor to insure local code compliance before installation.

This warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance,
abuse, misuse, accident or other damages; if it was not installed in accordance with American Standard's instructions; or if it has been
modified in a manner inconsistent with the product as shipped by American Standard.

American Standard's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or
installation, nor shall American Standard be responsible for any other incidental or consequential damages attributable to a product
defect or to the repair or exchange of a defective product, all of which are expressly excluded from this warranty. (Some states or

provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not apply to you.)

This warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or from province to province, in

which case this warranty does not affect such statutory rights.

For service under these warranties, it is suggested that a claim be made through the contractor or dealer from or through whom the product
was purchased, or that a service request (including a description of the product model and of the defect) be sent to:

By Mail: American Standard Inc.

P.O. Box 6820
Piscataway, N.J. 08855
Attention: Customer Care Center

SERVICE: For service or repair contact the number below. The model number and

serial number for your whirlpool are located on a label near the motor.

HOTLINE FOR HELP

For toll-free information and answers to your questions, call 1 [phone]
weekdays: 8:00 a.m. to 5:00 p.m. Eastern Time

By Telephone:

1-800-442-1902

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2008

17

753737-100 Rev. E
