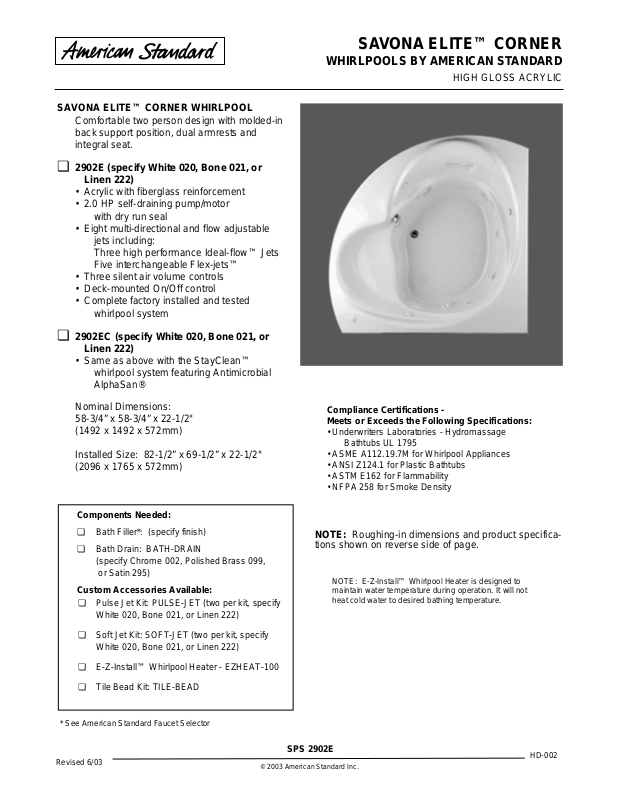

SAV ONA ELITE™ CORNER
WHIRLPOOLS BY AMERICAN STANDARD
HIGH GLOSS ACRYLIC
SAVONA ELITE™ CORNER WHIRLPOOL
Comfortable two person design with molded-in
back support position, dual armrests and
integral seat.
❏ 2902E (specify White 020, Bone 021, or
Linen 222)
• Acrylic with fiberglass reinforcement
• 2.0 HP self-draining pump/motor
with dry run seal
• Eight multi-directional and flow adjustable
jets including:
Three high performance Ideal-flow™ Jets
Five interchangeable Flex-jets™
• Three silent air volume controls
• Deck-mounted On/Off control
• Complete factory installed and tested
whirlpool system
❏ 2902EC (specify White 020, Bone 021, or
Linen 222)
• Same as above with the StayClean™
whirlpool system featuring Antimicrobial
AlphaSan®
Nominal Dimensions:
58-3/4” x 58-3/4” x 22-1/2"
(1492 x 1492 x 572mm)
Installed Size: 82-1/2” x 69-1/2” x 22-1/2"
(2096 x 1765 x 572mm)
© 2003 American Standard Inc.
HD-002
Revised 6/03
SPS 2902E
Components Needed:
❏ Bath Filler*: (specify finish)
❏ Bath Drain: BATH-DRAIN
(specify Chrome 002, Polished Brass 099,
or Satin 295)
Custom Accessories Available:
❏ Pulse Jet Kit: PULSE-JET (two per kit, specify
White 020, Bone 021, or Linen 222)
❏ Soft Jet Kit: SOFT-JET (two per kit, specify
White 020, Bone 021, or Linen 222)
❏ E-Z-Install™ Whirlpool Heater - EZHEAT-100
❏ Tile Bead Kit: TILE-BEAD
NOTE: Roughing-in dimensions and product specifications shown on reverse side of page.
Compliance Certifications Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
* See American Standard Faucet Selector
NOTE: E-Z-Install™ Whirlpool Heater is designed to
maintain water temperature during operation. It will not
heat cold water to desired bathing temperature.

SAV ONA ELITE™ CORNER
WHIRLPOOLS BY AMERICAN STANDARD
HIGH GLOSS ACRYLIC
© 2003 American Standard Inc.
1588m
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUMP OF BATH IS
SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIALS BY OTHERS.
OPTIONAL TILING BEAD KIT No. TILE-BEAD MUST BE ORDERED SEPARATELY.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.
CUTOUT TEMPLATE PROVIDED IN SHIPPING BOX. MAY BE REQUESTED SEPARATELY.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM PIPING
AND DRAIN OVERFLOW. MOUNTING HOLES DRILLED BY INSTALLER.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 / CSA Certified.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflet.
■
▲
●
●
RECOMMENDED
FITTING LOCATION
64 X 330mm (2-1/2 X 13)
51 mm
(2)
m
(62-1/2)
m
1492m
(58-3/4
▲OUTLINE OF
CUTOUT
1048mm
(41-1/4)
C/L OF
OVERFLOW
)
1067 mm
(42)
C/L
2096mm
(82-1/2)
102mm
(4)
102mm
(4)
PROVIDE ACCESS
TO PUMP FOR
SERVICING ON ALL
INSTALLATIONS
203mm
(8)
1-1/2 O.D. DRAIN
OUTLET
1067 mm
(42)
IN-LINE HEATER
REMOVABLE BLANK
ON/OFF
SWITCH
CUTOUT
IN FLOOR
FOR
DRAIN
914mm
(36)
PUMP
1765 mm
(69-1/2)
521 mm
(20-1/2)
ROUGH
FLOOR
572 mm
(22-1/2)
■ LEVELING
STRINGER
NOT FOR
SUPPORT
INTEGRAL
FEET
1-1/2 O.D. TAILPIECE
44 mm
(1-3/4)
89 mm
(3-1/2)
1-1/2 N.P.T.M.
THREADS
GENERAL SPECIFICATIONS FOR 2902E WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
82-1/2 x 69-1/2 x 22-1/2 In.(2096 x 1765 x 572mm)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
144 Lbs. (65 Kg.)
33 Lbs./Sq.Ft. (165 Kgs./Sq.m)
803 Lbs. (361 Kg.)
38 x 30 In. (965 x 762mm)
58 x 55 In. (1473 x 1397mm)
15-3/4 In. (400mm)
2.1 HP, 14.4 AMPS, 120V.PUMP
79 Gal. (299 L)
73 Gal. (277 L)
41.7
68.4
