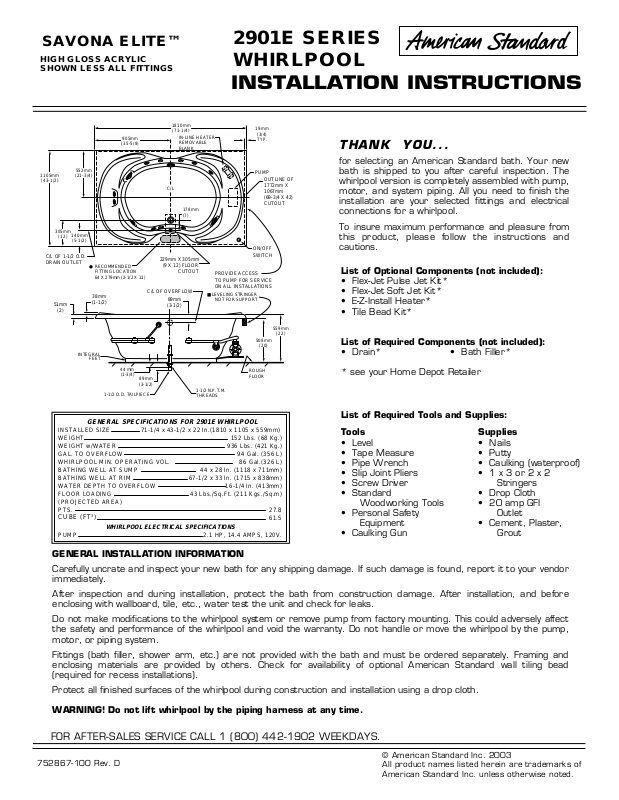

American Standard 2901E User Manual
SAVONA ELITE™
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
2901E SERIES
WHIRLPOOL
INSTALLATION INSTRUCTIONS
905mm
(35-5/8)
1105mm
(43-1/2)
552mm
(21-3/4)
305mm
140mm
(12)
(5-1/2)
C/L OF 1-1/2 O.D.
DRAIN OUTLET
51mm
(2)
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
●
RECOMMENDED
FITTING LOCATION
64 X 279mm (2-1/2 X 11)
38mm
(1-1/2)
INTEGRAL
FEET
44 mm
(1-3/4)
1-1/2 O.D. TAILPIECE
GENERAL SPECIFICATIONS FOR 2901E WHIRLPOOL

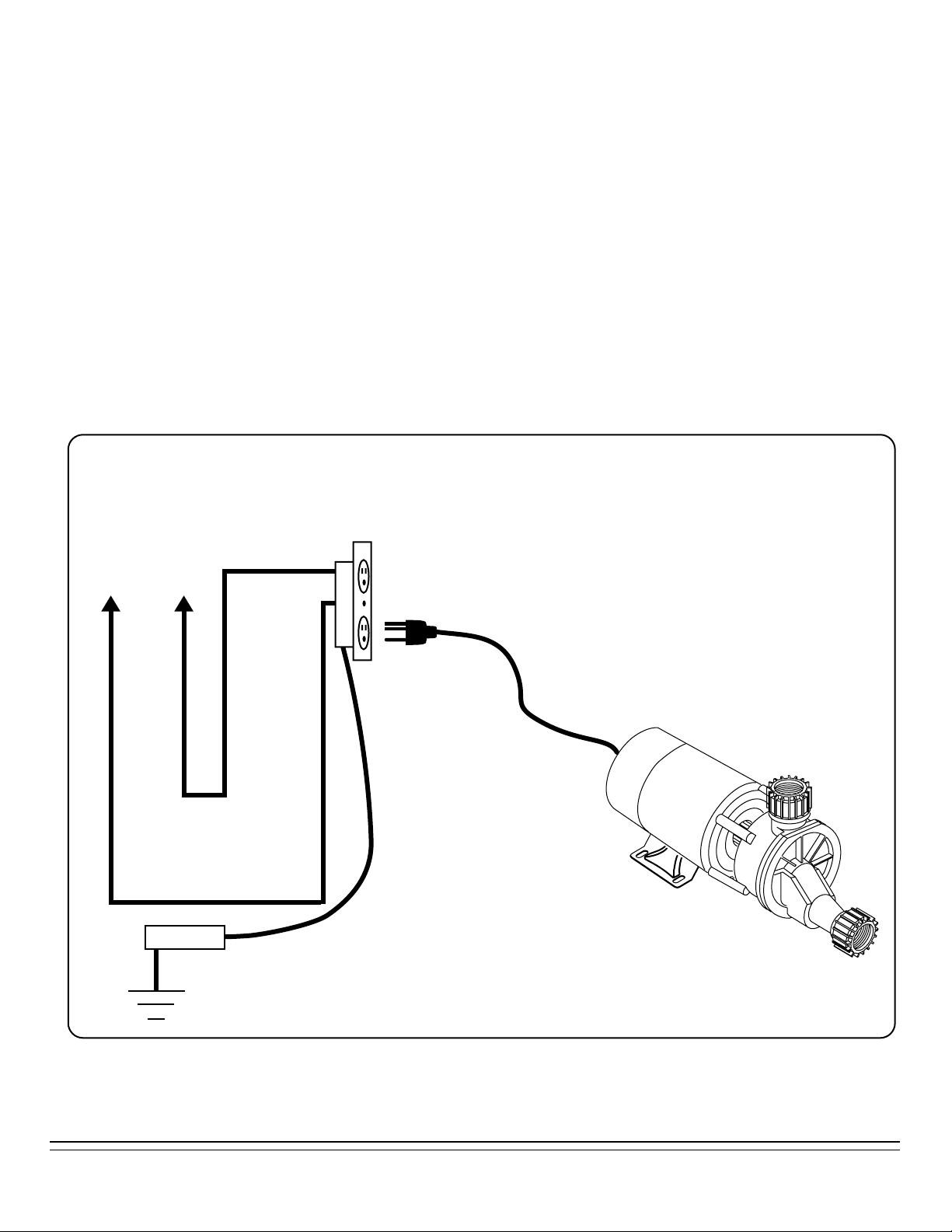

WHIRLPOOL ELECTRICAL SPECIFICATIONS
1810mm
(71-1/4)
IN-LINE HEATER
REMOVABLE
BLANK
C/L
178mm
(7)
229mm X 305mm
(9 X 12) FLOOR
CUTOUT
C/L OF OVERFLOW
89mm
(3-1/2)
89 mm
(3-1/2)
71-1/4 x 43-1/2 x 22 In.(1810 x 1105 x 559mm)
PROVIDE ACCESS
TO PUMP FOR SERVICE
ON ALL INSTALLATIONS
■ LEVELING STRINGER
NOT FOR SUPPORT
1-1/2 N.P.T.M.
THREADS
152 Lbs. (68 Kg.)
44 x 28 In. (1118 x 711mm)
67-1/2 x 33 In. (1715 x 838mm)
43 Lbs./Sq.Ft. (211 Kgs./Sq.m)
2.1 HP, 14.4 AMPS, 120V.PUMP
19mm
(3/4)
TYP.
PUMP
OUTLINE OF
1772mm X
1067mm
(69-3/4 X 42)
CUTOUT
ON/OFF
SWITCH
508mm
(20)
ROUGH
FLOOR
936 Lbs. (421 Kg.)
94 Gal. (356 L)
86 Gal.(326 L)
16-1/4 In. (413mm)
27.8
61.5
559mm
(22)
THANK YOU...
for selecting an American Standard bath. Your new
bath is shipped to you after careful inspection. The
whirlpool version is completely assembled with pump,
motor, and system piping. All you need to finish the
installation are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure from
this product, please follow the instructions and
cautions.
List of Optional Components (not included):
• Flex-Jet Pulse Jet Kit*
• Flex-Jet Soft Jet Kit*
• E-Z-Install Heater*
• Tile Bead Kit*
List of Required Components (not included):
• Drain* • Bath Filler*
* see your Home Depot Retailer
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard
Woodworking Tools
• Personal Safety
Equipment
• Caulking Gun
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2
Stringers
• Drop Cloth
• 20 amp GFI
Outlet
• Cement, Plaster,
Grout
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor
immediately.
After inspection and during installation, protect the bath from construction damage. After installation, and before
enclosing with wallboard, tile, etc., water test the unit and check for leaks.
Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect
the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,
motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead
(required for recess installations).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.
WARNING! Do not lift whirlpool by the piping harness at any time.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
752867-100 Rev. D
© American Standard Inc. 2003
All product names listed herein are trademarks of
American Standard Inc. unless otherwise noted.
INSTALLATION AND FRAMING INSTRUCTIONS
The variety of installations possible for this whirlpool may require framing procedures other than those shown. Locate studs
as required. Ensure roughing-in dimensions are proper, plumb and square. Provisions must be made in all installations for an
access opening for servicing the pump and controls. It is strongly recommended that an additional opening be provided for
access to the drain components.
1. Position the whirlpool into the installation opening and level the deck, shimming the integral support feet as necessary.
2. Install drain components to the whirlpool following the manufacturers instructions. Before replacing your whirlpool for final
installation, be certain that an opening has been provided in the sub-floor for the drain. See the roughing-in drawing for
suggested opening size and location dimensions.
3 . Replace whirlpool and re-shim the integral support feet, shimming the entire length of the support feet. Secure the shims
using construction adhesive, silicone, mortar or equivalent materials. While not a necessity, the use of a foundation base
consisting of cement (e.g. Sakrete), mortar, or grout will help provide a solid and secure installation.
TYPICAL PIER TYPE INSTALLATION
LEVELING SURFACE
WATERPROOF
SEALANT
BATH
SUNKEN OR ISLAND
INSTALLATION
AS DESIRED
(508mm)
UNLESS AN ACCESS OPENING OF AT LEAST
12" X 24" (305 X 610MM) IS PROVIDED,
WARRANTY SERVICE WILL NOT BE PERFORMED.
20
42"
(1067mm)
CUTOUT
AS DESIRED
ACCESS PANEL
69-3/4"
(1772mm)
CUTOUT
24
(610mm)
12
(305mm)
752867-100 Rev.D
(2)
