FIXTURE-MOUNTED BIDET FITTING

MODEL NUMBER:

2373.401 Fixture-Mounted Bidet Fitting

Vacuum breaker. Pop-up drain. Metal Lever handles.

2373.400 Fixture-Mounted Bidet Fitting

Less vacuum breaker. Pop-up drain.
Metal Lever handles.

2373.421 Fixture-Mounted Bidet Fitting

Vacuum breaker. Pop-up drain. Metal Cross handles.

2373.420 Fixture-Mounted Bidet Fitting

Less vacuum breaker. Pop-up drain.
Metal Cross handles.

PRODUCT FEATURES:

Brass Construction:

Durable - Excellent in high use
applications. Ideal for prolonged contact with water. Provides
the finest surface for application of all colors and finishes.

Ceramic Disc Valve Cartridges: Assures a lifetime of

smooth handle operation and drip-free performance.

Exclusive Speed Connect Metal Drain:

• Fewer parts. Installs in less time.

• No adjustments required - seals the first time, every time.

• Flexible stainless steel cable - installs effortlessly in tight spaces.

Choice of Finishes:

Wide range of durable finishes.

SUGGESTED SPECIFICATION:

Two handle deck-mount bidet fitting with matching pop-up drain shall feature solid brass construction. Shall also feature 1/4
turn ceramic disc valve cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be
American Standard Model # 2373.4__.___.

GENERAL DESCRIPTION:

Cast brass valve bodies. 1/4 turn washerless ceramic disc
valve cartridges. Diverter controls water flow between
douche spray and flushing rim. Douche spray has built-in
spray height adjustment. 20 inch (500mm) long flexible
stainless steel drain cable is pre-assembled to faucet body.
Metal Speed Connect™ drain body with 1-1/4" (32mm) tail
piece.

203mm - 305mm

(8 TO 12)

FLEXIBLE

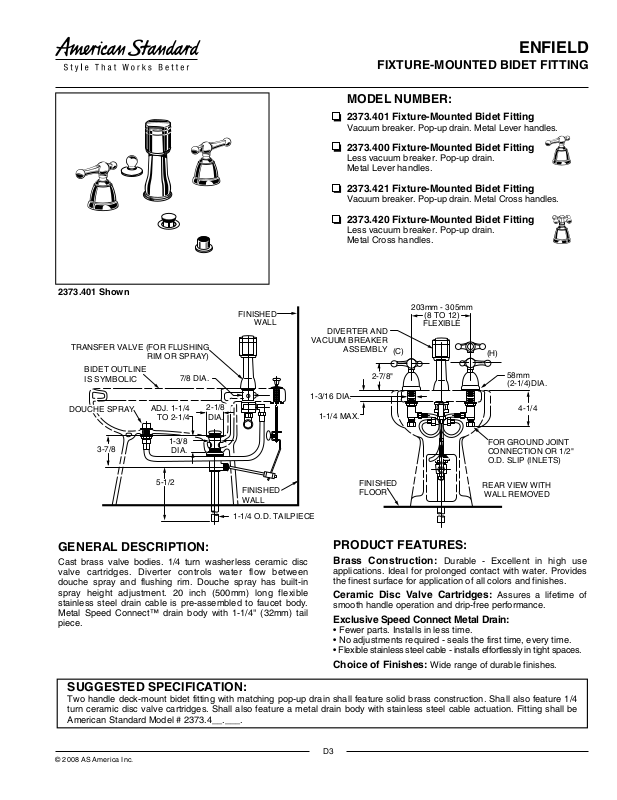

2373.401 Shown

2-7/8"

58mm
(2-1/4)DIA.

FINISHED

WALL

BIDET OUTLINE
IS SYMBOLIC

FINISHED
FLOOR

FINISHED
WALL

1-1/4 O.D. TAILPIECE

ADJ. 1-1/4

TO 2-1/4

3-7/8

5-1/2

1-3/8

DIA.

7/8 DIA.

DIVERTER AND

VACUUM BREAKER

ASSEMBLY

1-1/4 MAX.

1-3/16 DIA.

(C)

(H)

4-1/4

FOR GROUND JOINT
CONNECTION OR 1/2"
O.D. SLIP (INLETS)

REAR VIEW WITH

WALL REMOVED

TRANSFER VALVE (FOR FLUSHING

RIM OR SPRAY)

DOUCHE SPRAY

2-1/8

DIA.

ENFIELD

© 2008 AS A meric a Inc.

D3

CODES AND STANDARDS

These products meet or exceed the following
codes and standards:

ASME A112.18.1
CSA B 125
ASSE 1001 - 2373.401 / 421 only

Product
Number

Description

Fixture-mounted bidet fitting. Vacuum breaker.
Metal Speed Connect™ pop-up drain. Metal Lever handles.

Finish Options

Polished

Chrome

002

Polished

Nickel

008

068

PVD

Blackened

Bronze

PVD

Satin

Nickel

295

Fixture-mounted bidet fitting. Less vacuum breaker.
Metal Speed Connect™ pop-up drain. Metal Lever handles.

2373.401

2373.400

Fixture-mounted bidet fitting. Vacuum breaker.
Metal Seped Connect™ pop-up drain. Metal Lever handles.

Fixture-mounted bidet fitting. Less vacuum breaker.
Metal Speed Connect™ pop-up drain. Metal Lever handles.

2373.421

2373.420

Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
